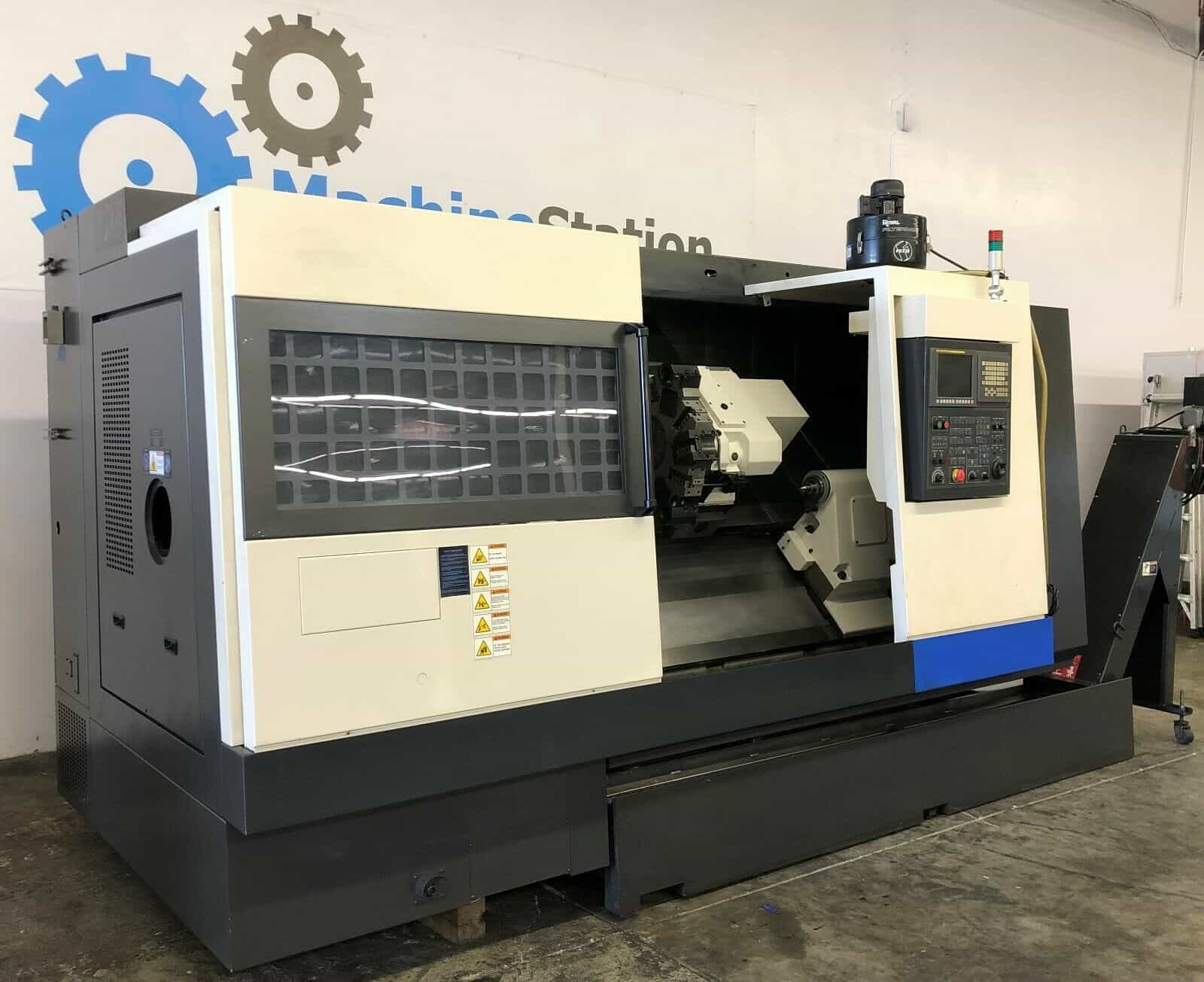

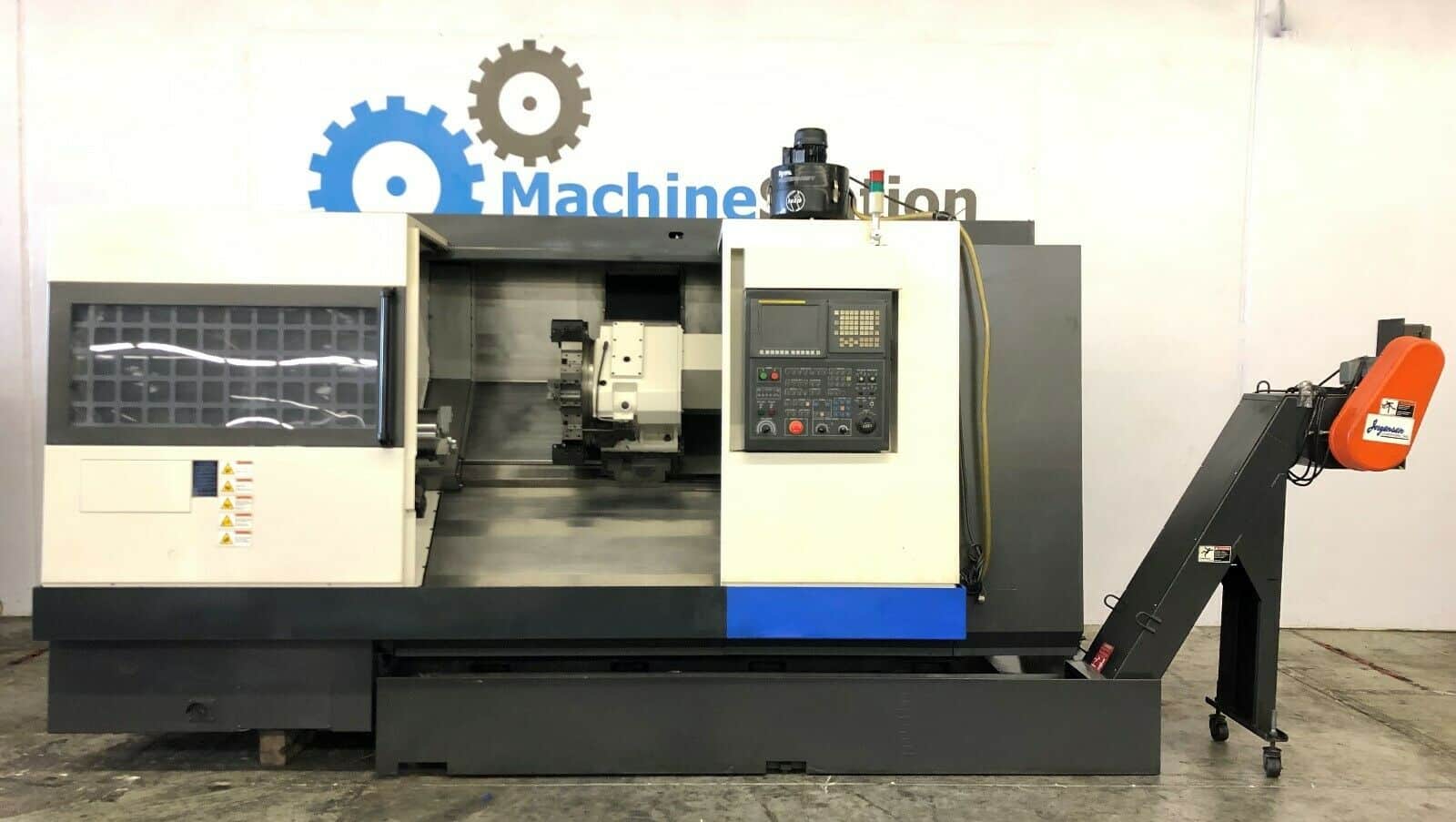

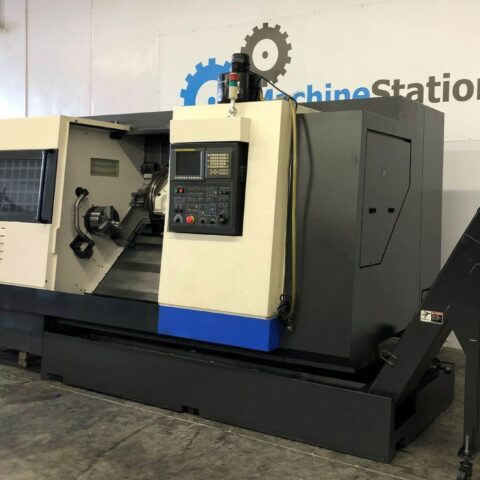

Hwacheon 300LMC CNC Turning Long Bed Lathe

This machine is in very Good running condition. It is equipped with 12″ Chuck, C Axis, Live Tool Turret, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.

Share

Description

HWACHEON 300LMC CNC TURNING LONG BED LATHE

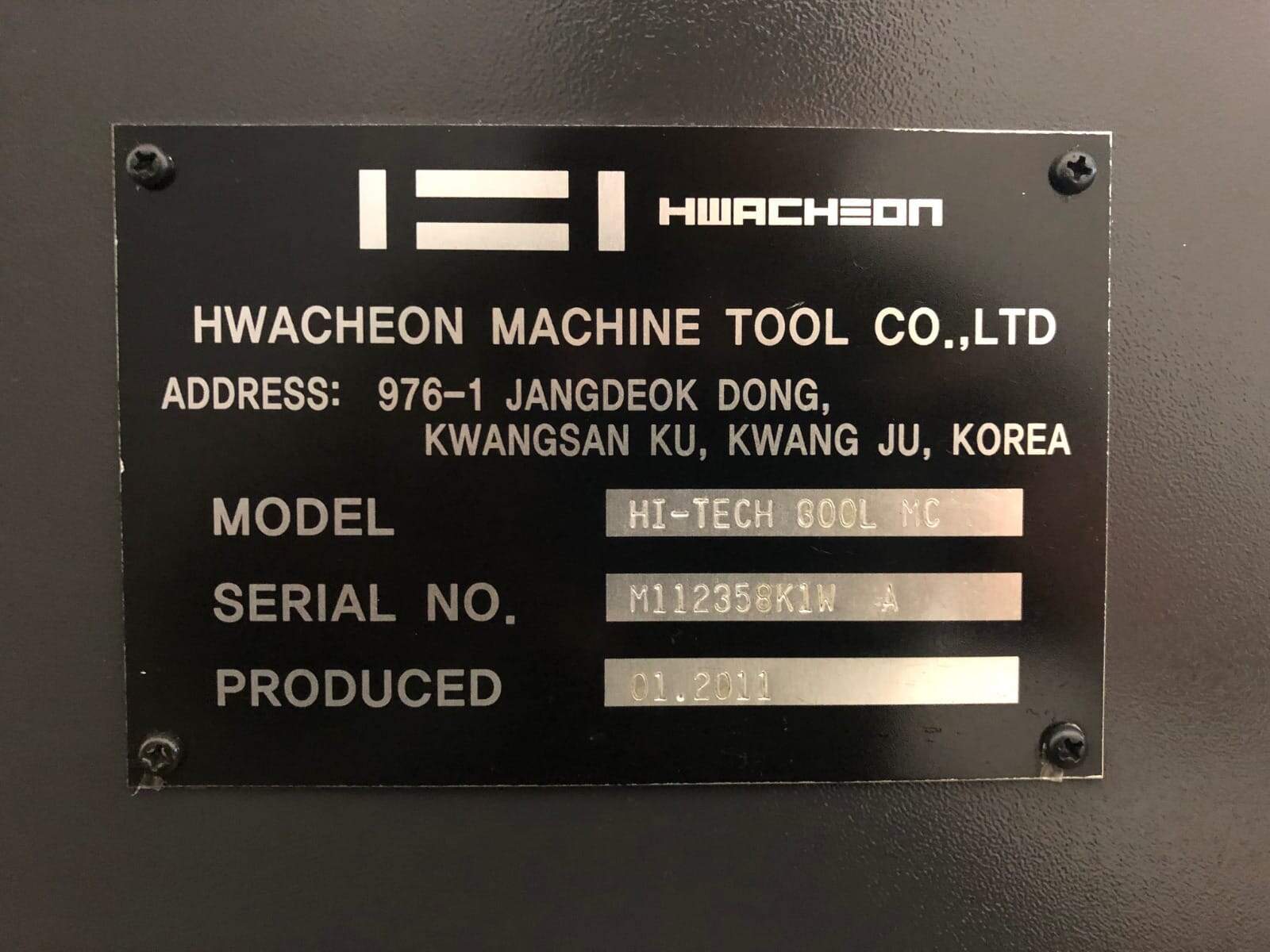

Make Hwacheon
Model No. Hi-Tech 300
Year 2011

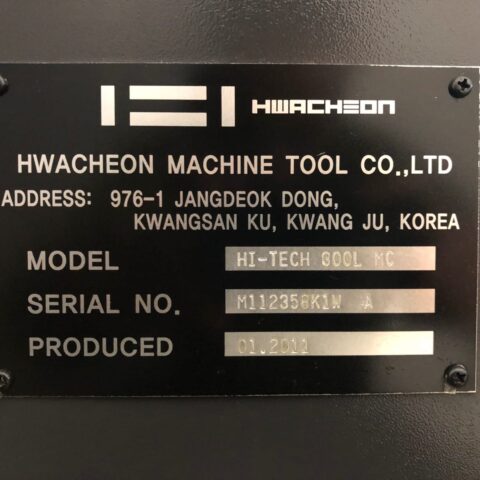

Serial # M112358
Condition Very Good
Comes with 3 jaw Chuck, Tool Presetter, Tailstock & Chip Conveyor

Replacement Cost is approx. $185,000.00 with similar options.

  • Hwacheon 300LMC CNC Equipped With:

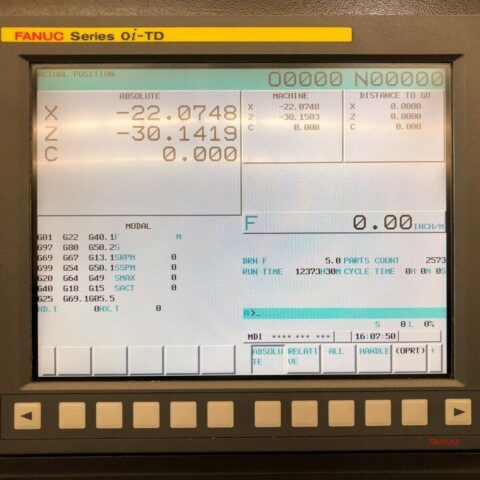

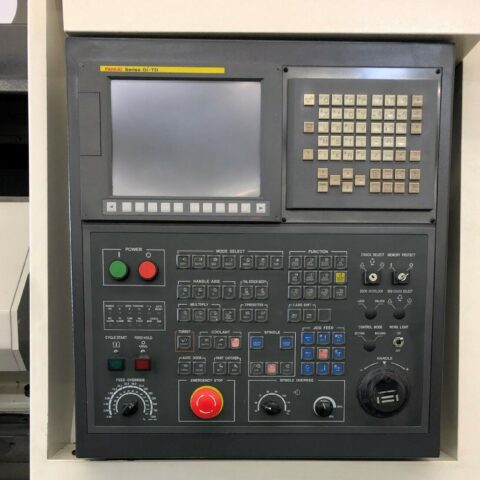

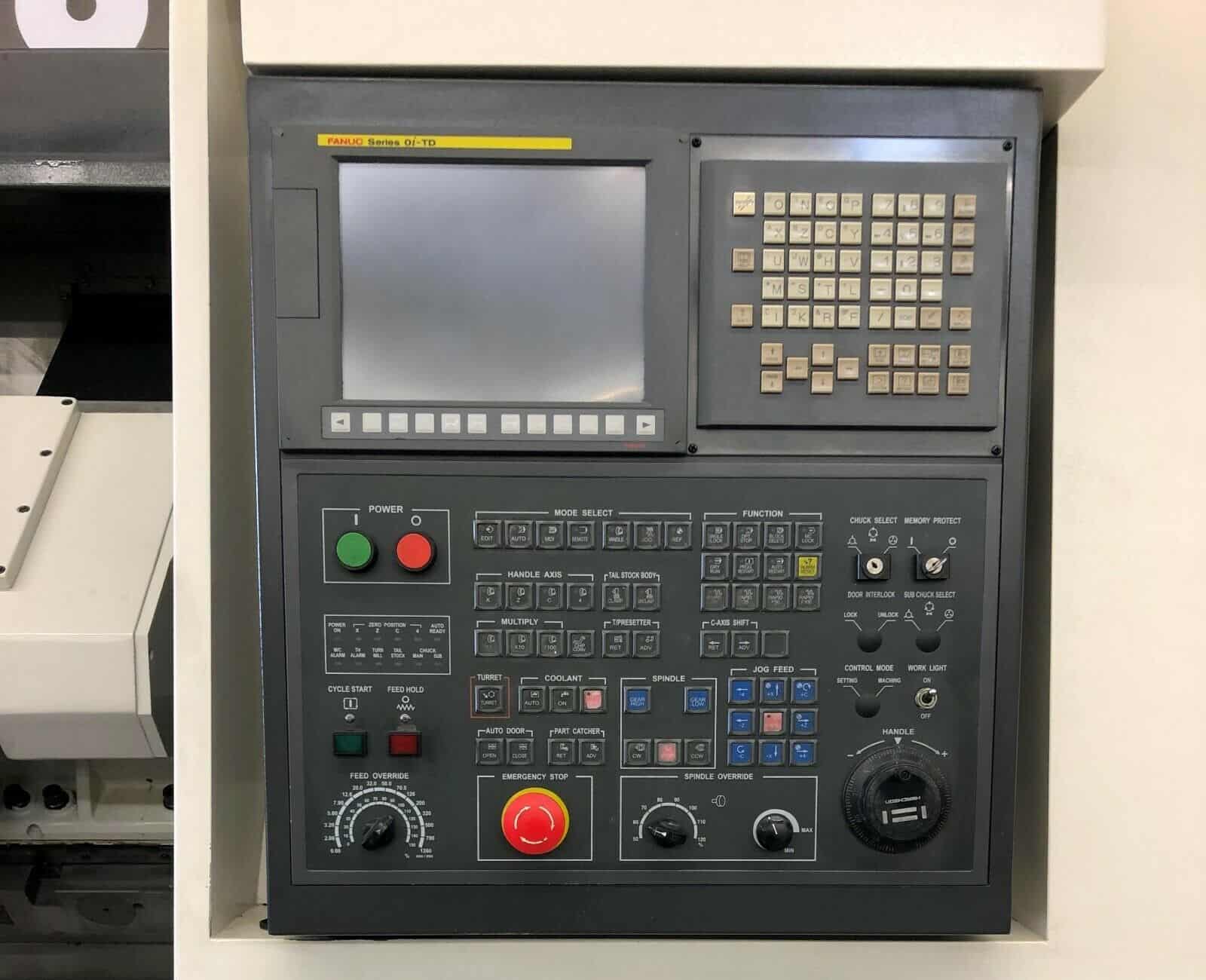

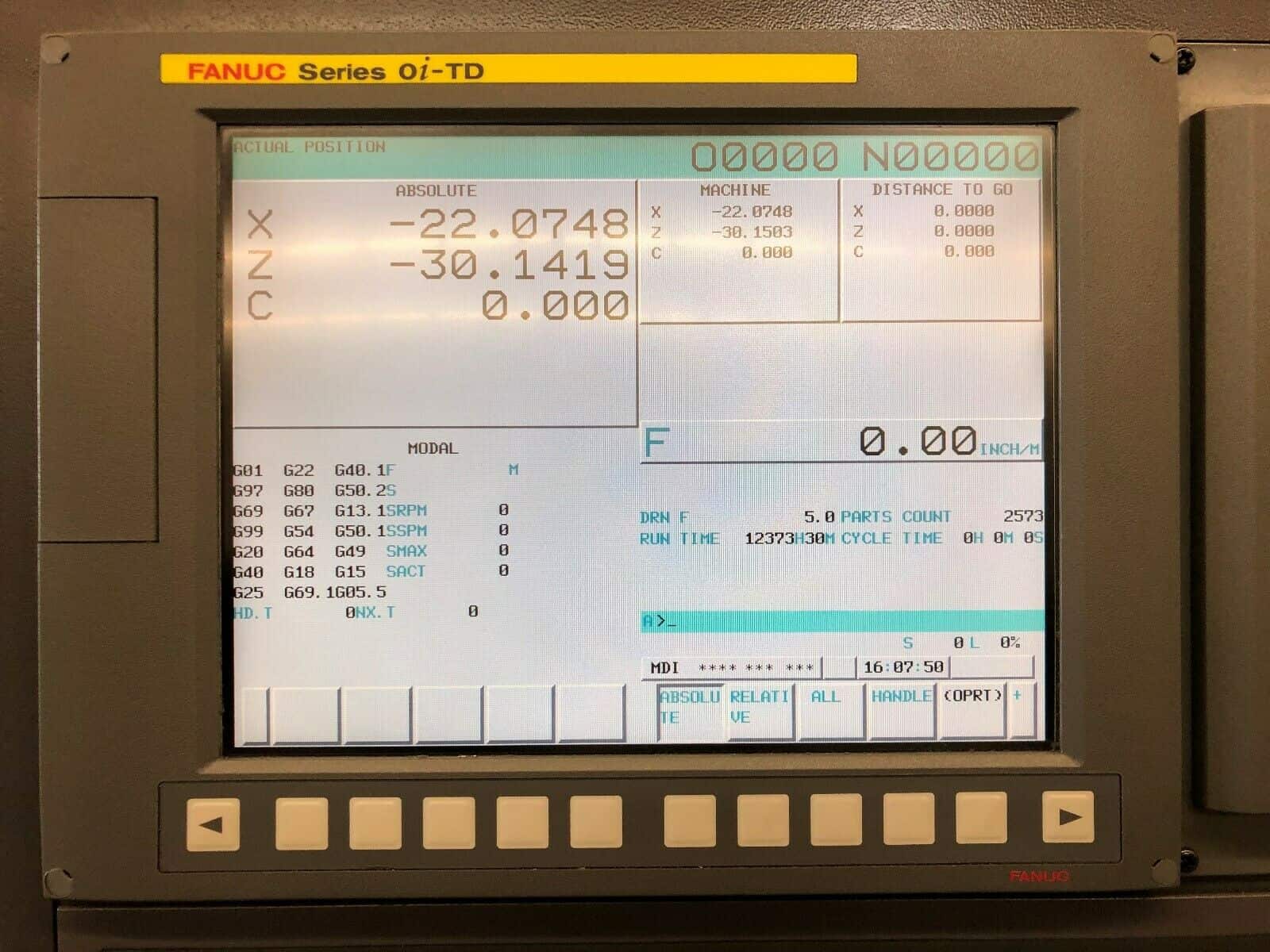

  • Fanuc 0i-TD series CNC Control
  • C Axis

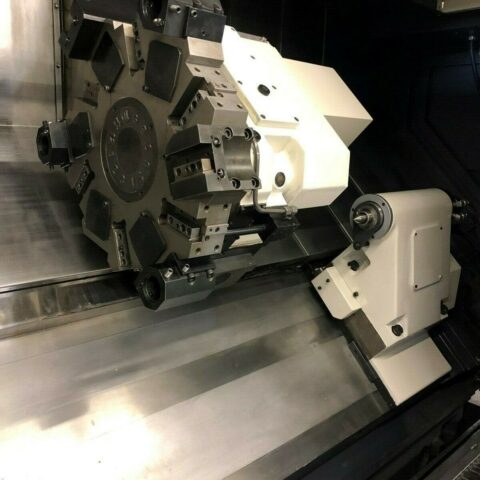

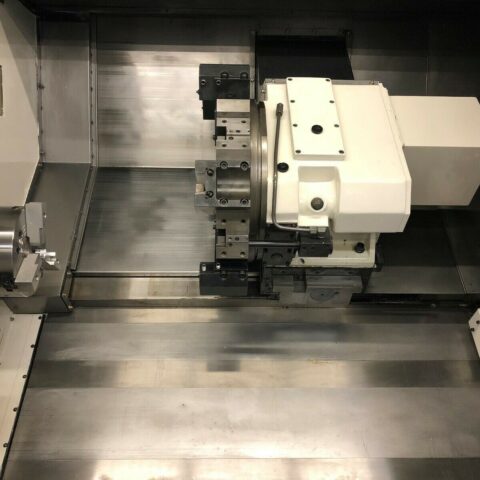

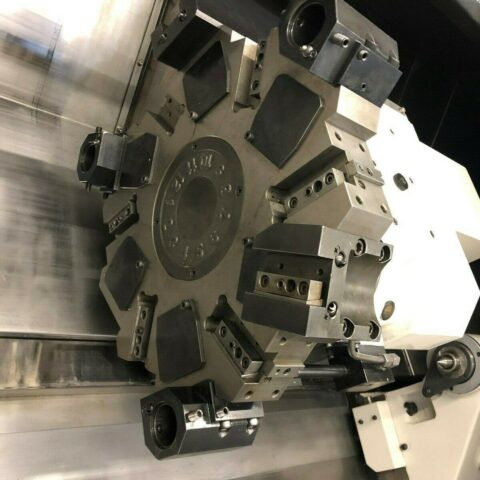

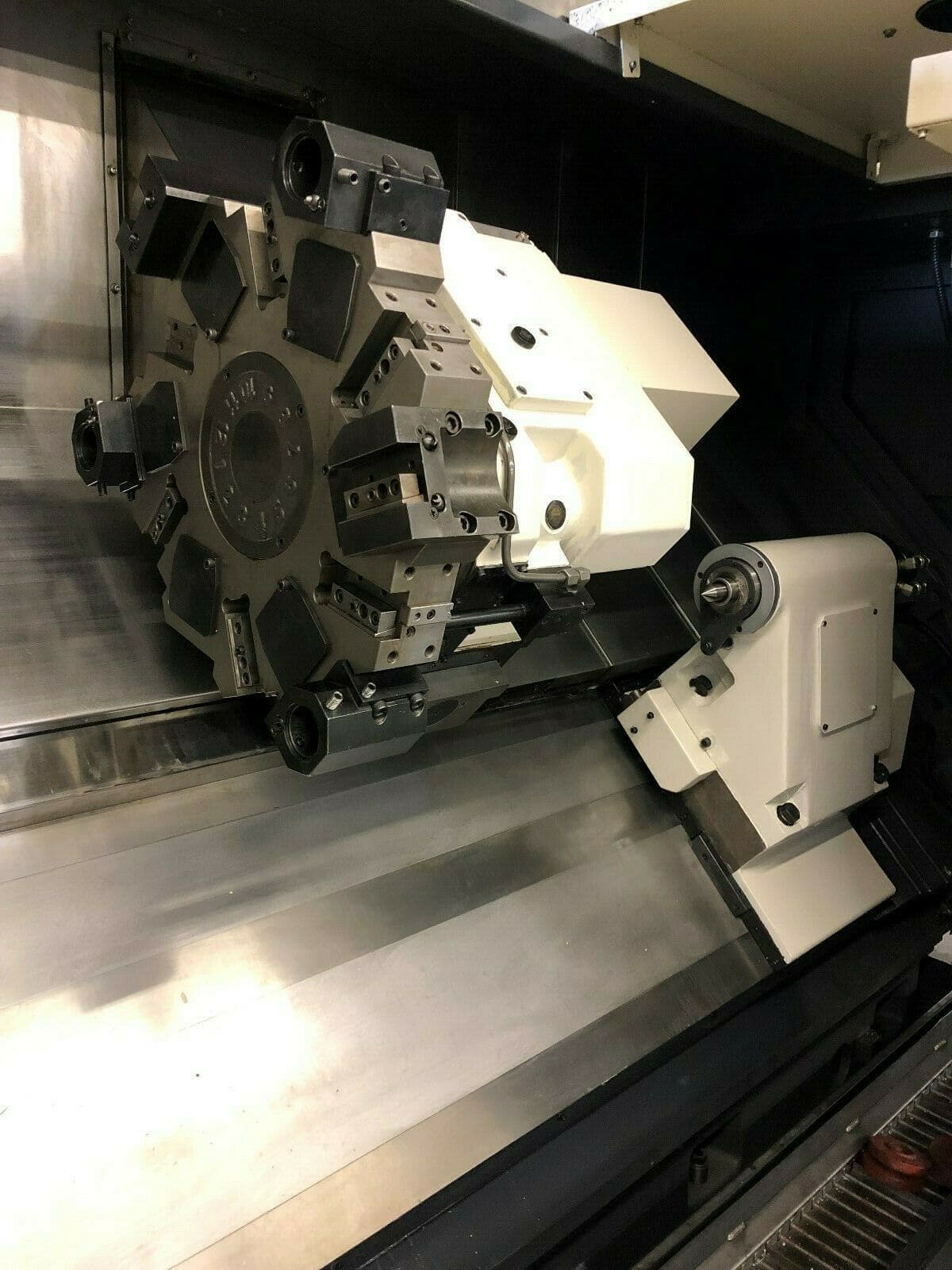

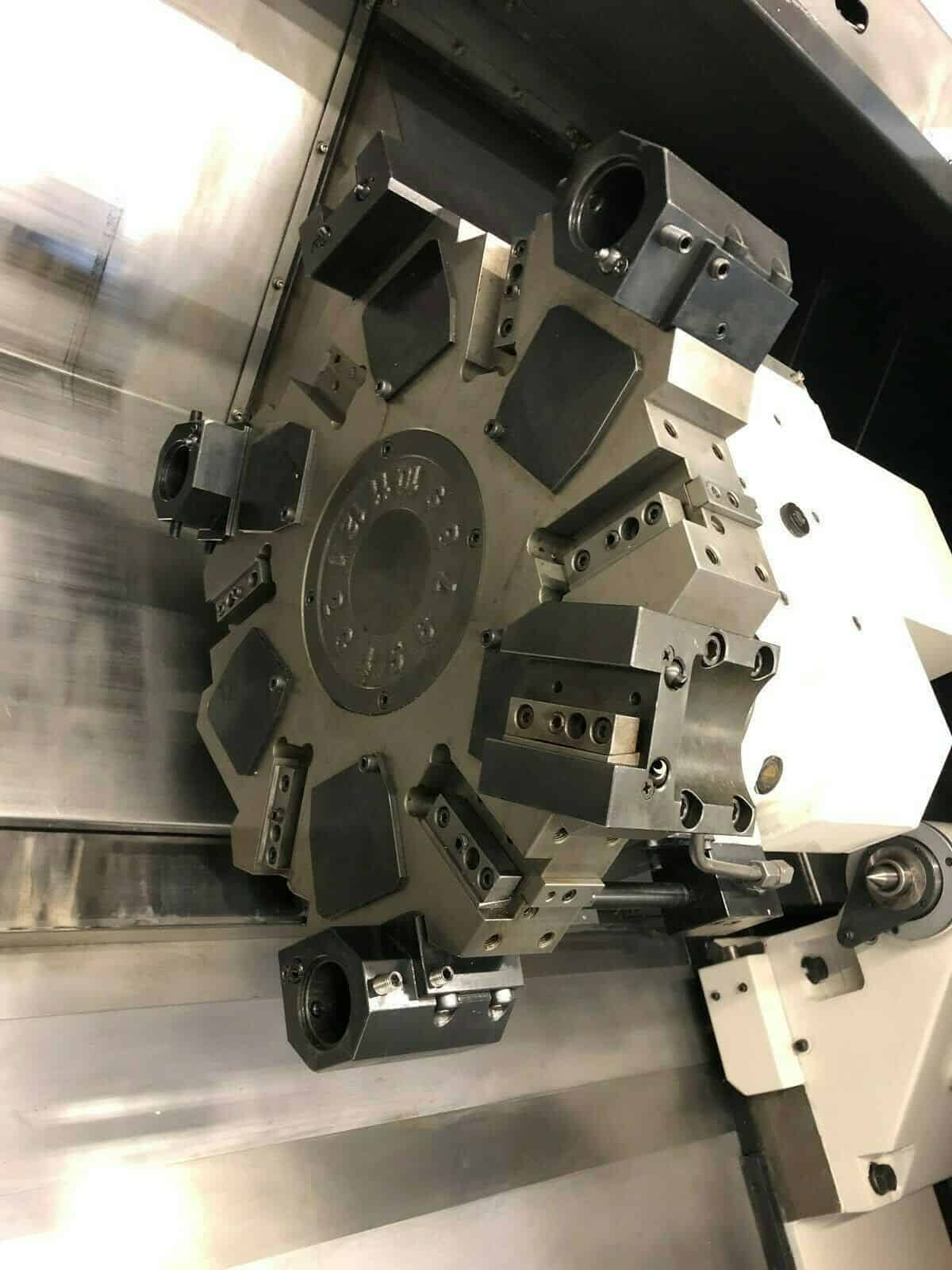

  • 12 Station Live Tool Turret
  • Box way construction
  • Rigid Tapping

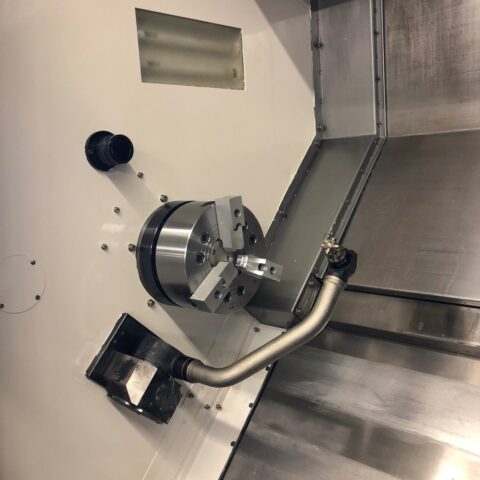

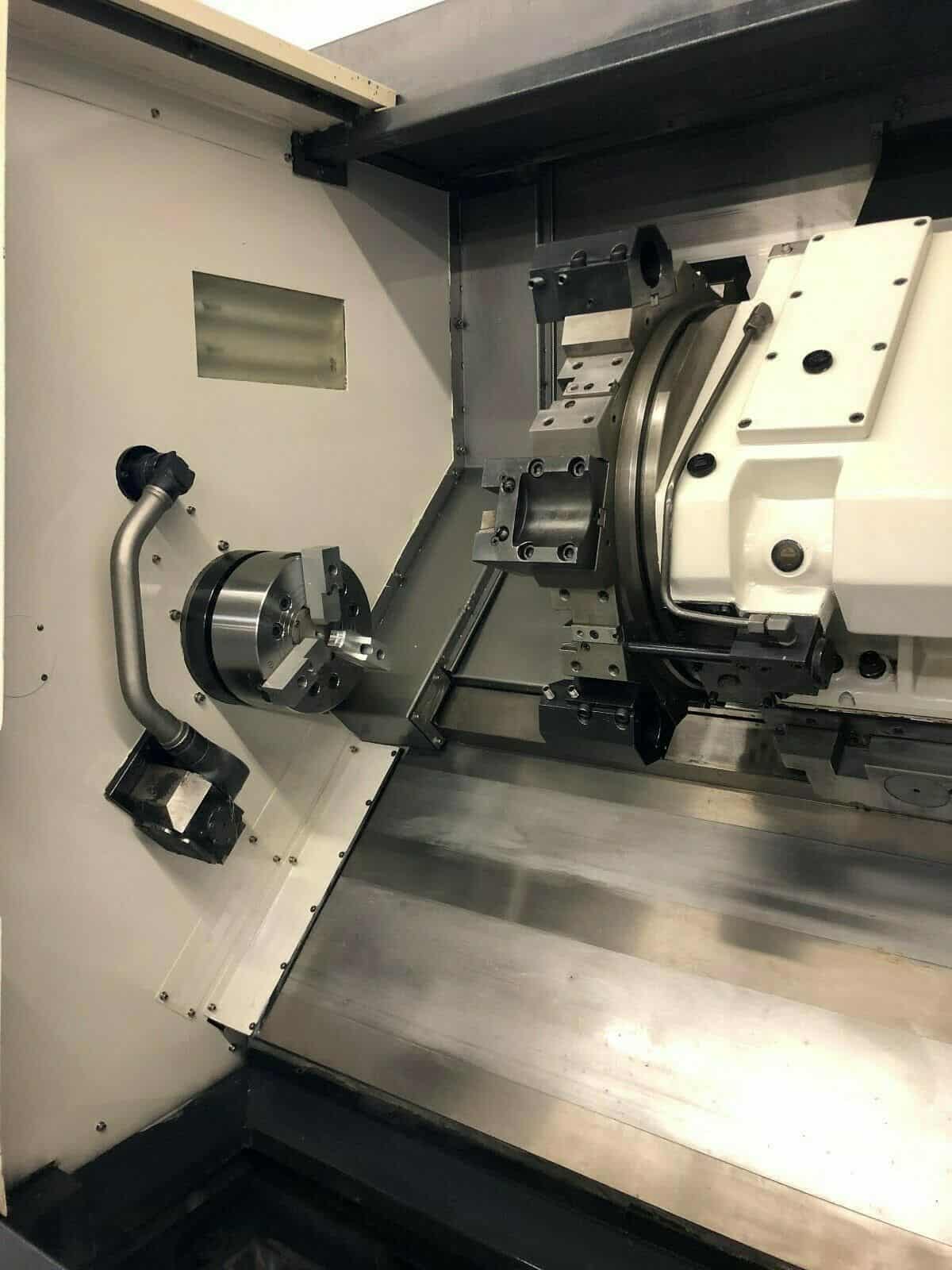

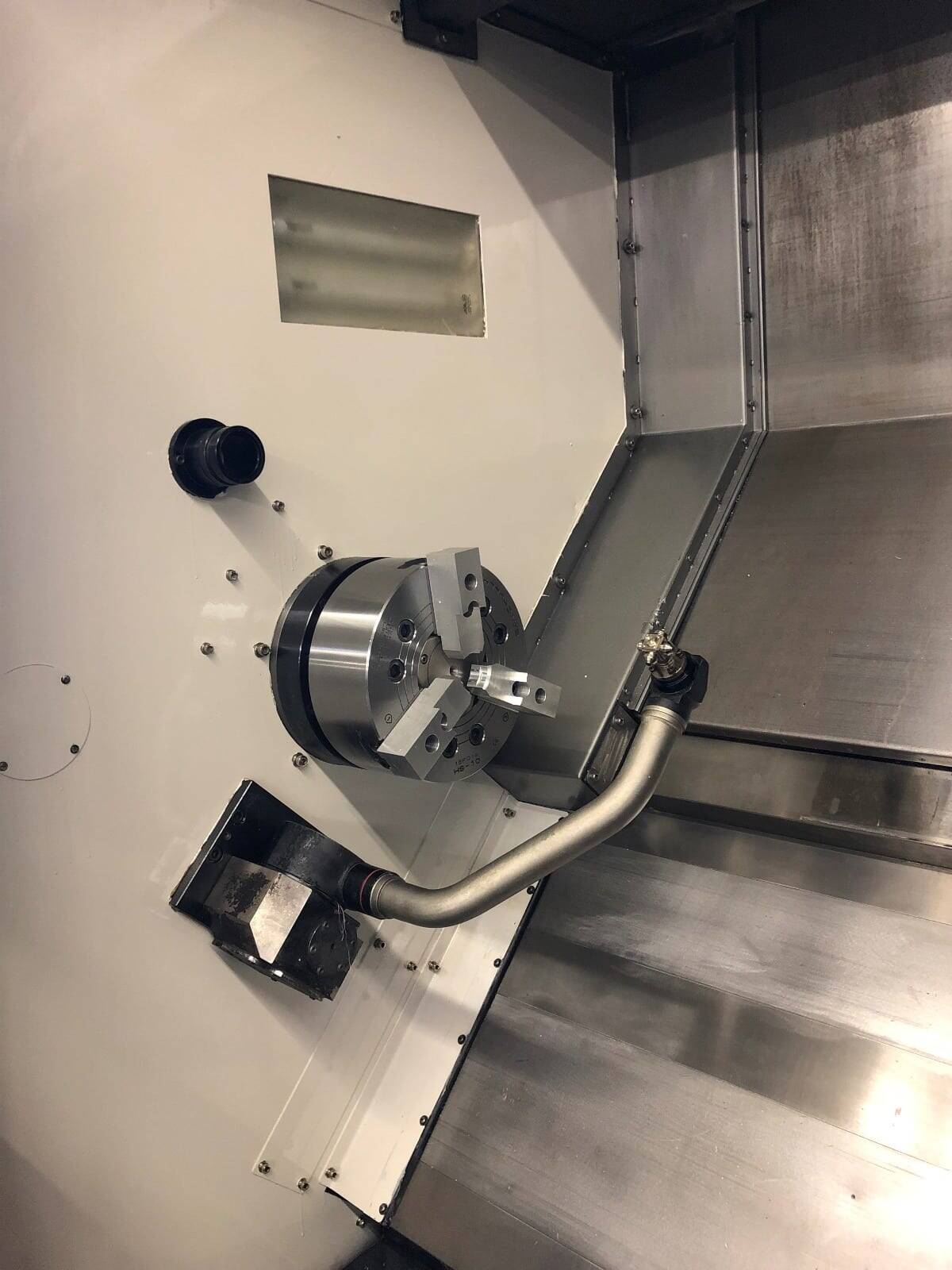

  • 12″ 3 Jaw Hydraulic Chuck
  • A2-8 Spindle
  • Auto Tool Presetter
  • Hydraulic Programmable Tailstock and Quill
  • PCMCIA Card Slot
  • Coolant System
  • Barfeed Interface
  • Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ x 77″ x 80″ High
  • Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
  • Weight: 18700 lbs
  • Hwacheon 300LMC CNC Specifications:
  • Capacity:
  • Max Turning Diameter: 14.9″
  • Max Turning Length: 48.82″
  • Max Bar Capacity: 3.54″
  • Swing Over Bed: 23.62″
  • Distance Between Centers: 50.8″
  • X Axis Travel: 11.02″
  • Z Axis Travel: 33.3″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.5″
  • Spindle Speed: 0 – 3200 RPM
  • Spindle Motor: 30 HP
  • Turret Capacity: 12 Live Stations
  • Turret Index Time: 0.15 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 3.97″
  • Tailstock Quill Travel: 4.7″

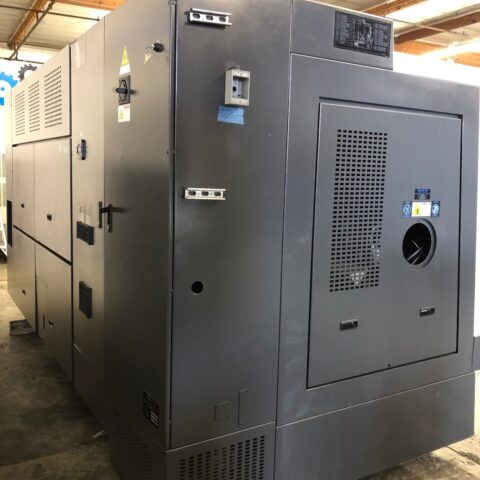

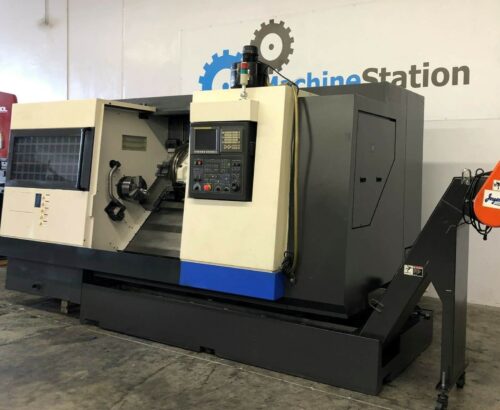

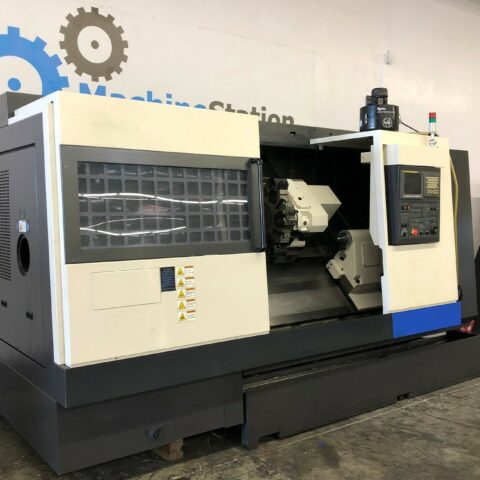

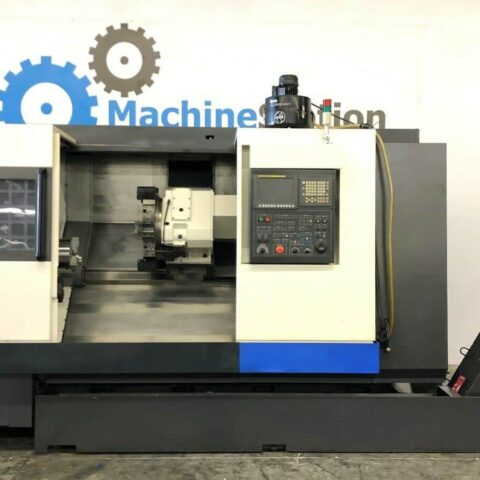

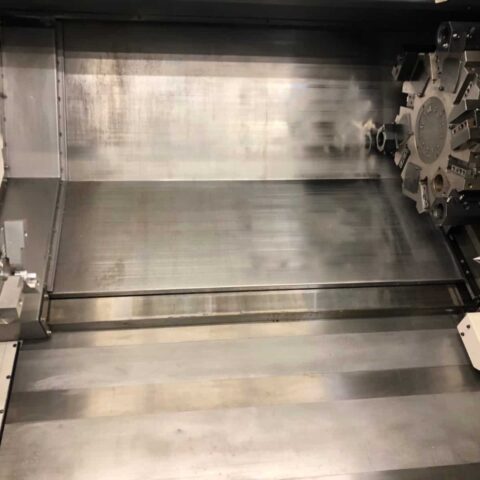

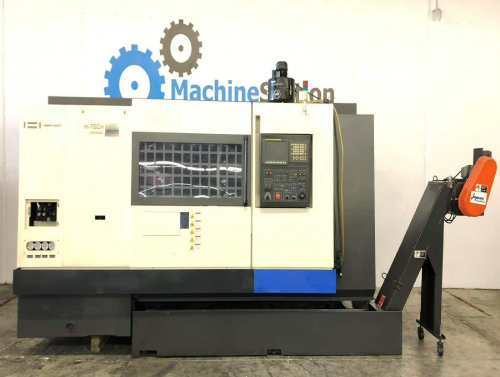

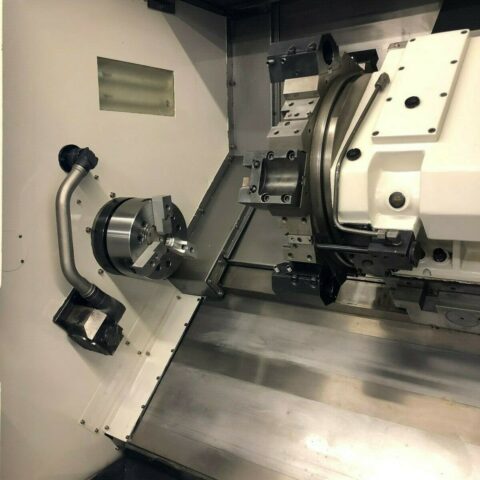

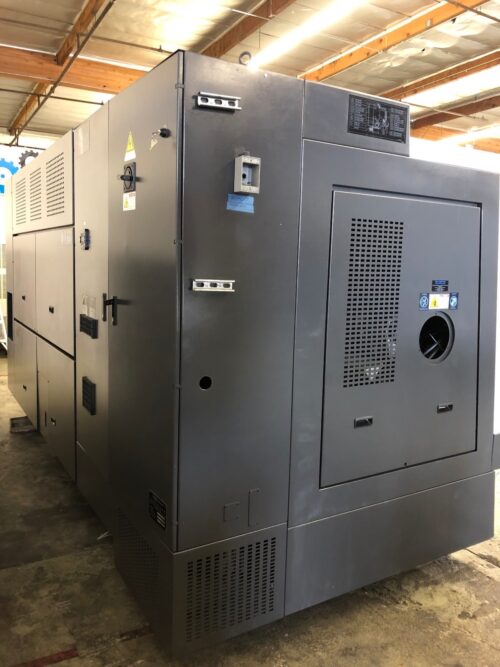

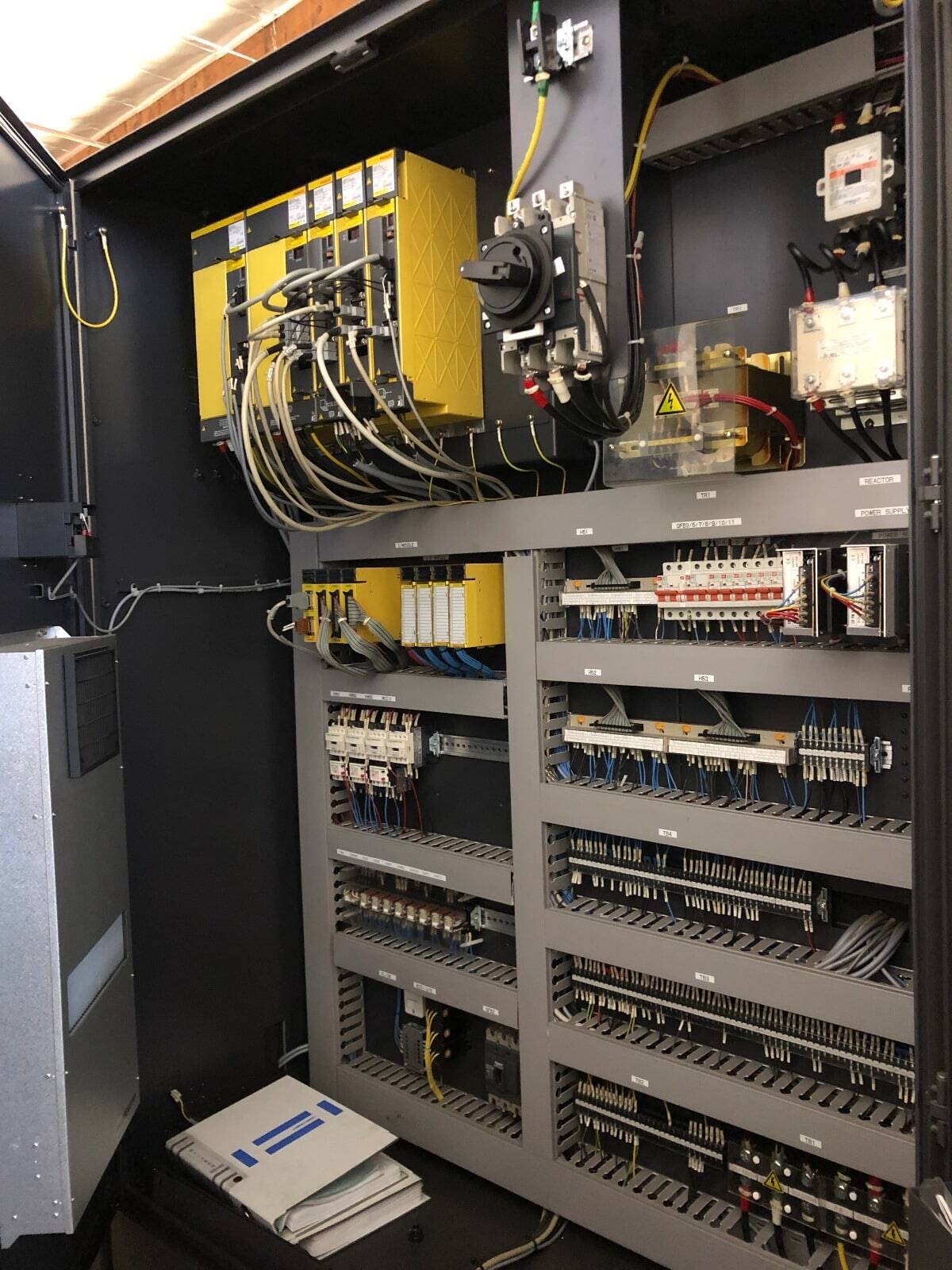

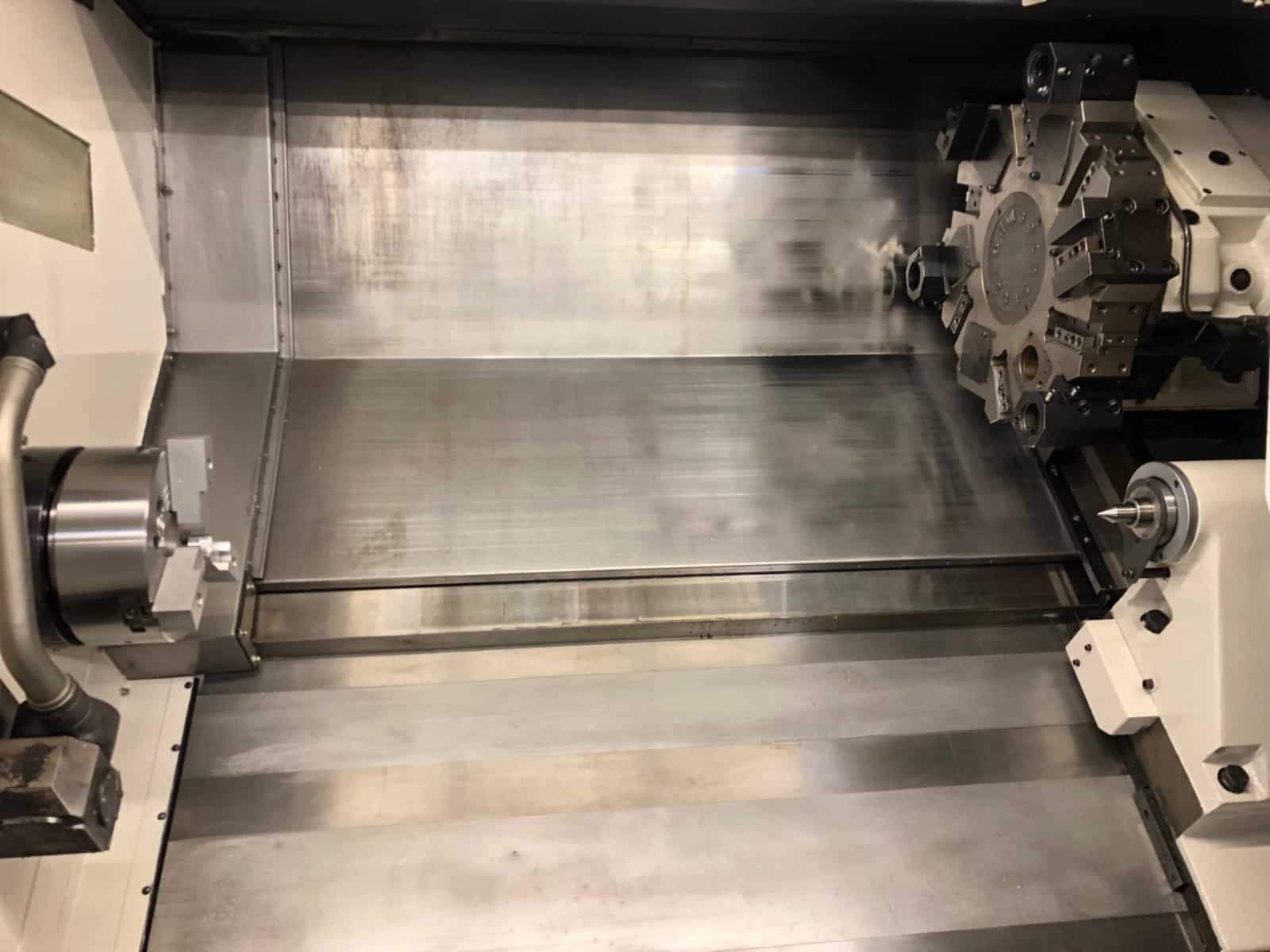

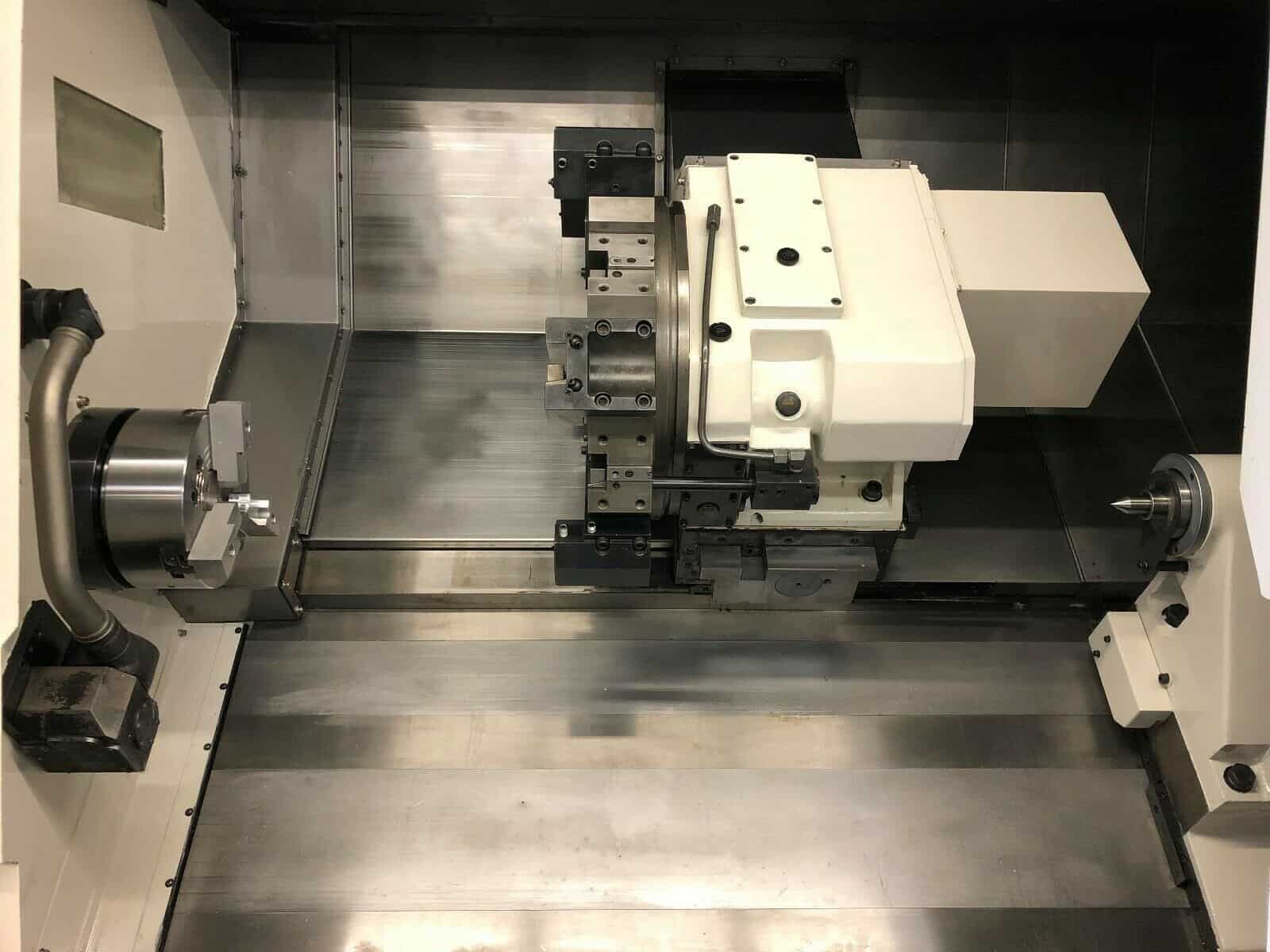

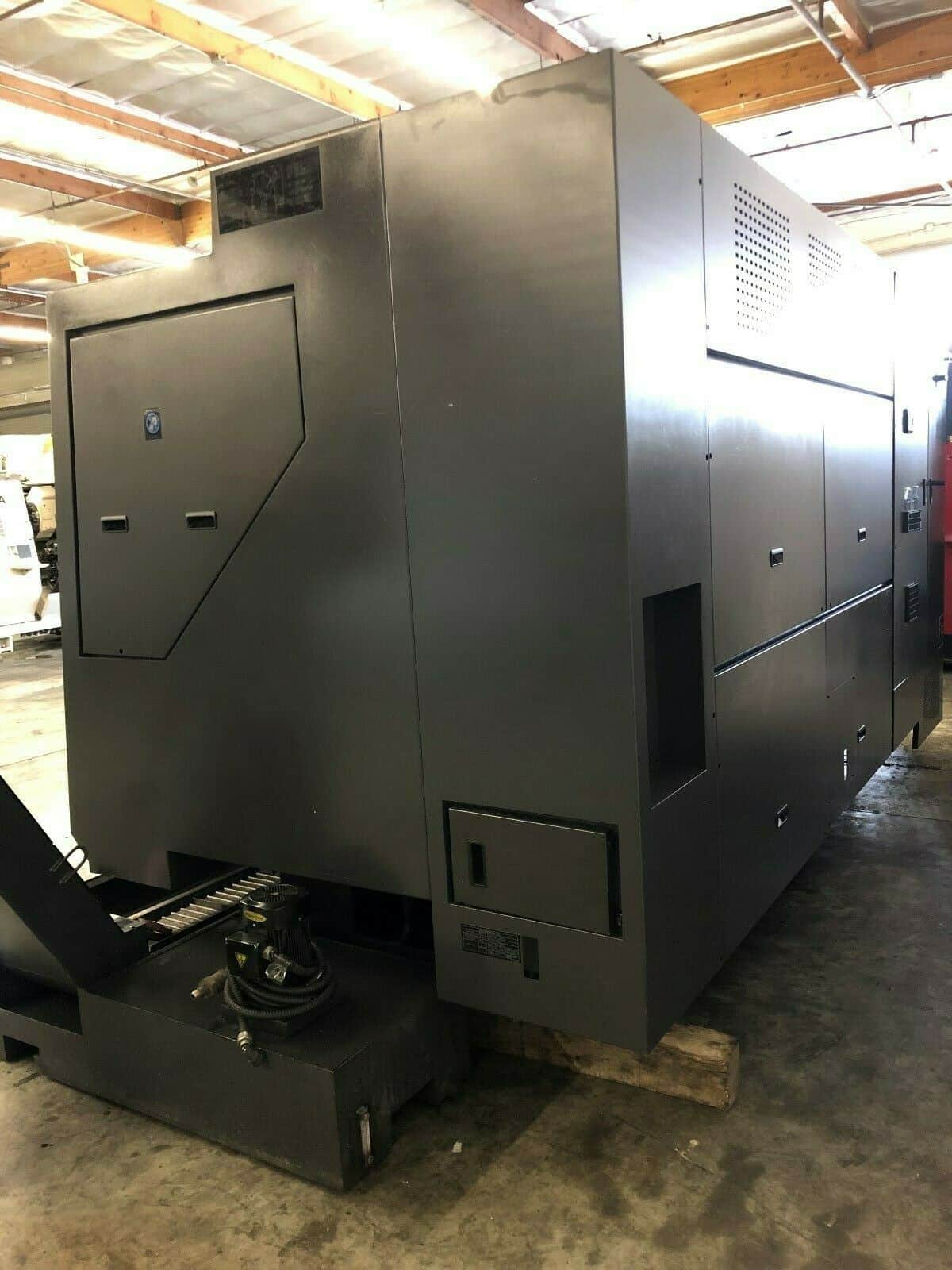

Hwacheon 300LMC CNC Comes as shown in pictures..
