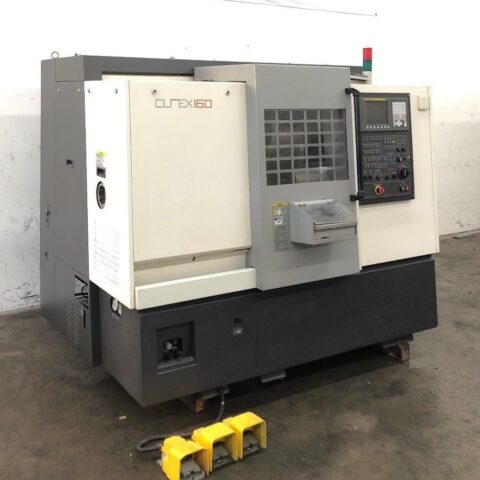

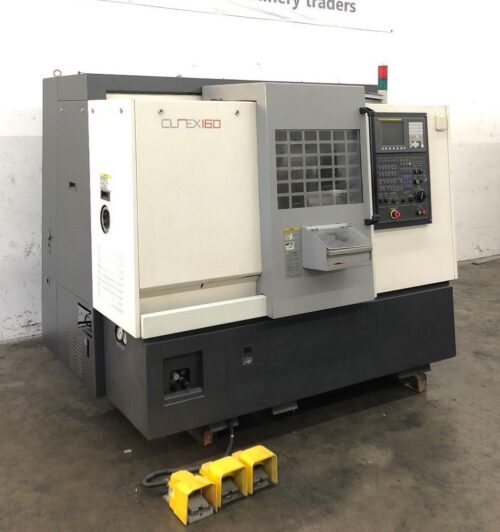

| HWACHEON CUTEX 160 CNC TURNING CENTER | |
|---|---|
| Make | Hwacheon |
| Model No. | Cutex 160 |

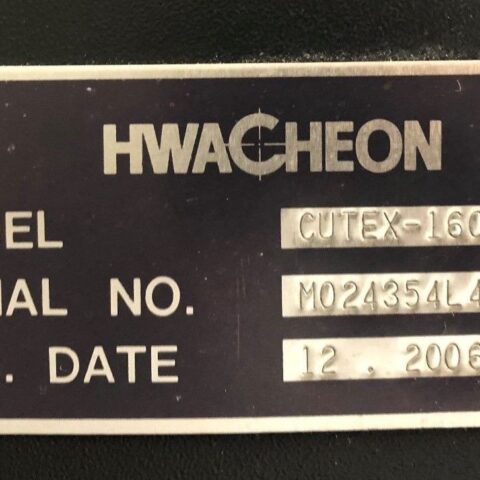

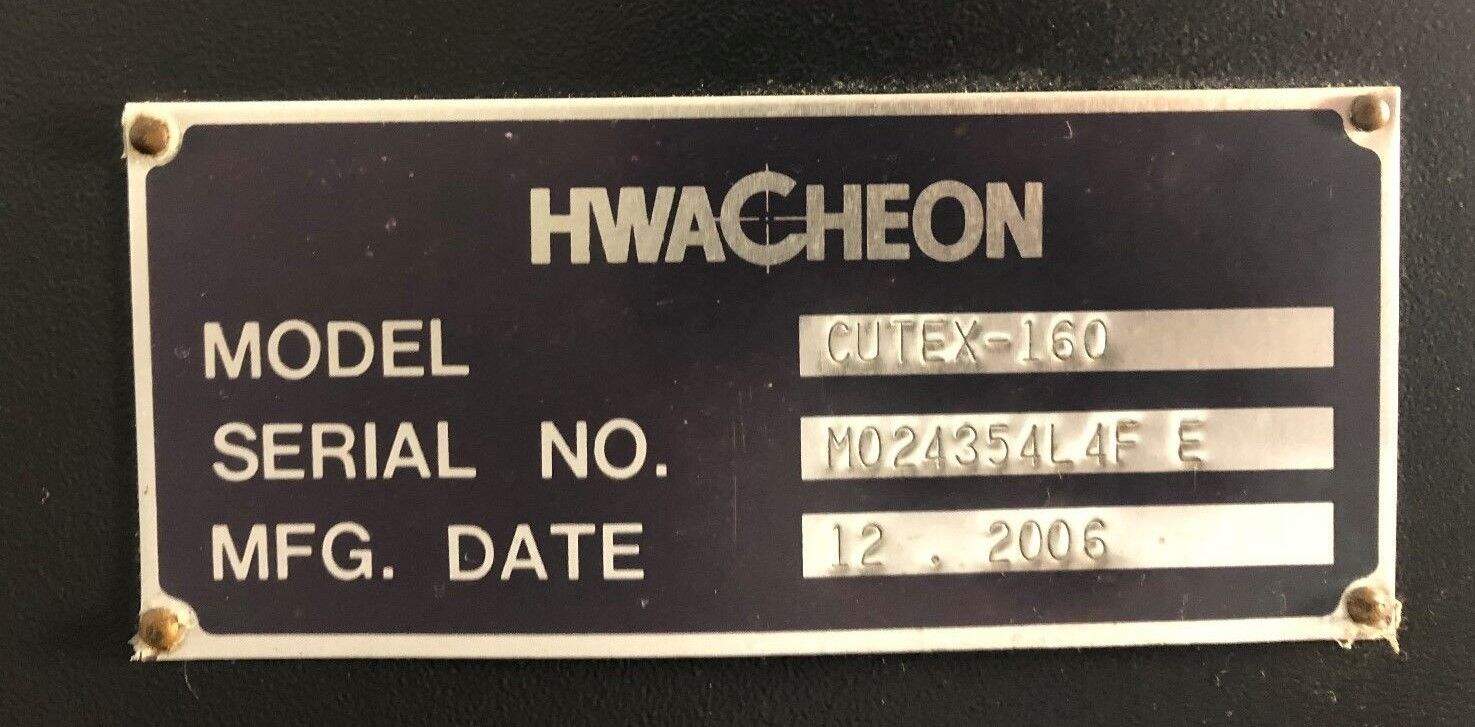

| Serial # | M024354L4FE |
| Condition | Very Good |
| Comes with 6″ Chuck, Tailstock. ( 8″ Chuck Optional ) | |
All specifications are approximations and are subject to verification.
- HWACHEON CUTEX 160 Equipped With:

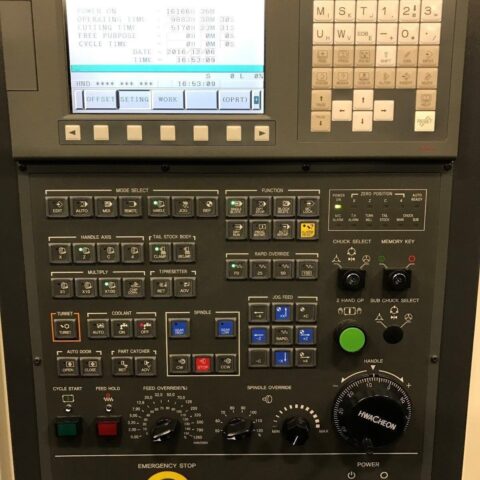

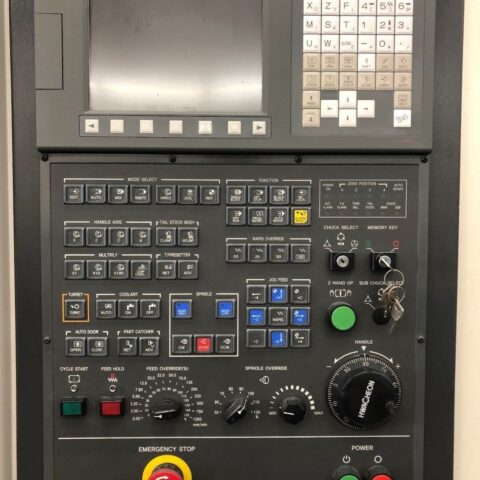

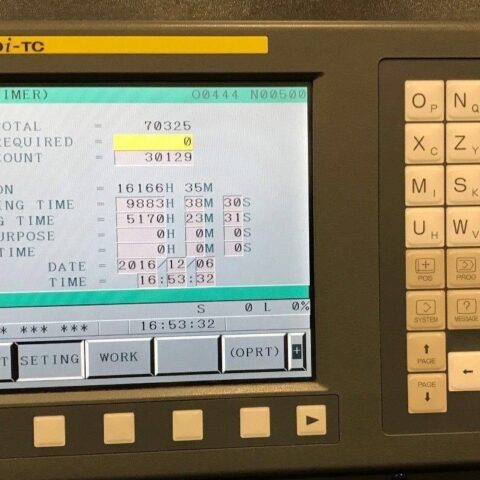

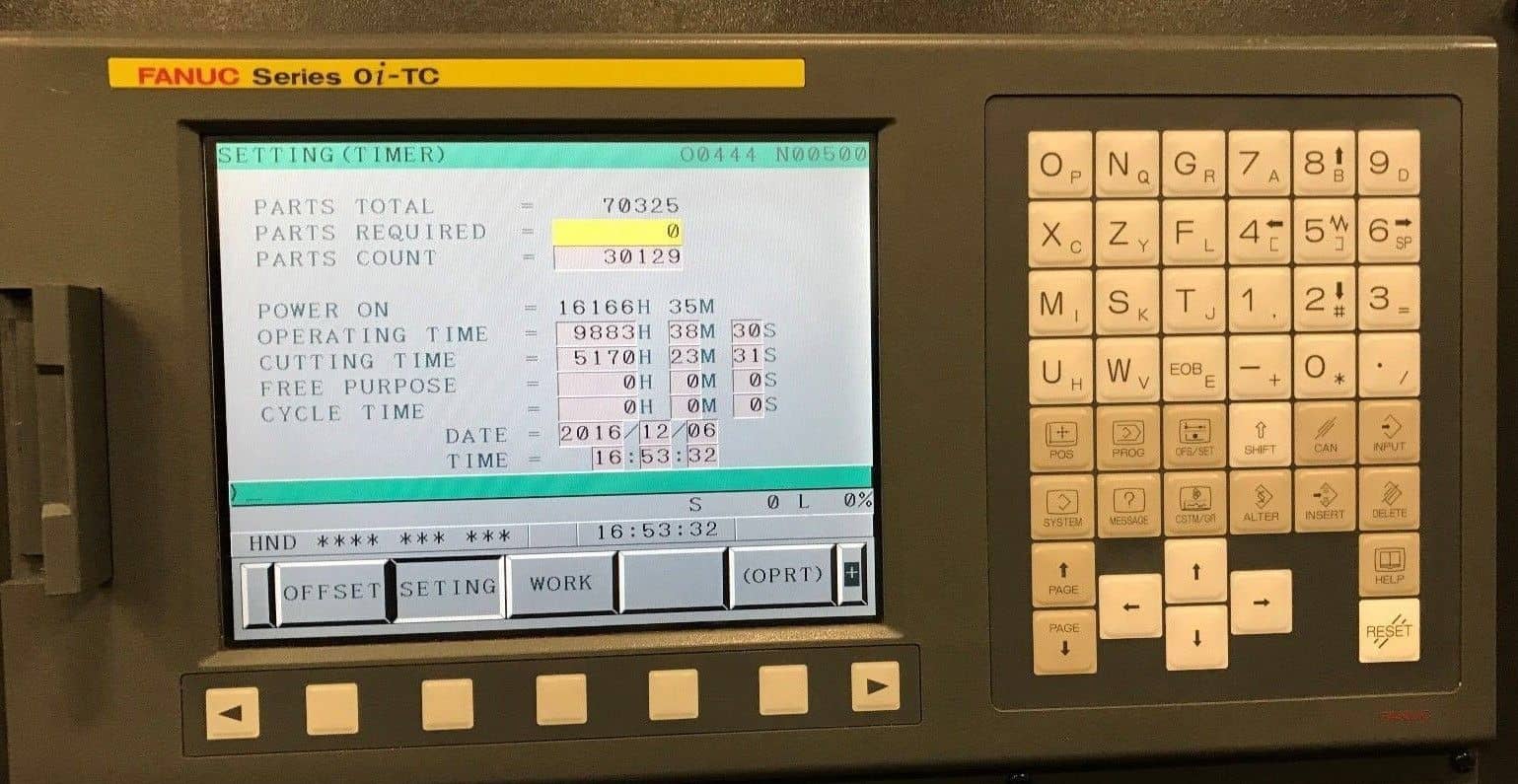

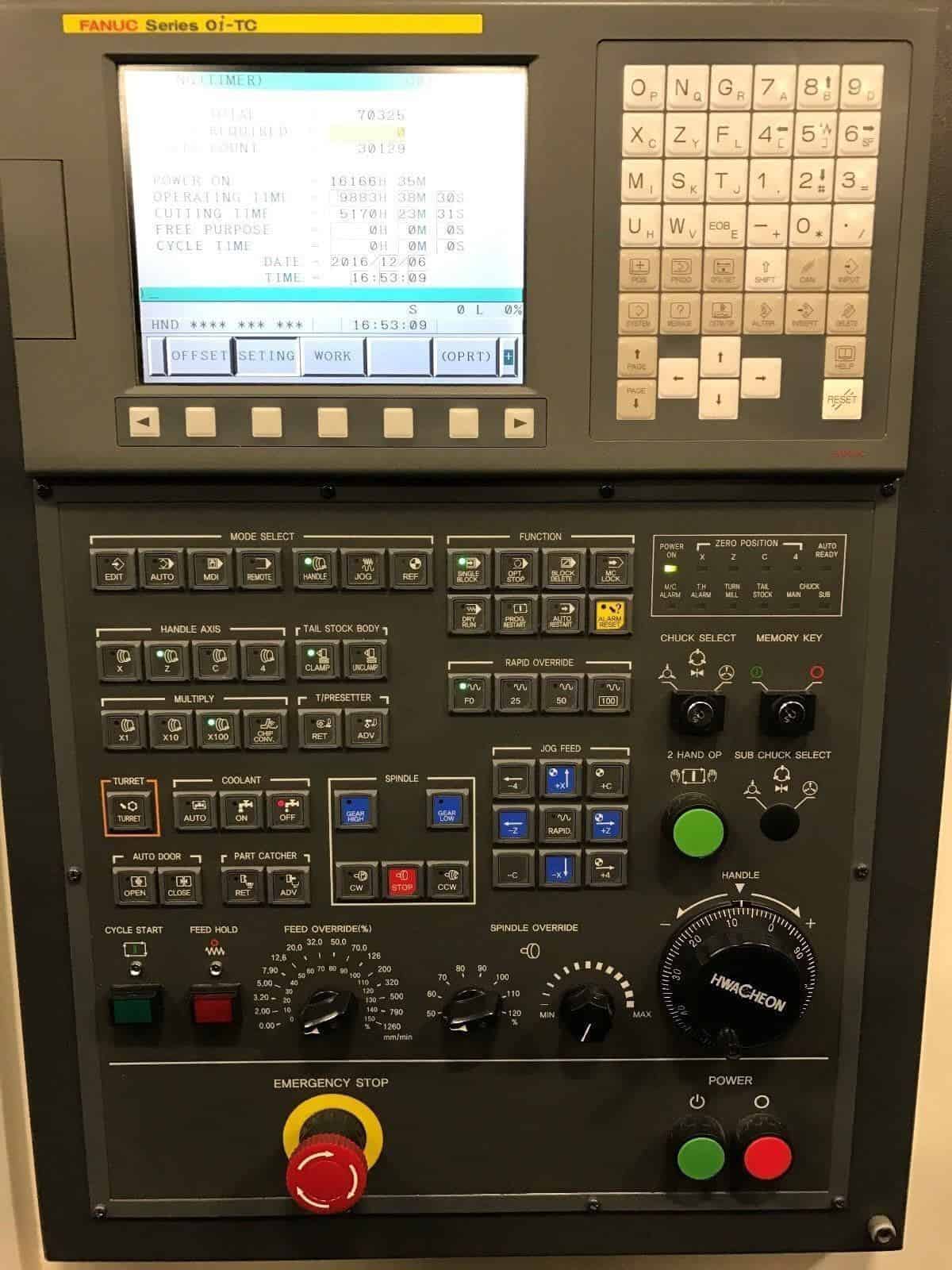

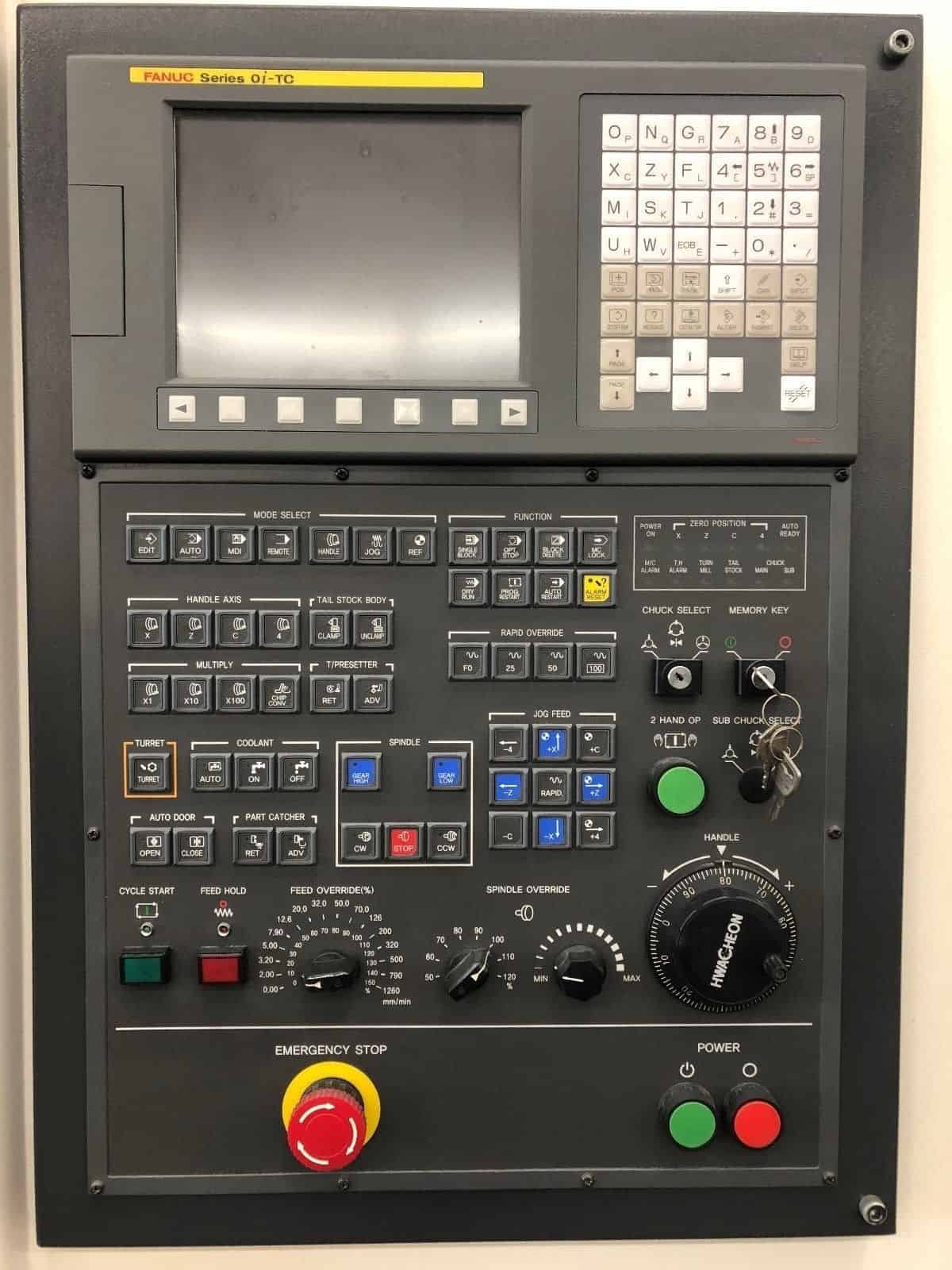

- Fanuc Oi-TC CNC Control
- 6″ 3 Jaw Hydraulic Chuck
- PCMCIA Card Slot
- A2-6 Spindle
- Programmable Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

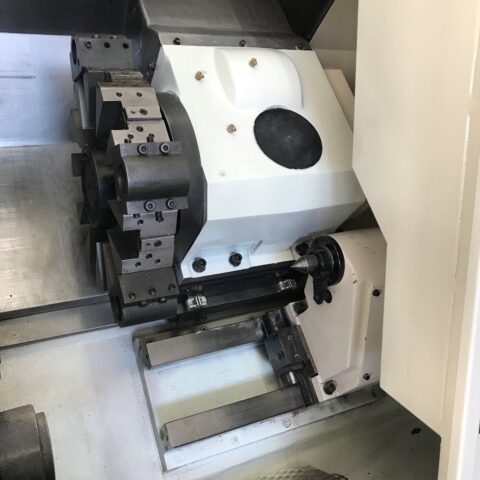

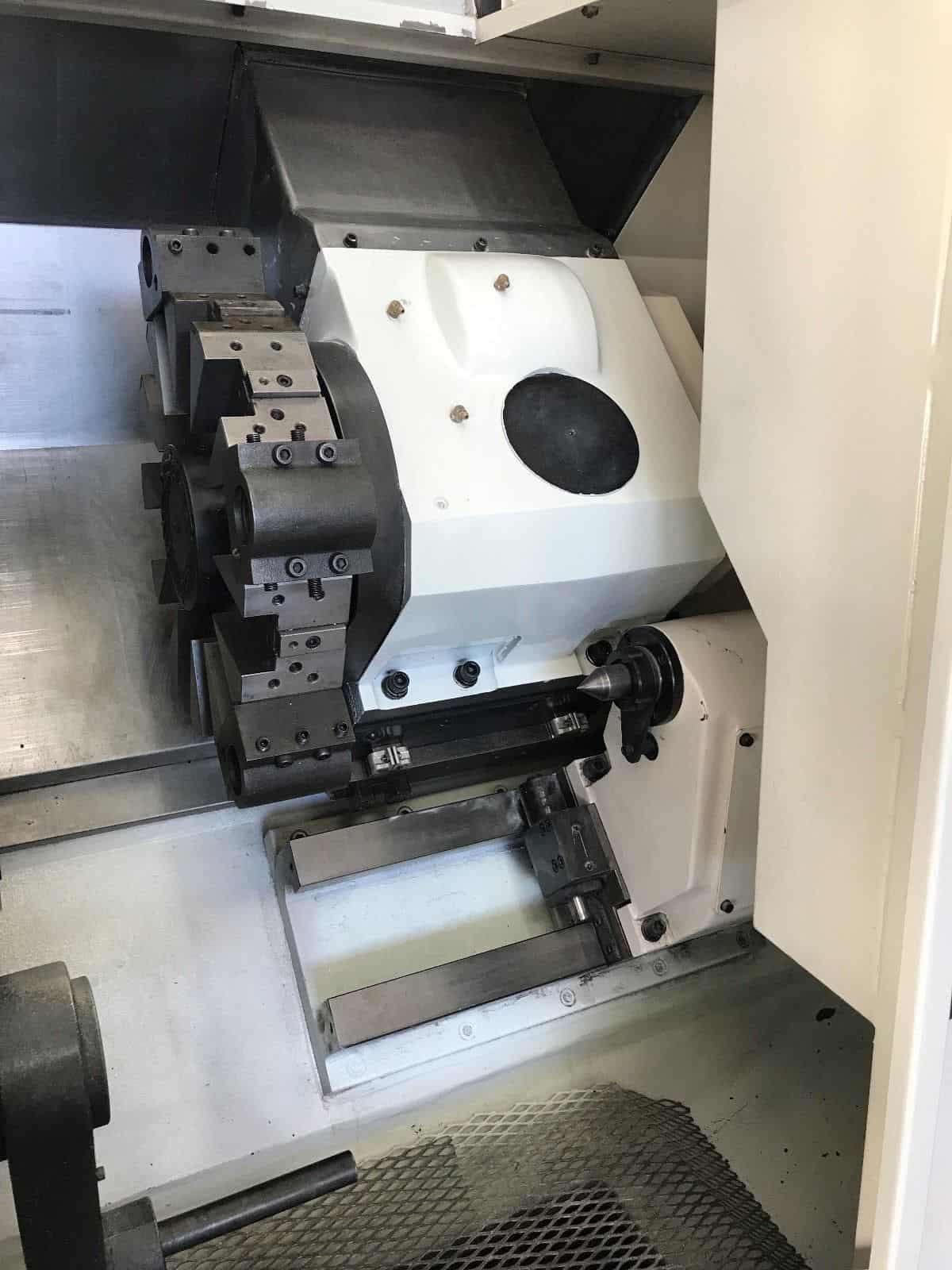

- 12 Station Automatic Turret
- Foot Switch
- Manuals
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 86″ x 60″ x 67″ High
- Weight: 7000 lbs
- HWACHEON CUTEX 160 Specifications:
- Capacity:
- Max Turning Diameter: 11.81″
- Max Turning Length: 11.81″
- Max Bar Capacity: 2.0″
- Swing Over Bed: 21.65″
- X Axis Travel: 6.69″
- Z Axis Travel: 13.19″
- Rapid Traverse X Axis: 1417 IPM
- Rapid Traverse Z Axis: 1417 IPM
- Spindle Nose: A2-5
- Spindle Bore: 2.20″
- Spindle Speed: 0 – 6000 RPM
- Spindle Motor: 7.5/11kw
- Turret Capacity: 12 Stations
- Turret Index Time: .20 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.362″
- Tailstock Quill Travel: 3.14″
HWACHEON CUTEX 160 Comes as shown in pictures..
