| HWACHEON HI-ECO 31MC CNC TURN MILL CENTER | |
|---|---|
| Make | Hwacheon |
| Model No. | Hi-Eco 31A-MC |
| Serial # | M0573 445L-55 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“Heavy Duty Machine Equipped with Live Tools, Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
- HWACHEON HI-ECO 31MC Equipped With:

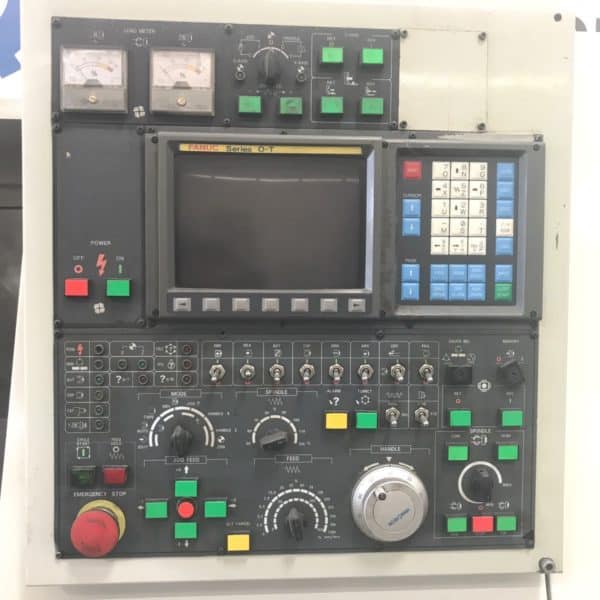

- Fanuc OTC CNC Control

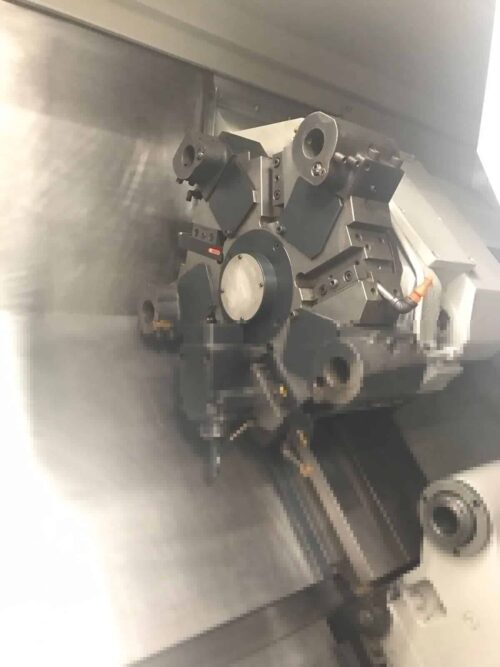

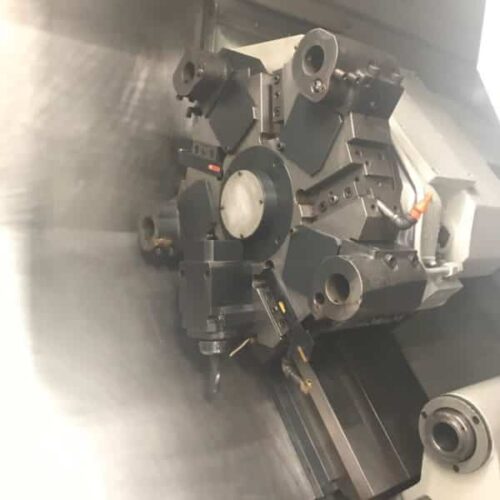

- 10 Station Turret with Live Tool / Milling

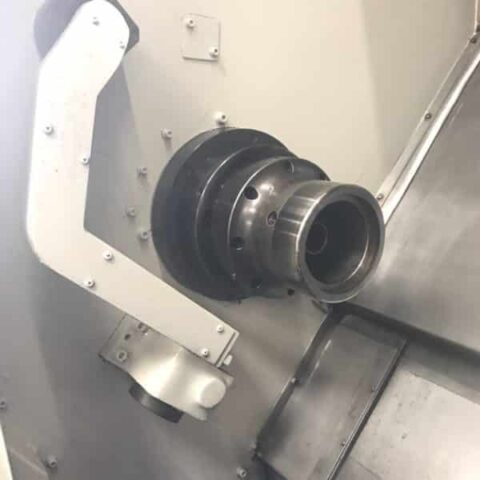

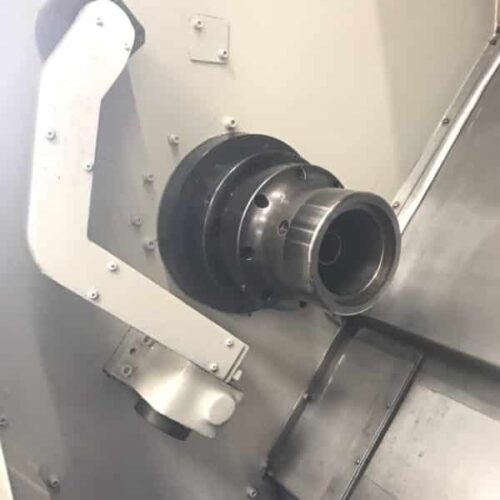

- ATS Collet Hydraulic Chuck
- A2-8 Gear head Spindle

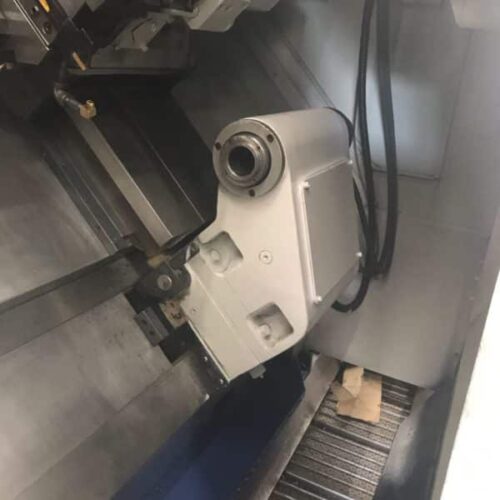

- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- Chip Pan and Chip Conveyor
- Foot Switch
- Books and Manuals
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 120″ x 78″ x 92″ High
- Overall Dimensions: 150″ x 78″ x 92″ High with Chip Conveyor
- Weight : 14700 lbs Approx.
- HWACHEON HI-ECO 31MC Specifications:
- Capacity:
- Max Turning Diameter: 14.96″
- Max Turning Length: 23.6″
- Max Bar Capacity: 3.03″
- Swing Over Bed: 20.47″
- X Axis Travel: 9.85″
- Z Axis Travel: 25.98″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 710 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.54″
- Spindle Speed: 32 – 3200 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.15″
- Tailstock Quill Travel: 4″
HWACHEON HI-ECO 31MC Comes as shown in pictures..
