*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

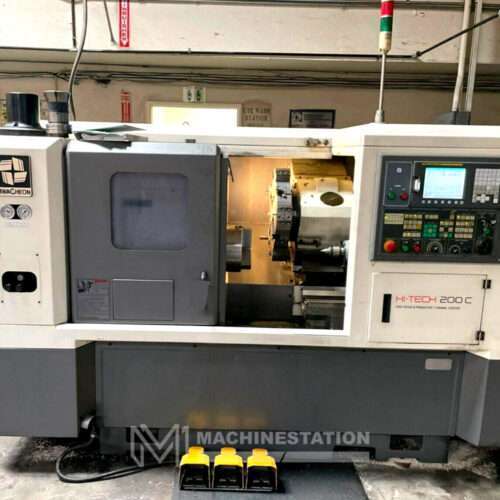

| Make: | Hwacheon |
| Model: | Hi-Tech 200C |
| Year: | 2006 |
| Condition: | Very Good |
| Equipped With: |
|---|
| Fanuc Oi-TC CNC Control |
| Box Way Construction |
| 10″ 3-Jaw Hydraulic Chuck |
| Collet Nose |
| 10 Station High Speed Turret |
| Tool Holders |
| Tailstock and Power Quill |
| PCMCIA Port |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 12.79″ |
| Max Turning Length: 12″ |
| Max Bar Capacity: 3″ |
| Swing Over Bed: 19.68″ |
| Distance Between Centers: 16.5″ |
| Travel: |
|---|
| X Axis Travel: 7.67″ |
| Z Axis Travel: 16.92″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.54″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.15 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT- 4 |
| Tailstock Body Travel: 14.3″ |
| Tailstock Quill Dia.: 3.14″ |
| Tailstock Quill Stroke: 3.93″ |
| General: |
|---|
| Power: 30 kva, 220v / 3-Phase /60Hz |
| Overall Dimensions: 104″ X 66″ X 68″ High |
| Weight: 10,582 lbs |
