*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

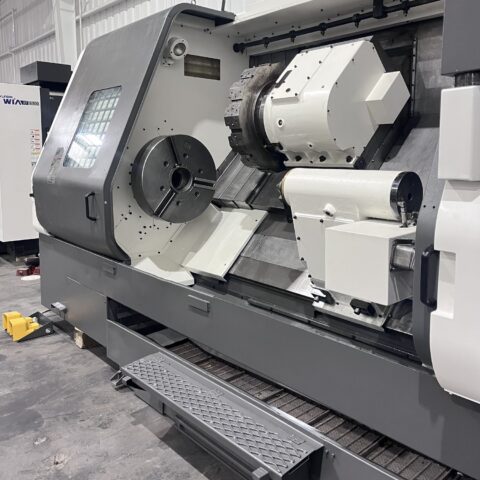

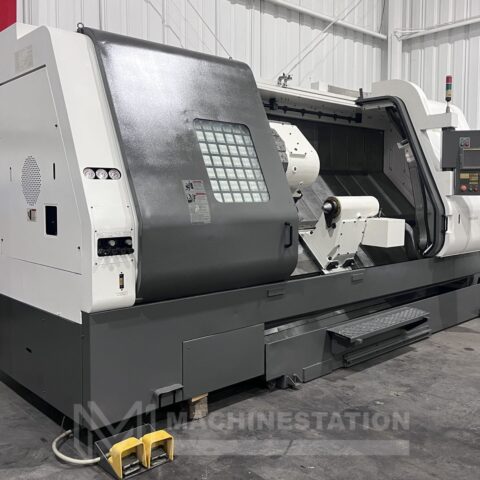

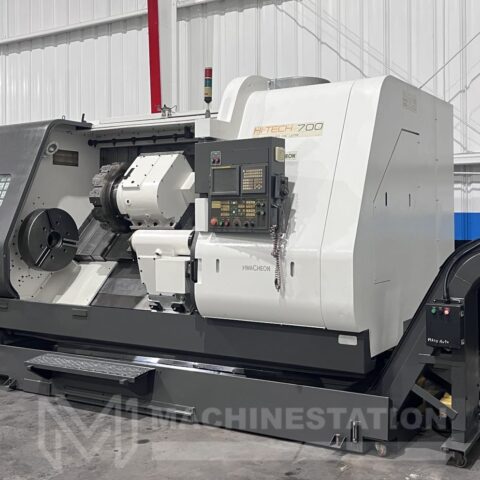

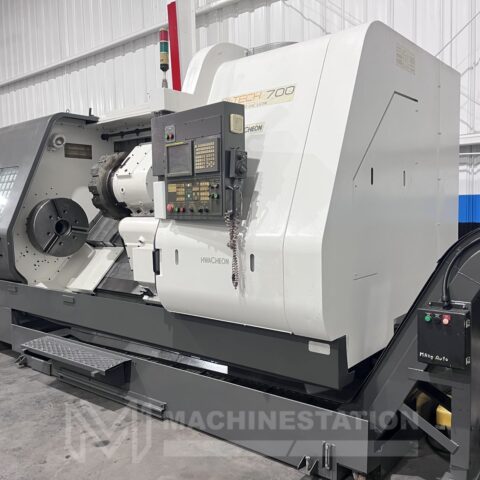

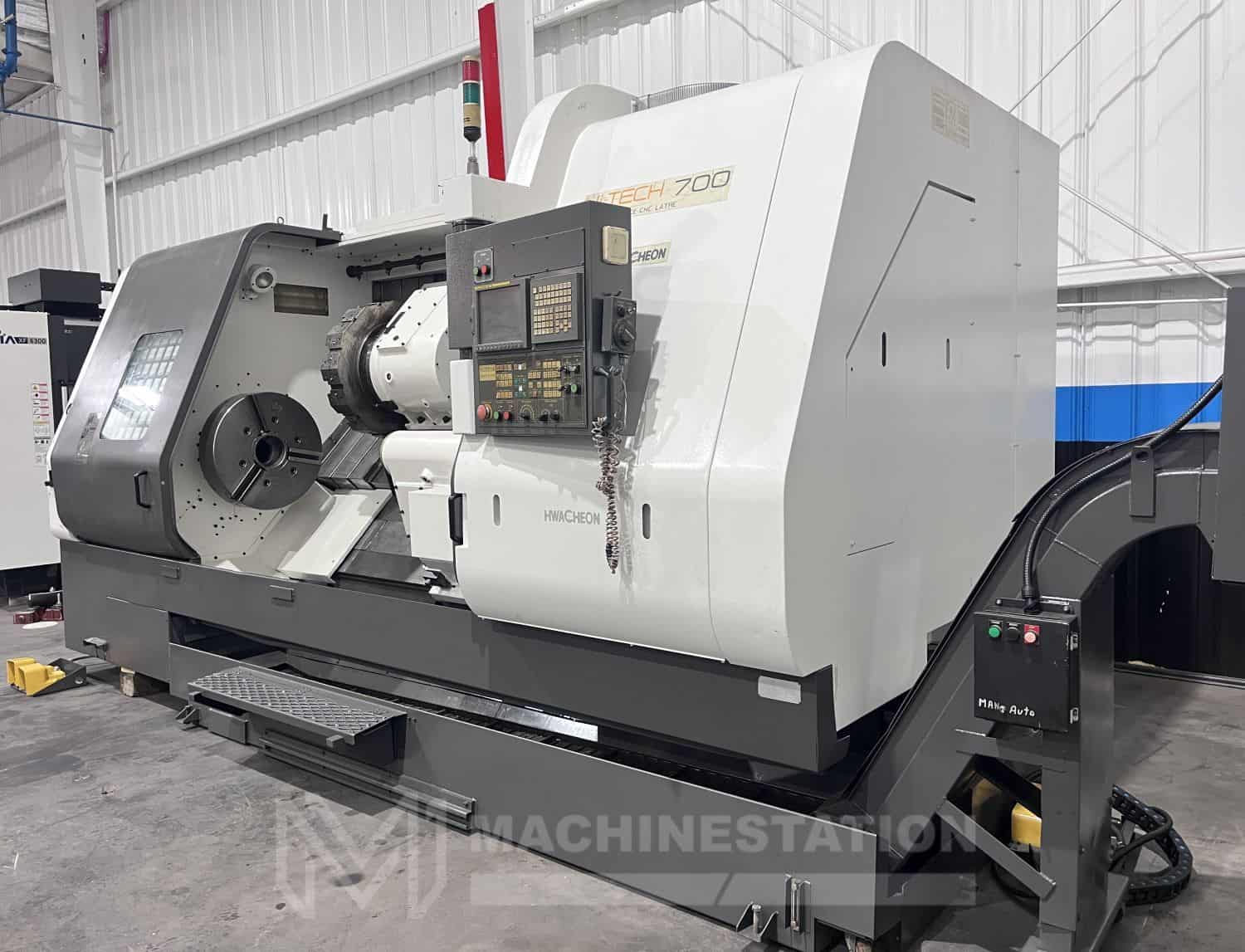

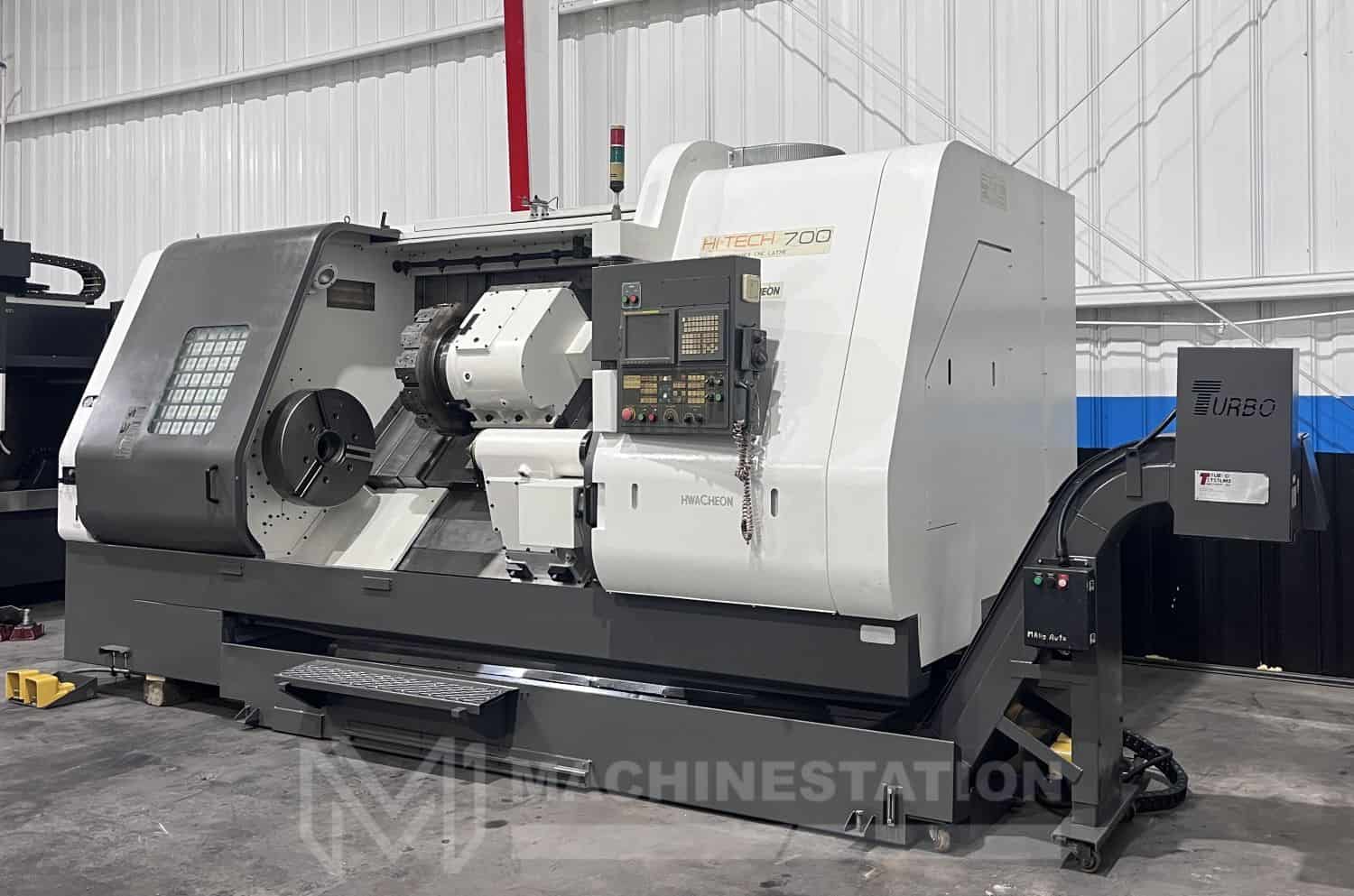

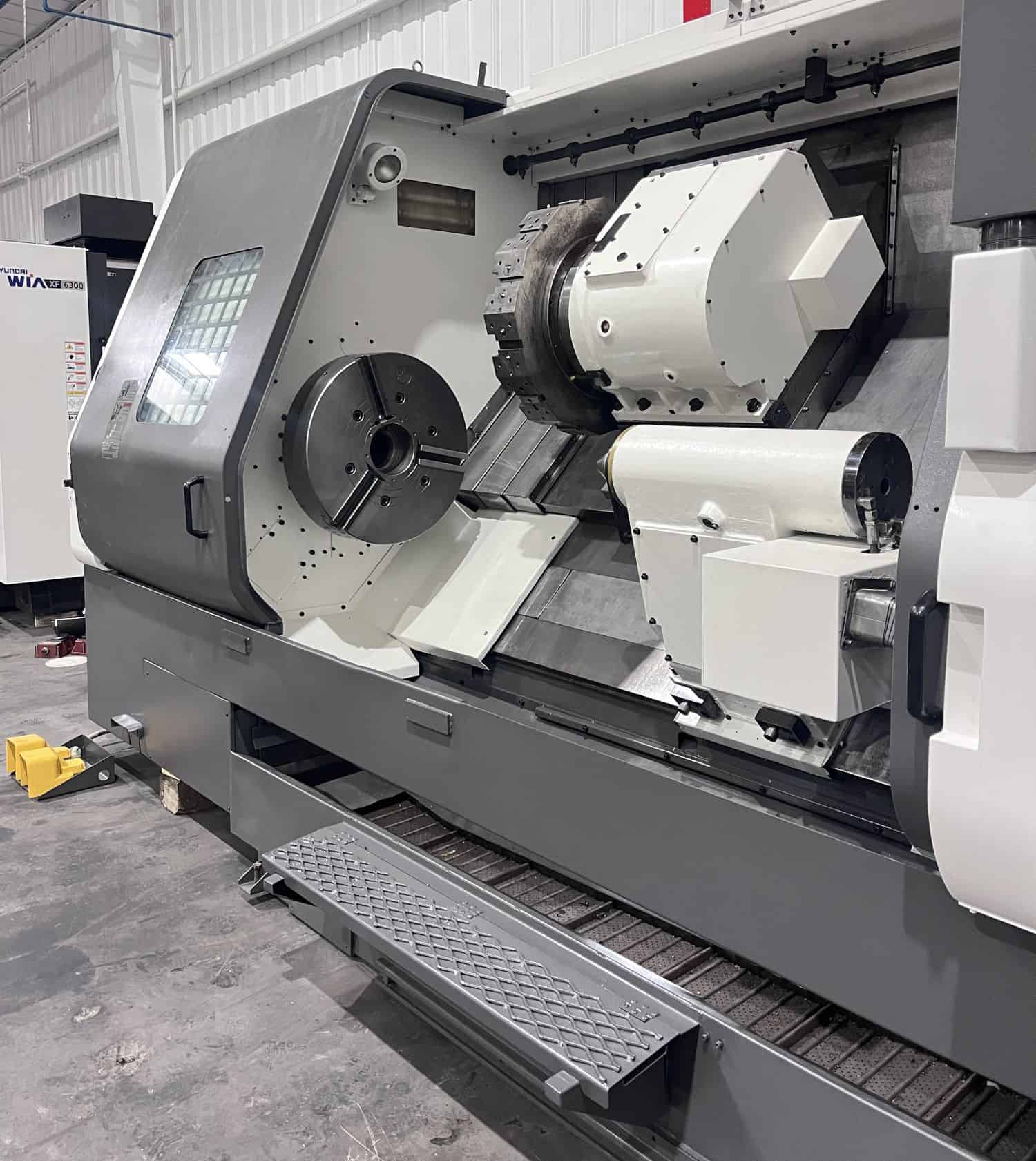

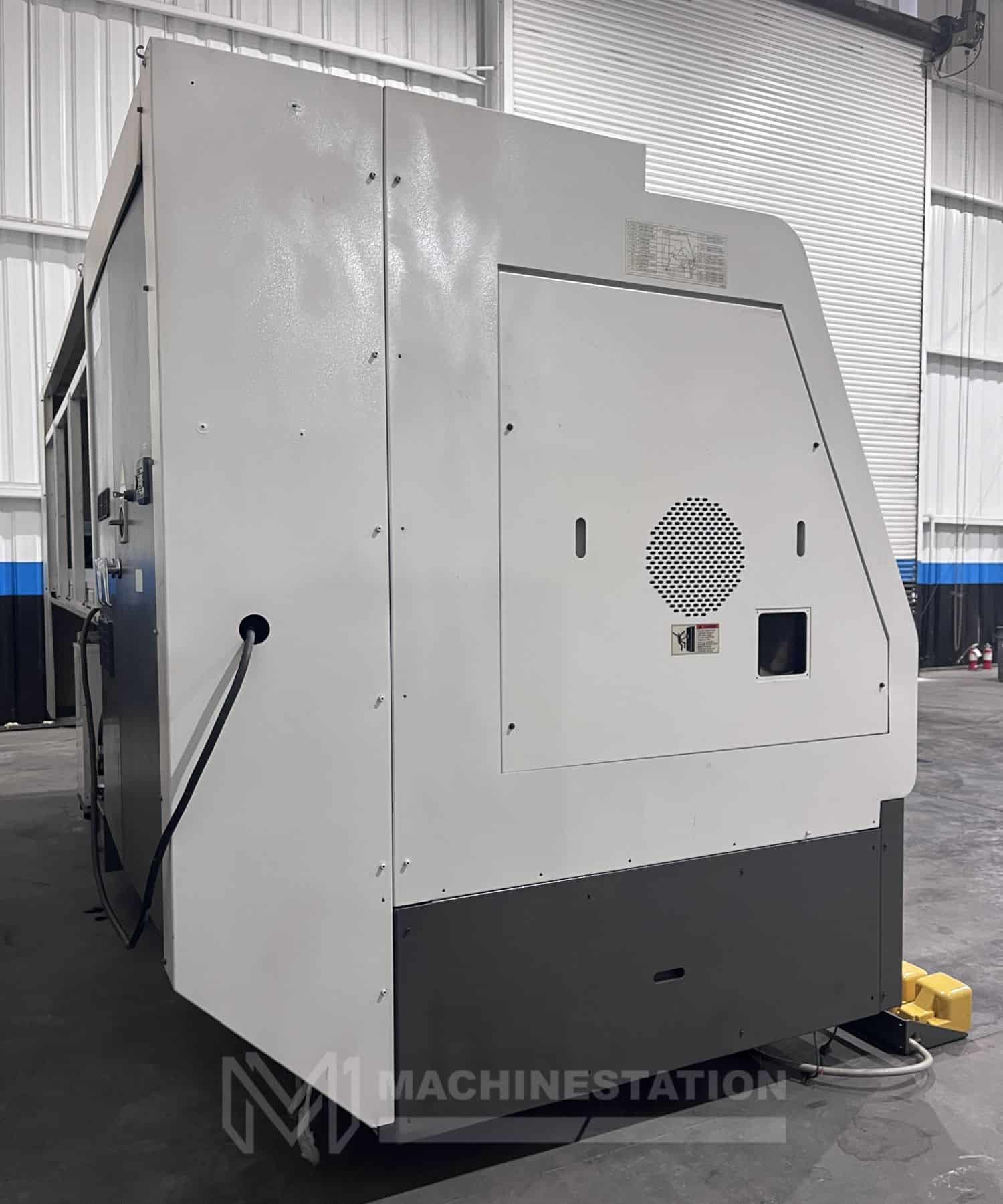

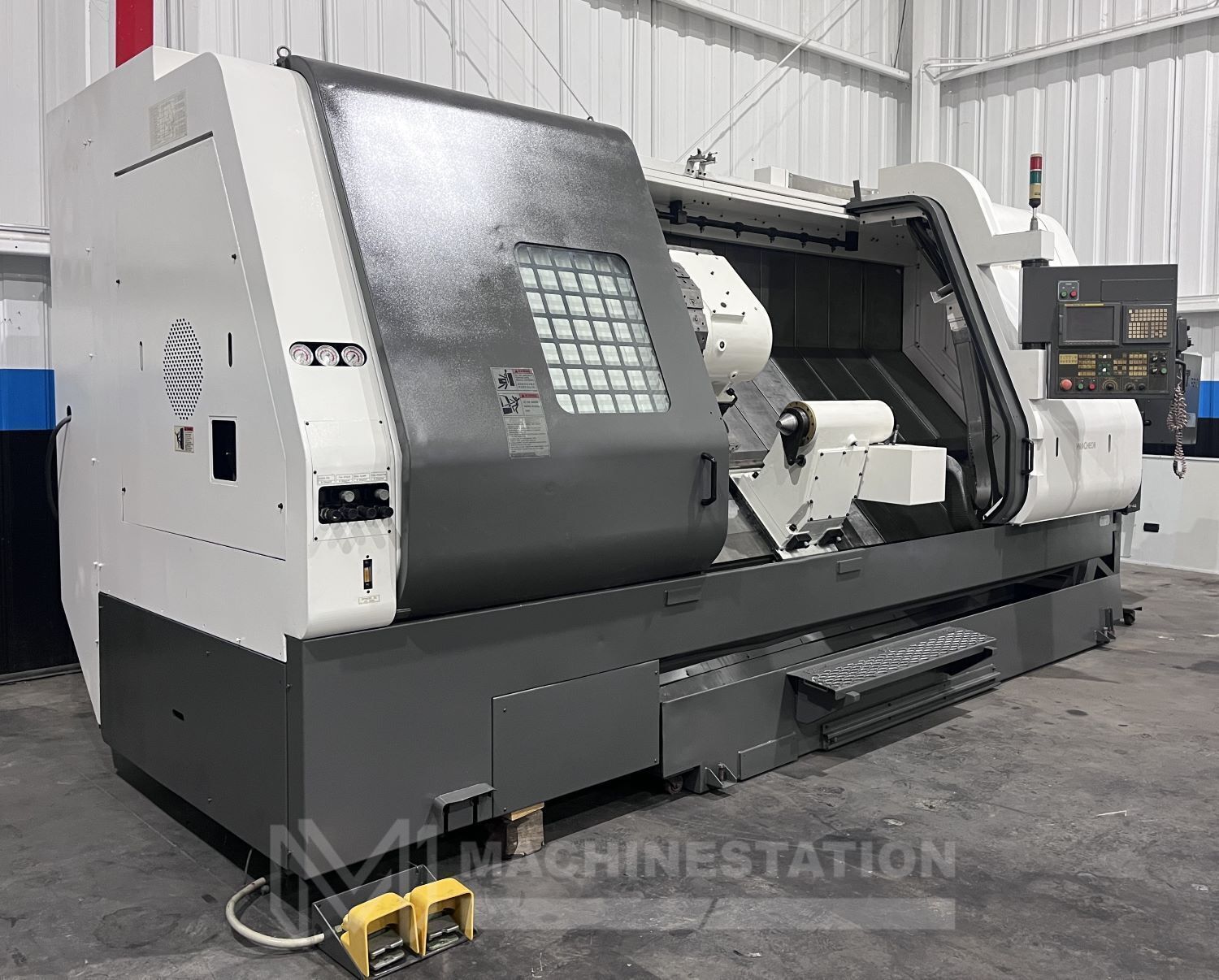

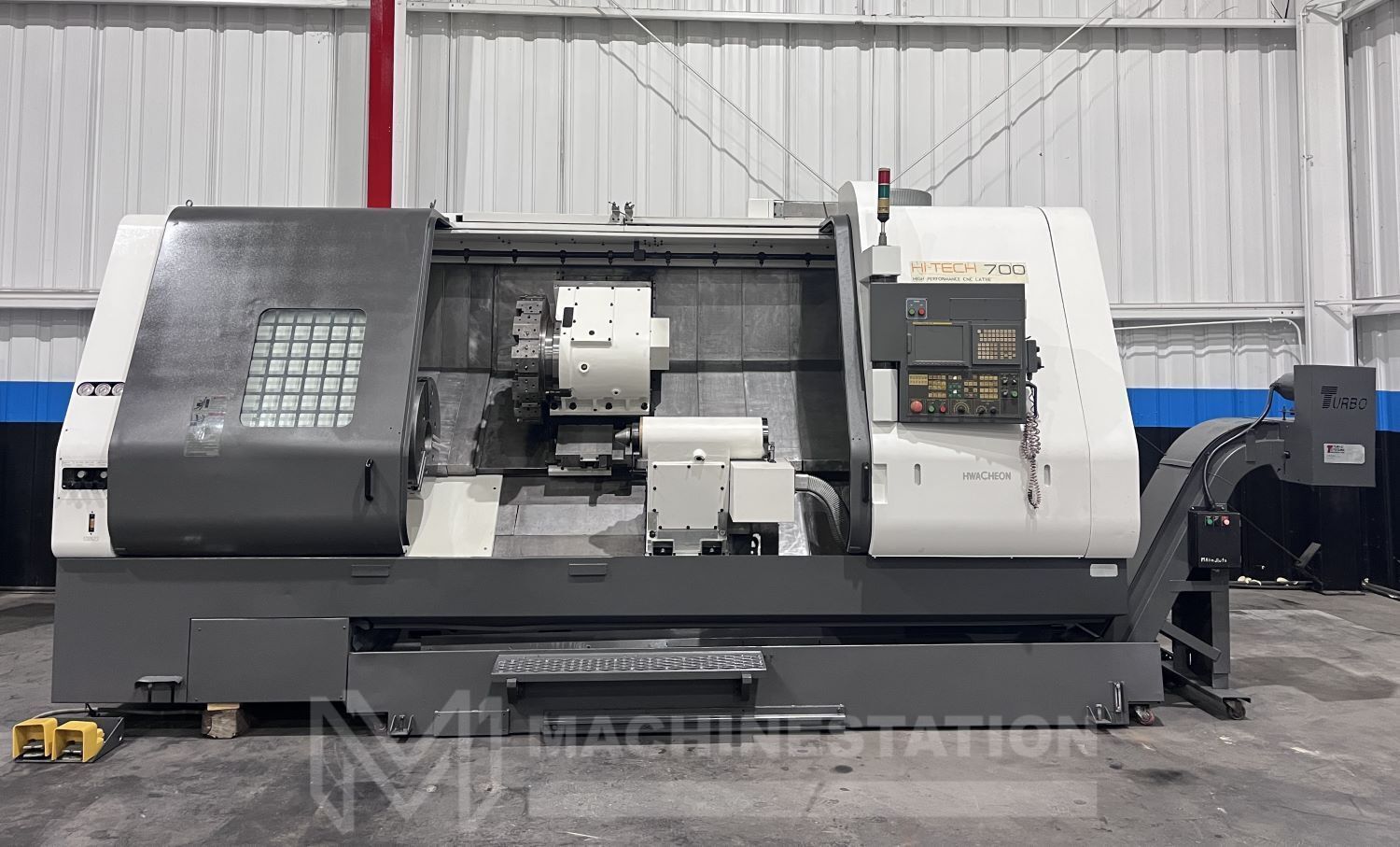

| Make: | Hwacheon |
| Model: | Hi-Tech 700 |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

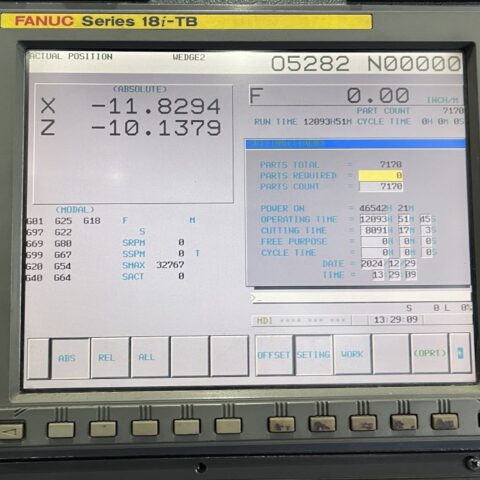

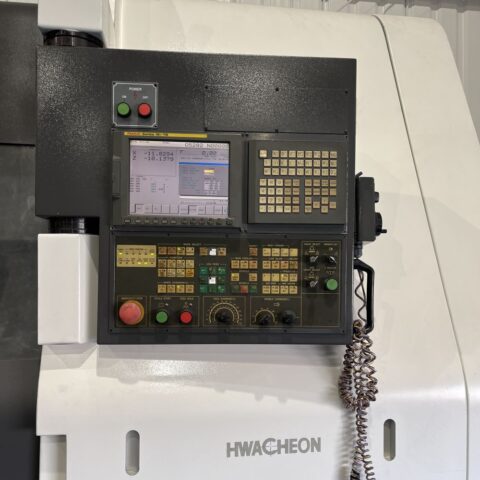

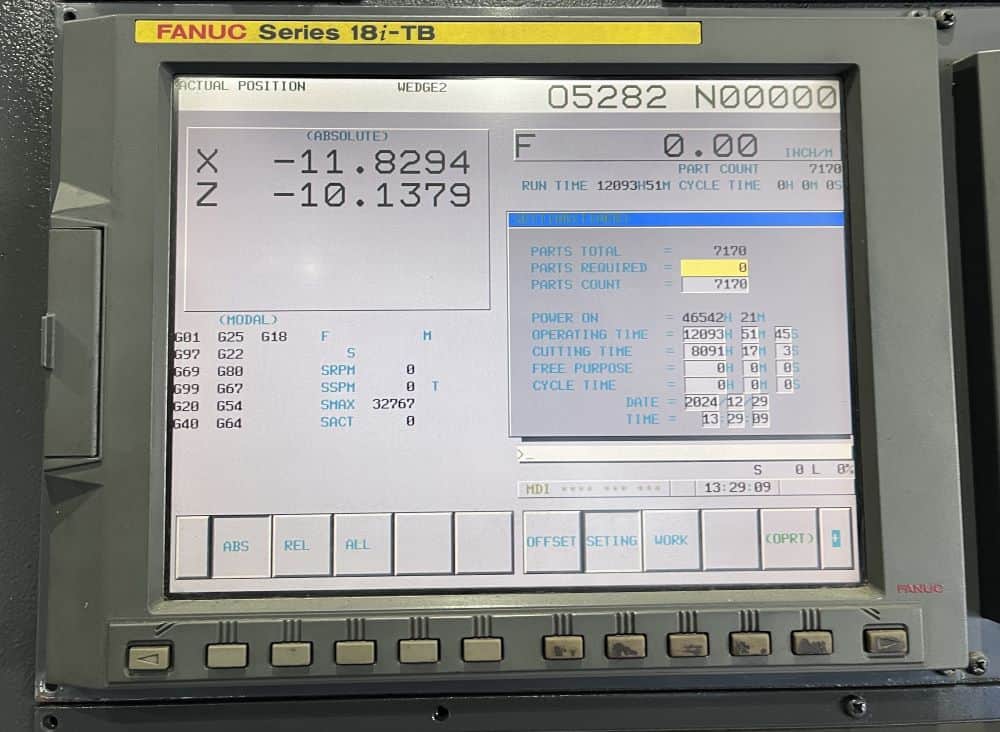

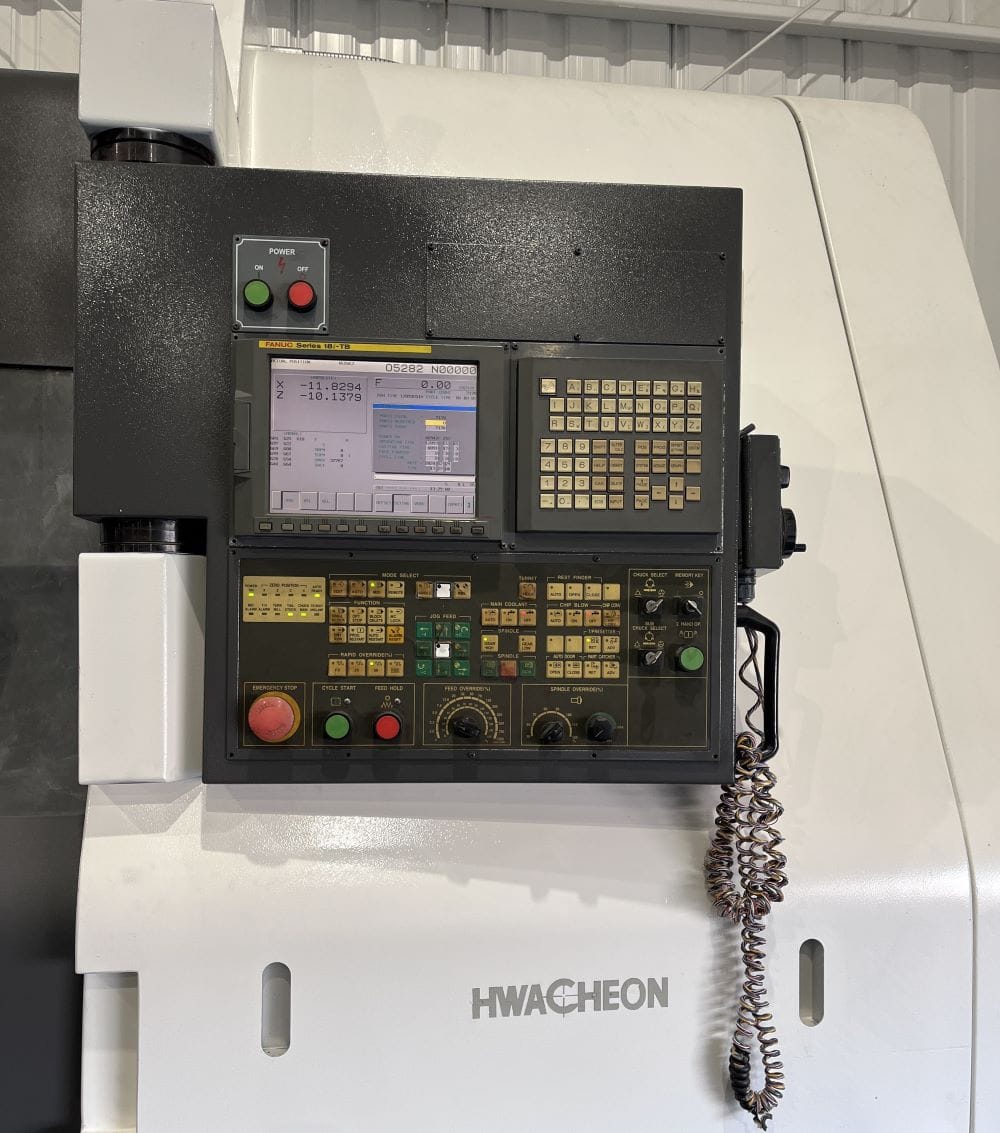

| Fanuc 18i-TB CNC Control |
| Long Bed Box Way Machine |

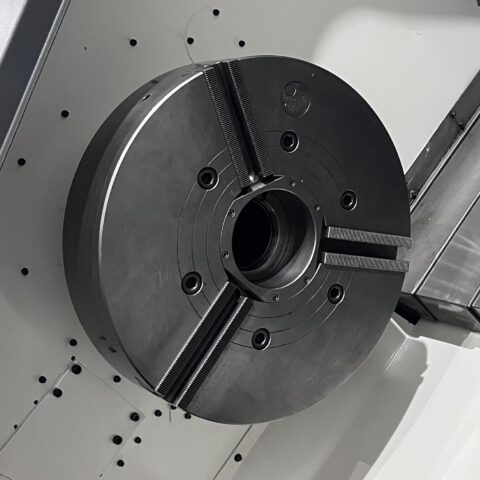

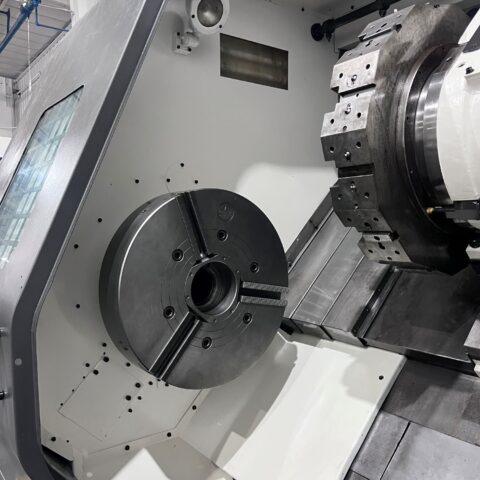

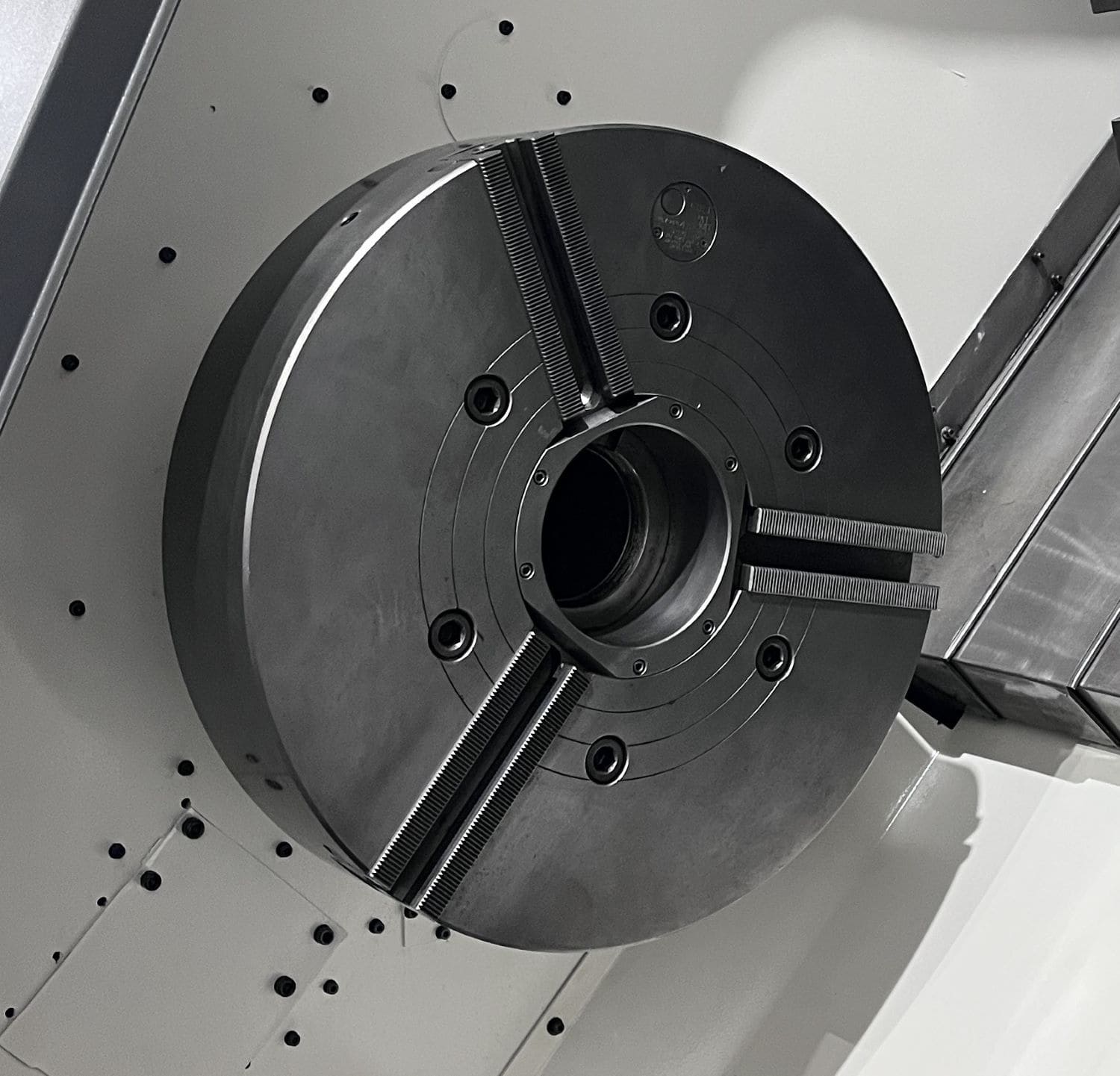

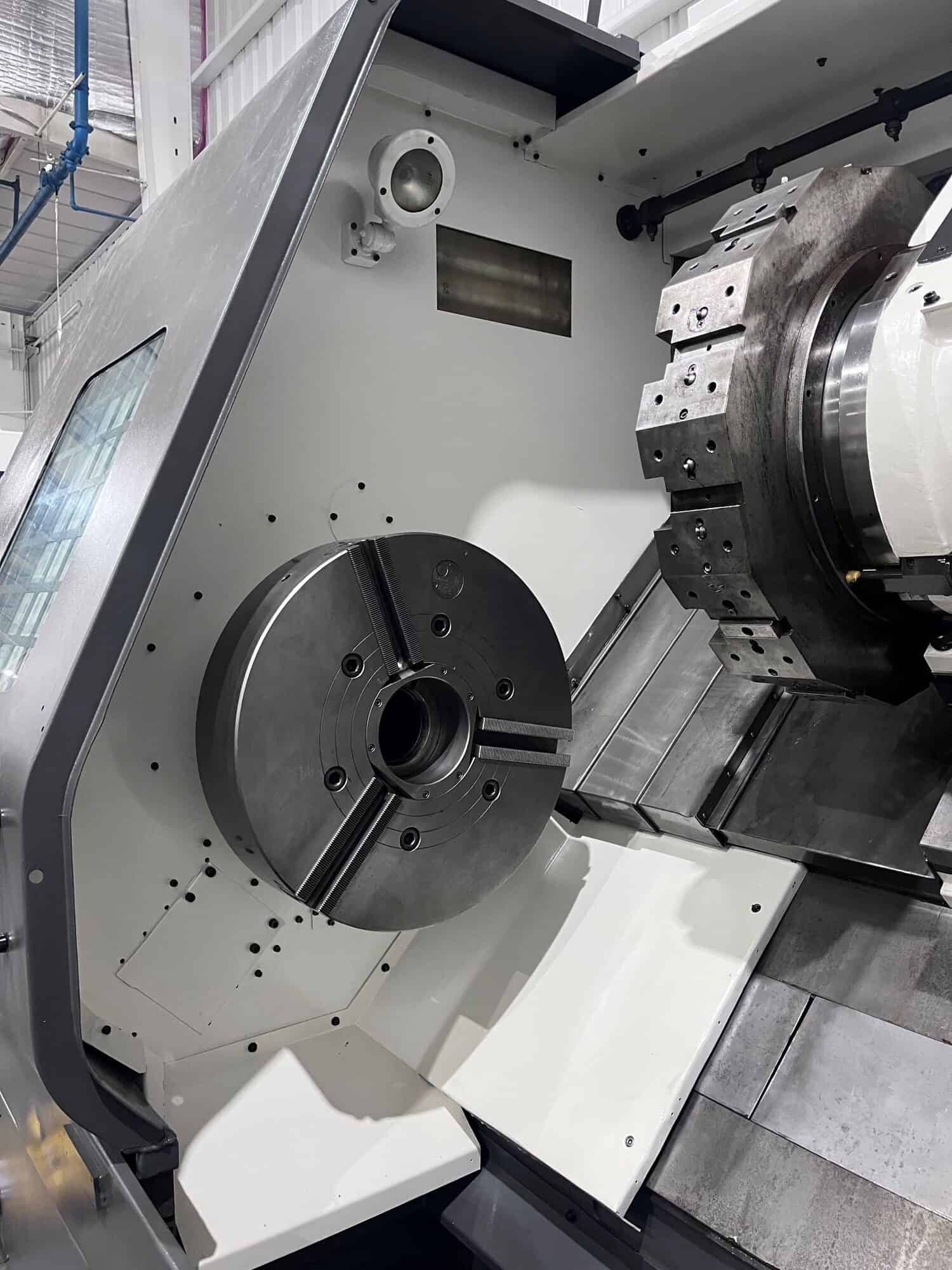

| 24″ 3-Jaw Hydraulic Chuck |
| 5.20″ Big Bore, A2-11 Spindle |

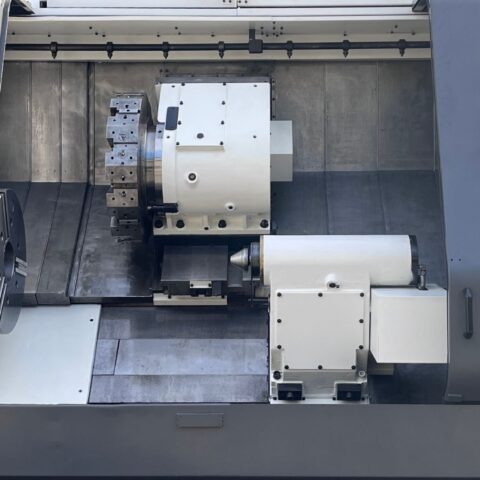

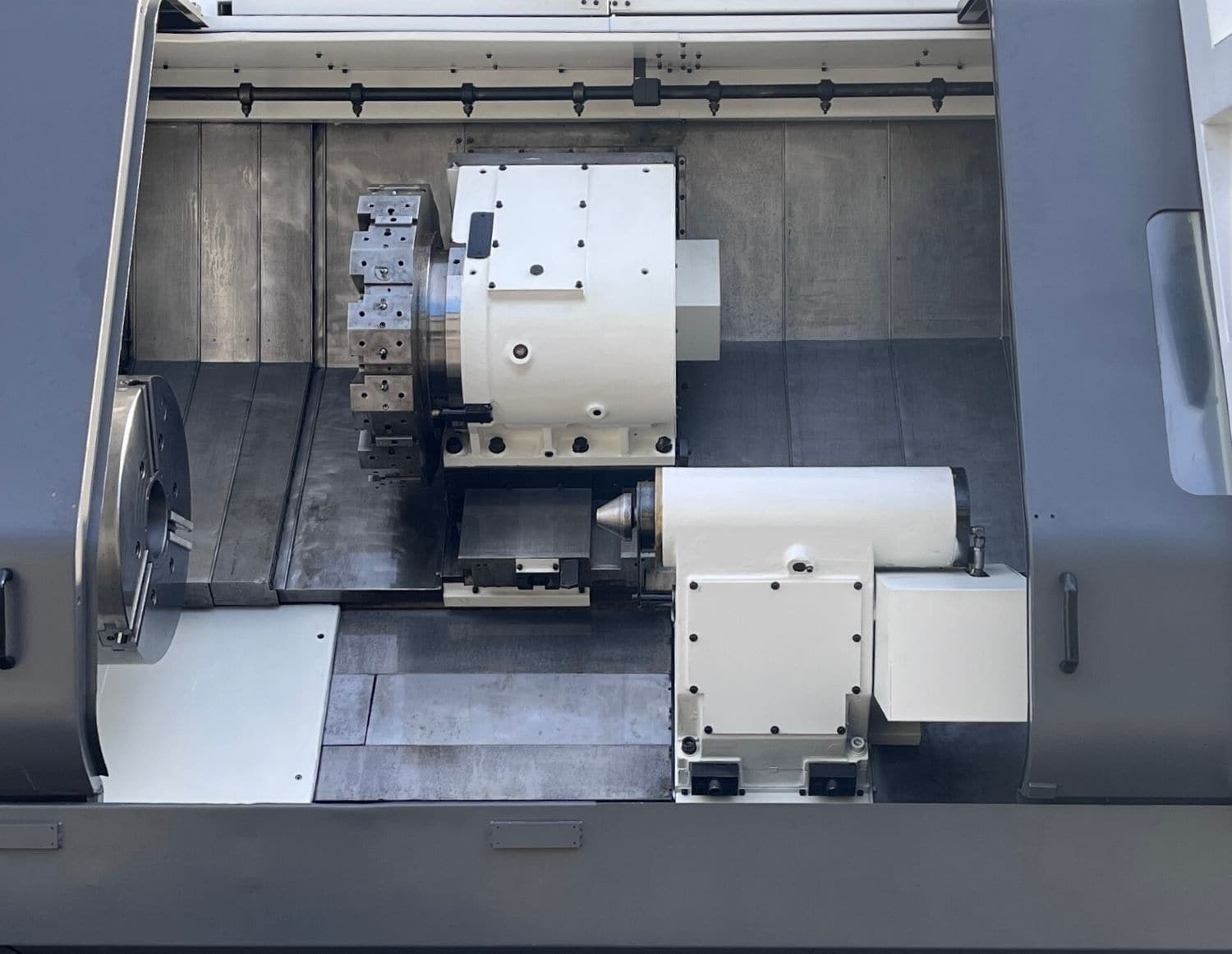

| 12 Station Automatic Turret |
| 50 HP High Torque Spindle |
| High Precision Geared Head Spindle for powerful Torque |
| Hydraulic Tailstock and Power Quill |
| PCMCIA Card Interface |
| Coolant System |
| Chip conveyor |
| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter: 27.56″ |
| Max Turning Length: 78.74″ |
| Max Bar Capacity: 4.90″ |
| Max Swing Over Bed: 35.43″ |
| Distance Between Centers: 80.00″ |
| Travel: |
|---|
| X Axis Travel: 15.16″ |
| Z Axis Travel: 81.5″ |
| Rapid Traverse X Axis: 708 IPM |
| Rapid Traverse Z Axis: 708 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5.20″ |
| Spindle Speed: 0 – 1800 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Capacity: 12 Stations |
| Turret Index Time: 0.4 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 5.90″ |
| Tailstock Quill Travel: 5.90″ |
| General: |
|---|
| Power: 220v / 75 kva / 3-Phase |
| Overall Dimensions: 200″ x 90″ x 100″ High Approx. |
| Weight: 33070 lbs. Approx. |
