*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

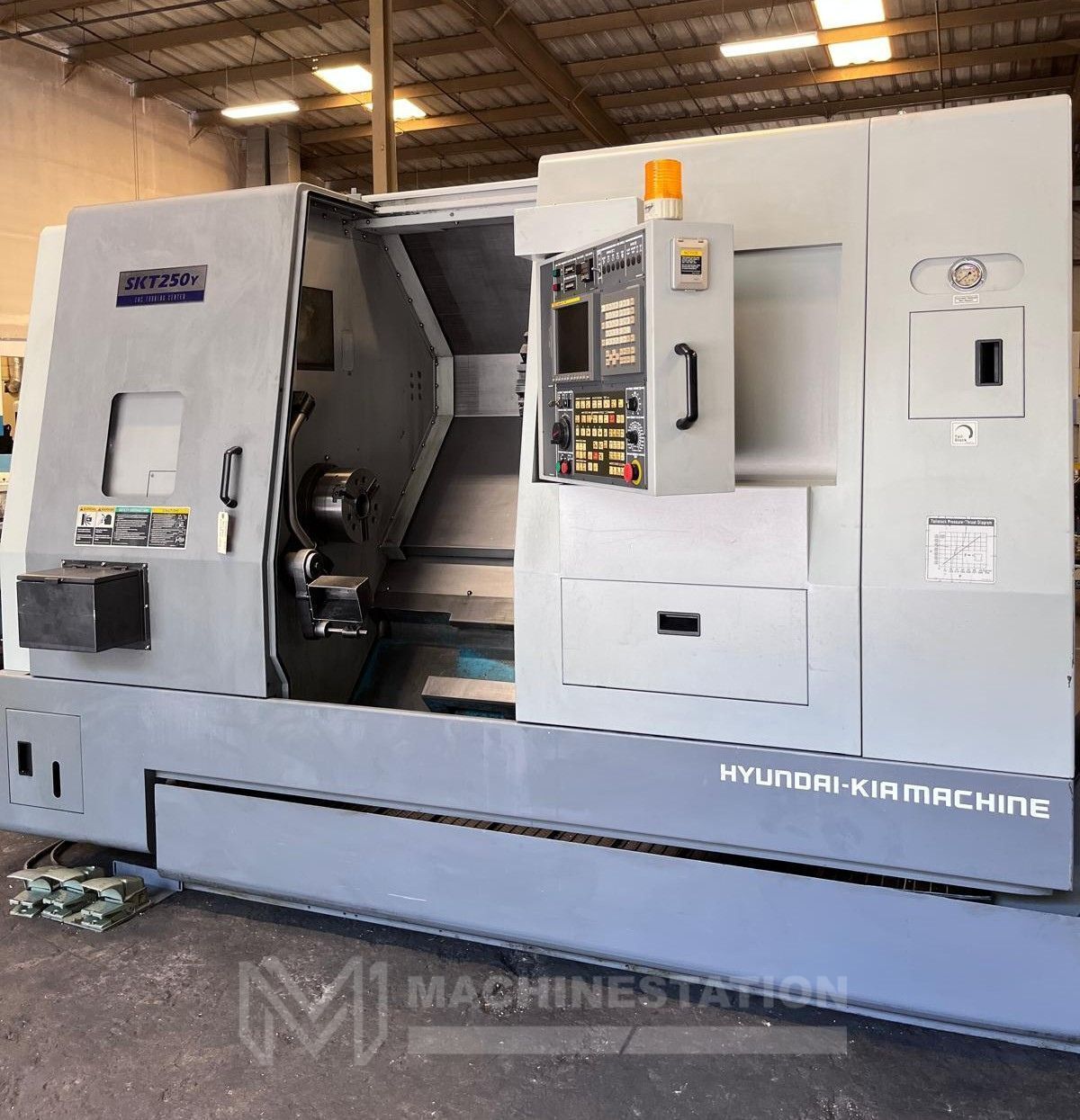

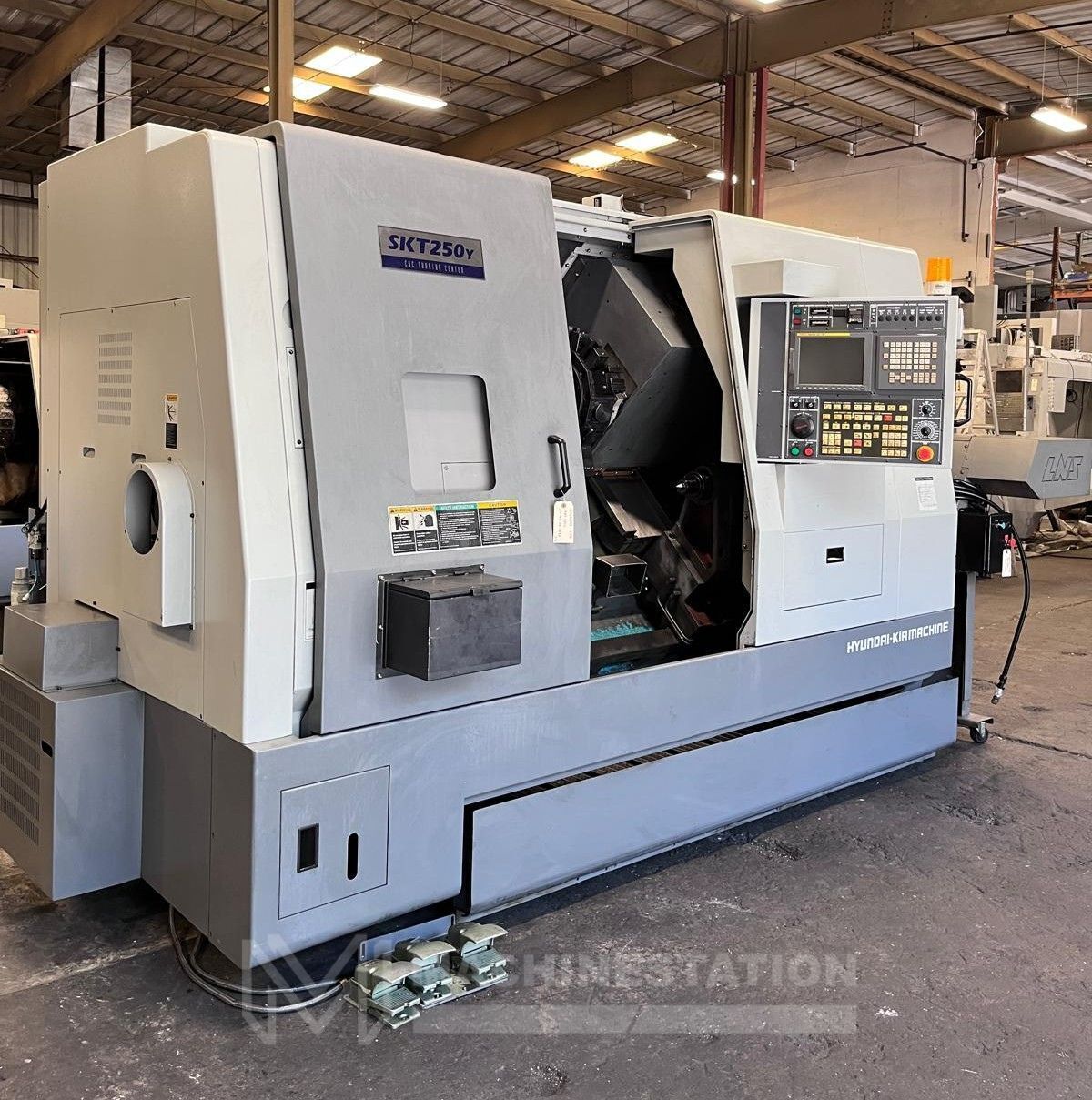

| Make: | HYUNDAI KIA |
| Model: | SKT-250Y |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

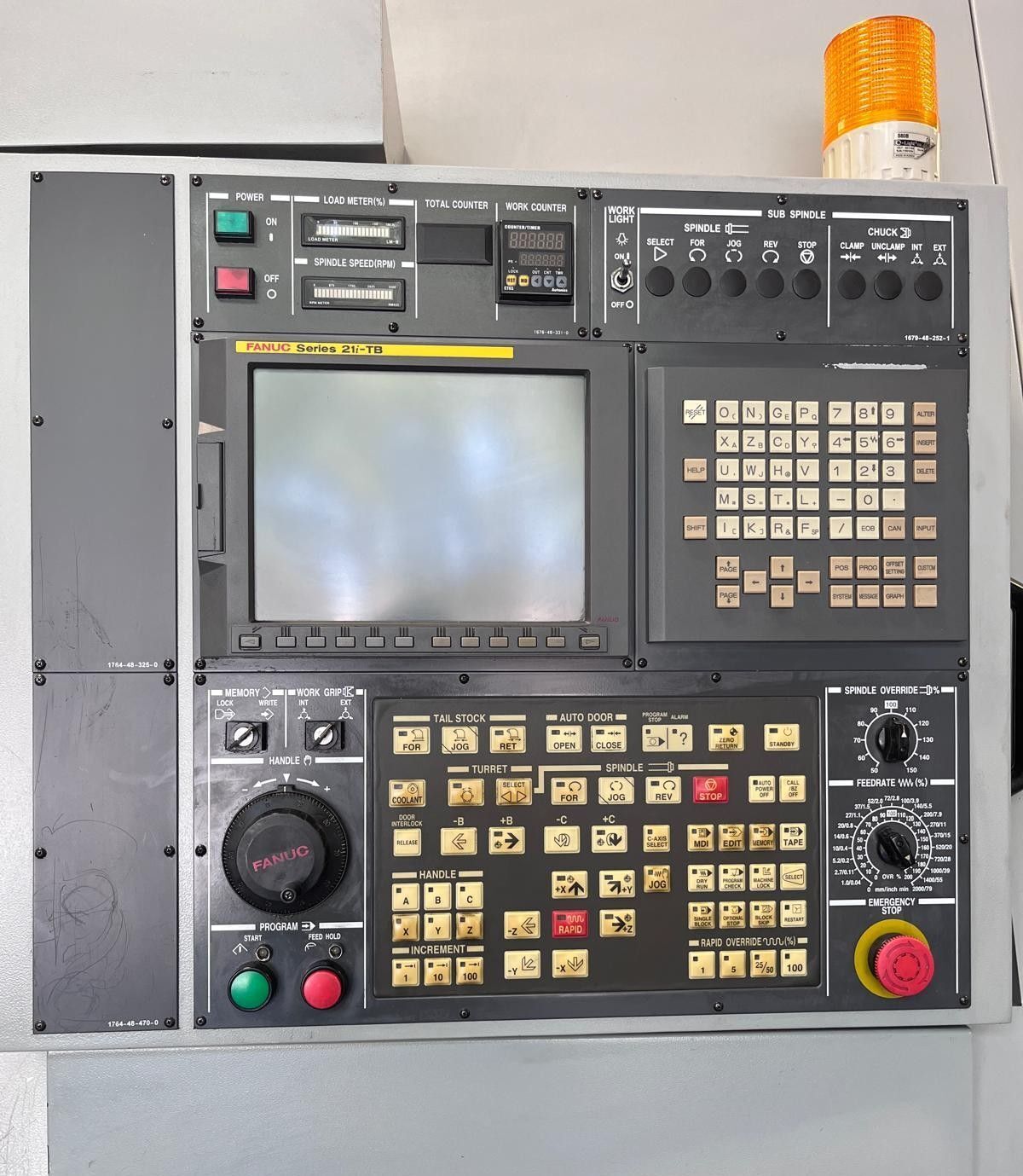

| Fanuc 21i-TB CNC Control |
| C & Y Axis Capability |
| Servo Controlled Full C-Axis Spindle |

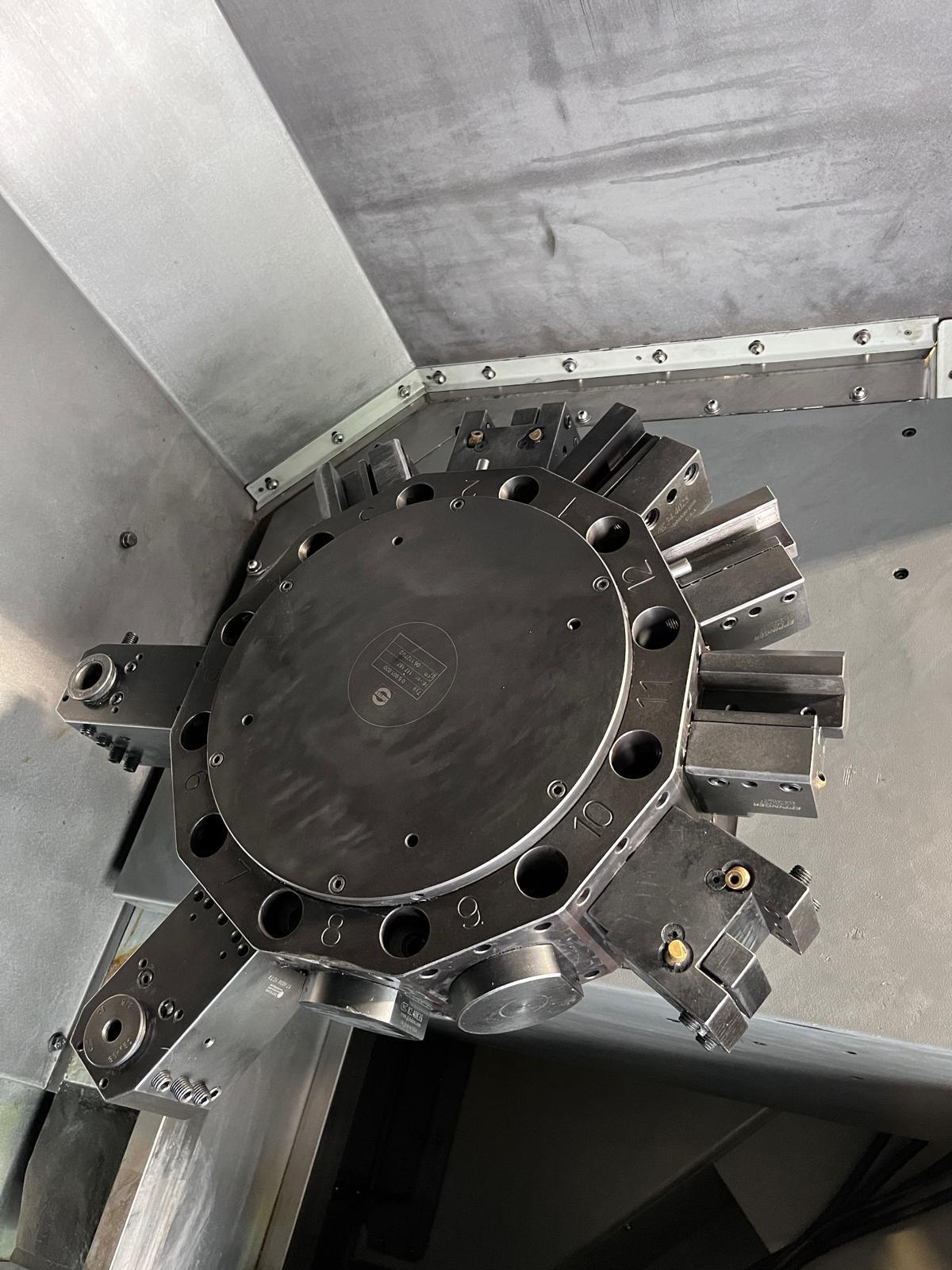

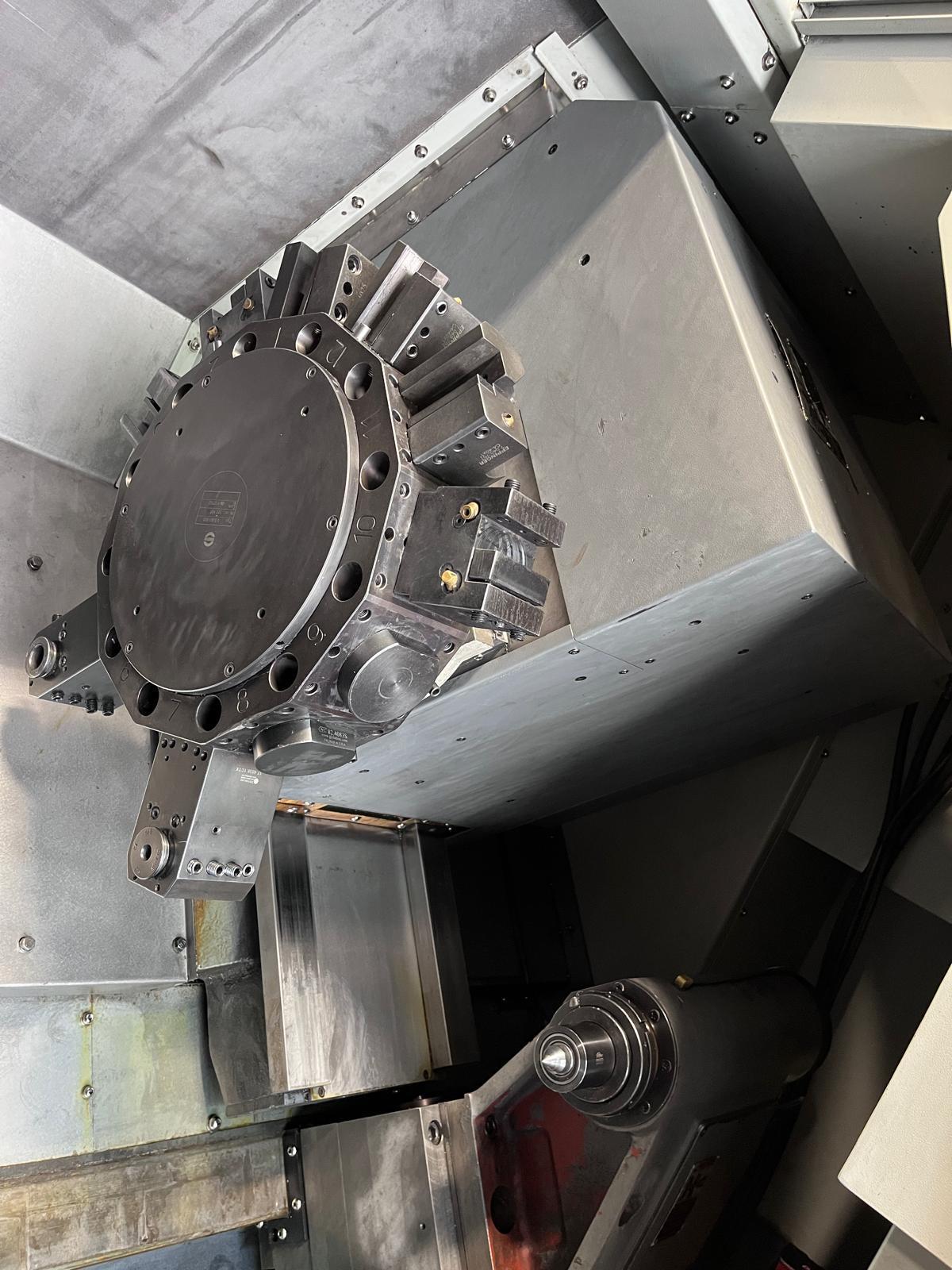

| 12 Station Live Tool Turret |

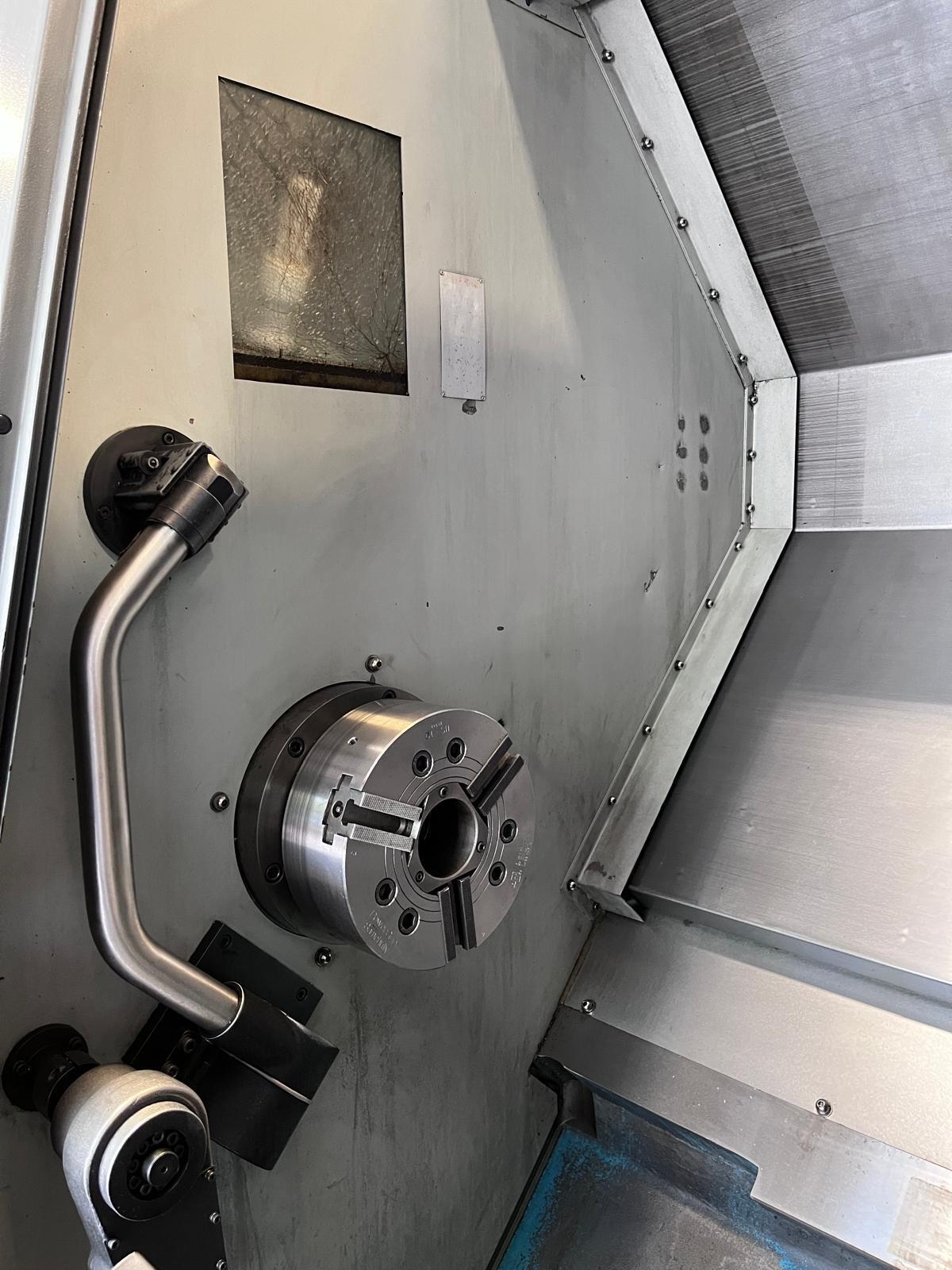

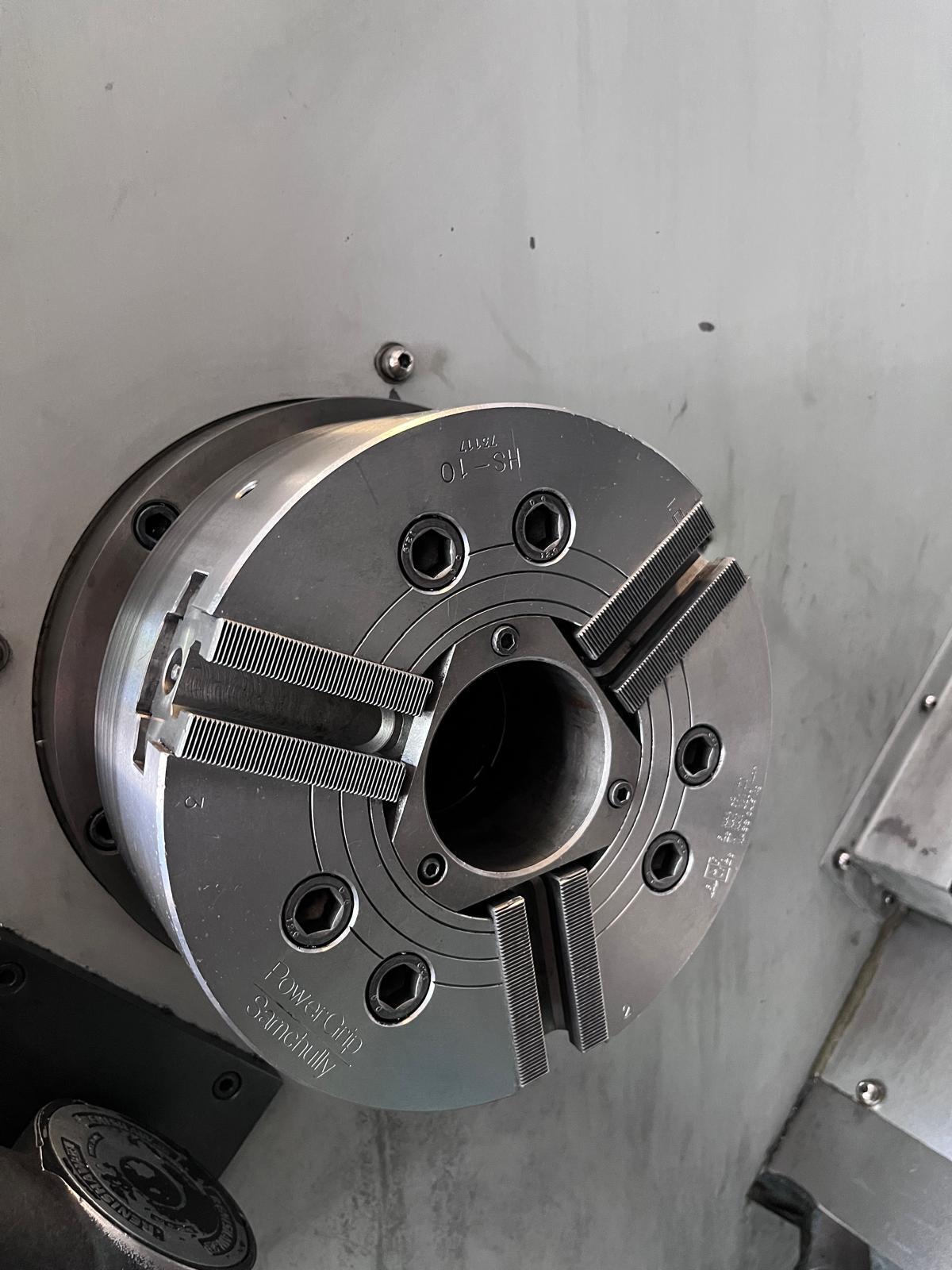

| 10″ 3 Jaw Power Chuck (12″ Capable) |
| Rigid Tapping |
| PCMCIA Interface |
| Foot Operated Control for Chuck |
| Programmable Tailstock |
| Tool Pre-setter |
| Part Catcher |
| Coolant System |
| Chip Conveyor |
| Tool Holders (Equipped on Turret as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 16.1″ |
| Max Swing Over Bed: 29.5″ |
| Max Swing Cross Over Slide: 18.9″ |
| Max Turning Length: 26.8″ |
| Max Bar Capacity: 3.1″ |
| Distance Between Centers: 29.5″ |
| Travels: |
|---|
| X Axis Travel : 9.1″ |
| Z Axis Travel : 27.6″ |
| Y Axis Travel: 4.3″( +/- 2.15″) |
| C Axis: 360° (0.001°) |
| Feedrate: |
|---|
| X Axis: 787 IPM Rapid Traverse |
| Z Axis: 945 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| Spindle: |
|---|
| Spindle Bore: 3.74″ |
| Spindle Nose: A2-8 |
| Spindle Speed: 3500 RPM |
| Spindle Power: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Speed: 4000 RPM |
| Live Tool Power: 7.5 HP |
| Turret Indexing Time: 1 sec |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Quill Dia: 4.33″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Body Travel: 22.5″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Overall Dimensions: 137″ x 77″ x 88″ High Approx. |

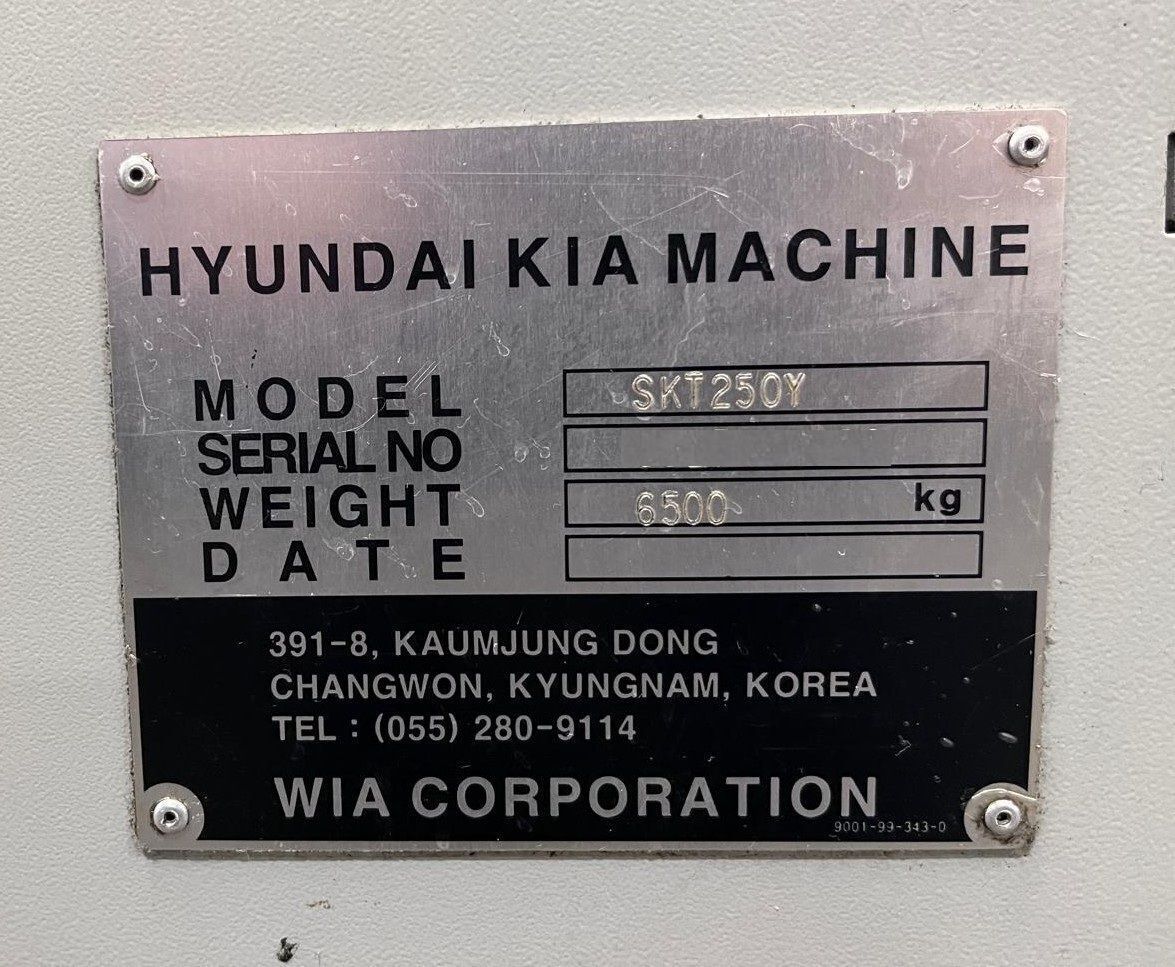

| Weight: 14,330 lbs. Approx. |
