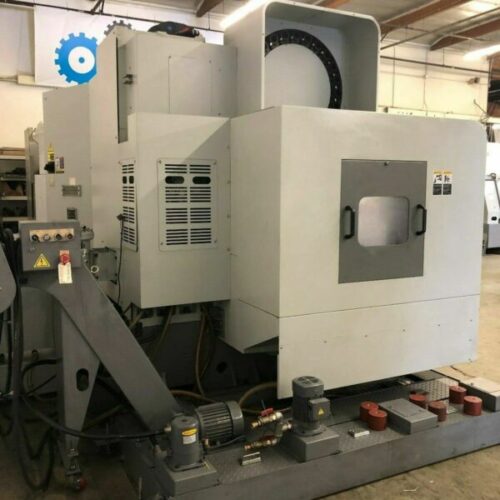

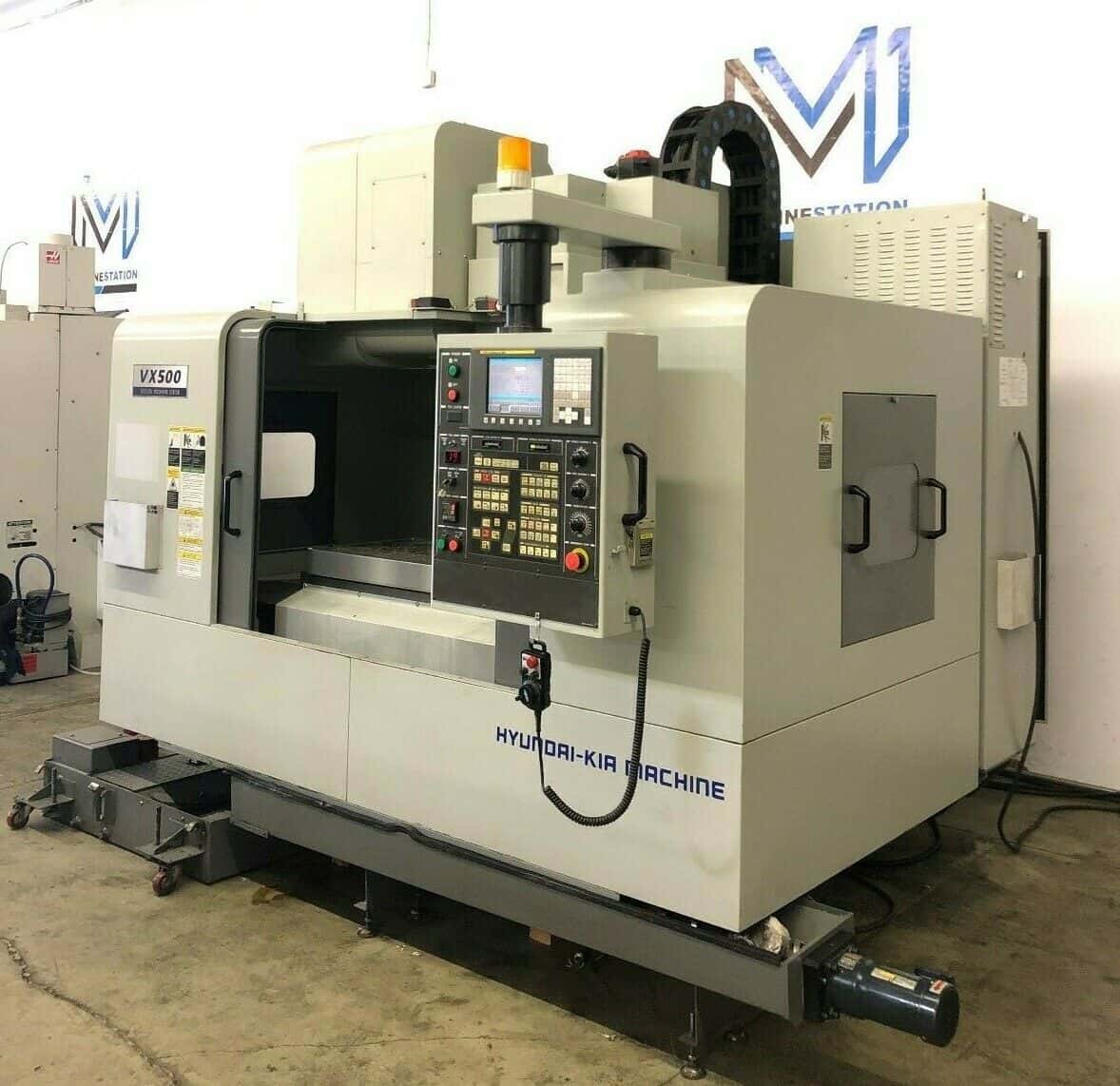

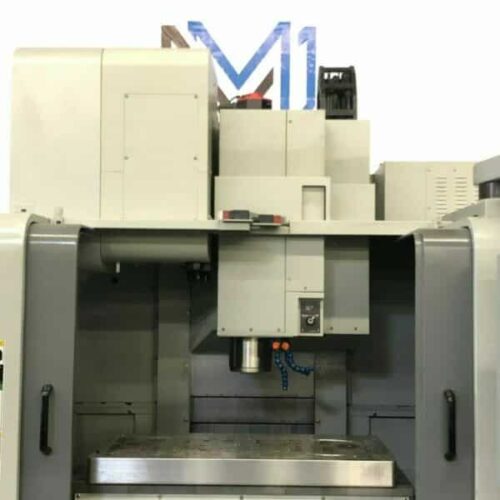

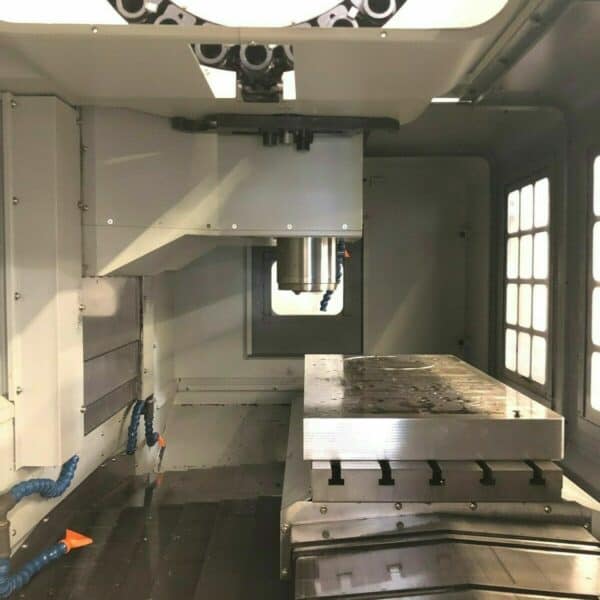

Hyundai Kia VX-500 Vertical Machining Center

Out of stock
SKU: 1841
Make/Model: Hyundai Kia VMX-500
Video: [fusion_button link=”https://www.youtube.com/watch?v=c_pIx83C_kU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1841

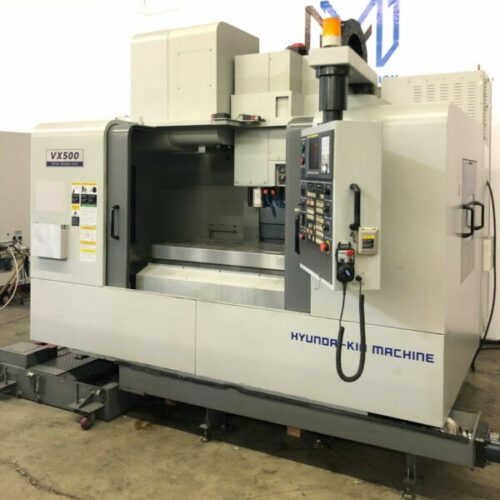

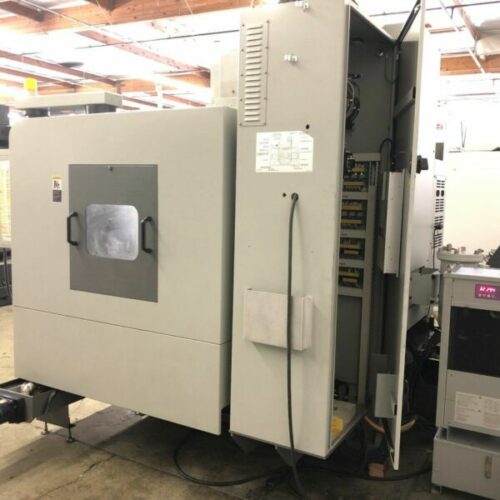

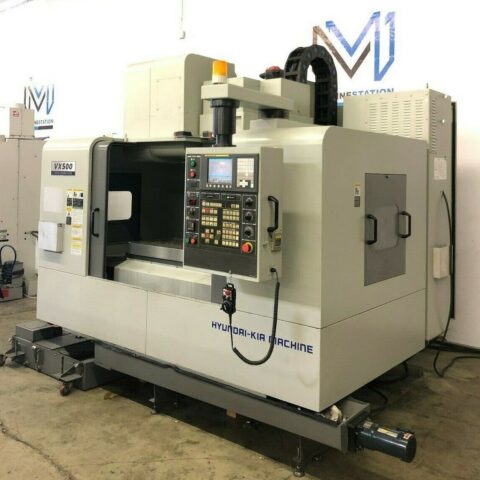

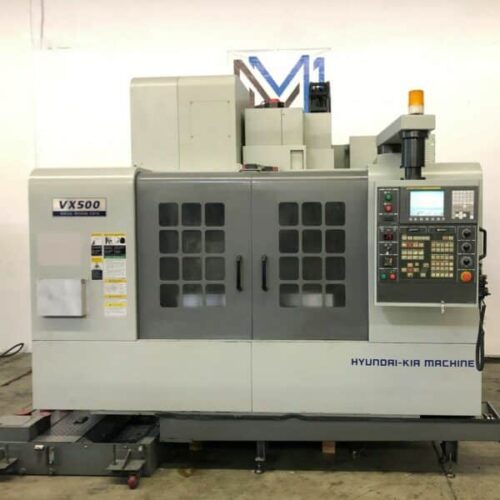

HYUNDAI KIA VX-500 VERTICAL MACHINING CENTER
Make Hyundai Kia
Model No. VMX-500
Year 2010
Serial # 63684-1414
Condition Very Good
Cutting Hours: 7918
  • Hyundai Kia VX-500 Features:

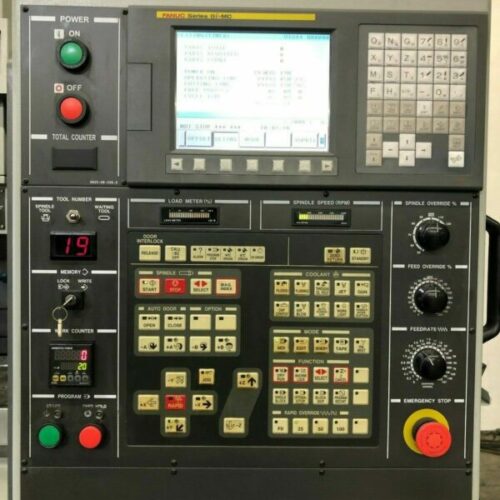

  • Fanuc Oi-MC CNC Control
  • Through Spindle Coolant
  • 10,000 RPM Precision Spindle
  • 1417 Inch Per Min Rapids
  • PCMCIA Card Slot
  • MPG Control
  • Rigid Tapping
  • Spindle Orientation

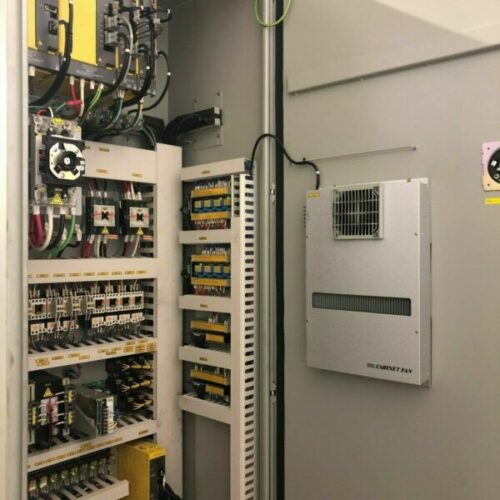

  • Brushless servo drive motors on all axis
  • 24 Automatic high speed tool changer
  • High Pressure Flood Coolant
  • Telescopic way covers

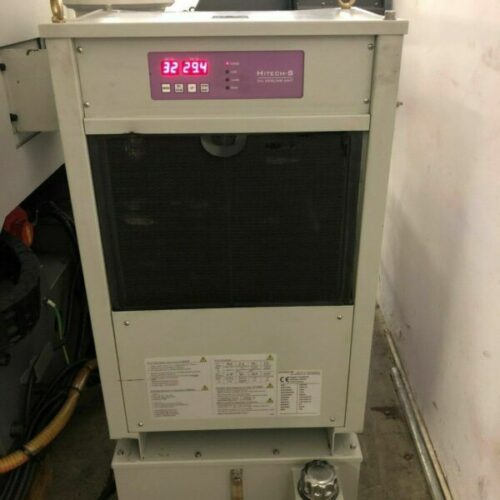

  • Spindle Chiller Unit
  • Flood Coolant system
  • Chip Conveyor
  • Levelling Pads
  • Manuals & Books
  • Hyundai Kia VX-500 Specifications:
  • Travels:
  • X-Axis: 41.7″
  • Y-Axis: 20.1″
  • Z-Axis: 25.0″
  • Rapid Traverse Rates: 1417″ Per Minute
  • Feed Rates: 590″ Per Minute
  • Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″

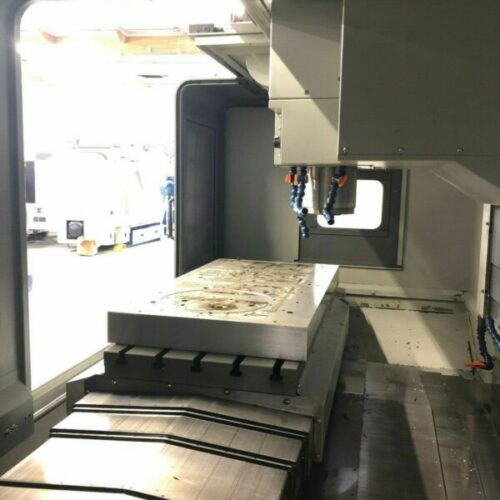

  • Table:
  • Length: 47.2″
  • Width: 19.7″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1763 lbs
  • Spindle:
  • Spindle: Taper Size:  40
  • Speed Range: 0 – 10,000 RPM
  • Spindle Type: Belt Drive
  • Spindle Power: 15 HP
  • Automatic Tool Changer:
  • Capacity: 24
  • Tool Weight: 17.6 lbs
  • Max Tool Dia: 3.54″
  • Max Tool Length: 11.8″
  • Tool Changing Time: 3 Seconds
  • General:
  • Air Required: 80 psi, 4 scfm
  • Power: 220v / 35 kva / 3-Phase
  • Overall Dimensions: 140″ x 100″ x 110″ High
  • Overall Dimensions: 160″ x 100″ x 110″ High W/Chip Conveyor
  • Weight: 16500 lbs
