Sold

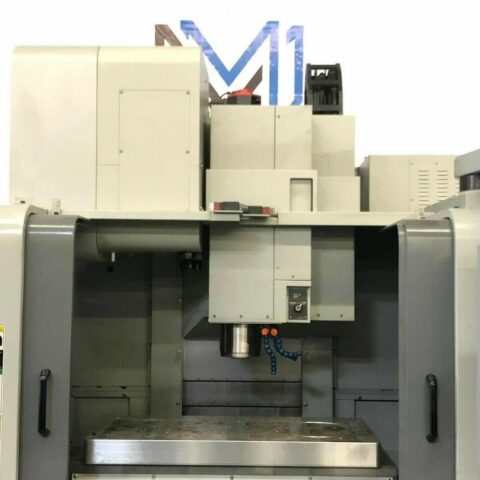

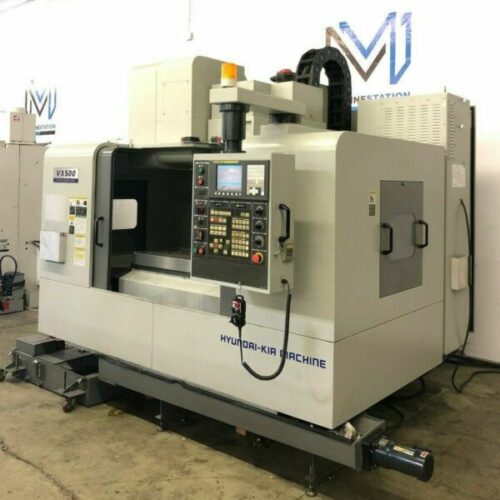

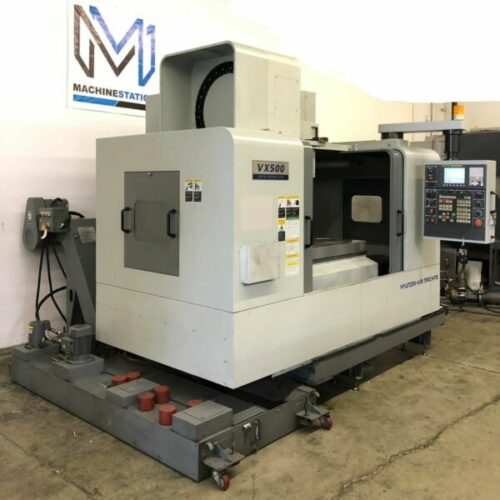

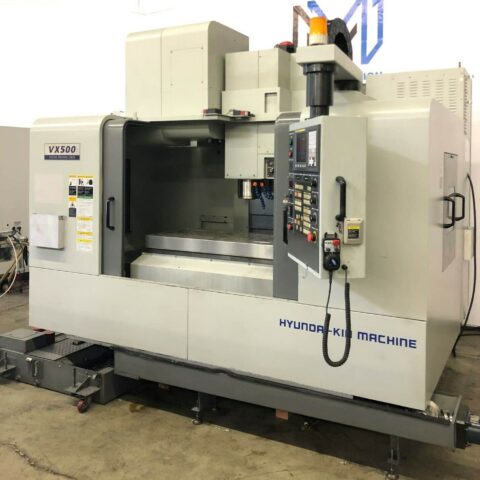

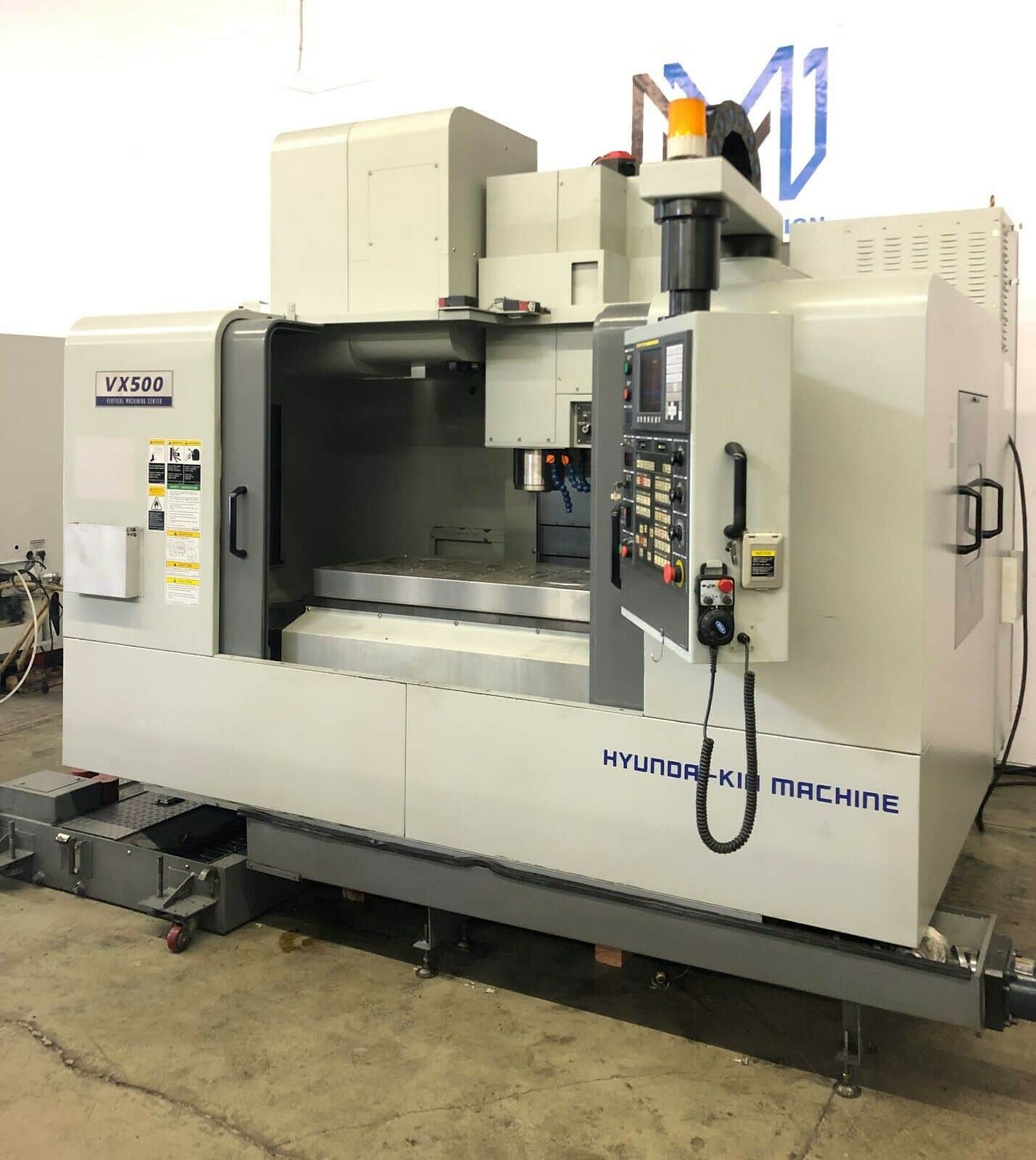

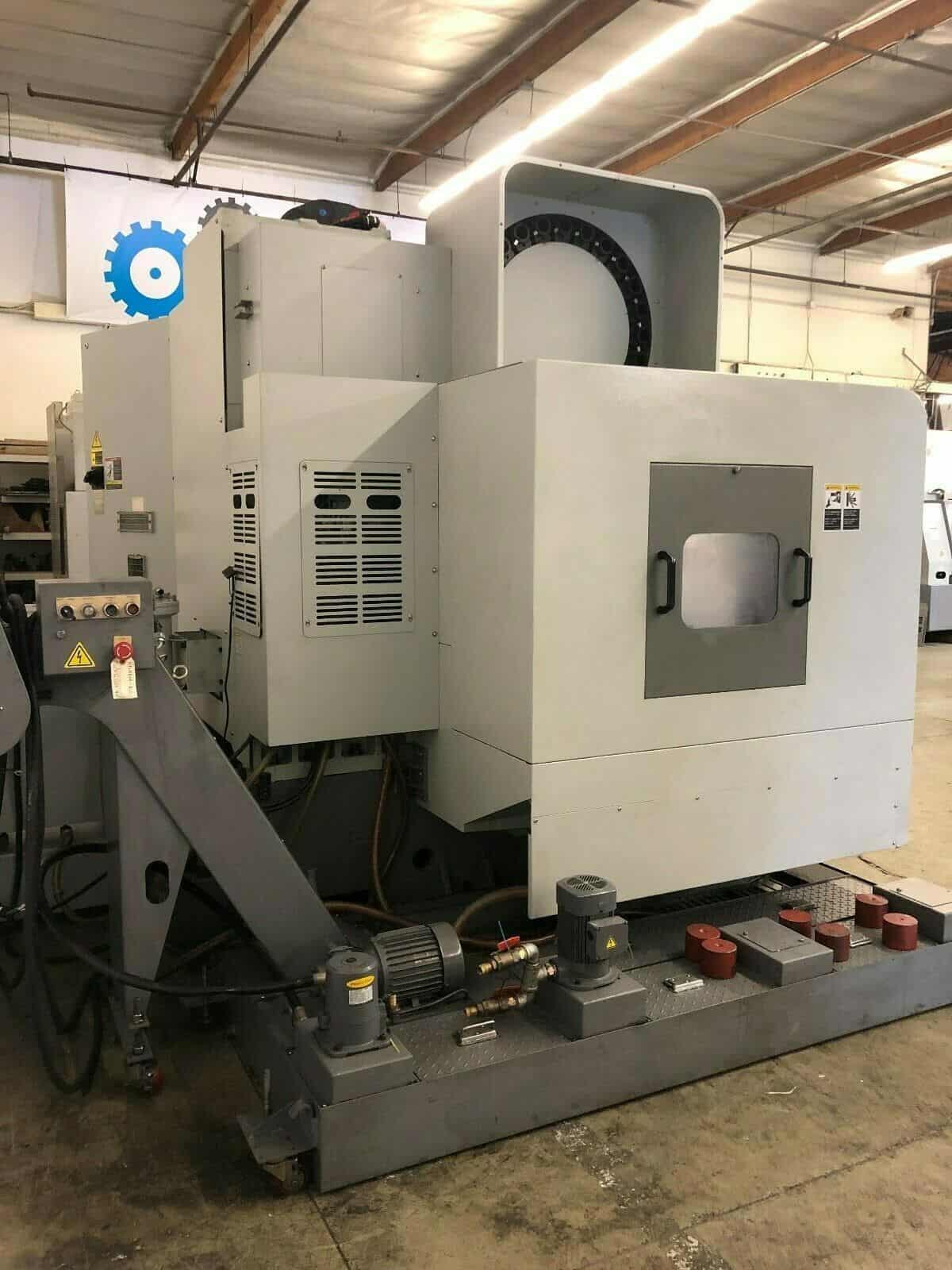

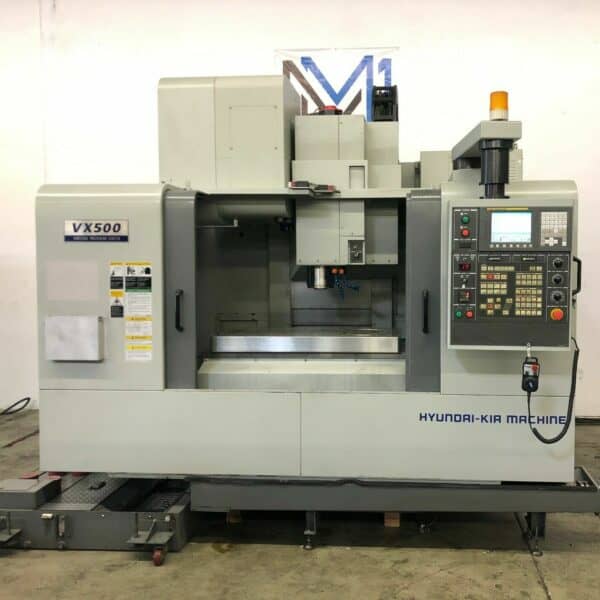

Hyundai Kia VX-500 Vertical Machining Center
Out of stock
| SKU: | 1842 |
| Make/Model: | Hyundai Kia VMX-500 |
| Make | Hyundai Kia |
| Model No. | VMX-500 |
| Year | 2010 |
| Serial # | 63684-1417 |
| Condition | Very Good |
Hyundai Kia VX-500 Features:

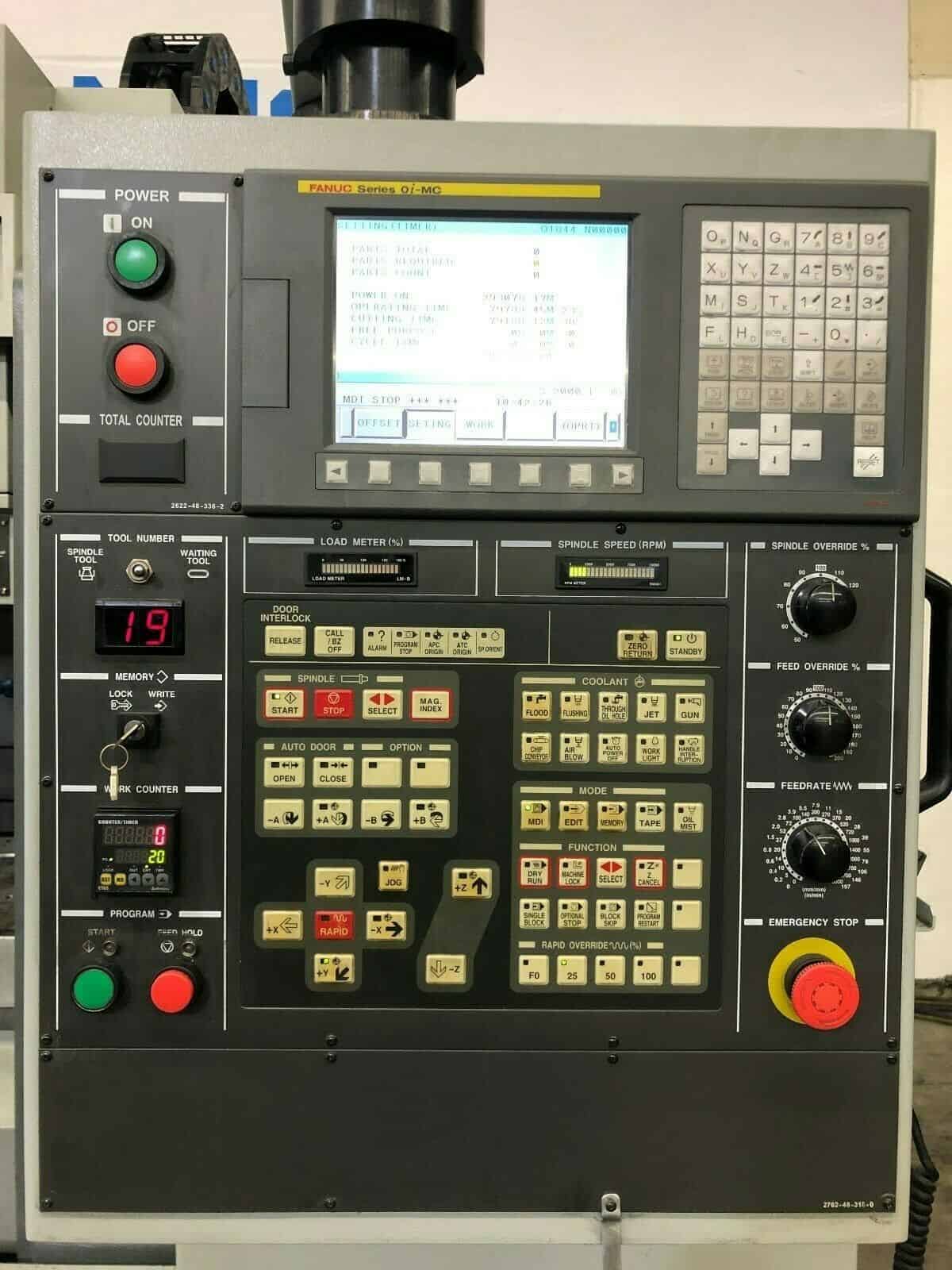

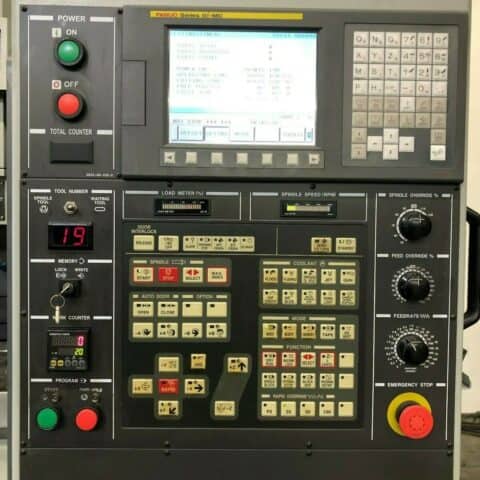

- Fanuc Oi-MC CNC Control
- Through Spindle Coolant
- 10,000 RPM Precision Spindle
- 1417 Inch Per Min Rapids
- PCMCIA Card Slot
- MPG Control
- Rigid Tapping
- Spindle Orientation
- Brushless servo drive motors on all axis
- 24 Automatic high speed tool changer
- High Pressure Flood Coolant
- Telescopic way covers
- Spindle Chiller Unit
- Flood Coolant system

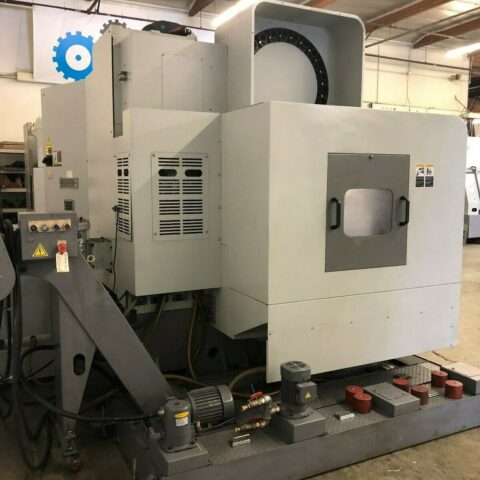

- Chip Conveyor
- Levelling Pads
- Manuals & Books
Hyundai Kia VX-500 Specifications:
- Travels:
- X-Axis: 41.7″
- Y-Axis: 20.1″
- Z-Axis: 25.0″
- Rapid Traverse Rates: 1417″ Per Minute
- Feed Rates: 590″ Per Minute
- Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″

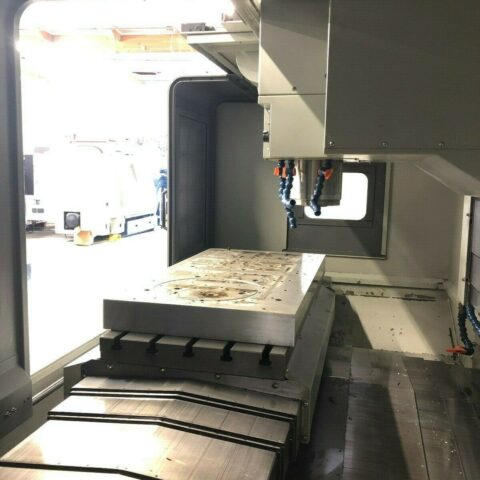

Table:
- Length: 47.2″
- Width: 19.7″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1763 lbs
Spindle:
- Spindle: Taper Size: 40
- Speed Range: 0 – 10,000 RPM
- Spindle Type: Belt Drive
- Spindle Power: 15 HP
Automatic Tool Changer:
- Capacity: 24
- Tool Weight: 17.6 lbs
- Max Tool Dia: 3.54″
- Max Tool Length: 11.8″
- Tool Changing Time: 3 Seconds
General:
- Air Required: 80 psi, 4 scfm
- Power: 220v / 35 kva / 3-Phase
- Overall Dimensions: 140″ x 100″ x 110″ High
- Overall Dimensions: 160″ x 100″ x 110″ High W/Chip Conveyor
- Weight: 16500 lbs
