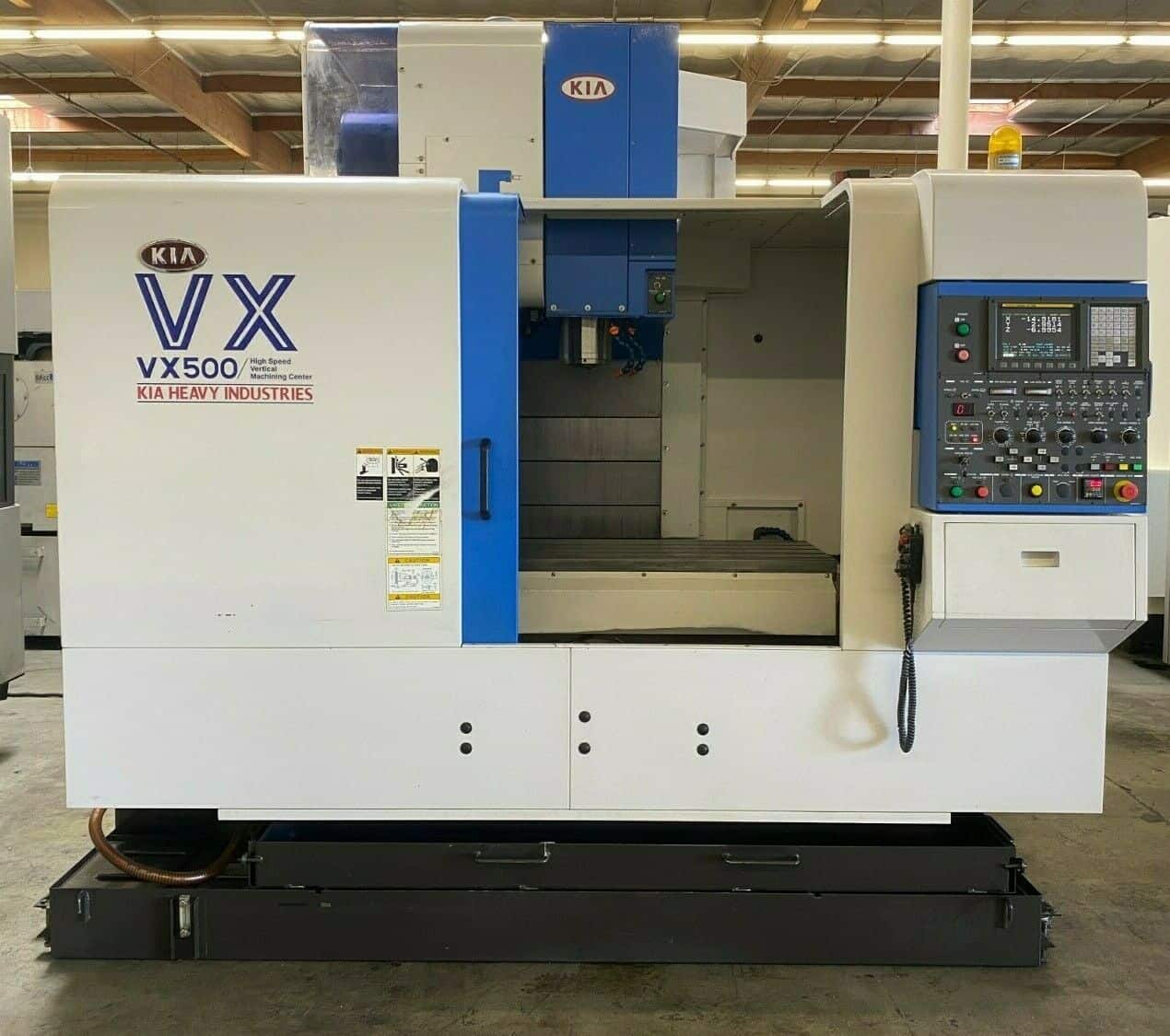

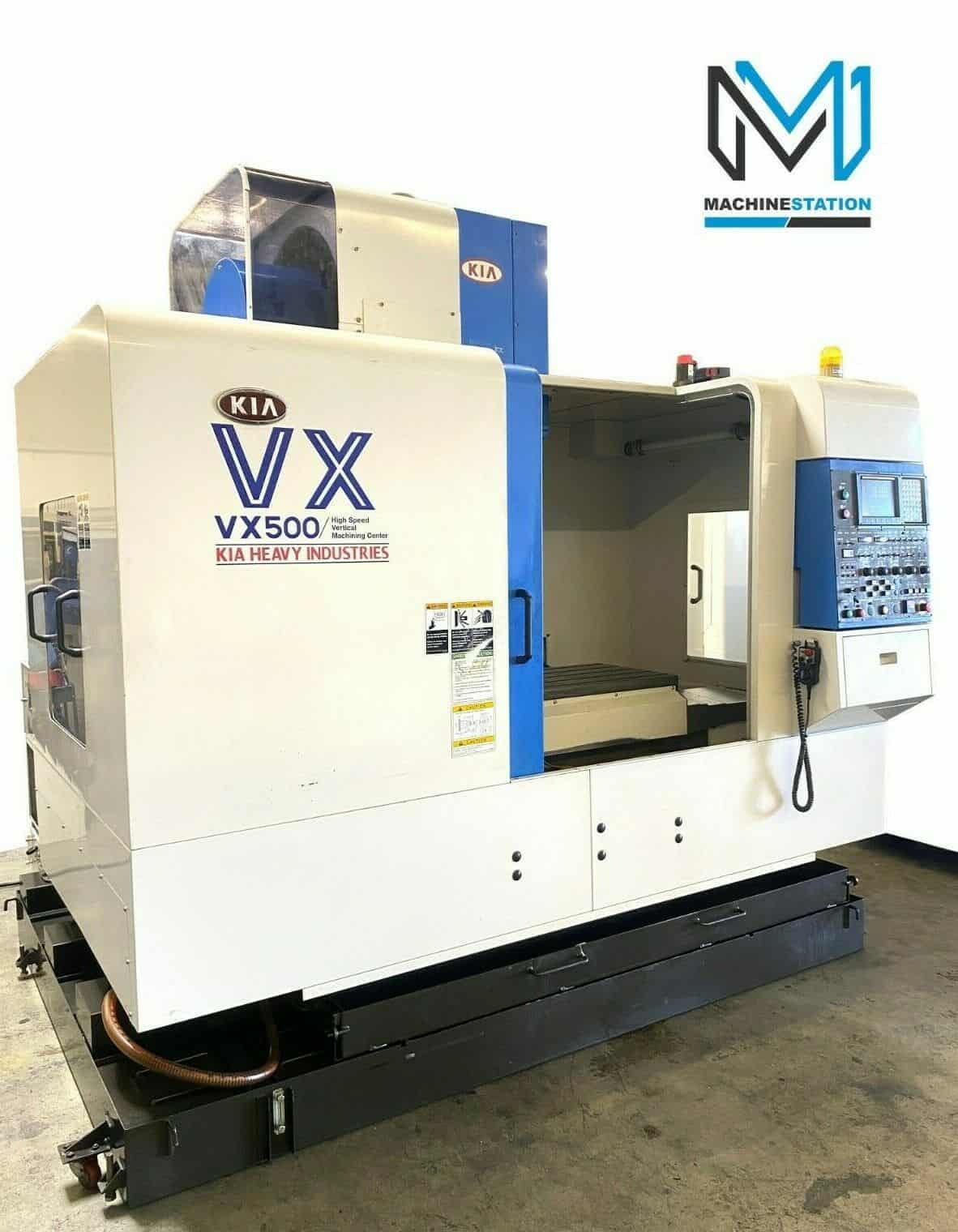

Features:

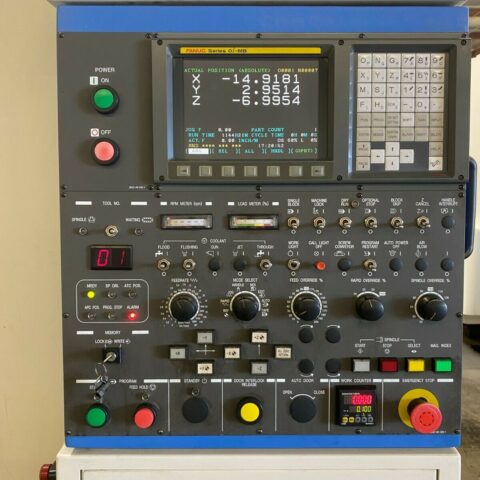

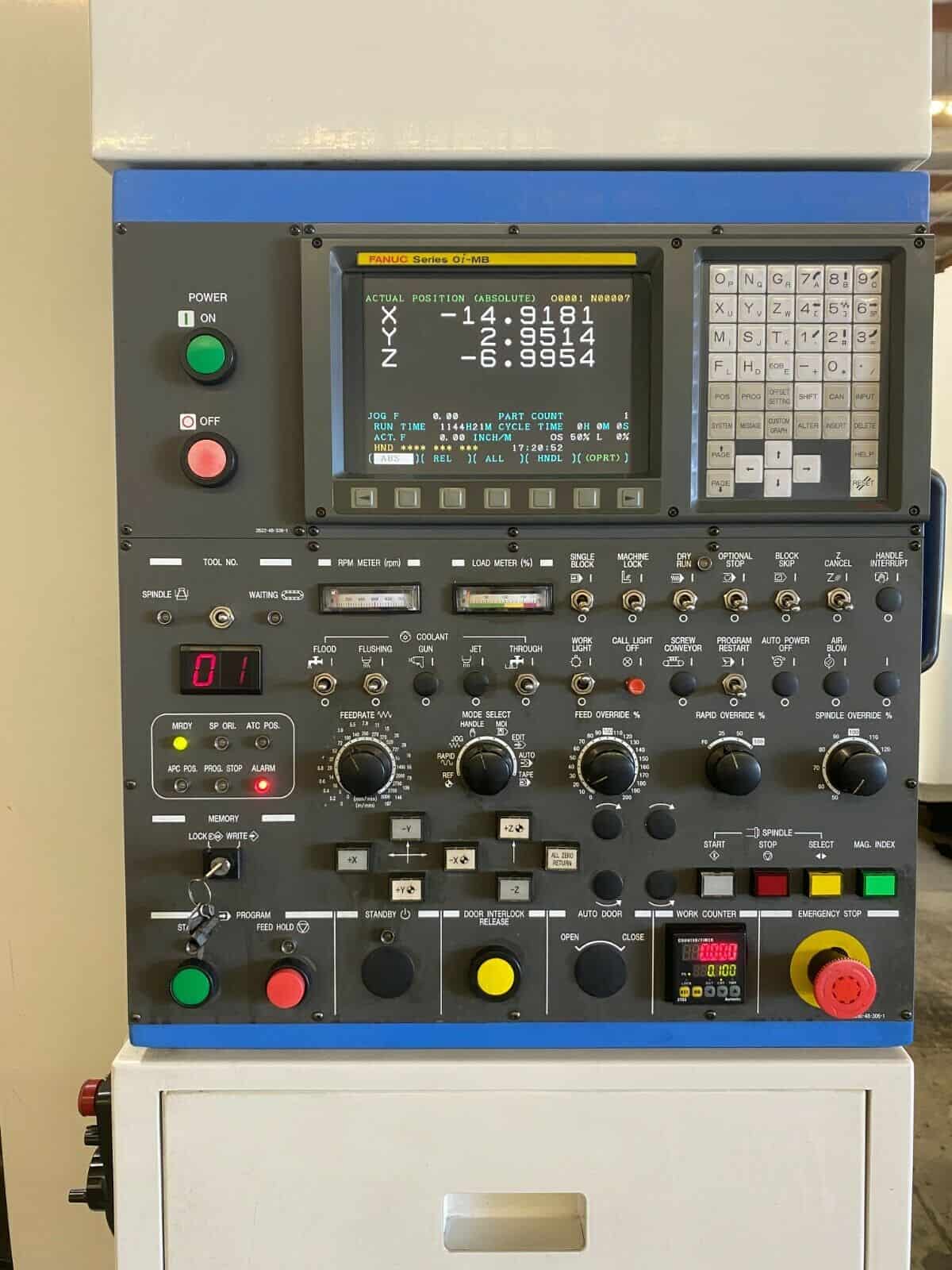

- Fanuc 0i-MB CNC Control
- Thru Spindle Coolant
- 25 HP High Torque Spindle Motor
- 10,000 RPM High Precision Spindle
- MPG Control
- 24 side mount Automatic tool changer
- High Speed Rapids
- Rigid Tapping
- Spindle Orientation
- Telescopic way covers

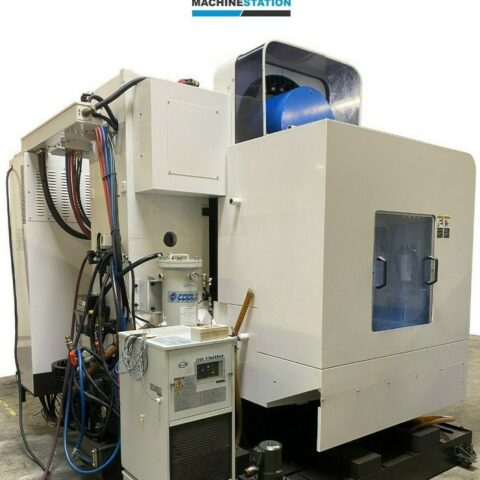

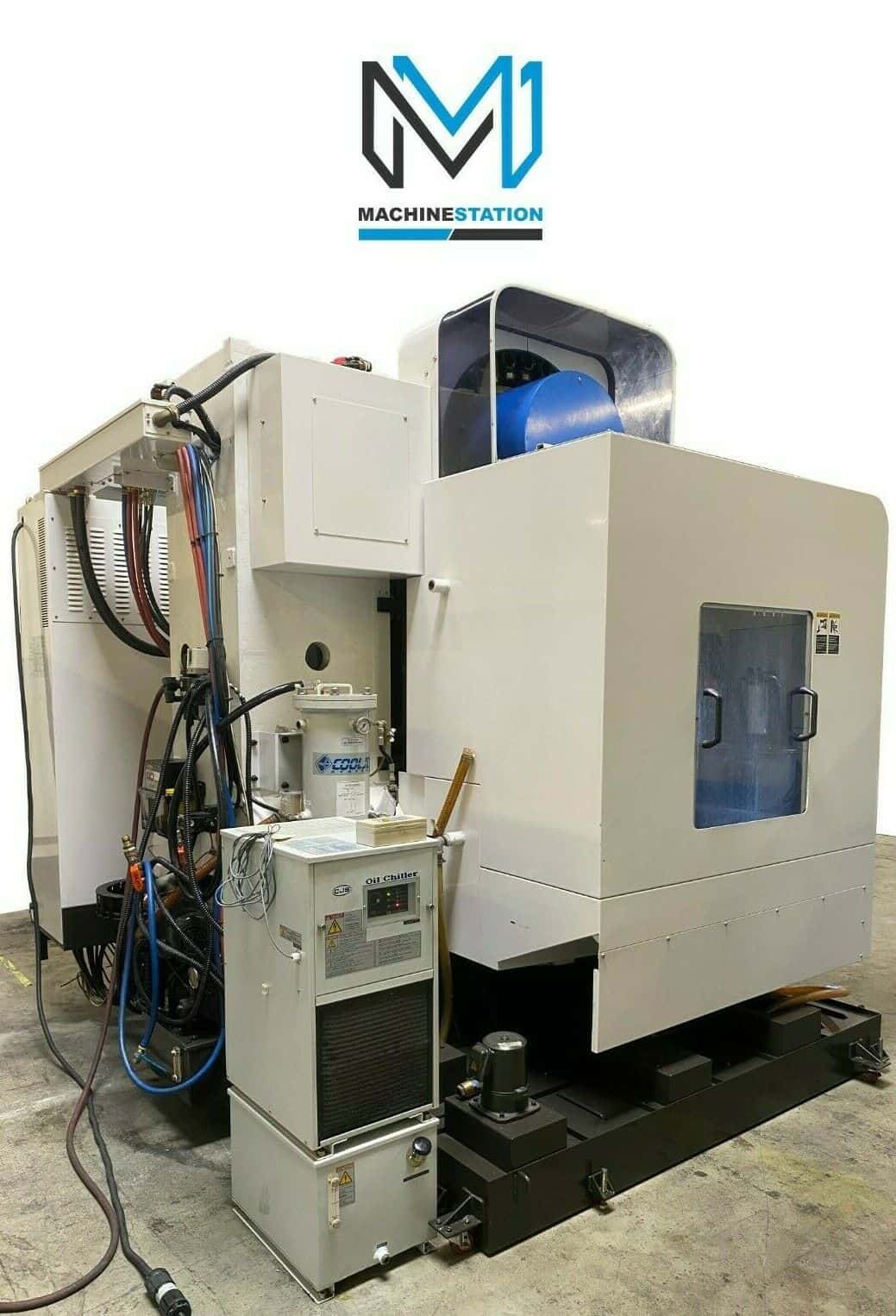

- Oil Chiller Unit
- Coolant filteration unit
- Coolant tank and pumps
-
Specifications:
- Travels:
- X-Axis: 41.7″
- Y-Axis: 20.1″
- Z-Axis: 25.0″
- Rapid Traverse Rates: 1417 Inch Per Minute
- Cutting Feed Rates: 591 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.9″ – 31.0″
-

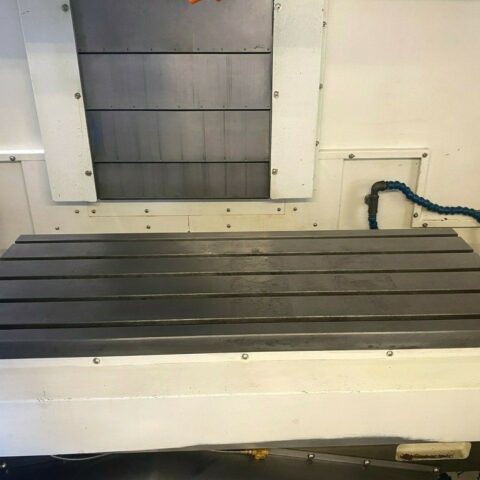

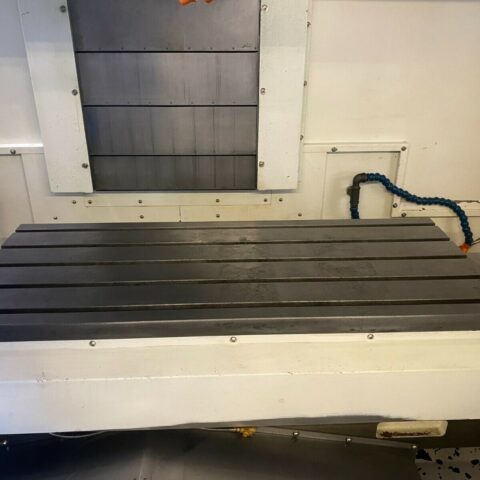

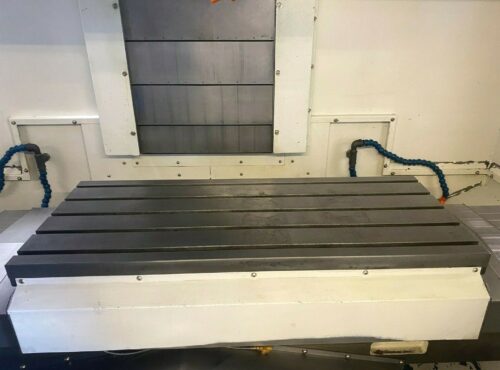

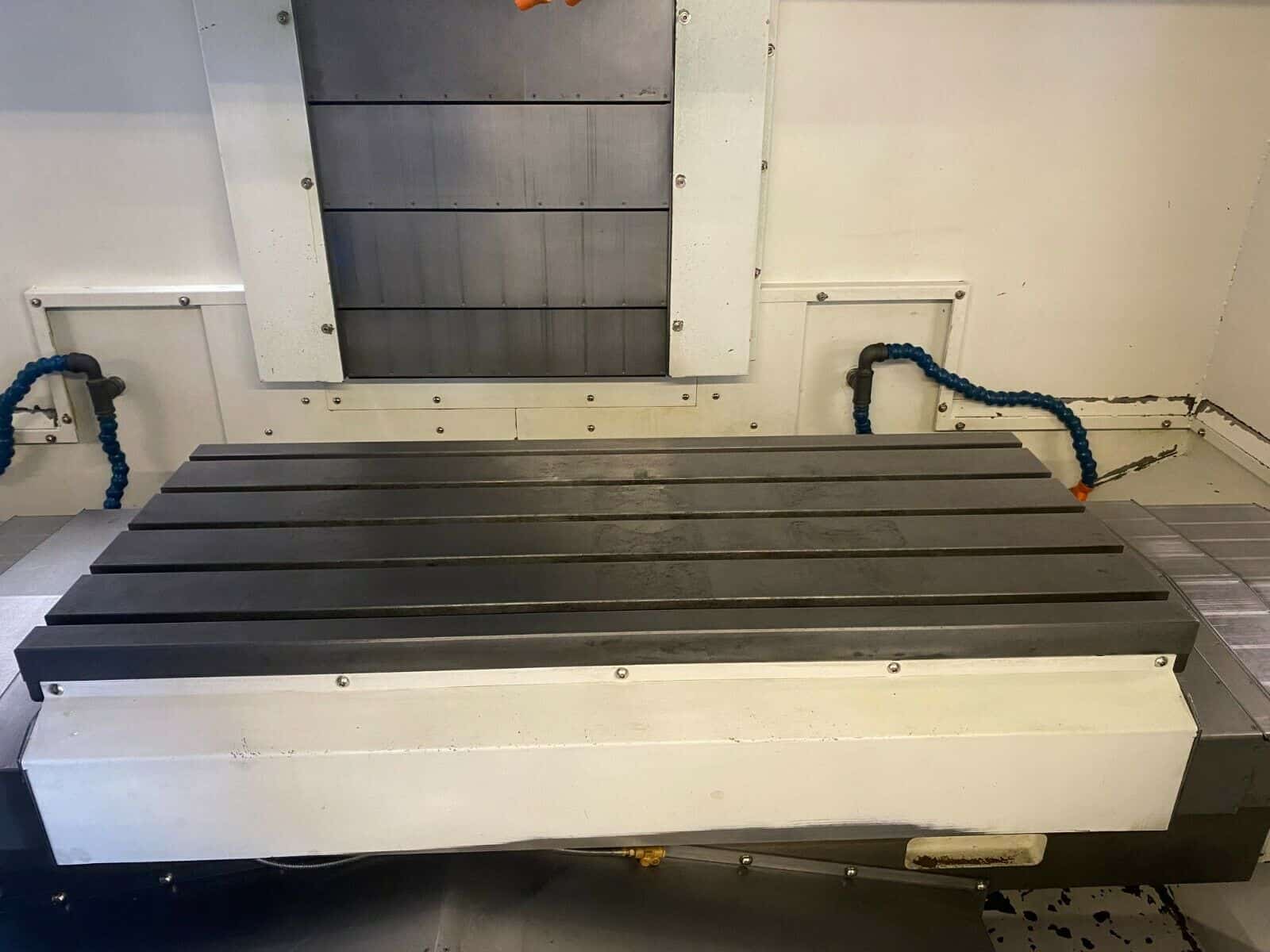

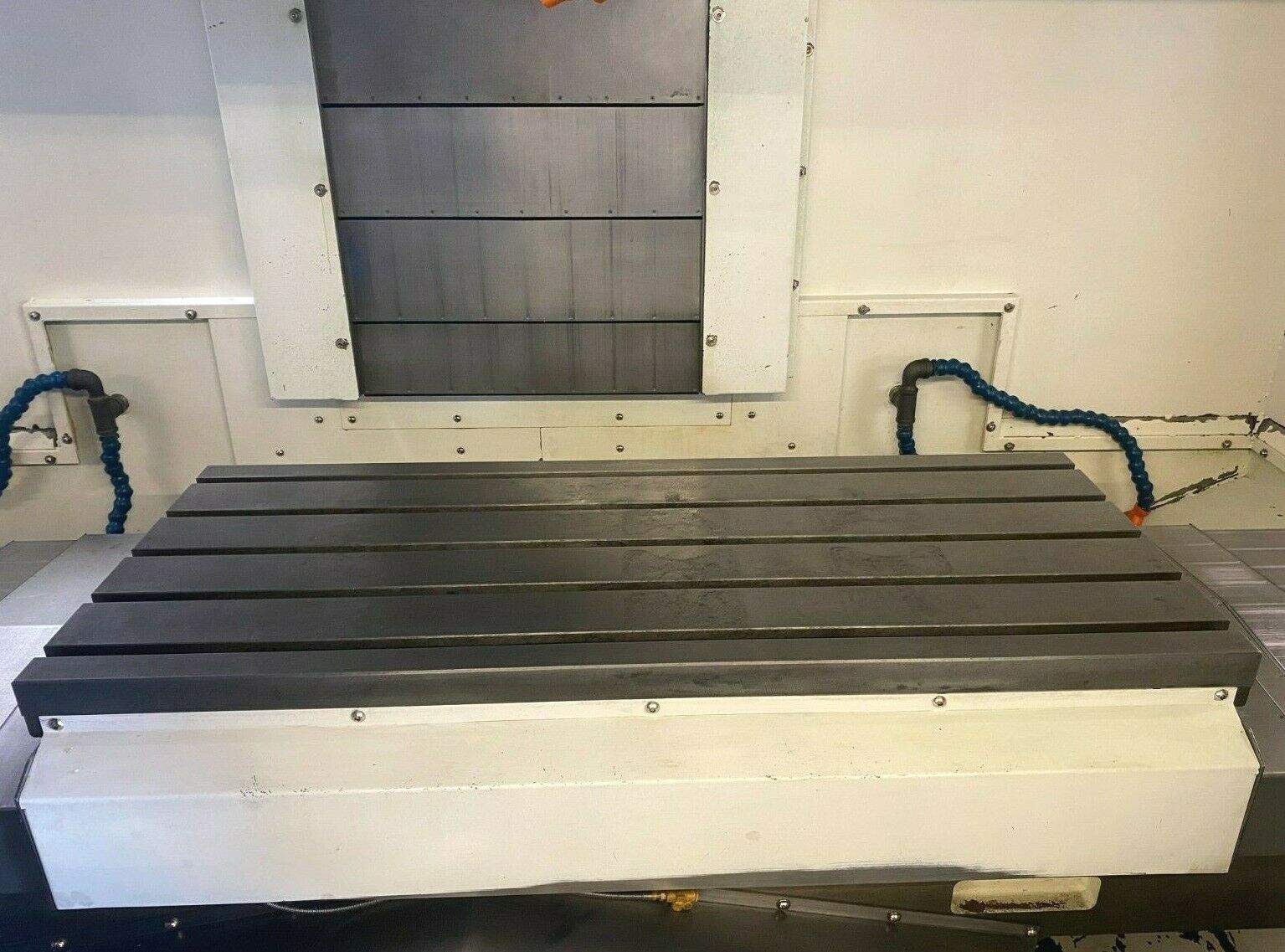

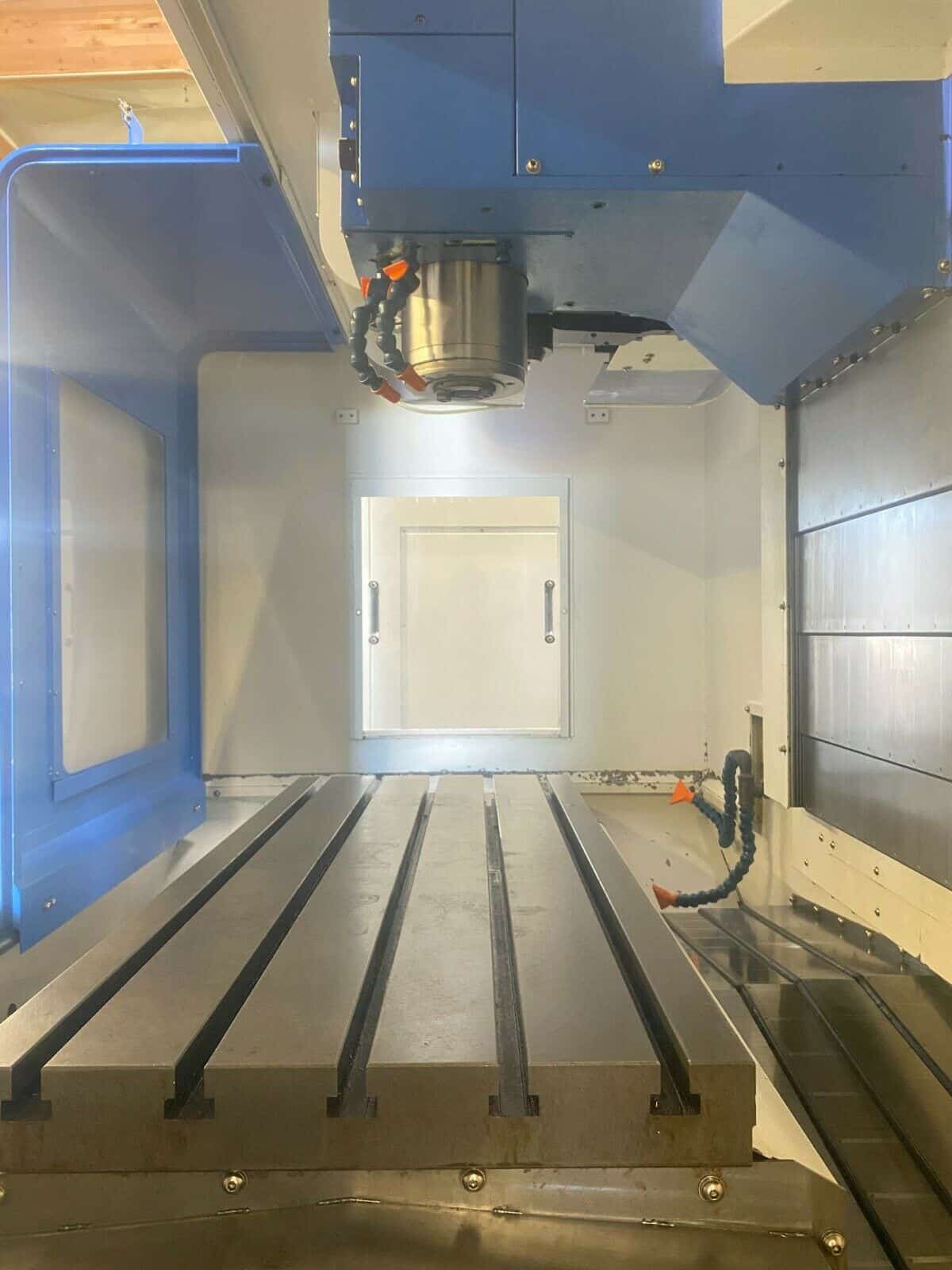

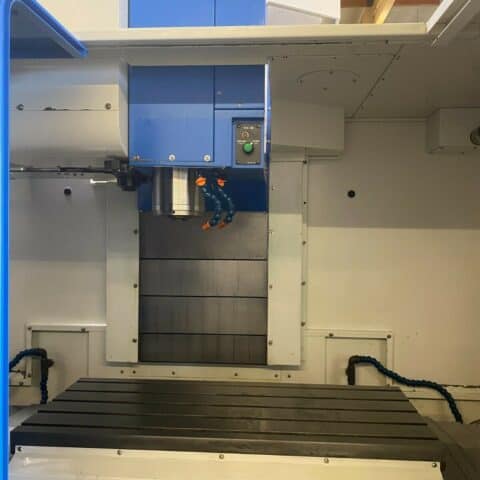

Table:
- Length: 47.2″
- Width: 20.7″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs
-

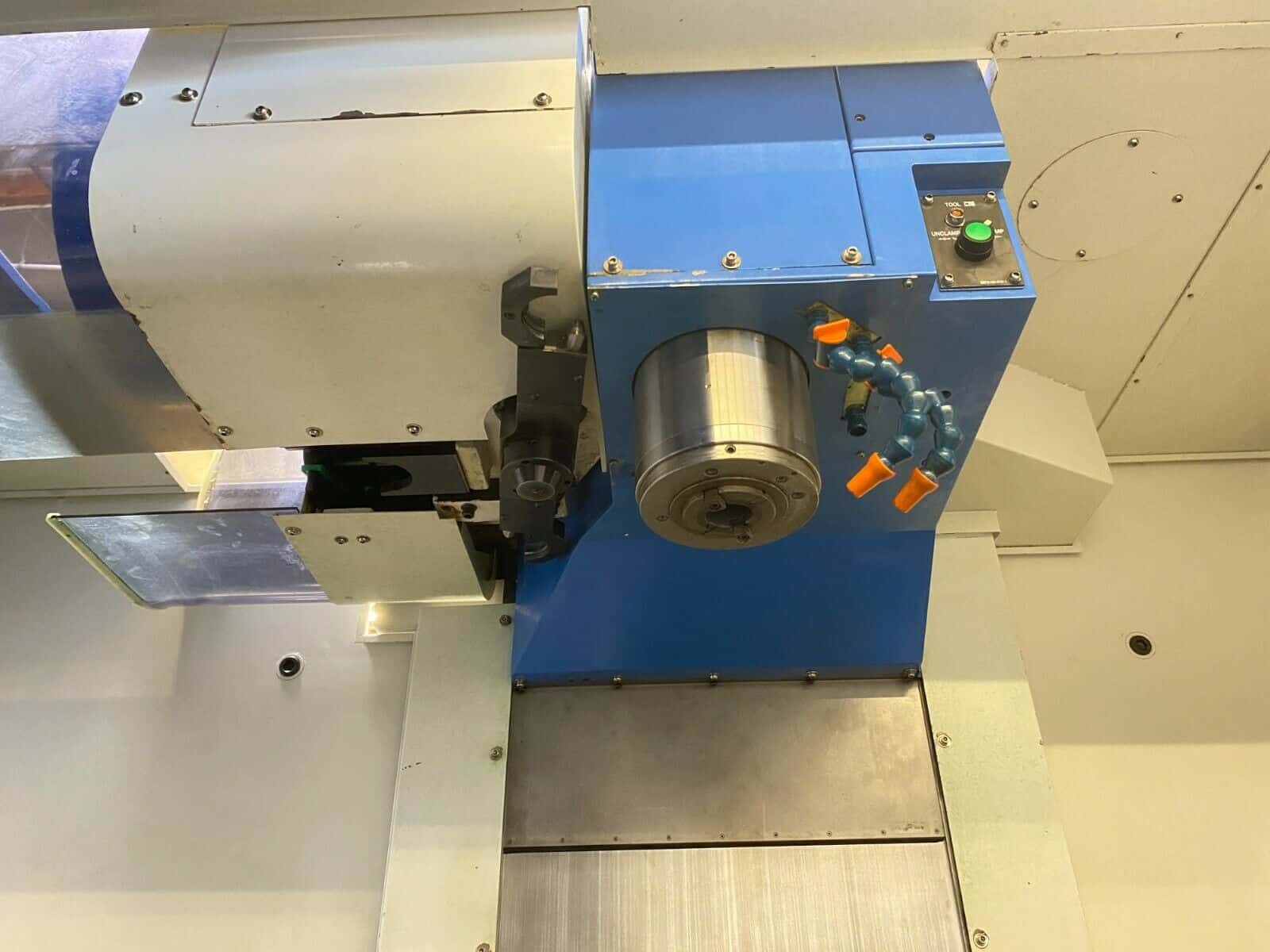

Spindle:
- Taper Size: 40
- Speed Range: 10,000 RPM
- Spindle Power: 25 HP
-
Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 18 lbs
- Max Tool Dia: 5.2″
- Max Tool Length: 10.8″
- Tool Changing Time: 2.7 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 128″ x 98″ x 110″ High
- Weight: 15000 lbs
