*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hyundai |
| Model: |
Wia F400 |
| Year: |
|
| Condition: |
Used – Good |

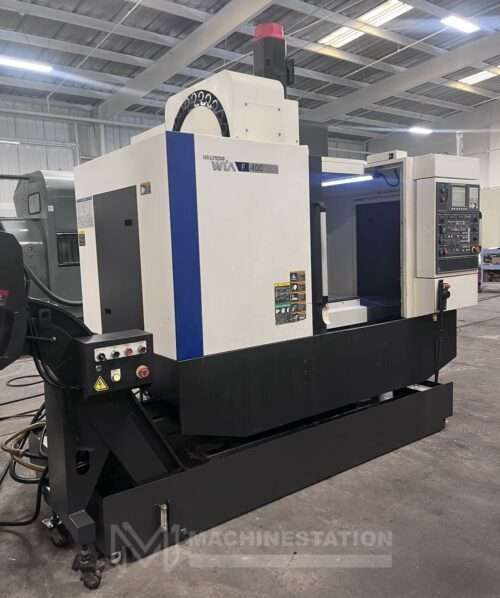

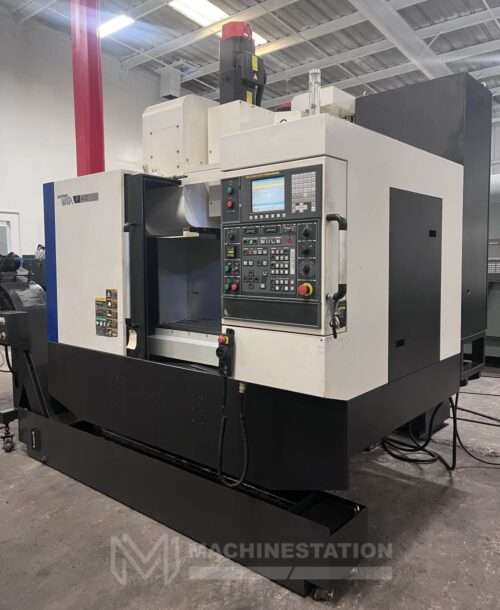

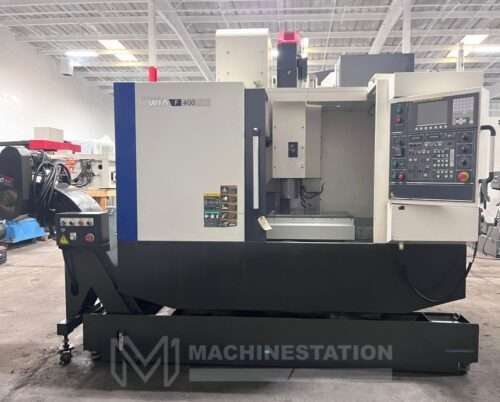

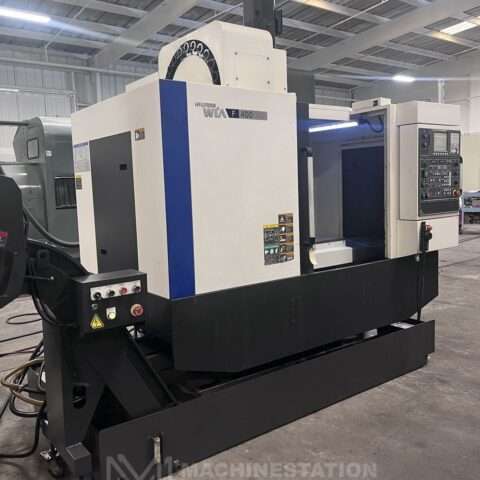

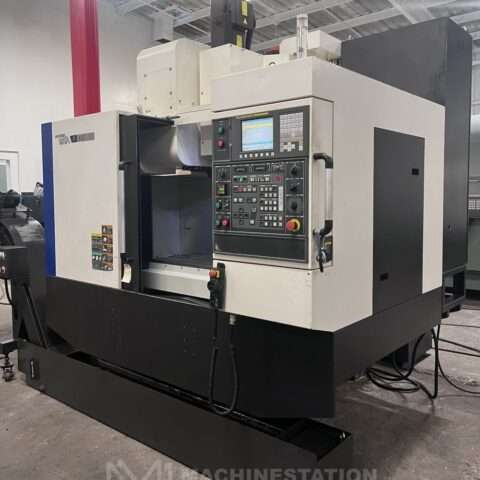

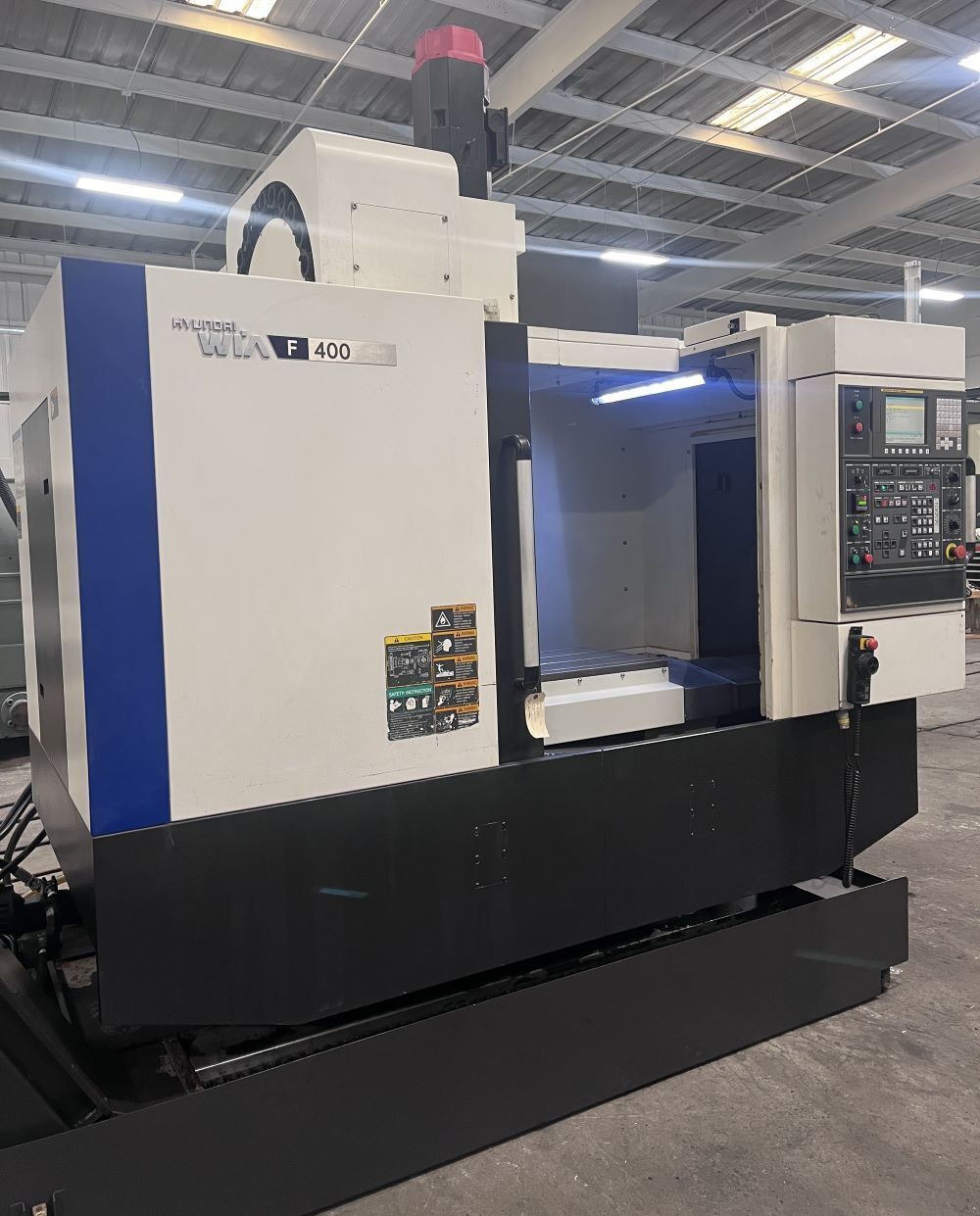

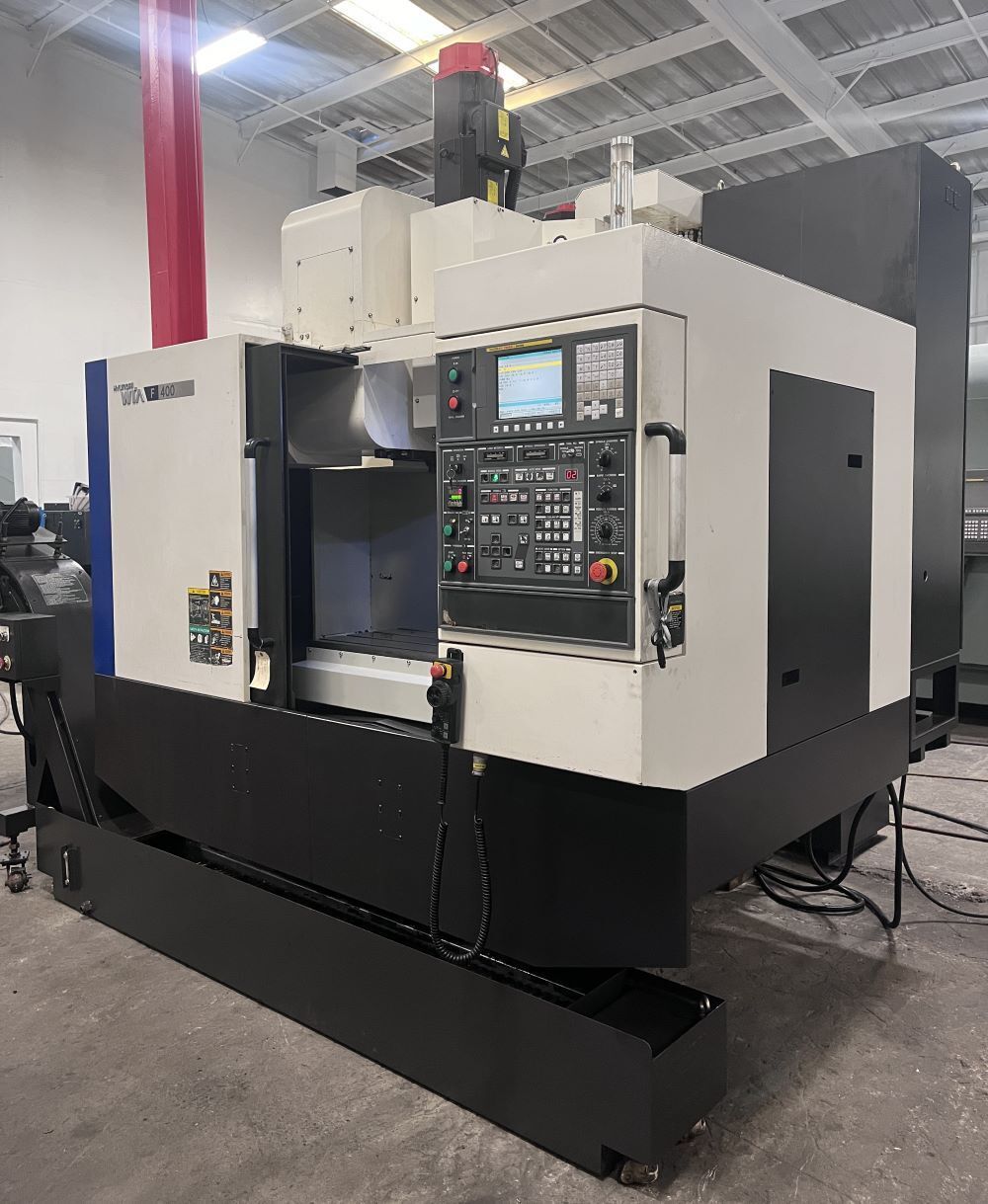

Key Features of the Hyundai Wia F400:

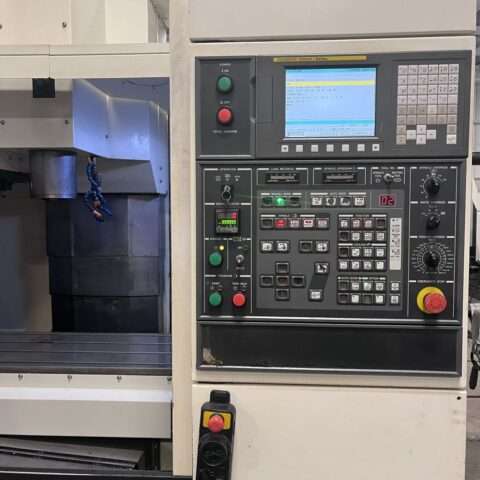

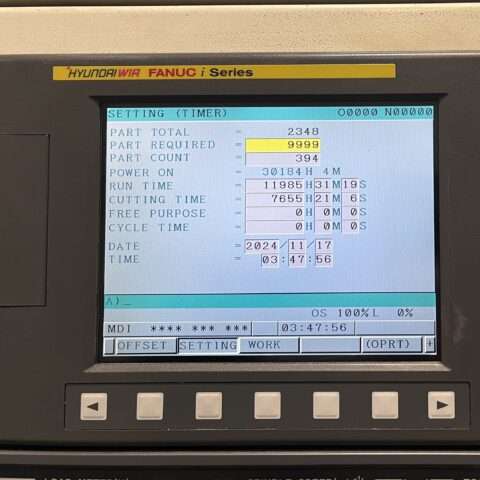

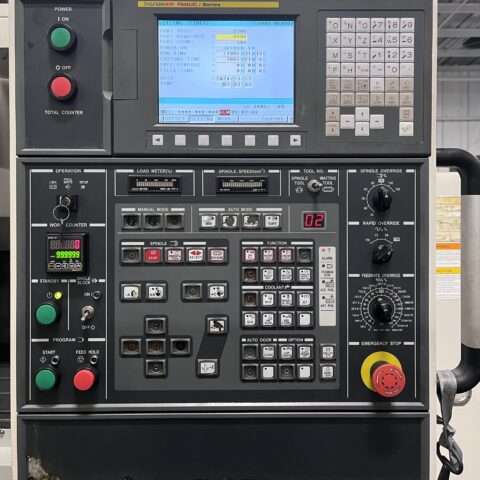

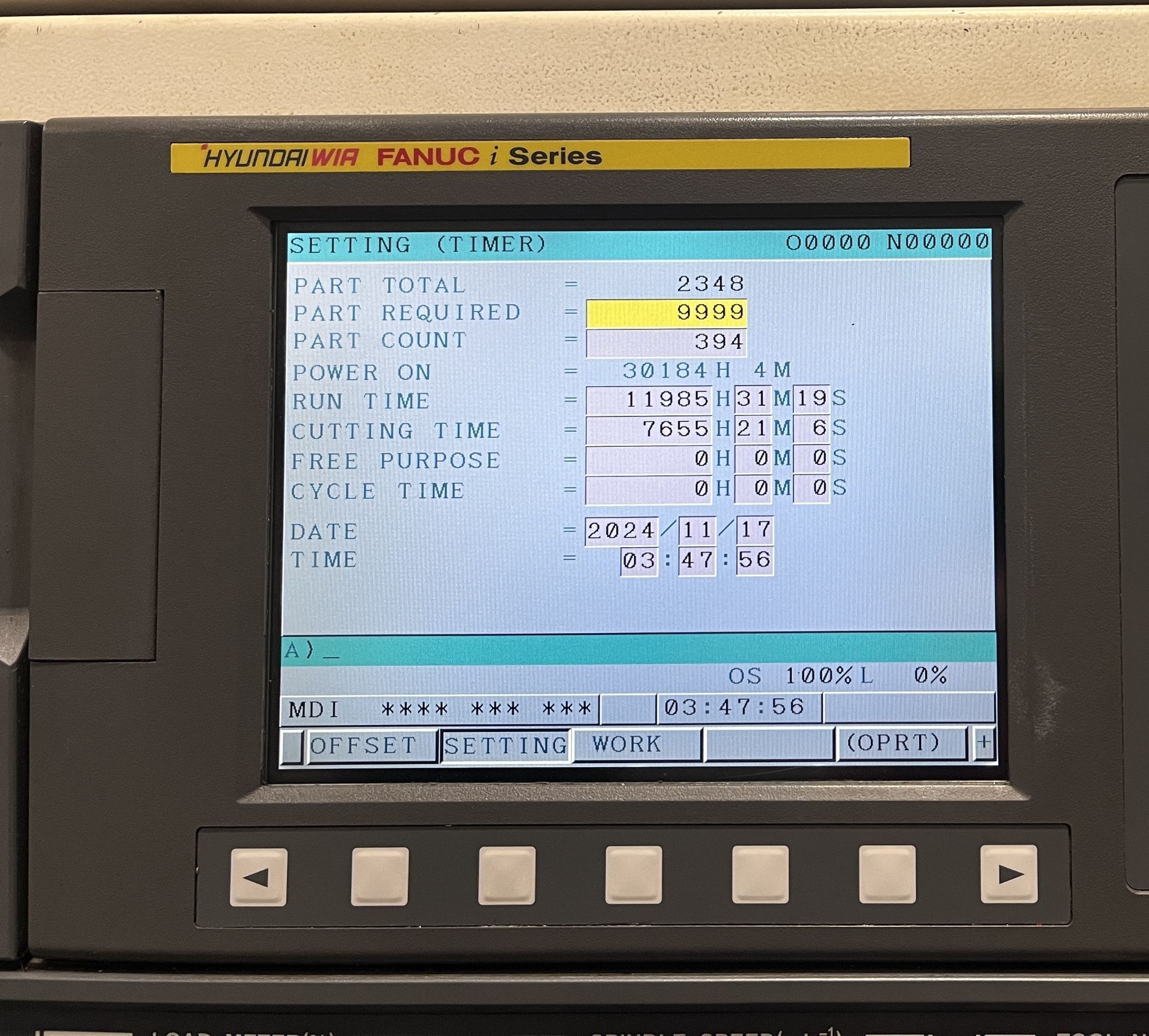

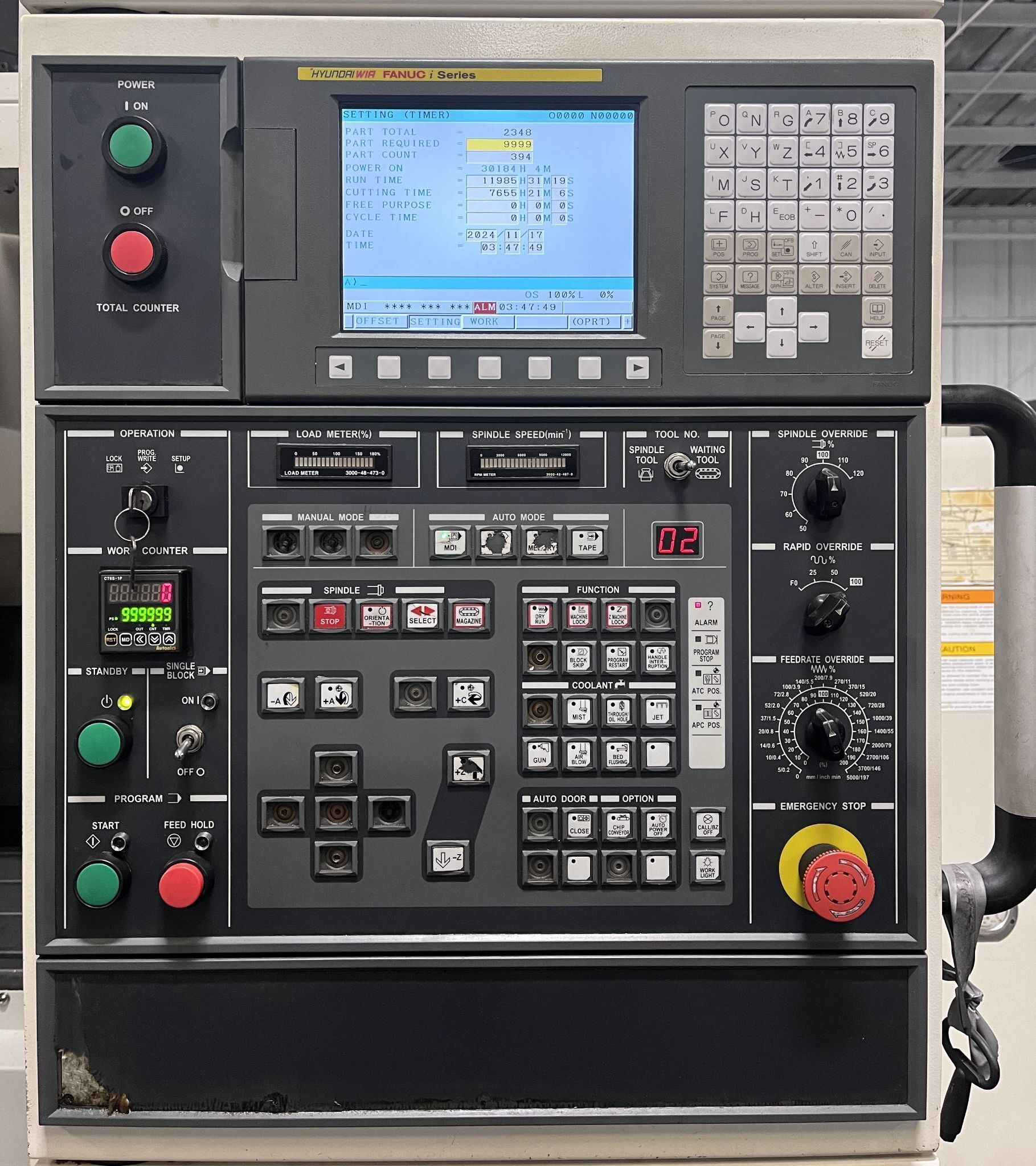

- Fanuc i-series CNC Control
- 12,000 RPM Gear Head Spindle
- Through Spindle Coolant
- CAT-40 Taper Spindle
- 24 Station Automatic Tool Changer
- 20 HP High Torque Spindle

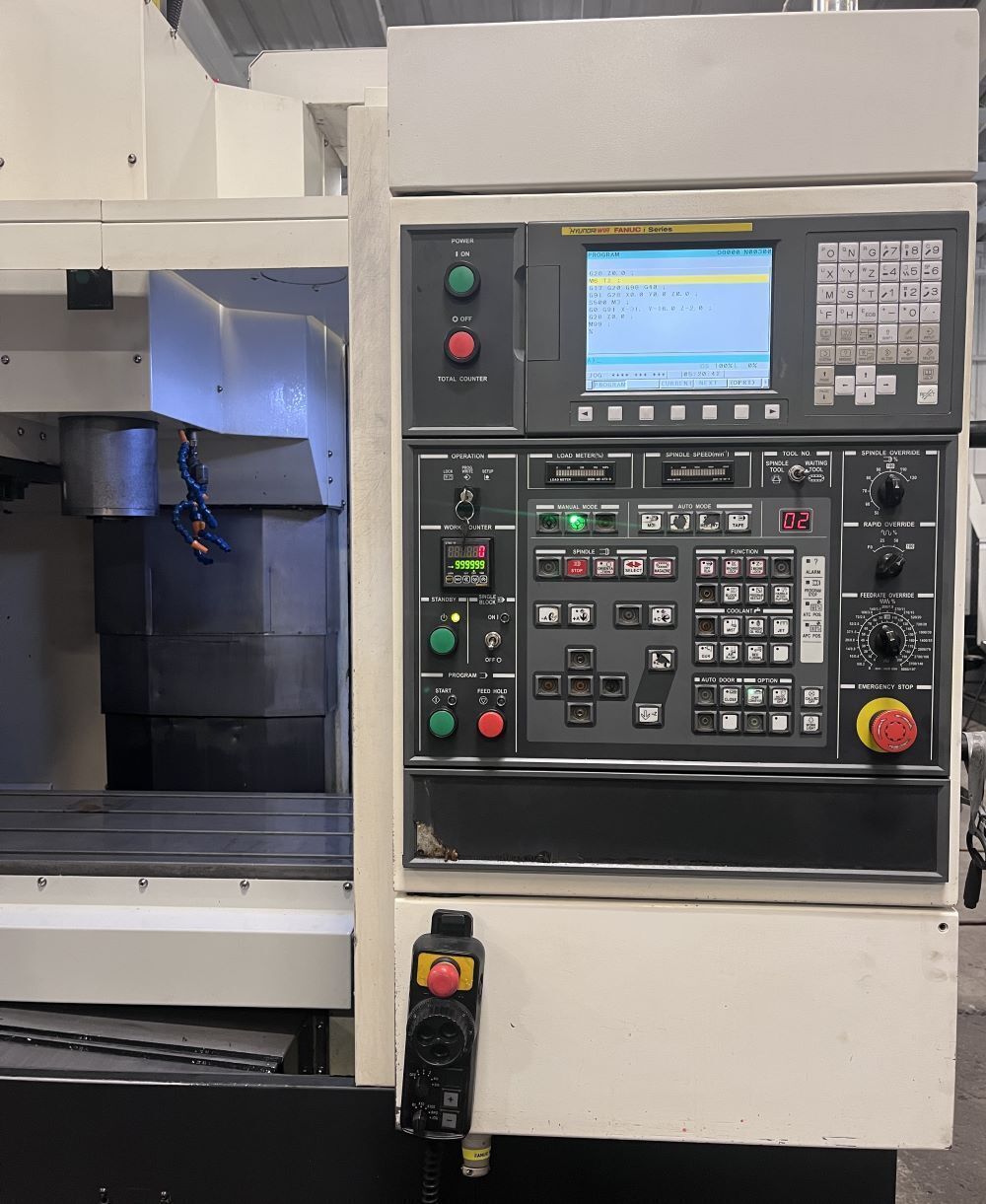

- MPG Handwheel Control
- PCMCIA Card Slot

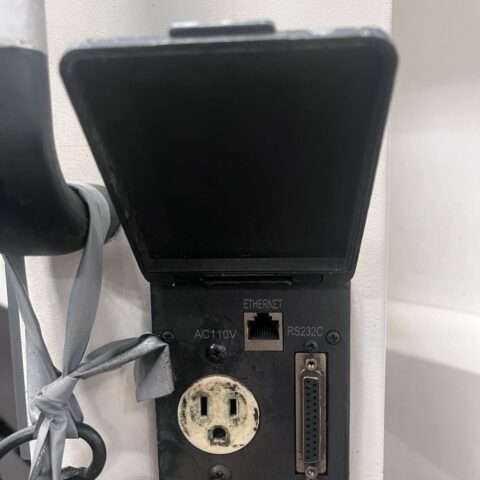

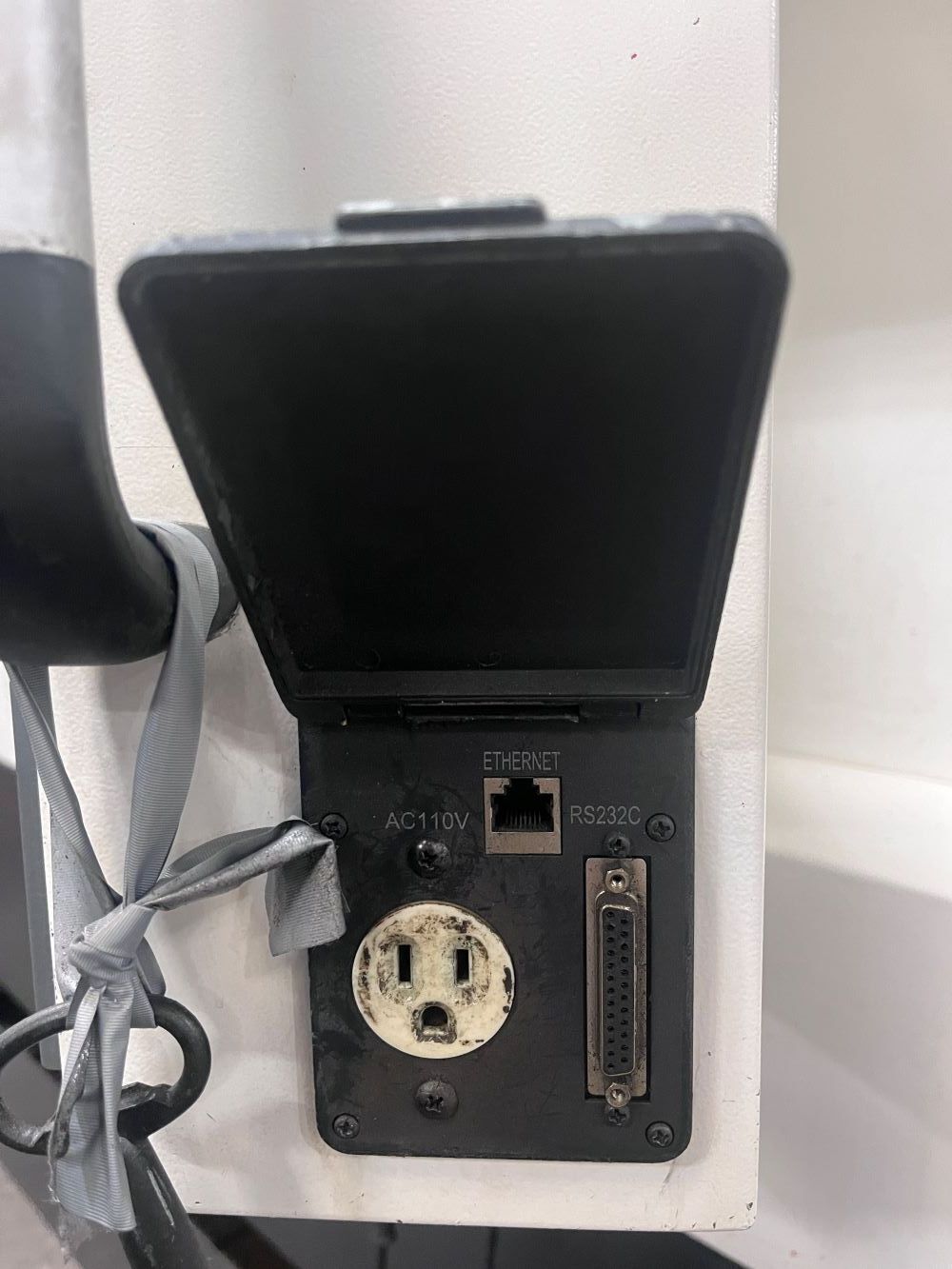

- RS-232 Port
- Ethernet
- Rigid Tapping

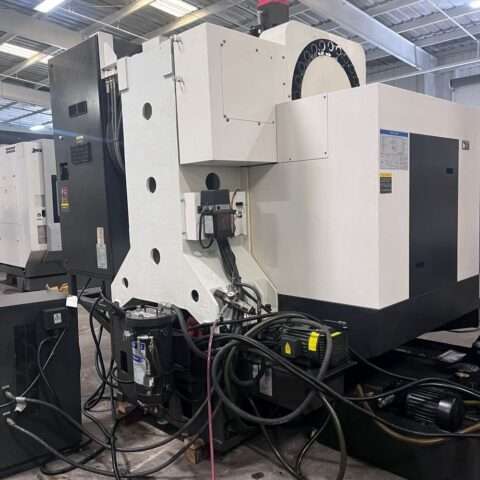

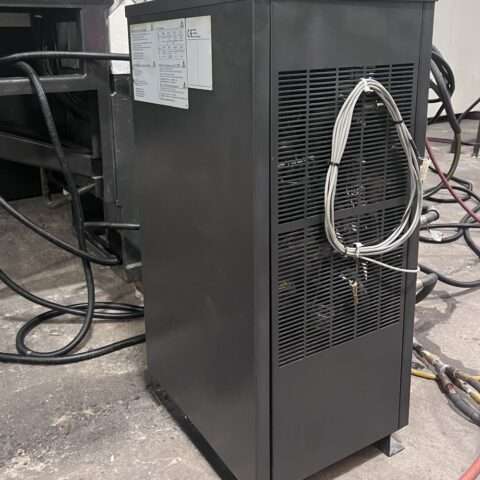

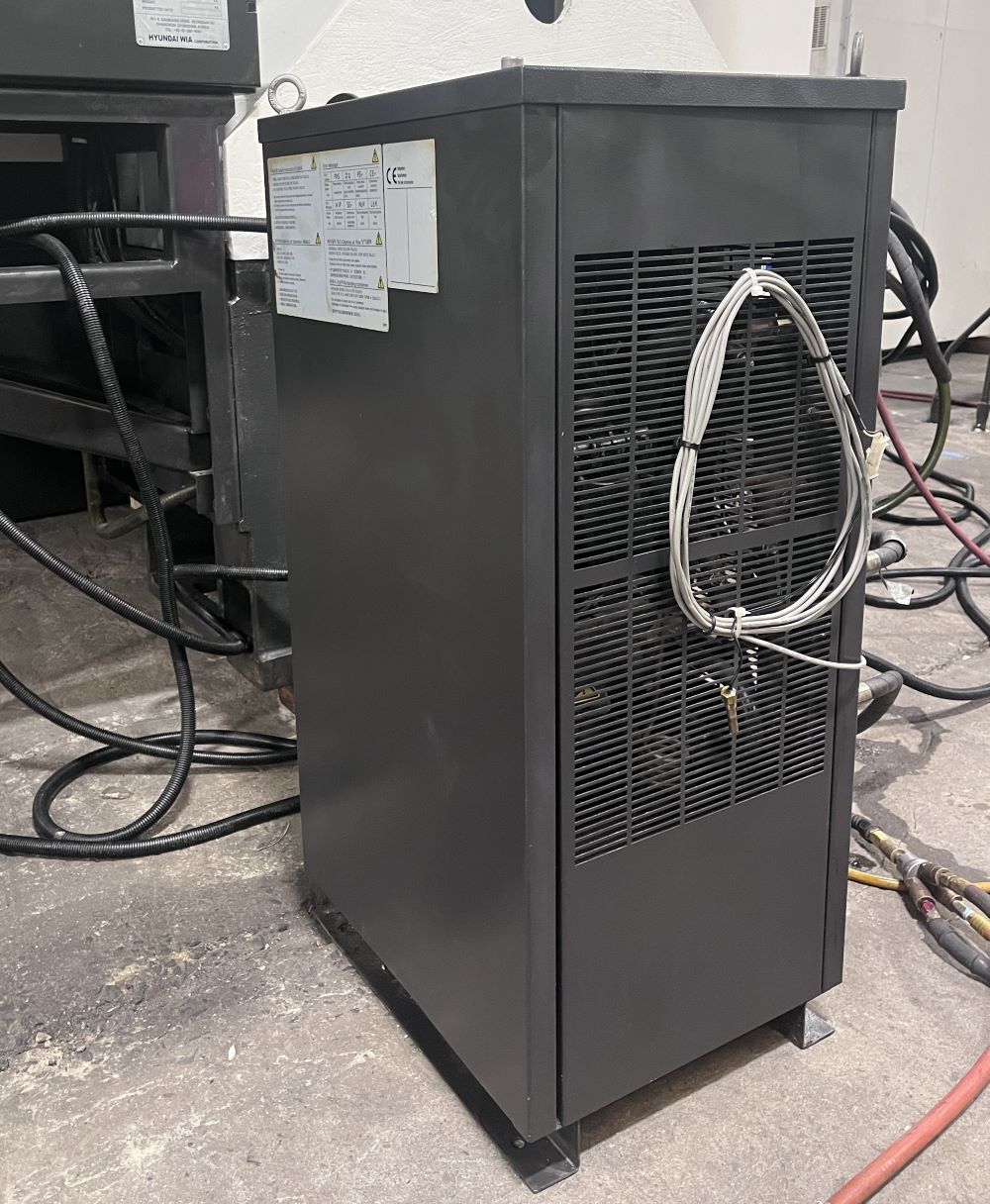

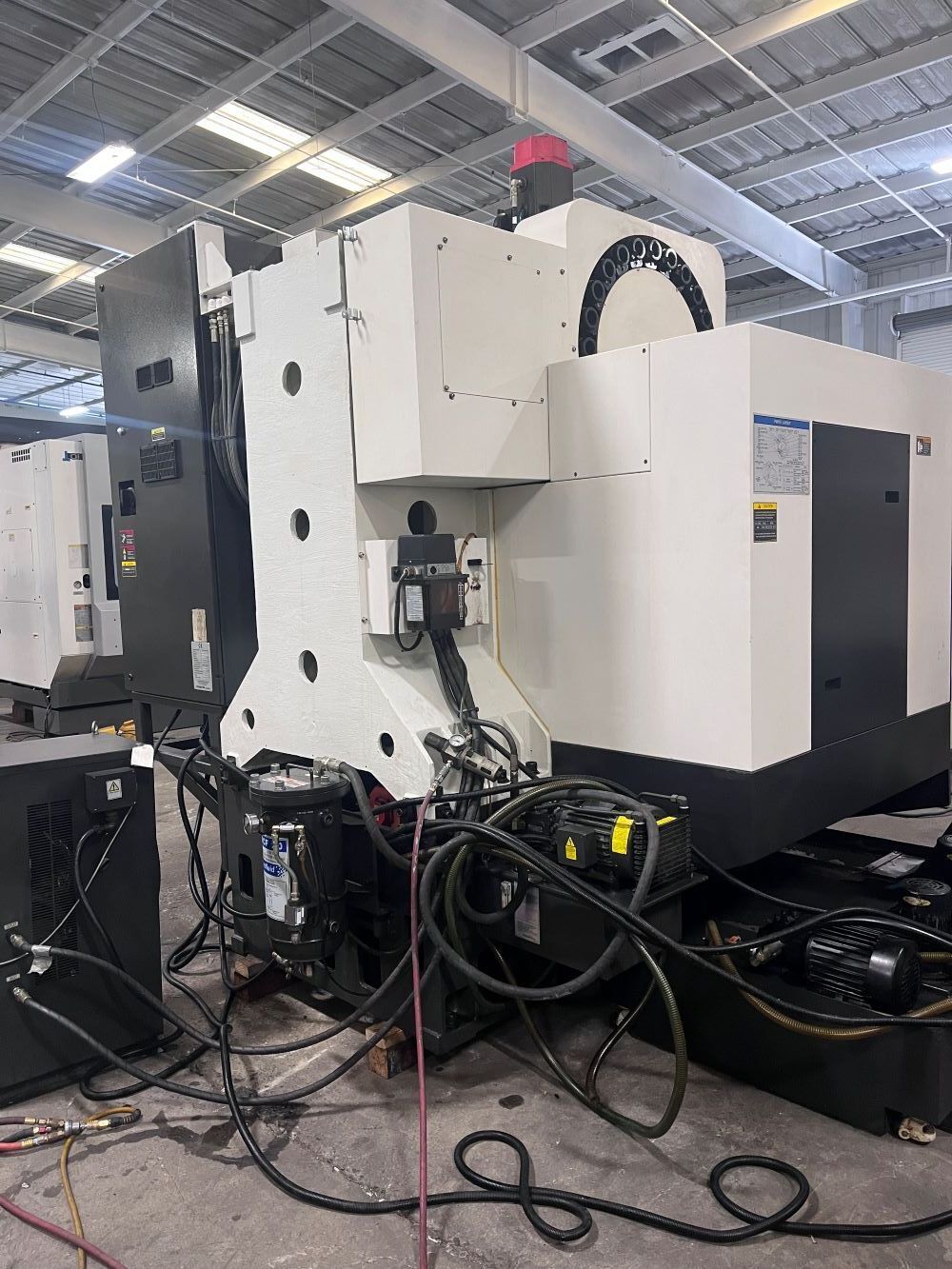

- Spindle Chiller Unit

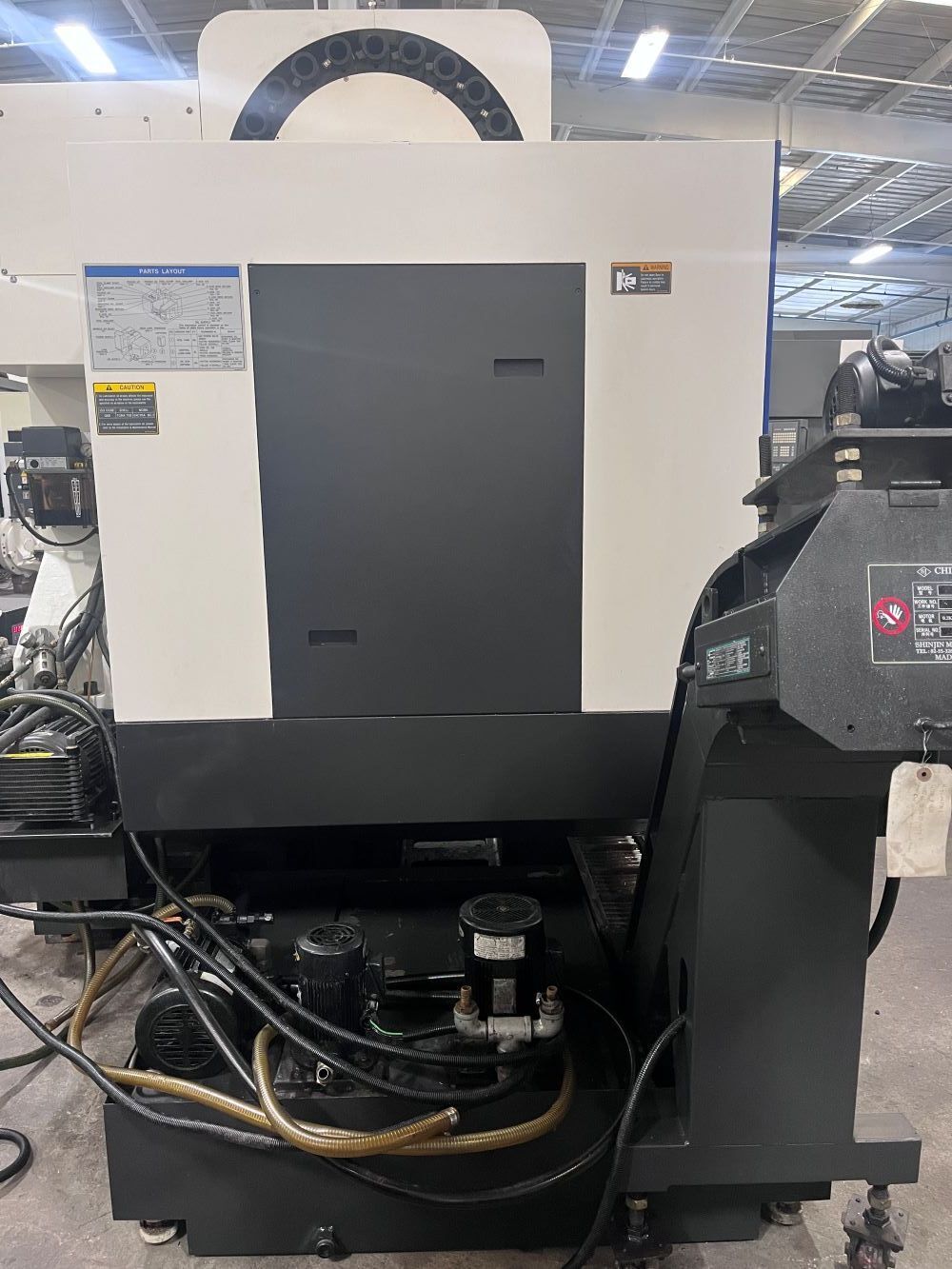

- Coolant System

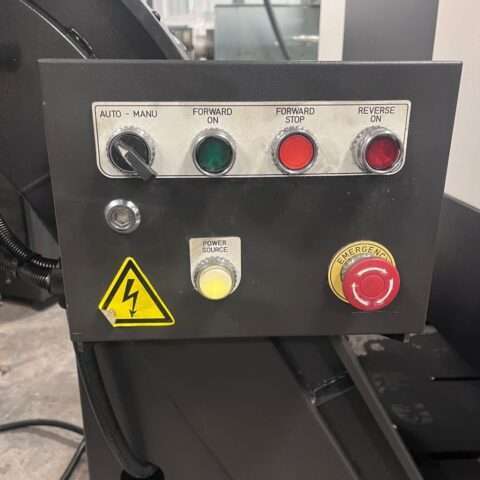

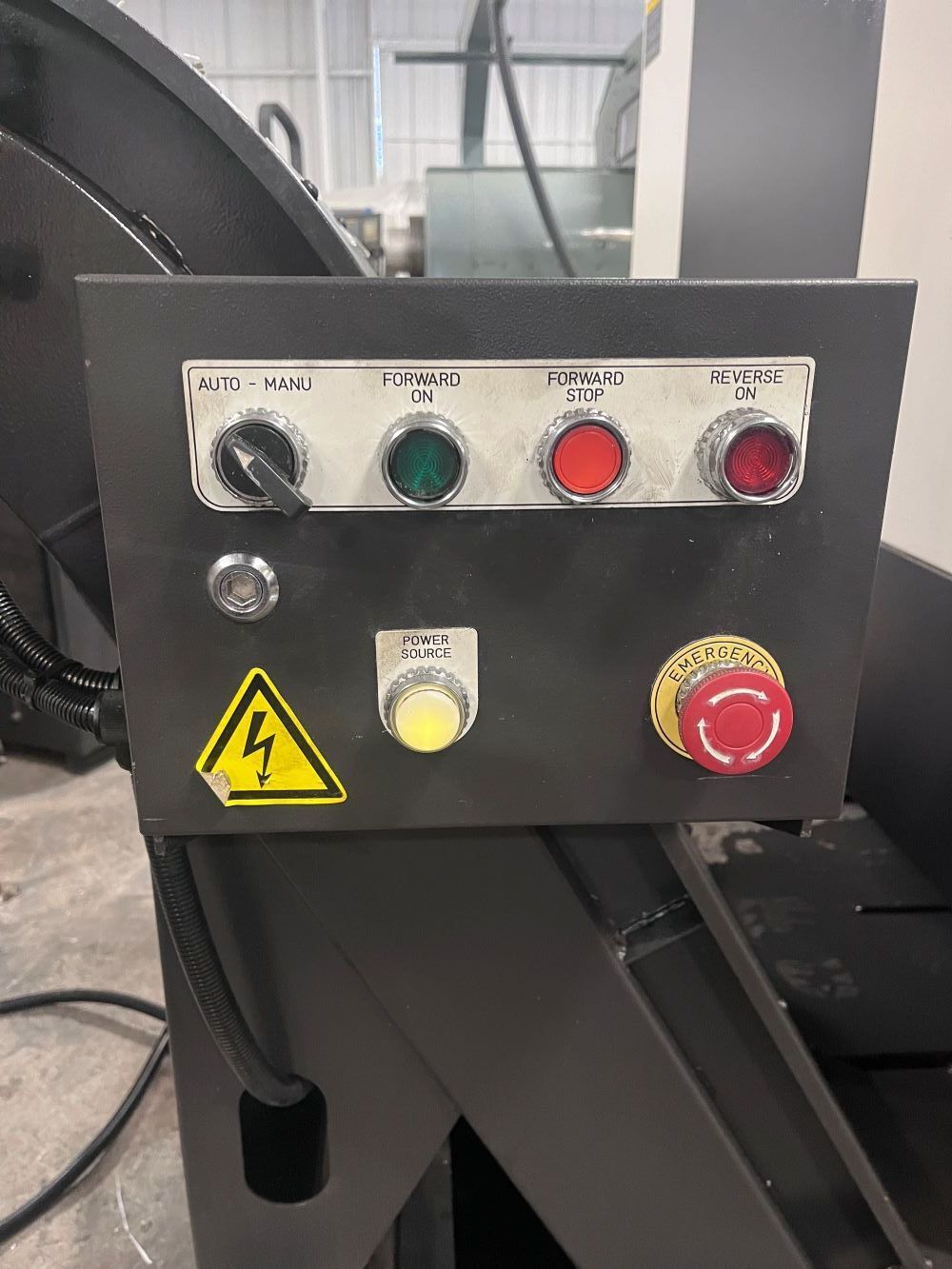

- Chip Conveyor
|
Travel:
- X-Axis: 31.5″
- Y-Axis: 18.1″
- Z-Axis: 20.5″
- Rapid Traverse Rates X, Y Z Axis: 1260 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.1″ – 25.6″
|

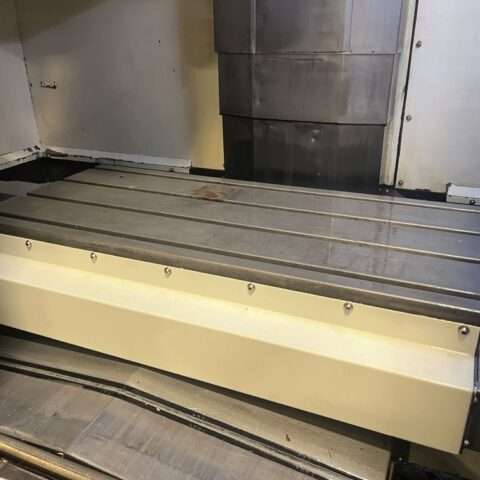

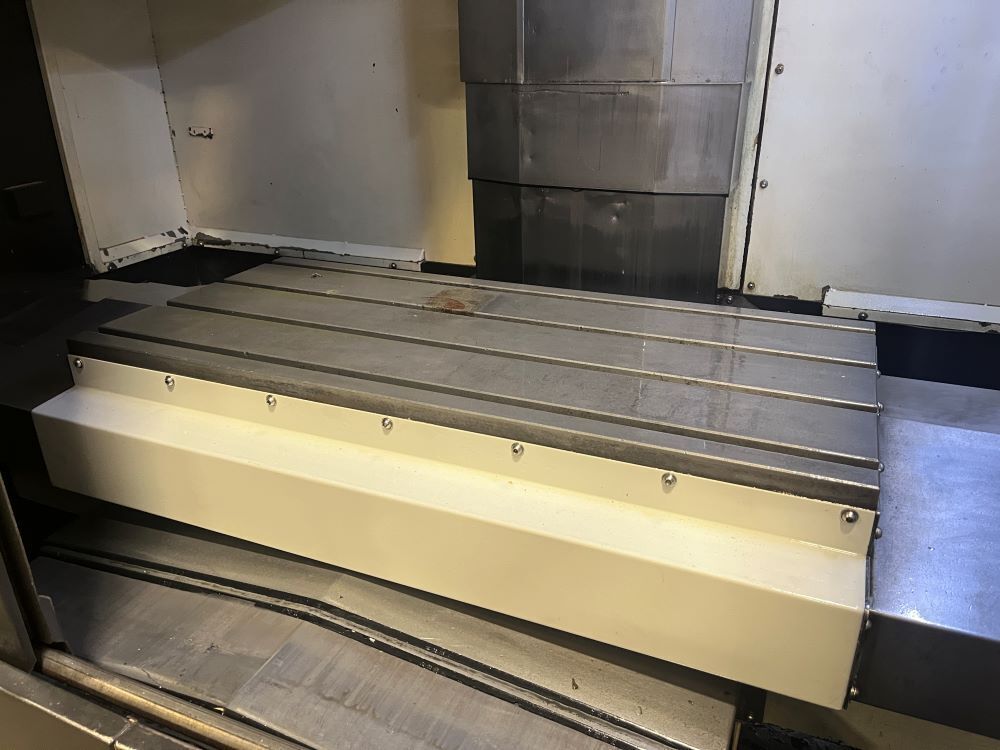

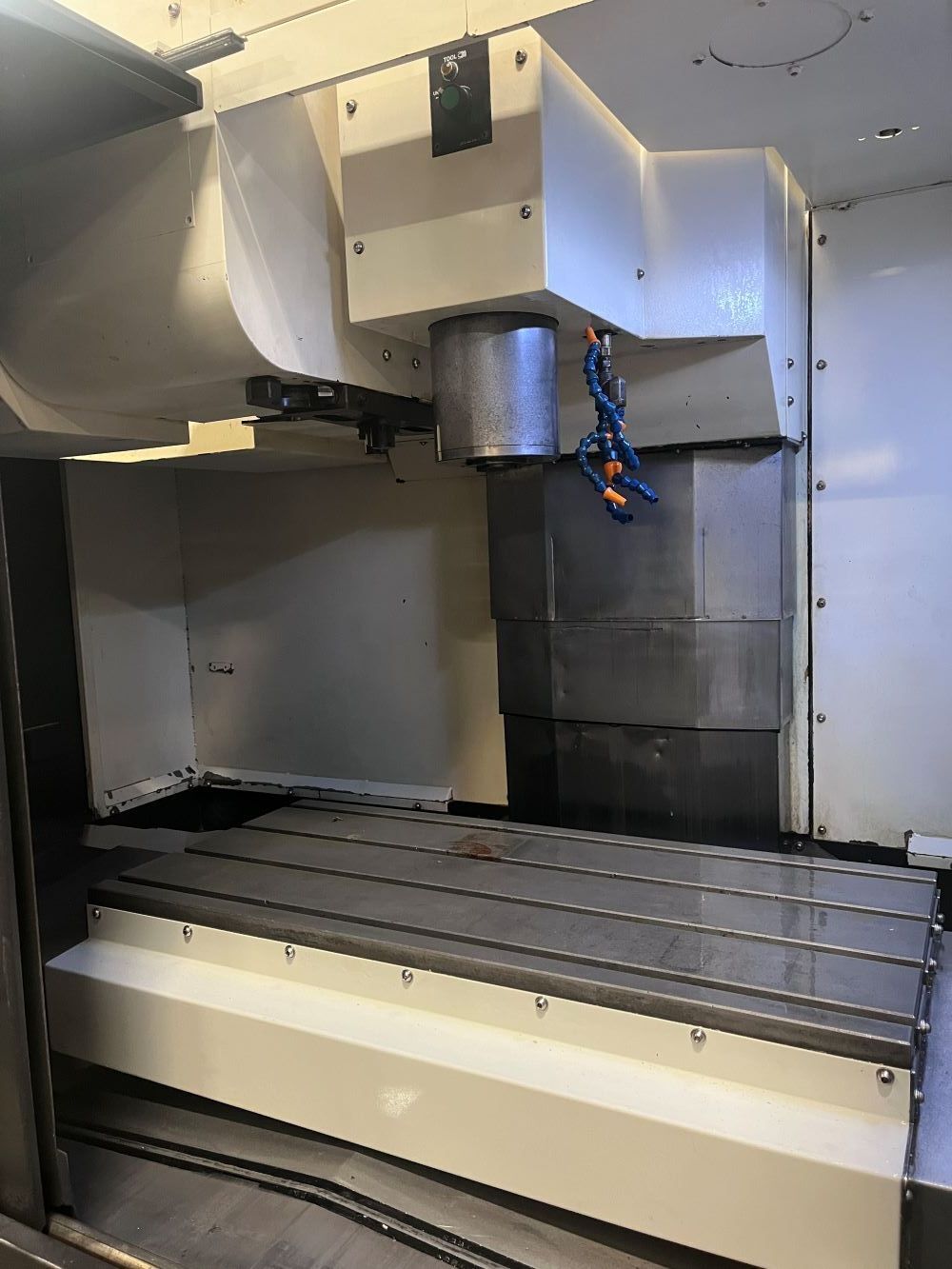

Table:
- Length: 39.4″
- Width: 18.1″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1323 lbs
|

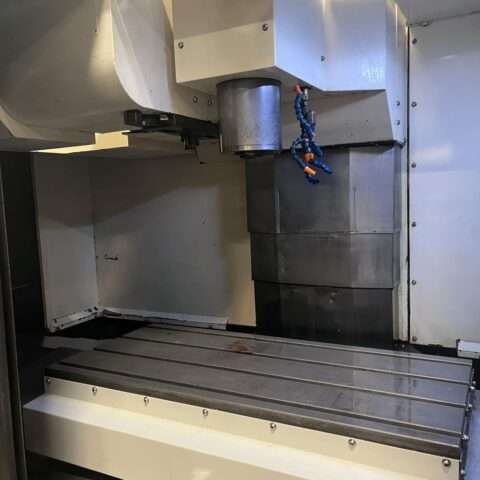

Spindle:
- Taper Size: CAT-40
- Speed Range: 12,000 RPM
- Spindle Power: 20 HP
|

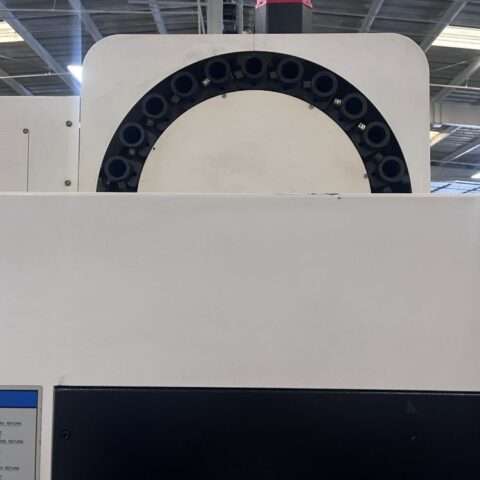

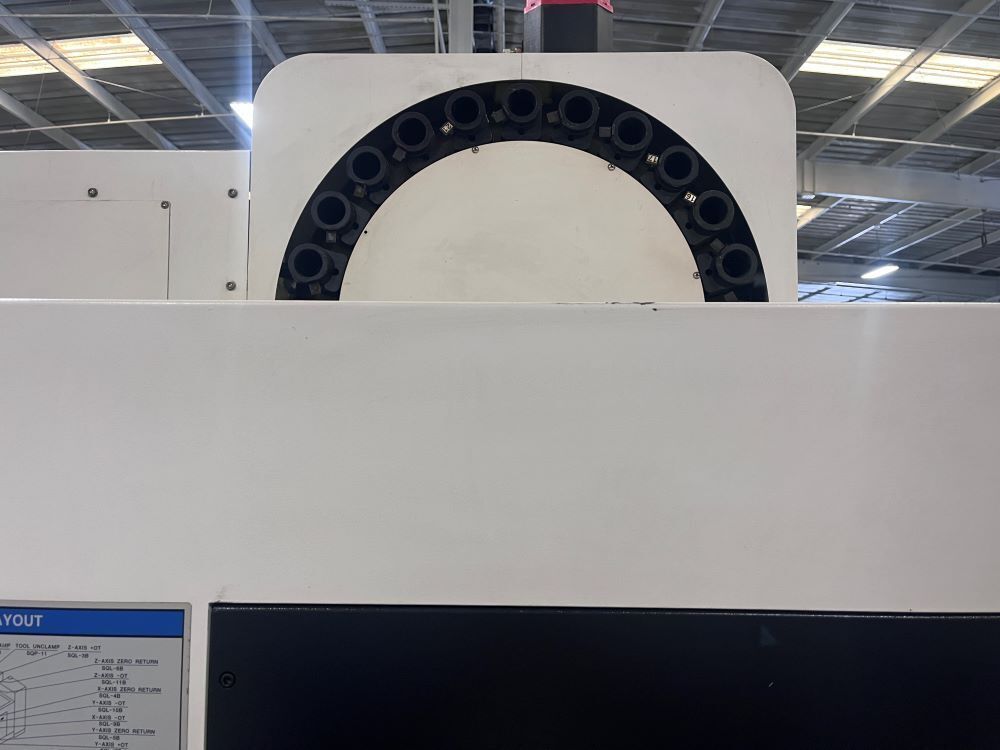

Automatic Tool Changer:
- Capacity: 24 Tools
- Max Tool Weight: 17.6 lbs
- Max Tool Dia: 3.5″ – 5.9″
- Max Tool Length: 11.8″
- Tool Changing Time: 1.3 Seconds
|

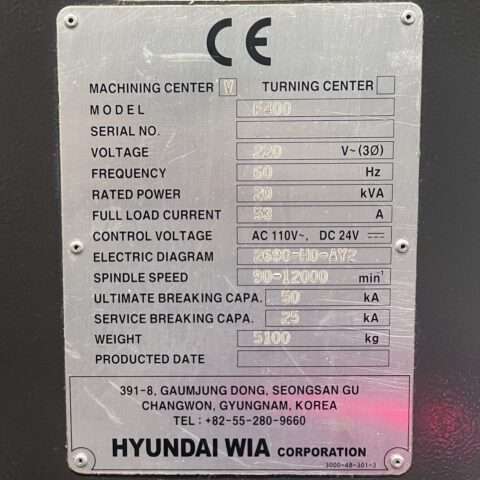

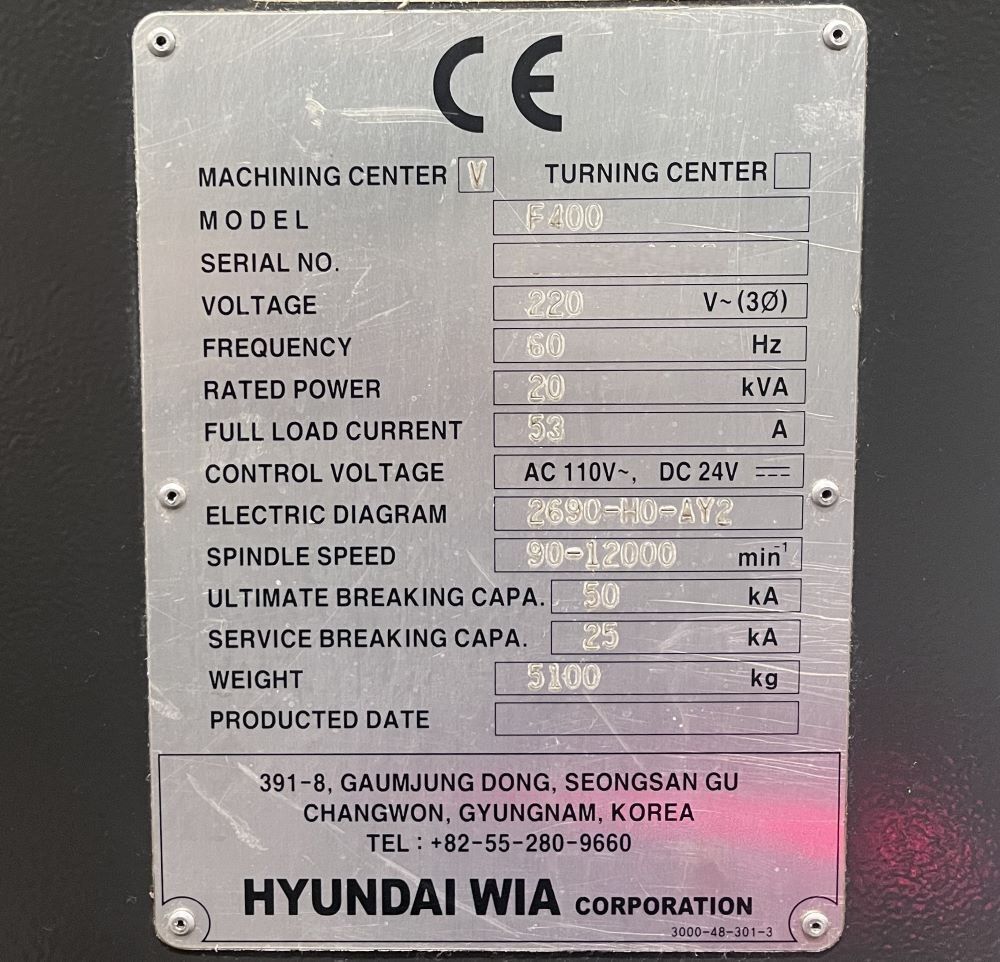

General:
- Air Required: 100 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase / 20 kva
- Overall Dimensions: 96.5″ x 82.7″ x 111.5″ High
- Weight: 11,244 lbs Approx.
|
