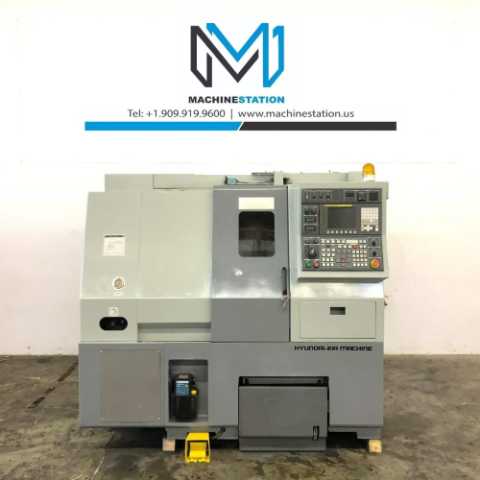

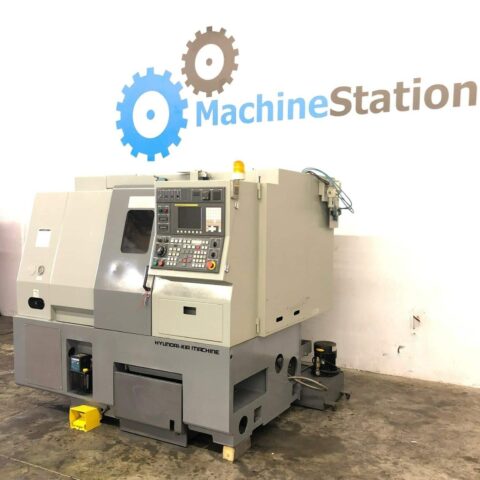

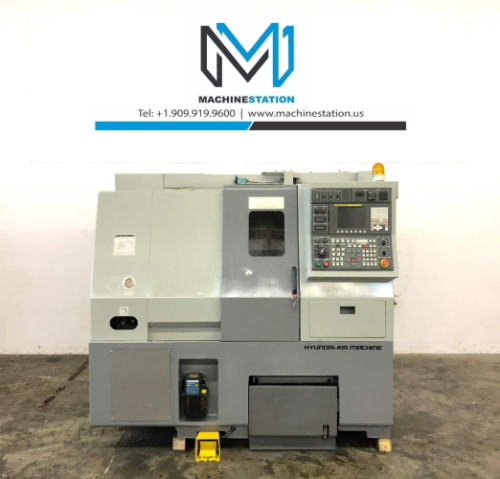

HYUNDAI WIA SKT-200 CNC TURNING CENTER | |
---|---|
Make | Hyundai Wia |
Model No. | SKT-200 |
Year | 2011 |

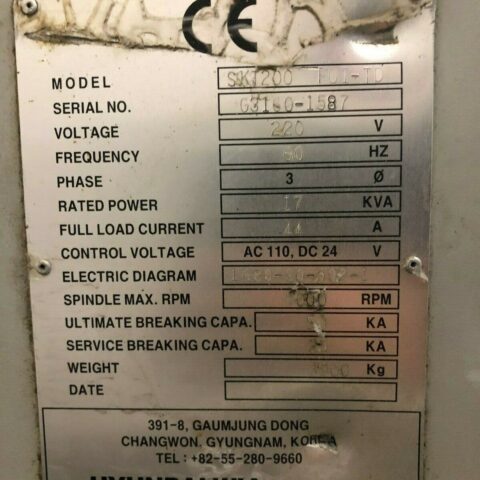

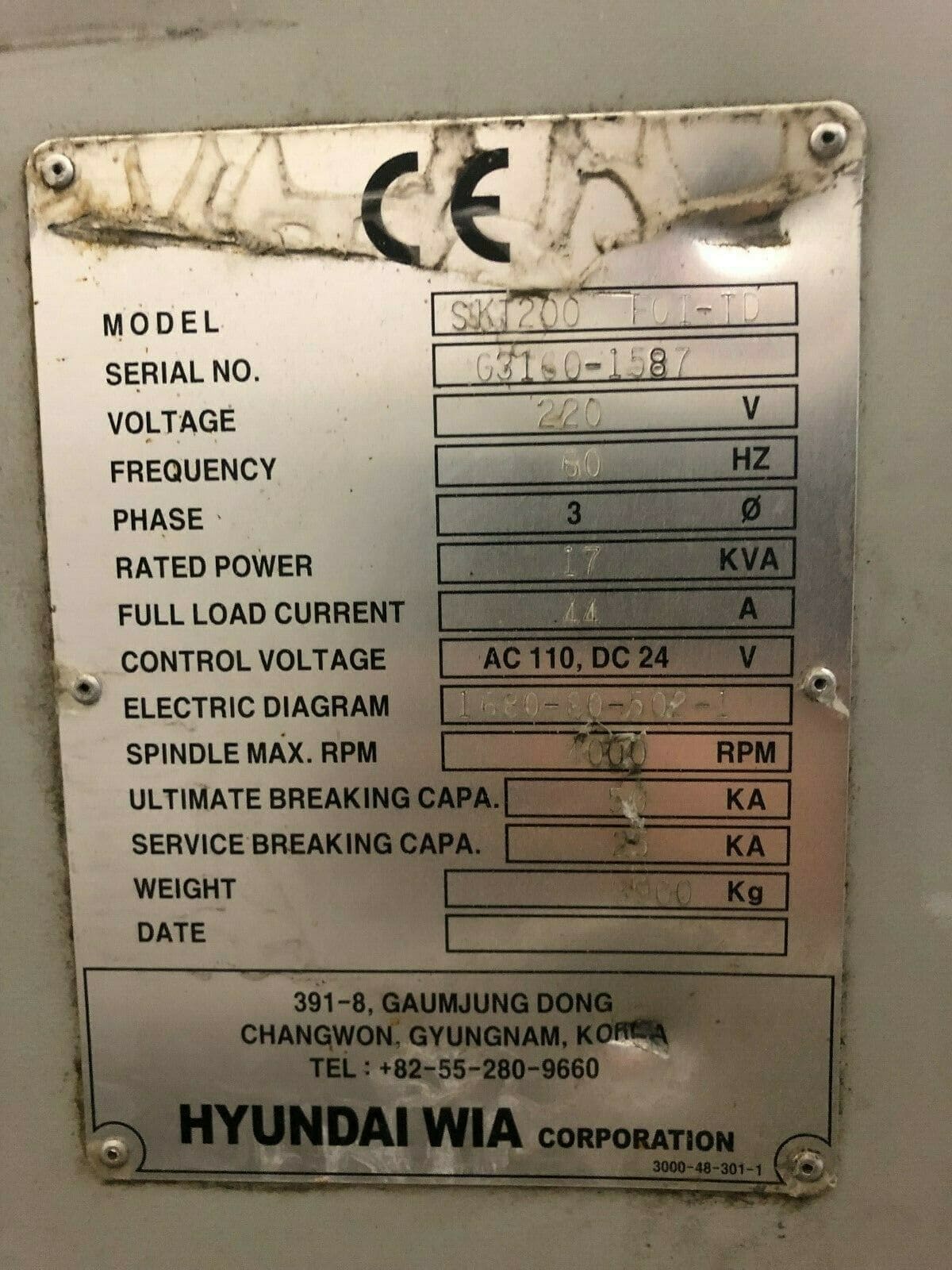

Serial # | G3160-1587 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
- Hyundai WIA SKT-200 Equipped With:

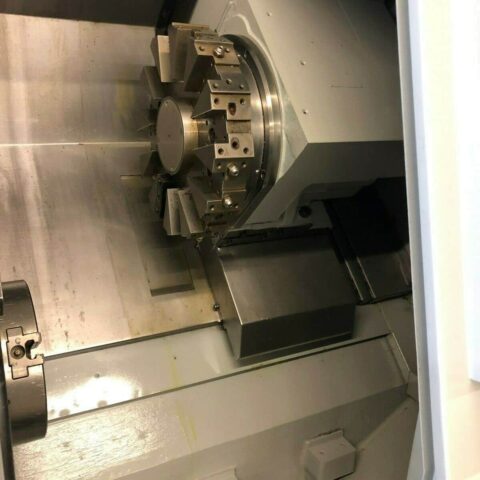

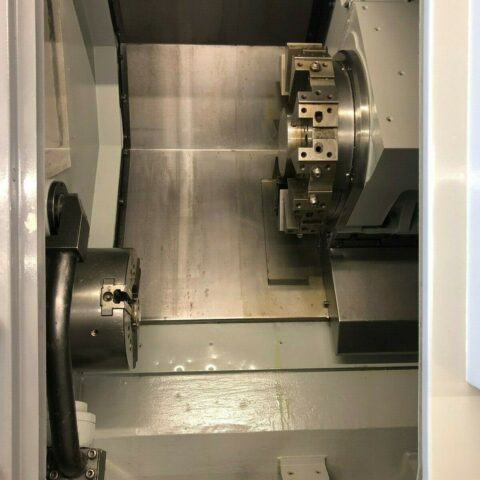

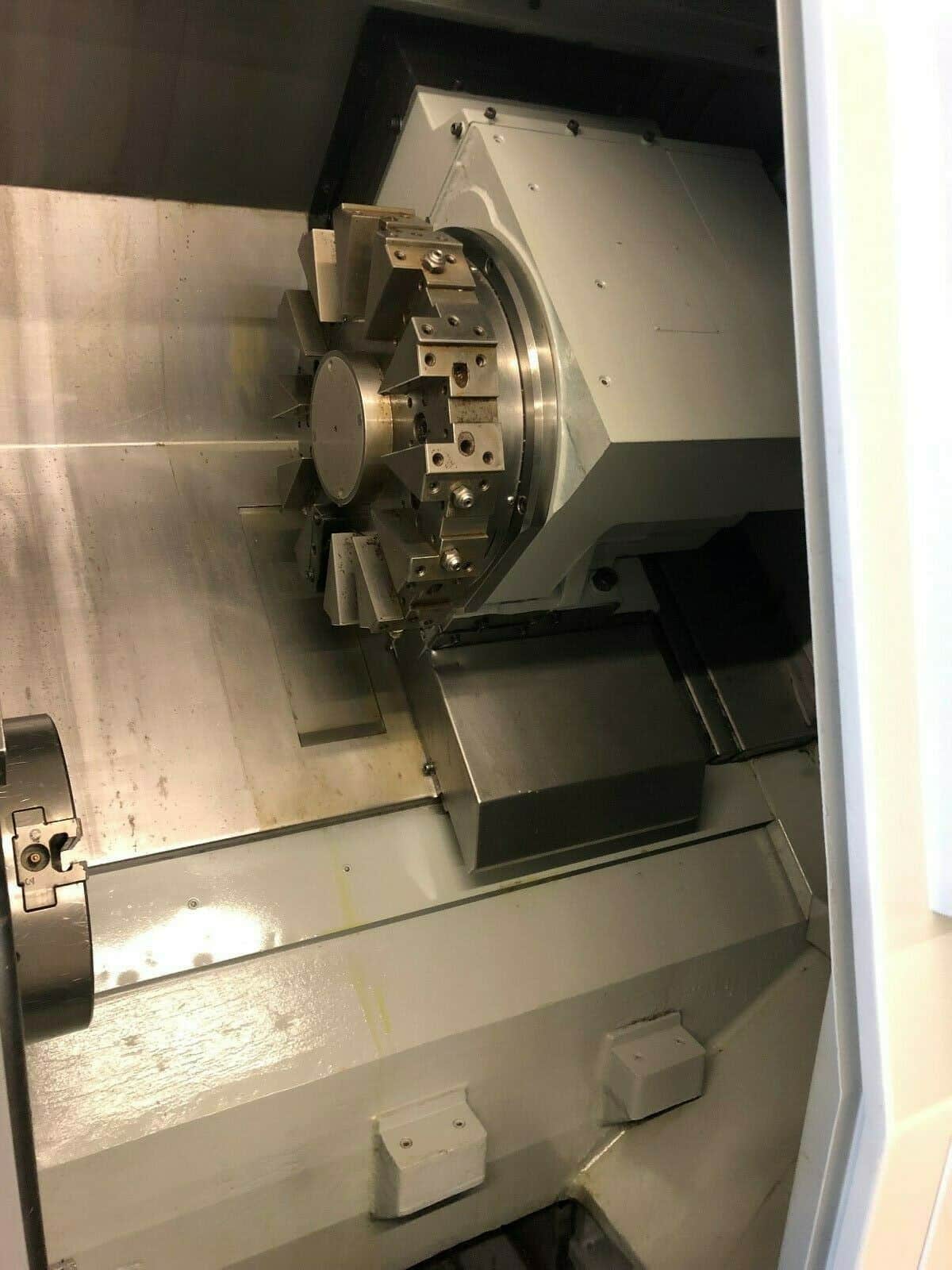

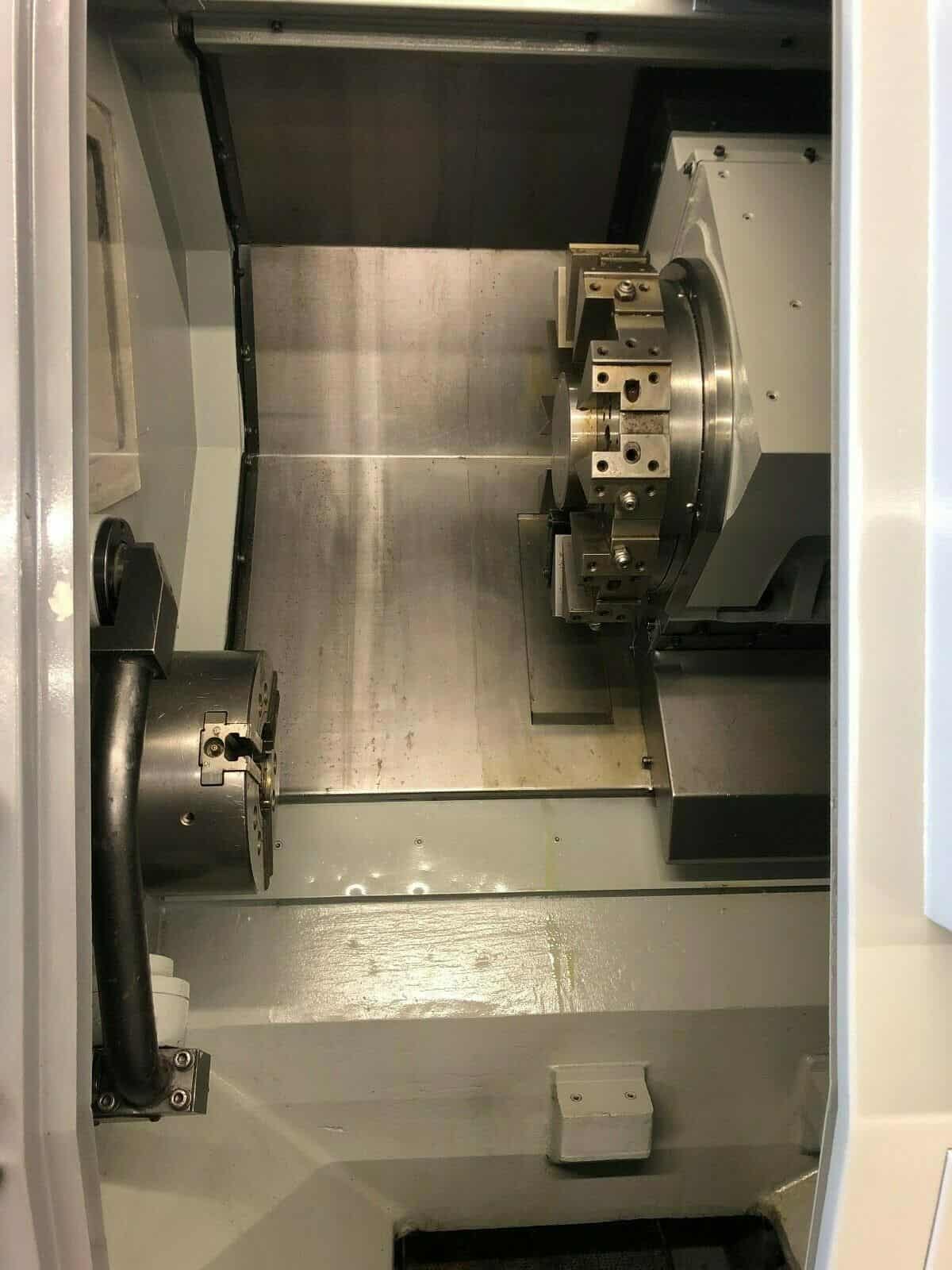

- 12-Station Turret

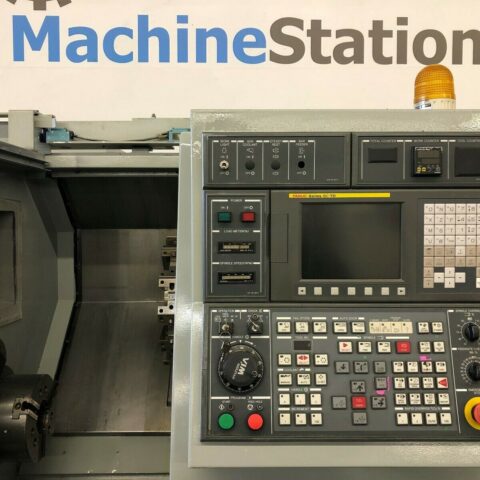

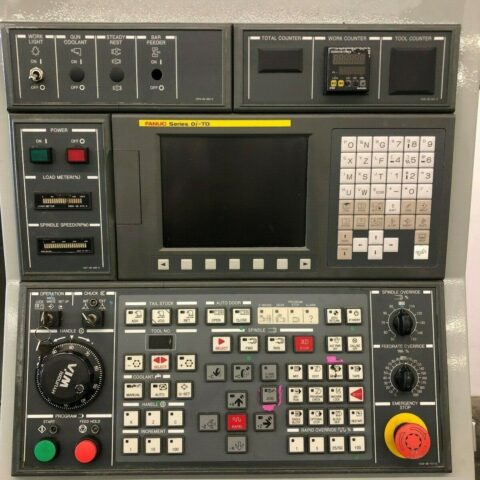

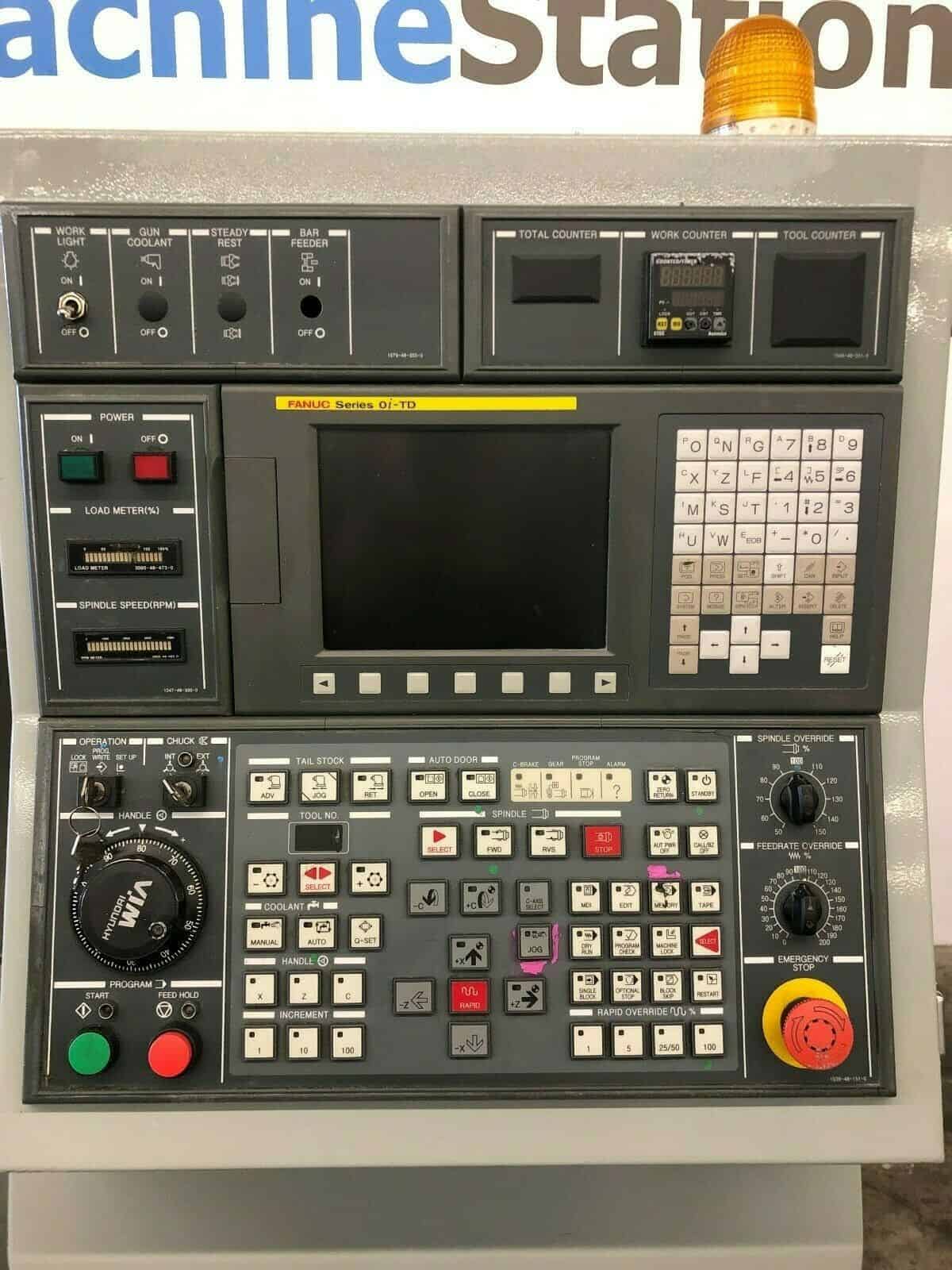

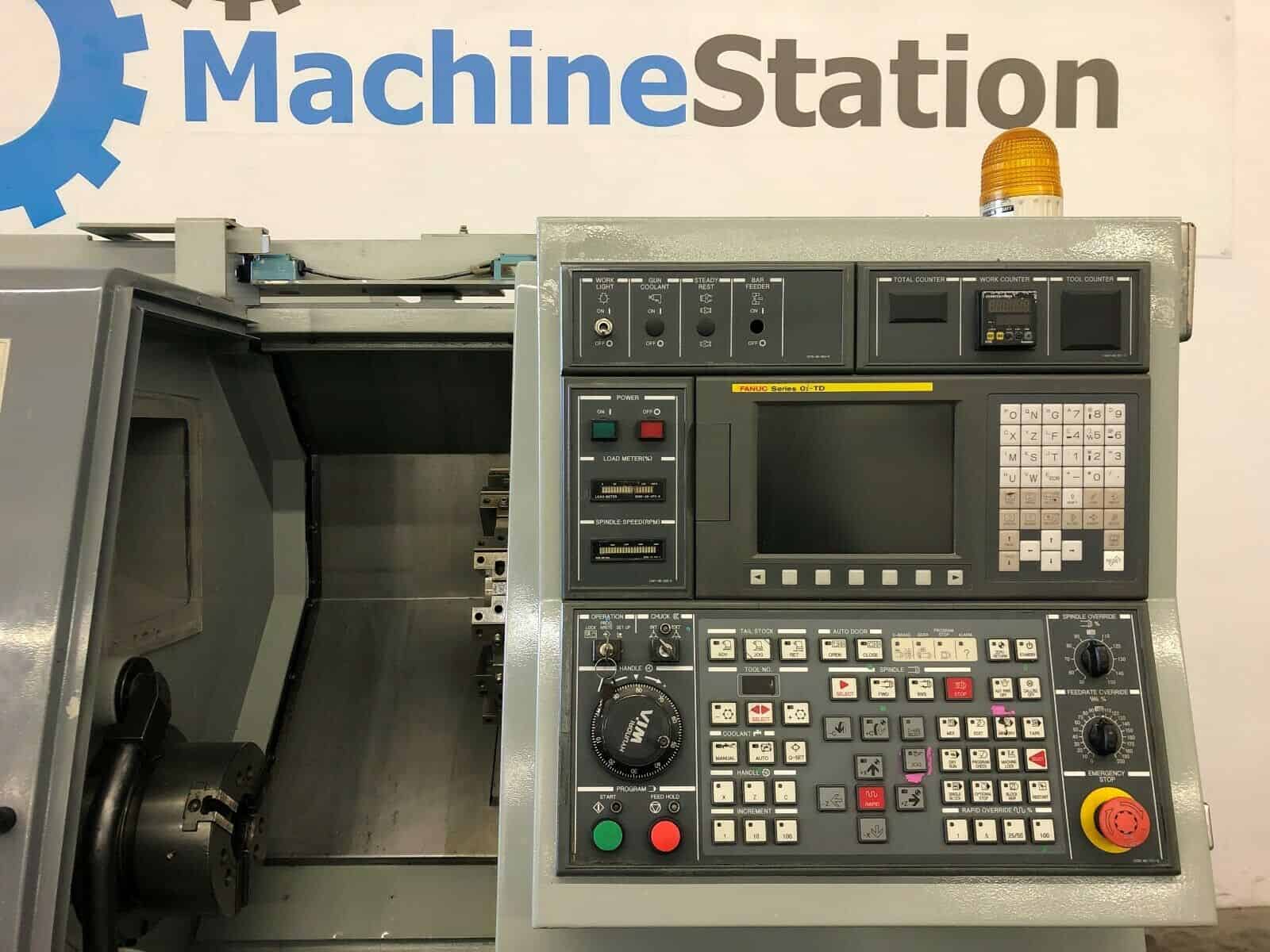

- Fanuc Oi-TD CNC Control

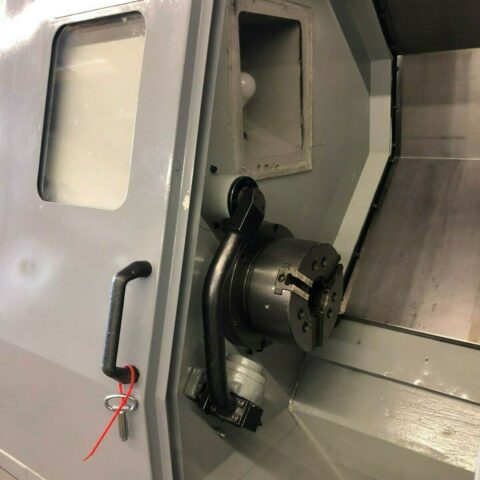

- 8″ 3 Jaw Hydraulic Chuck
- PCMCIA Card Slot
- Tool PreSetter
- 2 Step gear spindle for powerful torque
- Chip Pan and Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Work Light
- Foot Switch
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 82″ x 70″ x 80″ High
- Overall Dimensions: 112″ x 70″ x 80″ High with Chip Conveyor
- Weight: 8600 lbs
- Hyundai WIA SKT-200 Specifications:
- Capacity:
- Max Turning Diameter: 13.8″
- Max Turning Length: 11.8″
- Max Bar Capacity: 2.56″
- Swing Over Slide: 13.8″
- Swing Over Bed: 21.7″
- X Axis Travel: 8.3″
- Z Axis Travel: 13.0″
- Rapid Traverse X Axis: 1417 IPM
- Rapid Traverse Z Axis: 1417 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.07″
- Spindle Speed: 0-4000 RPM
- Spindle Motor: 15/20 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second

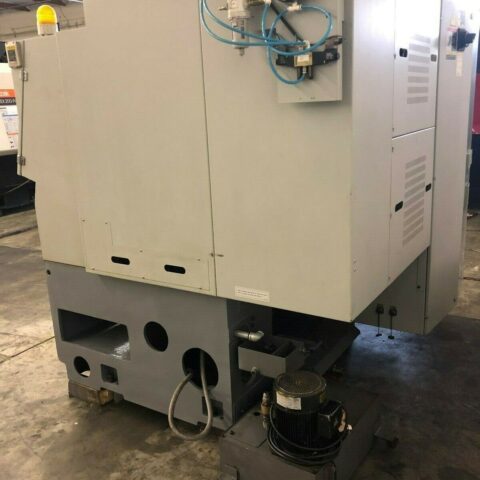

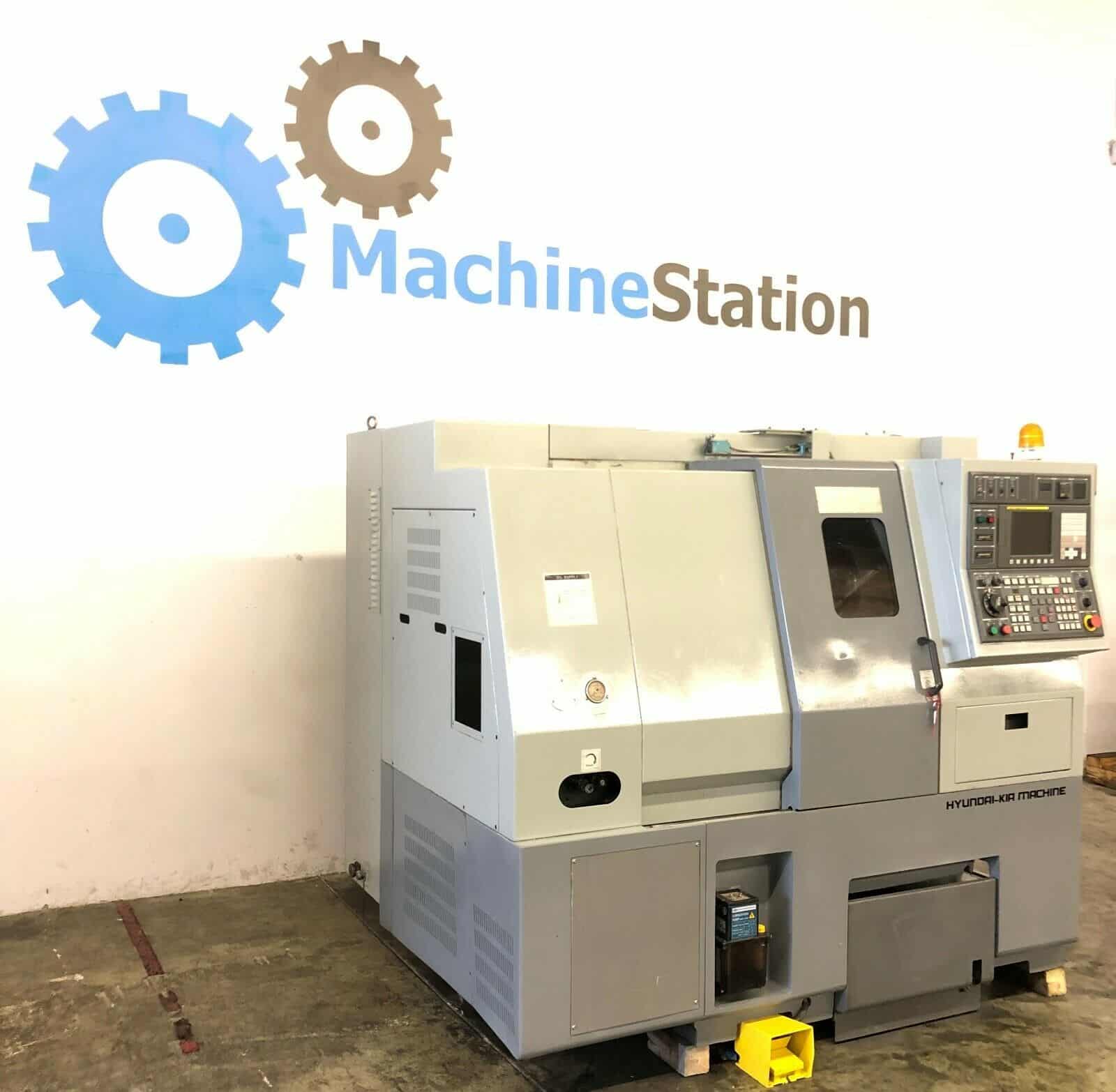

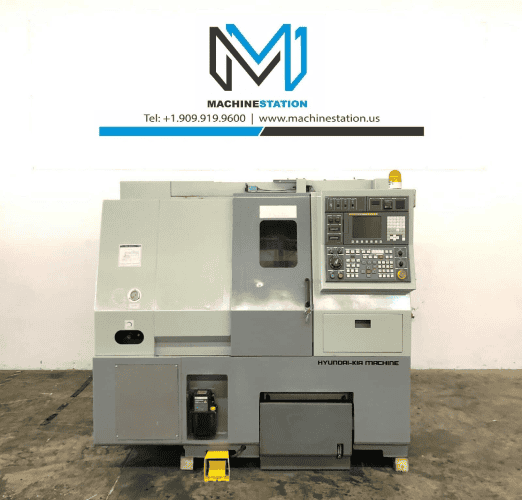

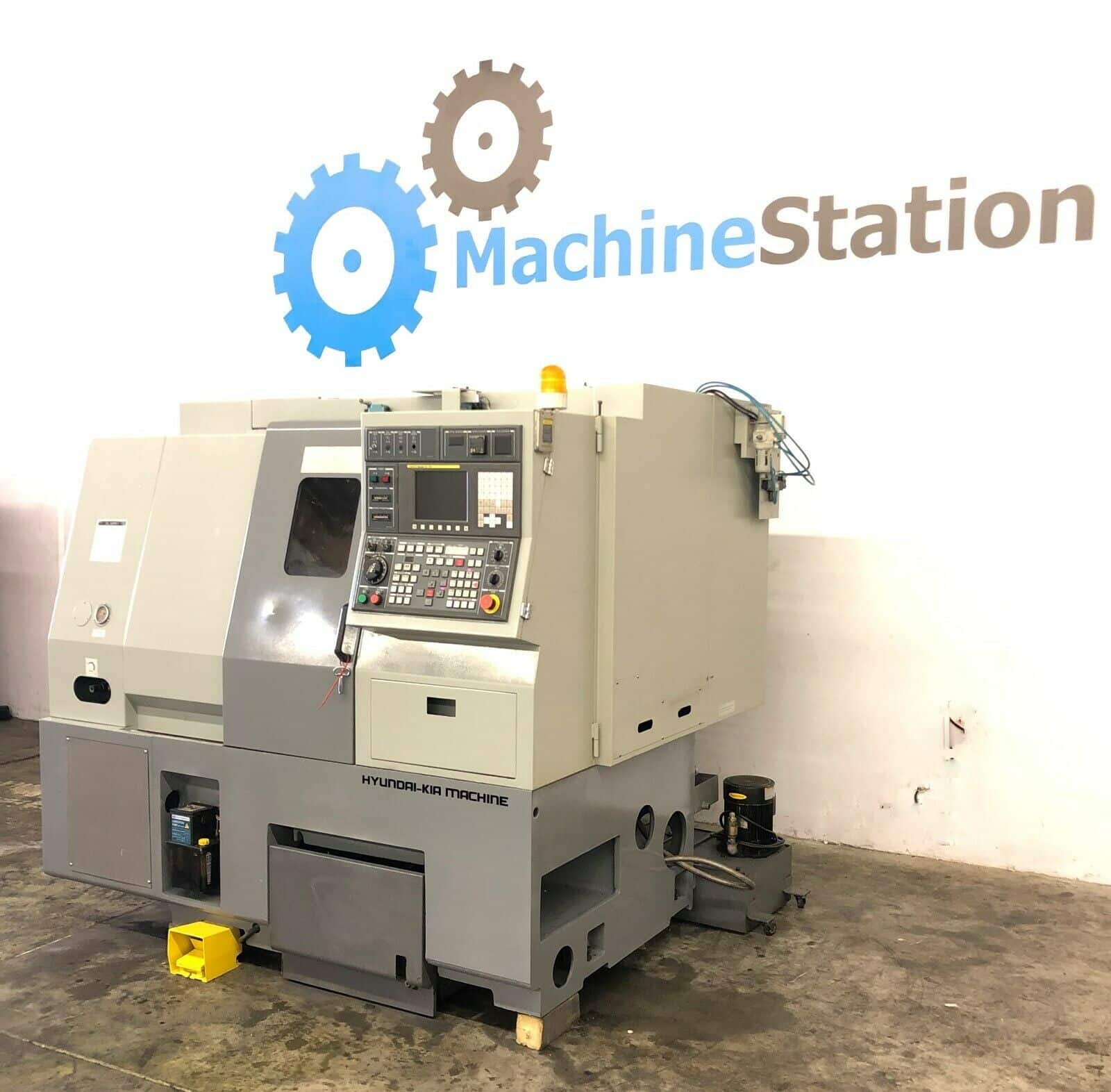

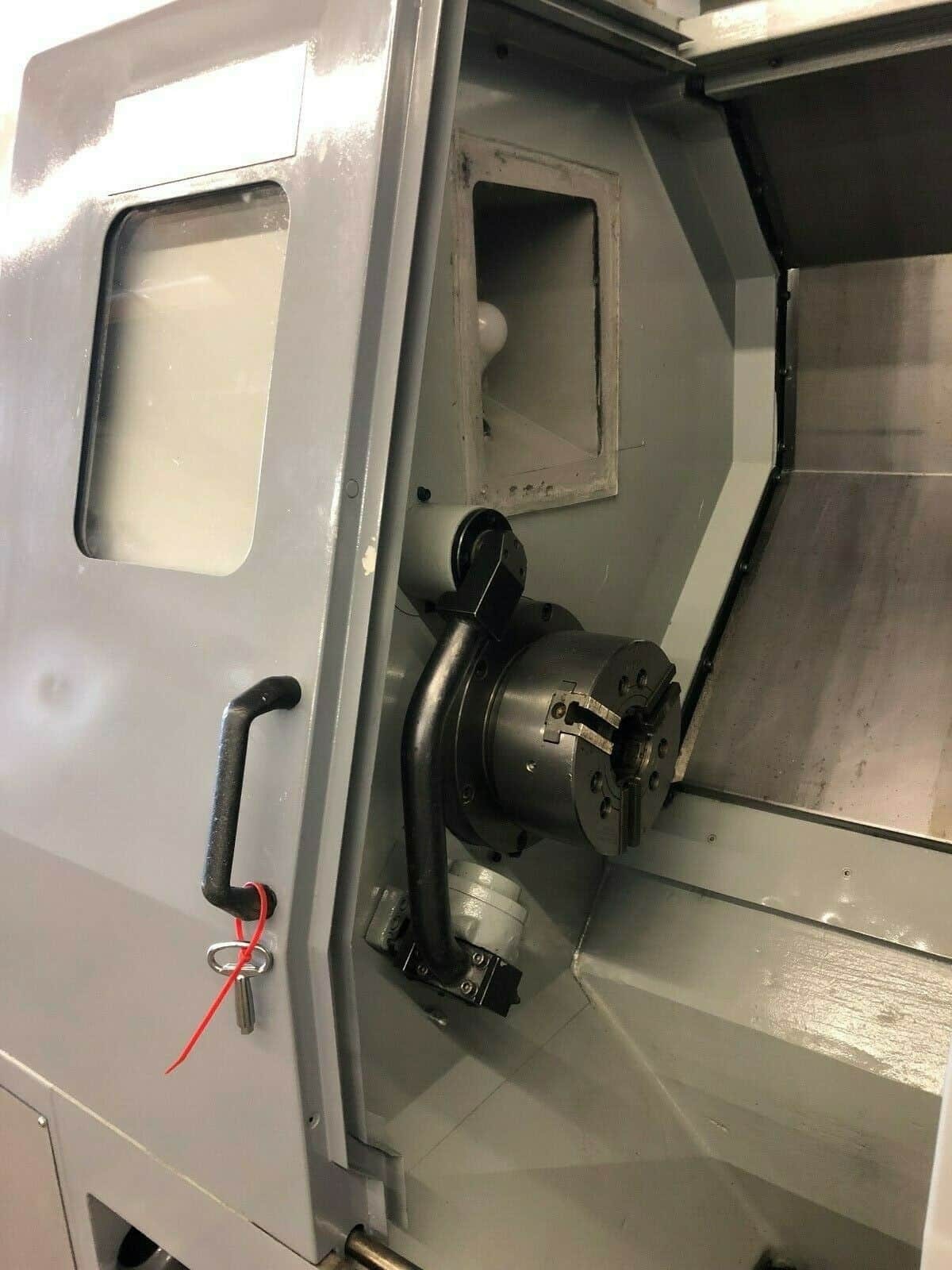

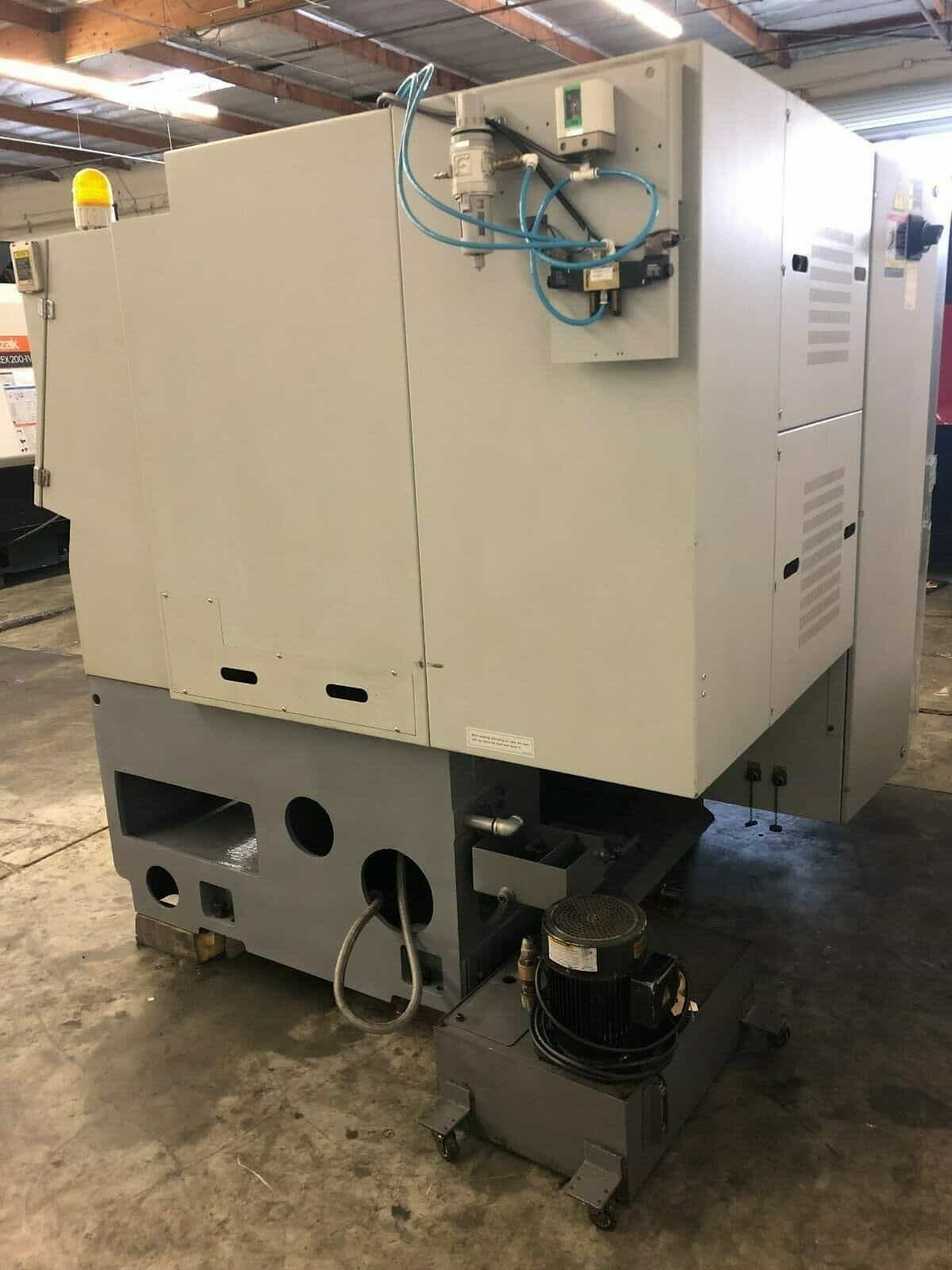

Hyundai WIA SKT-200 Comes as shown in pictures..
