*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2674 |

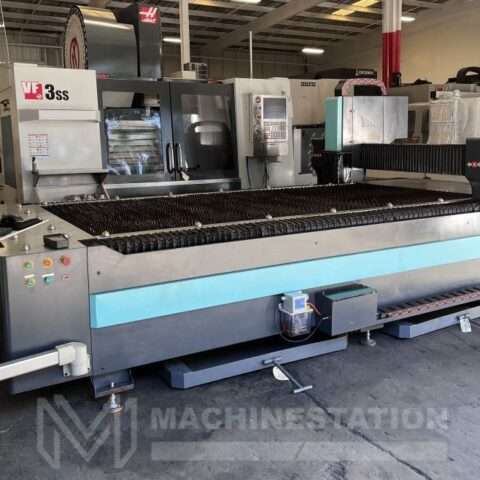

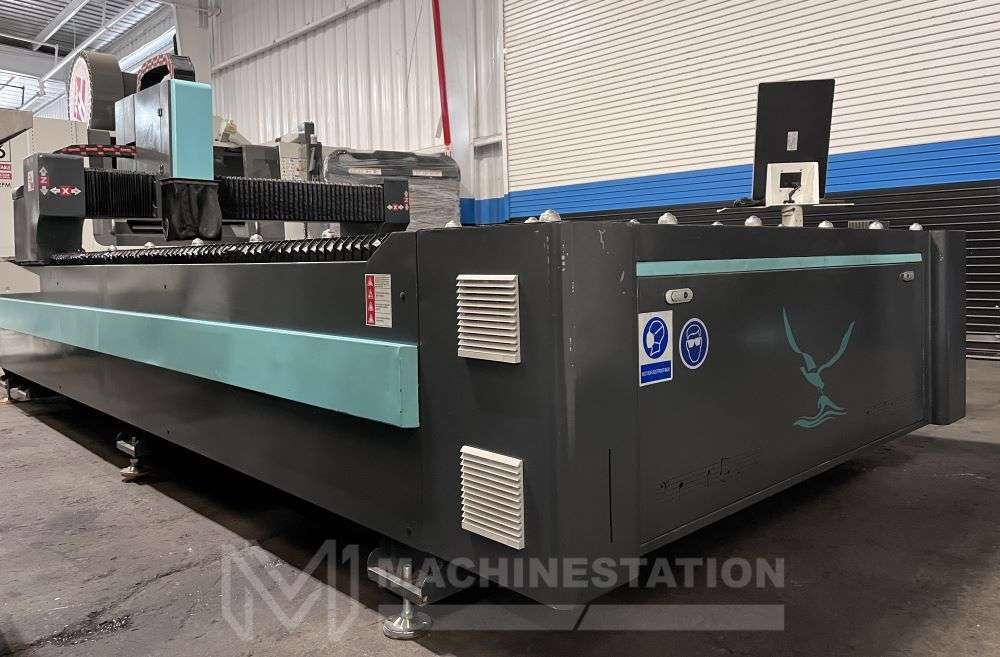

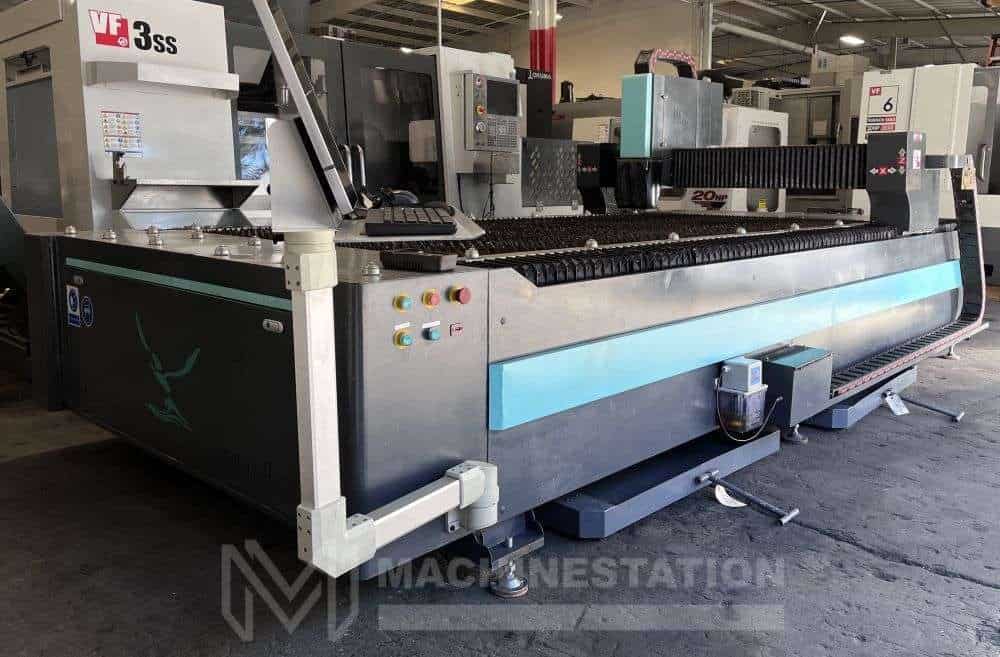

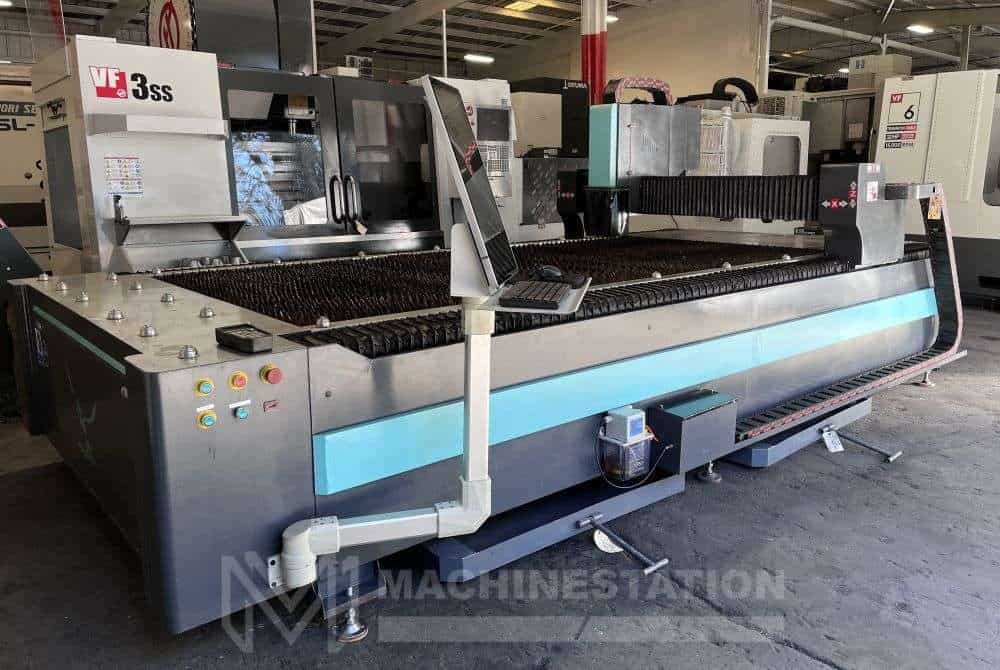

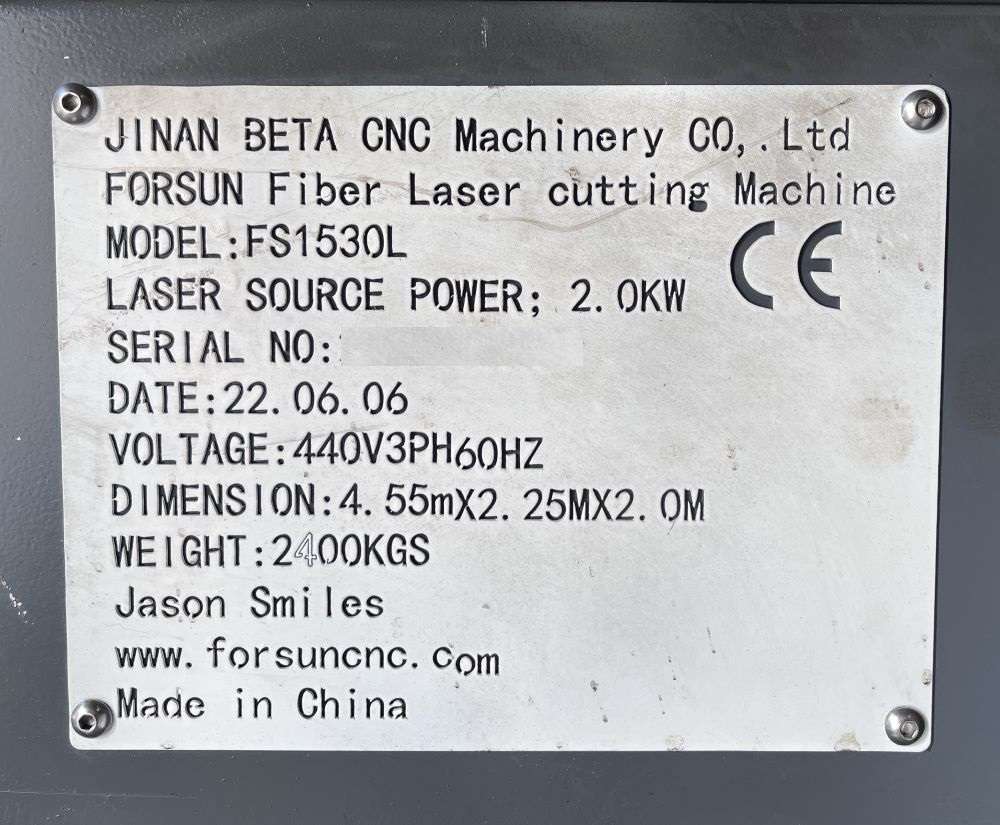

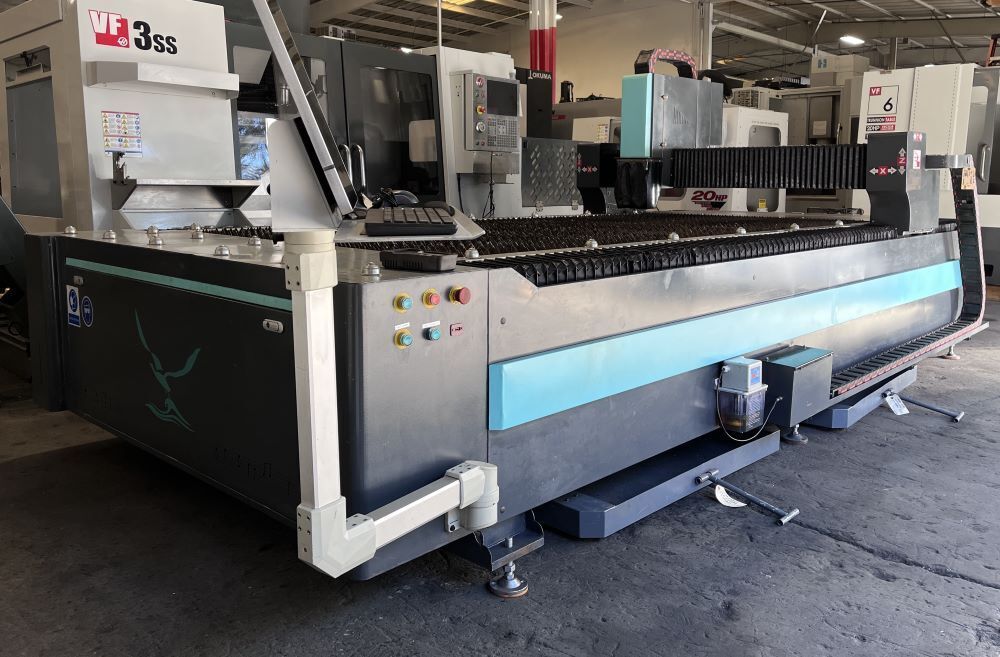

| Make: | JINAN FORSUN |

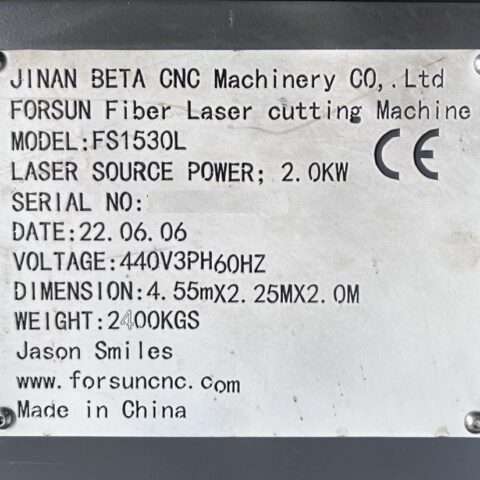

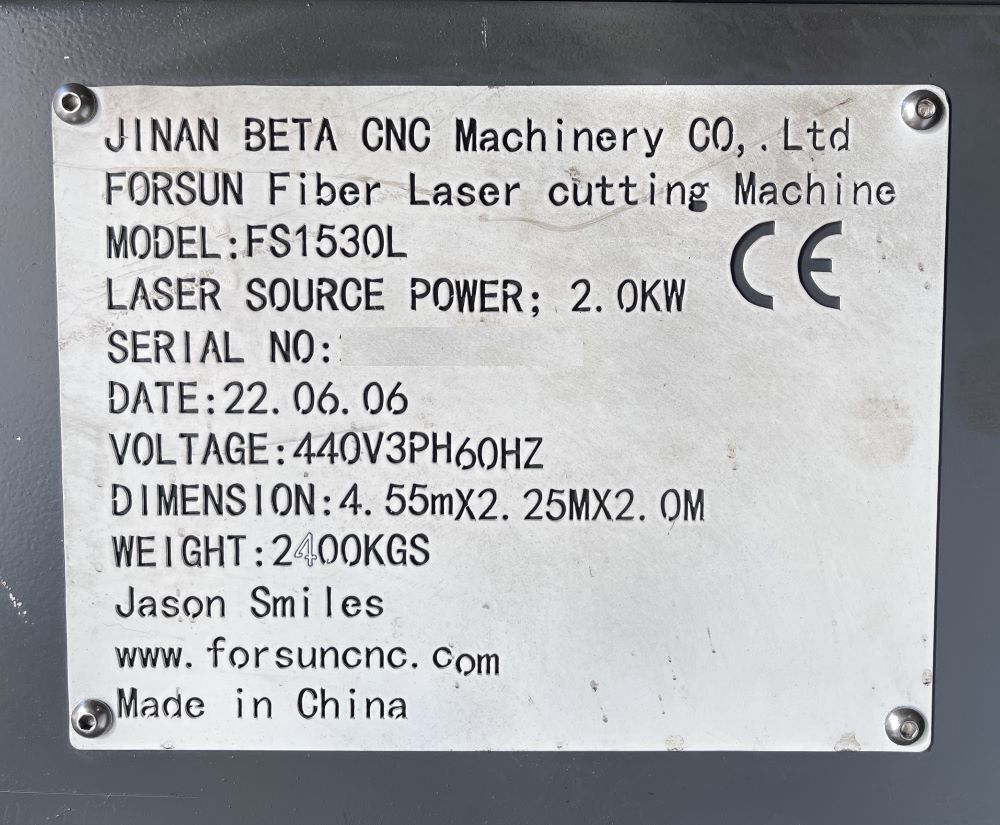

| Model No.: | FS1530L |
| Year | 2022 |
| Features: |
|---|

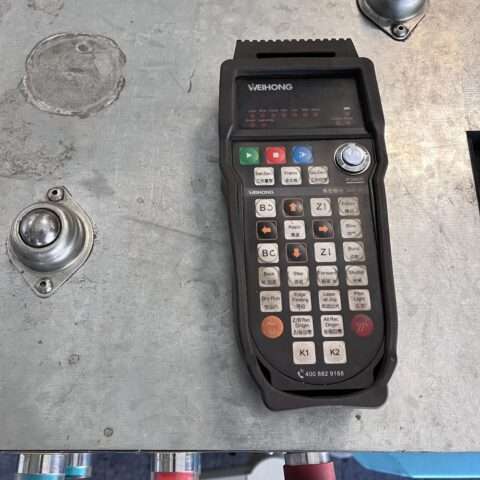

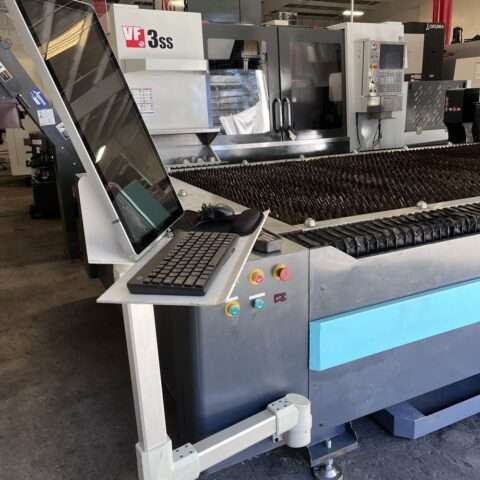

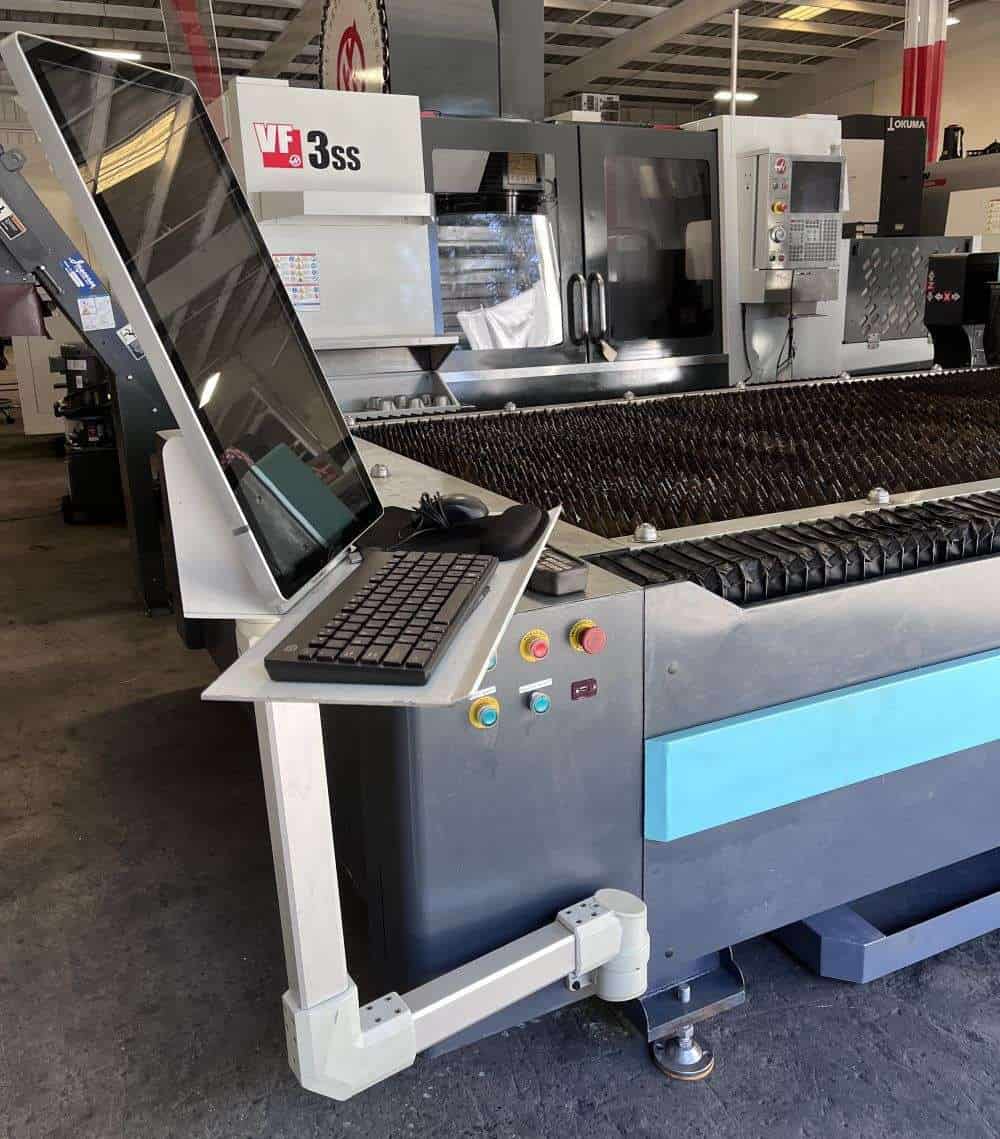

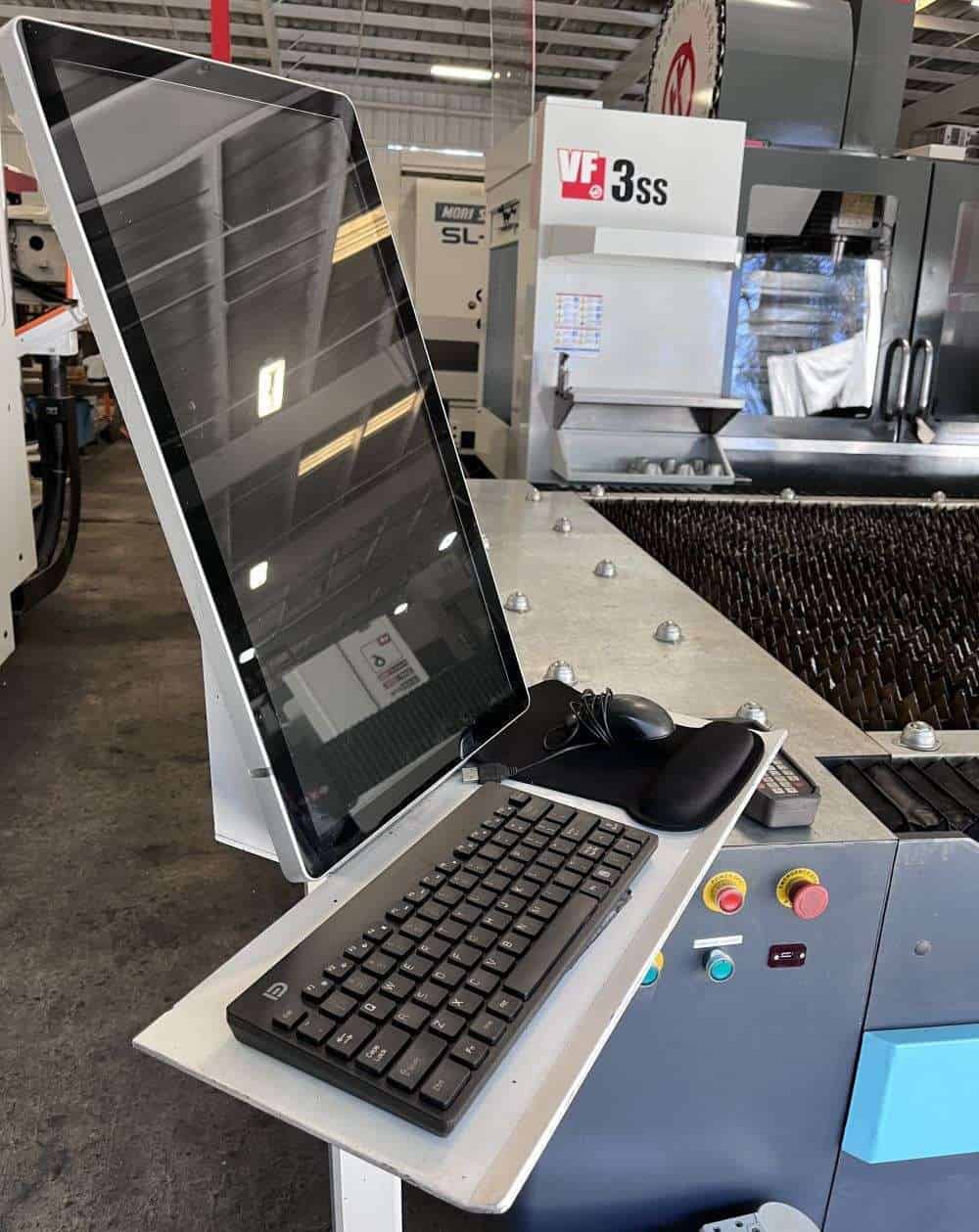

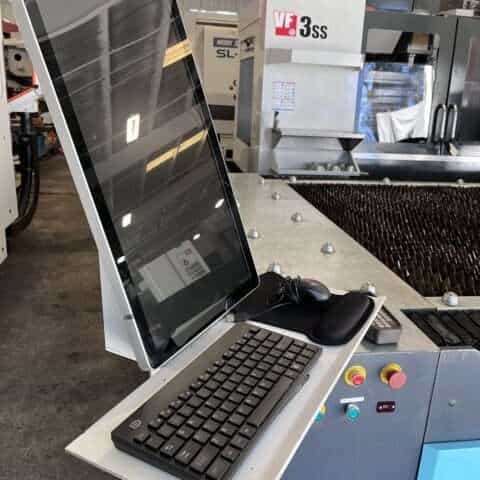

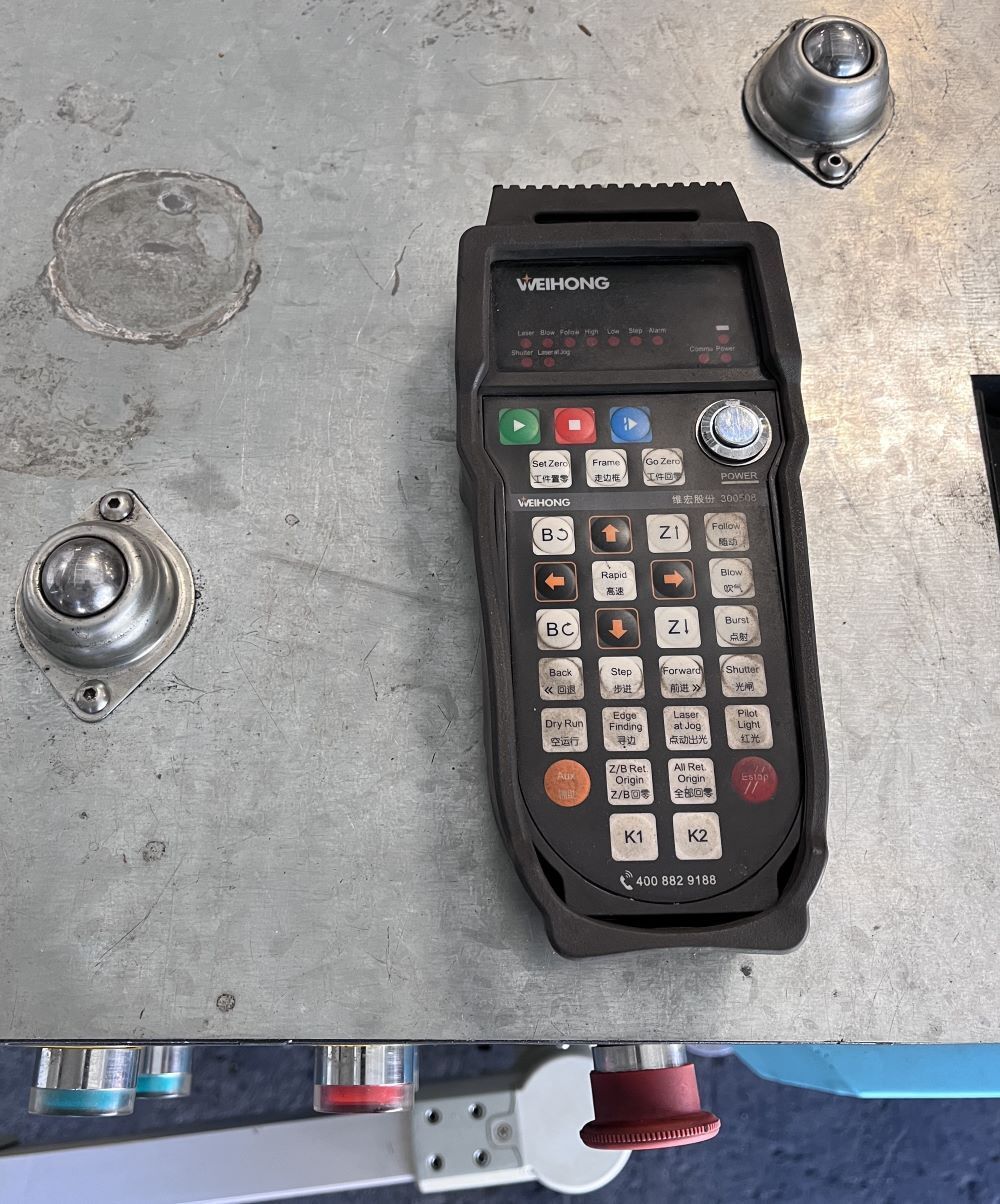

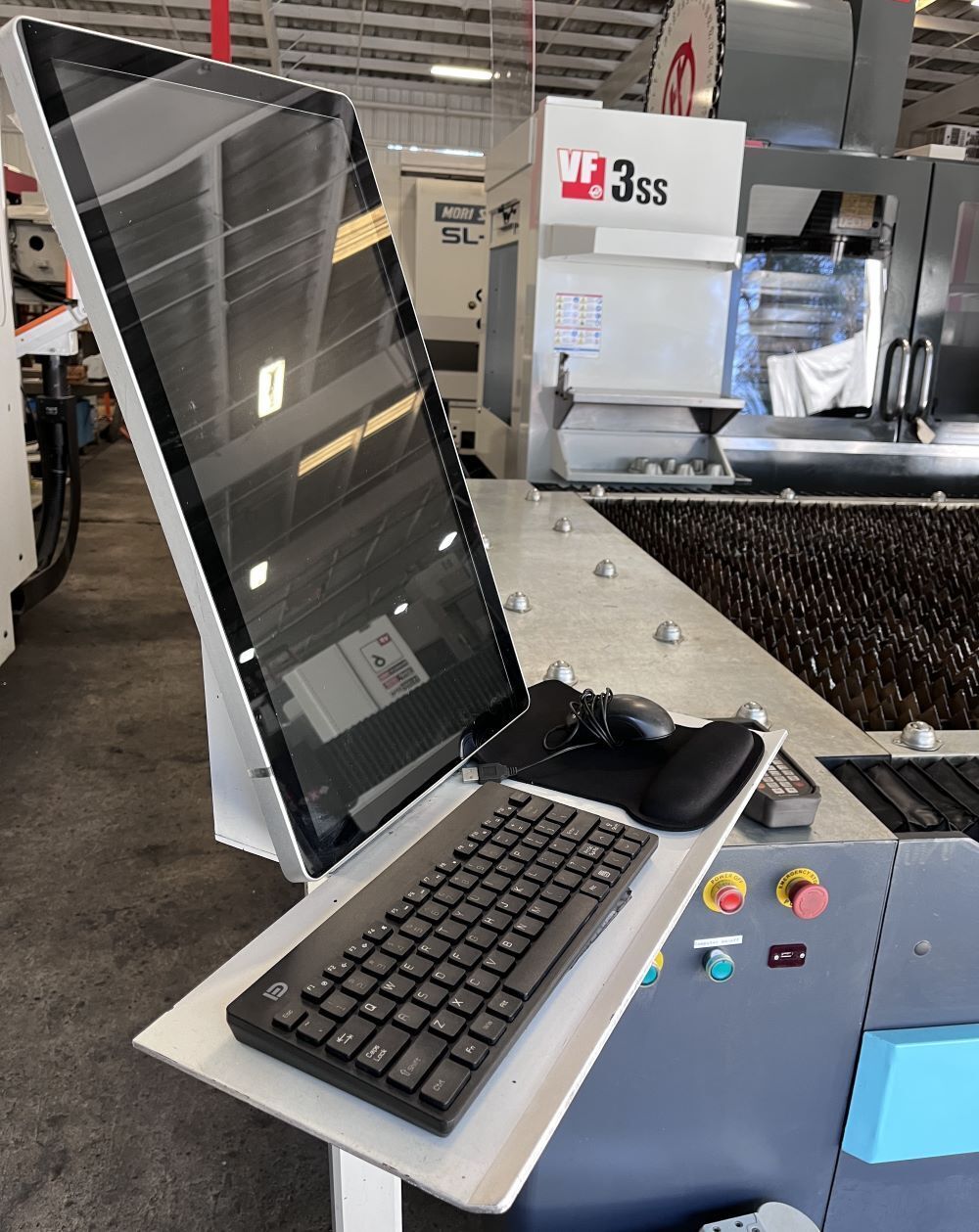

| Weihong Control System |
| 59.05″ x 118.11″ Effective Cutting Range of Flat Plate |

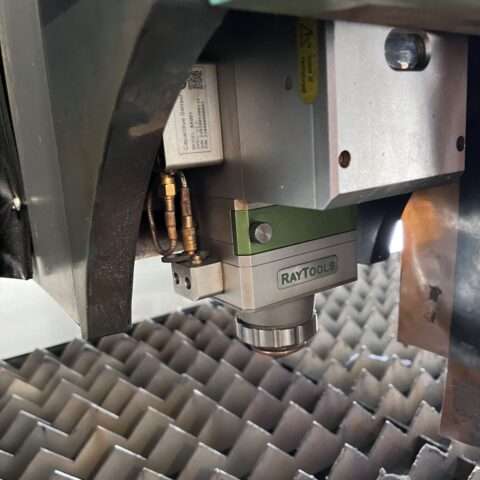

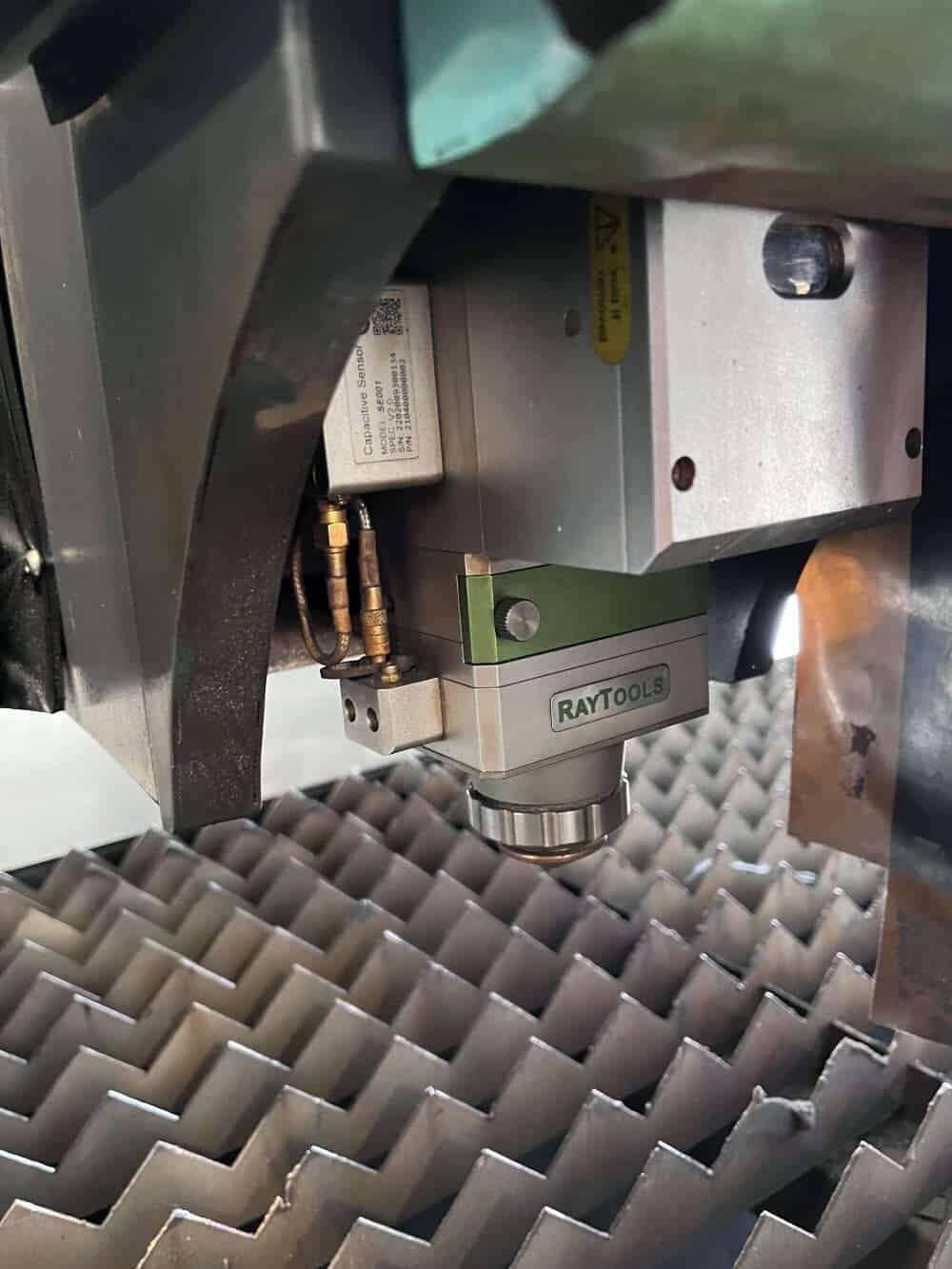

| Raytools Fiber Laser Cutting Head |

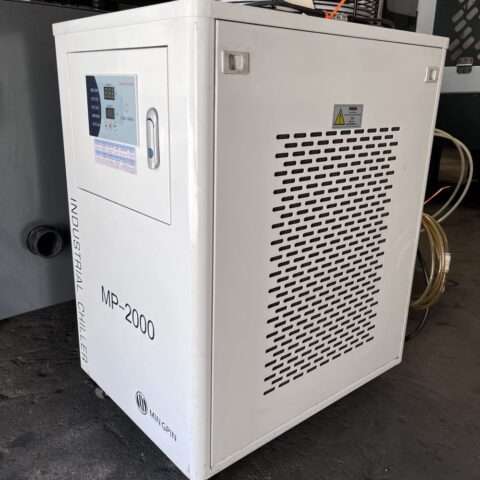

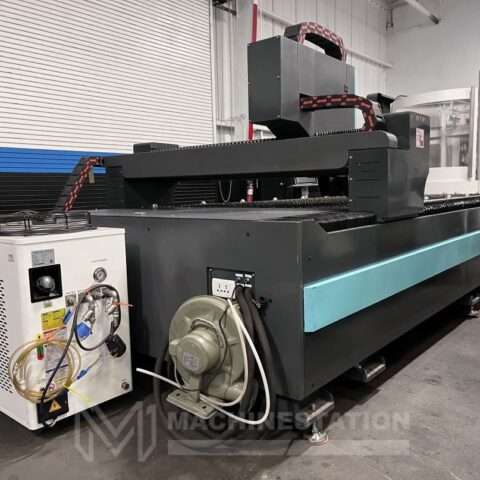

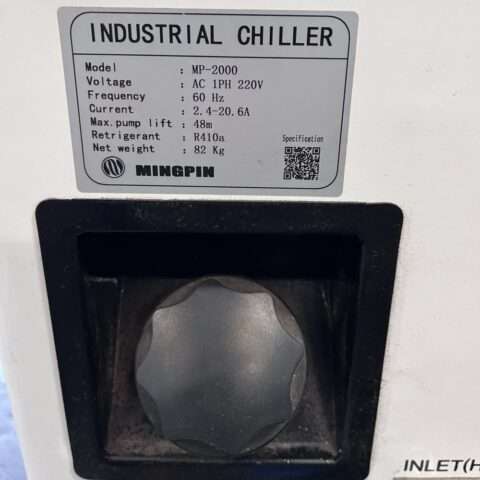

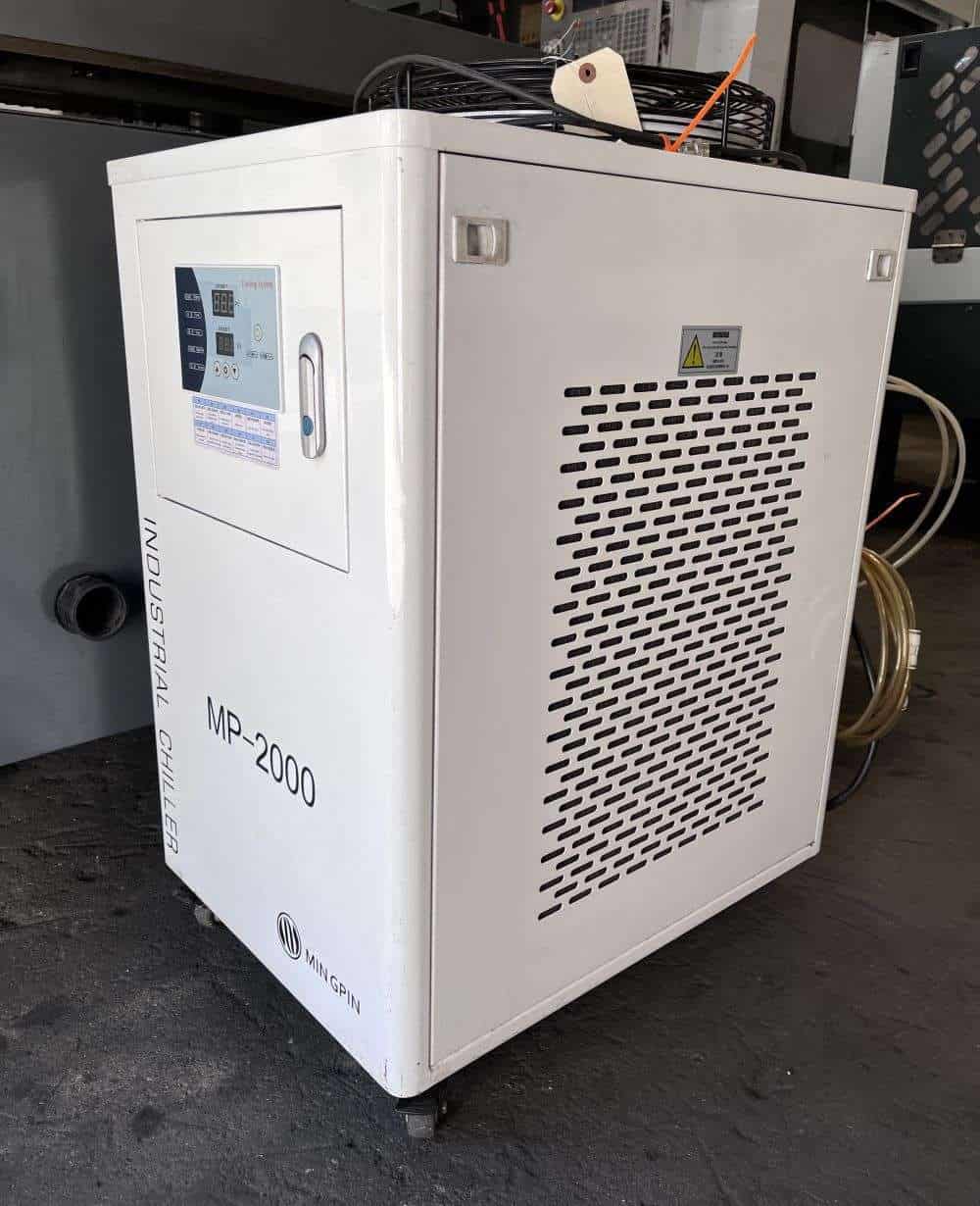

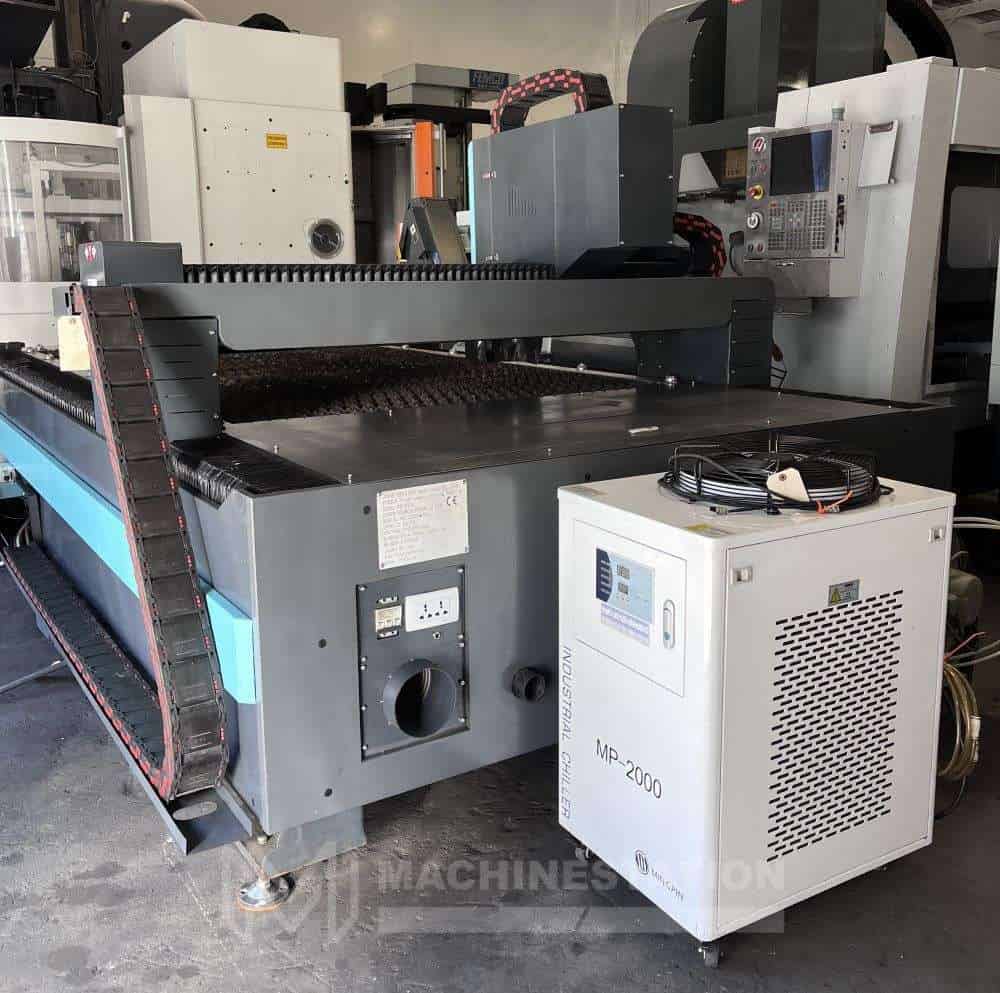

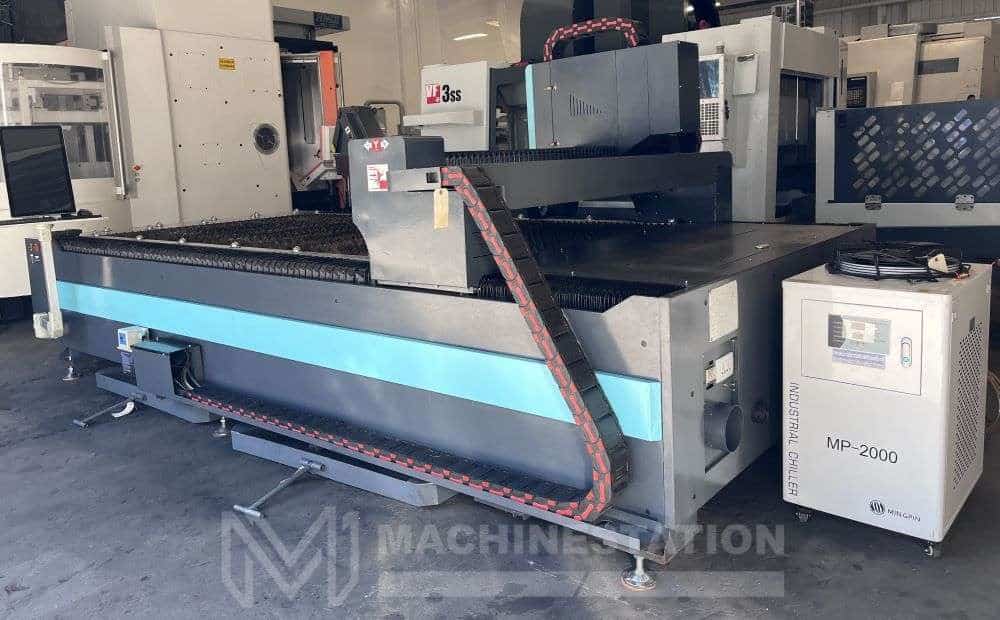

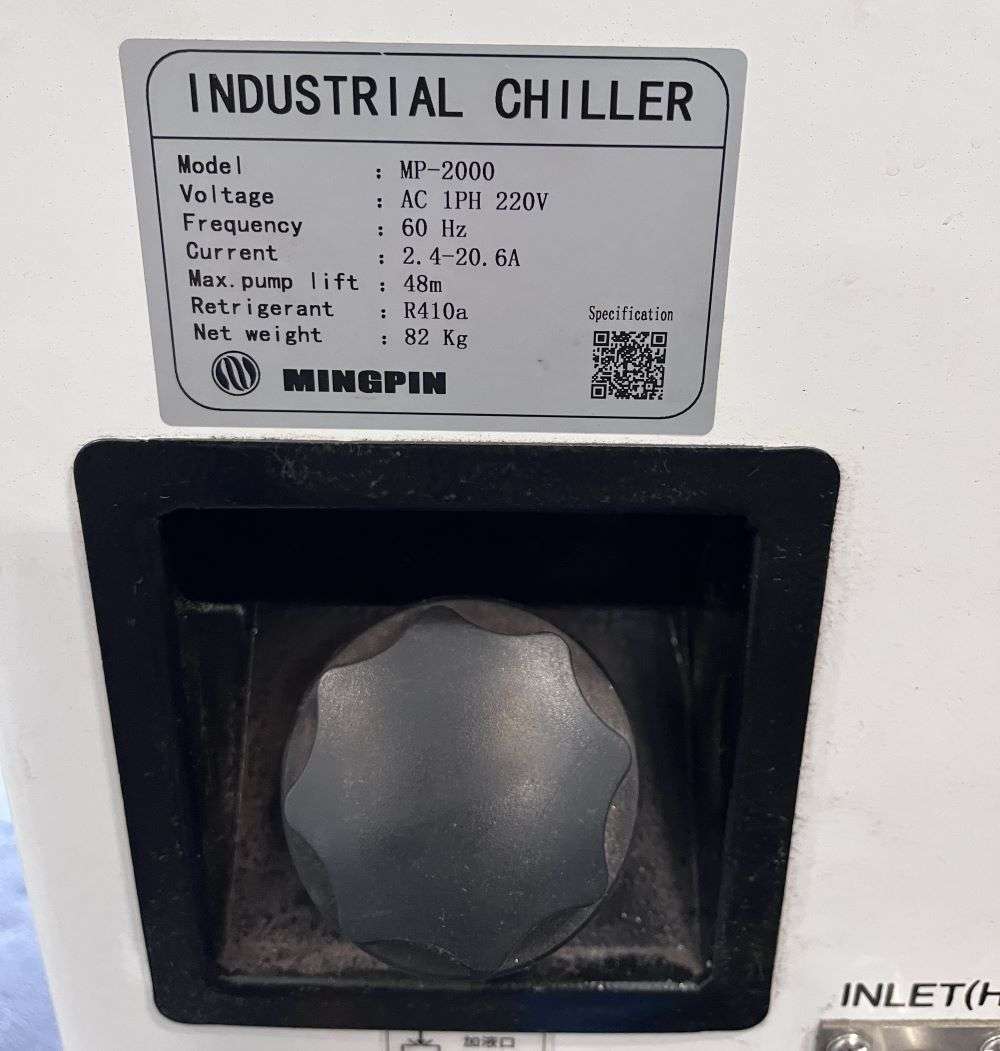

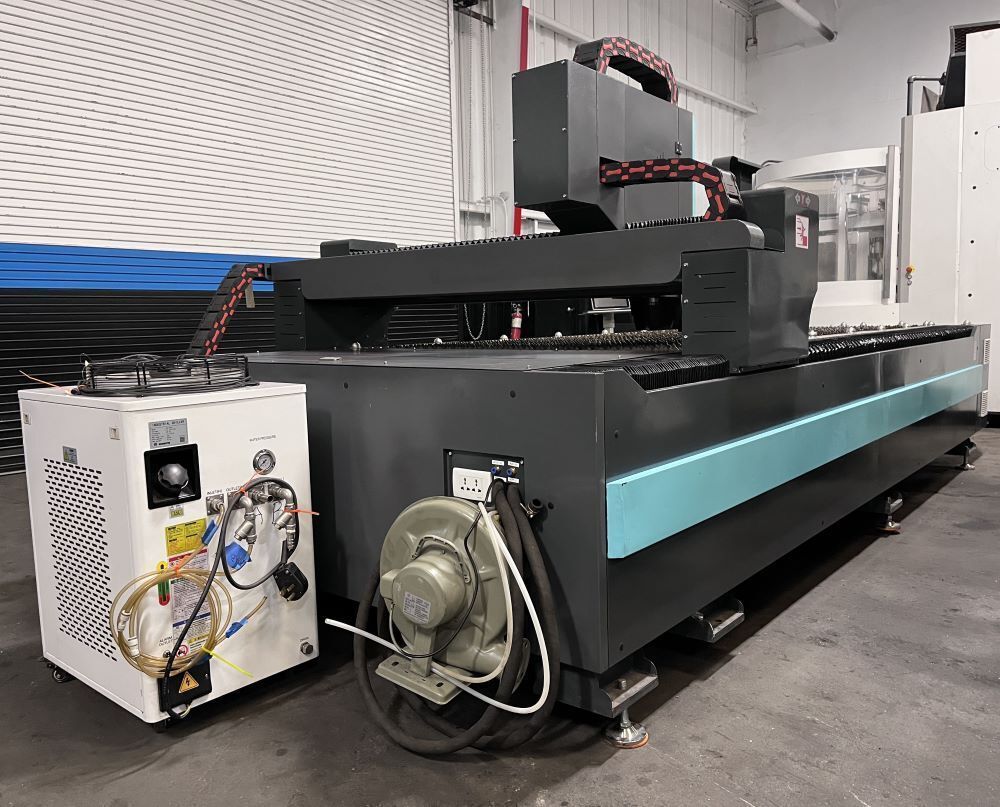

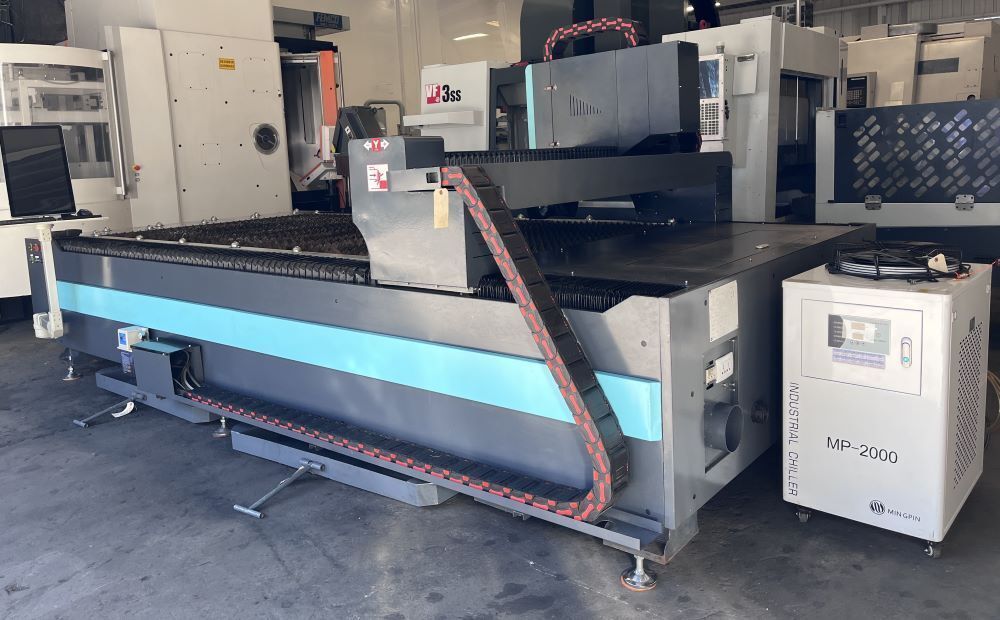

| MP-2000 Industrial Chiller Unit |

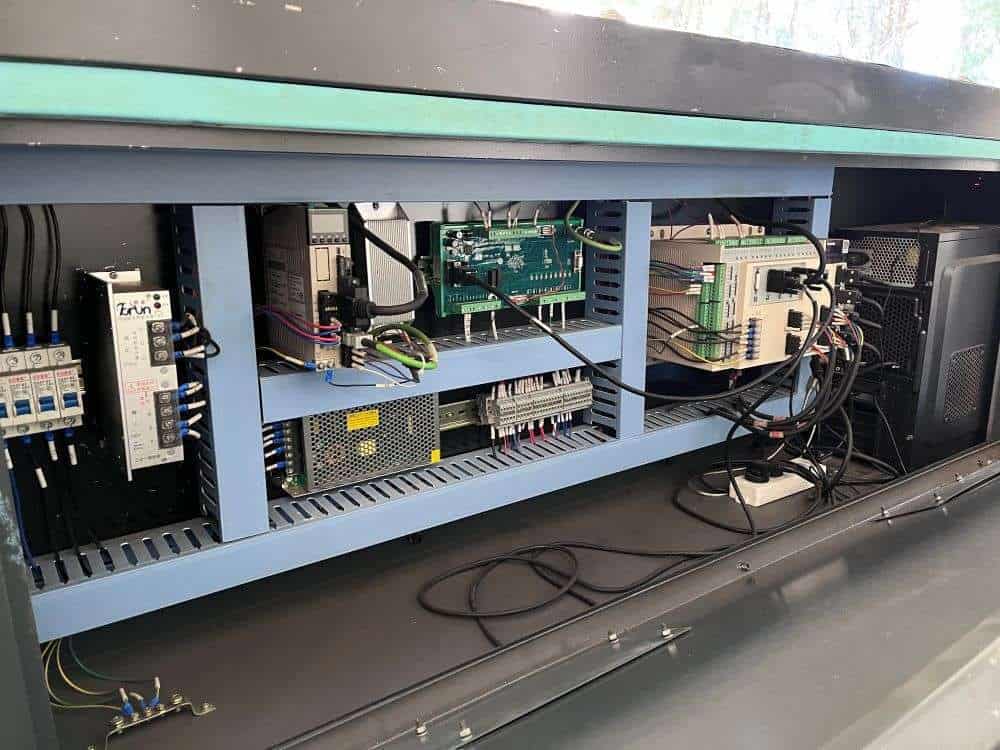

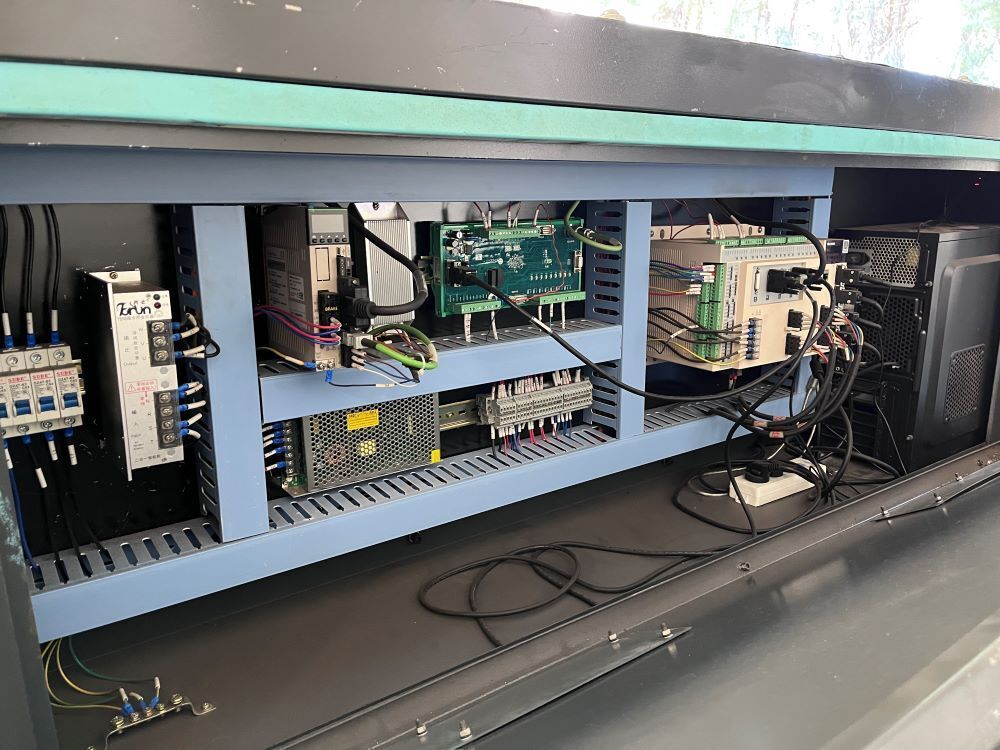

| Servo Motor and Driver |
| Raycus Fiber Laser Source |

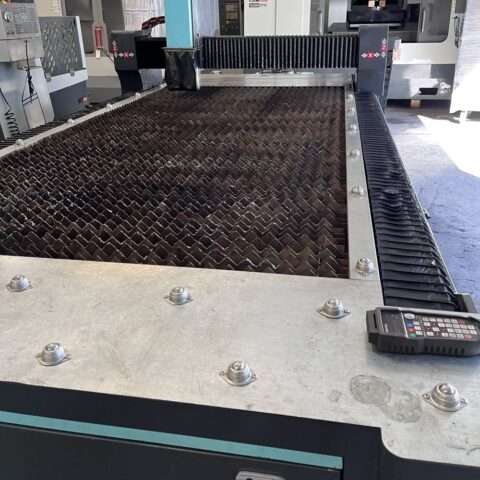

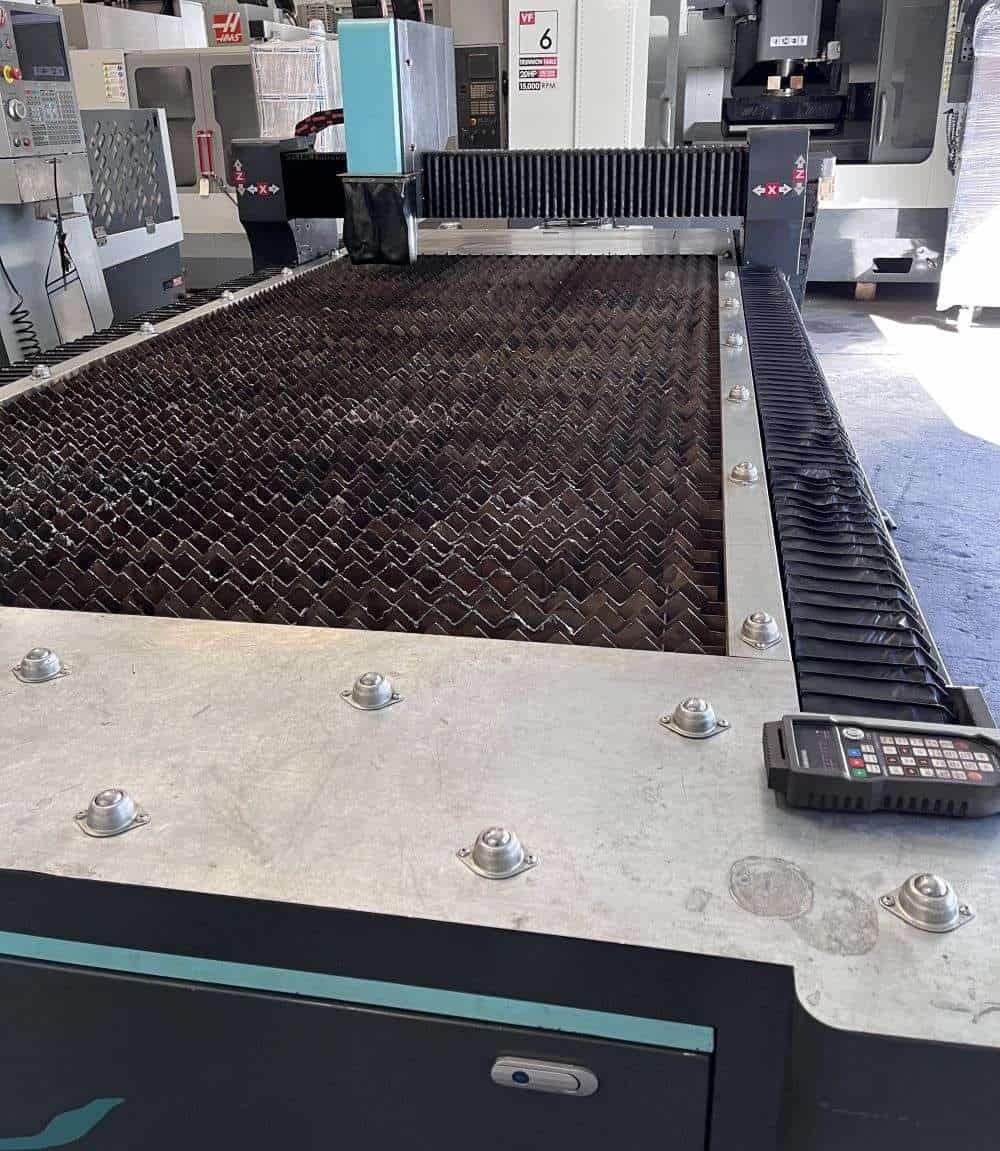

| Sawteeth Working Table |
| Taiwan TBI Ball Screw, Germany Helical Rack and Pinion |
| Japan Shimpo Reducer |
| Travels: |
|---|
| X-Axis: 59.05″ |
| Y-Axis: 118.11″ |
| Z-Axis: 7.87″ |
| Maximum Speed: 3937″ Per Min |
| Thickness Capacity: |
|---|
| Maximum Sheet Thickness (Carbon Steel): 0.629″ |
| Maximum Sheet Thickness (Stainless steel): 0.236″ |
| Maximum Sheet Thickness (Aluminum): 0.157″ |
| General: |
|---|
| Laser Type: Fiber Laser |
| Laser Source Power: 2KW |
| Power: 440v / 60HZ / 3-Phase |
| Overall Dimensions: 177″ x 88″ x 78″ High |
| Weight: 5,291 lbs |
