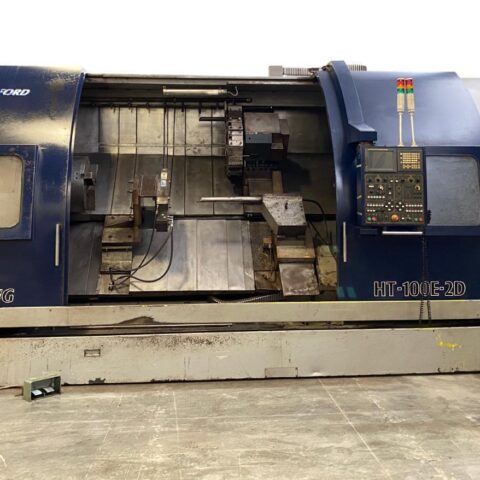

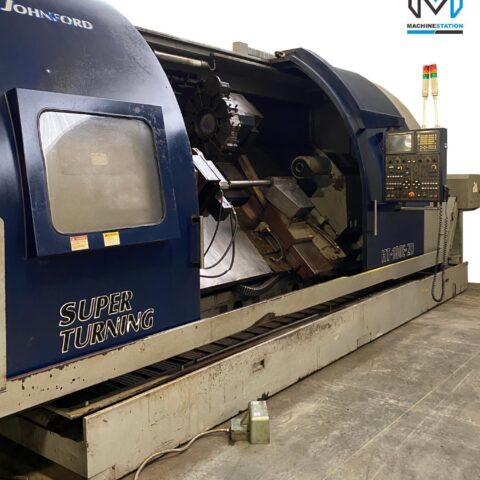

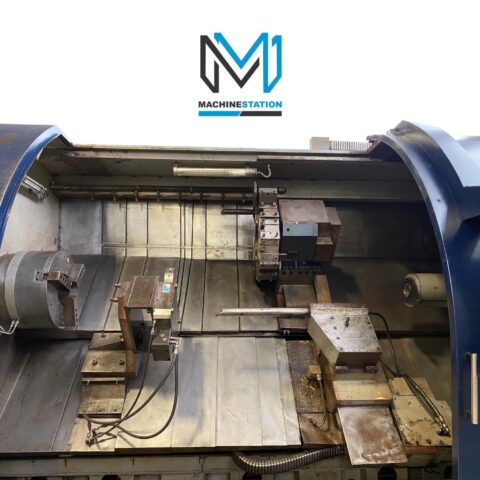

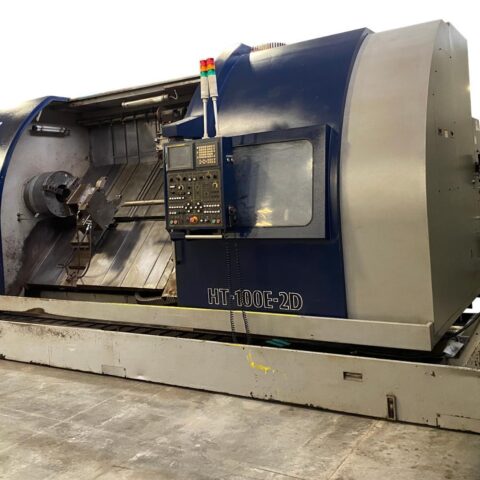

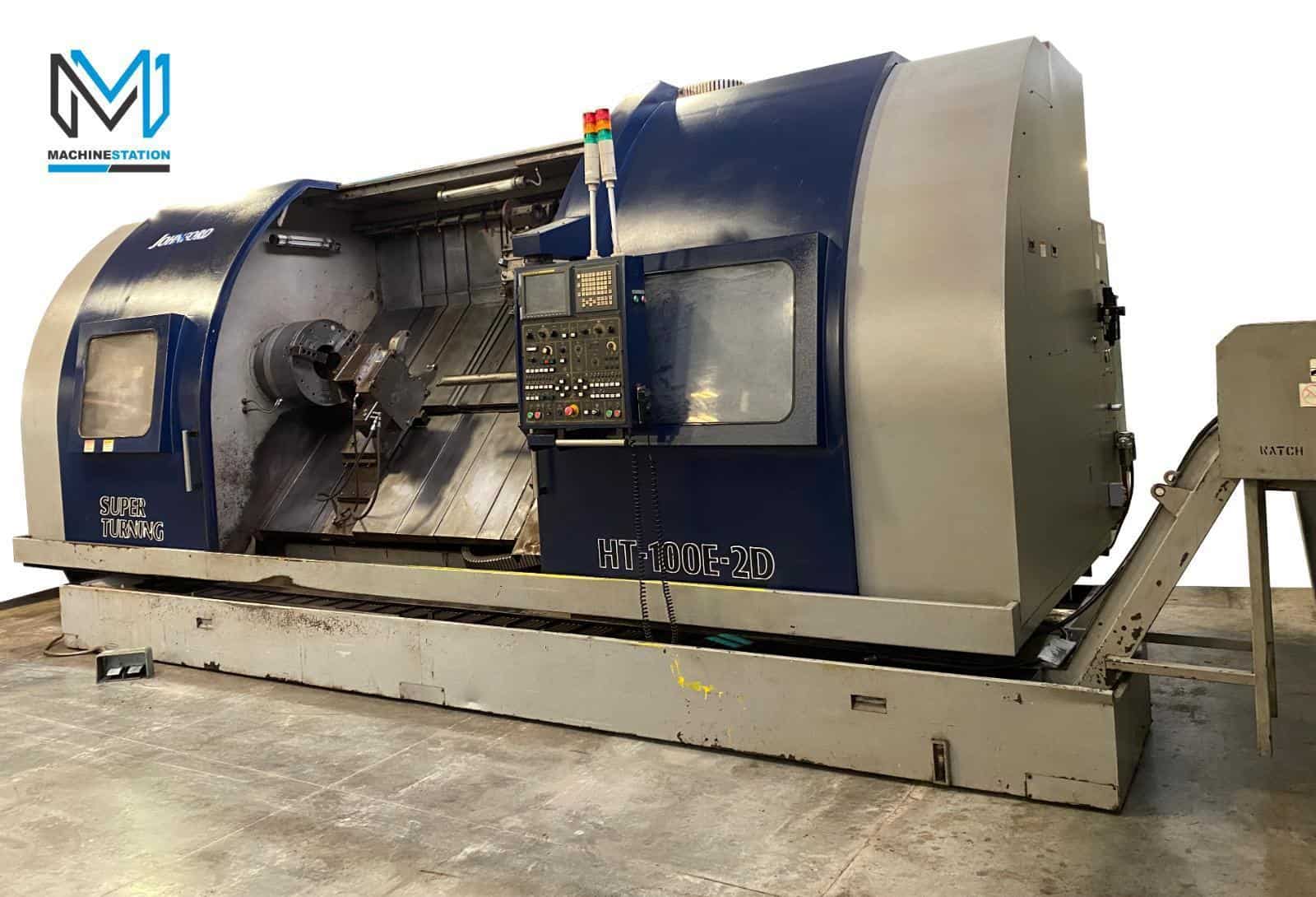

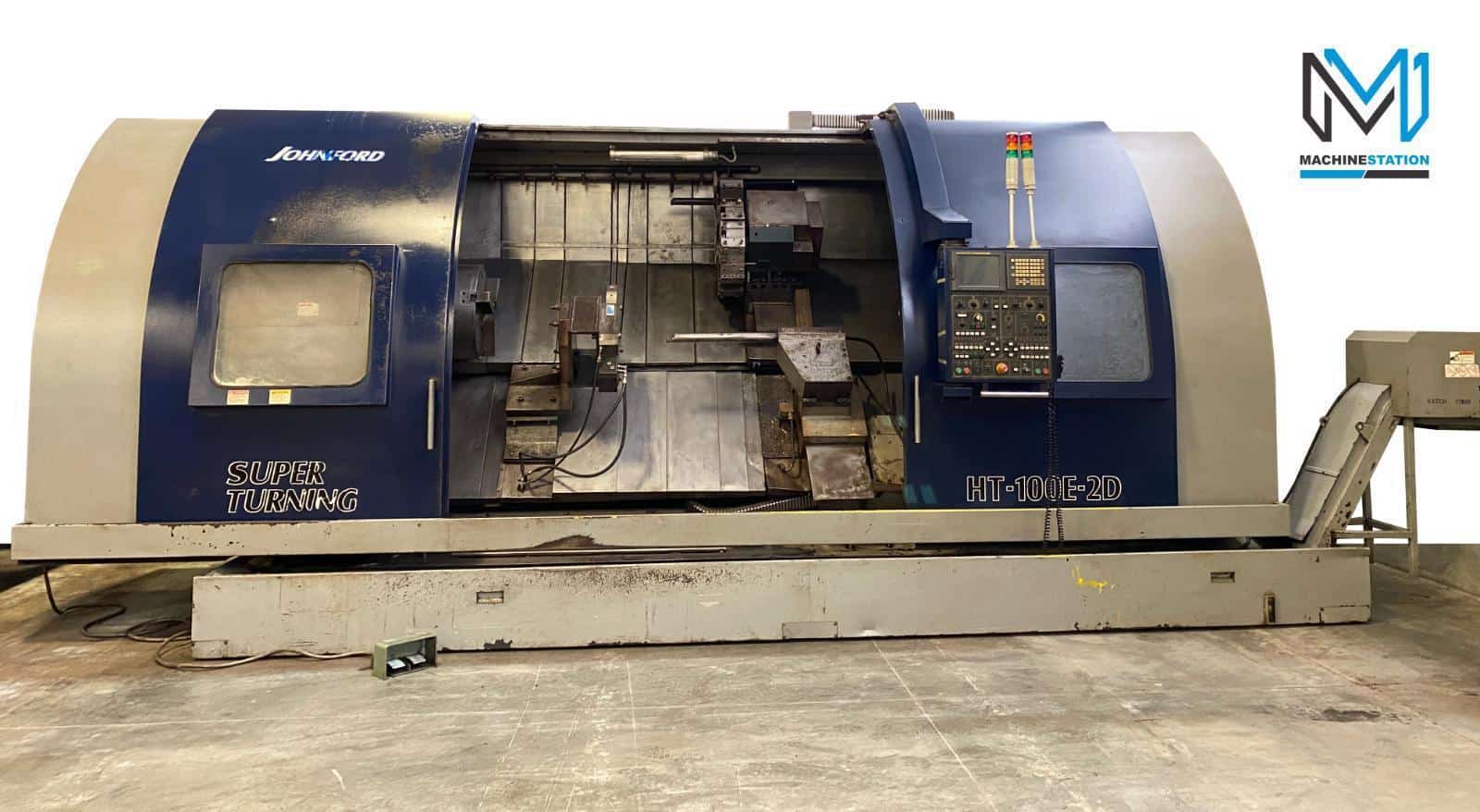

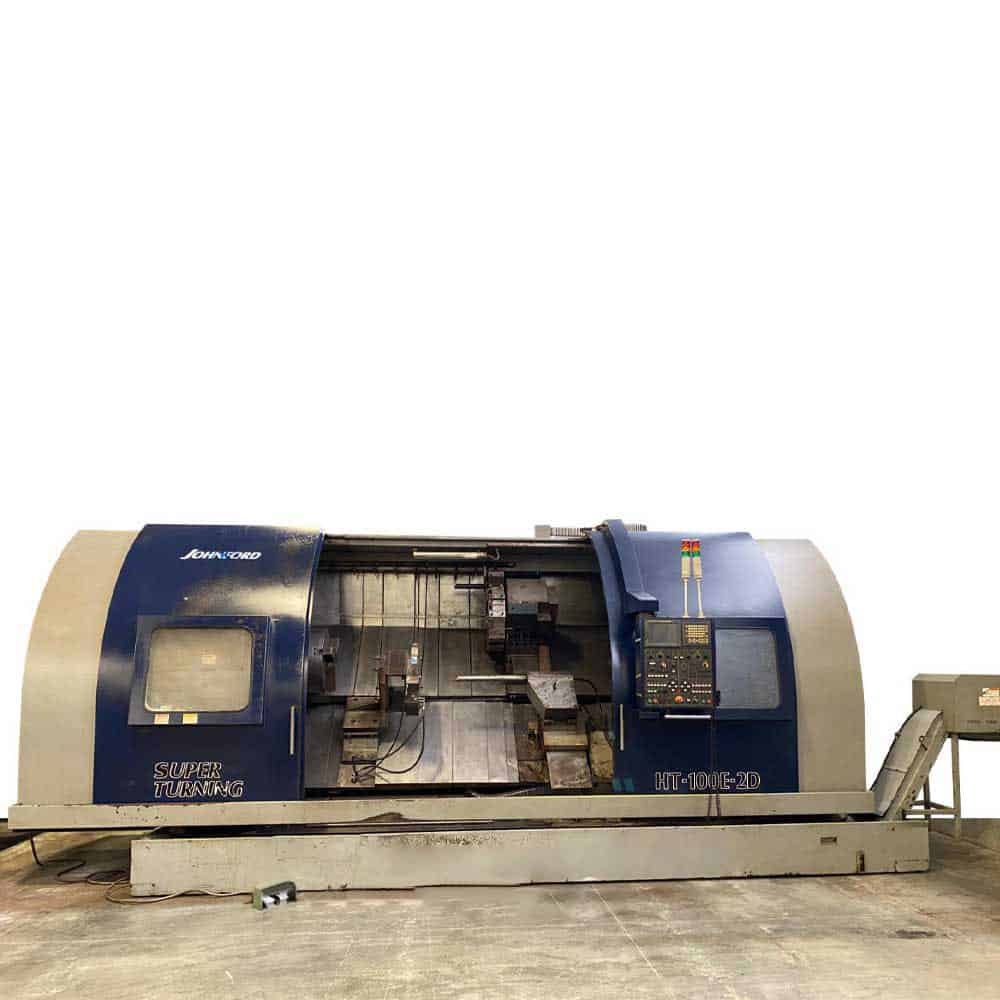

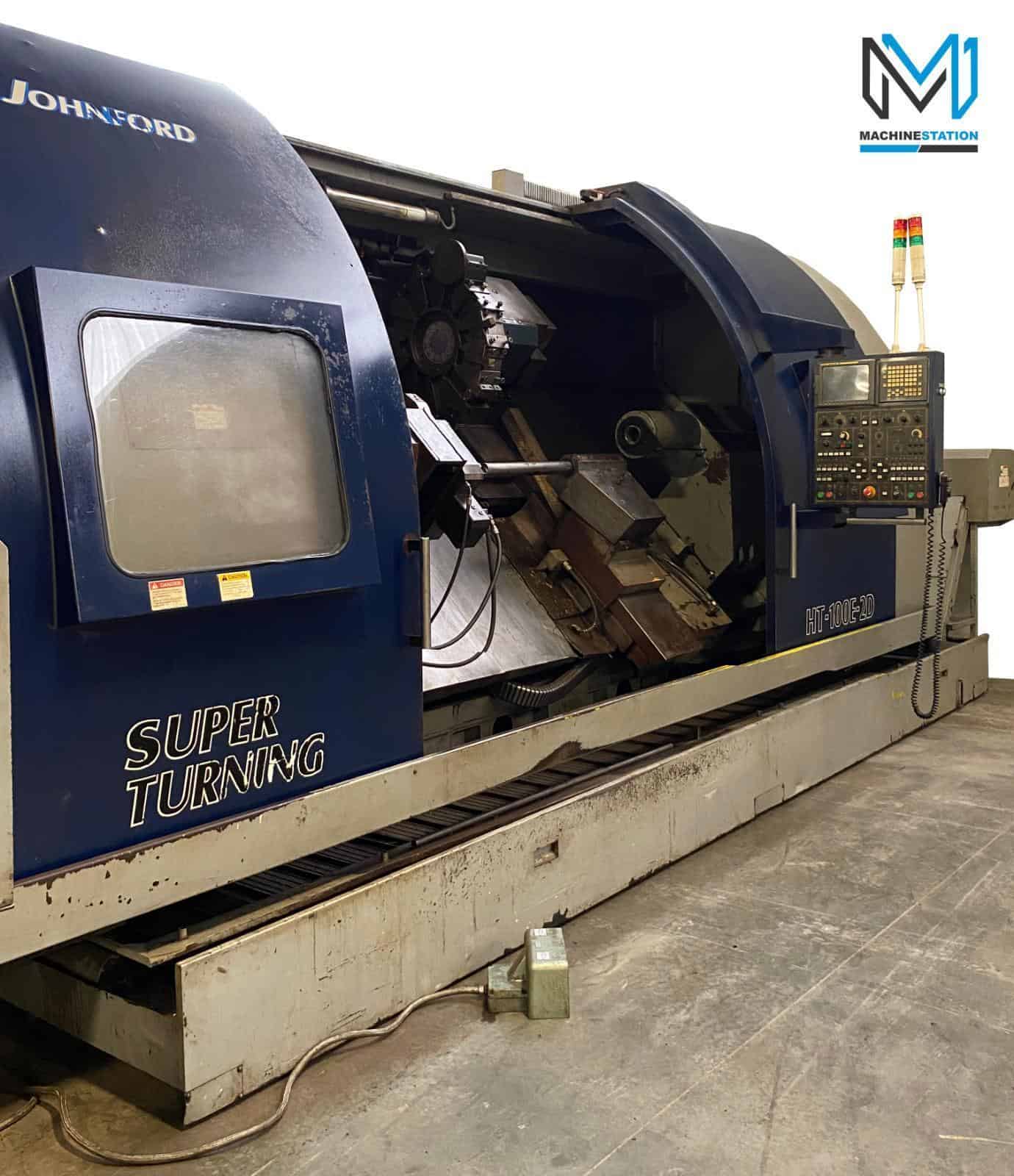

Johnford HT-100E-2D CNC Oil Country Lathe

Location Houston, TX
SKU 111861
Make/Model JOHNFORD HT-100E-2D
Video No Video
Out of stock
Location Houston, TX
SKU: 111861
Make/Model: JOHNFORD HT-100E-2D
Video: No Video
SKU: 111861

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: JOHNFORD
Model: HT100E2D
Year: 2007
Condition: Used – Good
Equipped With:
Fanuc 18iT CNC Control

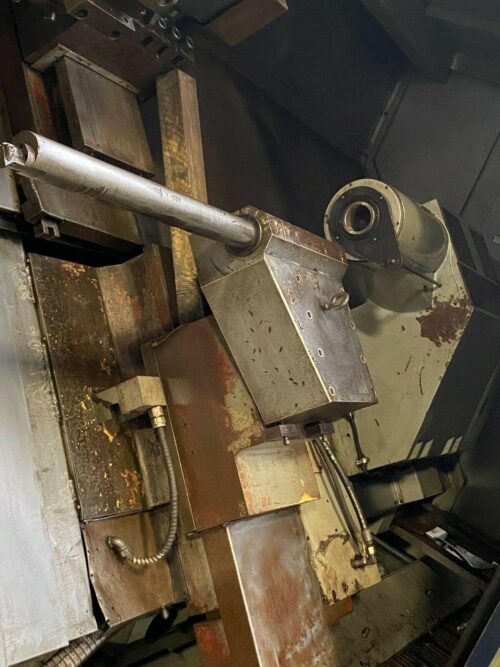

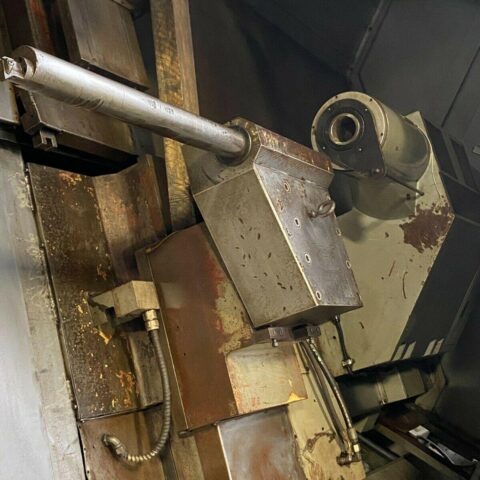

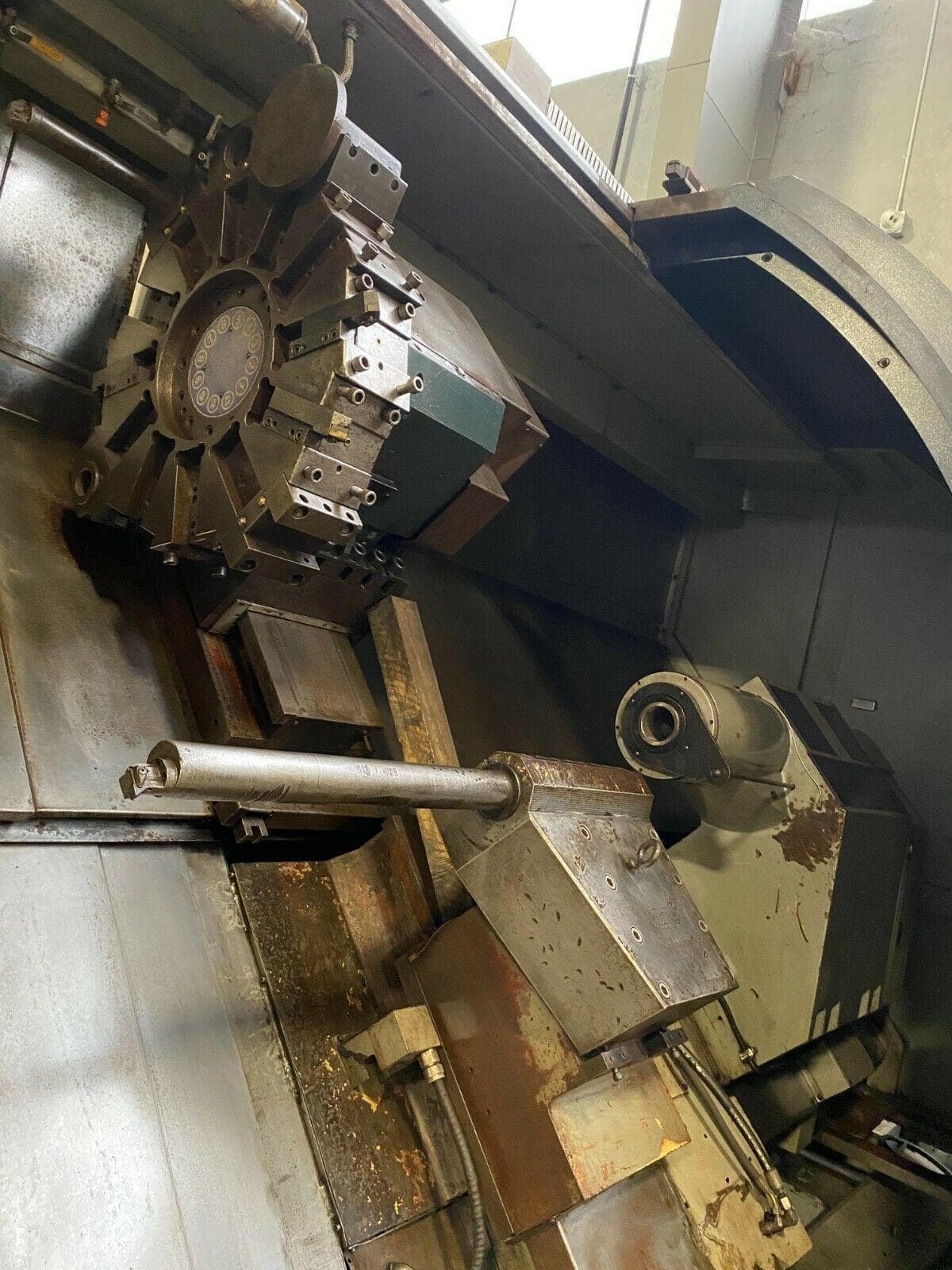

Boring Bar Slide ( W Axis )

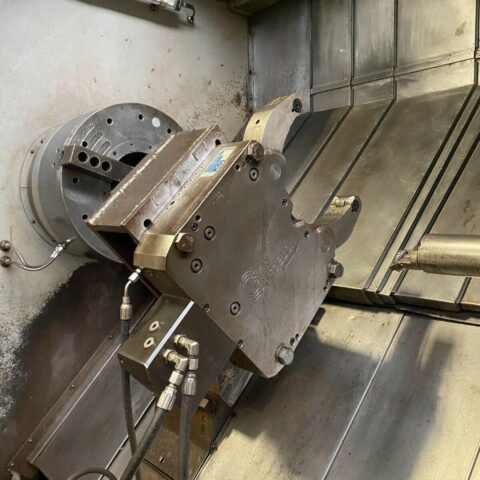

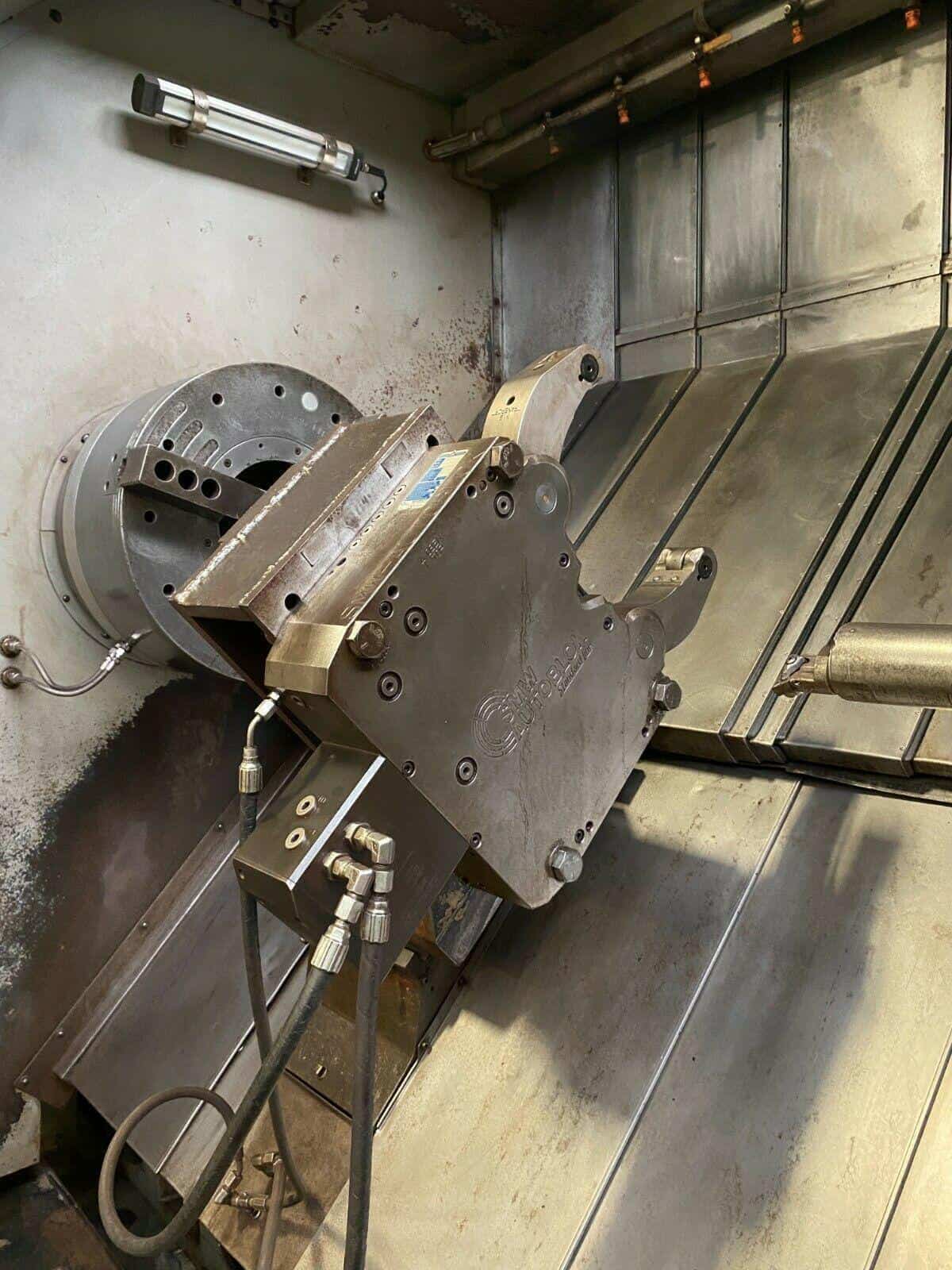

SMW Hydraulic Steady Rest
A2-15 Spindle with 10″ Bore
Schunk Rota TB-500 24″ 3 Jaw Chuck with 10″ Bore
60 HP Gearbox Spindle
PCMCIA Card Slot
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor
Capacity:
Max Turning Diameter: 36.6″
Max Turning Length: 100.4″
Max Bar Capacity: 9.3″
Swing Over Bed: 27.2″
Swing Over Cross slide: 23.6″
Distance Between Centers: 98.46″
Travels:
X Axis Travel : 12.6″
Z Axis Travel: 98.4″
W Axis Travel: 89.0″ ?
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 10.8″
Spindle Speed: 10 – 750 RPM
Spindle Motor: 60 HP

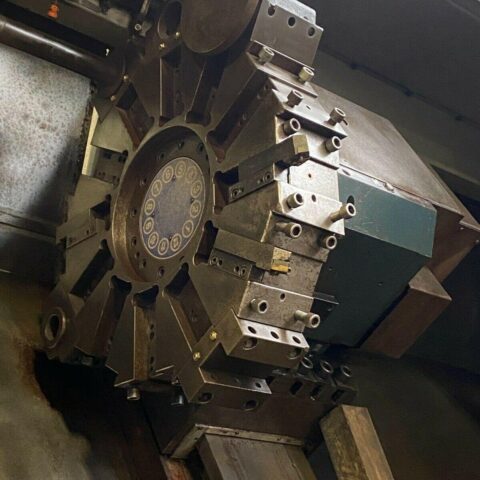

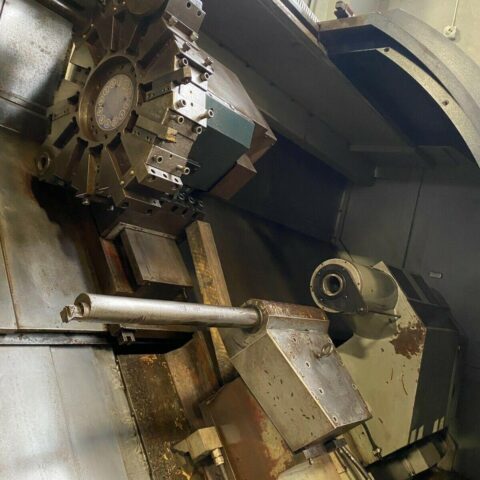

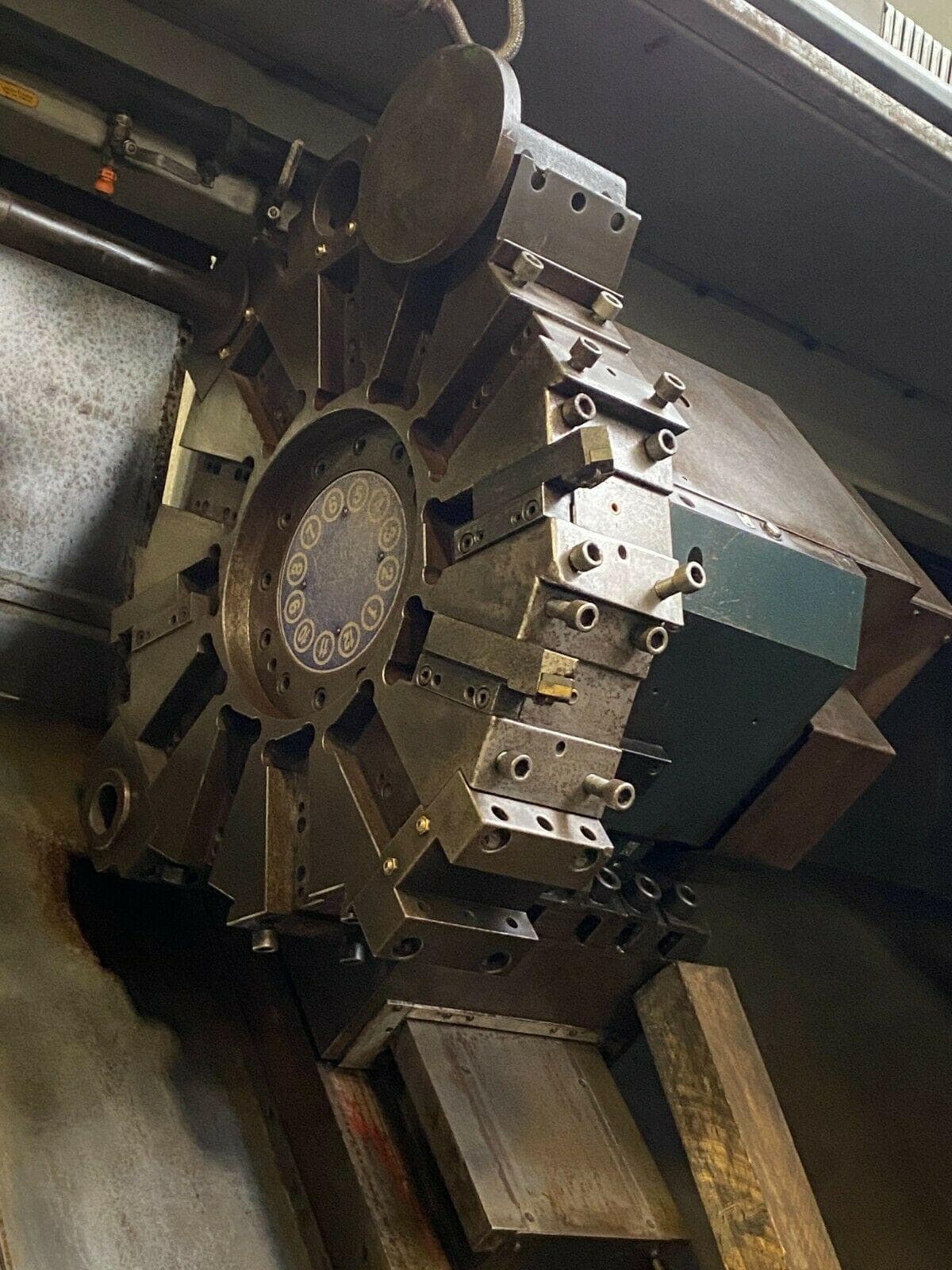

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.4 Second
Tailstock:
Tailstock Body Travel: 86.7″
Tailstock Taper: MT-4
Tailstock Quill Dia.: 7.9″
Tailstock Quill Travel: 7.9″
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 275″ x 114″ x 115″ High
Machine Weight: 50,000 lbs Approx.
Equipped With:
Fanuc 18iT CNC Control
Boring Bar Slide ( W Axis )
SMW Hydraulic Steady Rest
A2-15 Spindle with 254 mm Bore
Schunk Rota TB-500 610 mm 3 Jaw Chuck with 254 mm Bore
60 HP Gearbox Spindle
PCMCIA Card Slot
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch
Chip Conveyor
Capacity:
Max Turning Diameter: 930 mm
Max Turning Length: 2,550 mm
Max Bar Capacity: 236 mm
Swing Over Bed: 691 mm
Swing Over Cross slide: 599 mm
Distance Between Centers: 2,501 mm
Travels:
X Axis Travel : 320 mm
Z Axis Travel: 2,499 mm
W Axis Travel: 2,261 mm ?
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 274 mm
Spindle Speed: 10 - 750 RPM
Spindle Motor: 60 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.4 Second
Tailstock:
Tailstock Body Travel: 2,202 mm
Tailstock Taper: MT-4
Tailstock Quill Dia.: 201 mm
Tailstock Quill Travel: 201 mm
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 6,985 mm x 2,896 mm x 2,921 mm High
Machine Weight: 50,000 lbs Approx.
MakeJOHNFORD
ModelHT-100E-2D
CategoriesCNC Lathes & Turning Centers
