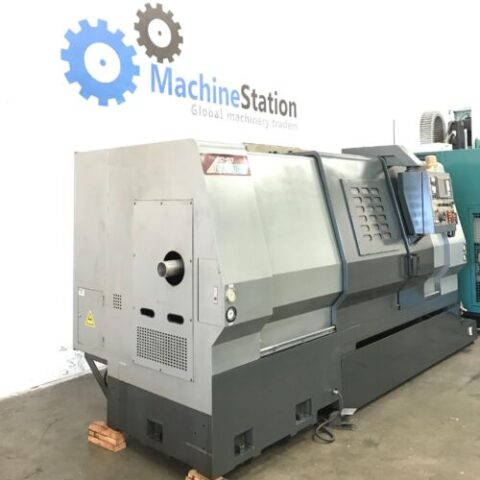

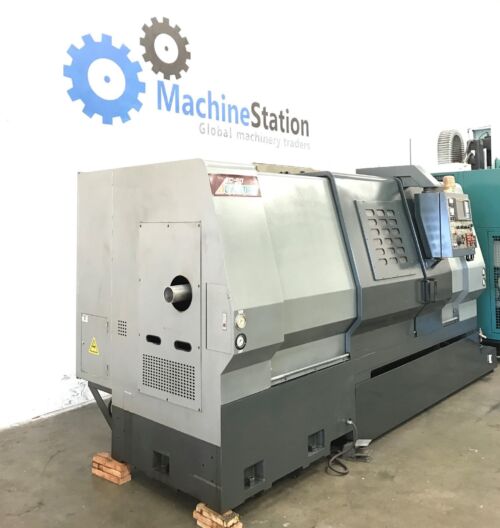

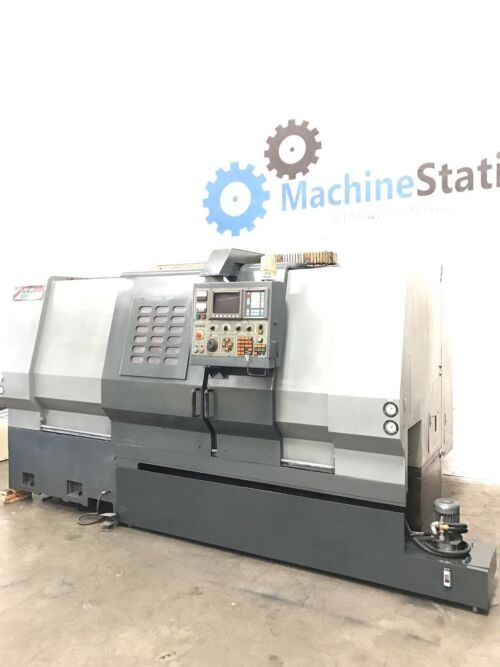

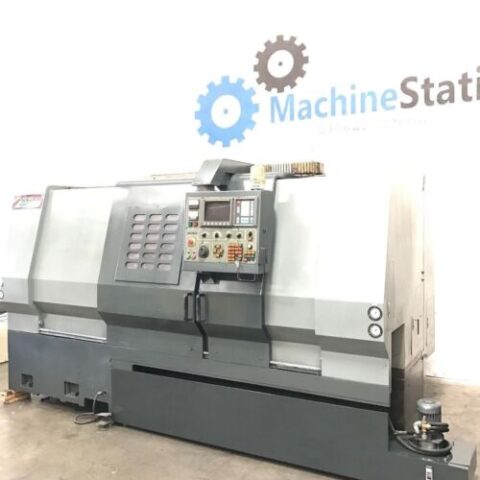

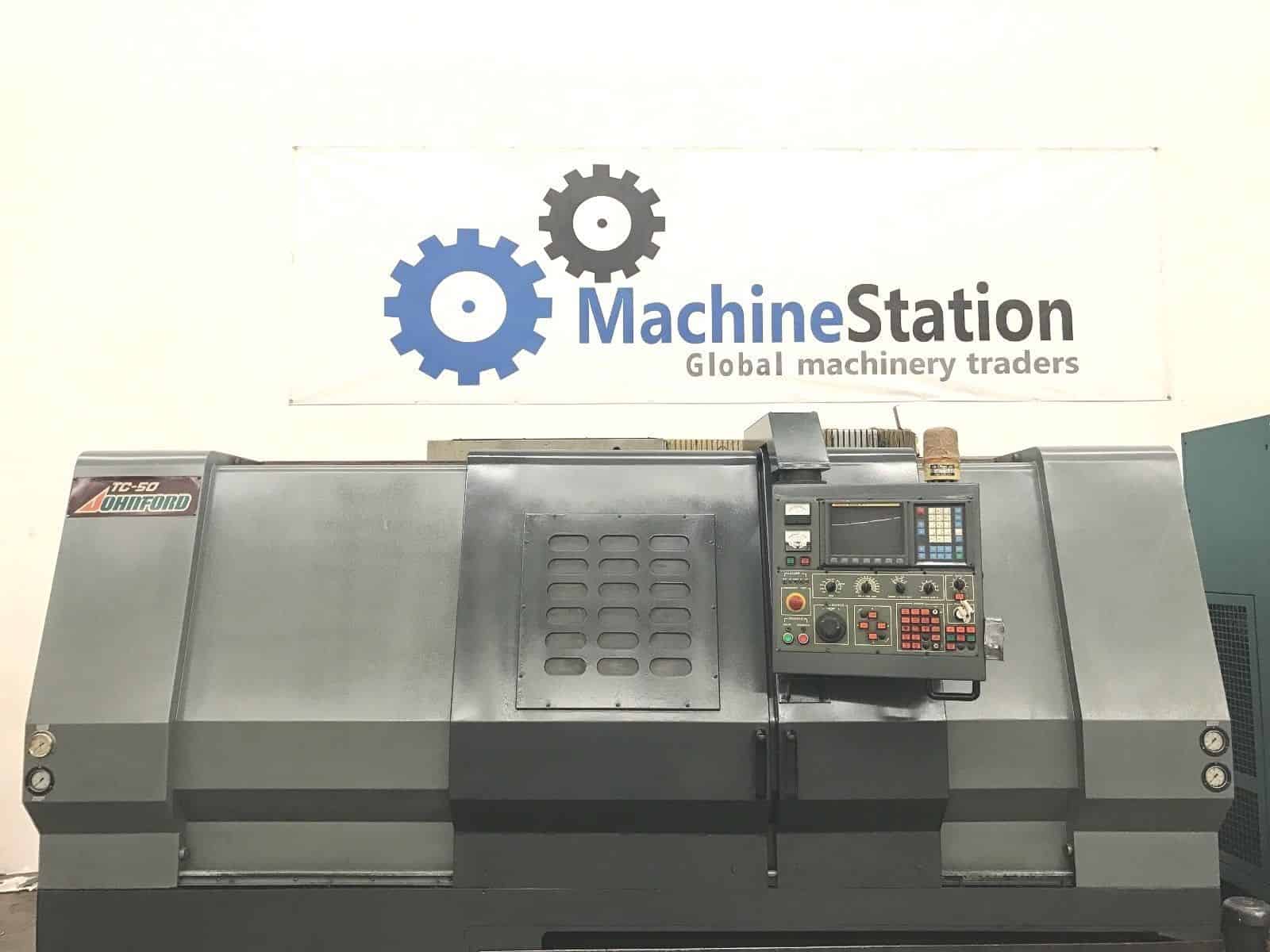

| JOHNFORD TC 50 CNC TURNING CENTER LATHE | |
|---|---|
| Make | JOHNFORD |
| Model No. | TC-50 |
| Serial # | E9406010 |
| Condition | Very Good |
Comes with 12″ Chuck, Tool Holders, Cutting Tools and Leveling Pads.
All specifications are approximations and are subject to verification.
“This One Owner Machine has only 2617 hours. Its a Heavy Duty machine equipped with 12″ Chuck, 3.39″ Spindle Bore, Hydraulic Tailstock & Fanuc OT-C control. On Our Floor now, Fully powered / tested & is in Great working condition. check *VIDEO*”
- JOHNFORD TC 50 Equipped With:

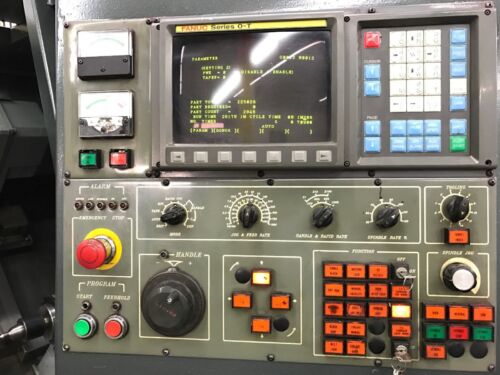

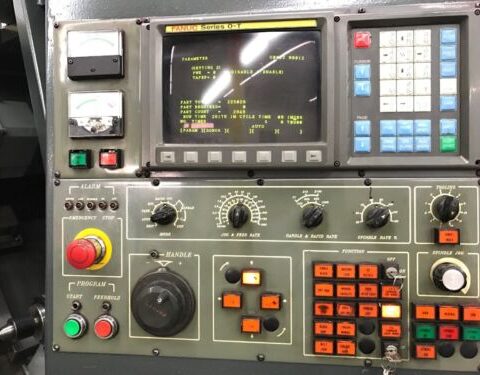

- Fanuc 0T-C CNC Control

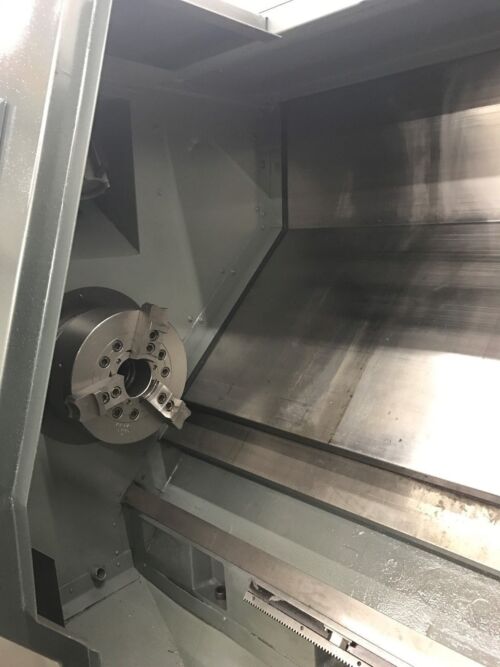

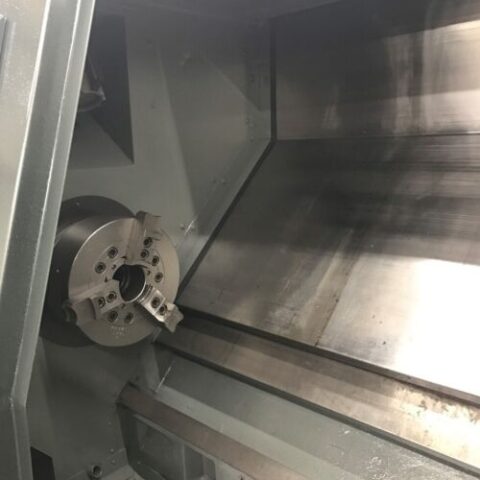

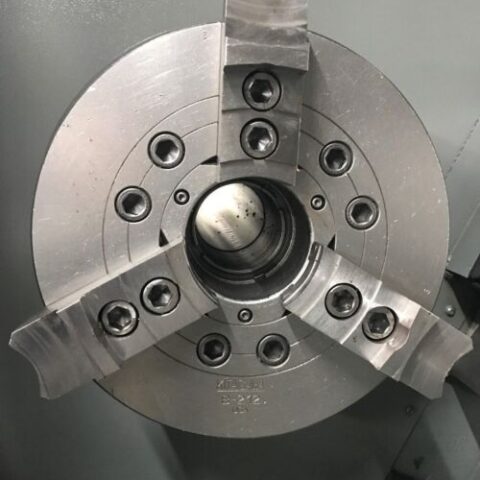

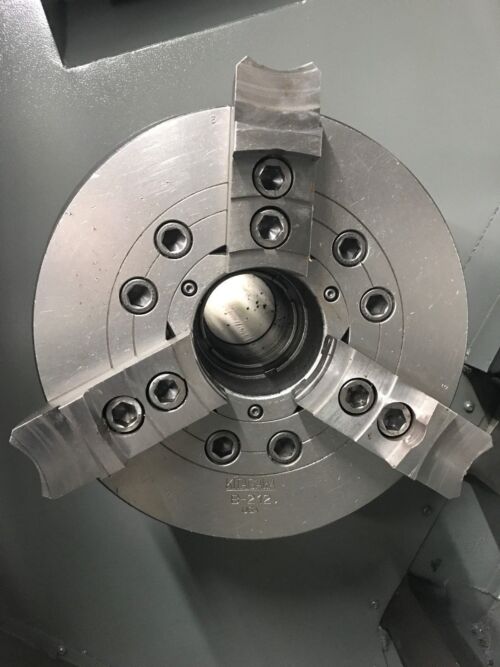

- 12″ B212 Kitagawa Hydraulic Chuck
- Programmable Hydraulic Tailstock

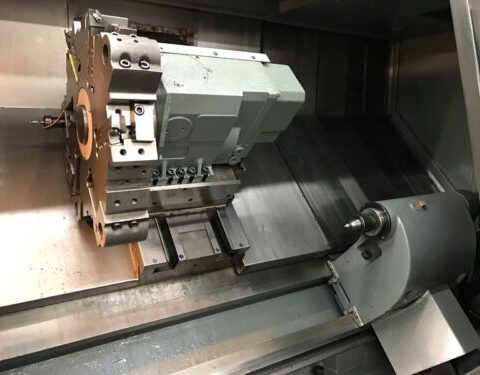

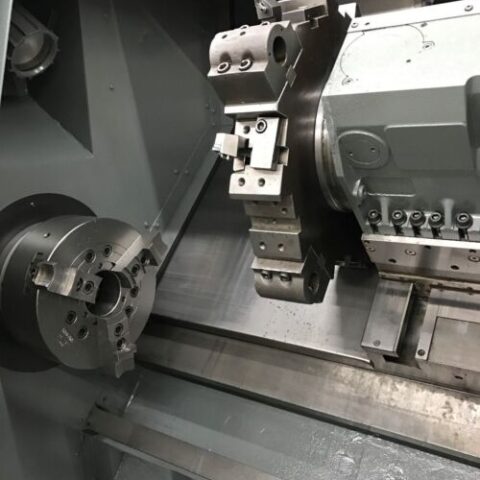

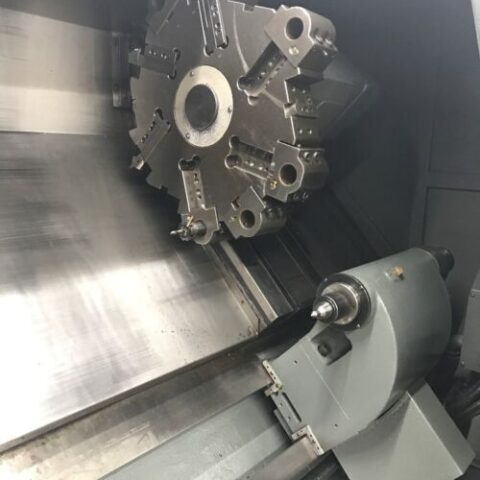

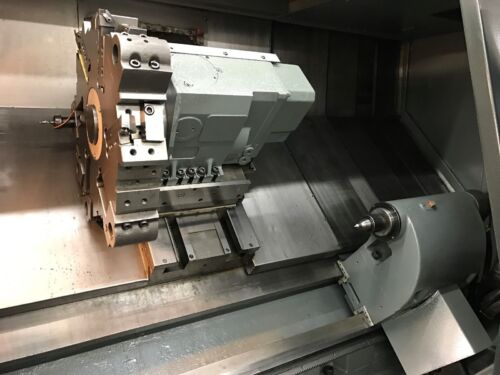

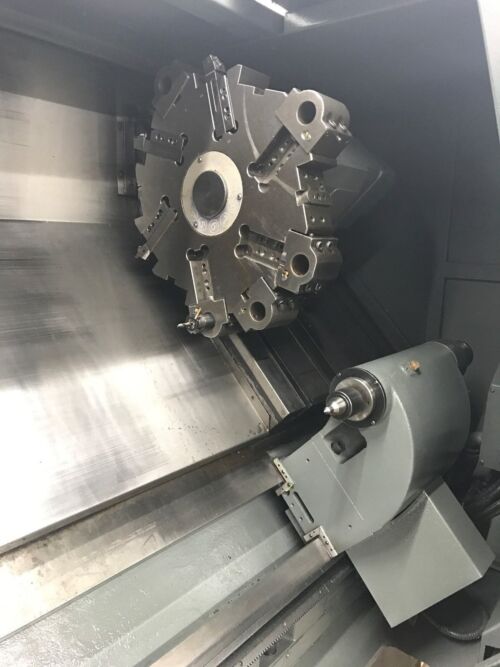

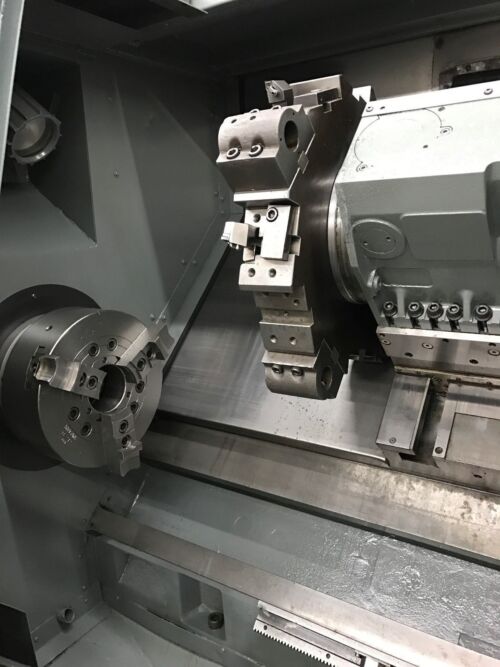

- 12 Station Automatic Turret
- Coolant System & Tank
- Barfeed Interface
- Work Light
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 138” x 74″ x 86″ High
- Weight: 16000 lbs
- JOHNFORD TC 50 Specifications:
- Capacity:
- Max Turning Diameter: 14.56″
- Max Turning Length: 40.94″
- Distance Between Centers: 44.29″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 20.8″
- X Axis Travel: 11.42″
- Z Axis Travel: 40.94″
- Rapid Traverse X Axis:590 IPM
- Rapid Traverse Z Axis: 708 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.39″
- Spindle Speed: 20 – 3000 RPM
- Spindle Motor: 25HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.30″
- Tailstock Quill Travel: 3.94″
- Tailstock Body Travel: 35.40″

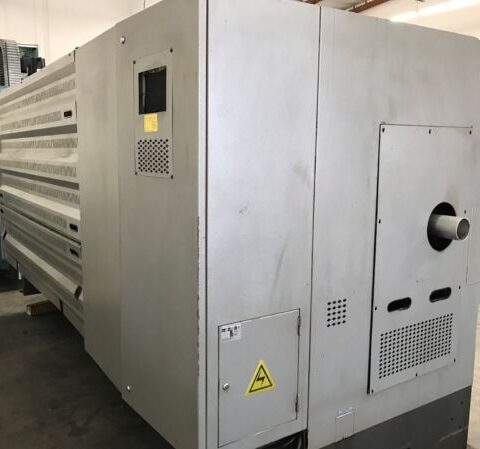

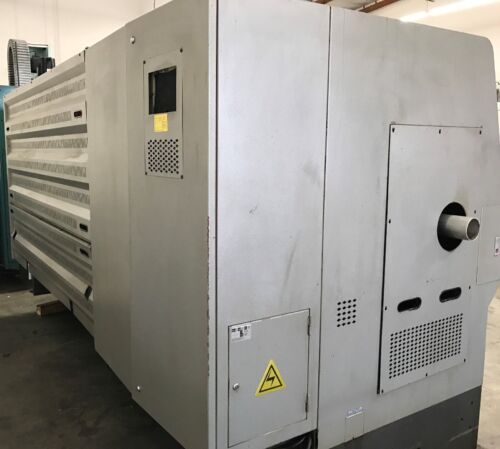

JOHNFORD TC 50 Comes as shown in pictures..
