Kafo Femco VMC-1400 CNC Vertical Machining Center

Share

Description

KAFO FEMCO VMC-1400 CNC VERTICAL MACHINING CENTER
Make KAFO
Model No. VMC-1400
Year 1998 installed: 2001
Serial # 018325
Made by KAFO and Sold, Serviced by Femco
  • KAFO FEMCO VMC-1400 Features:

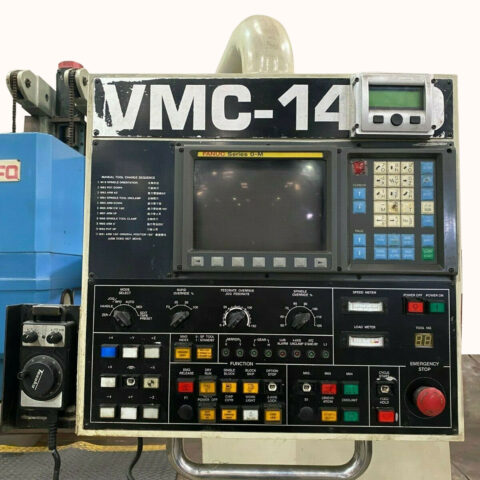

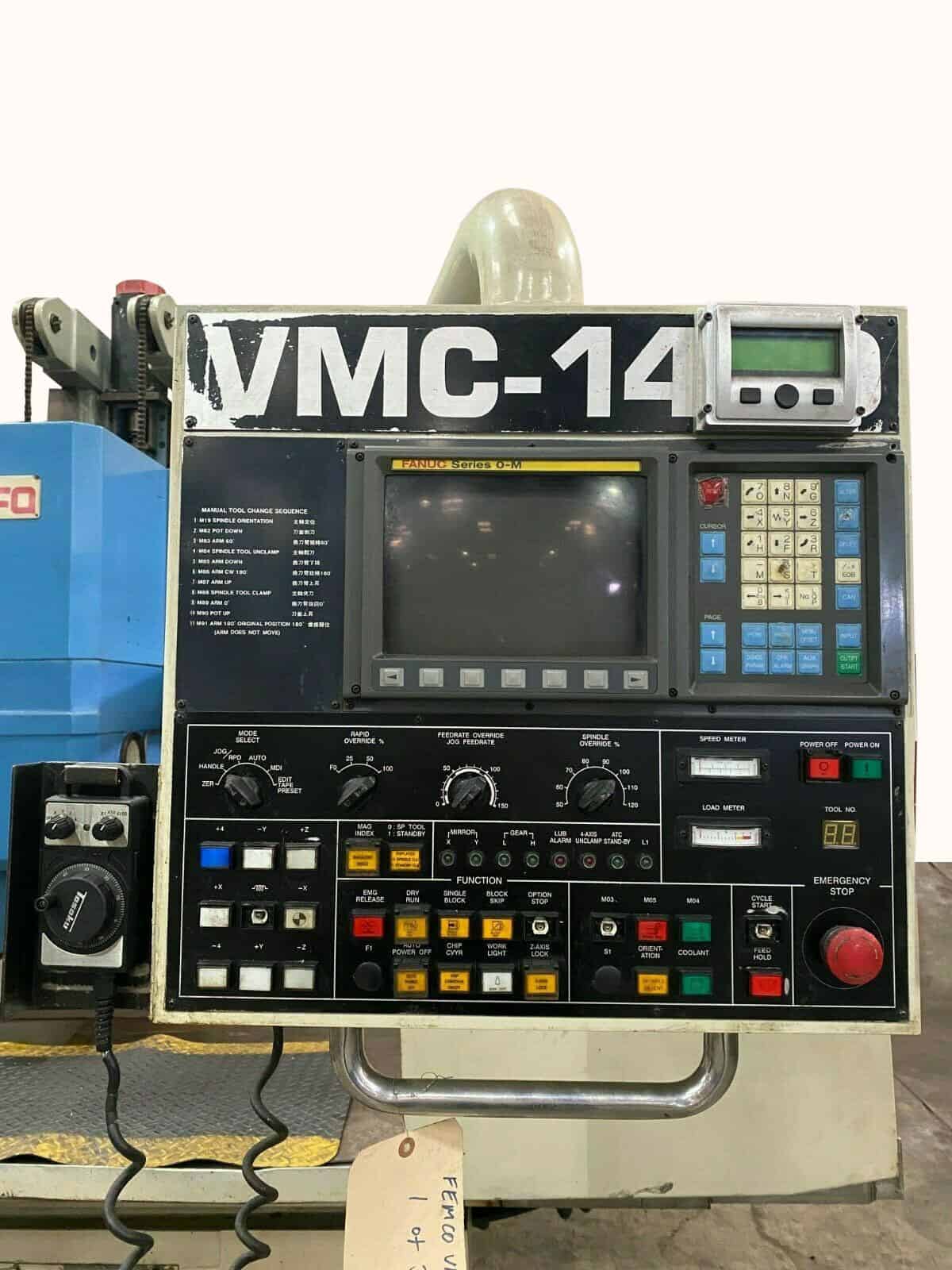

  • Fanuc 0MC CNC Control
  • Box Way Heavy Construction
  • 30 HP High Torque Spindle Motor
  • 50 Taper 4500 RPM Geared Head Spindle
  • USB Drive
  • MPG Control

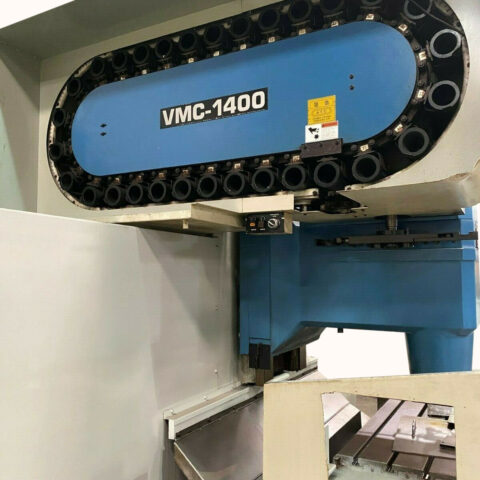

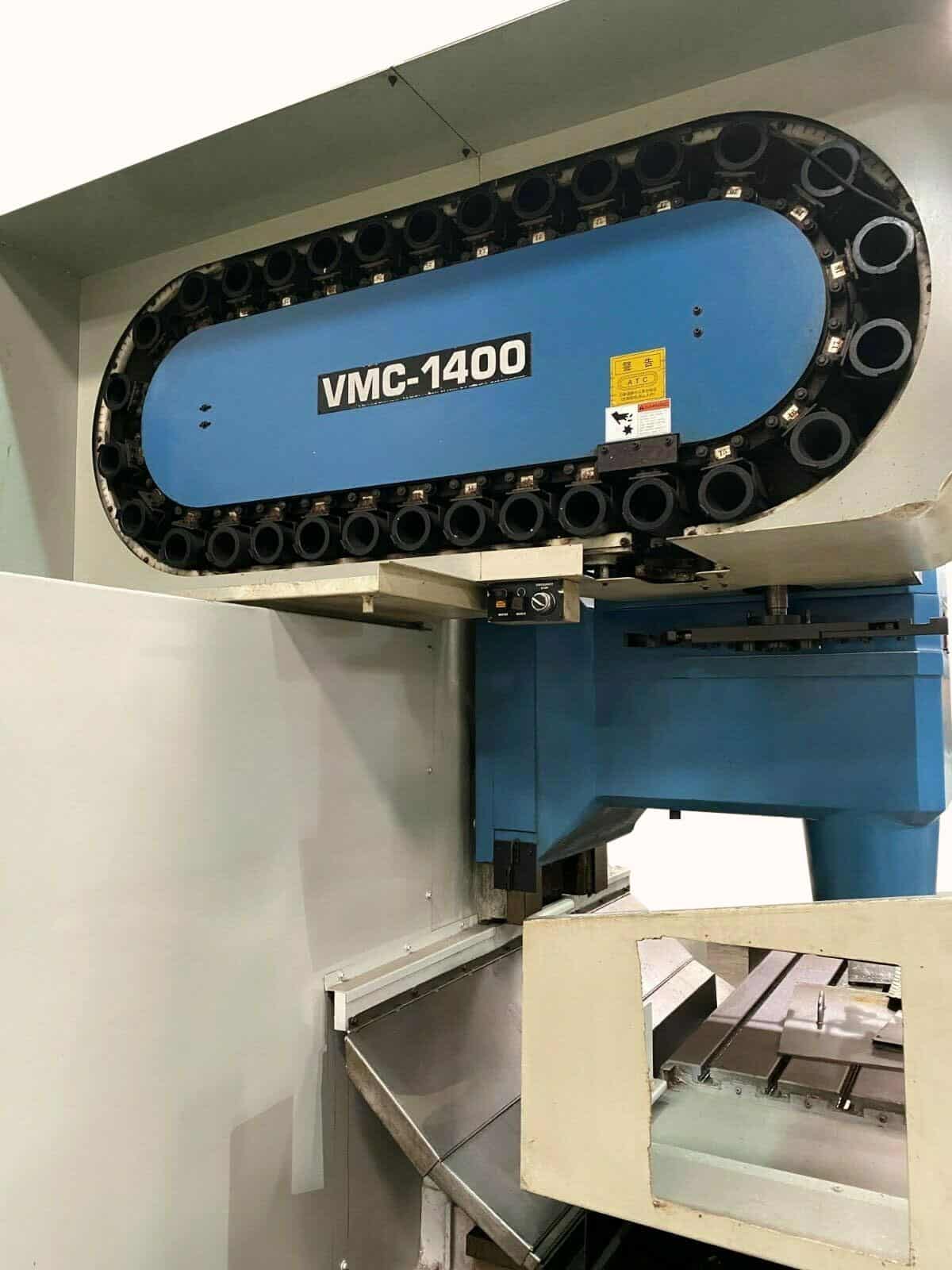

  • 30 Automatic tool changer
  • Rigid Tapping
  • Spindle Orientation
  • Telescopic way covers
  • Coolant Tank
  • KAFO FEMCO VMC-1400 Specifications:
  • Travels:
  • X-Axis: 55.9″
  • Y-Axis: 30.4″
  • Z-Axis: 30.3″
  • Rapid Traverse Rates: 590 Inch Per Minute
  • Cutting Feed Rates: 360 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 5.5″ – 35.79″
  • Table:
  • Length: 67.0″
  • Width: 29.4″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 4400 lbs
  • Spindle:
  • Taper Size: CAT-50
  • Speed Range: 4500 RPM
  • Spindle Power: 30 HP
  • Automatic Tool Changer:
  • Capacity: 30
  • Max Tool Weight: 33 lbs
  • Max Tool Dia: 5.2″
  • Max Tool Length: 11.8″
  • Tool Changing Time: 4.2 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 115″ x 110″ x 108″ High
  • Weight: 25000 lbs

“No Charges for loading at list Price”

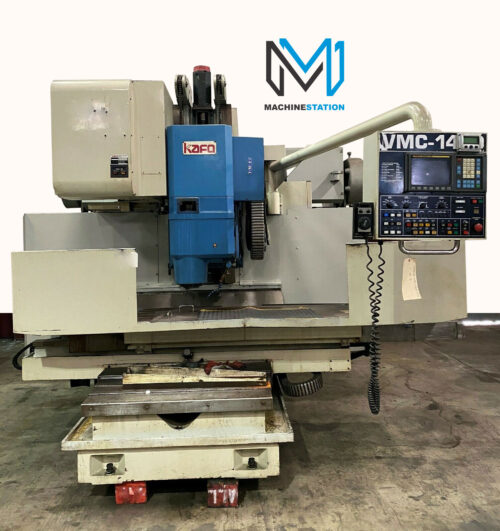

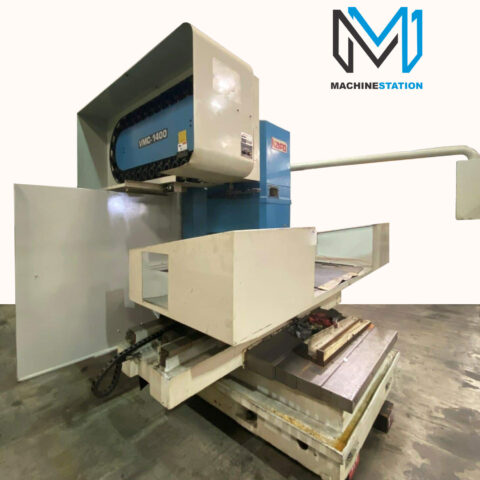

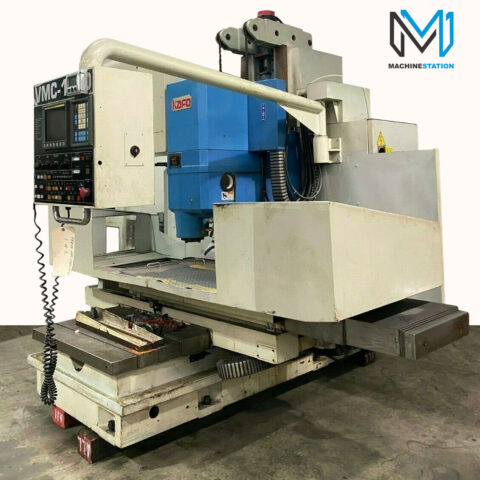

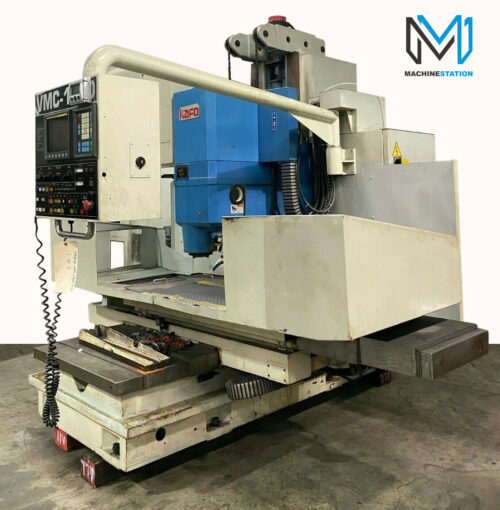

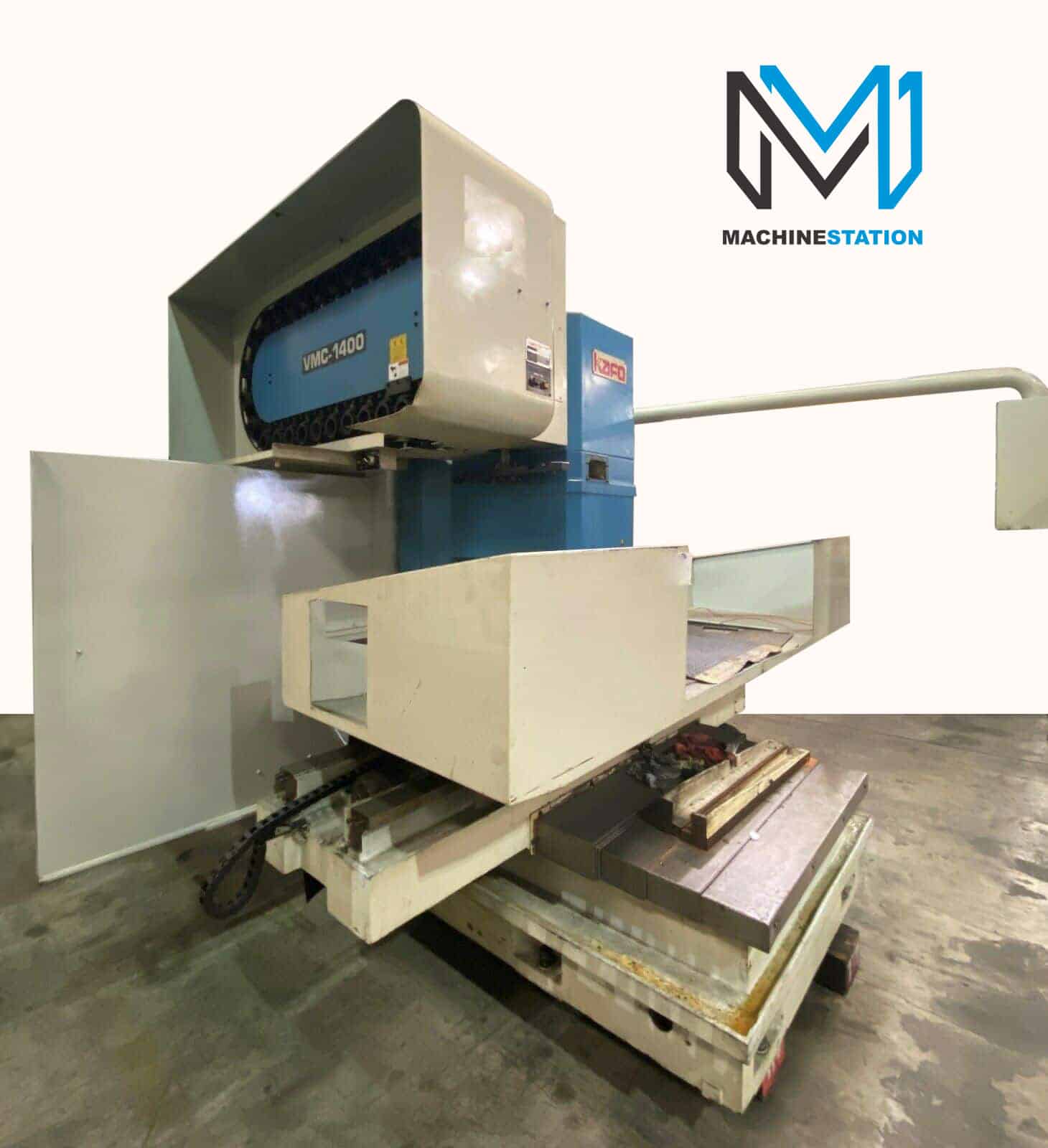

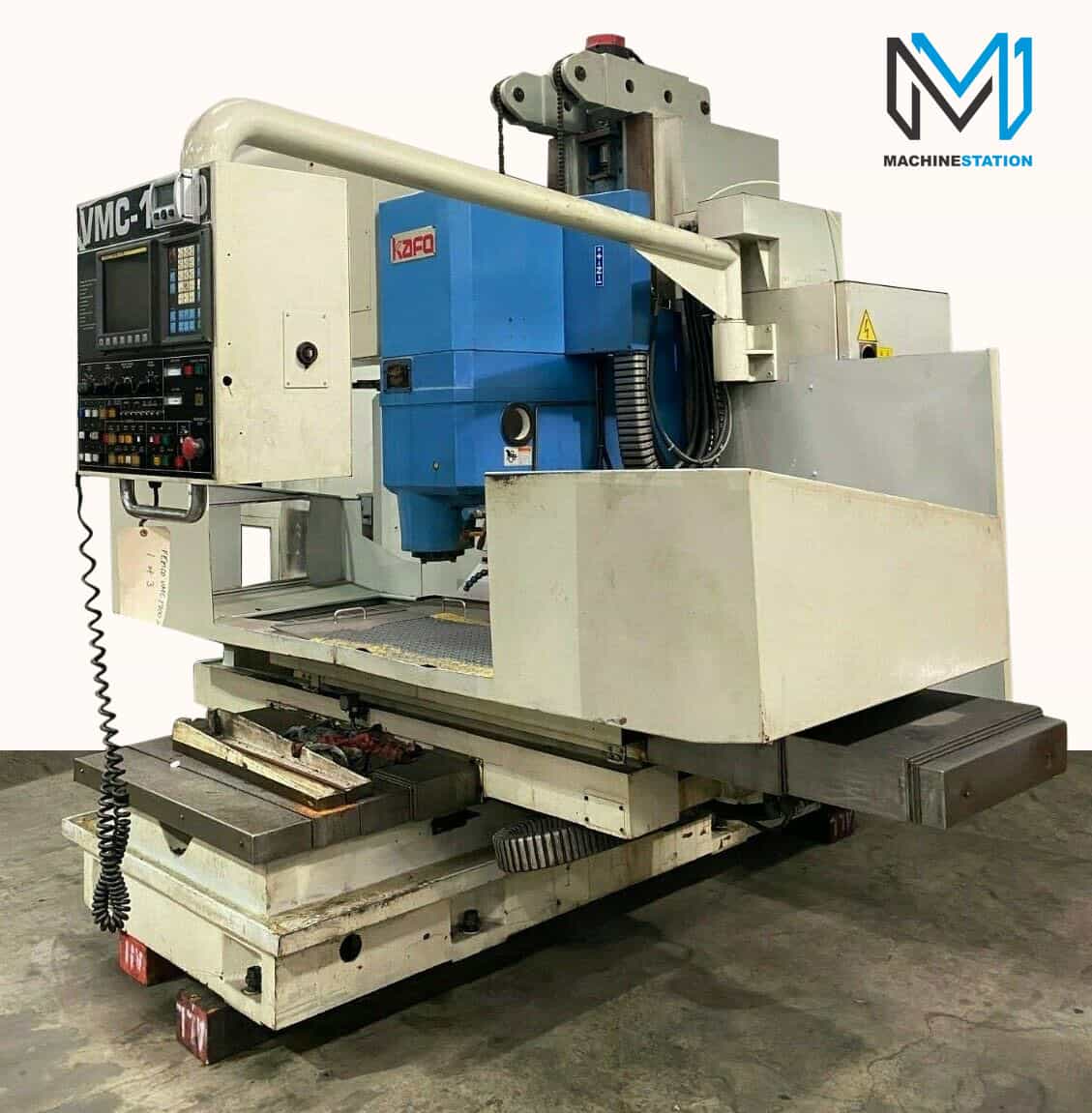

KAFO FEMCO VMC-1400 Comes as shown in pictures..
