All specifications are approximations and are subject to verification.

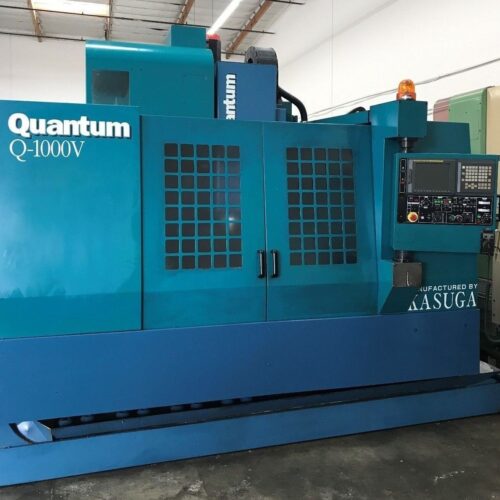

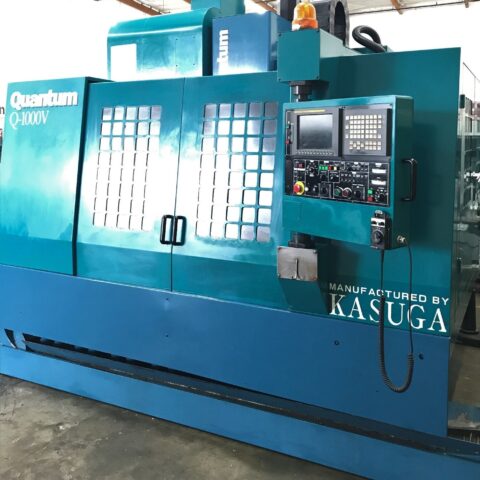

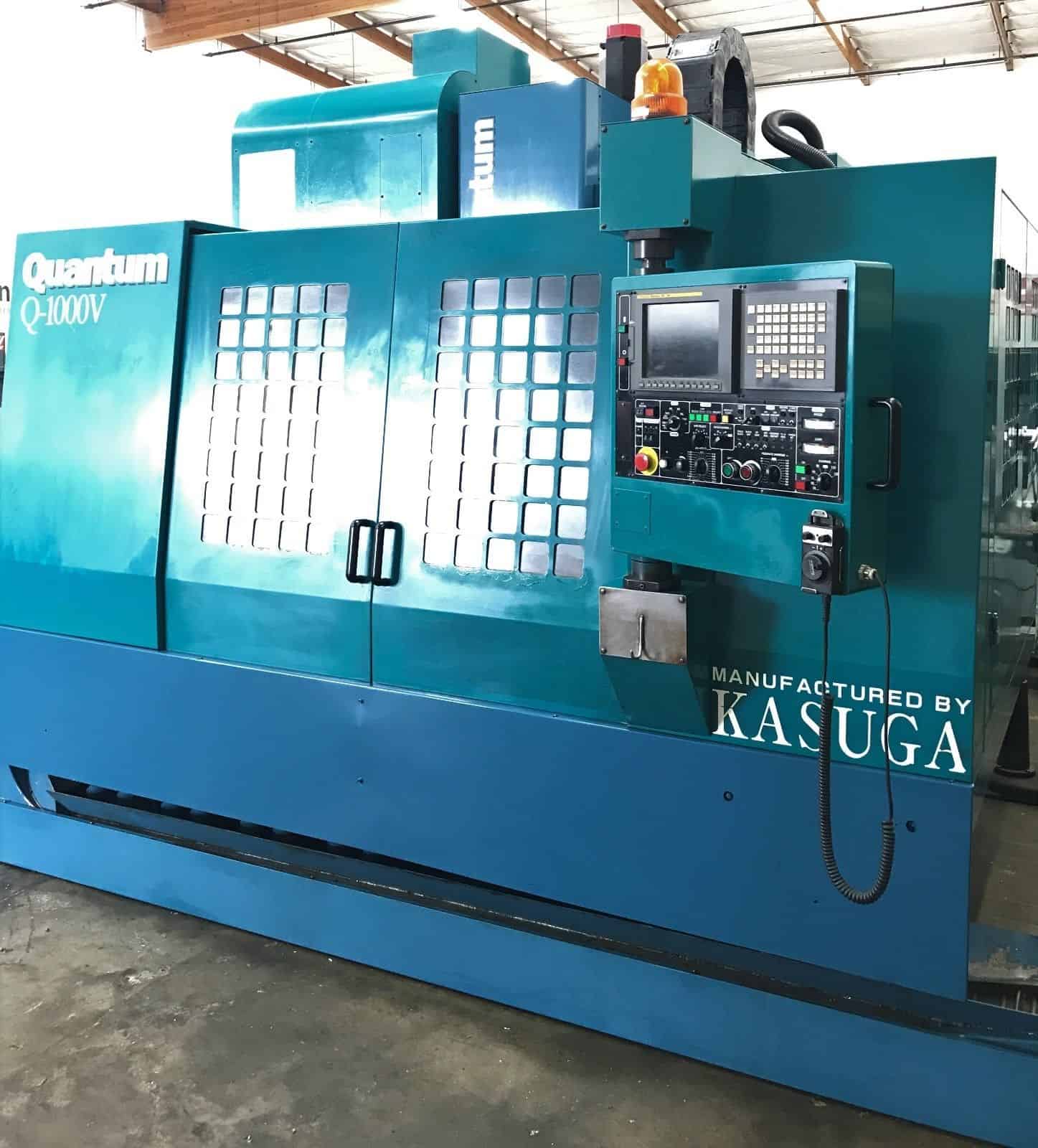

“Made in Japan, this Heavy Duty machine is equipped with Fanuc 18im Control, 50 Taper Spindle, 30 tool side mount tool changer, Expanded Memory and many more options. On our Floor now, fully powered / tested & is in Great working condition.”
-
KASUGA QUANTUM Q-1000V Features:

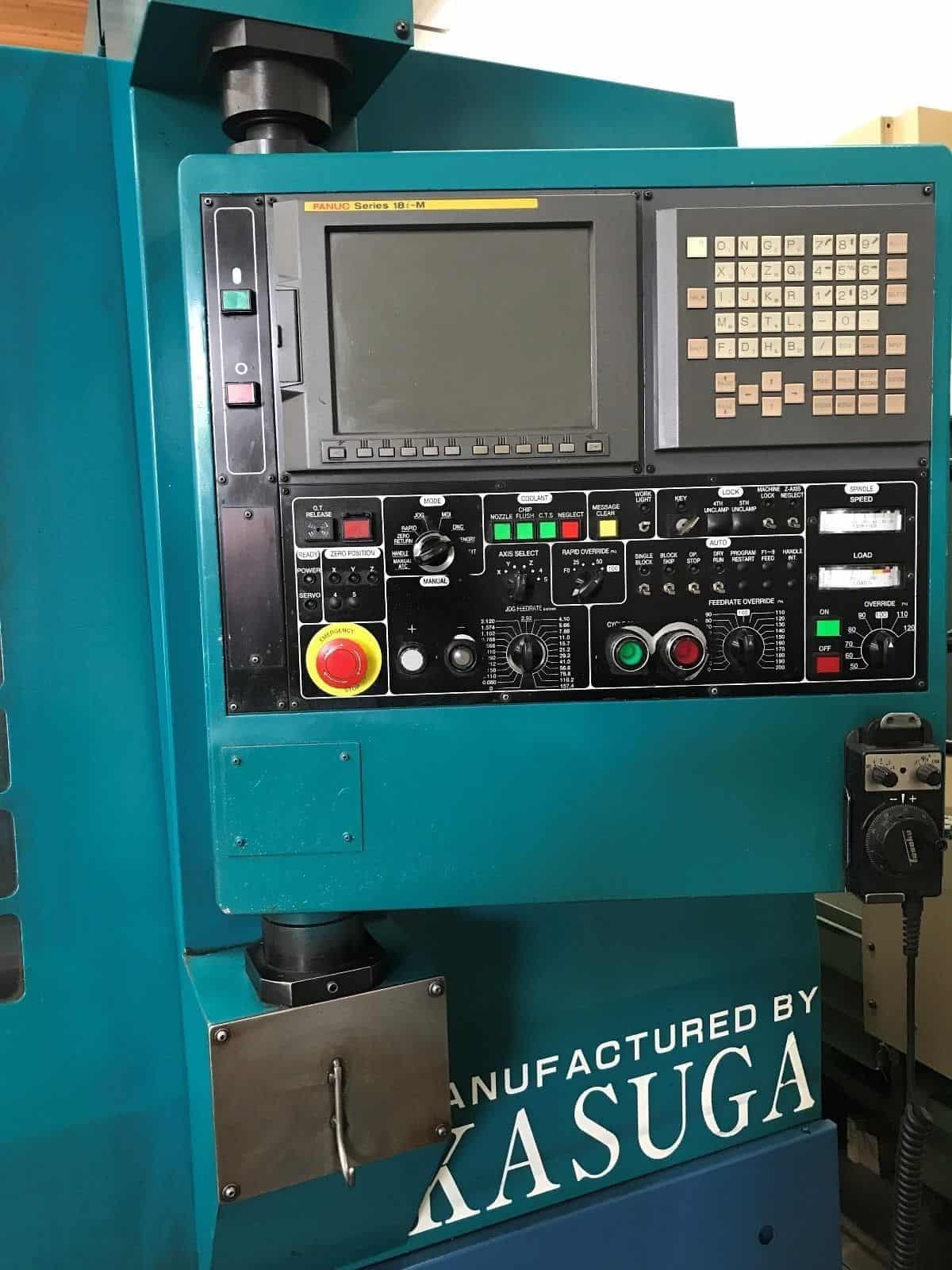

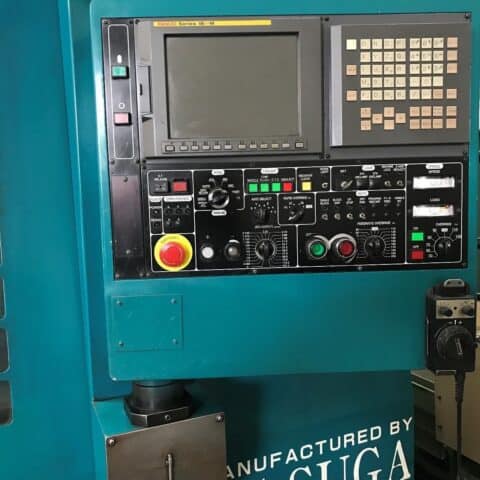

- Fanuc 18iM CNC Control
- 25HP High Torque Spindle Motor
- 6,000 RPM Geared Head Spindle
- 30 automatic 50 Taper Side Mount tool changer
- Remote Jog Handle
- PCMCIA Card Slot
- Rigid Tapping
- RS-232C Port
- Telescopic way covers

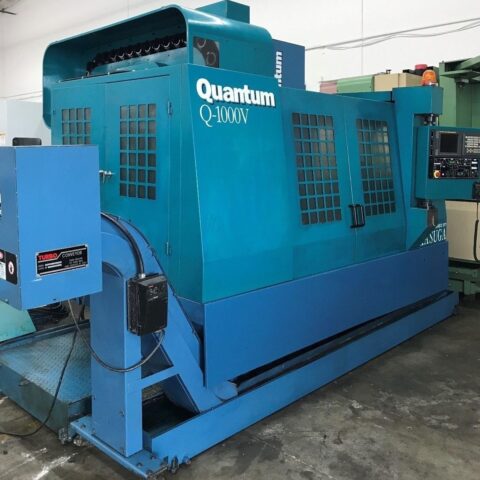

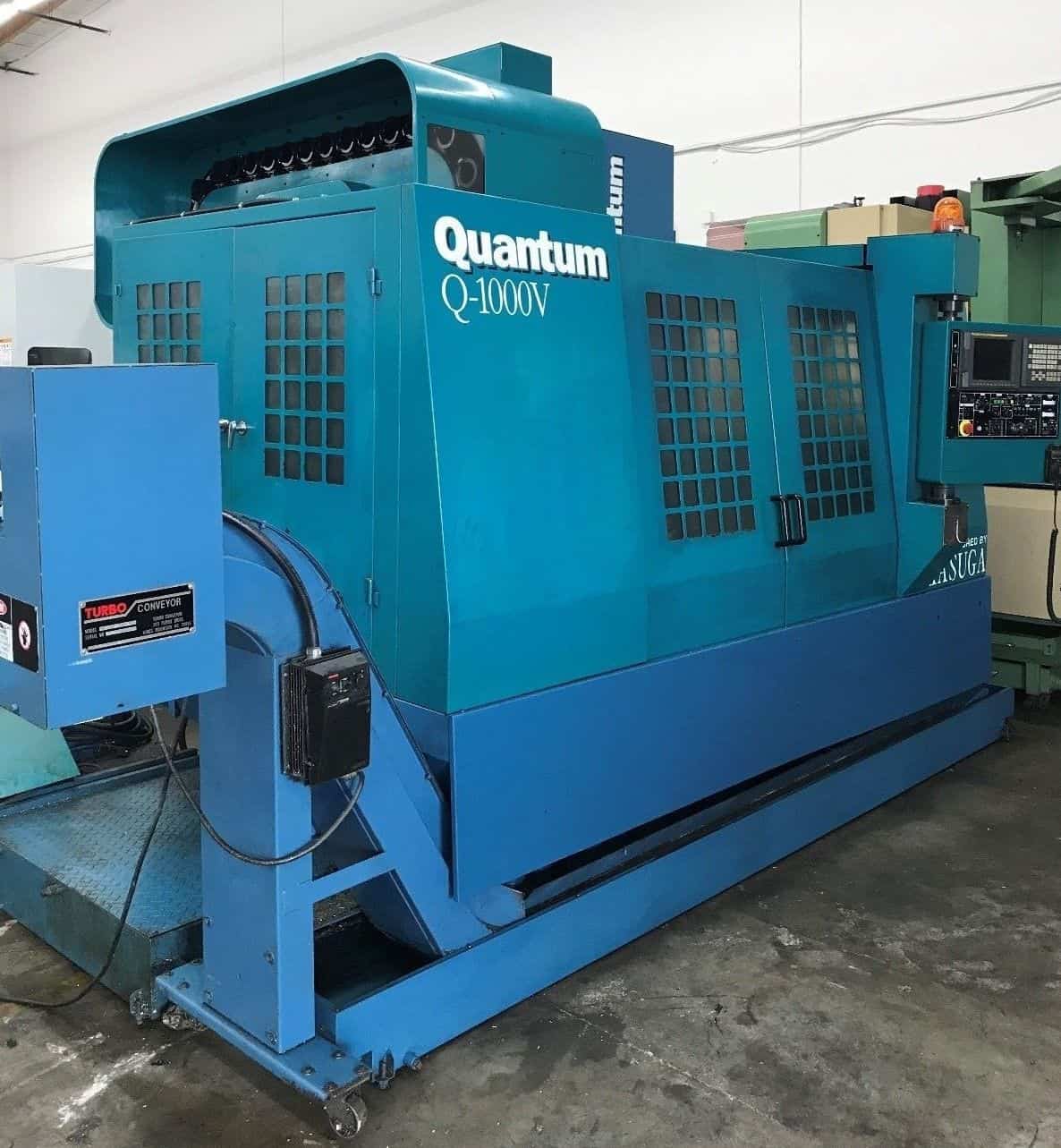

- Turbo Chip Conveyor
- Flood Coolant system
-
KASUGA QUANTUM Q-1000V Specifications:
- Travels:
- X-Axis: 42″
- Y-Axis: 24″
- Z-Axis: 25.6″
- Rapid Traverse Rates: 787 Inch Per Minute
- Cutting Feed Rates: 590 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 6.3″ – 31.9″
-
Table:
- Length: 55″
- Width: 23.6″
- Max Weight on Table: 2200 lbs
-
Spindle:
- Taper Size: CAT 50
- Speed Range: 50 – 6,000 RPM Geared Head
- Spindle Power: 25 HP
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 30
- Max Tool Weight: 33 lbs
- Max Tool Dia: 9″
- Max Tool Length: 16″
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions:
- Weight: 19,000 lbs
