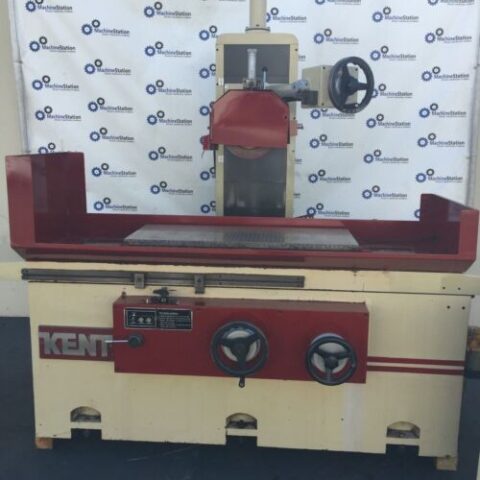

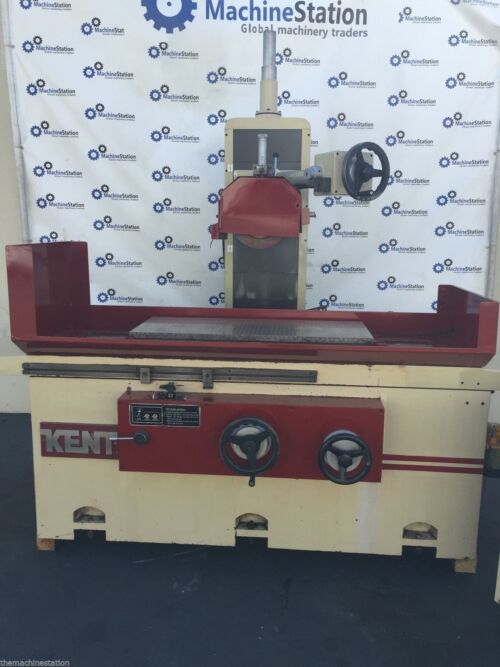

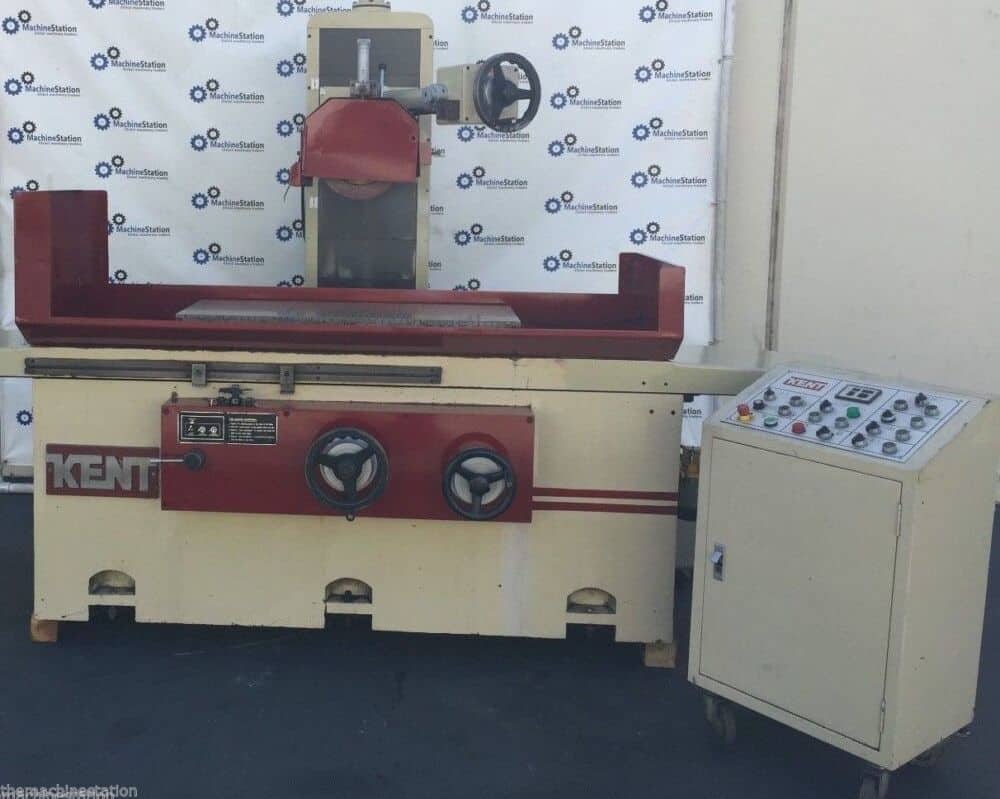

Kent KGS 410AHD Automatic Hydraulic Surface Grinder | |
---|---|

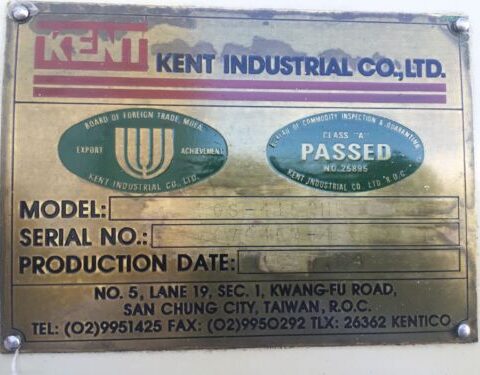

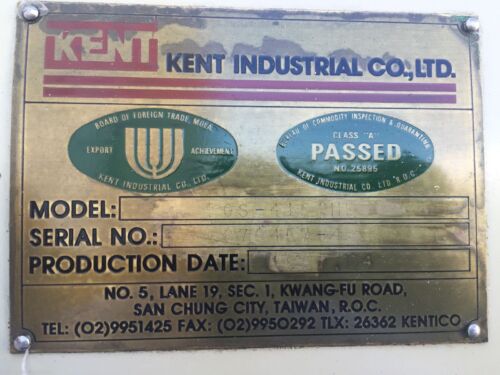

Make | Kent |
Model No. | KGS 410AHD |
Serial # | 870457-4 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
- Kent KGS 410AHD Features:

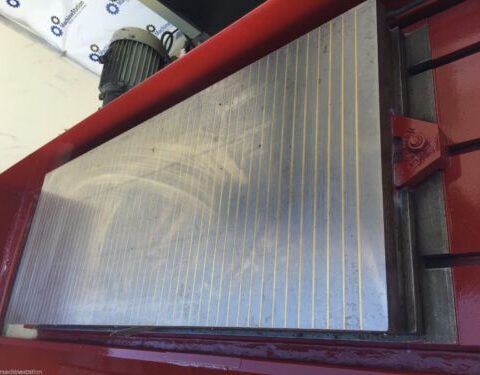

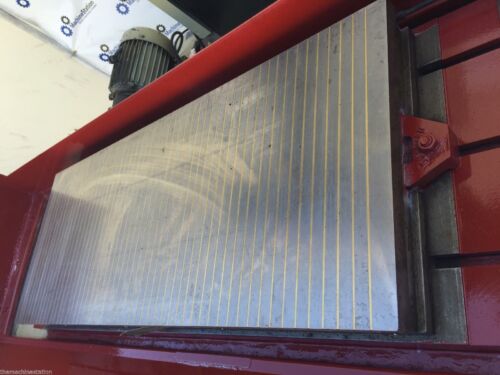

- 16″ X 40″ Kanetsu Electromagnetic Chuck

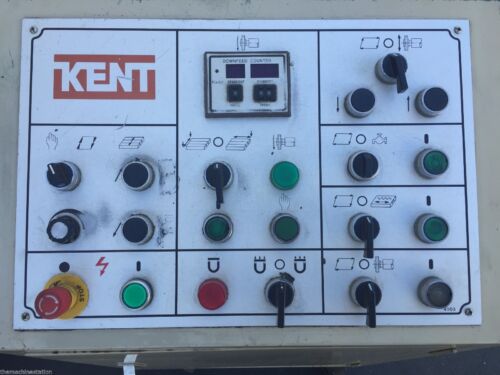

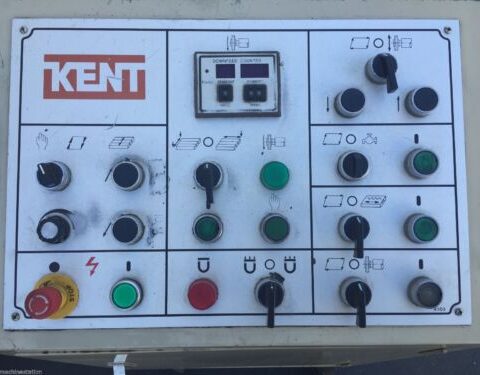

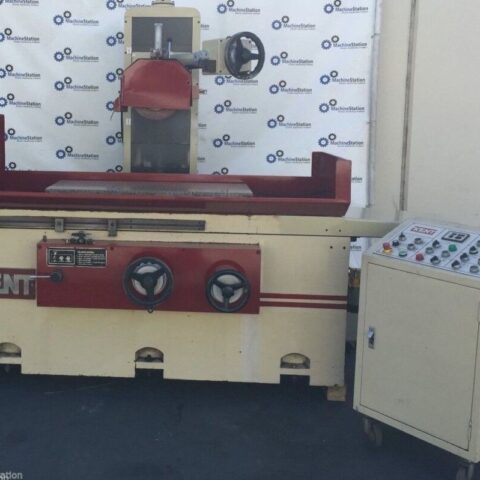

- Separate Electronic Control Console
- Automatic Incremental Downfeed

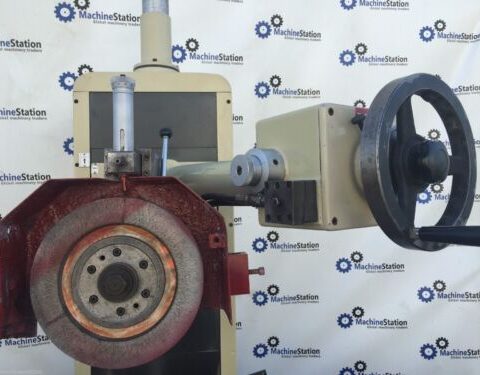

- Parallel Wheel Dresser
- 5 hp Spindle Motor
- 3 hp Hydraulic Pump Motor
- Auto Lubrication
- Kent KGS 410AHD Specifications:
- Travels:
- Table Travel – Longitudinal: 44.5″
- Table Travel – Cross: 17″
- Table:
- Length: 39-3/4″
- Width: 15-3/4″
- Table Speed: 13 to 70 ft/min
- Power Cross Feed of Column: 60 in/min
- Power Head Elevation: 6 in/min
- Automatic Downfeed Increment: 0.0002 to 0.0016″ (Six Steps)
- Downfeed per Handwheel Graduation: 0.0001″
- Downfeed per Handwheel Revolution: 0.02″
- Grinding Wheel:
- Max Diameter: 12″
- Max Width: 1-1/2″
- Hole Size: 5″
- Speed: 1740 rpm
- Spindle Power: 5 HP
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 120″ x 72″ x 92″ High
- Weight: 9000lbs
Comes as shown in pictures….
