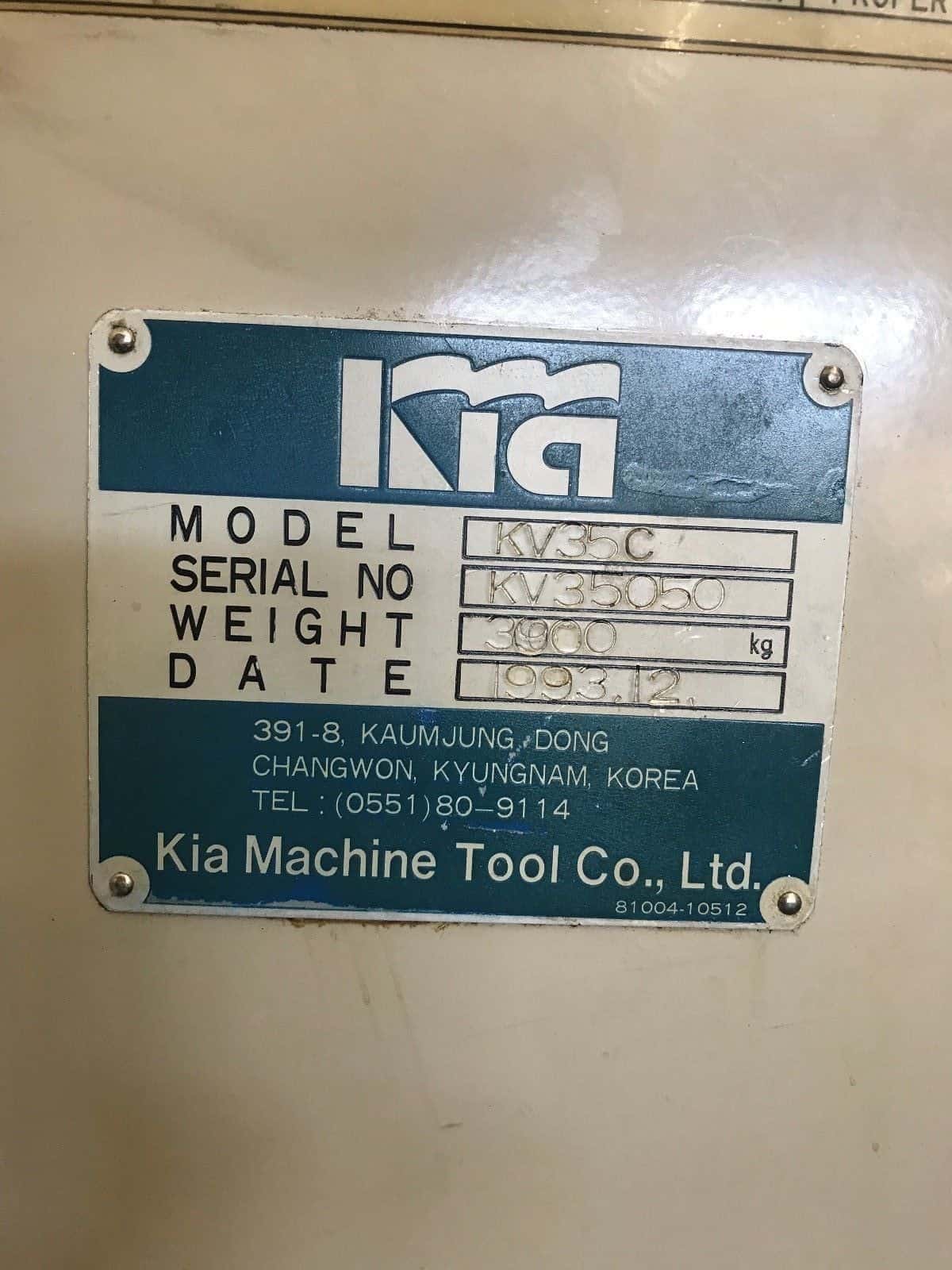

Kia KV 35C Vertical Machining Center

“Equipped with 10,000rpm, Side Mount Tool Changer, Fanuc OM Control.”

• KIA KV 35C Features:

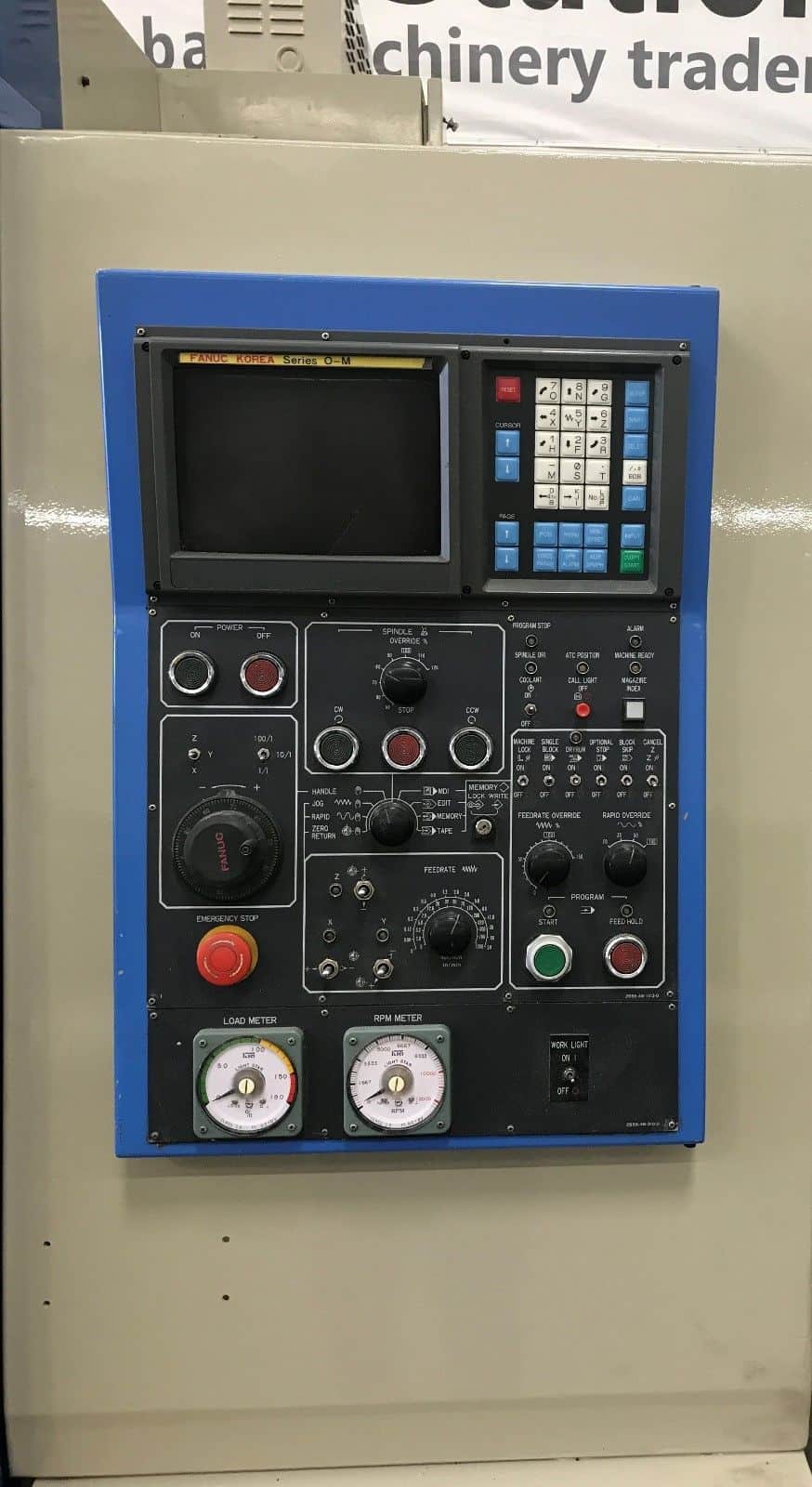

• Fanuc OM CNC Control
• 20 + 1 Automatic Side Mount tool changer
• RS 232 Port
• Rigid Tapping
• Box Way Construction
• Brush-type servo drive motors on all axis
• Telescopic way covers
• Chiller Unit
• Flood Coolant system

• KIA KV 35C Specifications:
• Travels:
• X-Axis: 23.6″
• Y-Axis: 17.7″
• Z-Axis: 20″
• Rapid Traverse Rates: 787 Inch Per Minute
• Cutting Feed Rates: 650 Inch Per Minute
• Spindle Nose to Table (Min.- Max.): 5.9″ – 24.9″

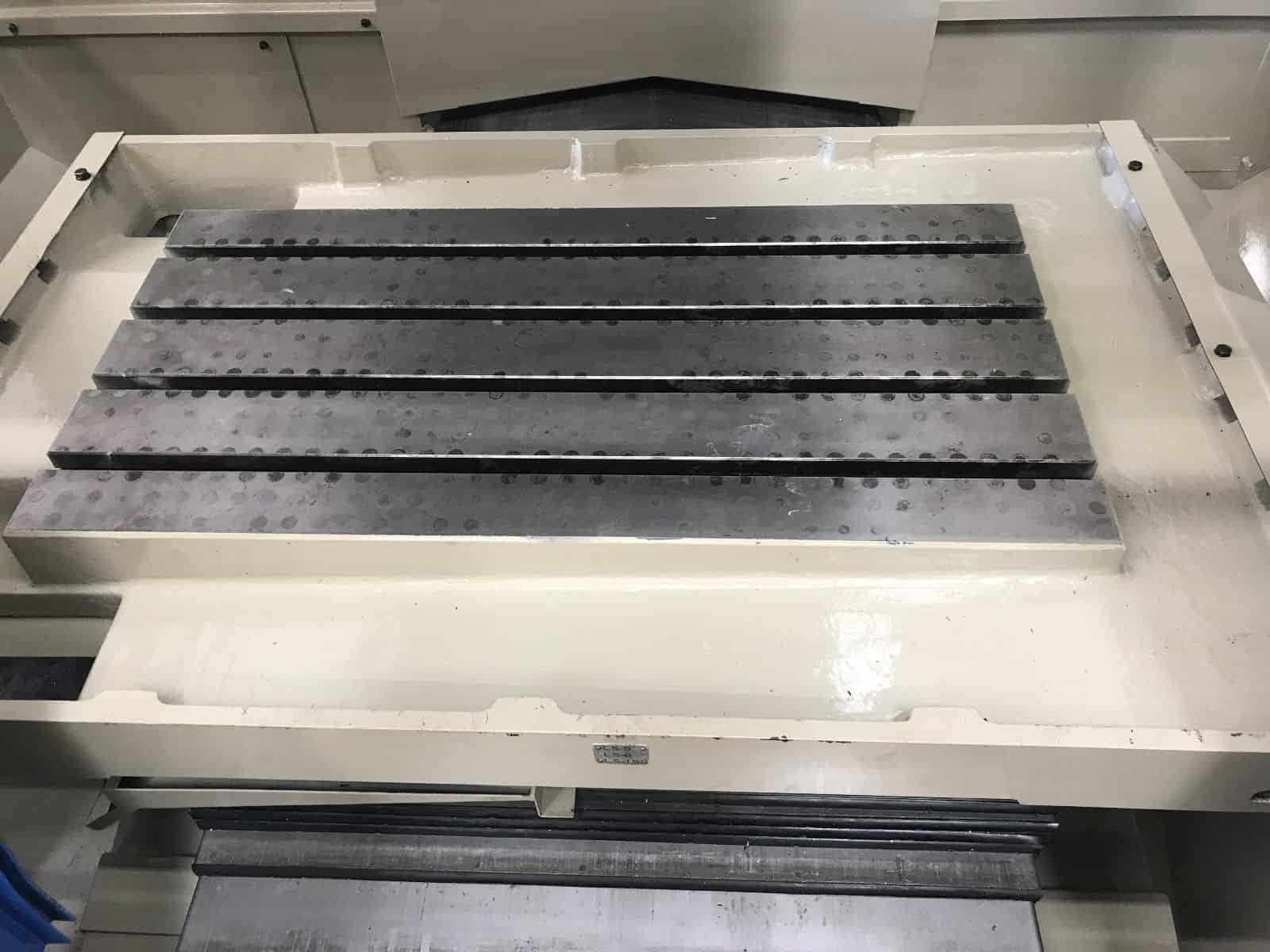

• Table:
• Length: 36.2″
• Width: 18.2″
• Number of Std T-Slots: 5
• T-Slot Width: 5/8″
• Max Weight on Table: 780 lbs

• Spindle:
• Taper Size: 40
• Speed Range: 50 – 10,000 RPM
• Spindle Power: 7.5
• Max Torque: 90ft-lb @ 2000RPM

• Automatic Tool Changer:
• Capacity: 20
• Max Tool Weight: 13.2 lbs
• Max Tool Dia: 3.6 ”
• Max Tool Length: 10″
• Tool Changing Time: 3.6 Seconds

• General:
• Air Required: 100 psi, 4 scfm

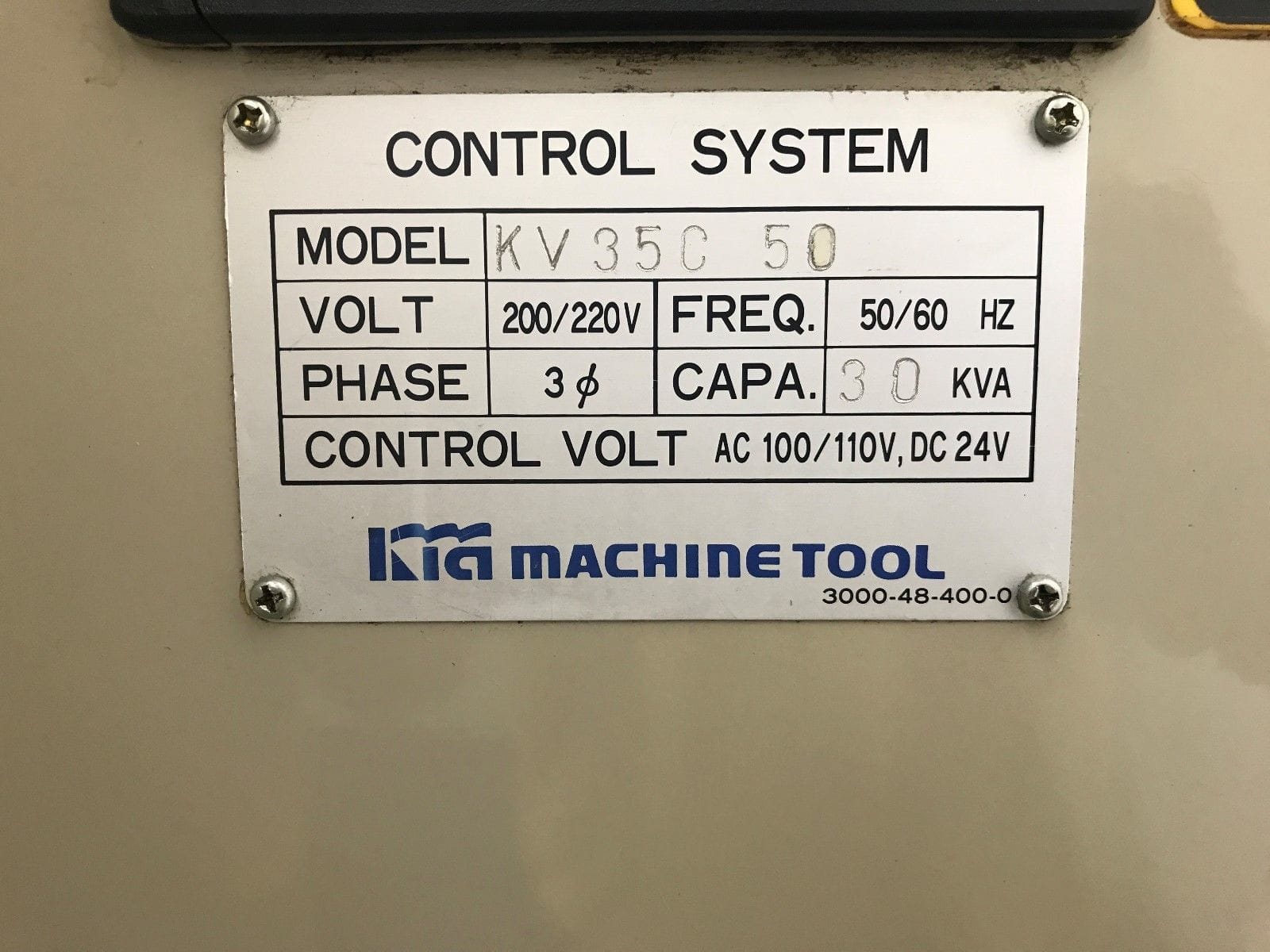

• Power: 240v / 35 KVA / 3-Phase
• Overall Dimensions: 120″ x 96″ x 99″ High
• Weight: 8600 lbs
