Kia Turn 28L CNC Turning Center

Long Bed Kia Turn 28L on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Fanuc 21T, 12″ Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.”

Share

Description

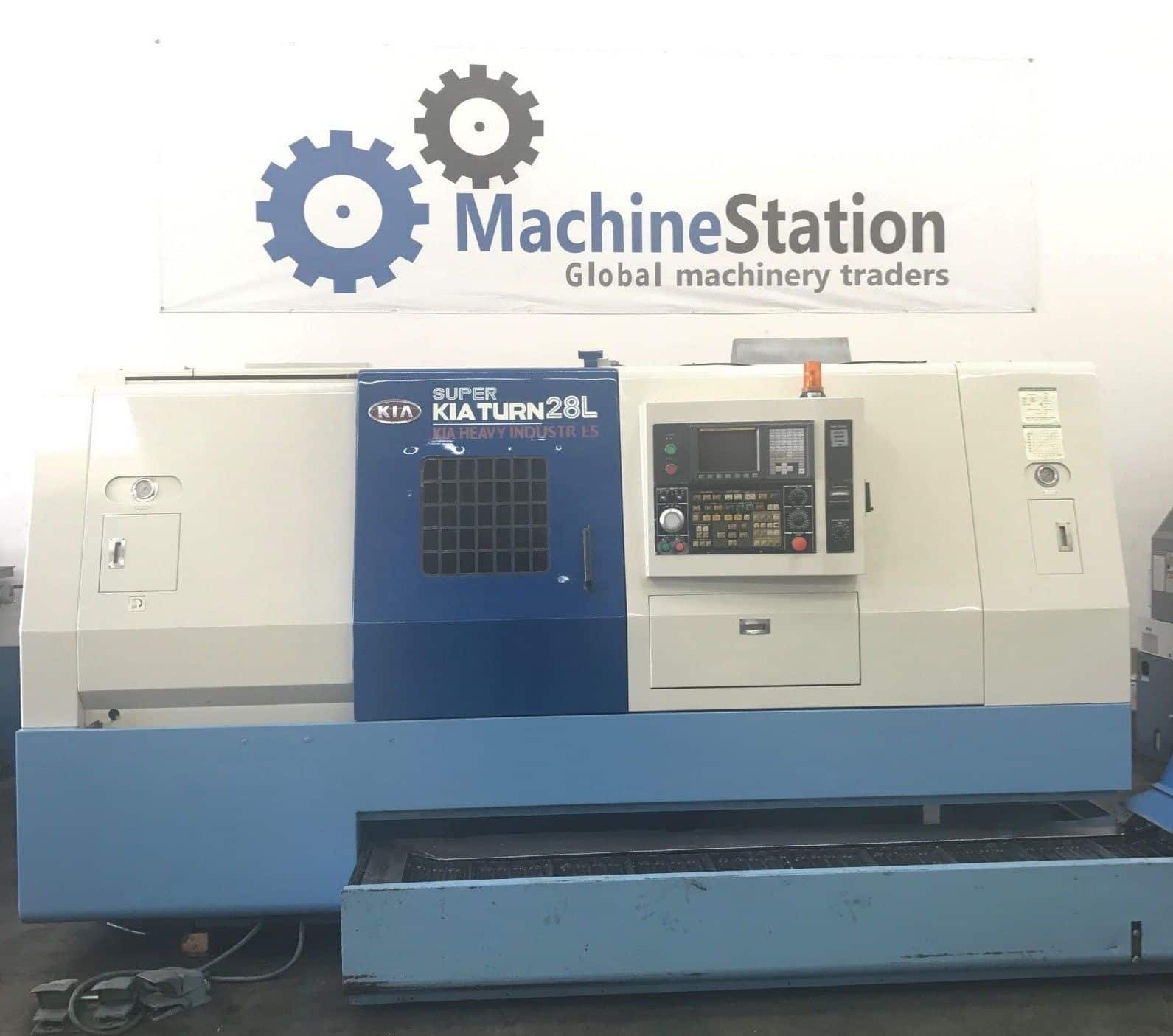

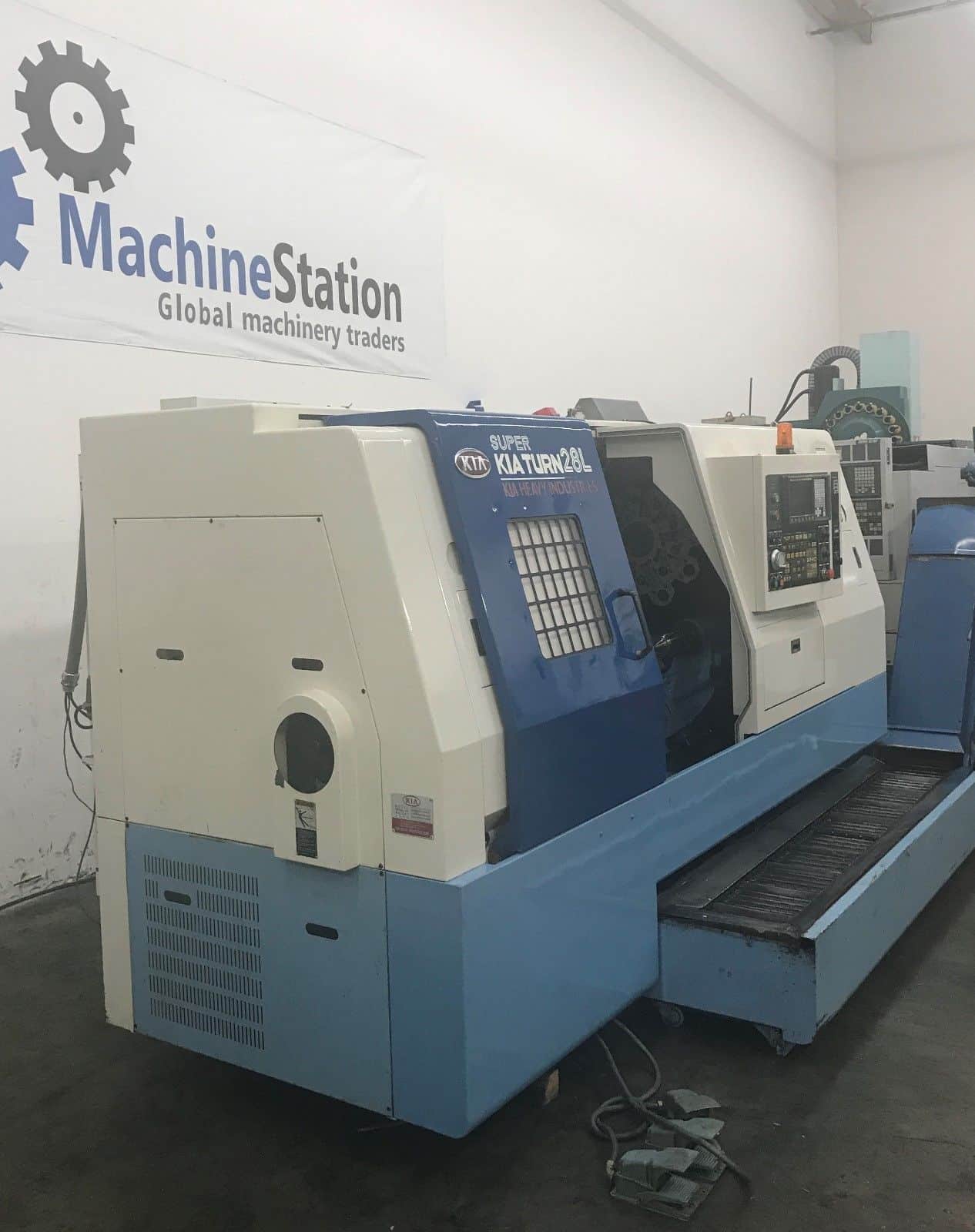

KIA TURN 28L CNC TURNING CENTER
Make Kia
Model No. SKT 28L
Year 2000
Serial # SKTL 28018
Condition Very Good
Country of Origin: Korea

“Long Bed Kia Turn 28L on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Fanuc 21T, 12″ Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.

  • KIA TURN 28L Equipped With:

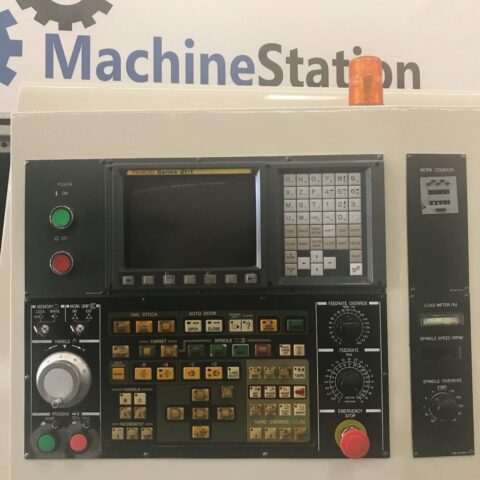

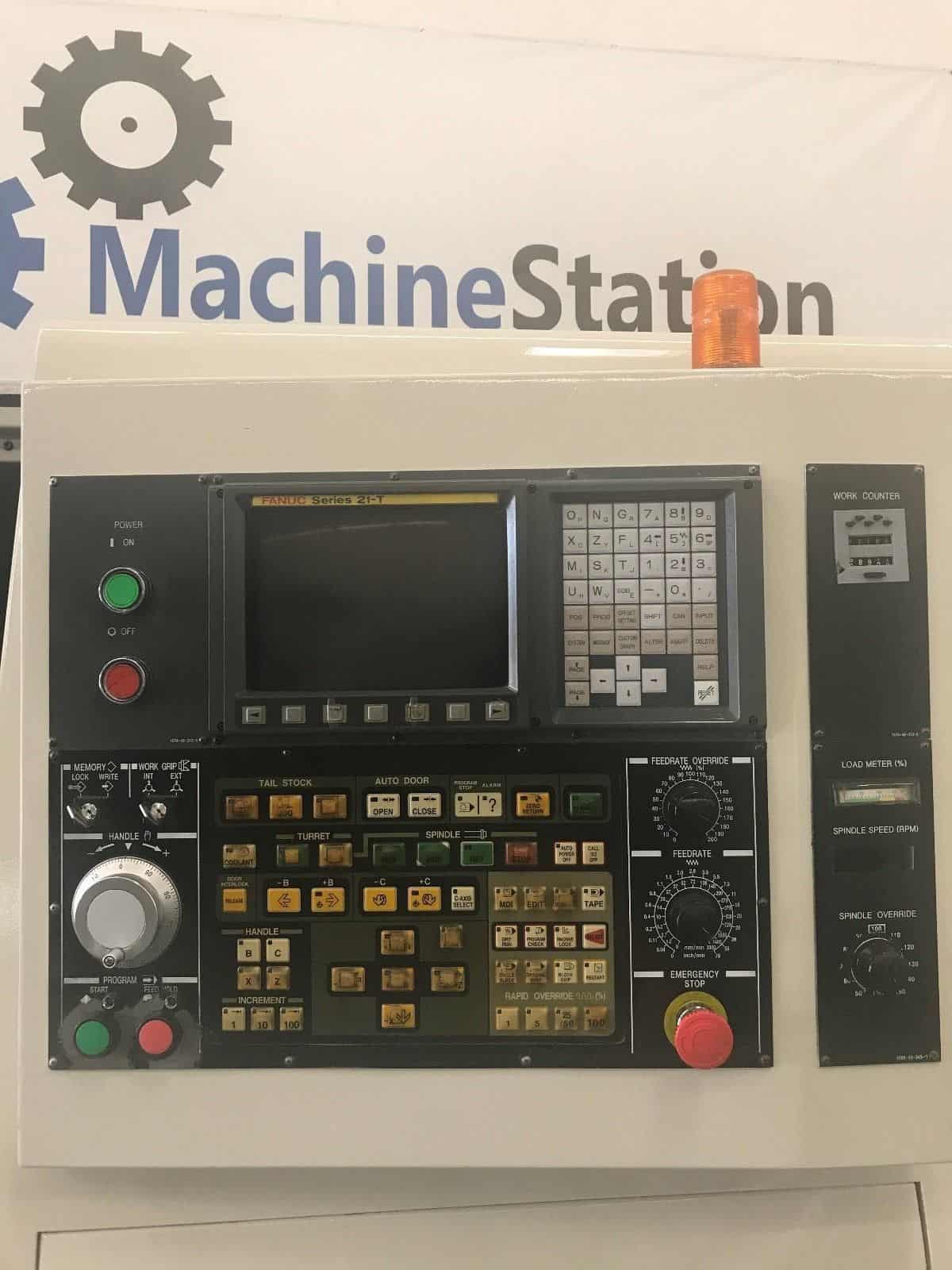

  • Fanuc 21-TB CNC Control
  • Tool Presetter

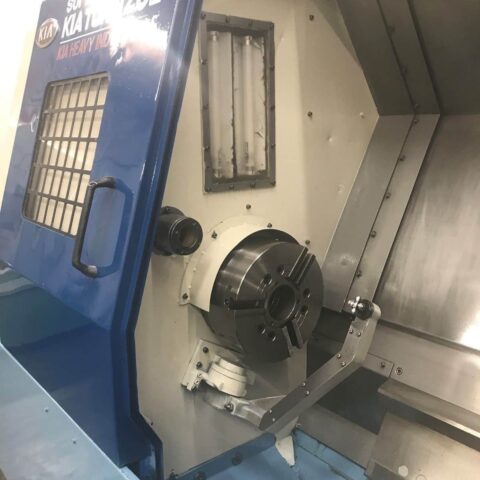

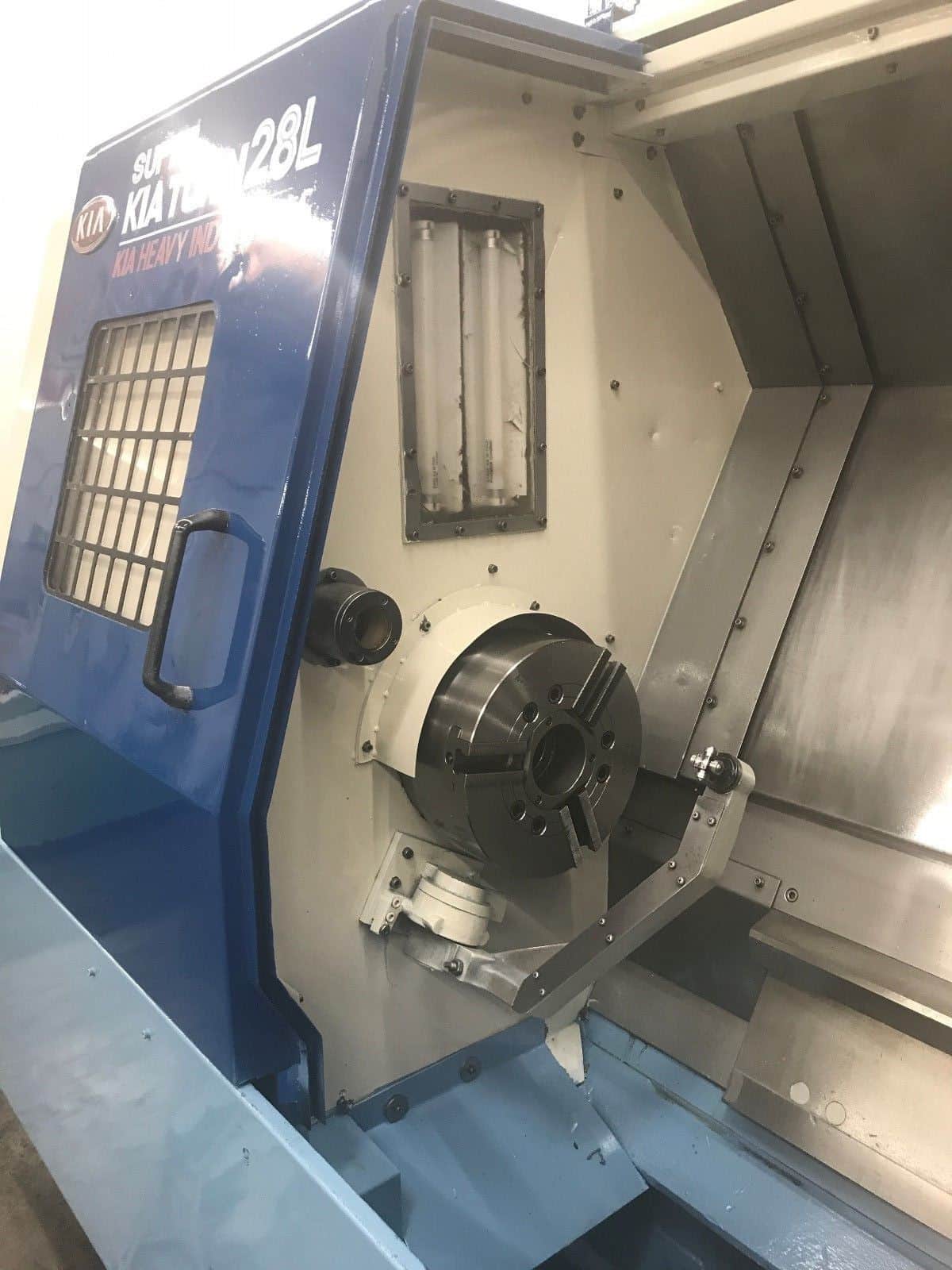

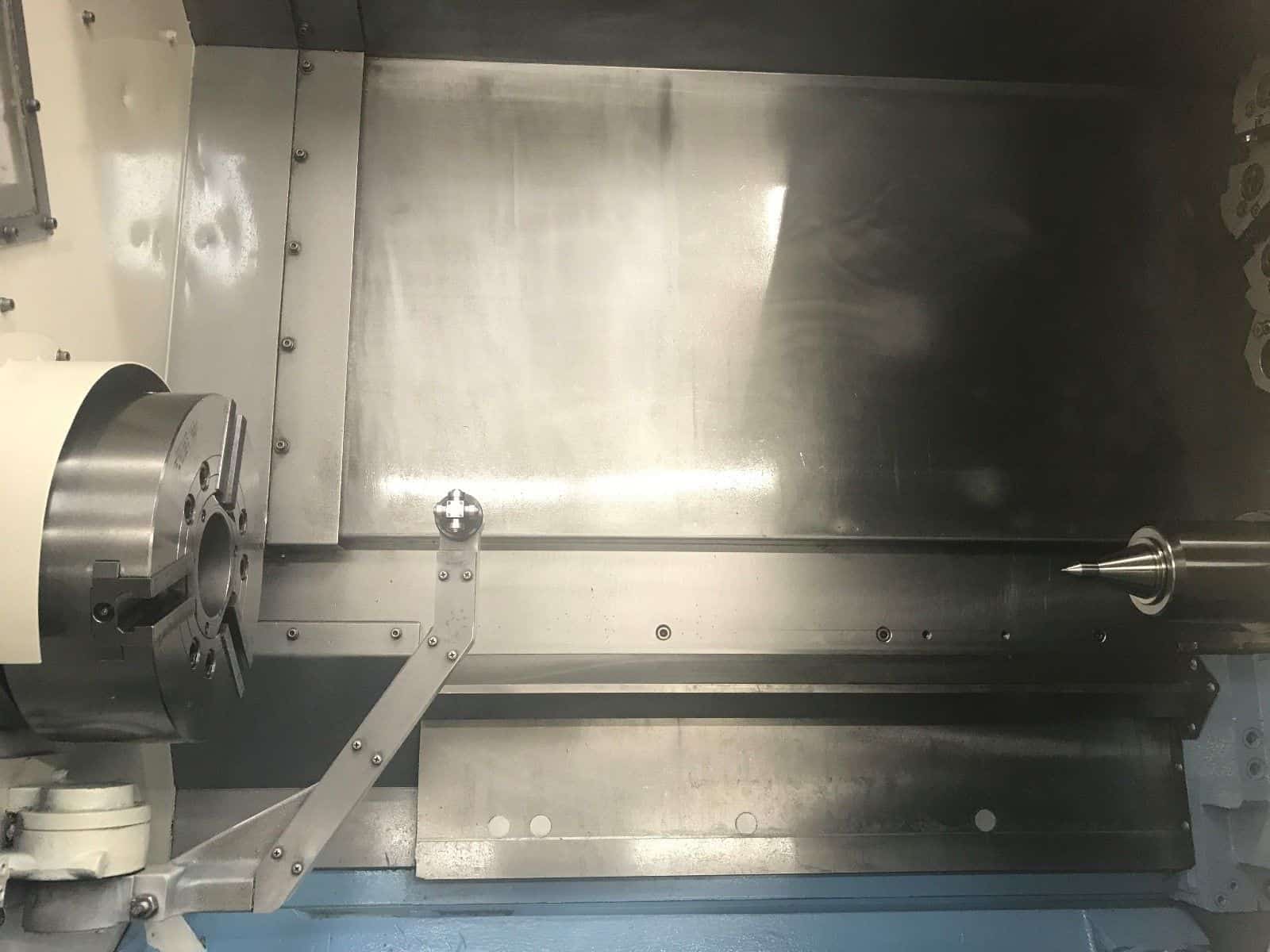

  • 12″ 3-Jaw Hydraulic Chuck

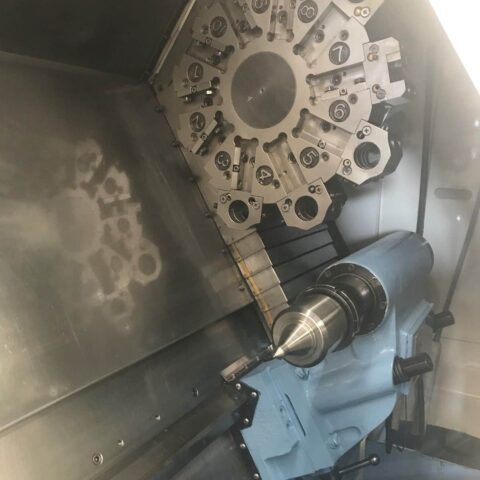

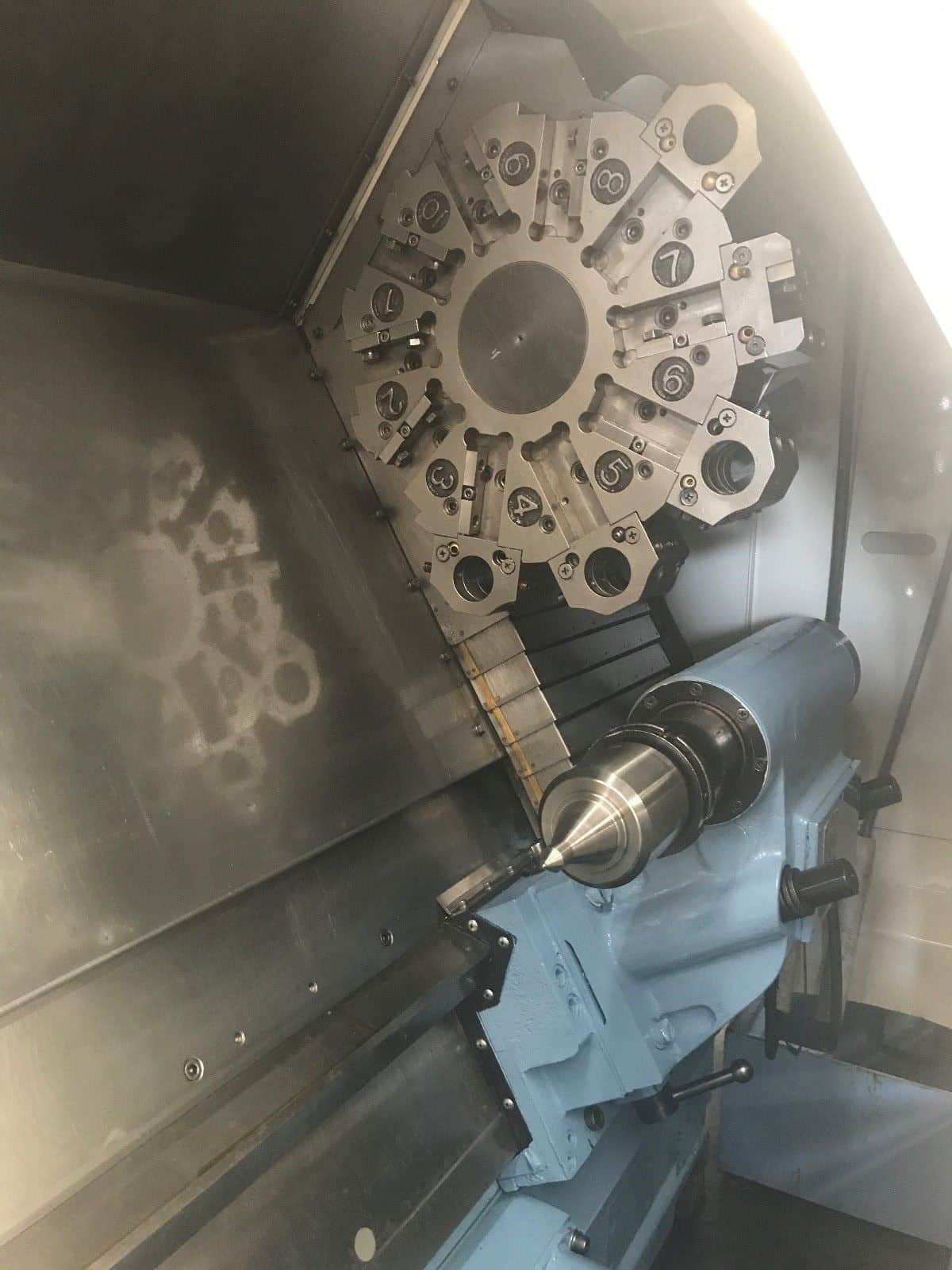

  • 10-Station Turret with Tooling

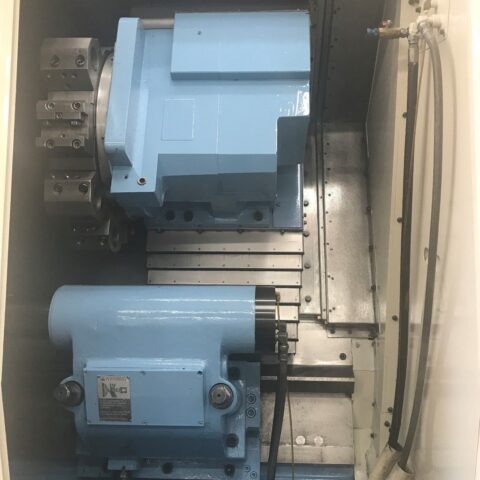

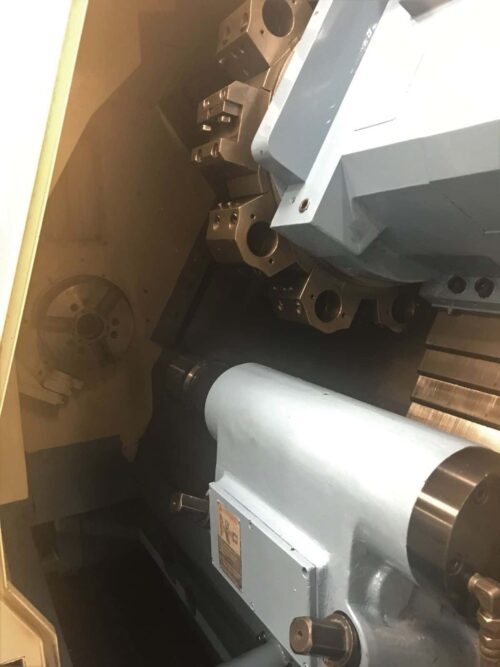

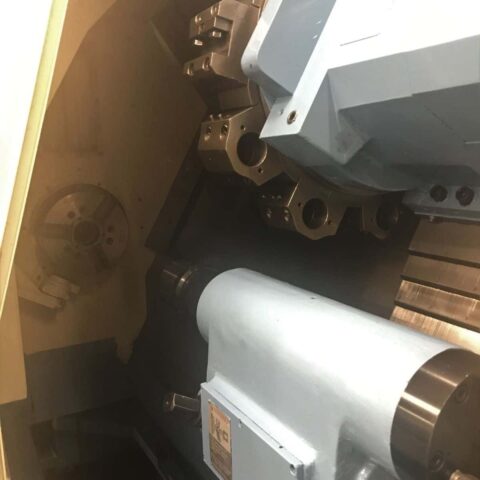

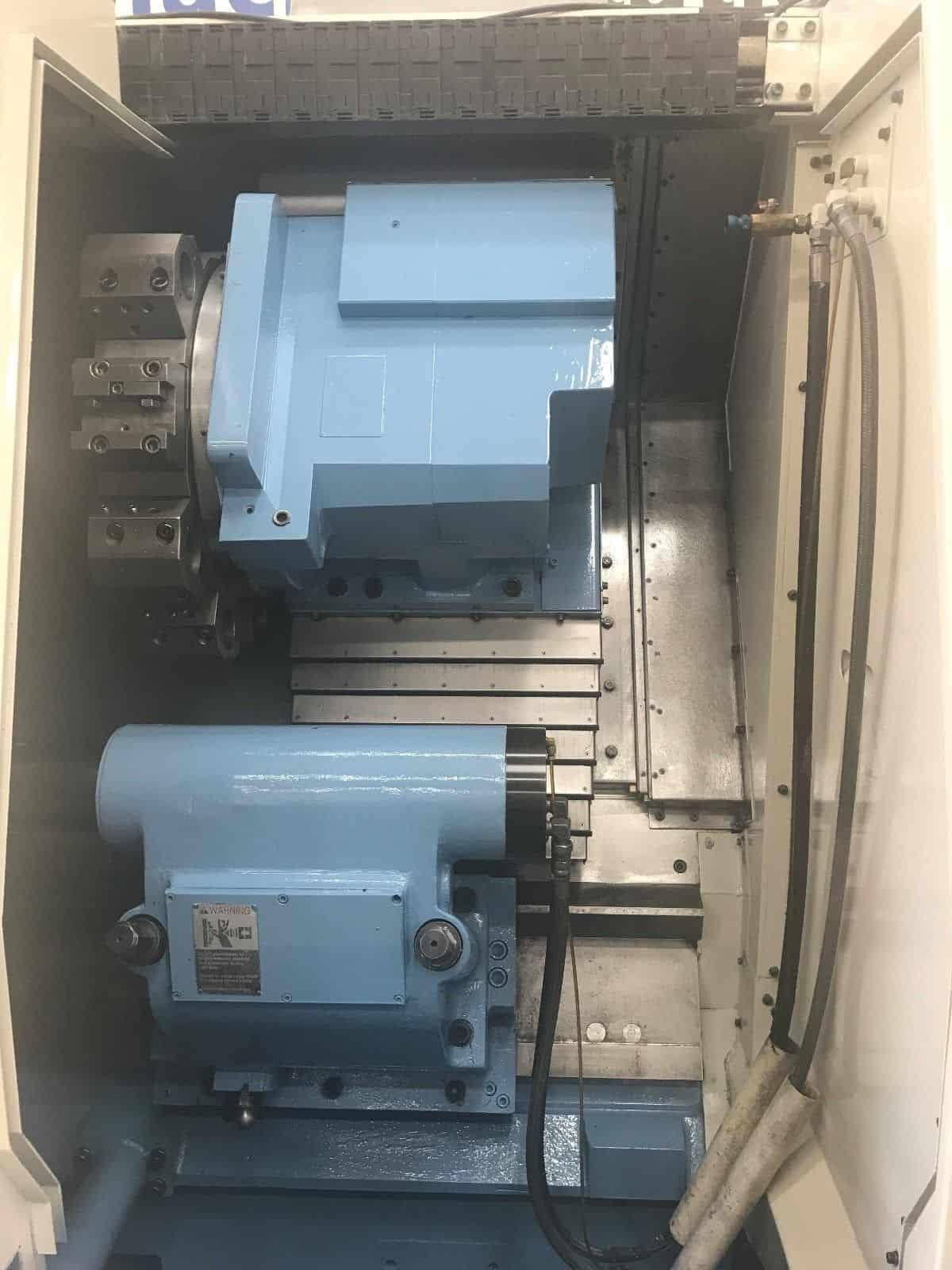

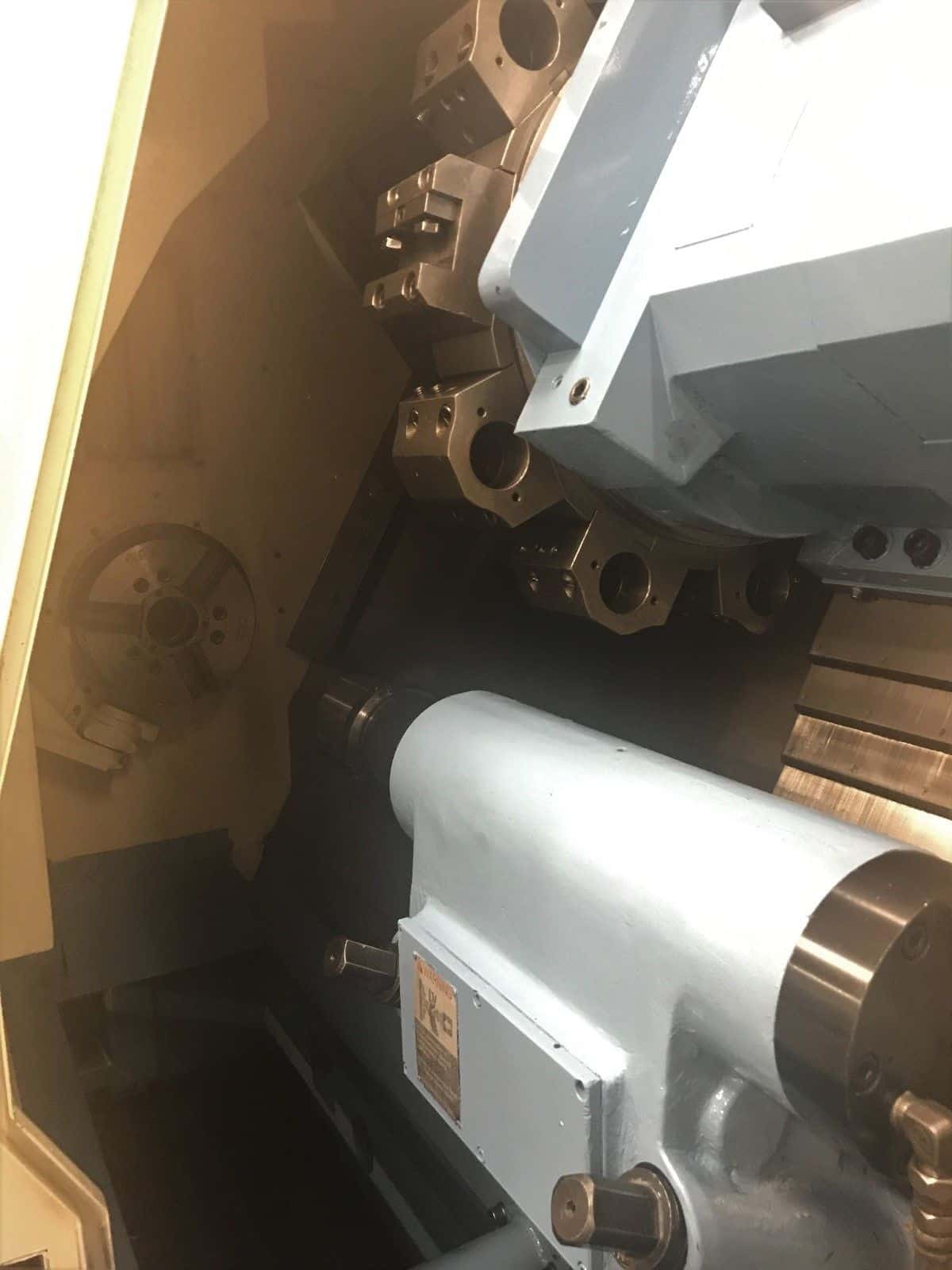

  • Hydraulic Tailstock
  • Slant Bed Rigid Box Way Long Bed Machine
  • Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck & Tailstock
  • Coolant Tank
  • Comes with Chip Conveyor, Levelling Pads.
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 142″ x 72″ x 80″ High
  • Overall Dimensions: 170″ x 72″ x 80″ High W/Chip Conveyor
  • Weight : 17500 lbs Approx.
  • KIA TURN 28L Specifications:
  • Max Turning Diameter: 16.1″
  • Max Turning Length: 42.1″
  • Max Bar Capacity: 3.15″
  • Swing Over Bed: 23.2″
  • Distance Between Centers: 43.4″
  • X Axis Travel: 8.7″
  • Z Axis Travel: 43.3″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.74″
  • Spindle Speed: Max. 3000 RPM
  • Spindle Motor: 30 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 0.8 Second
  • Tailstock Travel: 36.2″
  • Tailstock Quill Dia.: 3.94″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-5

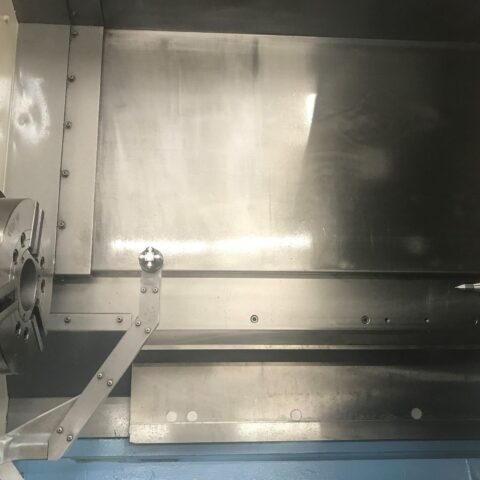

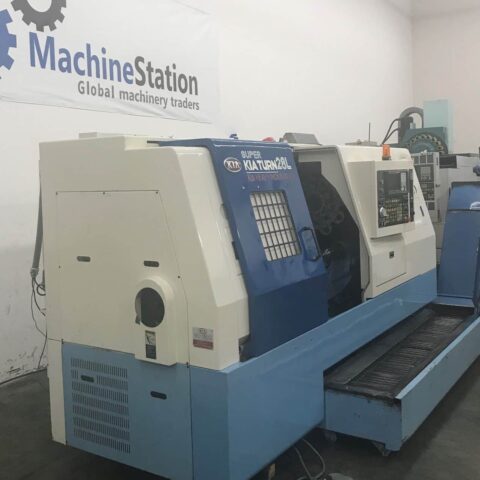

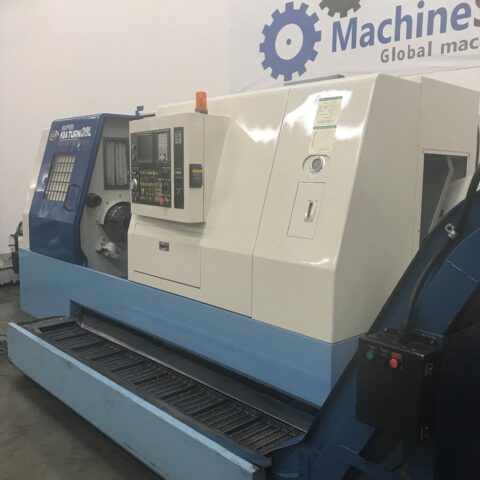

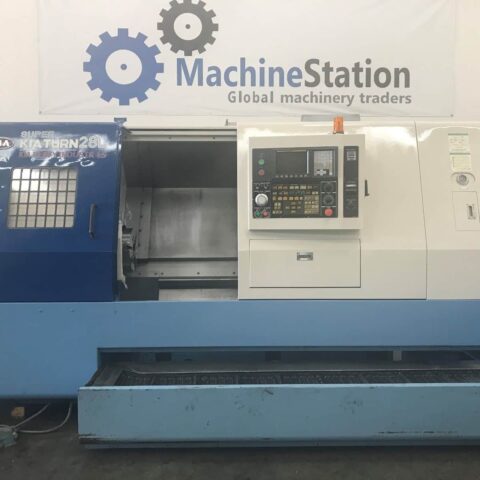

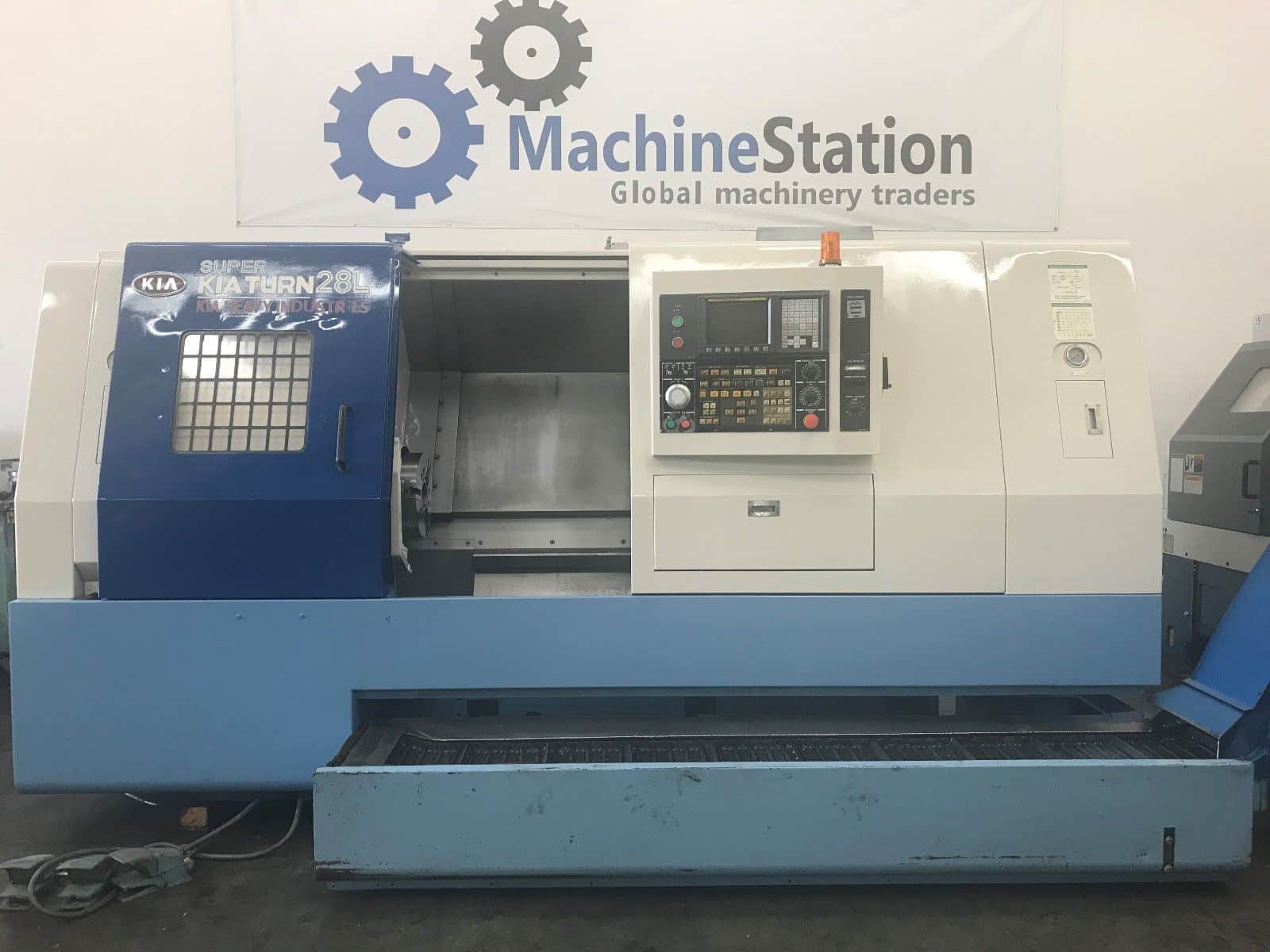

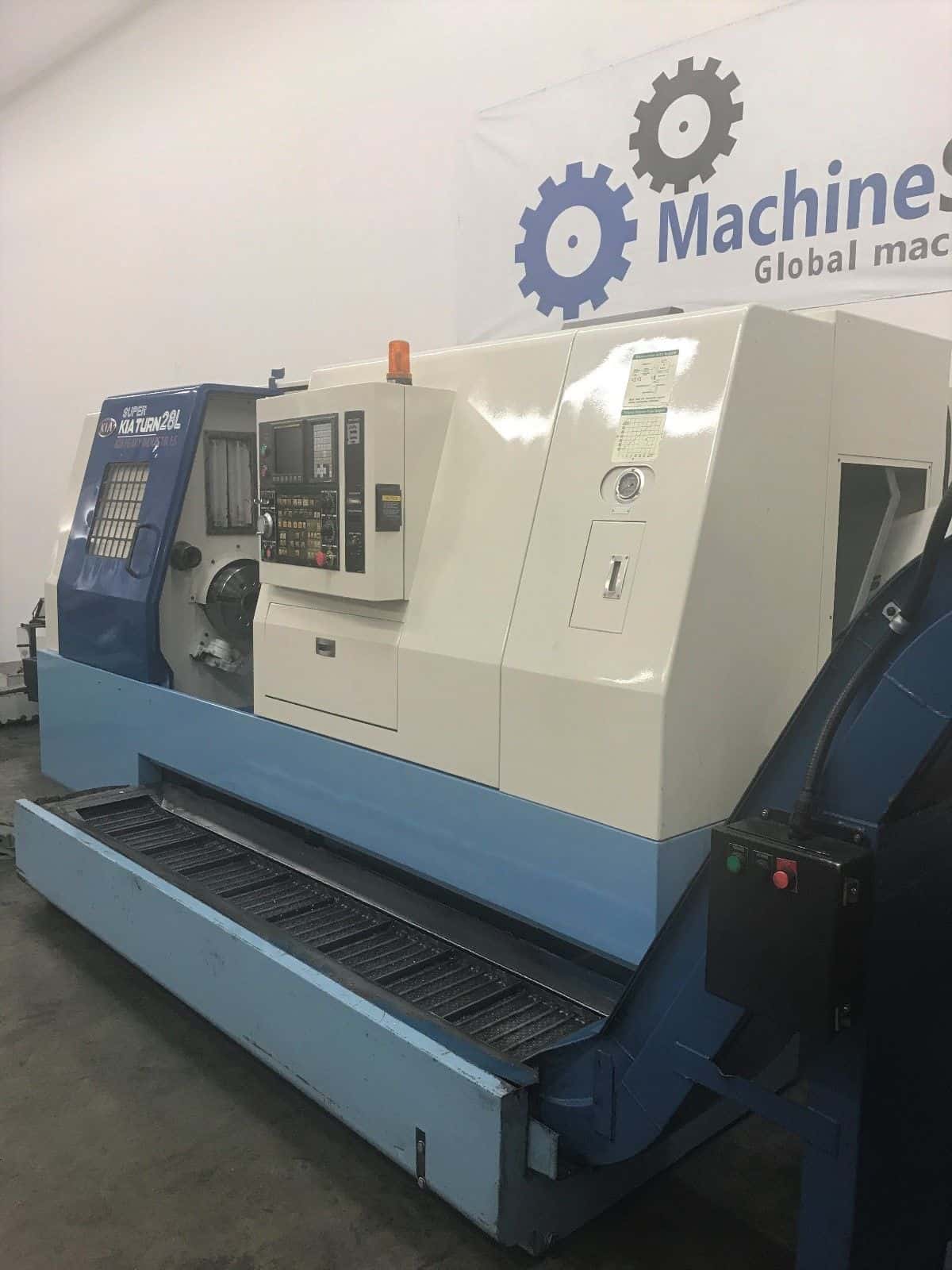

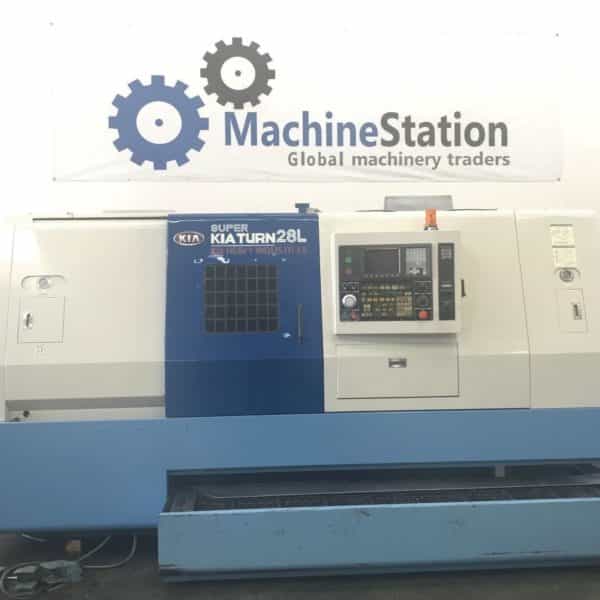

KIA TURN 28L Comes as shown in pictures.
