*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2479 |

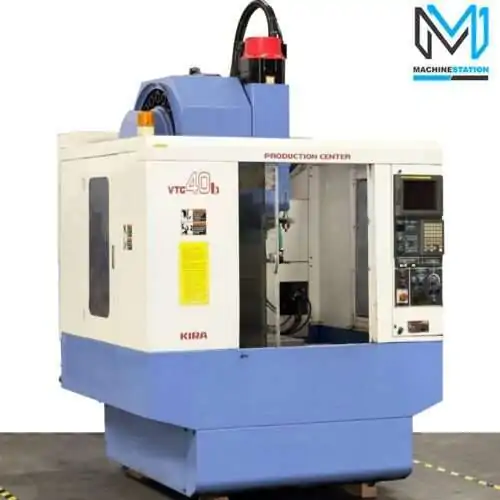

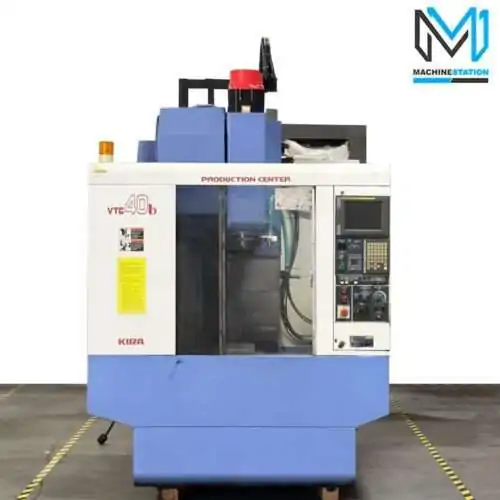

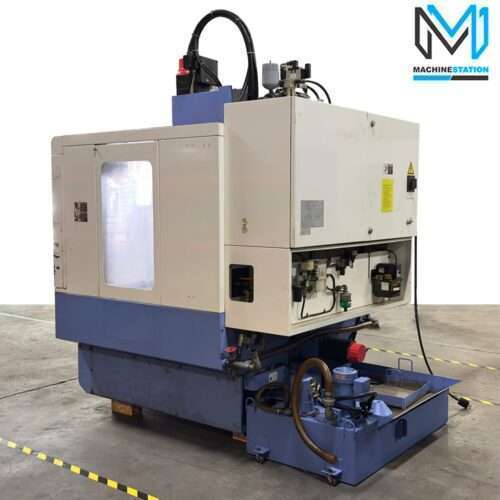

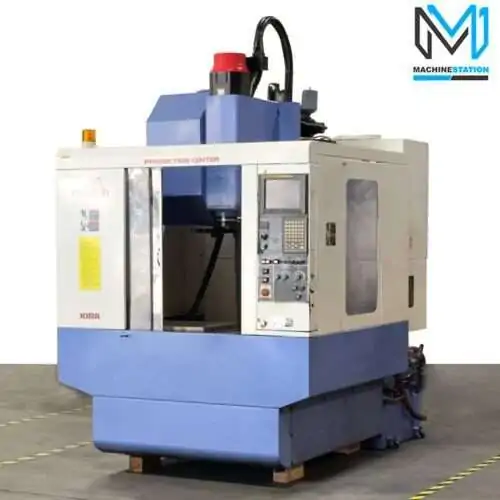

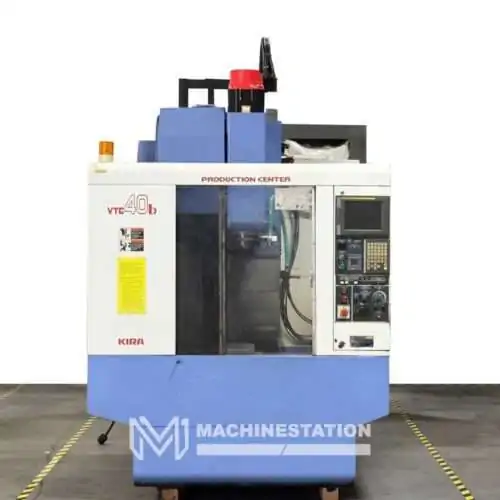

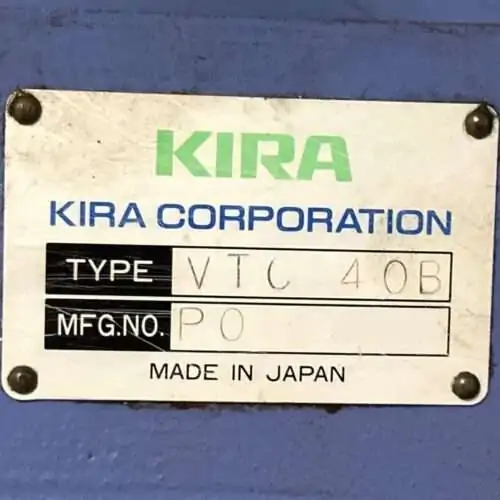

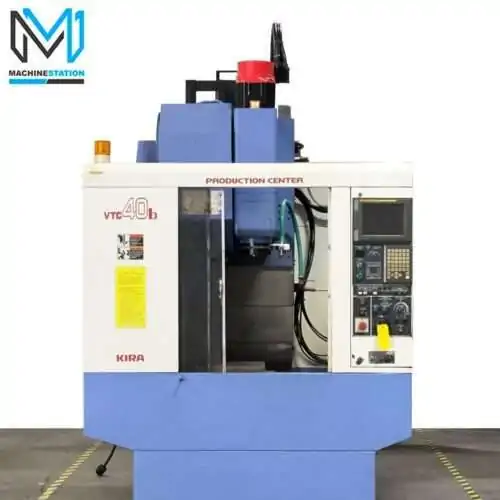

| Make: | KIRA |
| Model: | VTC-40B |
| Year: | 2000 |

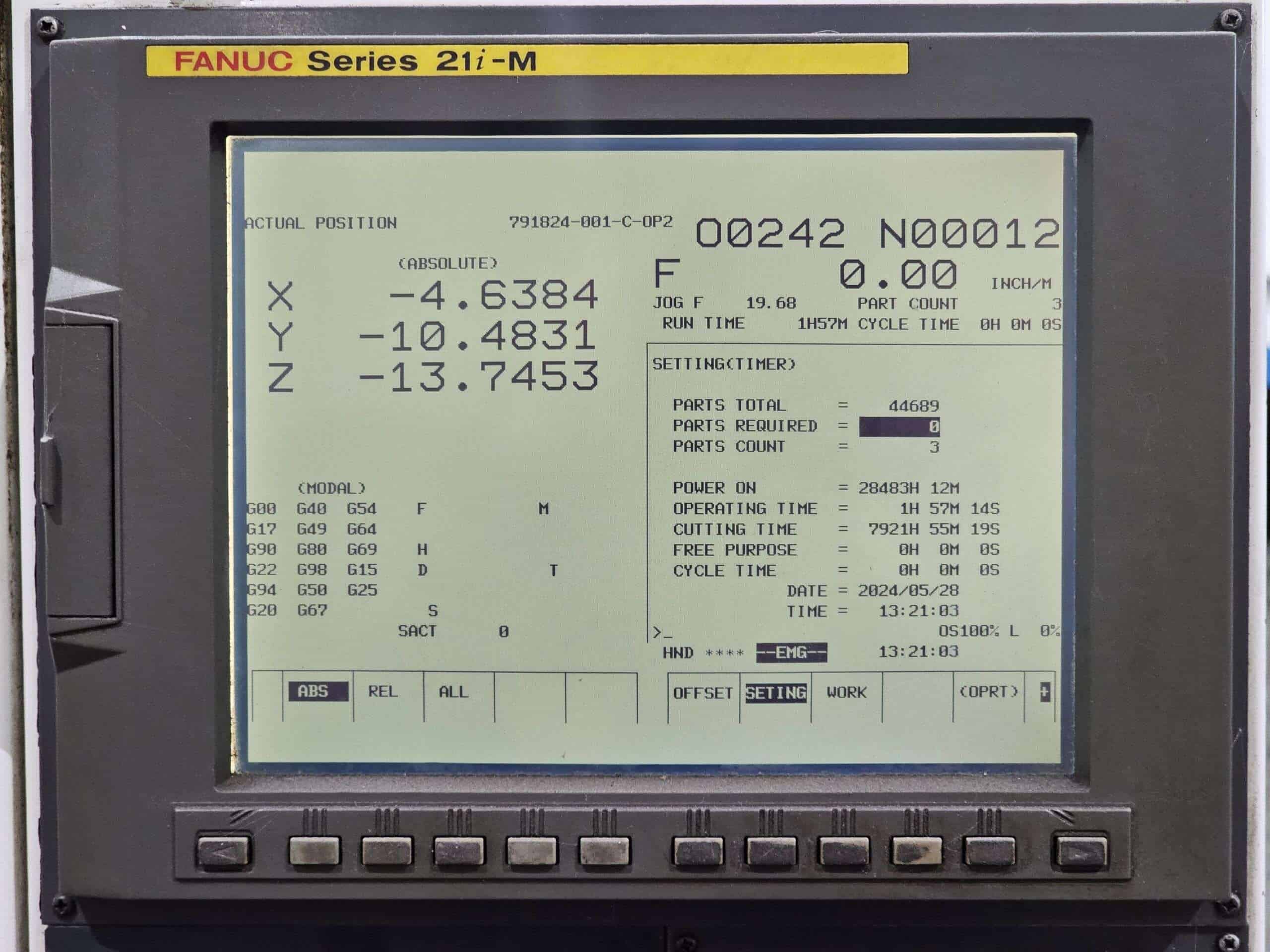

| Cutting Time: | 7921 Hours |
| Features: |
|---|

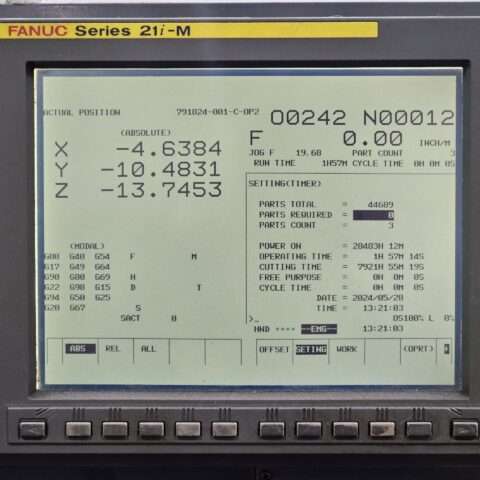

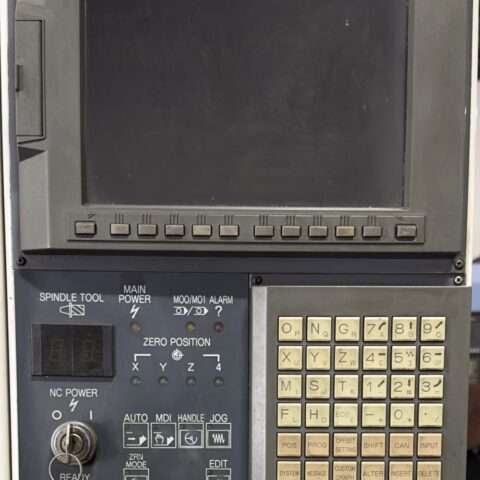

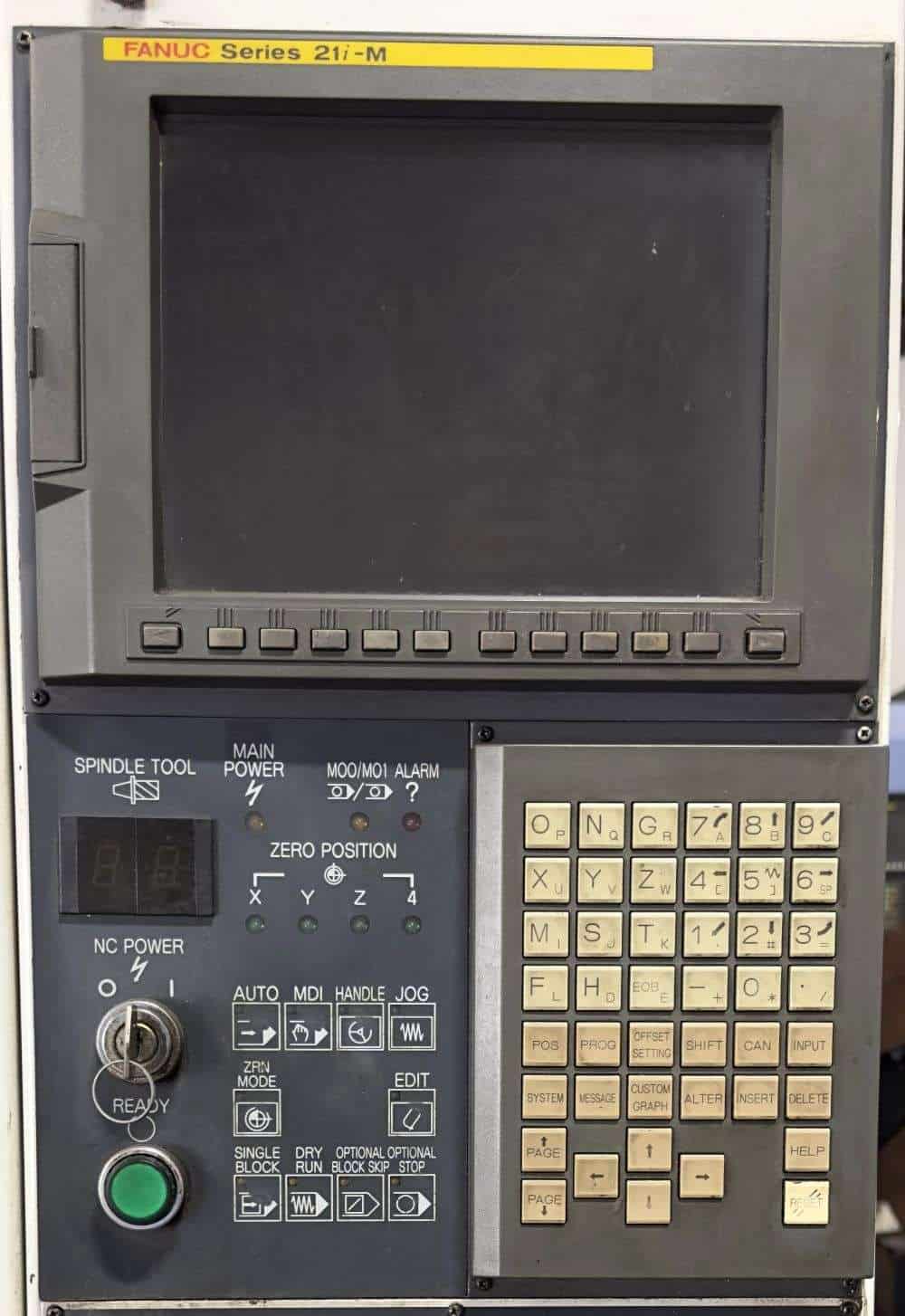

| Fanuc 21i-M CNC Control |
| 8,000 RPM Precision Spindle |
| 20 Station Automatic tool changer |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |

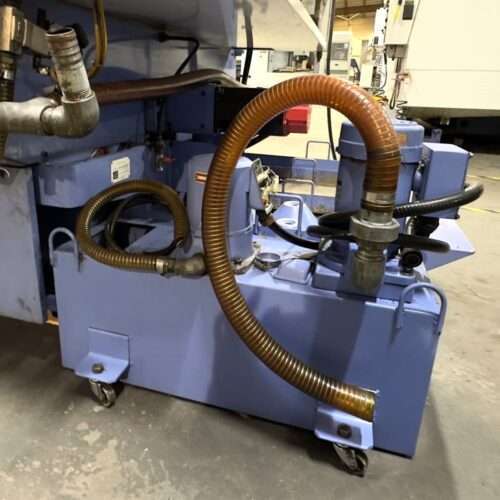

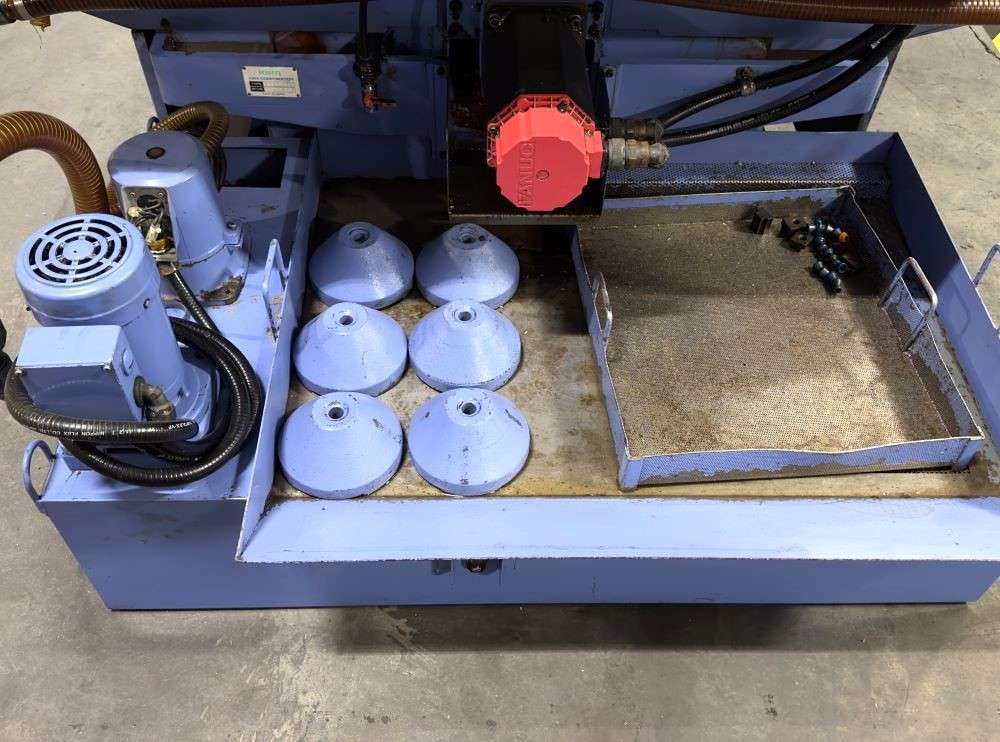

| Coolant system |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 23.62″ |
| Y-Axis: 15.75″ |
| Z-Axis: 15.75″ |
| Rapid Traverse Rates X, Y Axis: 1890 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1417 Inch Per Minute |
| Cutting Feed Rates: 945 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): ″ – ″ |

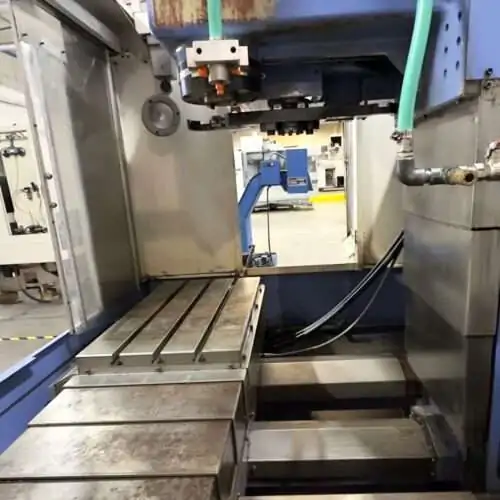

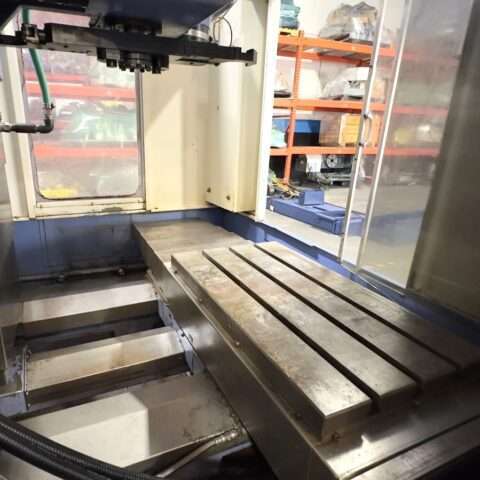

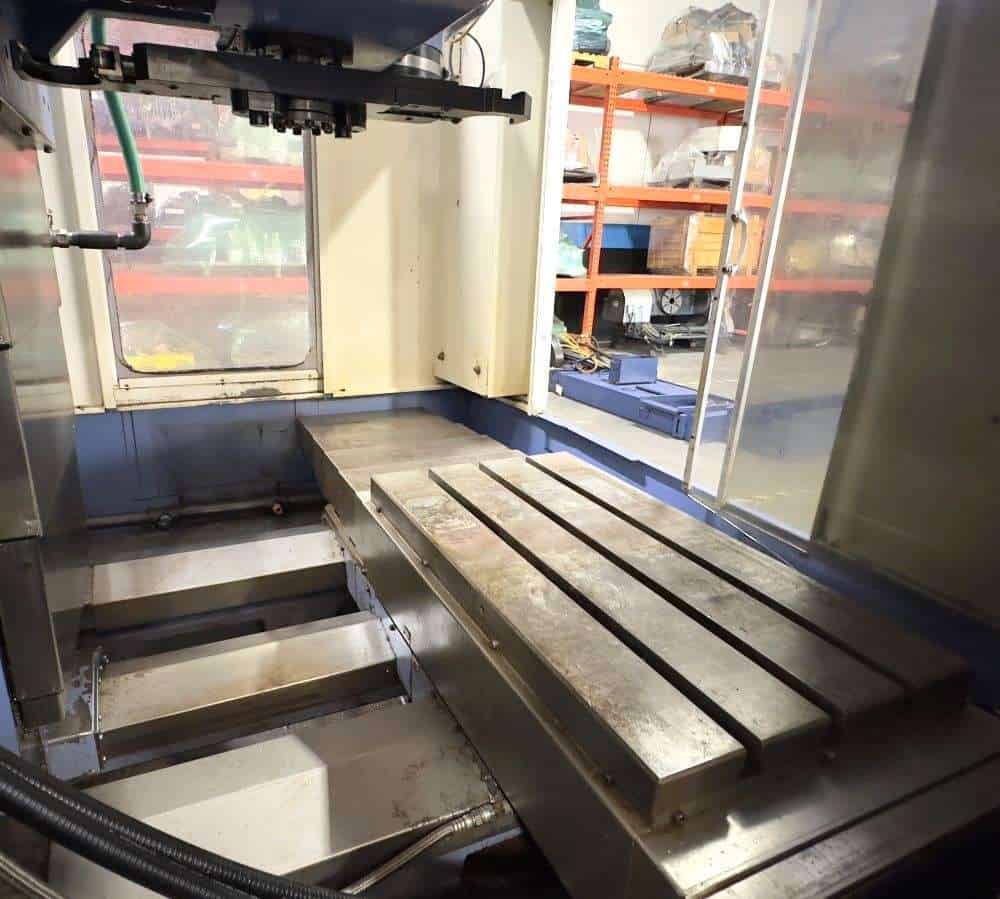

| Table: |
|---|
| Length: 27.55″ |
| Width: 15.75″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 441 Ibs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 10 HP |

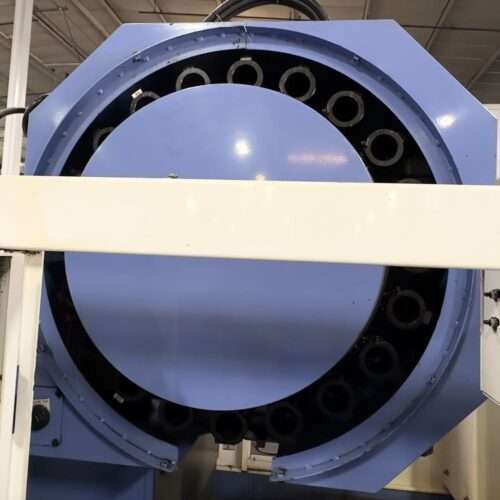

| Automatic Tool Changer: |
|---|
| Capacity: 20 |
| Tool Weight: 15.4 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

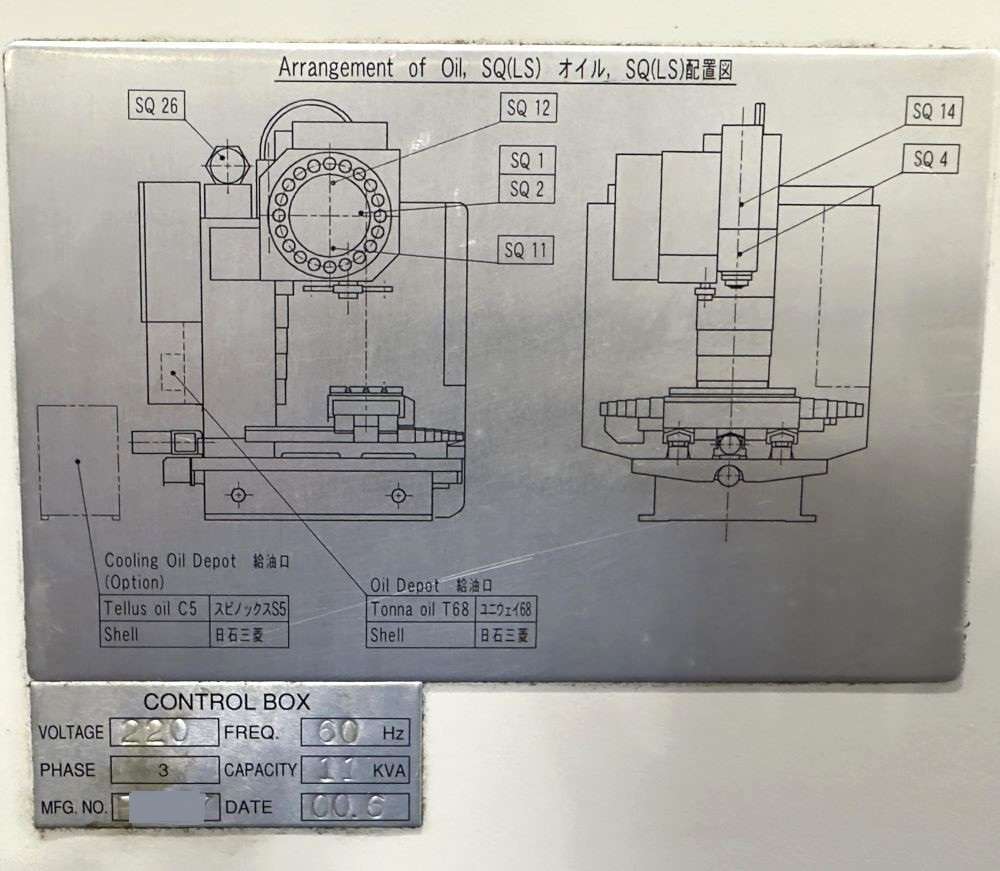

| Power: 220v / 11 kva / 3-Phase |
| Overall Dimensions: 63″ x 93″ x 104″ High |
| Weight: 6,614 lbs |
“No Charges for loading at list Price”
