*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

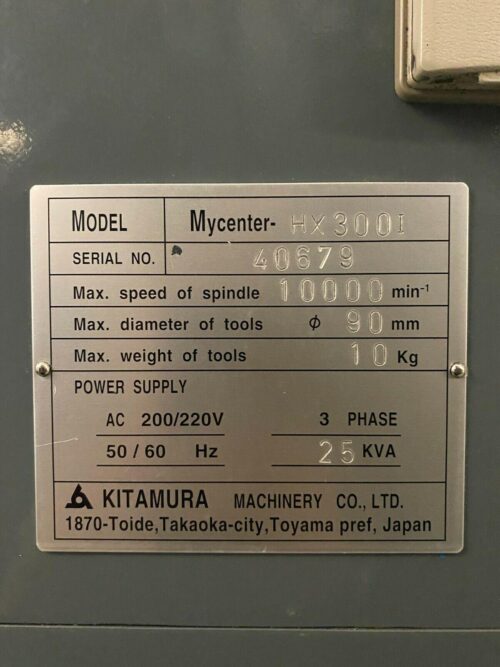

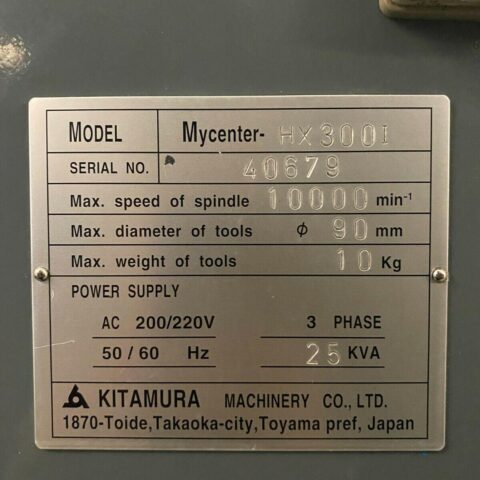

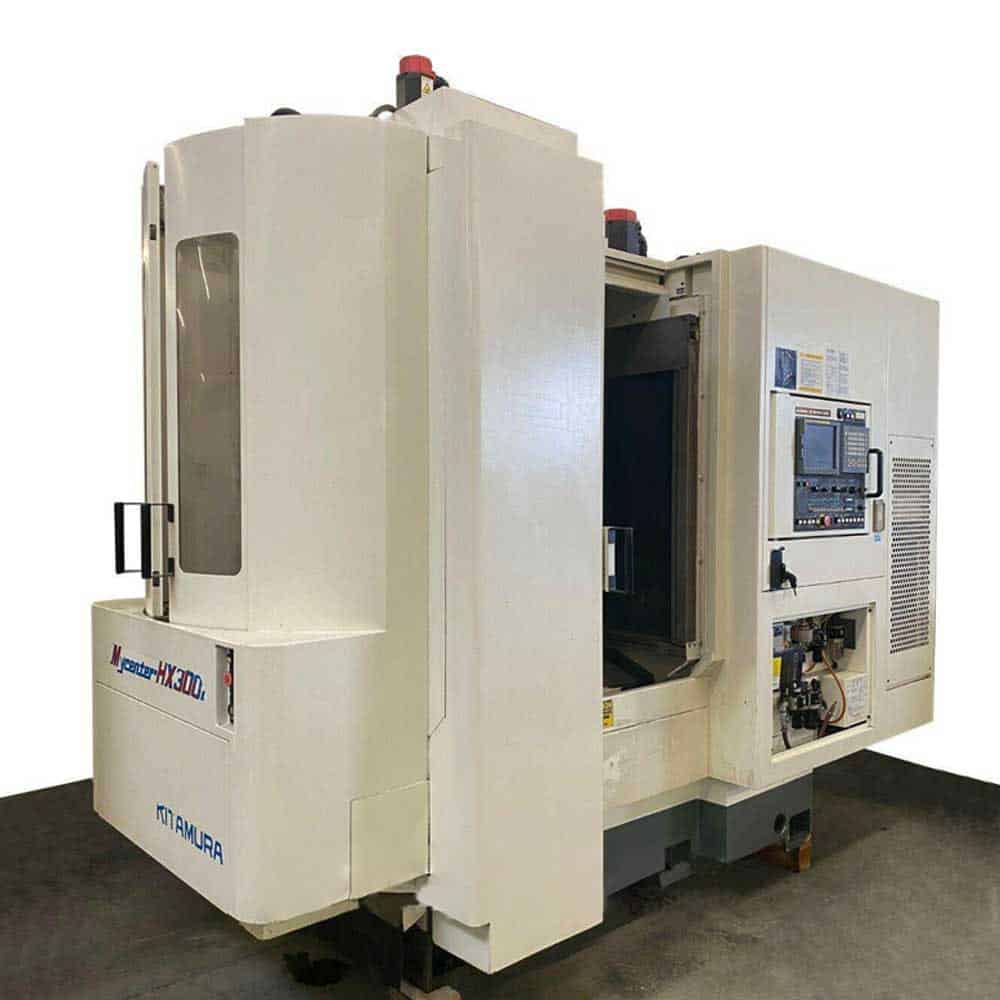

| Make: | KITAMURA |
| Model: | HX-300I |
| Year: | |
| Condition: | Used – Good |
| Equipped With: |
|---|

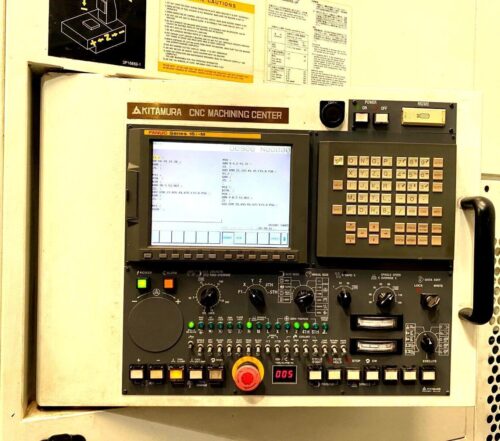

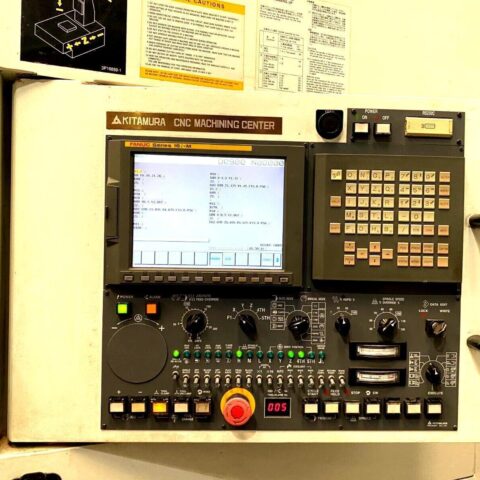

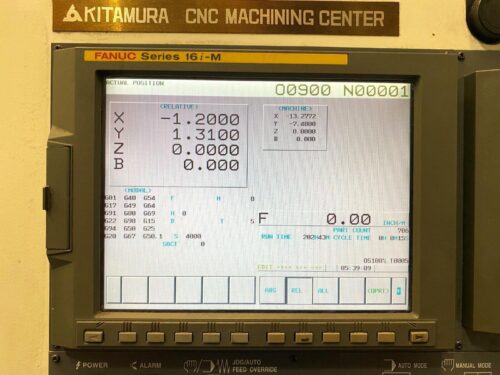

| FANUC 16iM CNC Control |
| Full 4th Axis |
| 10000 RPM High Torque Spindle |
| Through Spindle Coolant |
| Twin Pallet Changer |
| 40 Station Tool Changer |
| PCMCIA Card Slot |
| Upgraded Memory |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Helical Interpolation |
| Fast Rapid Traverse Rate |
| Flood coolant with large coolant tank |
| Chip Conveyor |
| Travels: |
|---|
| X Axis: 20.1″ |
| Y Axis: 20.1″ |
| Z Axis: 16.1″ |
| B Axis: 0.001° ( Full 4th ) |
| Spindle Nose to Table Center: 3.9″ – 20.1″ |
| Spindle Center to Table Top: 1.6″ – 21.7″ |

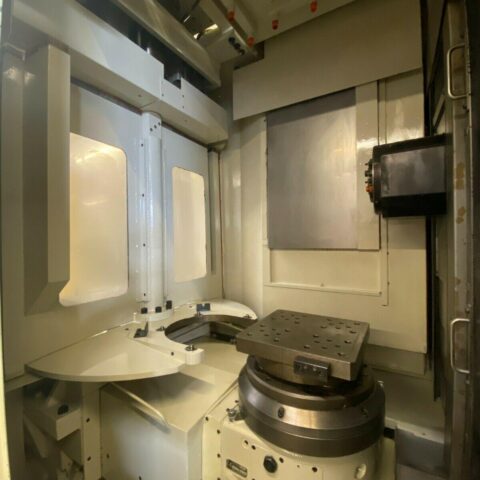

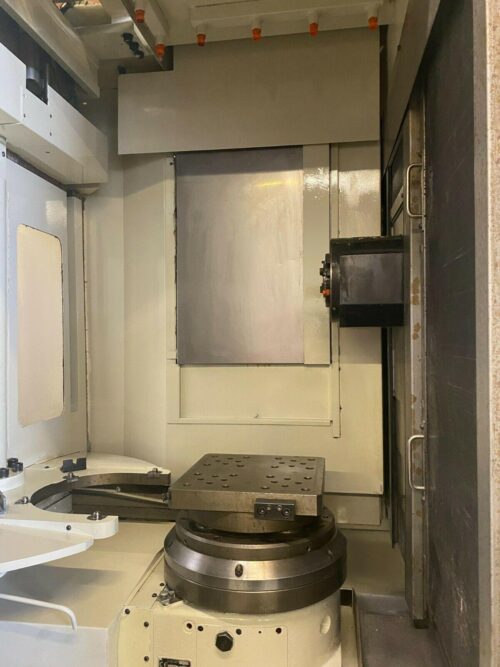

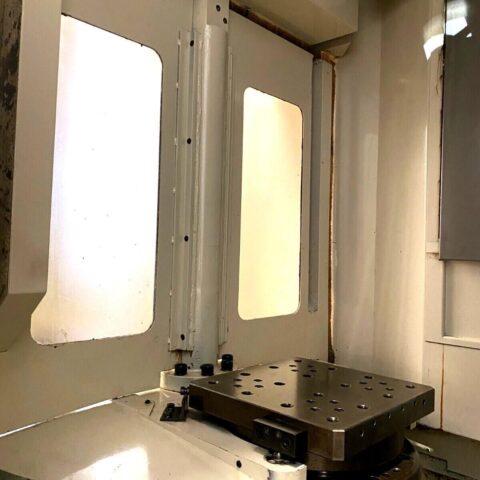

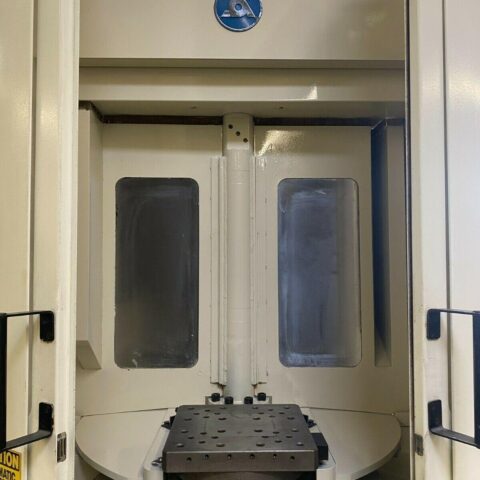

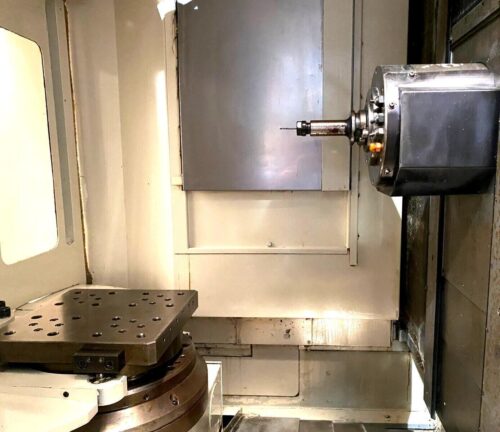

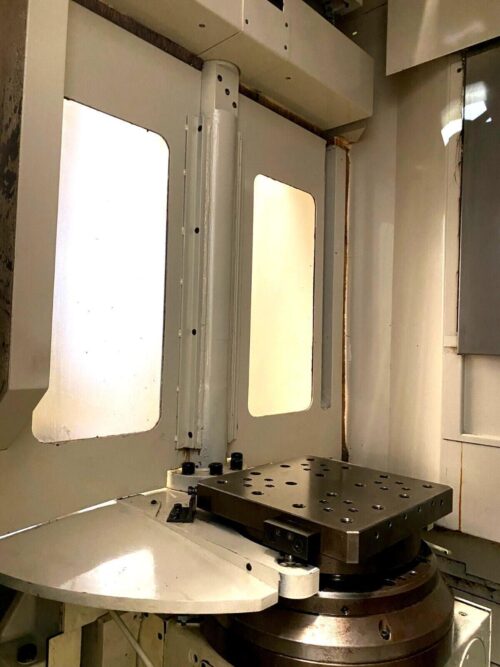

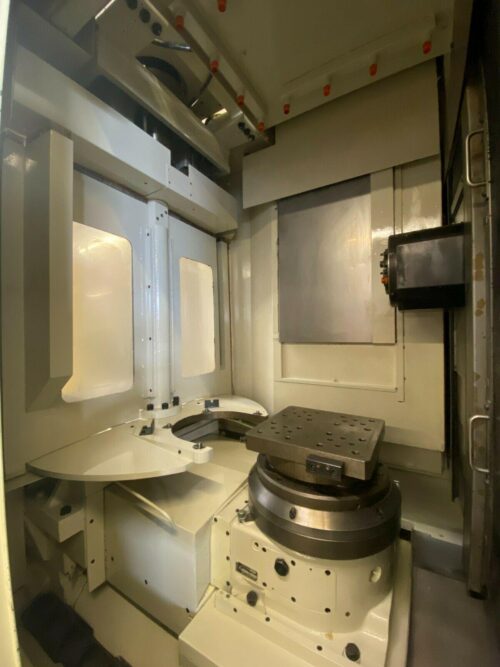

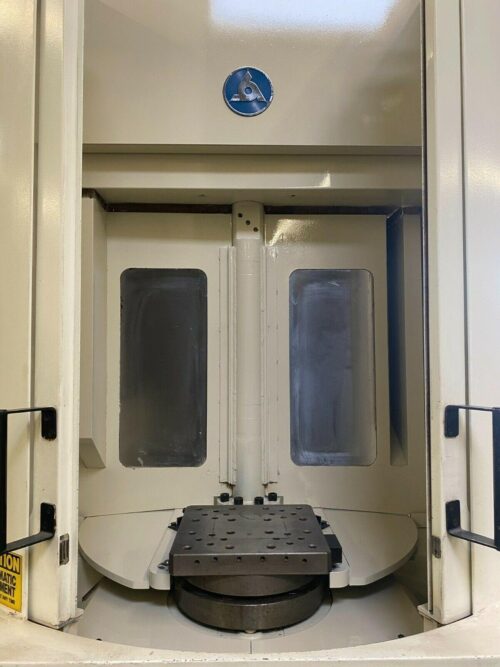

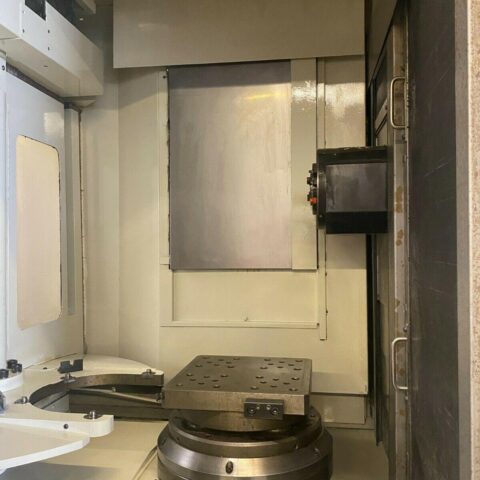

| Table: |
|---|
| Length: 12.0″ |
| Width: 12.0″ |
| Max Weight on Table: 550 lbs |
| Index Time: 5.5 seconds |

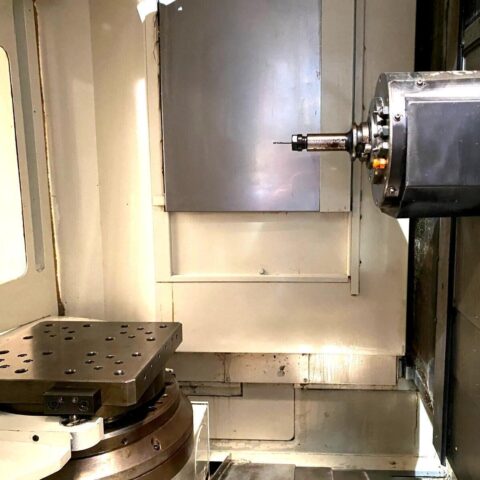

| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 10000 RPM |
| Power: 20 HP |
| Feed rates: |
|---|
| Rapid X & Y : 1969 Inch Per Minute |
| Rapid Z : 1969 Inch Per Minute |
| Cutting Feedrate: 1945 Inch Per Minute |

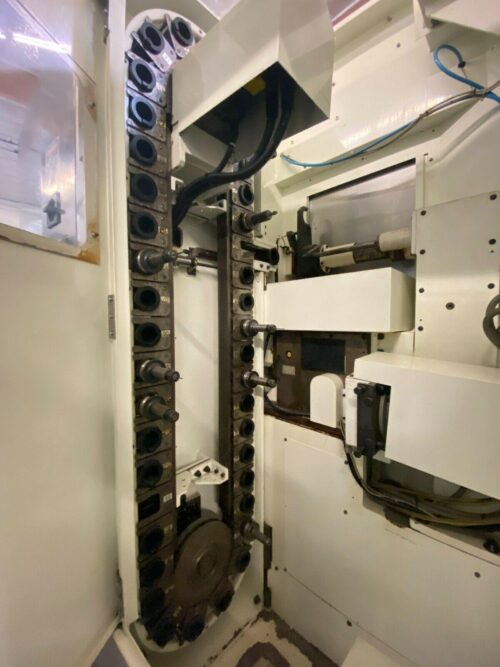

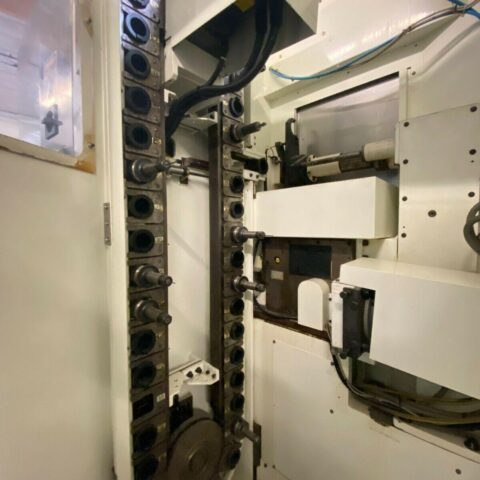

| Tool changer: |
|---|
| Capacity: 40 Tools |
| Taper: BT-40 |
| Max Tool Size: 5.9″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 22.5 lbs. |
| Tool Change Time: 1.7 Second |
| General: |
|---|
| Air Required: 90 psi 4 scfm |
| Power: 75kva / 480v / 3-Phase |
| Overall Dimensions: 140″ X 90″ x 100″ High ? |
| Weight: 20000 lbs |
| “No Charges for loading at list Price” |
