All specifications are approximations and are subject to verification.
-

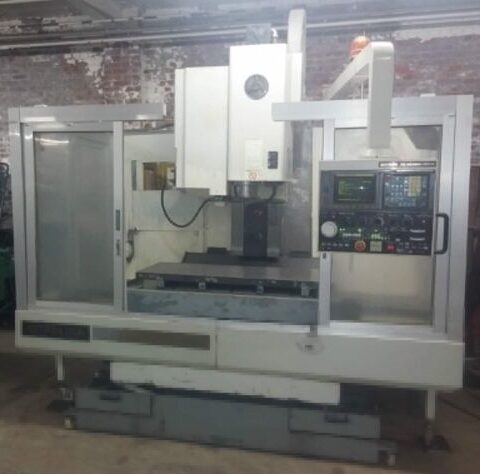

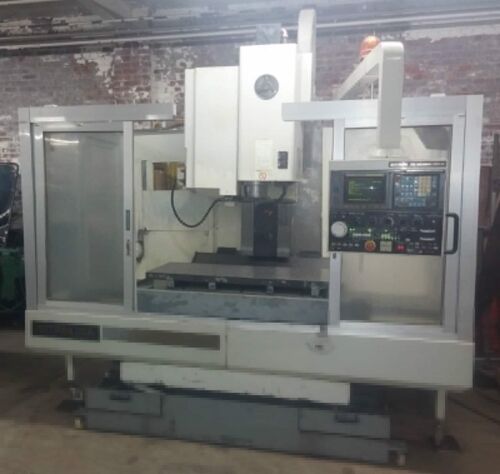

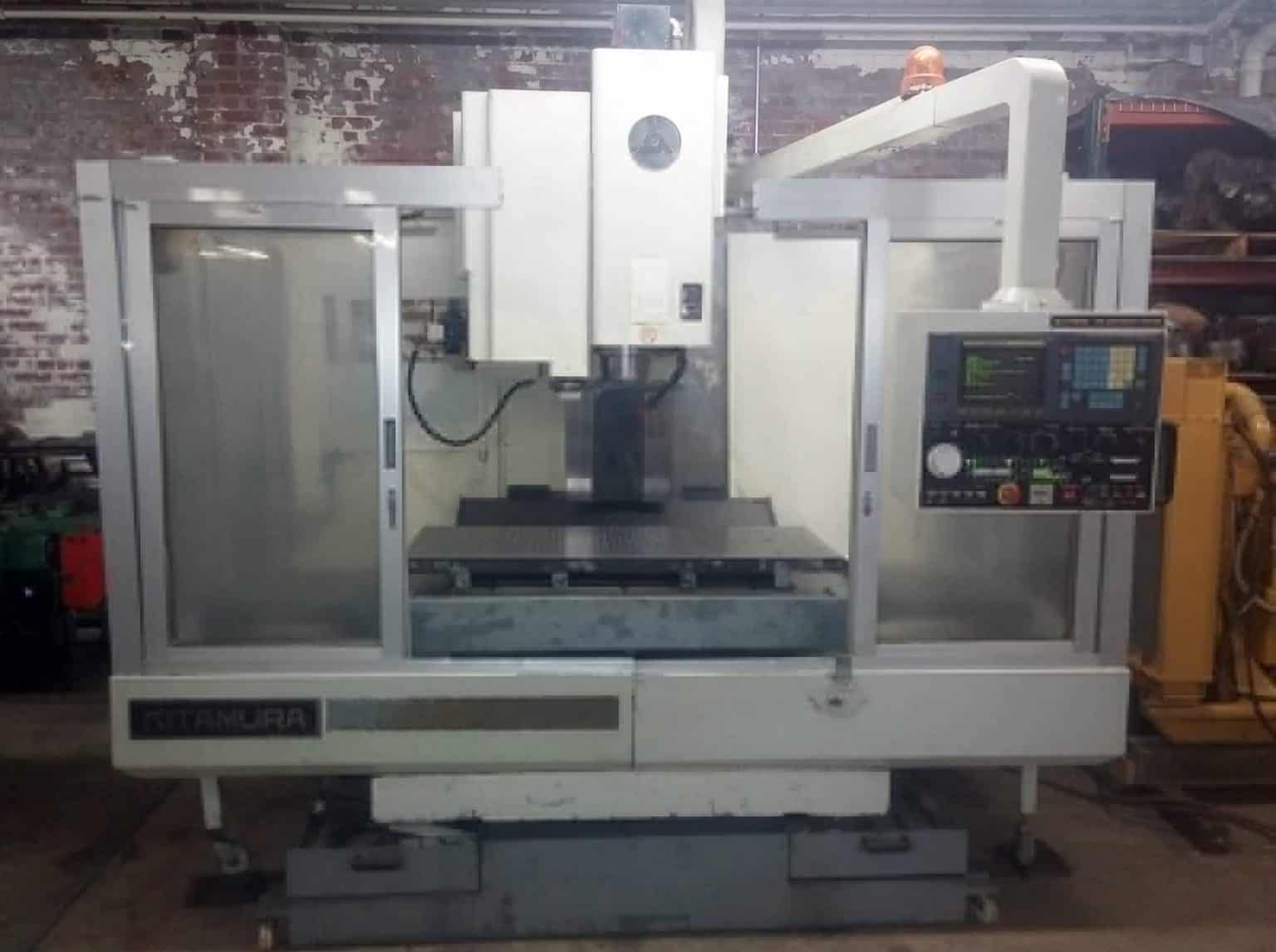

KITAMURA MYCENTER 3 EQUIPPED WITH
- FANUC O-M CONTROL,
- 20HP 8K RPM SPINDLE DRIVE,
- 3 SPEED SPINDLE GEARBOX
- 30 POSITION SIDE ARM BT-40 TOOL CHANGER
- RIGID TAPPING,
- RS232 PORT,
- AUTOMATIC LUBRICATION SYSTEM,
- OIL COOLER.
- DRILL AND TAP WORK PLATE
-
KITAMURA MYCENTER 3 SPECIFICATIONS:
- TABLE SIZE 43.3″ X 20.6″ (1100 X 522MM)
- MAXIMUM TABLE LOAD 1,320 LBS. (600 KG)
- TABLE TRAVEL
- –LONGITUDINAL (X-AXIS) 3 32.9″ (835MM)
- –CROSS (Y-AXIS) 18.7″ (475MM)
- –VERTICAL (Z-AXIS) 18.1″ (460MM)
- SPINDLE DRIVE MOTOR 20 HP (15 KW)
- SPINDLE SPEED RANGE MIN – MAX 20 TO 8,000 RPM
- SPINDLE TAPER BT40
- FEED RATES–X & Y AXIS / Z-AXIS 0 TO 1181 IPM / 944IPM
- RAPID TRAVERSE RATE, ALL AXIS 0 TO 1417 IPM
- TOOL STORAGE CAPACITY 30 TOOL SWING ARM
- WAY SYSTEM BOX WAYS
- ELECTRICS 220/3/60 HZ
- MACHINE DIMENSIONS (L X W X H) 112″ X 114″ X 110″
- MACHINE WEIGHT, APPROX 15,880 LBS. (7200 KG)
