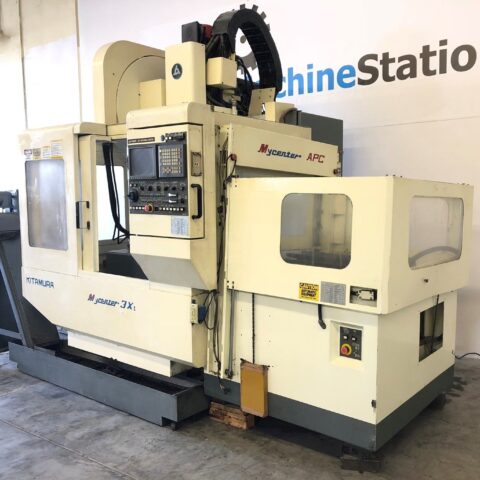

Kitamura MyCenter 3xi Twin Pallet Vertical Machining Center | |
---|---|
Make | Kitamura |
Model No. | Mycenter 3xi |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“On our Floor now, Please feel free to ask For *VIDEO* and more Pictures.”
- Kitamura MyCenter 3xi Features:

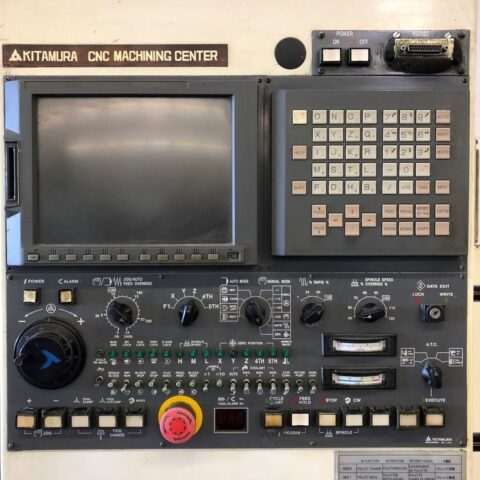

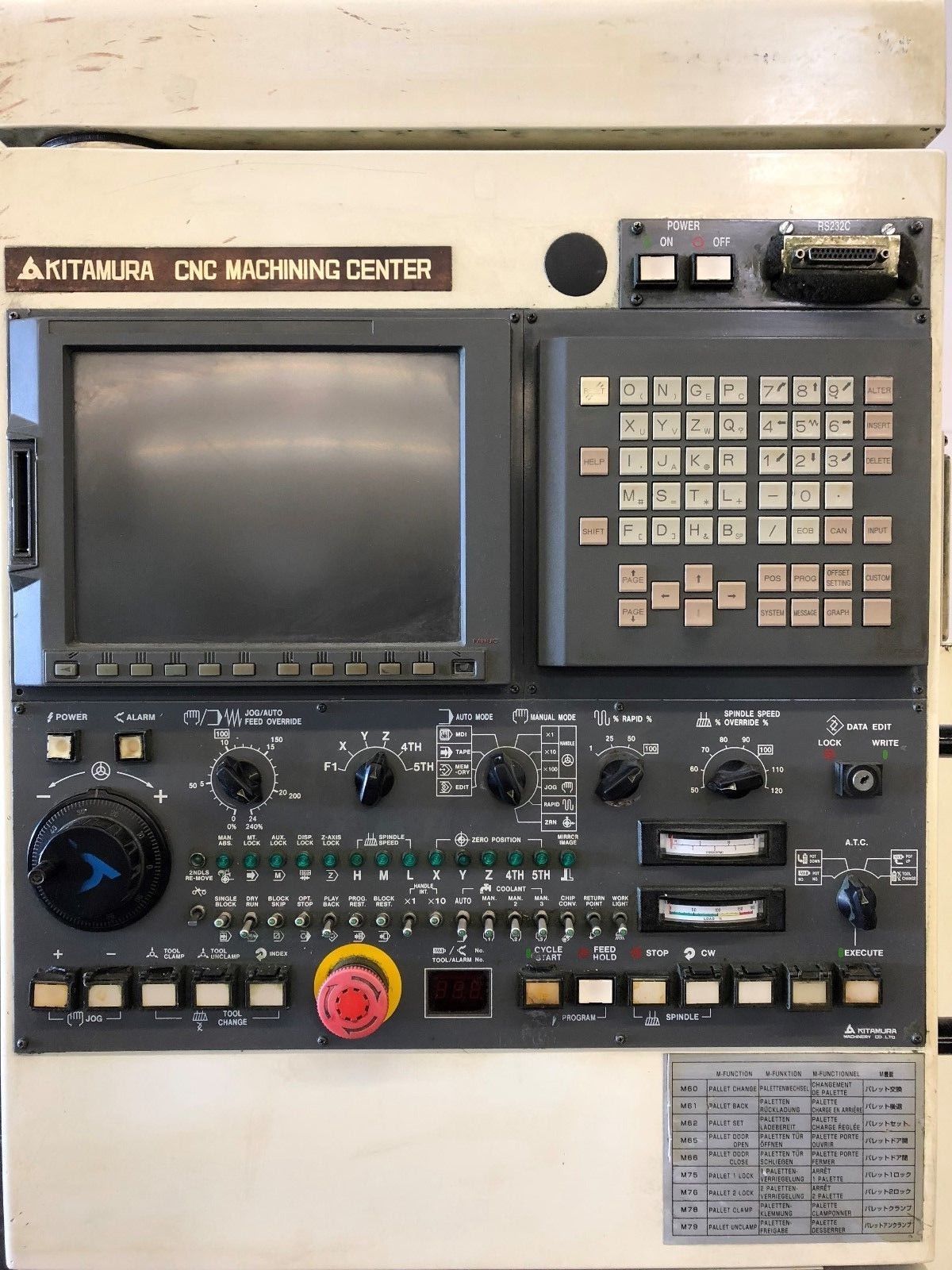

- Fanuc 16iM CNC Control
- 30 Tools Side Mount High Speed Tool Changer
- High precision 15,000 RPM Spindle

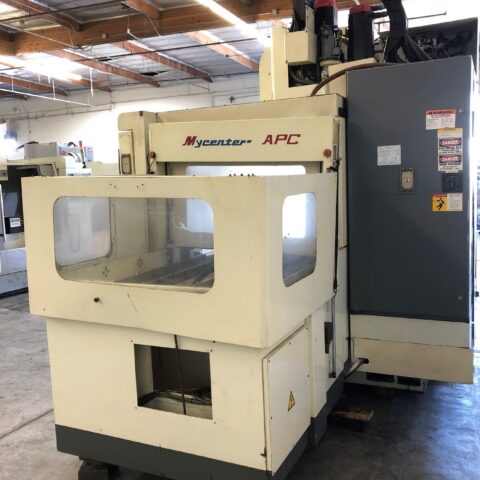

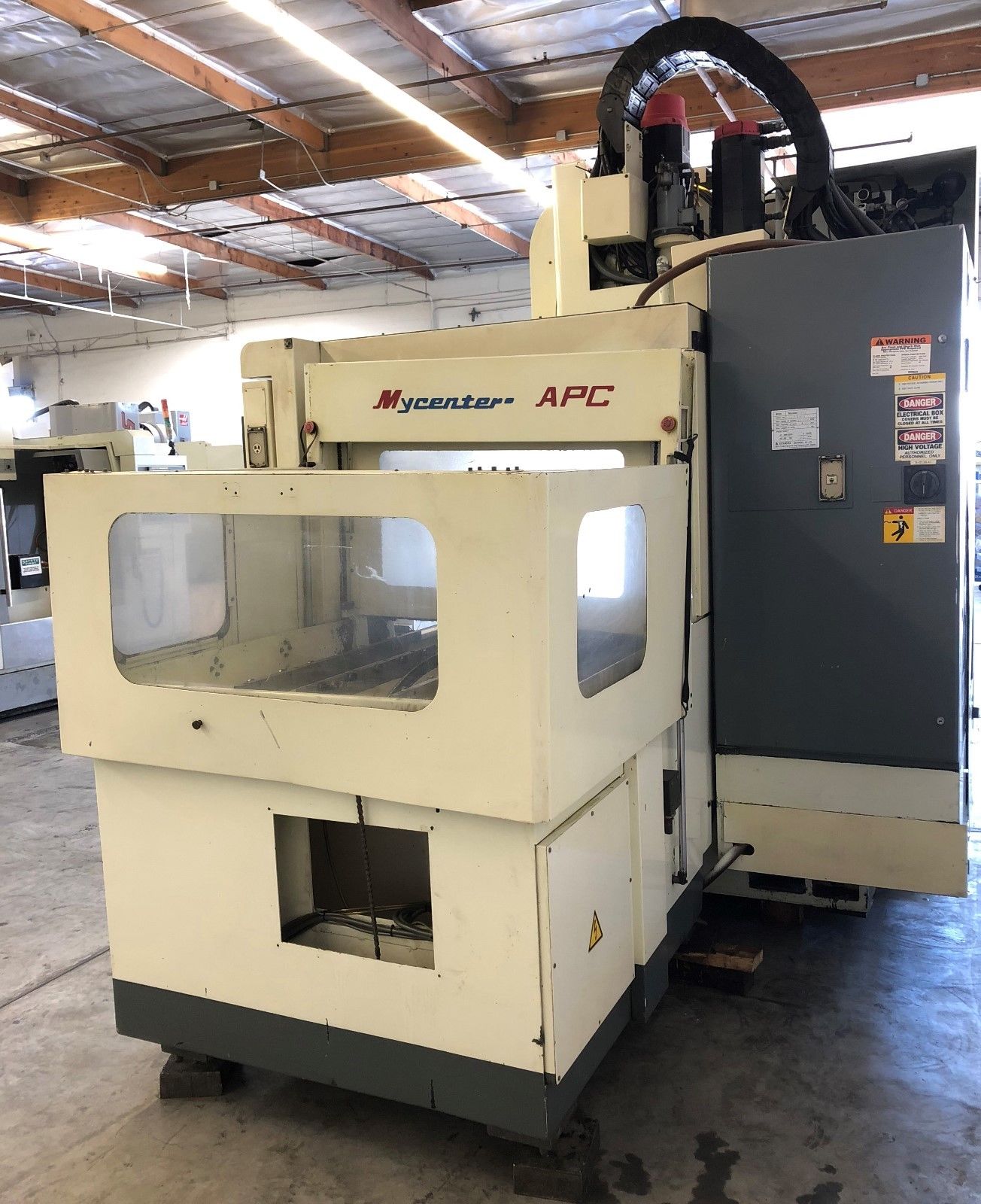

- Twin Pallet Changer
- PCMCIA Card Slot
- 128 MB Memory
- Box Way Construction All Axis
- Powerful 15 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Helical Interpolation
- Rigid Tapping
- Absolute Incremental Programming
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank

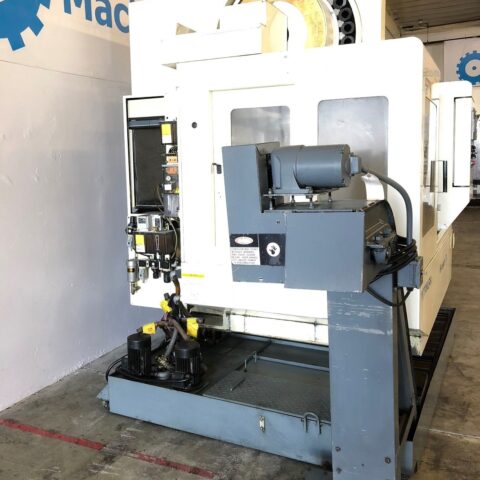

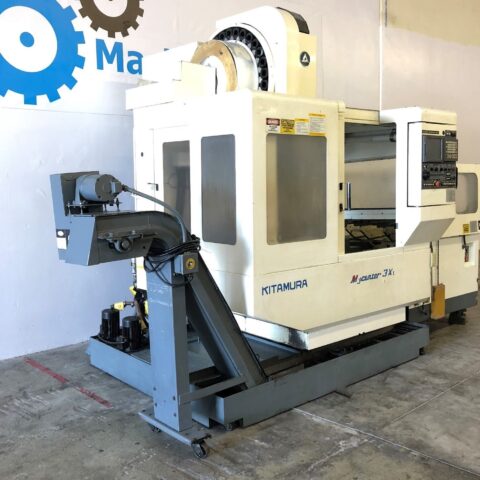

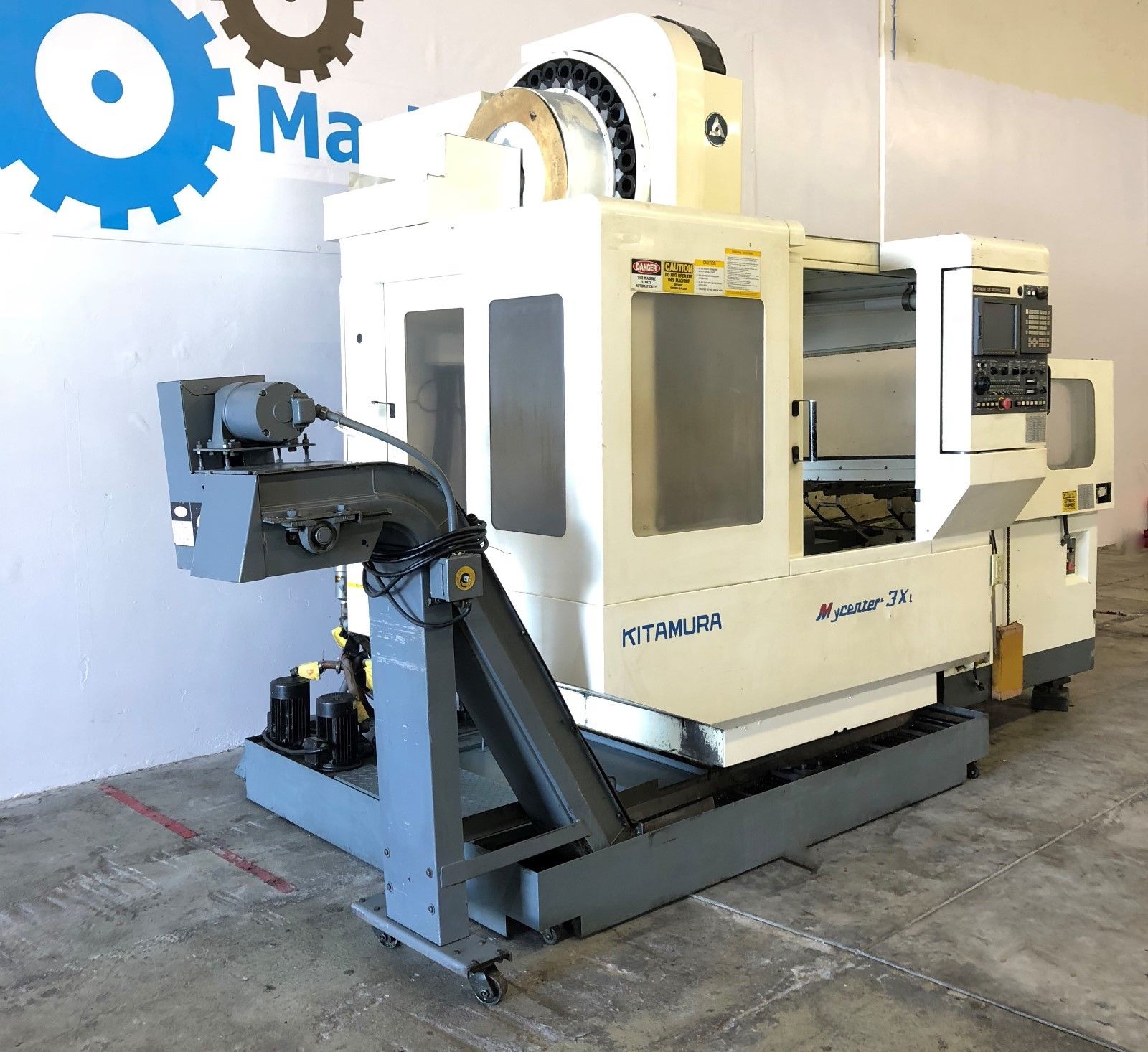

- Chip Conveyor
- Work light
- Books and Manuals
- Kitamura MyCenter 3xi Specifications:
- Travels:
- X-Axis: 29.9″
- Y-Axis: 17.9″
- Z-Axis: 18.1″
- Distance from Table to Spindle Nose: 5.1″ – 23.2″
- Distance from Column to Table Center: 8.5″ – 26.4″

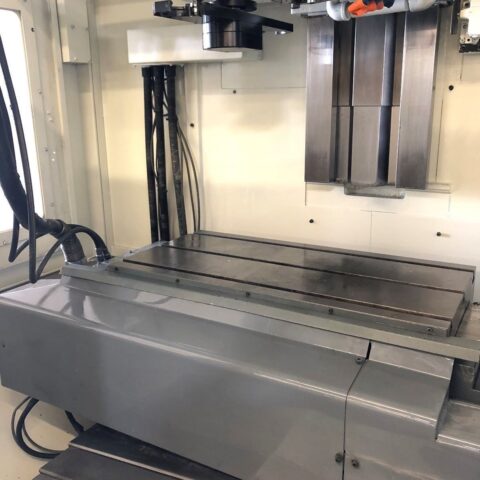

- Table:
- Length: 32.3″
- Width: 16.1″
- Max Weight on Table: 440 lbs

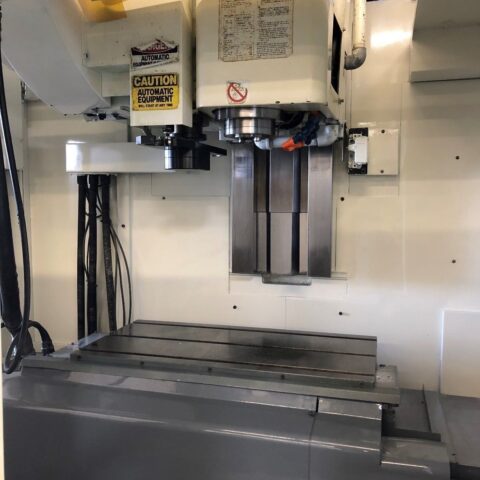

- Spindle:
- Taper Size: 40
- Speed Range: 40 – 15,000 RPM
- Spindle Power: 15 kw
- Feed rates:
- Rapid X,Y & Z: 1969/1417 inch/P.M
- Cutting Feedrate: 1417″ inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 30
- Max Tool Dia.: 3.1″
- Max Tool Length: 11.8″
- Tool Change Time: 1.2 Second
- General:
- Air Required: 80 psi, 4 scfm

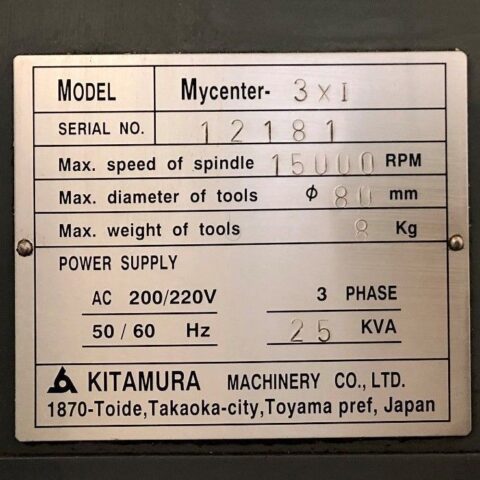

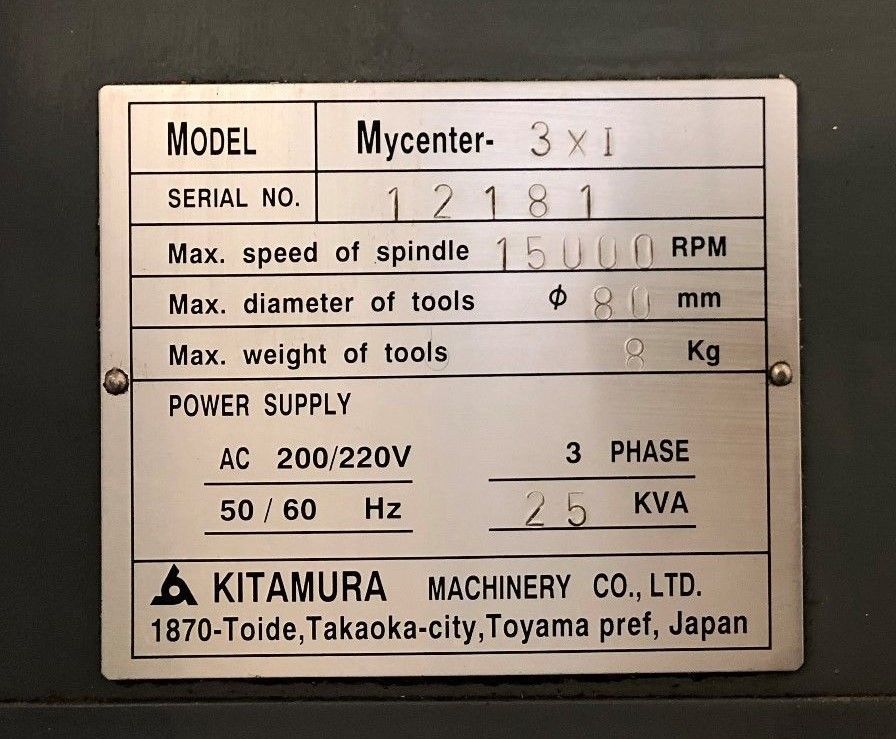

- Power: 25kva / 205-220v / 66FLA / 3-Phase
- Overall Dimensions: x x ″ High
- Weight: 16500 lbs

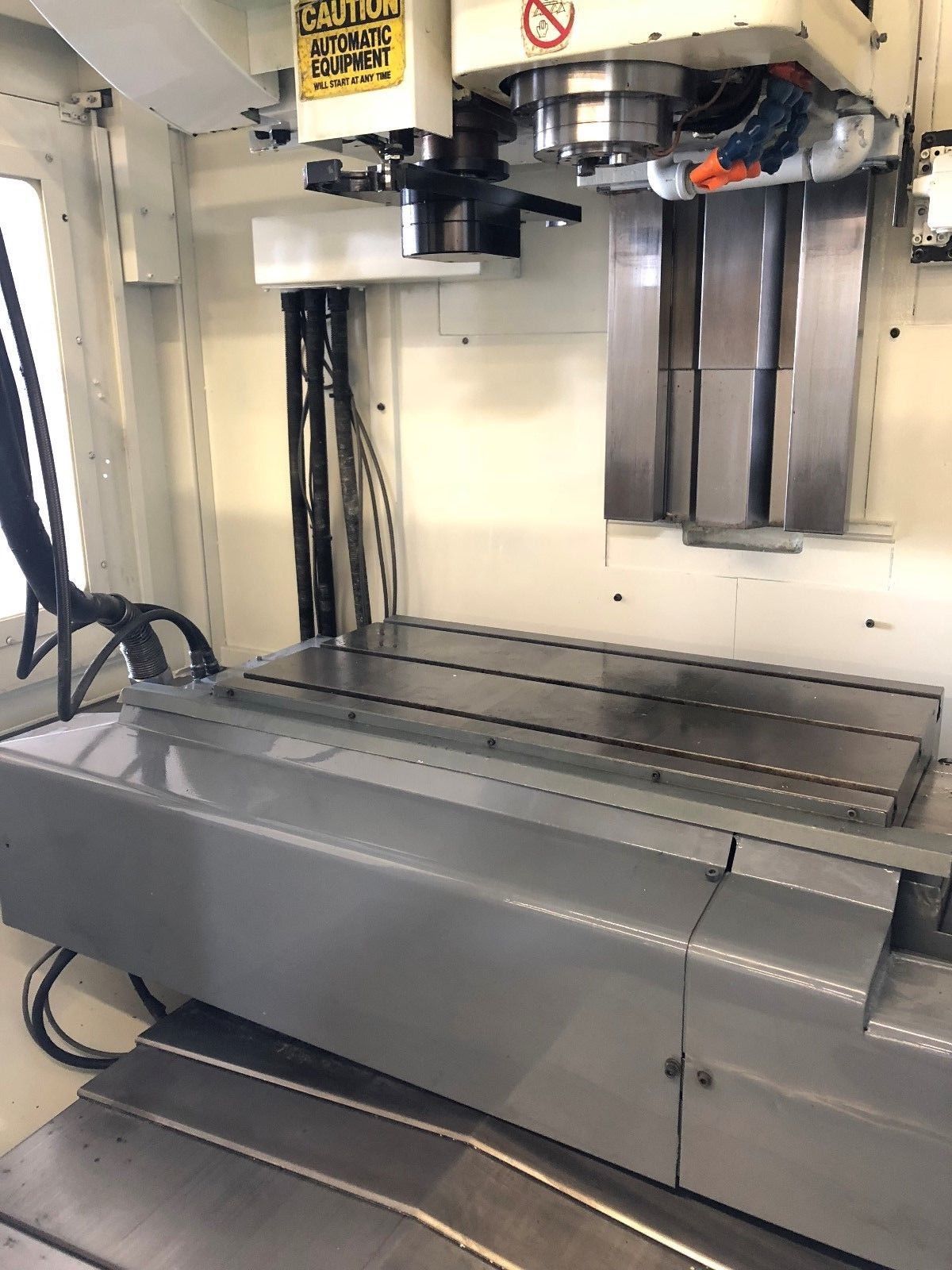

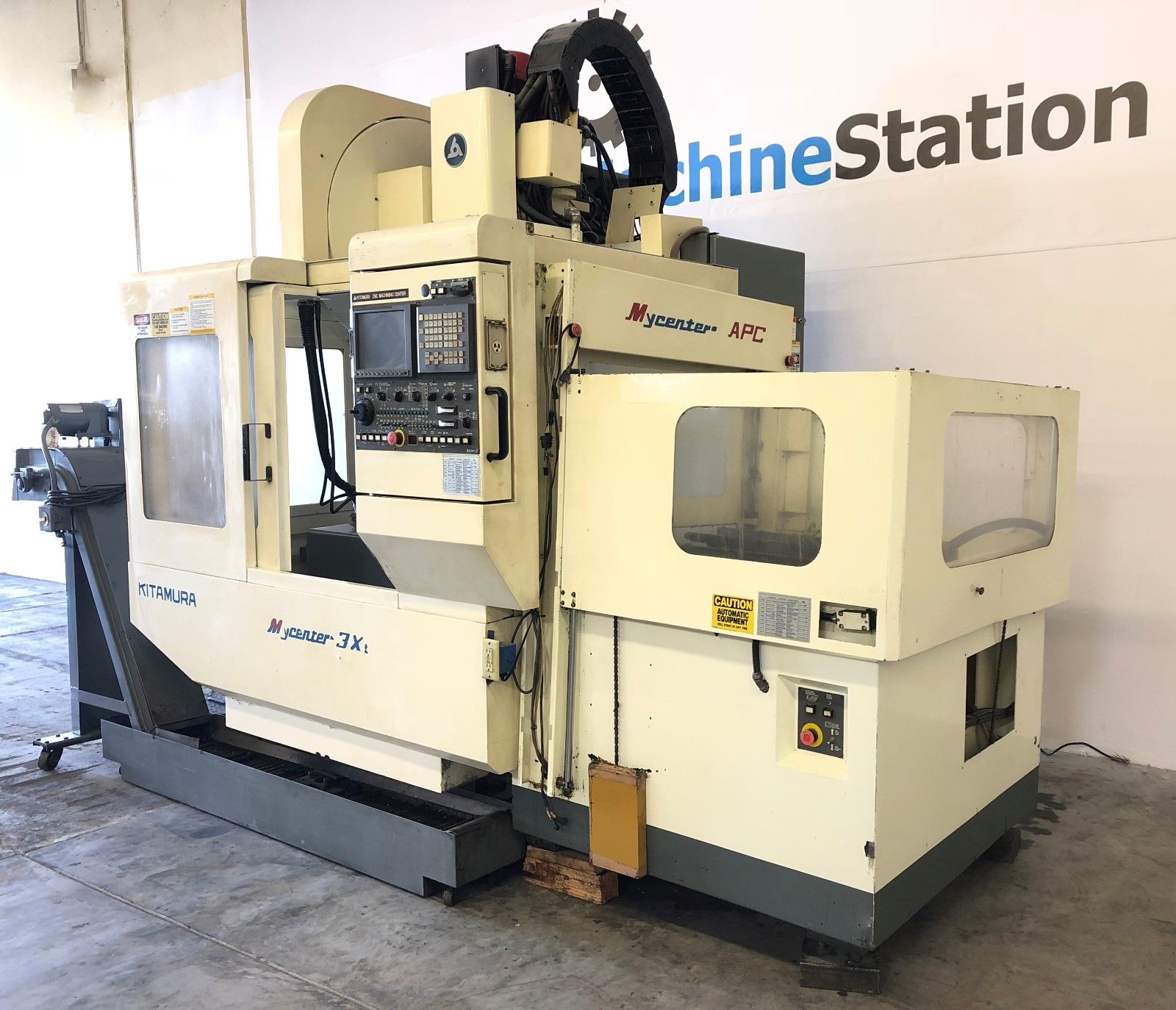

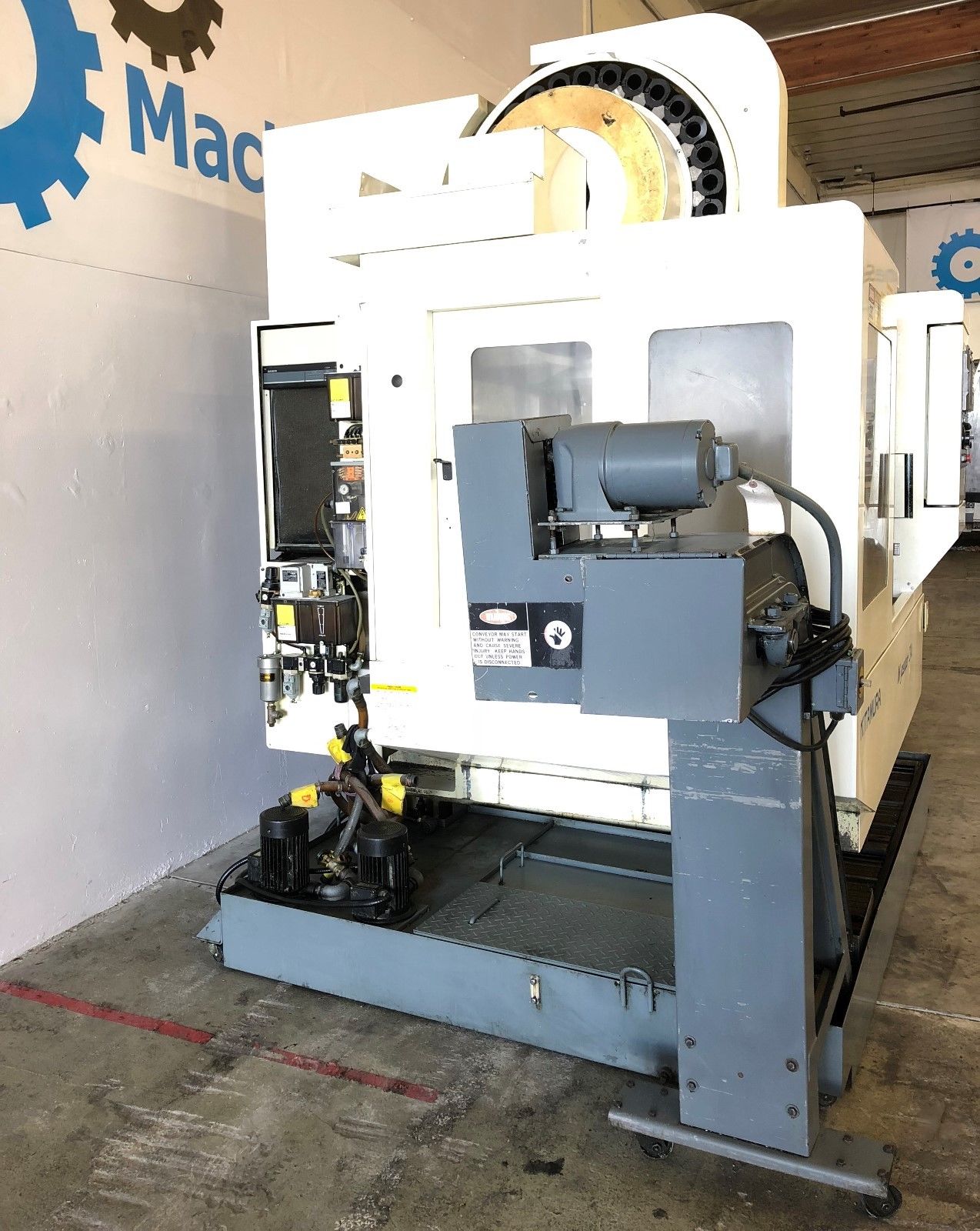

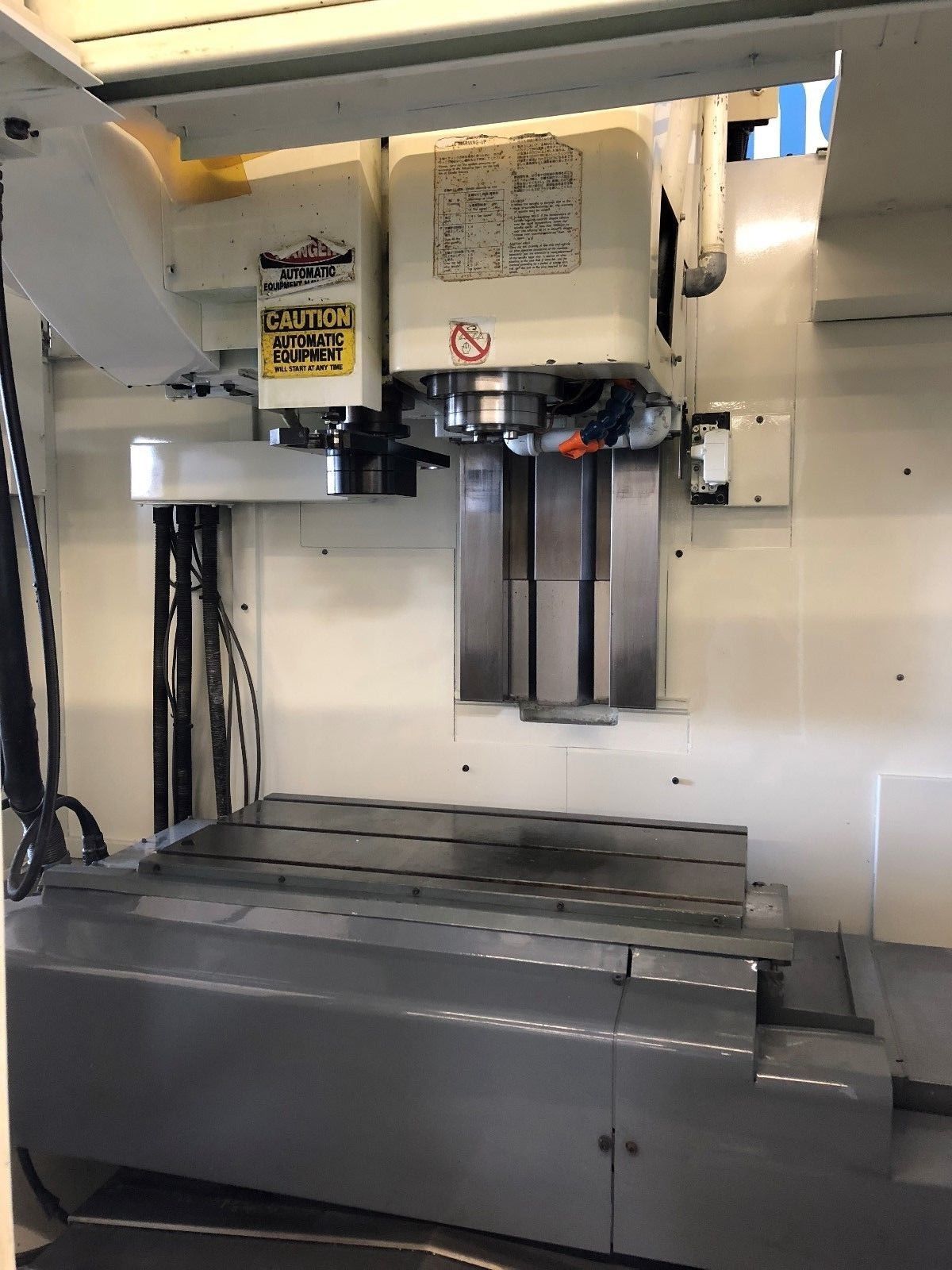

Kitamura MyCenter 3xi Comes as shown in pictures..
