| KITAMURA MYCENTER 4 CNC VERTICAL Machining Center | |
|---|---|
| Make | Kitamura |
| Model No. | Mycenter 4 |
| Year of Manufacture: | 2001 |

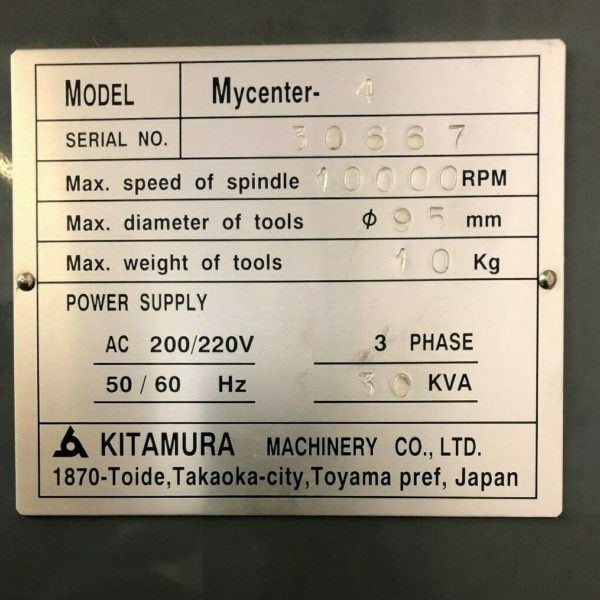

| Serial # | 30667 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
- Kitamura Mycenter 4 Features:

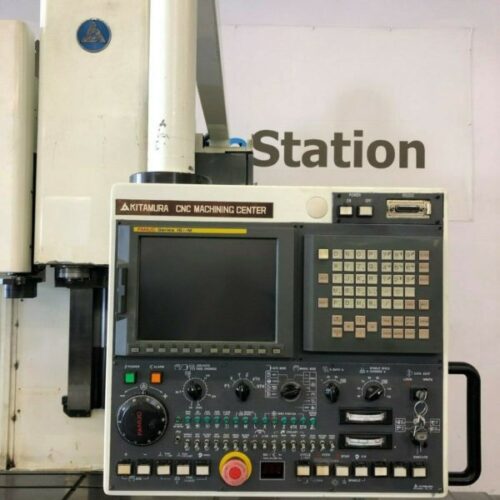

- Fanuc 16iM CNC Control
- 10,000 RPM High Precision Spindle
- Coolant through Spindle
- 30 Tools Side Mount High Speed Tool Changer
- PCMCIA Card Slot
- 128 MB Memory
- Box Way Construction All Axis
- Powerful 20 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Helical Interpolation
- Rigid Tapping
- Absolute Incremental Programming
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank

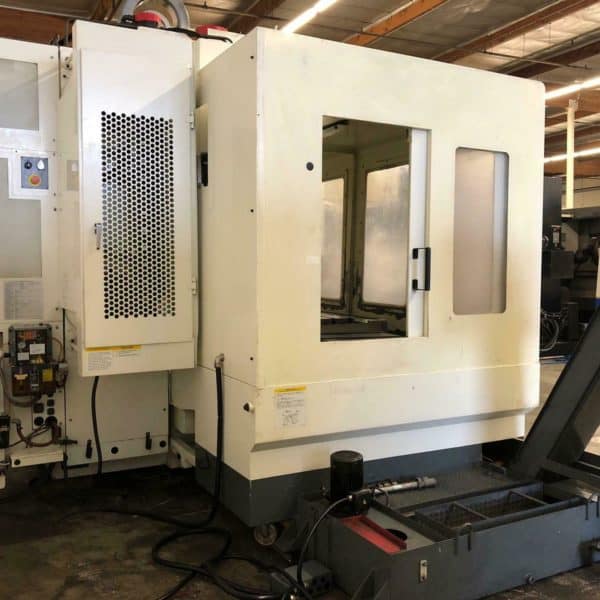

- Chip Conveyor
- Work light
- Books and Manuals
- Kitamura Mycenter 4 Specifications:
- Travels:
- X-Axis: 44.3″
- Y-Axis: 22.2″
- Z-Axis: 22.4″

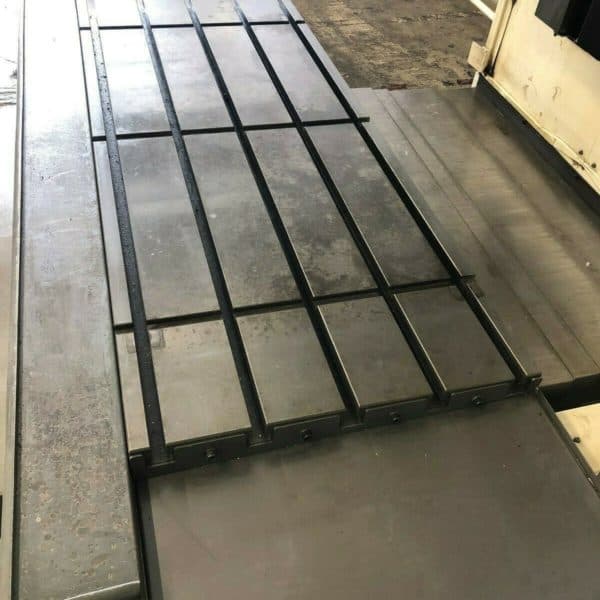

- Table:
- Length: 55.1″
- Width: 22.4″
- Max Weight on Table: 2200 lbs
- T-Slot : 0.7″ X 5 Slots
- Table to Spindle Nose: 6.4″ – 28.9″
- Table Center to Column : 12.0″ – 34.3″
- Spindle:
- Taper Size: 40
- Speed Range: 20 – 10,000 RPM
- Spindle Power: 20 HP
- Feed rates:
- Rapid X,Y & Z: 945/630″ inch/P.M
- Cutting Feedrate: 590″ inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 30
- Max Tool Size: 3.7″ X 13.8″
- Max Tool Weight: 22 lbs.
- Tool Change Time: 1.7 Second
- General:
- Air Required: 80 psi, 4 scfm
- Power: 25kva / 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 120 x 97 x 110″ High
- Weight: 21,000 lbs

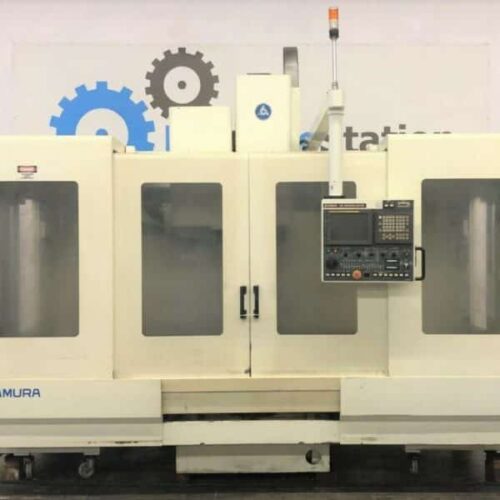

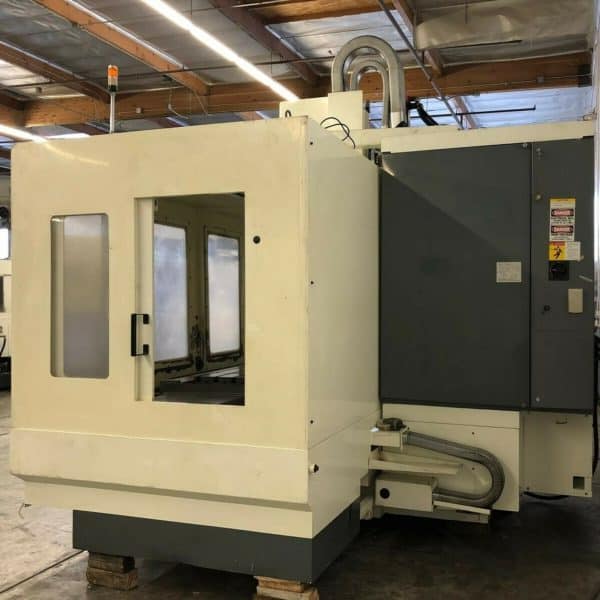

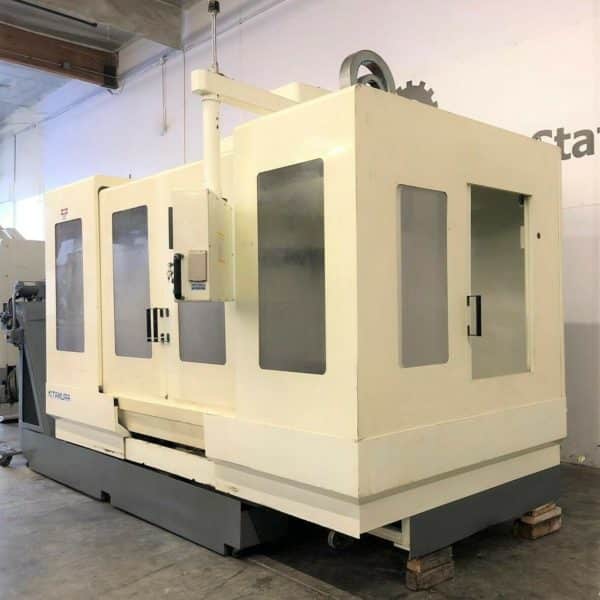

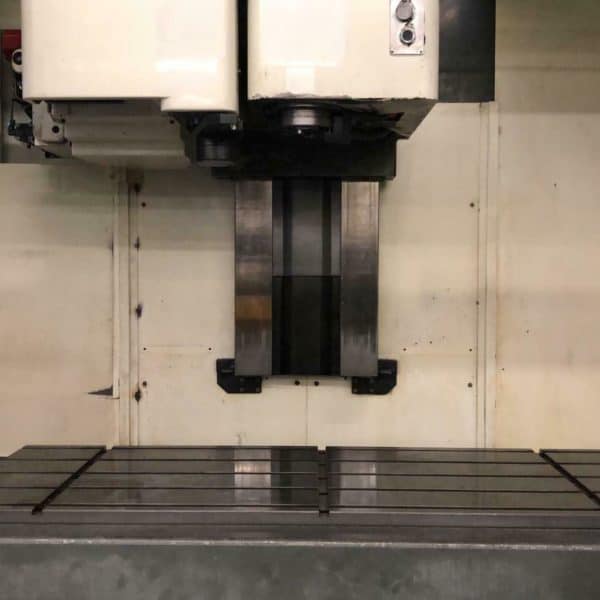

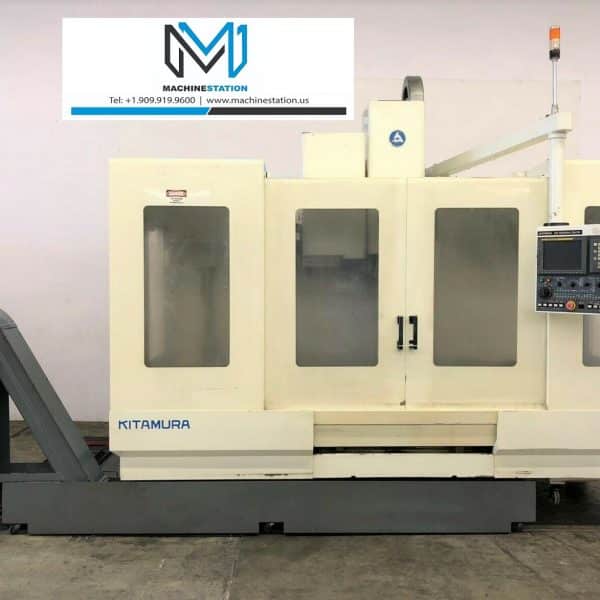

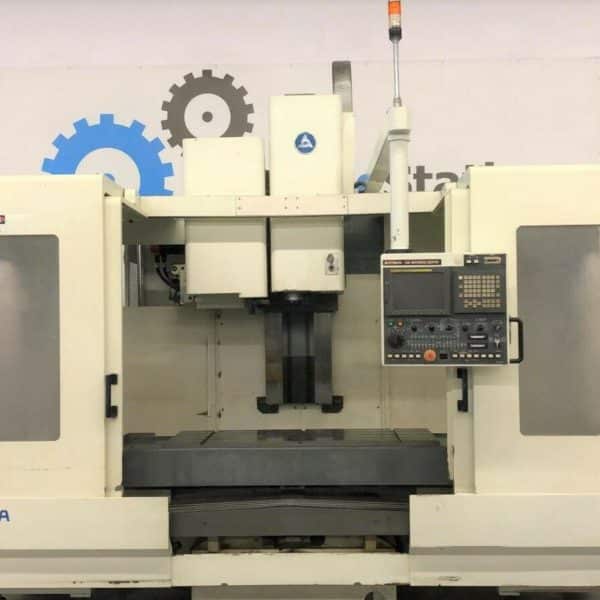

Kitamura Mycenter 4 Comes as shown in pictures..
