*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |

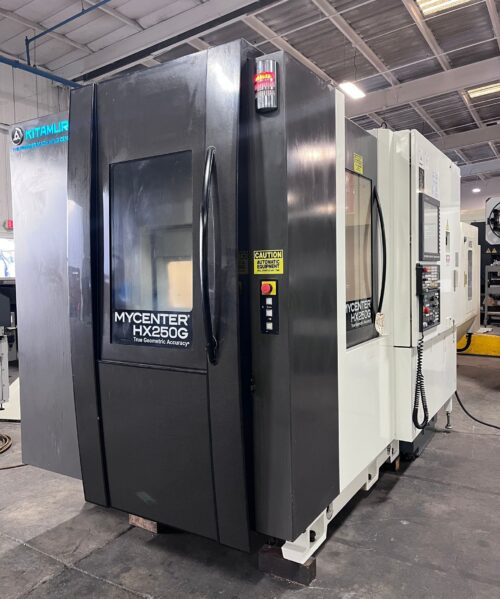

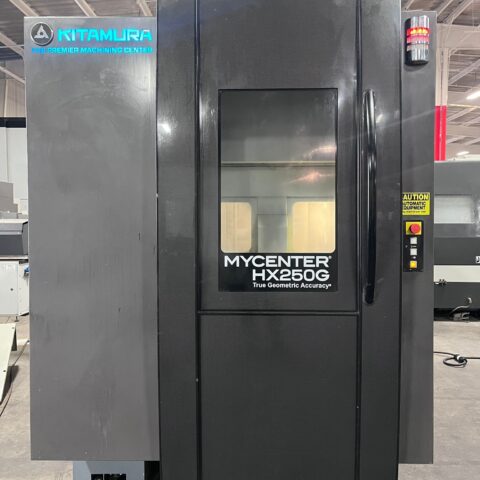

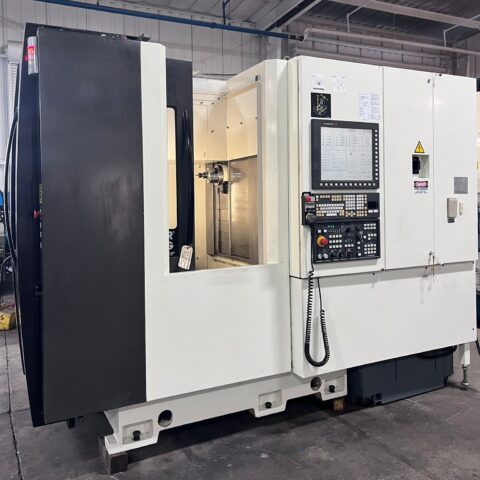

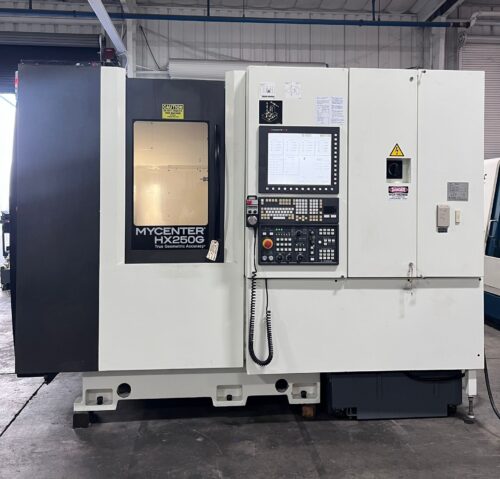

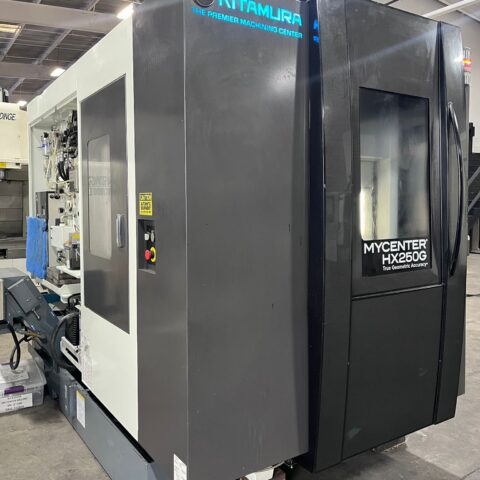

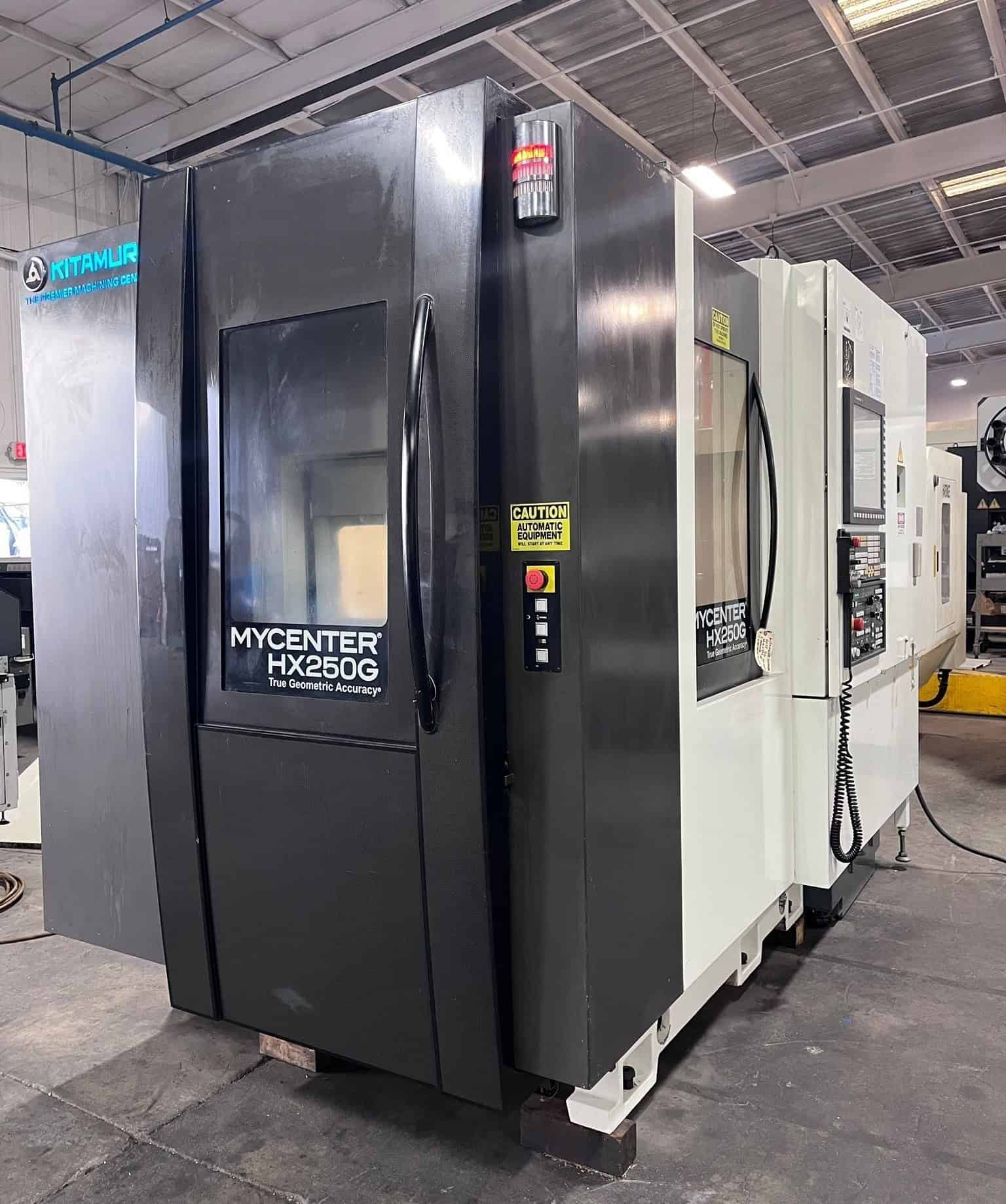

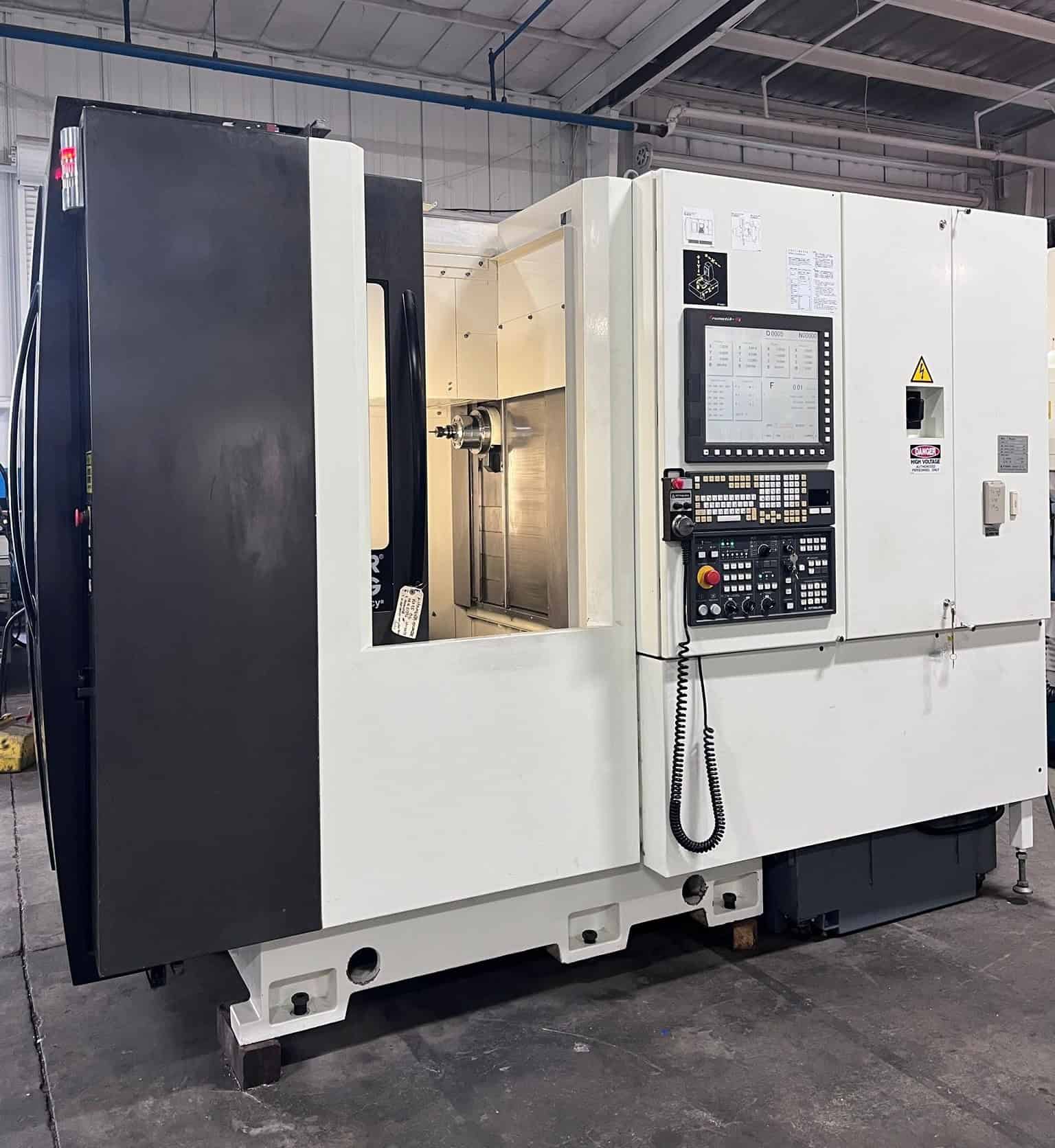

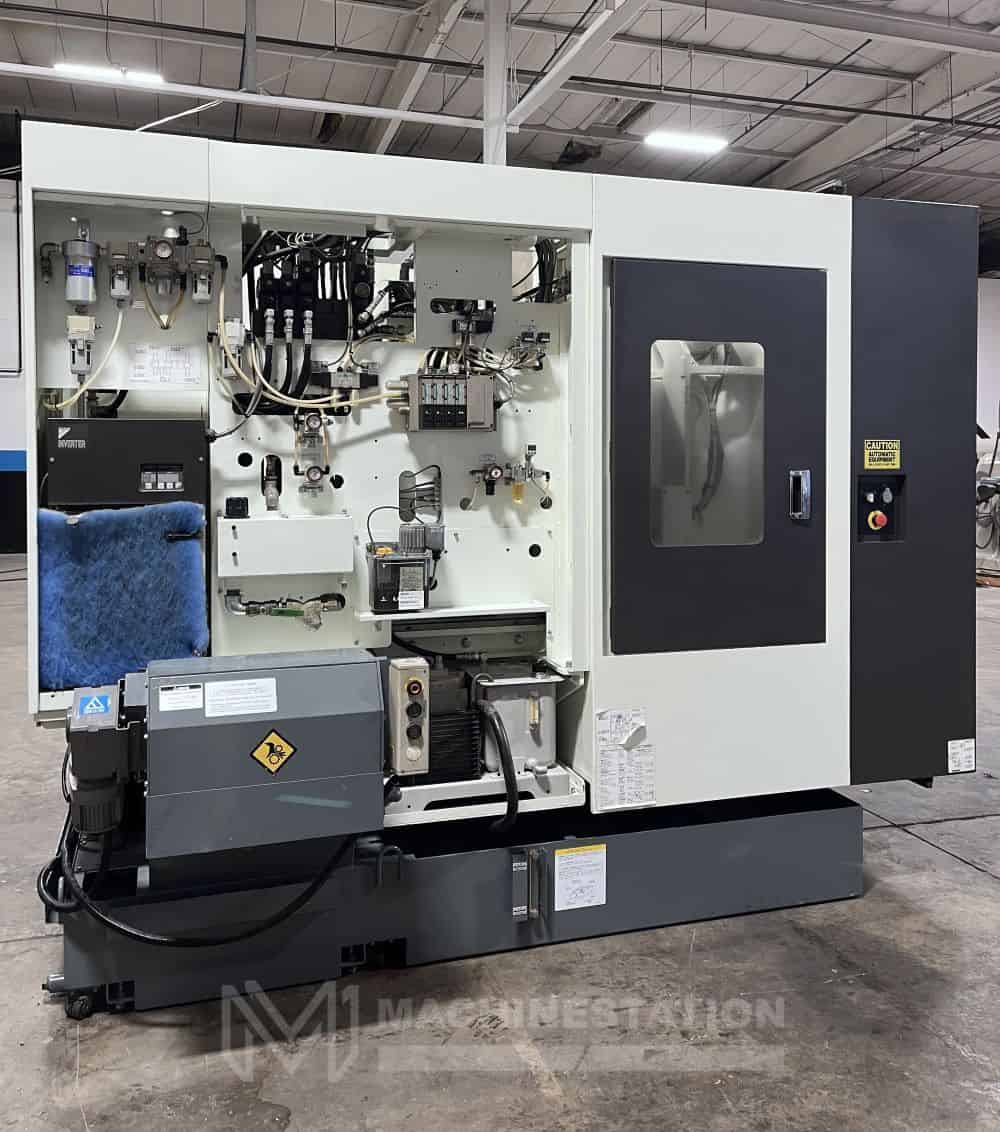

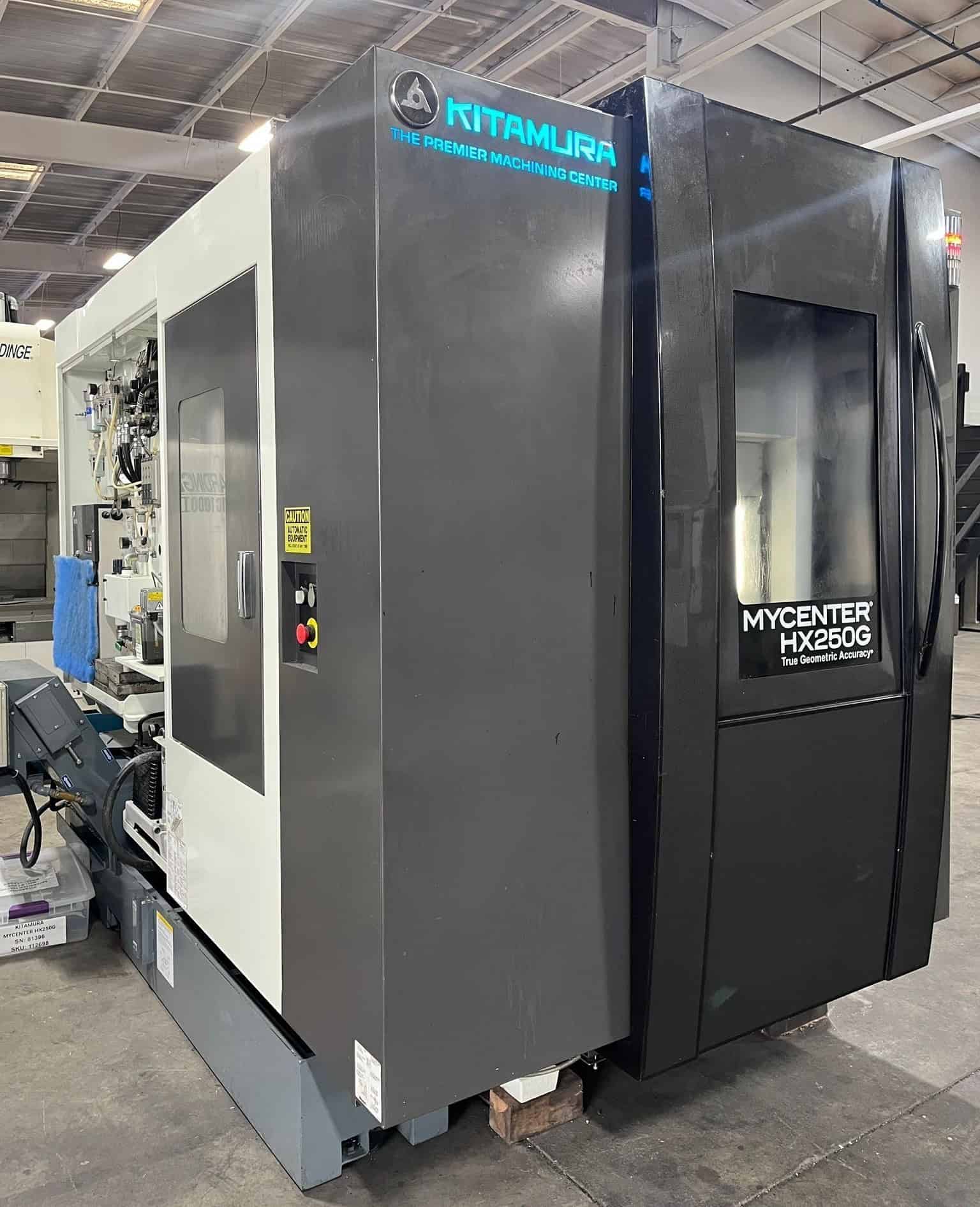

Kitamura |
| Model: |
Mycenter HX250G |
| Year: |
2014 |
| Condition: |
Used – Good |
| Features: |

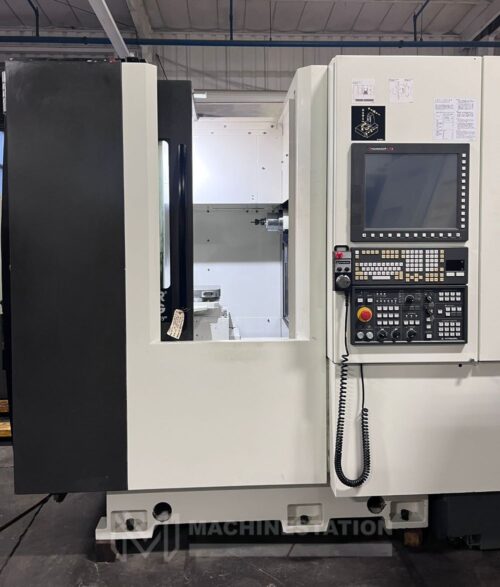

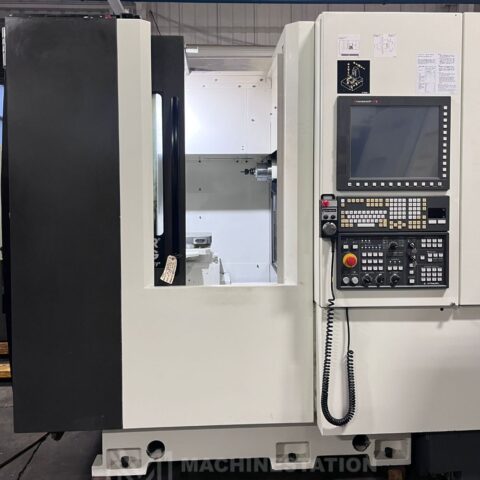

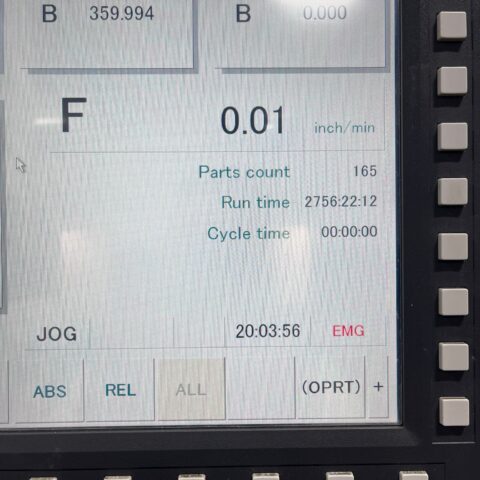

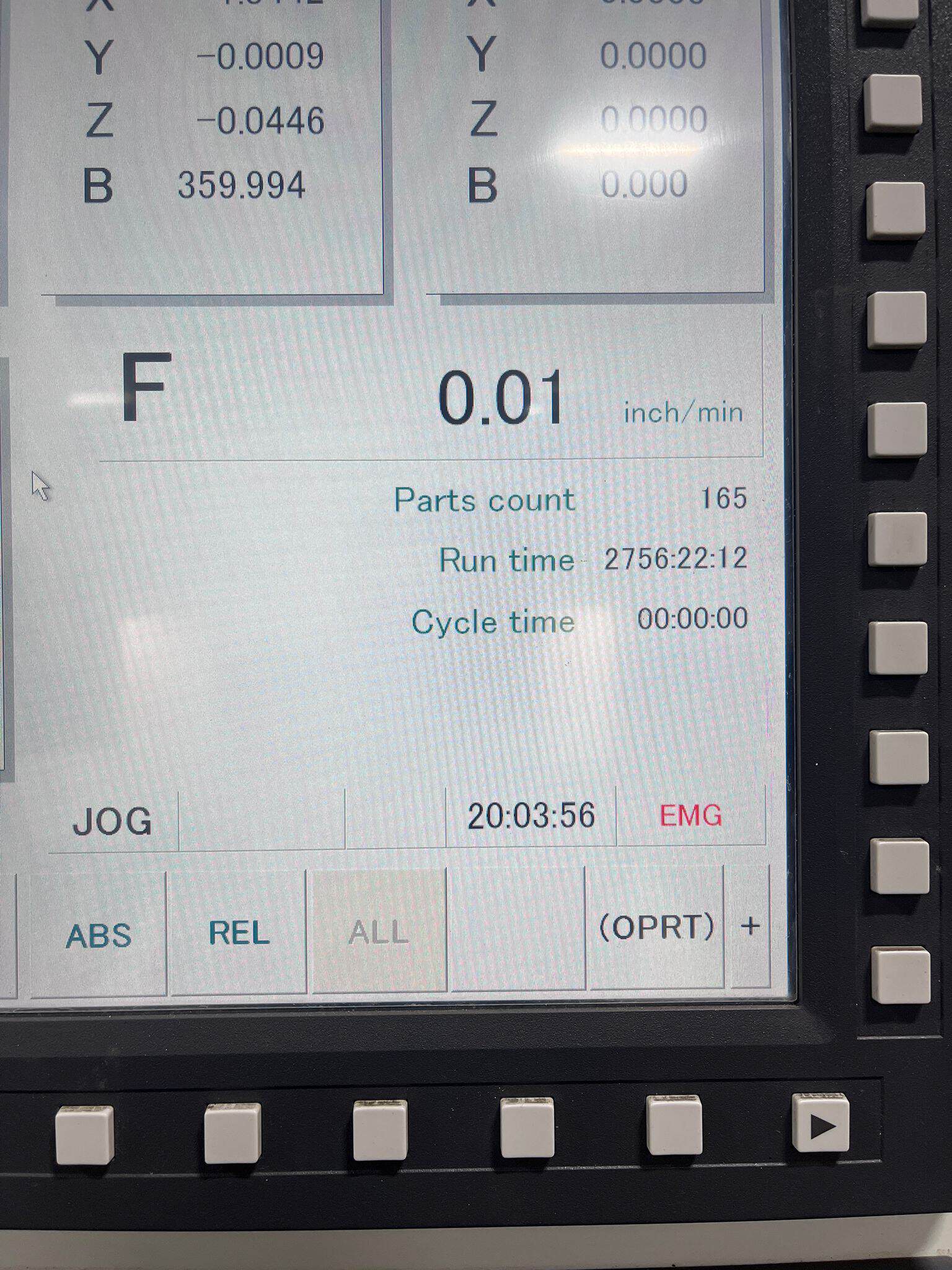

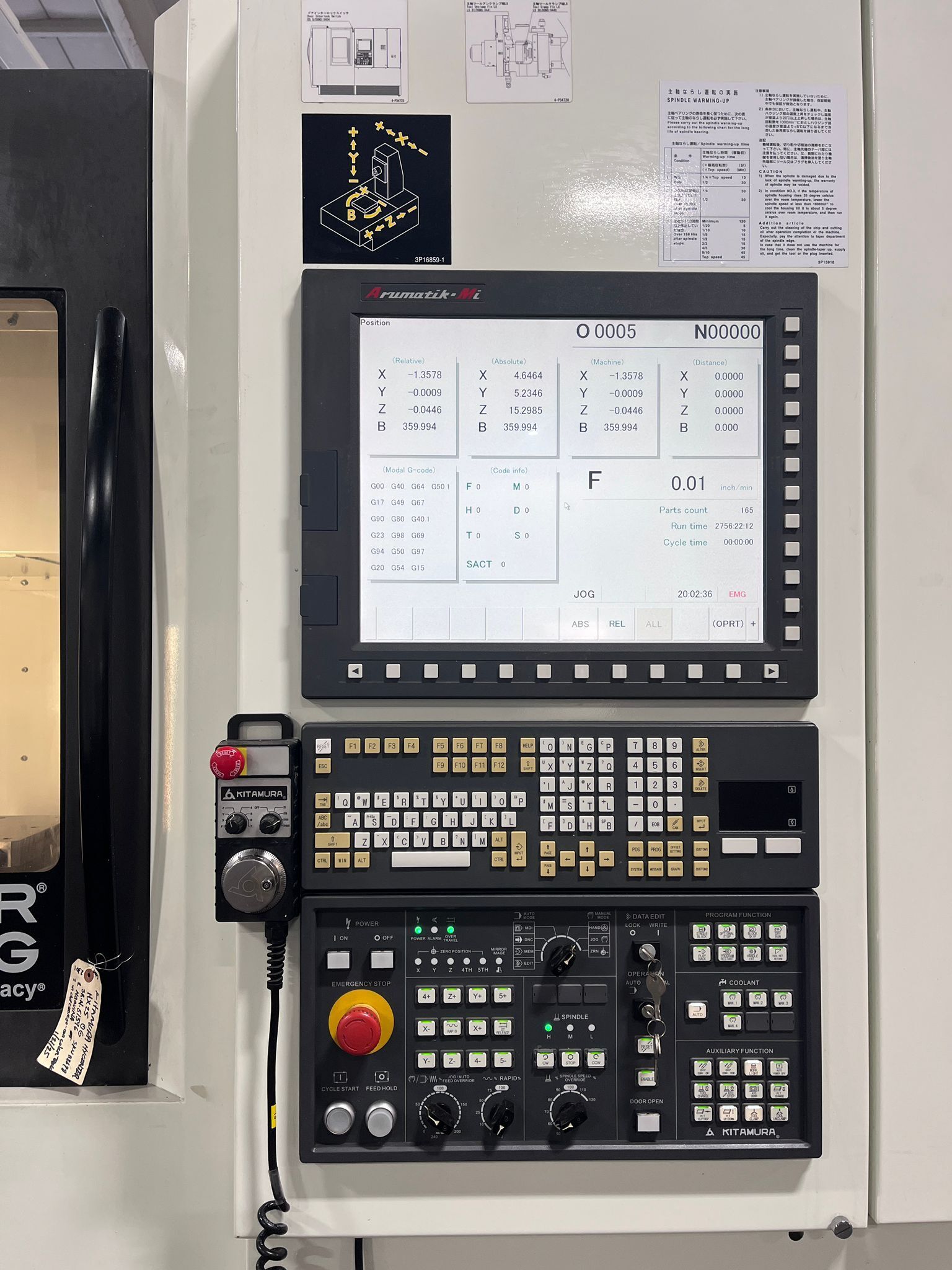

- Arumatik-Mi CNC Control

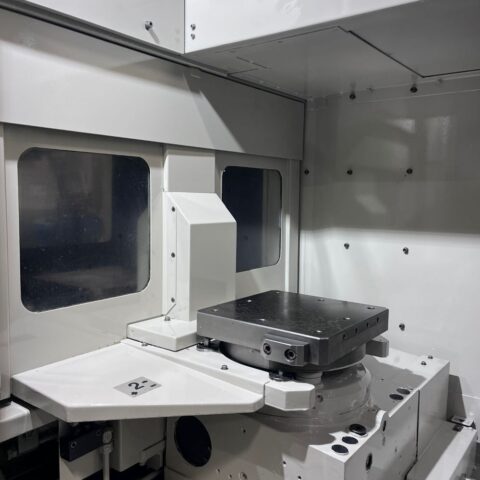

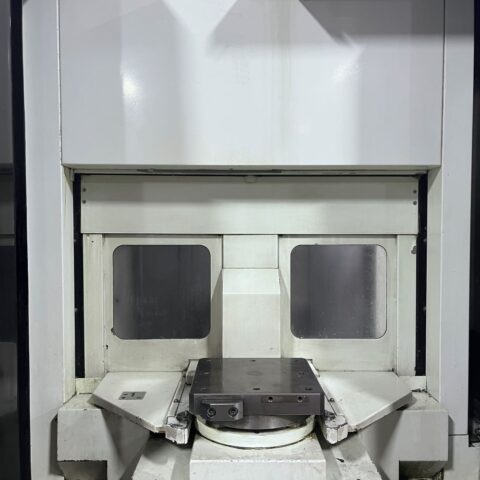

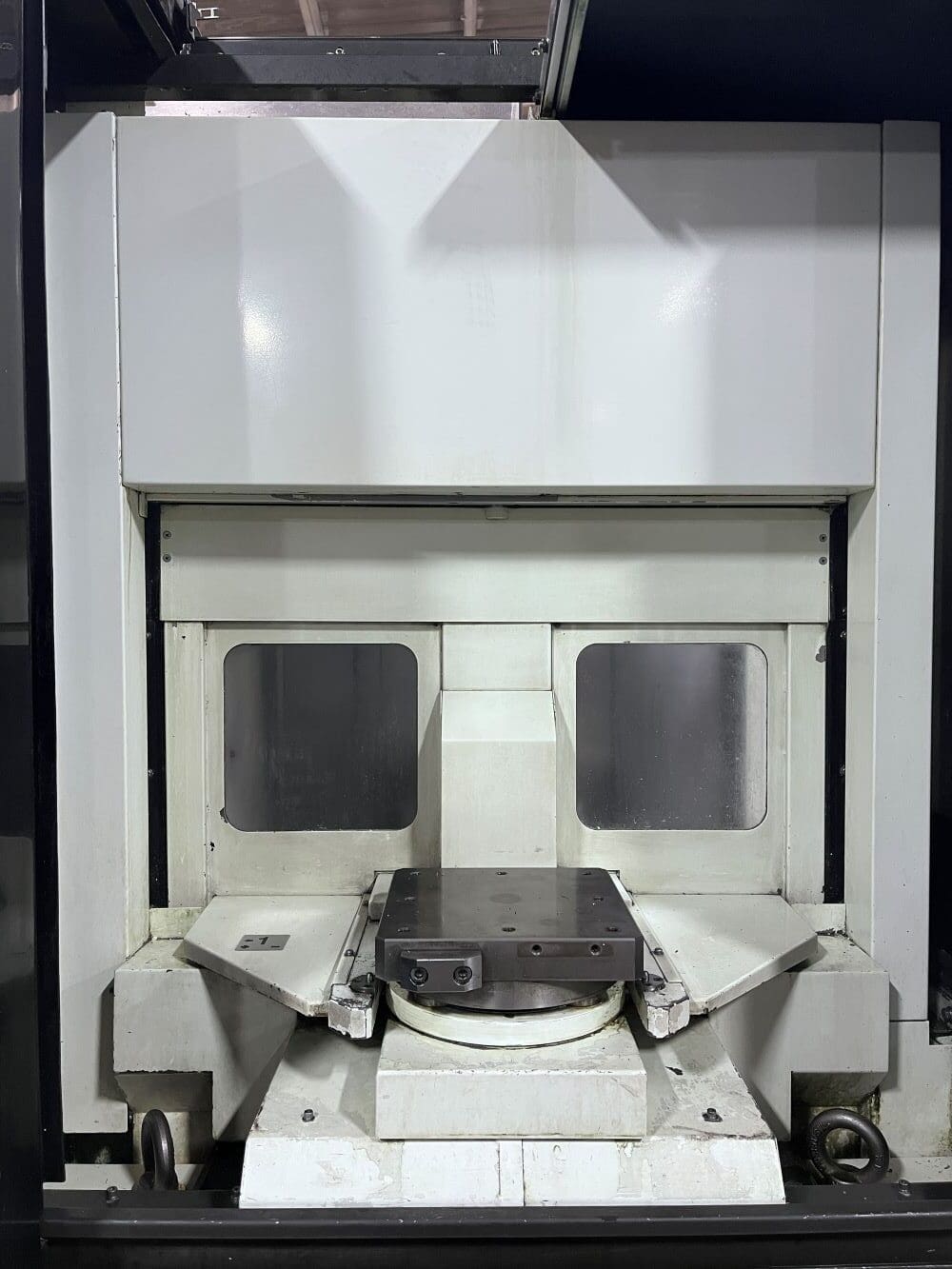

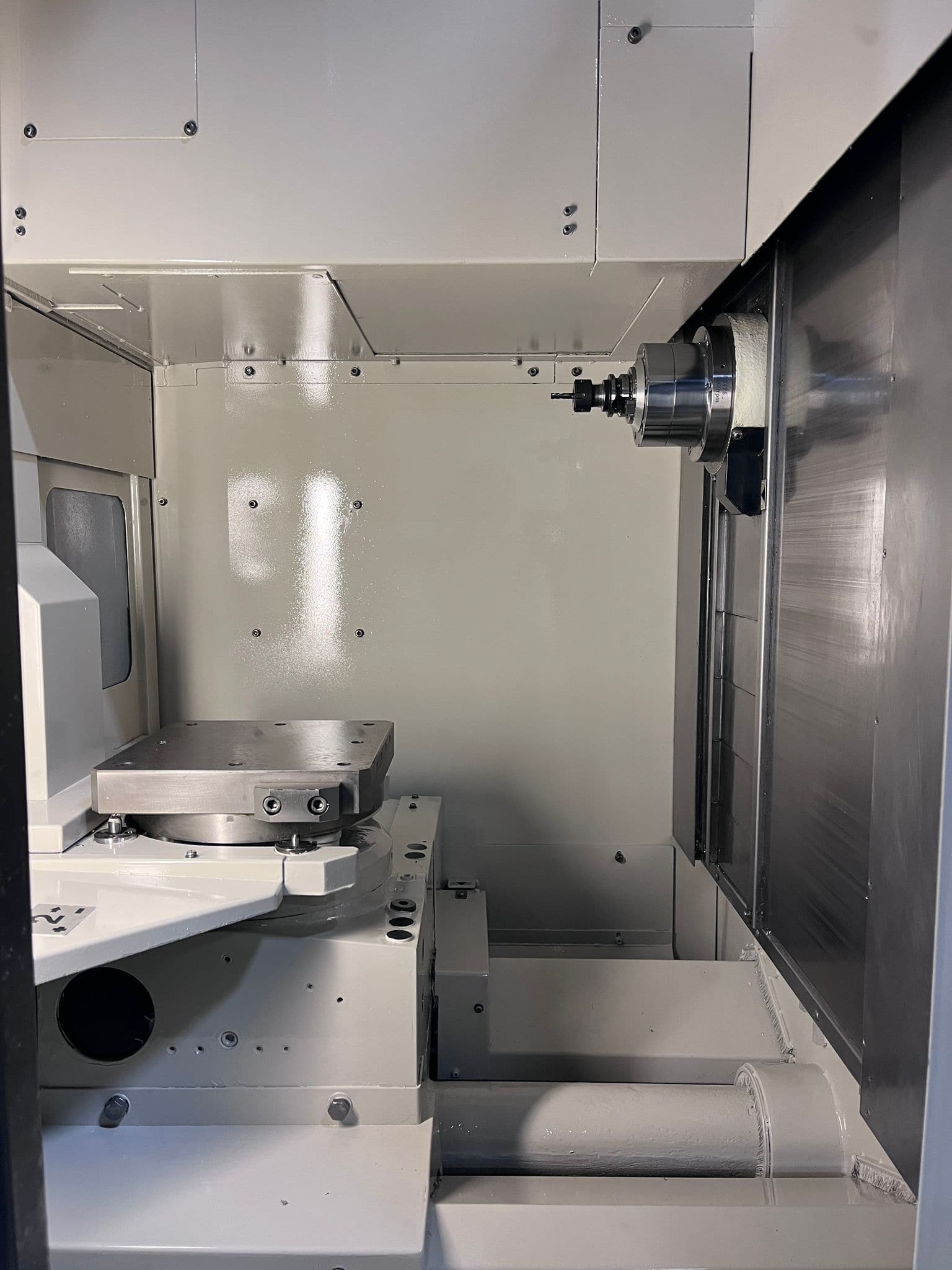

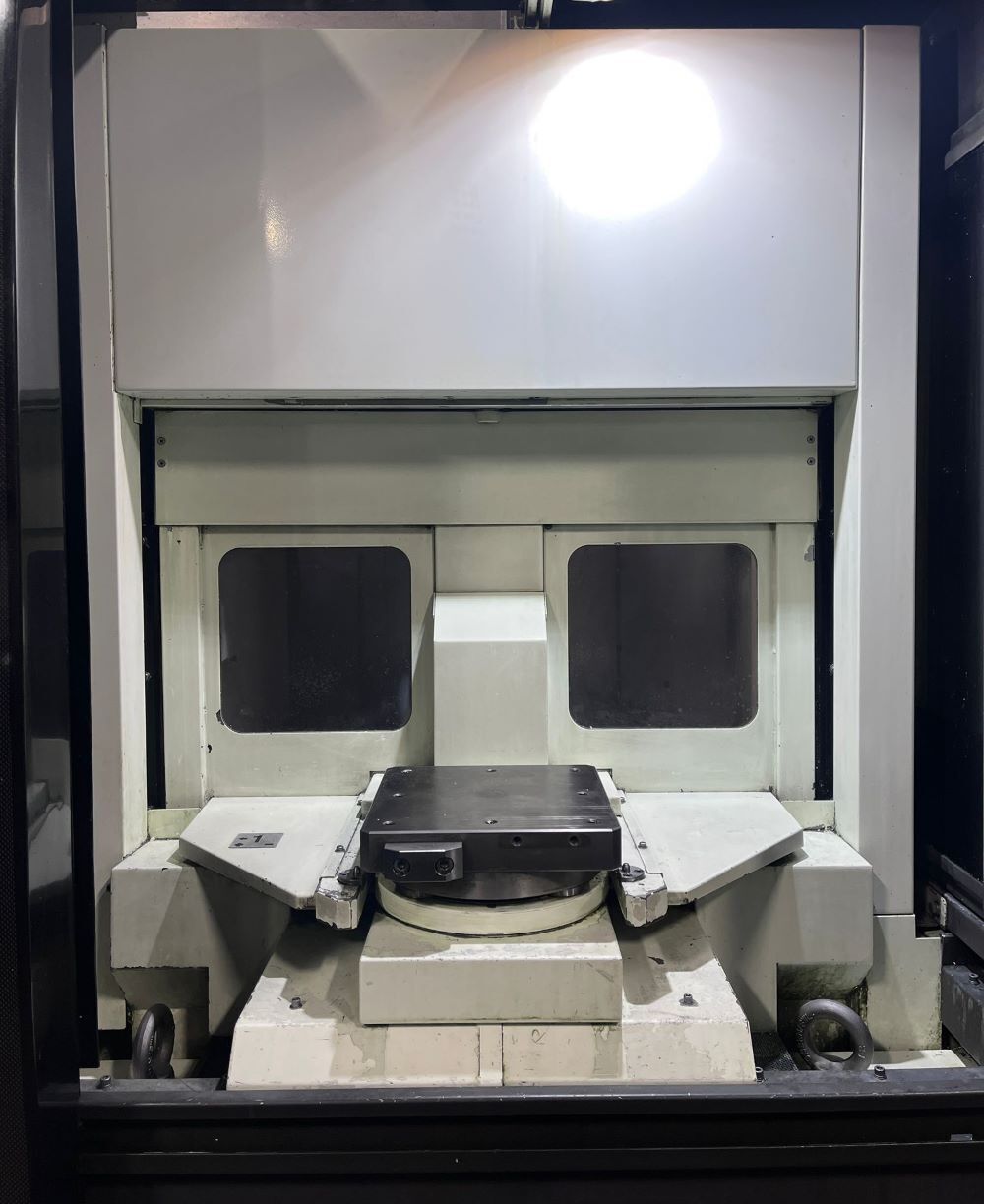

- 2-Station APC with High Speed 180° Rotary Table
- 0.001° Full 4th Axis Table Indexing
- 15,000 RPM High Speed Spindle

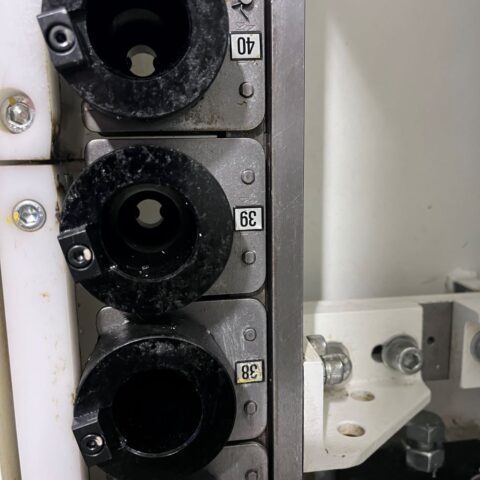

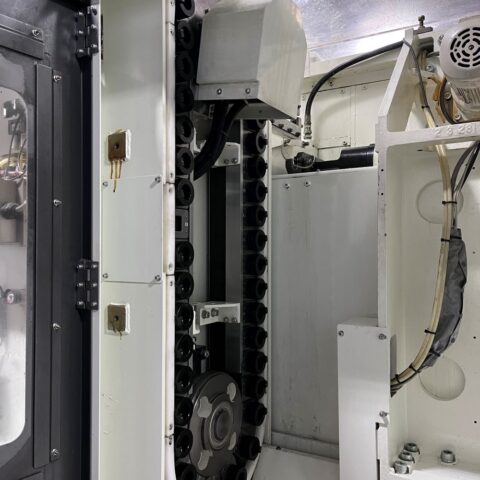

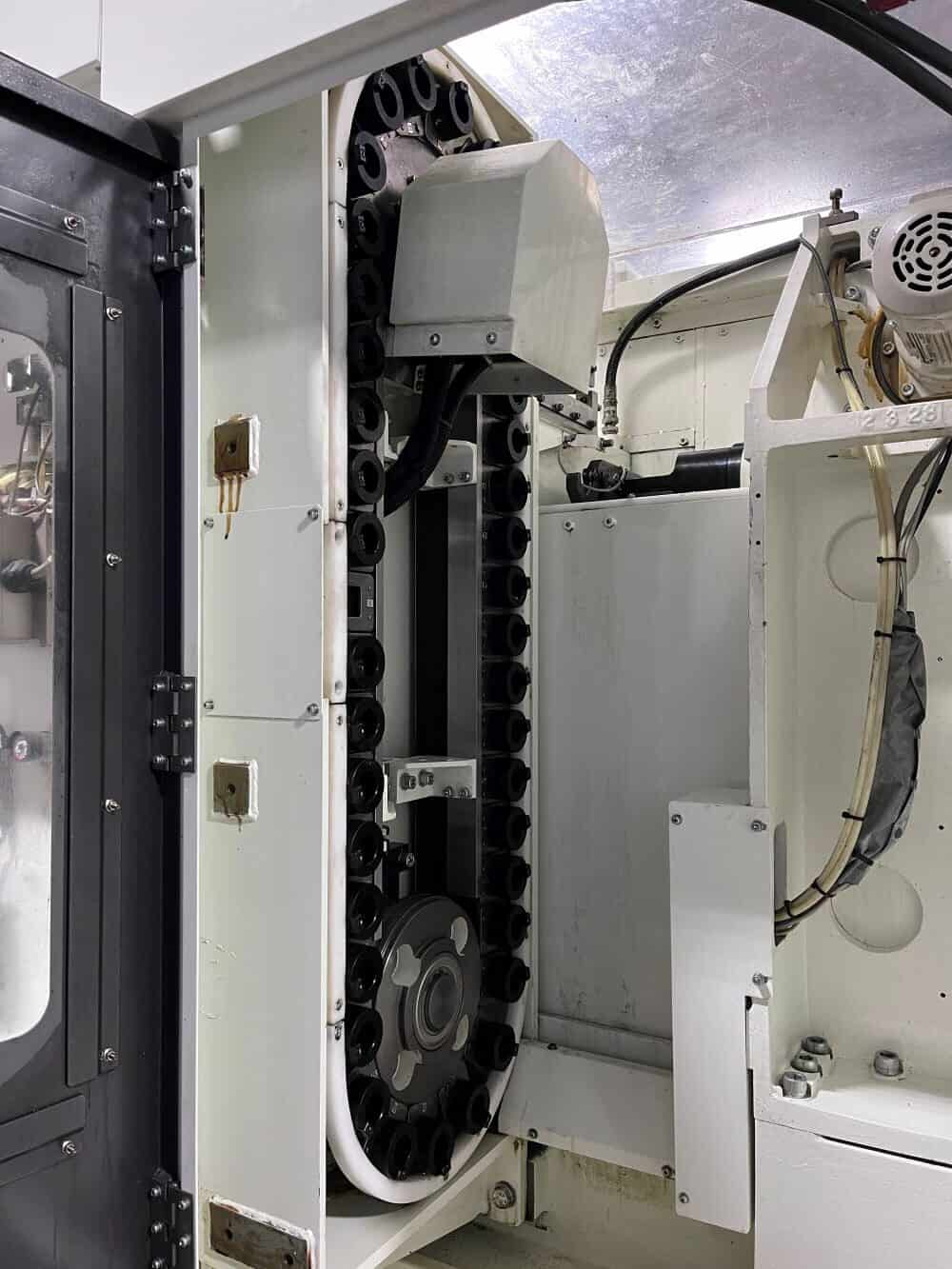

- 40 Station Automatic Tool Changer
- BT-30 Spindle Taper
- Through Spindle Coolant
- Fast Rapid Traverse Rate
- MPG Handwheel Control
- Pallet Seat Detection
- Spindle Orientation
- Rigid Tapping

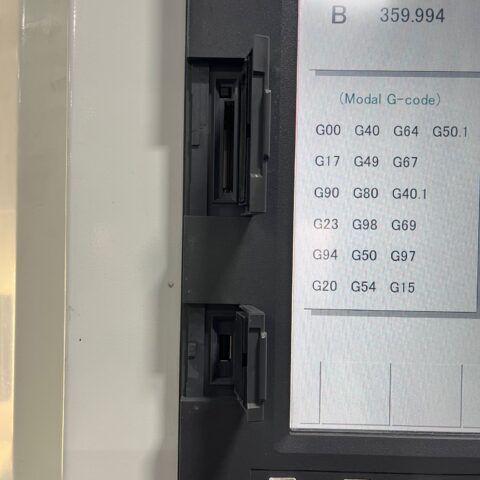

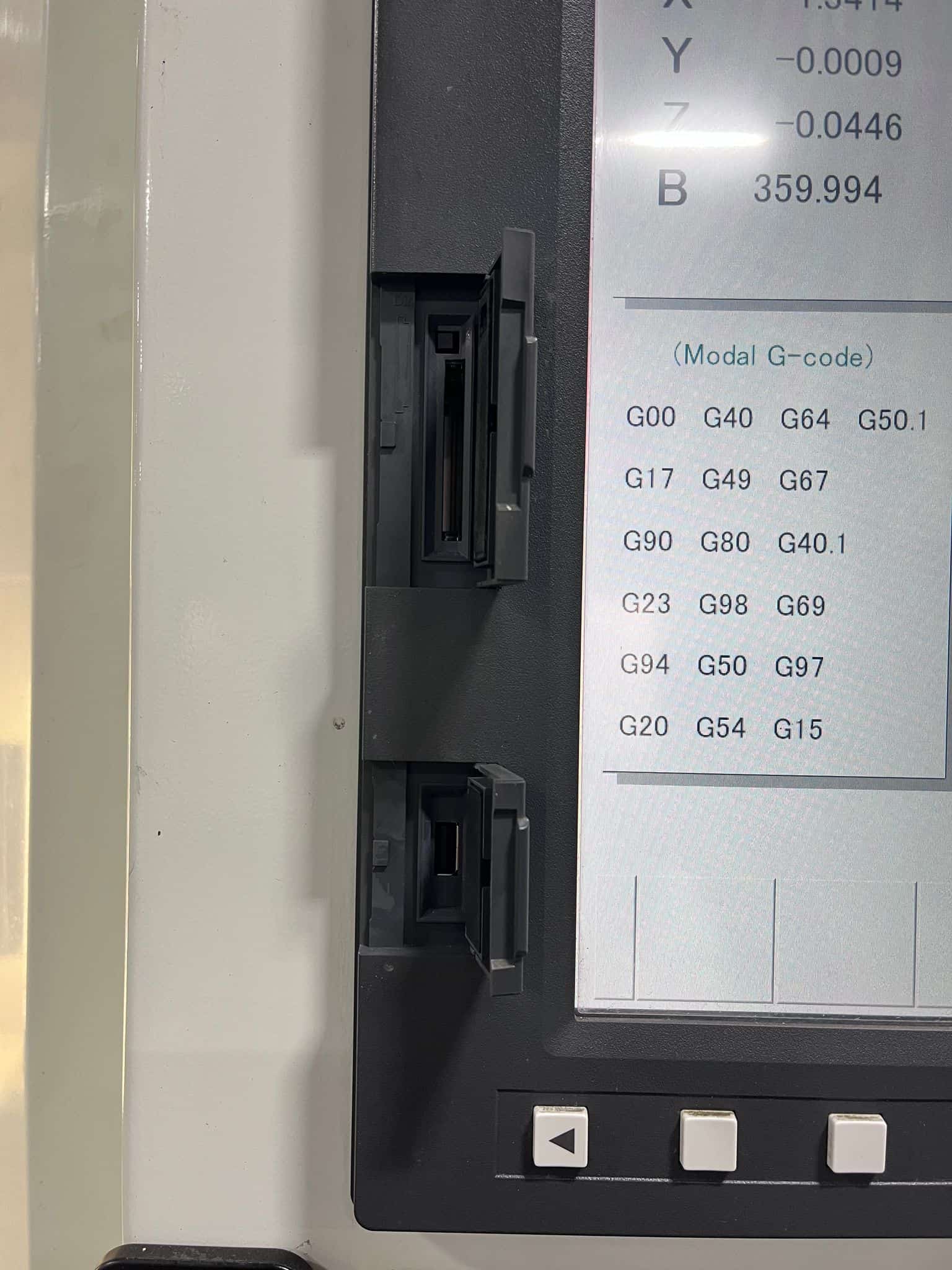

- PCMCIA Card Slot
- Spindle Chiller
- Automatic Lubrication System
- Coolant System
- Chip Conveyor
|
| Travels: |
- X Axis: 12″
- Y Axis: 12″
- Z Axis: 13″
- B Axis: 0.001° ( Full 4th )
- Table Center to Spindle Nose (Min – Max): 2.36″ – 15.35″
- Rapid Traverse Rate: 2362 Inch Per Minute
- Cutting Feedrate : 2362 Inch Per Minute
|

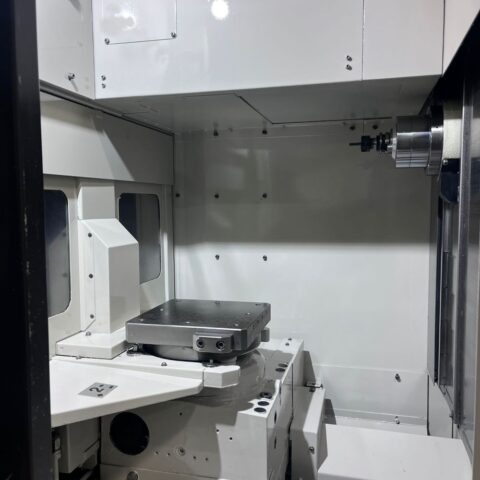

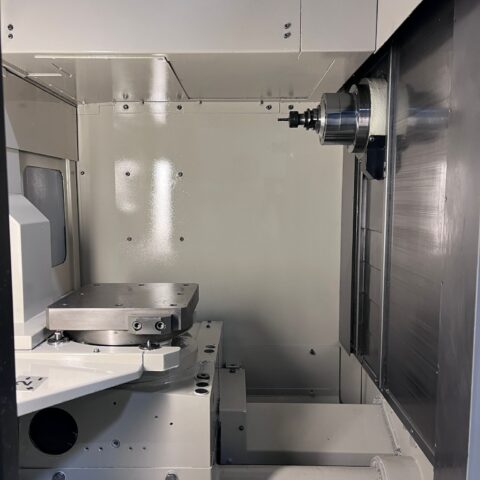

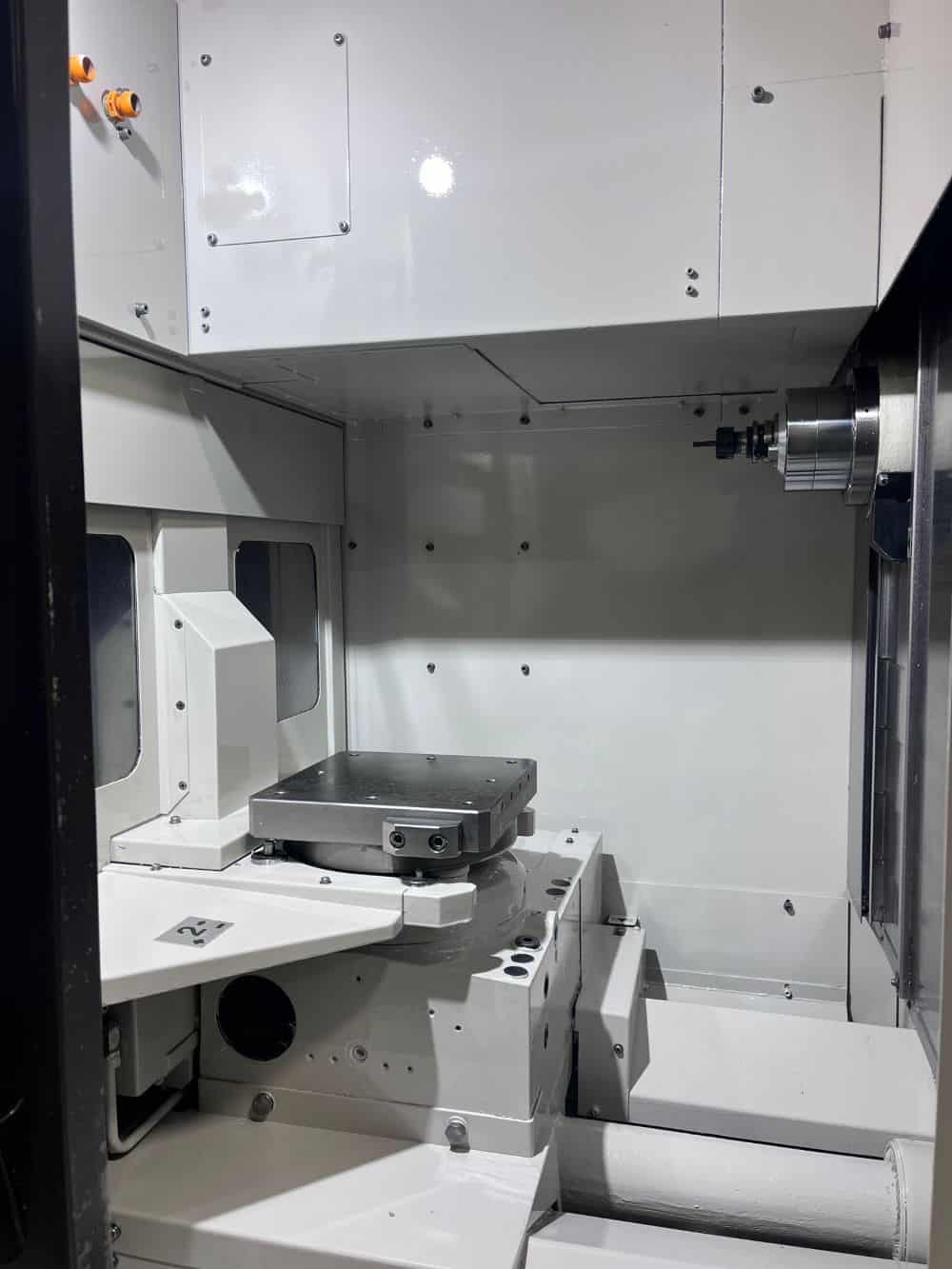

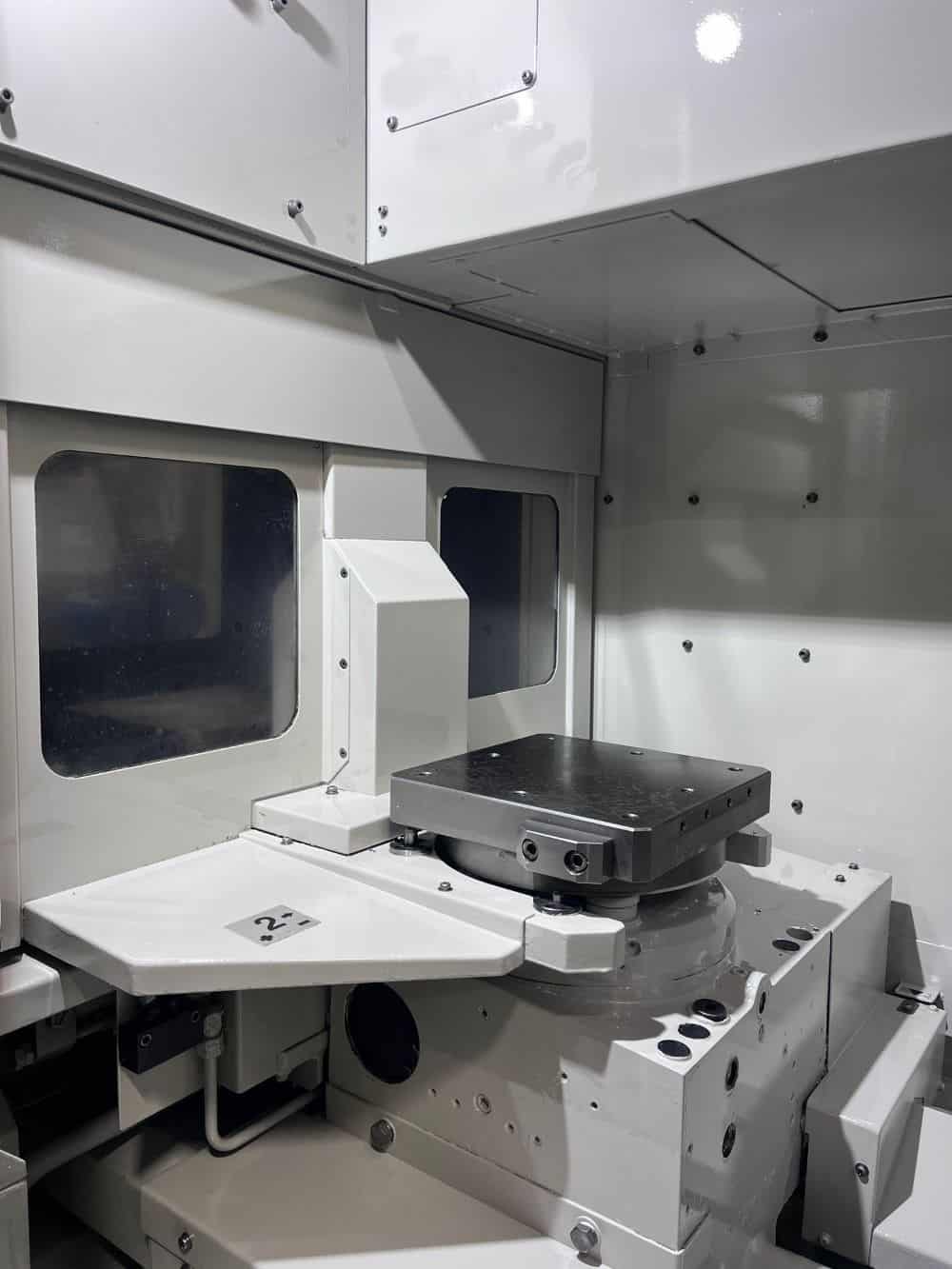

| Table: |
- Length: 10″
- Width: 10″
- Max Weight on Table: 220 lbs
- Max Workpiece Height: 15.75″
- Max Workpiece Diameter: 13.78″
- Automatic Pallet Change Time: 7.9 Seconds
|

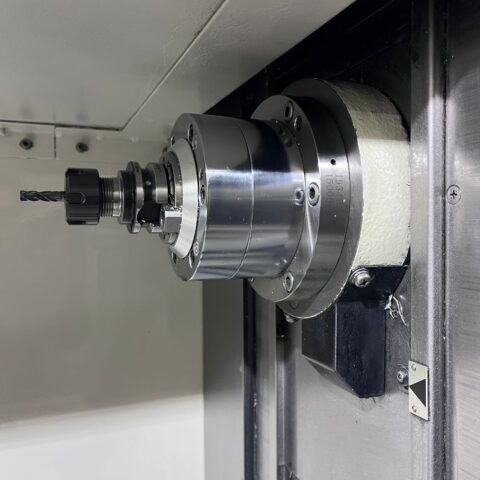

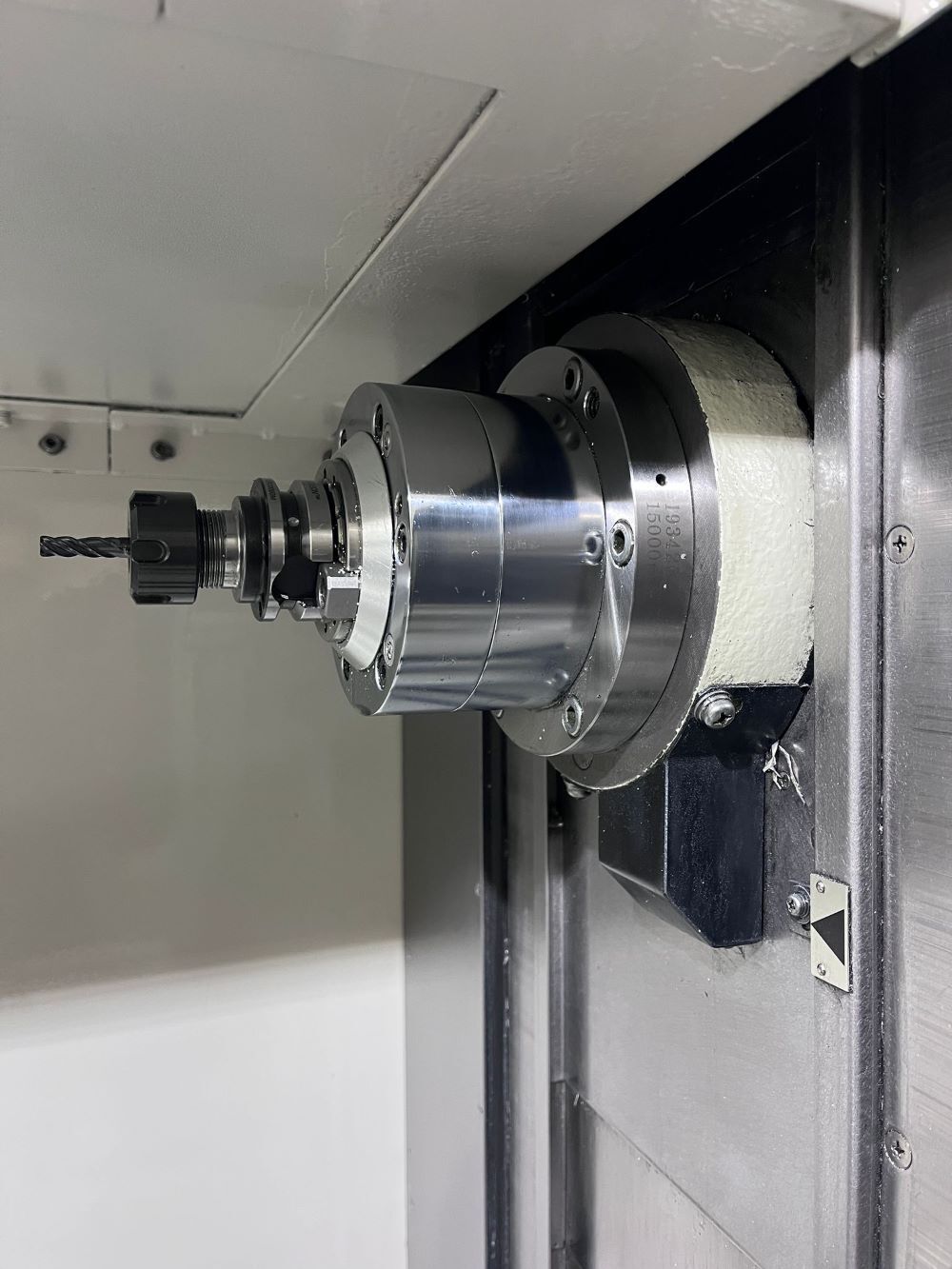

| Spindle: |
- Taper Size: BT-30
- Max. Speed: 15,000 RPM
- Power: 15 HP
|

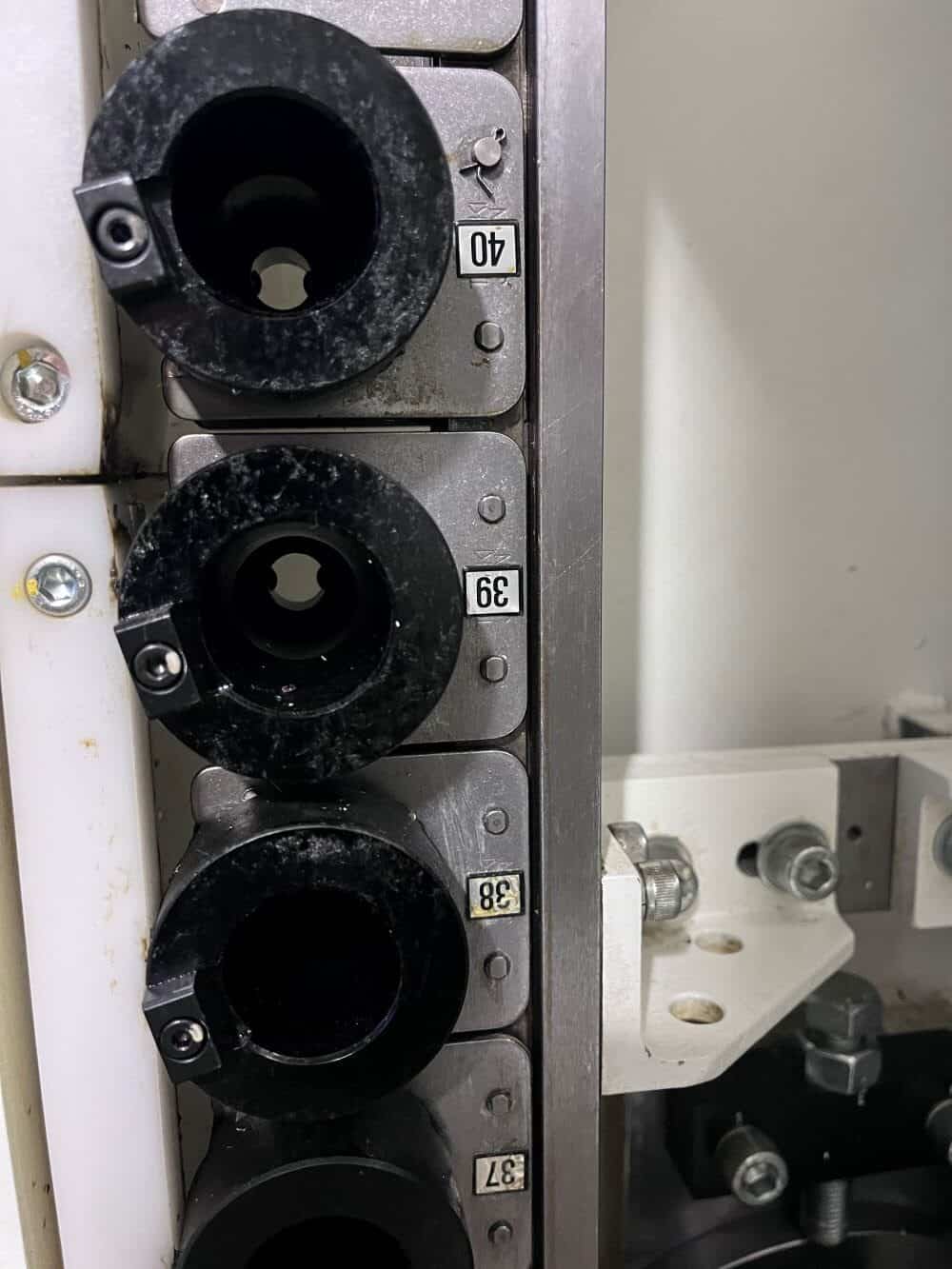

| Tool changer: |
- Capacity: 40 Tools
- Taper: BT-30
- Max Tool Diameter: 2.0″
- Max Tool Length: 7.87″
- Max Tool Weight: 4.40 lbs.
- Tool Change Time: 0.9 Second
|

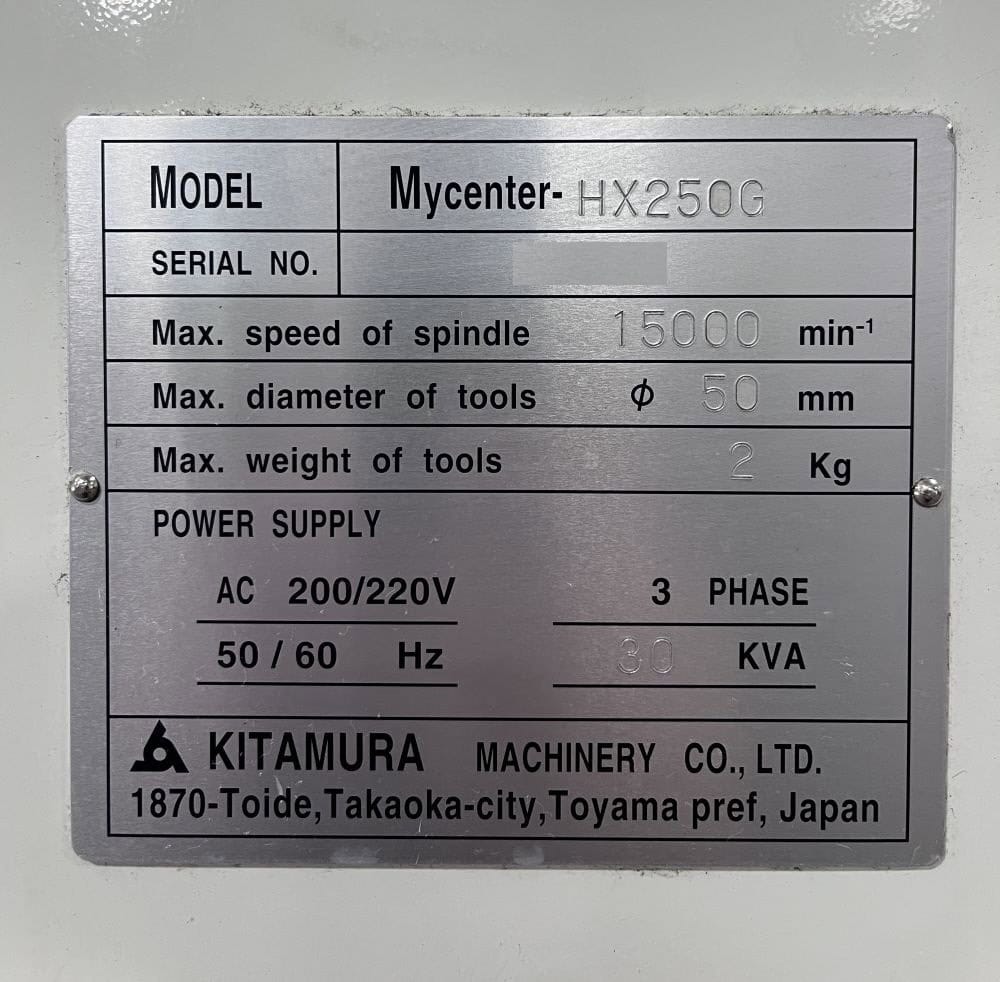

| General: |
- Air Required: 80 psi, 4 scfm
- Power: 30 kva / 200-220v / 3-Phase
- Overall Dimensions: 115″ X 116″ x 89″ High Approx.
- Weight: 11,814 lbs. Approx.
|
