Kitamura MyCenter1 Vertical Machining Center

Out of stock
SKU: 1198

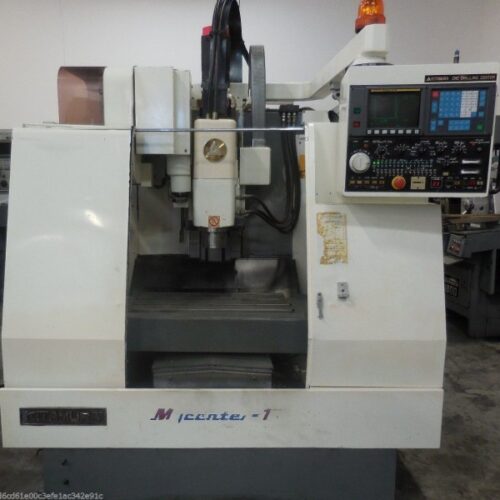

Kitamura MyCenter1 Vertical Machining Center

Make Kitamura
Model No. Mycenter 1
Country of Origin: Japan
Condition Very Good
  • Features:

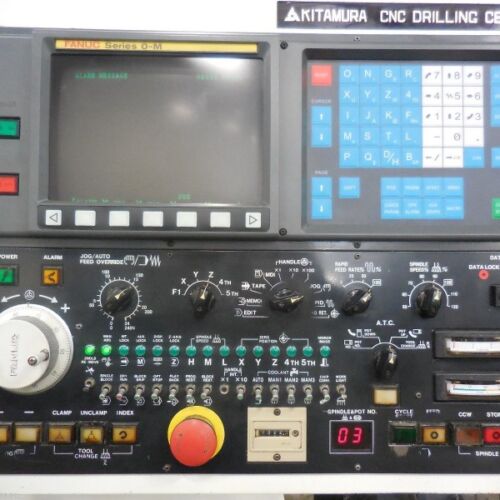

  • Fanuc OM Control.
  • RS-232 Port.
  • BT35 Spindle Taper.
  • 16-Station Automatic Tool Changer.
  • Coolant System.
  • Specifications:
  • Travel:
  • X-Axis: 19.15″
  • Y-Axis: 12.2″
  • Z-Axis: 18.1″

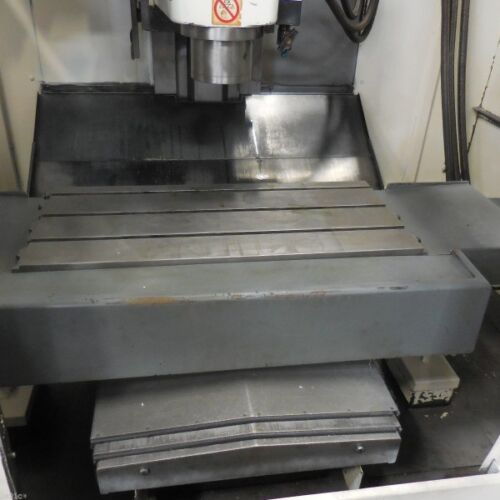

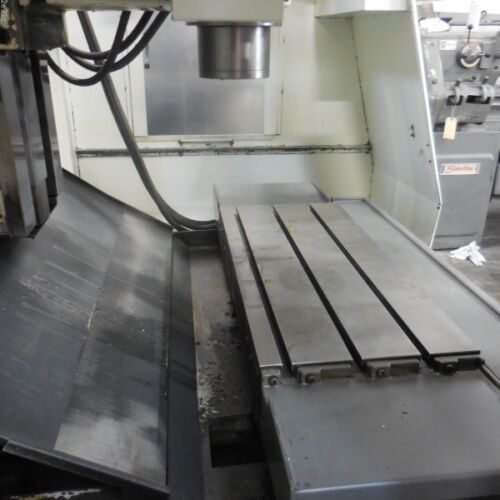

  • Table:
  • Table Dimensions: 31″ x 14″
  • T-Slots (number x width x distance between centers): 3 x 9/16″ x 4.25″
  • Maximum Weight on Table: 660 lbs.

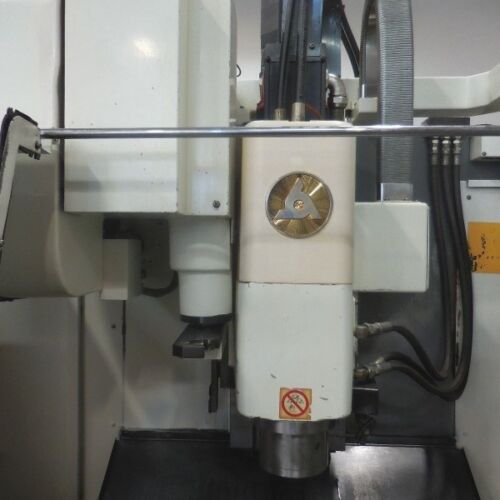

  • Spindle:
  • Taper: BT35
  • Speed: 13,000 Maximum RPM
  • Spindle Center to Column: 15″
  • Motor (continuous / 30 min.): 5.5 / 7.5 Horsepower
  • Feed Rates:
  • Cutting Feed Rate (X, Y, Z,): 0.04 to 157 in/min
  • Rapid Traverse Rate (X, Y, Z,): 710 / 710 / 550 in/min

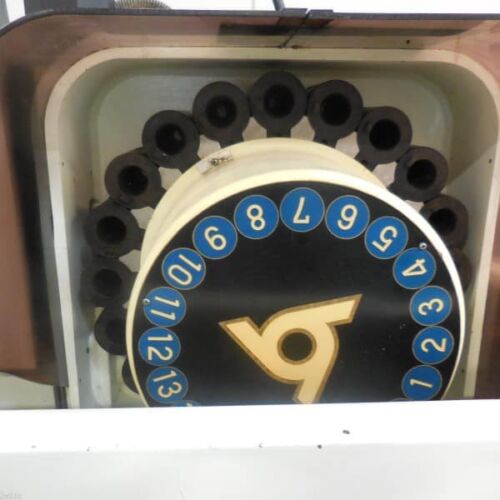

  • Automatic Tool Changer:
  • Tool Capacity: 16
  • Maximum Tool Diameter: 3.7″
  • Maximum Tool Weight: 13.2 lbs.
  • General:
  • Machine Weight: 7,500 lbs.
  • Electrial: 220 Volt, Three Phase
  • Overall Dimensions: 78″ x 80″ x 105″ tallComes as shown in pictures.
