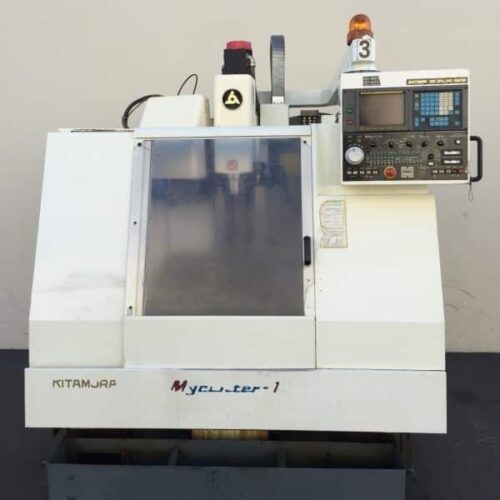

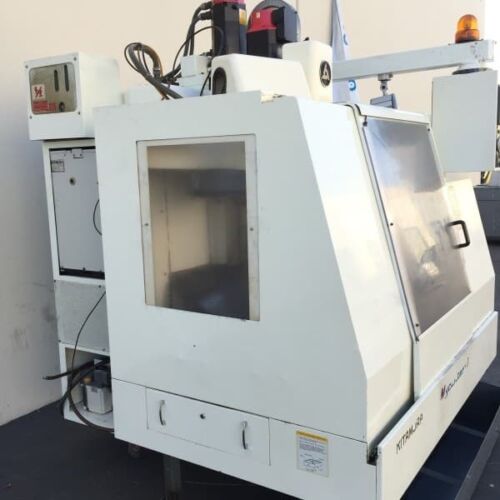

Kitamura MyCenter1 VMC |
|
---|---|
Make | Kitamura |
Model No. | Mycenter 1/485 |
Year | 1990 |

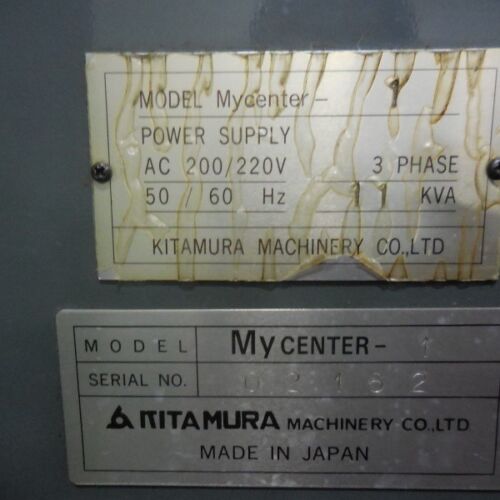

Serial # | 02162 |
Condition | Very Good |
Country of Origin: | Japan |
- Kitamura MyCenter 1 Features:

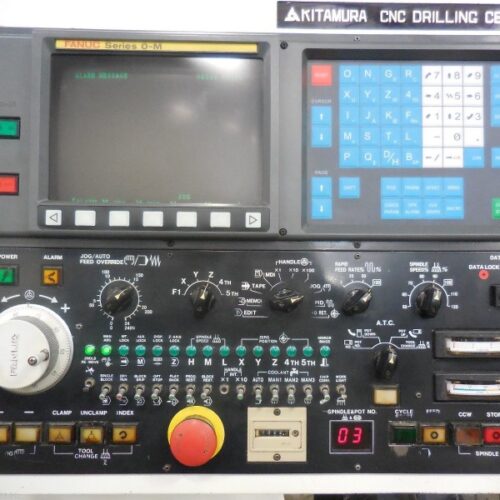

- Fanuc OM Control.
- RS-232 Port.
- BT35 Spindle Taper.
- 16-Station Automatic Tool Changer.
- Coolant System.
- Kitamura MyCenter1 Specifications:
- Travel:
- X-Axis: 19.15″
- Y-Axis: 12.2″
- Z-Axis: 18.1″

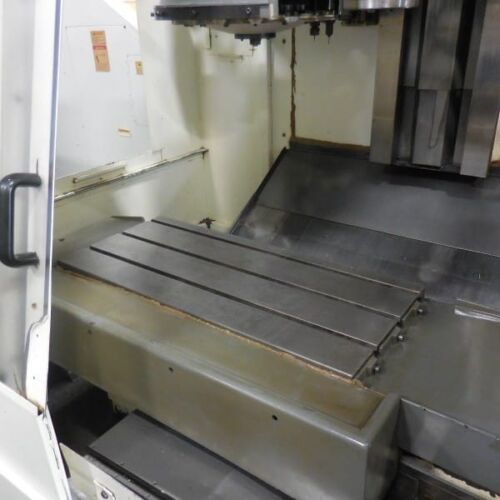

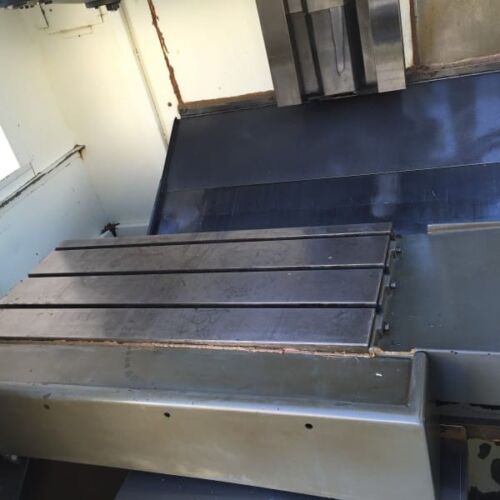

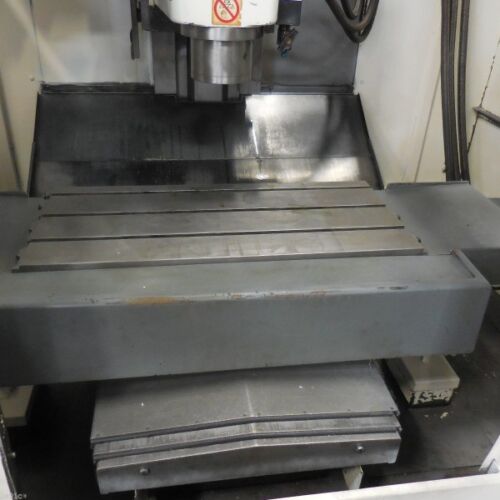

- Table:
- Table Dimensions: 31″ x 14″
- T-Slots (number x width x distance between centers): 3 x 9/16″ x 4.25″
- Maximum Weight on Table: 660 lbs.

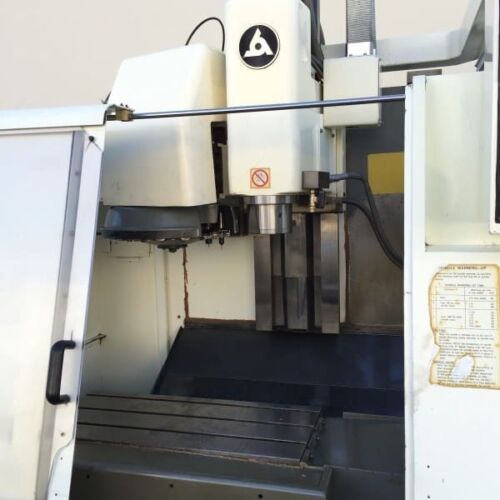

- Spindle:
- Taper: BT35
- Speed: 13,000 Maximum RPM
- Spindle Center to Column: 15″
- Motor (continuous / 30 min.): 5.5 / 7.5 Horsepower
- Feed Rates:
- Cutting Feed Rate (X, Y, Z,): 0.04 to 157 in/min
- Rapid Traverse Rate (X, Y, Z,): 710 / 710 / 550 in/min
- Automatic Tool Changer:
- Tool Capacity:16
- MaximumTool Diameter: 3.7″
- Maximum Tool Weight: 13.2 lbs.
- General:
- Machine Weight: 7,500 lbs.
- Electrial: 220 Volt, Three Phase
- Overall Dimensions: 78″ x 80″ x 105″ tall

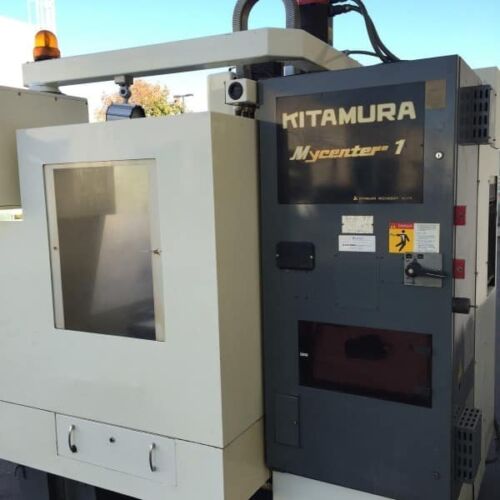

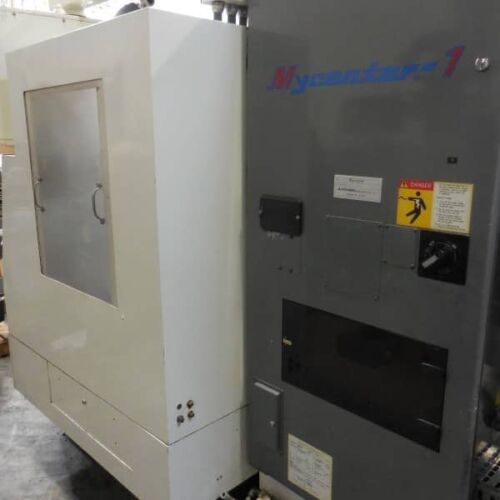

Kitamura MyCenter1 Comes as shown in pictures.
