*All specifications are approximations and are subject to verification.
-

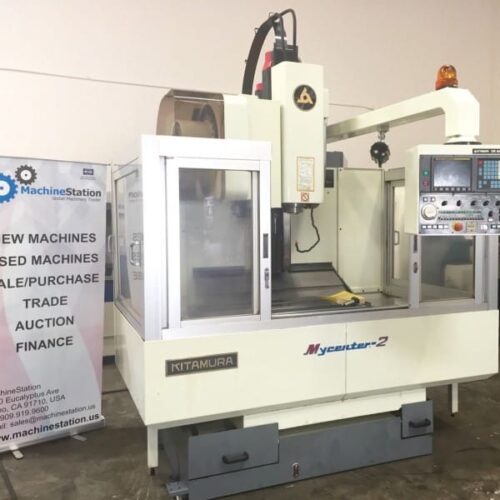

Kitamura MyCenter2 Features:

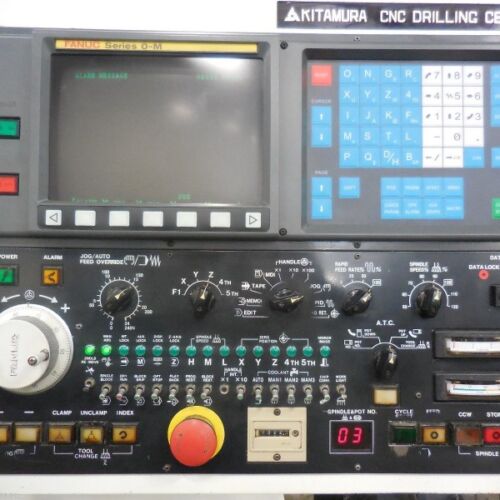

- Fanuc OM Control
- 2 sec Tool Change Time
- Side Mount Arm Type Tool Changer
- Fast Rapid Feeds
- 787 Inch Per Minute
- 2-Speed Gear Box
- Full Enclosure
- Rigid Tapping
- 20+1 Tool Automatic Tool Changer

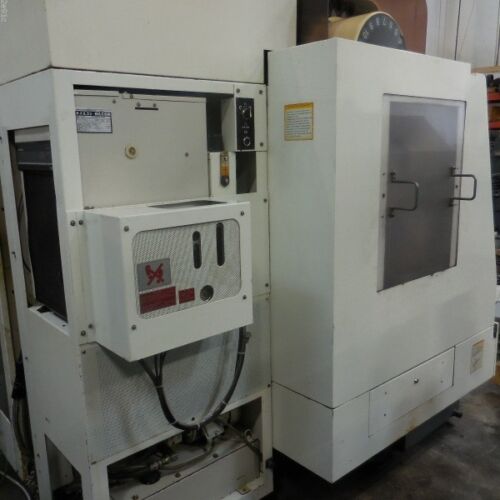

- Coolant Filtration System
- RS-232 Port
- Comes with All Original Manuals
-
Kitamura MyCenter2 Specifications:
- Travels:
- X-Axis: 23″
- Y-Axis: 16.9″
- Z-Axis: 18″
- Rapid Traverse Rates: 787 Inch Per Minute
- Cutting Feed Rates: 197 IPM
- Spindle Nose to Table (Min.- Max.): 5″ – 23″
-

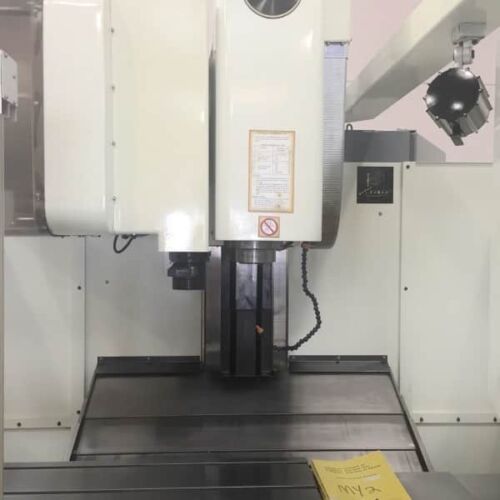

Table:
- Length: 35.4″
- Width: 16.1″
- Max Weight on Table: 661 lbs
-
Spindle:
- Taper Size: No. 40
- Speed Range: 20 – 7000 RPM
- Spindle Power: 7.5 kw
-
Automatic Tool Changer:
- Capacity: 20
- Max Tool Weight: 17.6 lbs
- Tool Change Time: 2 second
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 88″ x 105″ x 103″ High
- Weight: 9900 lbs
