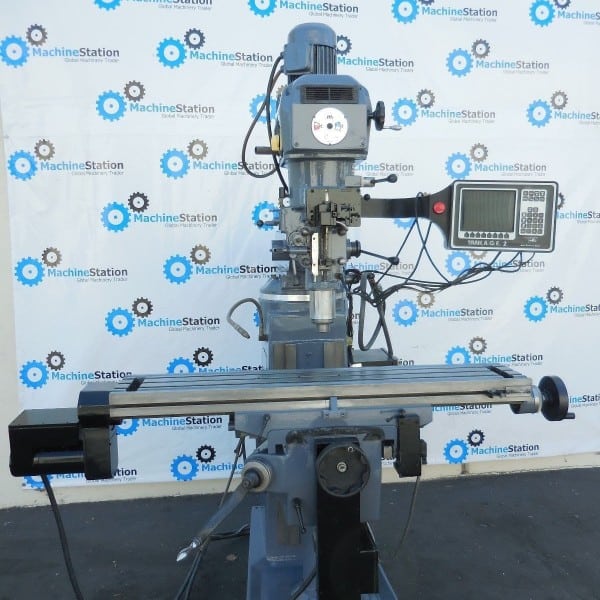

Lagun Two Axis CNC Vertical Milling Machine Model FTV-2S |
|
|---|---|
| Make | Lagun |
| Model No. | FTV-2S |
| Country of Origin: | Spain |
| Serial # | SE-22792 |
| Condition | Very Good |
- Features:

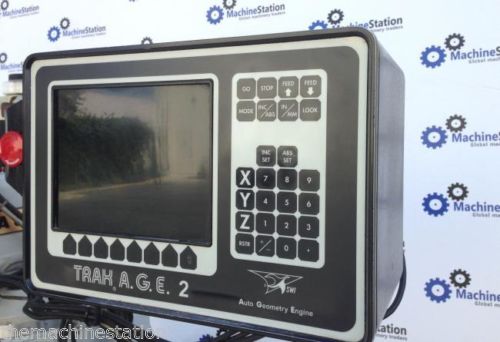

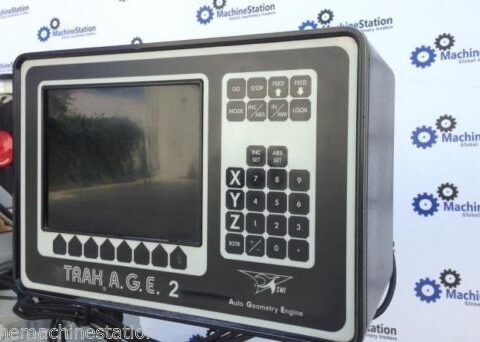

- SWI Trak A.G.E. Control.
- 2-Axis CNC Operation.
- 3-Axis Digital Readout.
- Infinitely Variable Spindle Speeds.
- Trico Micro-Drop MD-1000 Mist Coolant System.
- Specifications:
- Work Table:
- Surface Area: 50″ x 10″
- T-Slot Center Distance: 3 @ 2.5″ centers
- T-Slot Sizes: 0.625″
- Maximum Weight of Workpiece: 750 lbs.
- Travels:
- X-Axis Table Travel: 30″
- Y-Axis Table Travel: 15-1/4″
- Z-Axis Table Travel (knee): 16″
- Quill Travel: 5″
- Ram Travel: 22-3/16″
- Spindle:
- Spindle Taper: R8
- Spindle Diameter: 1.875″
- Quill Diameter: 3.375″
- Distance Spindle to Table (maximum): 18″
- Distance Spindle to Column (minimum / maximum): 5″ to 27″
- Speeds: 55 to 4,250 RPM
- Power Quill Feed: 0.0015″/rev, 0.003″/rev & 0.006″/rev
- Motor: 3 Horsepower, 220 / 380 / 440 Volt, 1,420 / 1,720 RPM, 8.8 / 5.1 / 4.4 Amps, 50 / 60 Hz
- Head Adjustments:
- Head Swivel: 90 degrees
- Head Tilt: 90 degrees
- Head Cant: 45 degrees
- General:
- Electrical: 220 / 380 / 440 Volt, Three Phase
- Overall Dimensions: 72″ x 73″ x 88″ tall
USED-LAGUN TWO-AXIS CNC VERTICAL MILLING MACHINE Model FTV-2S andComes as shown in pictures.
