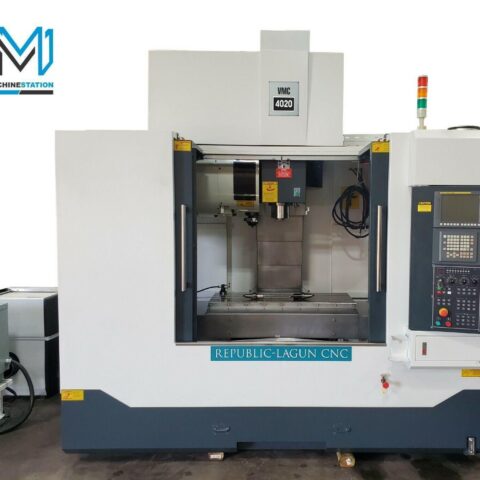

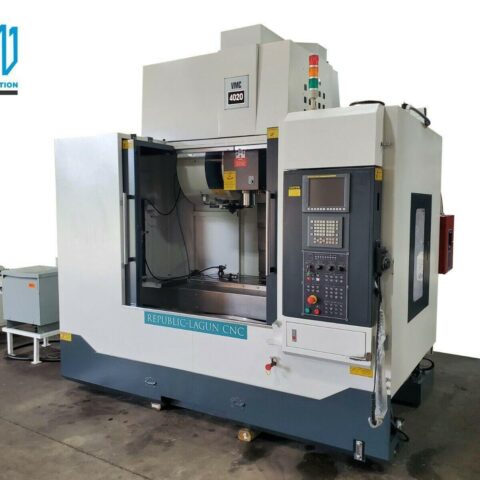

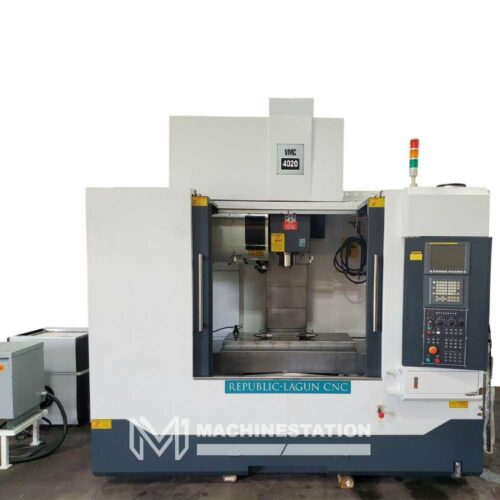

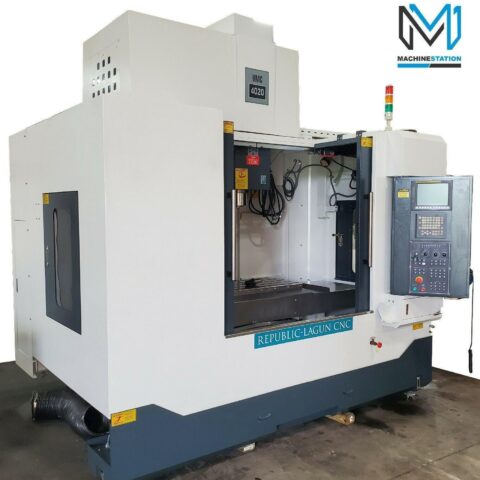

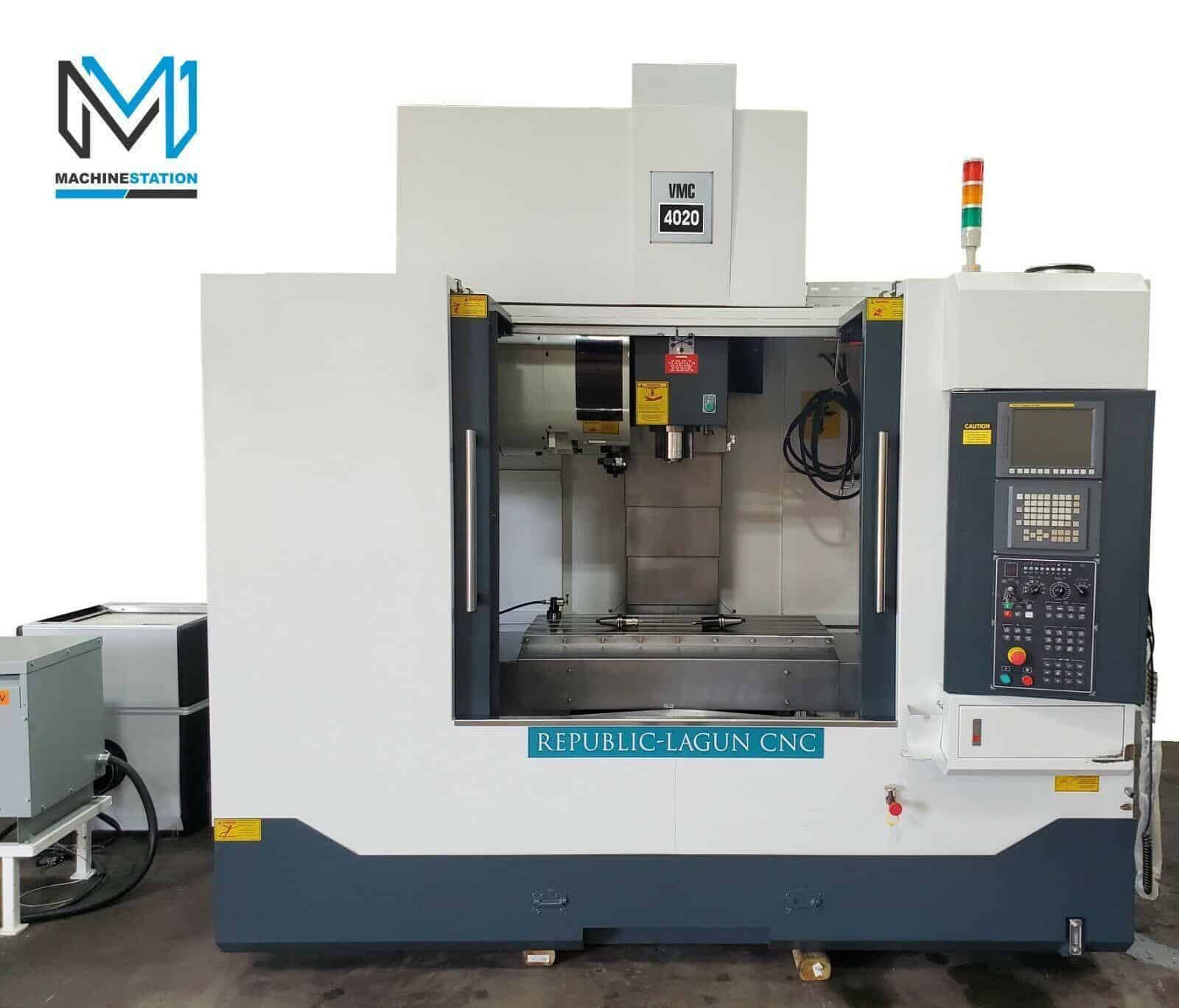

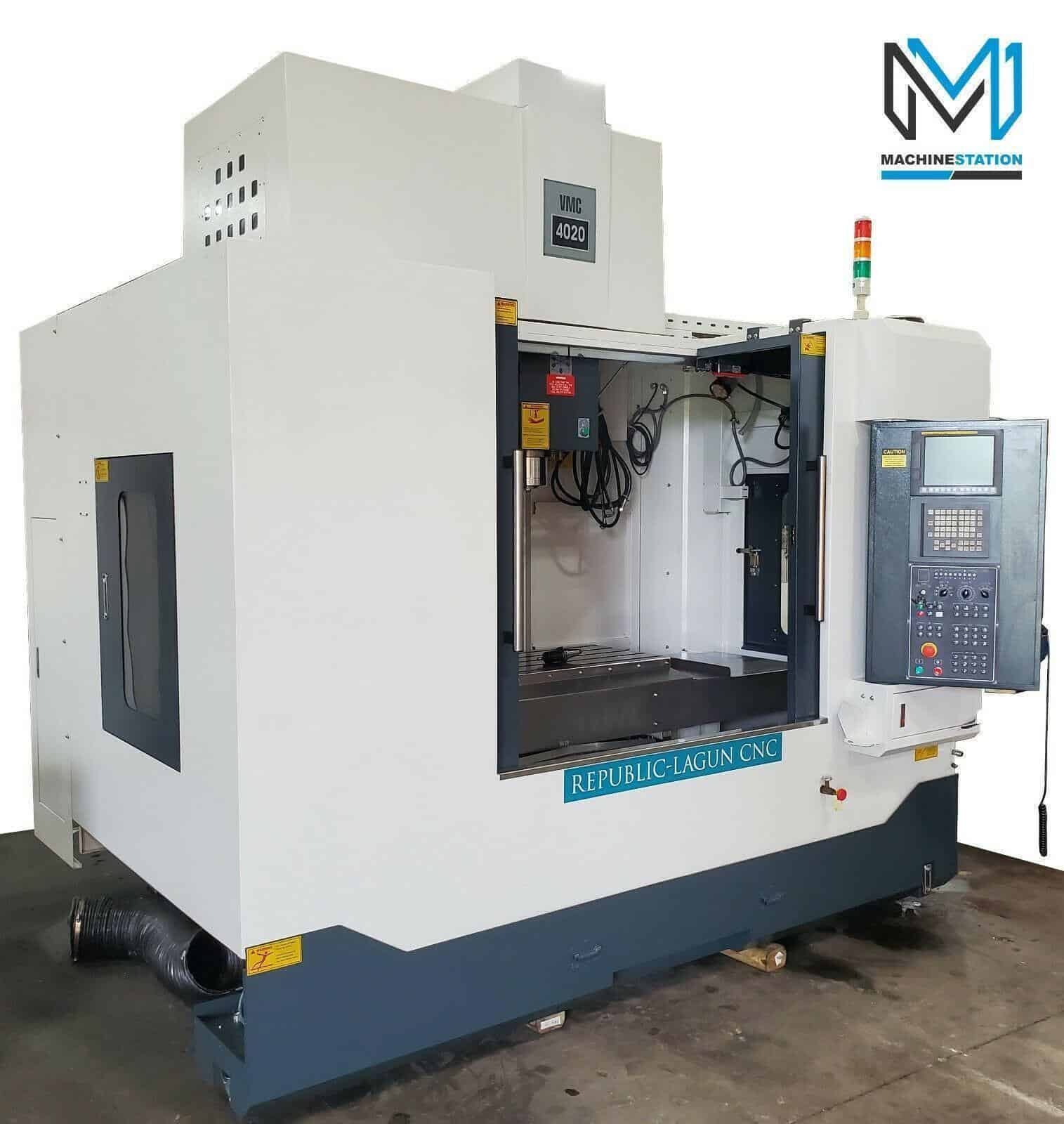

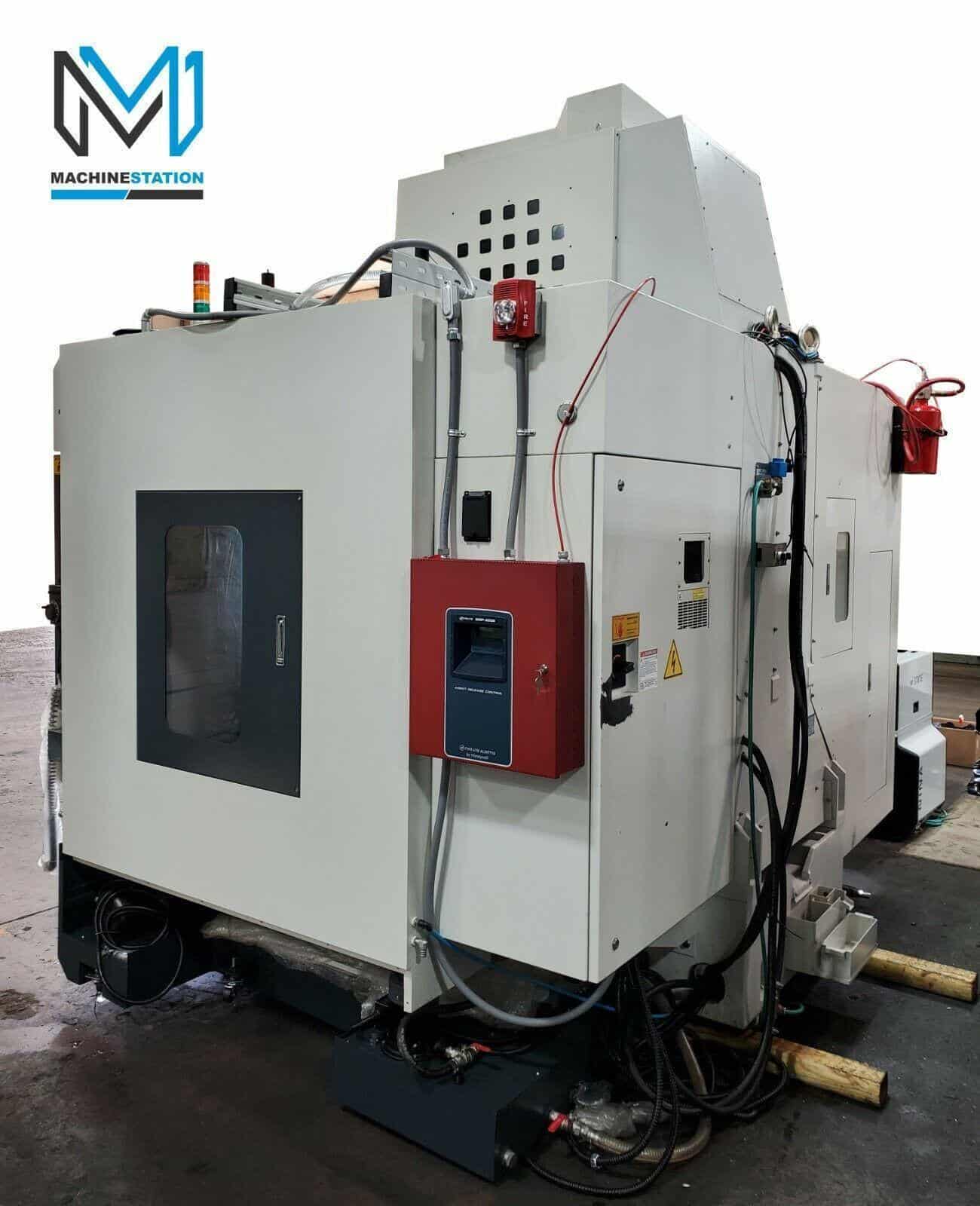

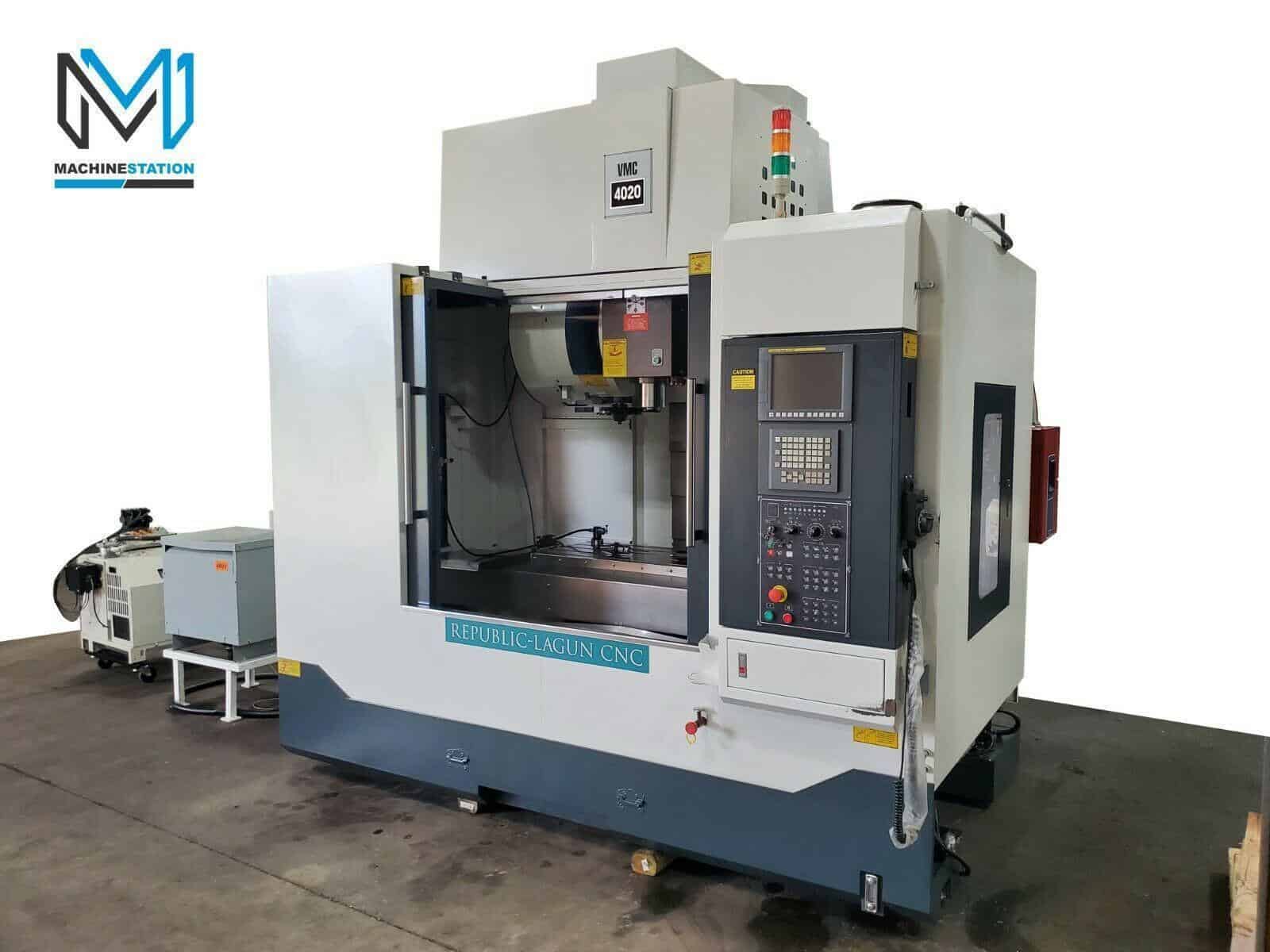

Lagun VGC 4020 CNC Machining Center

Out of stock

Used Lagun VGC 4020 CNC Machining Center for Sale.

SKU: 2184

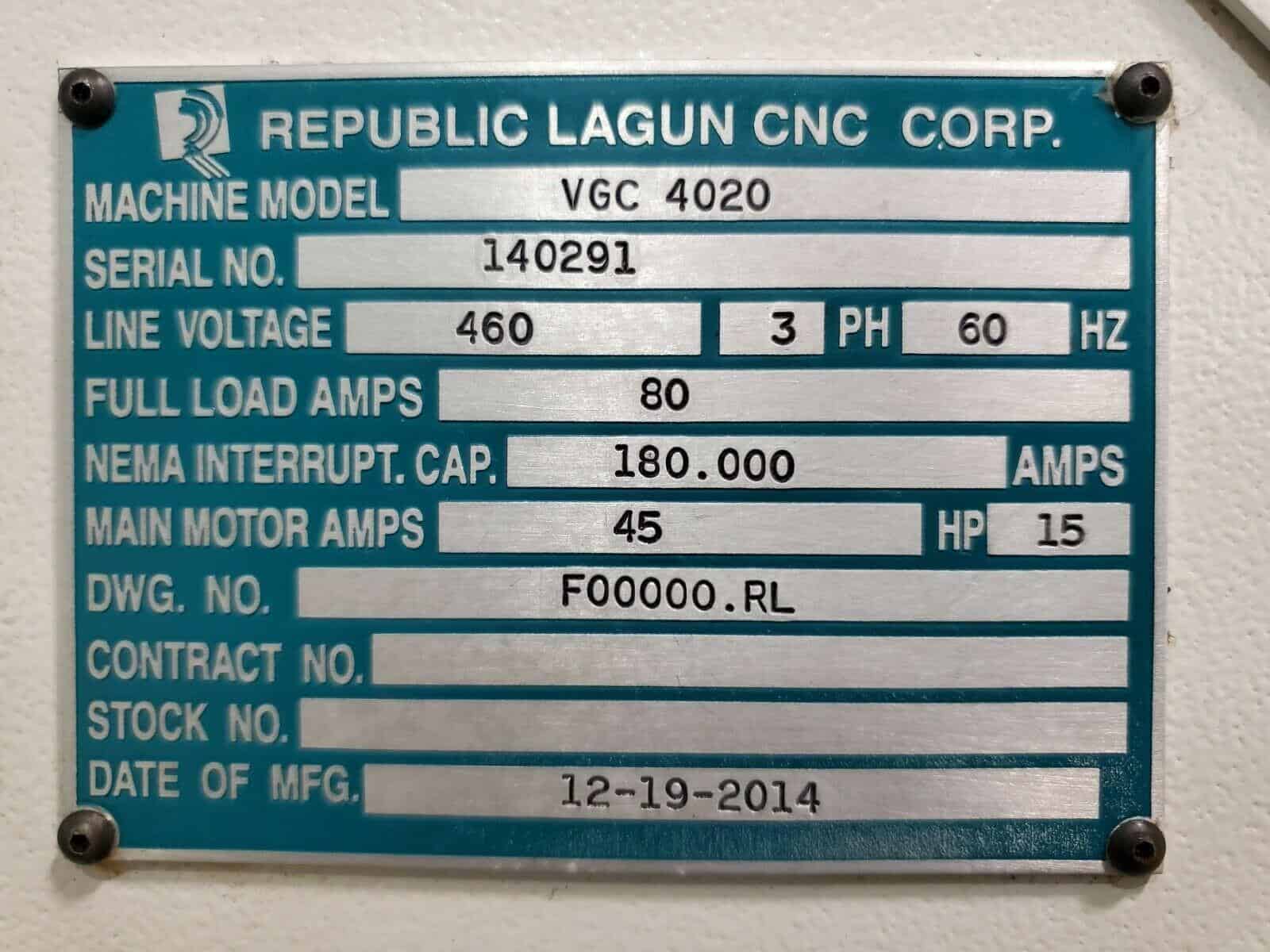

Make/Model: LAGUN VGC-4020
Video:
SKU: 2184

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: LAGUN
Model: VGC-4020
Year: 2014
Condition: Used – Excellent



Equipped With:

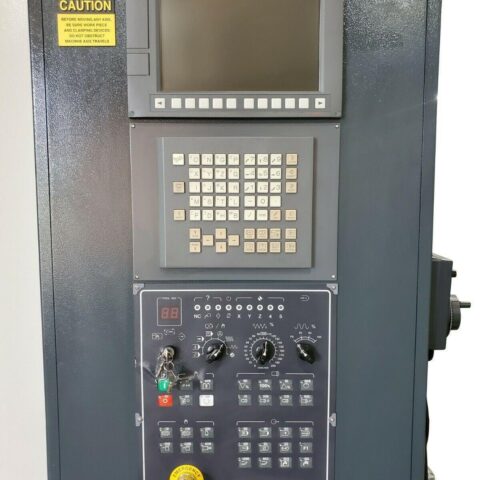

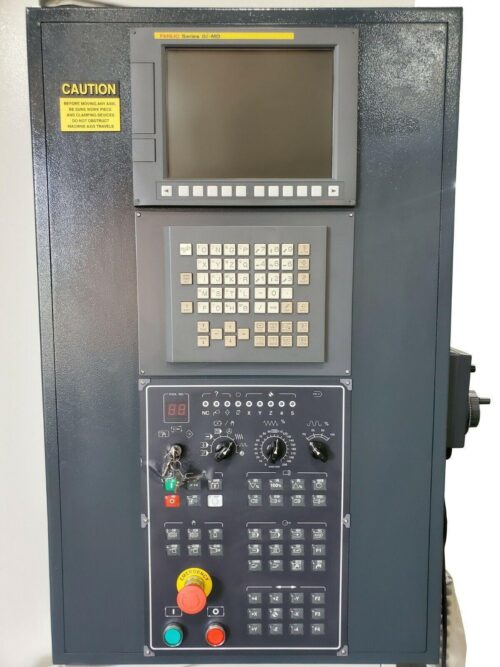

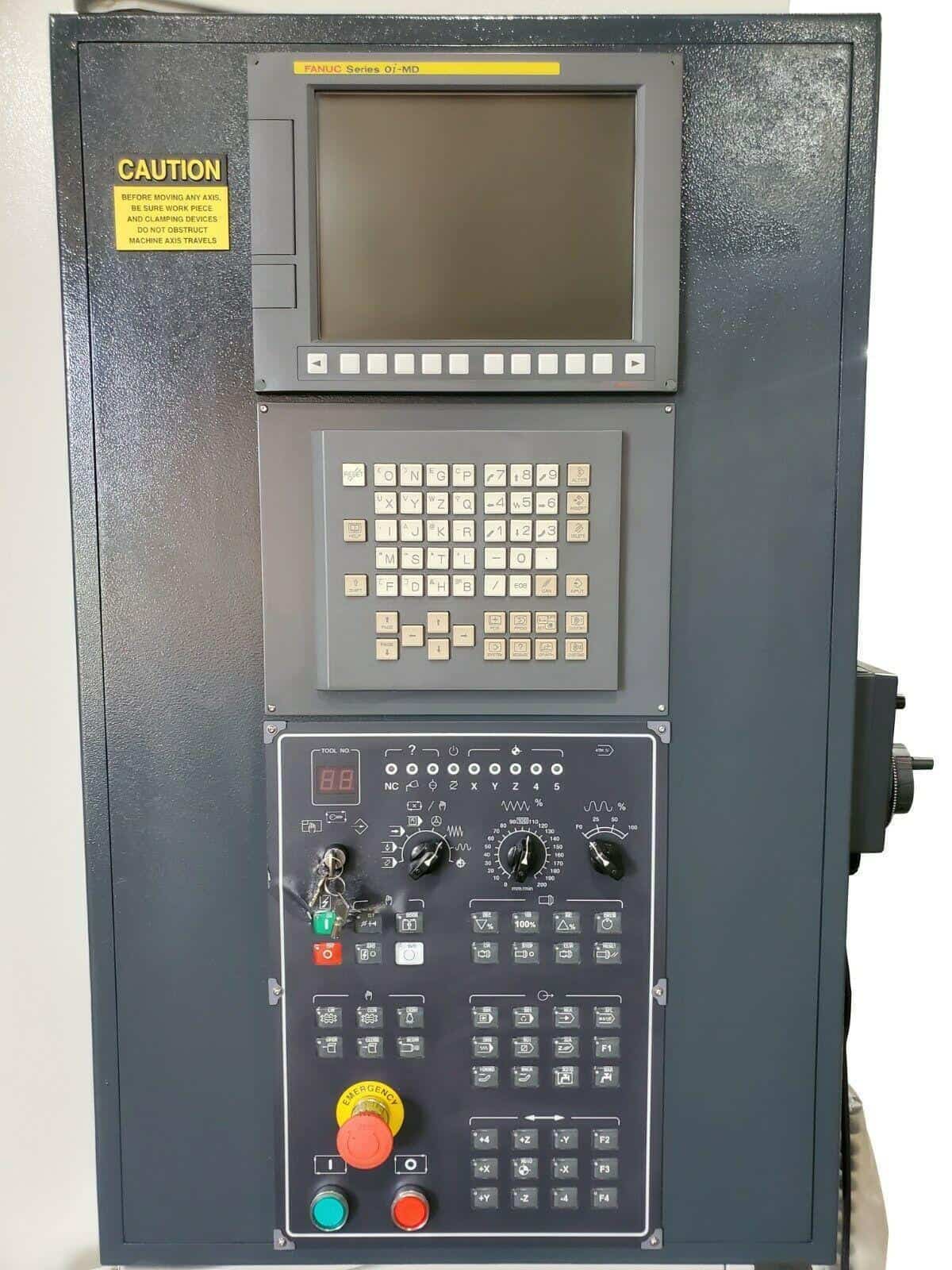

Fanuc Oi-M CNC Control
8,000 RPM Precision Spindle

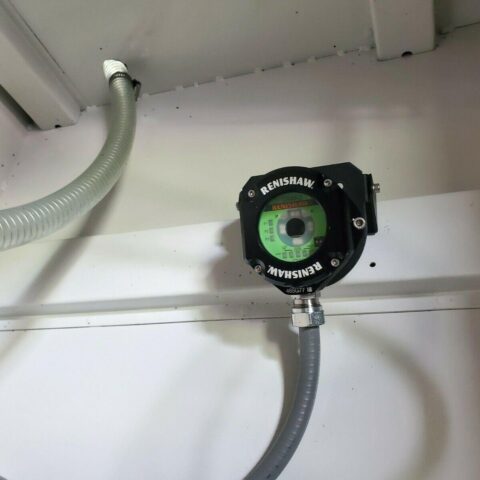

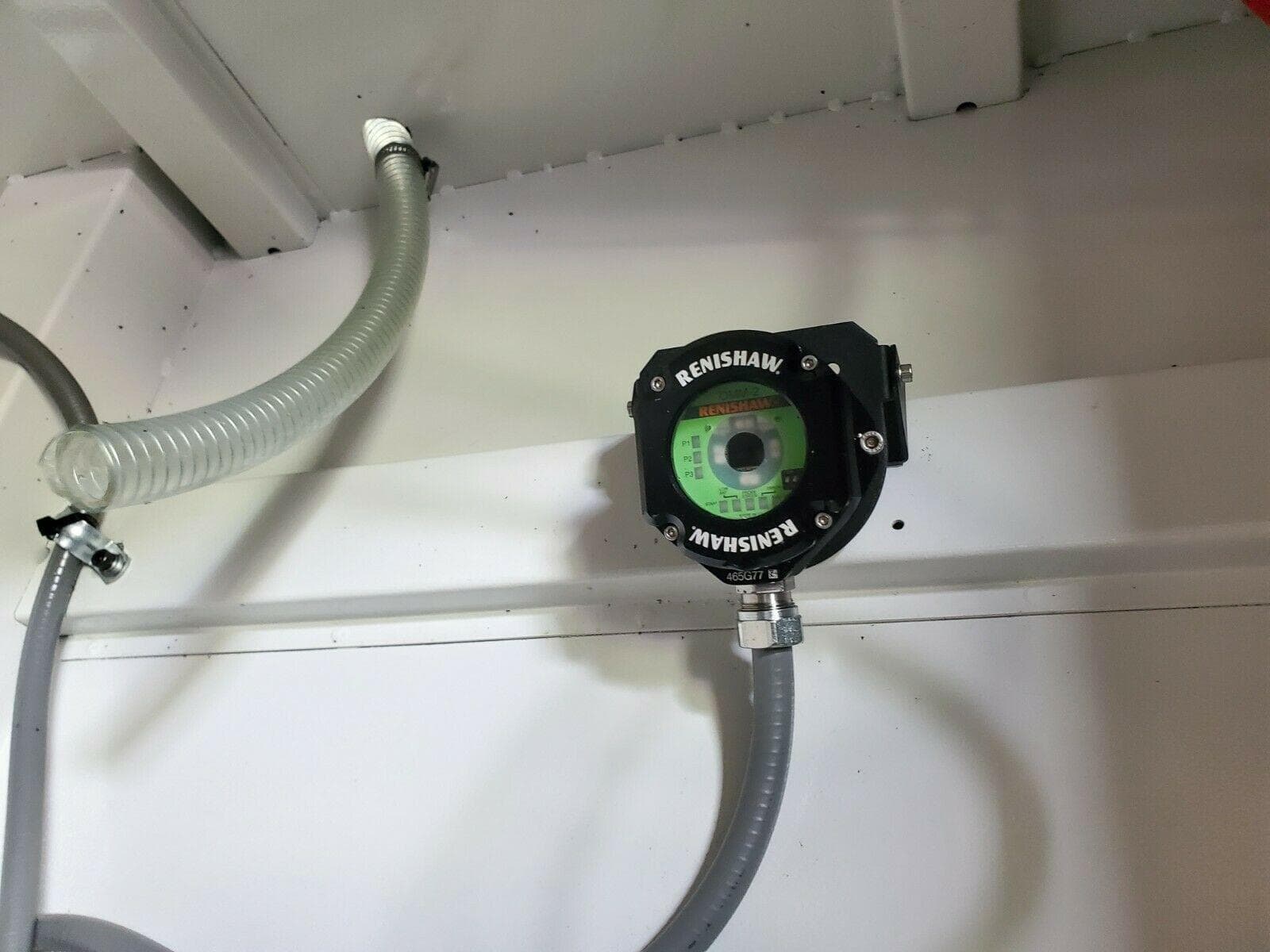

Renishaw Probing system

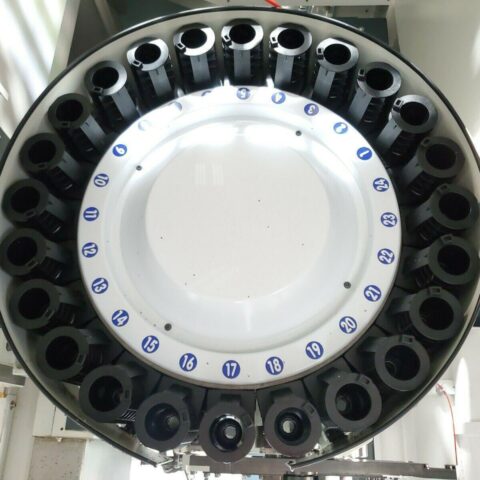

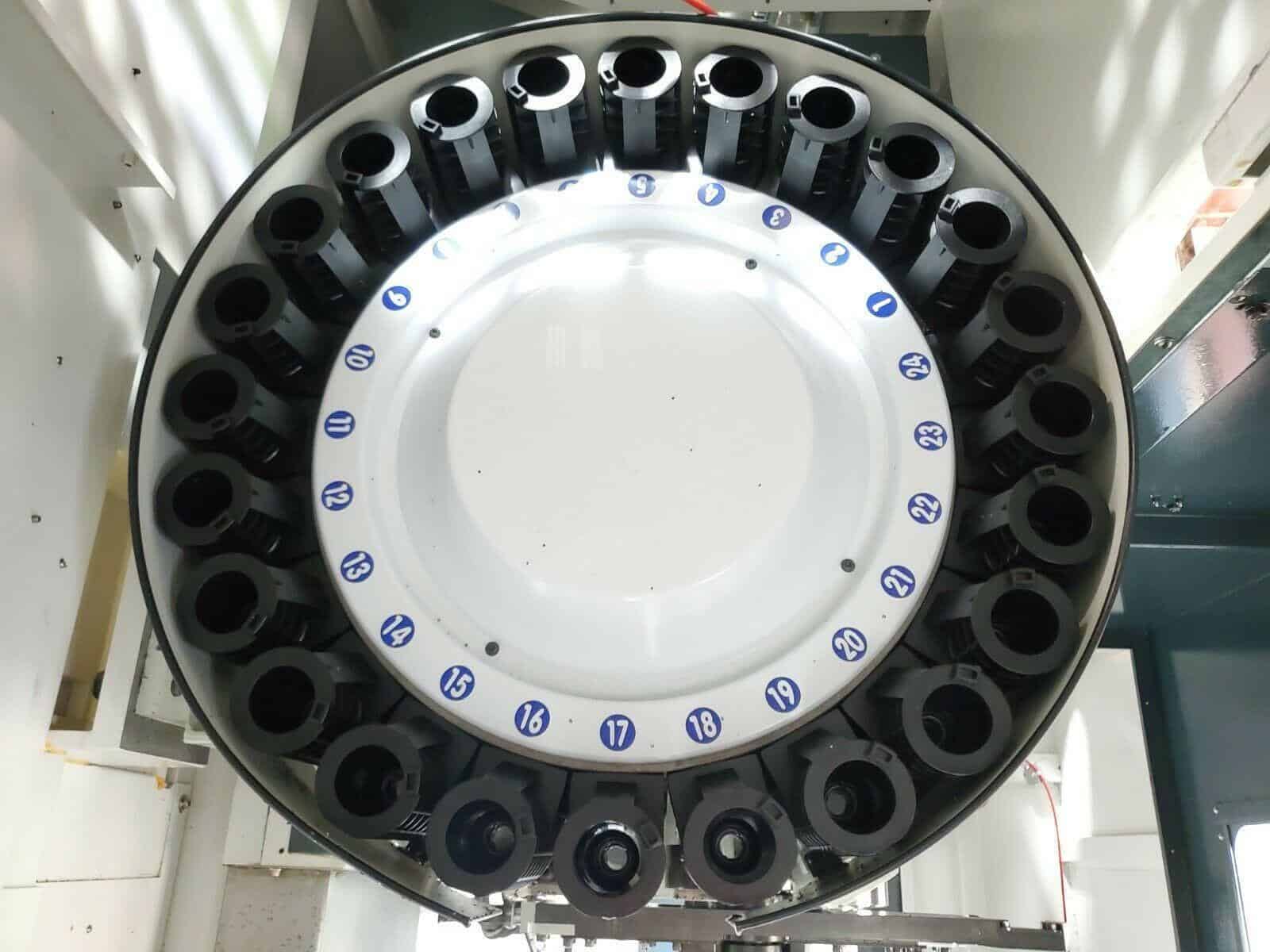

24 Automatic high speed tool changer
PCMCIA Card Slot

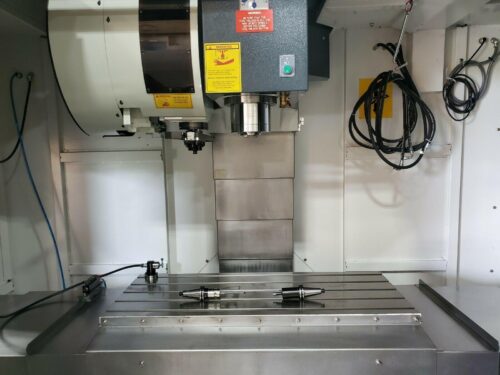

40 Taper Spindle
MPG Control
Rigid Tapping
Spindle Chiller
Telescopic way covers
Oil Cooler
Coolant System



Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 22″
Rapid Traverse Rates X, Y & Z Axis: 1000 IPM
Cutting Feed Rates: 400 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 27.2″

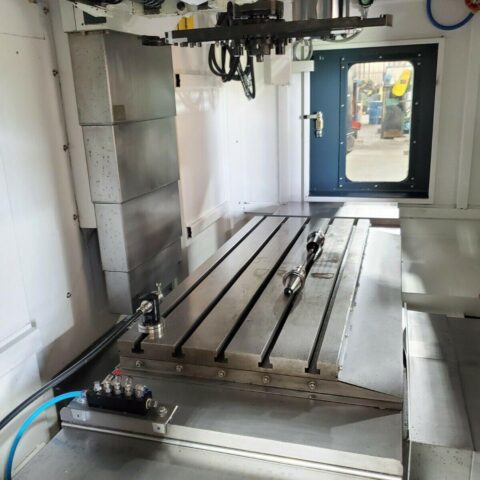

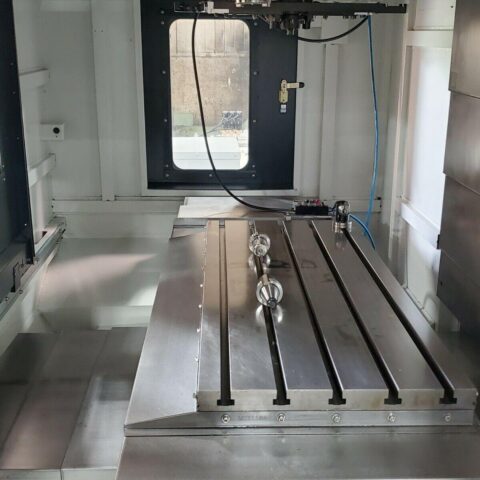

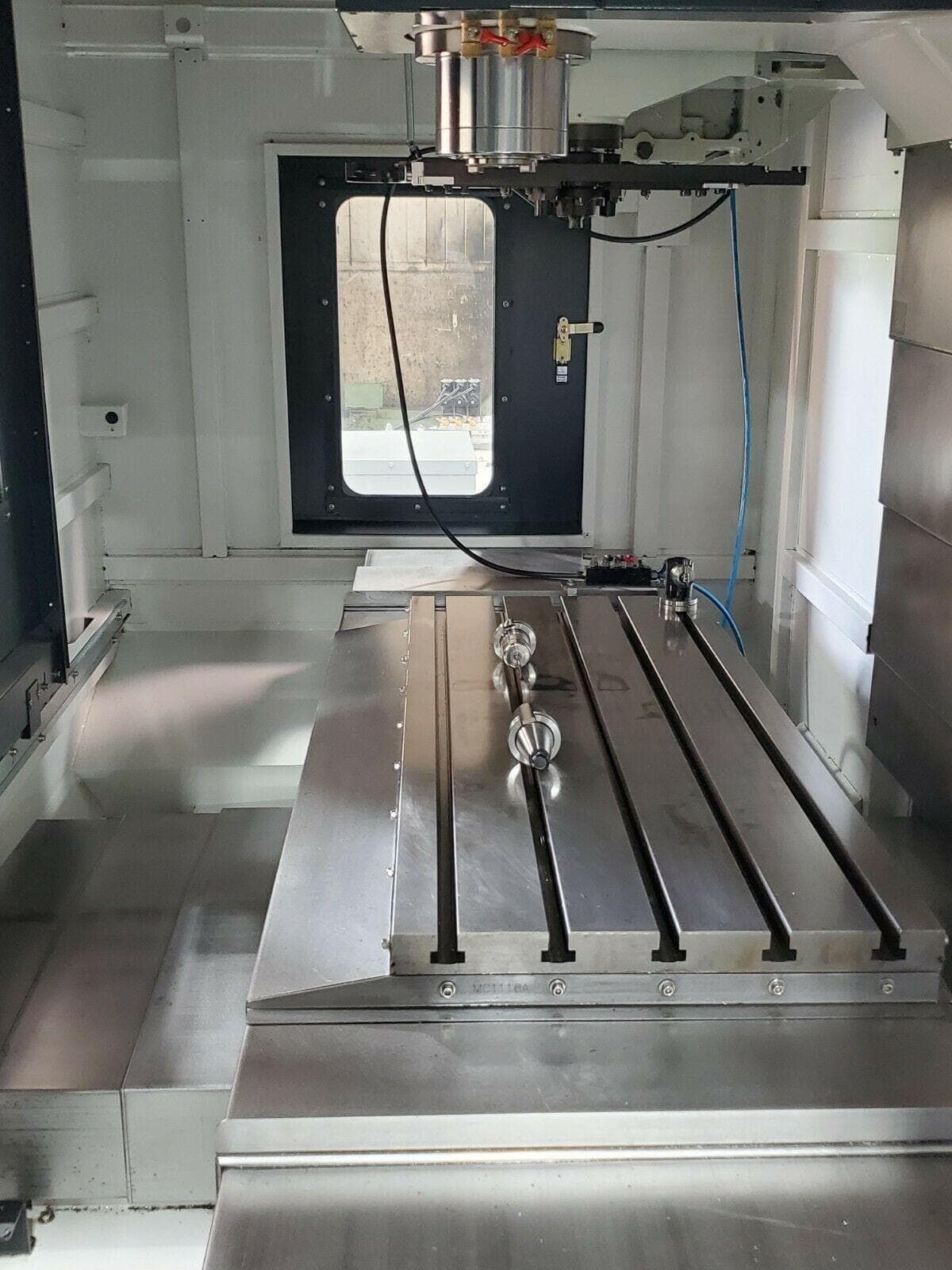

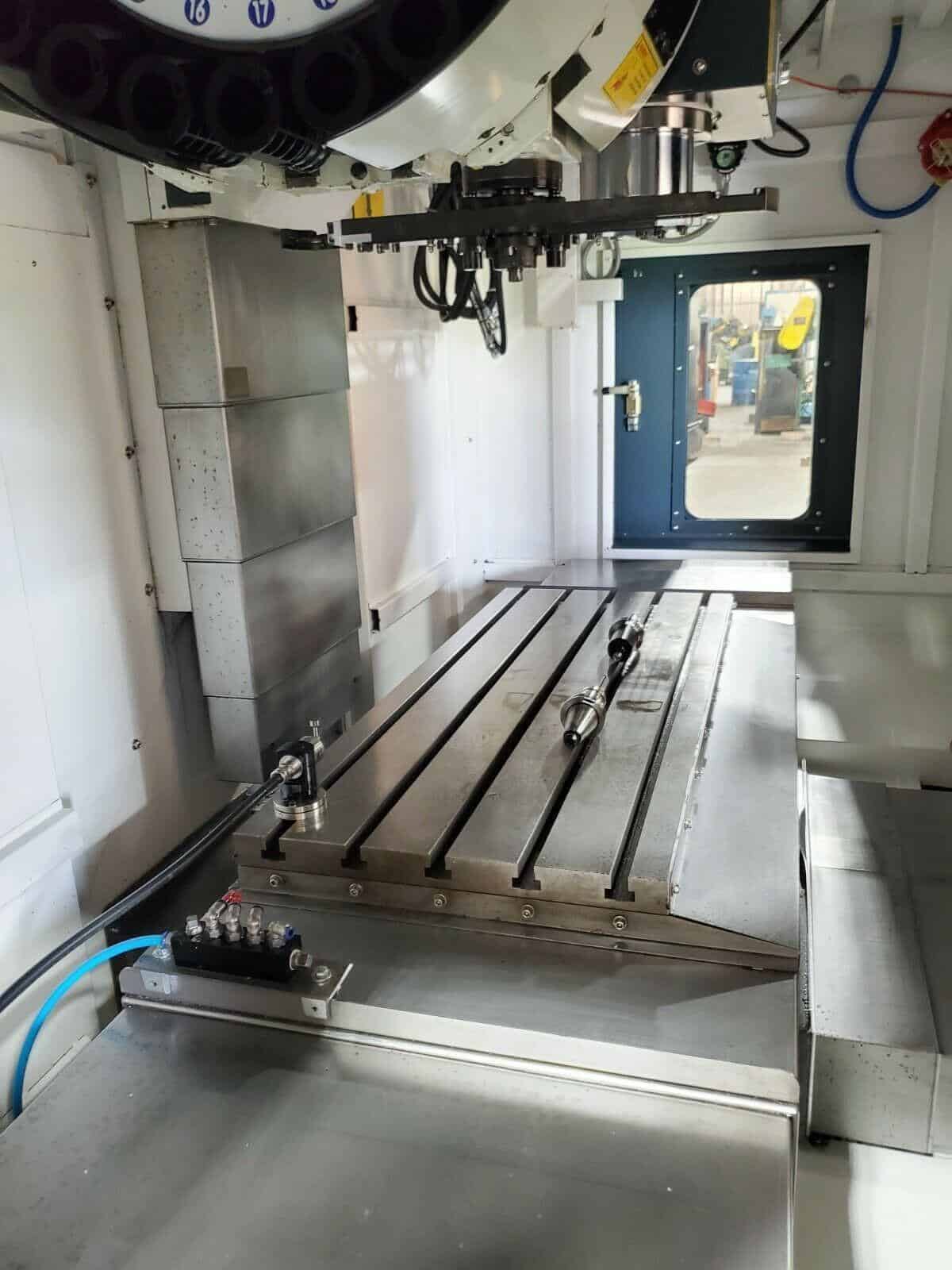

Table:
Length: 47.2″
Width: 19.7″
Number of Std T-Slots: 5
T-Slot Width: 0.79″
Max Weight on Table: 1100 lbs

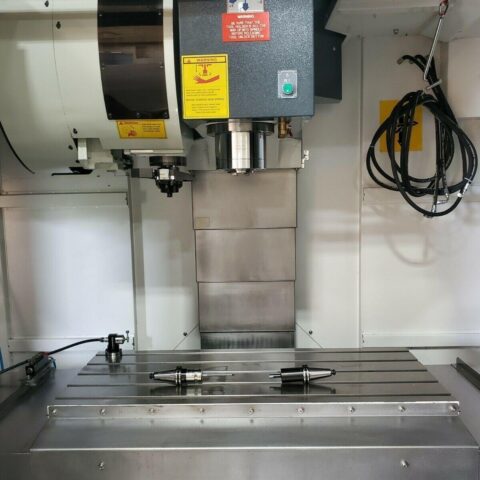

Spindle:
Taper Size: CAT-40
Speed Range: 8000 RPM
Spindle Power: 15 HP



Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 13.2 lbs
Max Tool Dia: 3.1″ -5.9″
Max Tool Length: 11.81″
Tool Changing Time : 4.5 Seconds



General:
Air Required: 80 psi, 4 scfm
Power: 220v / 35 kva / 3-Phase
Overall Dimensions: 114″ x 87″ x 112″ High
Weight:  11,440 lbs
