*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

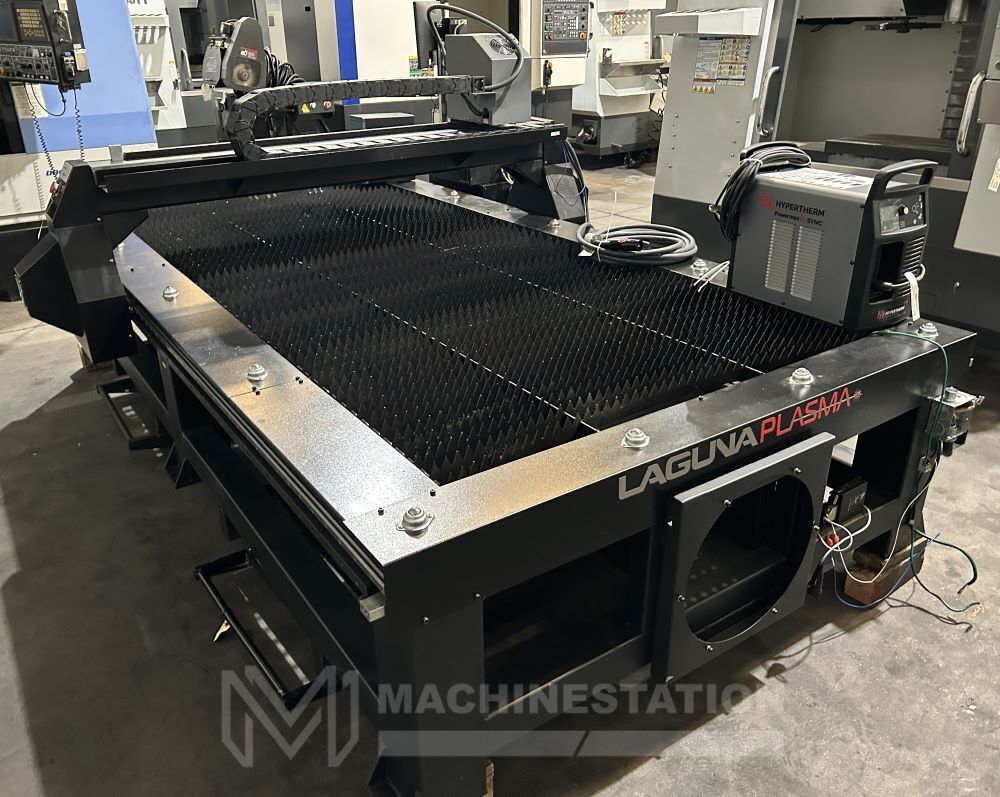

| SKU: | 2650 |
| Make: | Laguna |
| Model No.: | SmartCut |
| Year of Manufacture: | 2023 |
| Condition | Used – Excellent |
| Features: |
|---|
| Flashcut CNC Control with CAD/CAM Software |

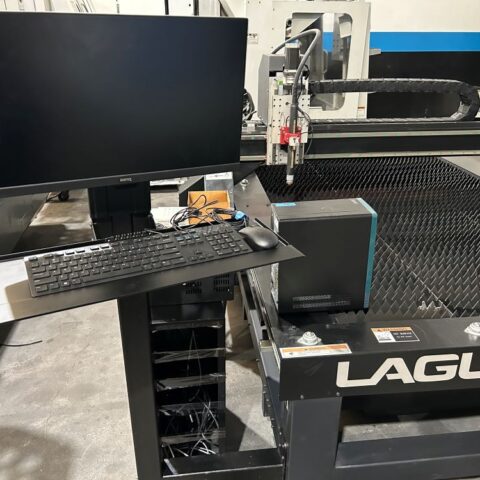

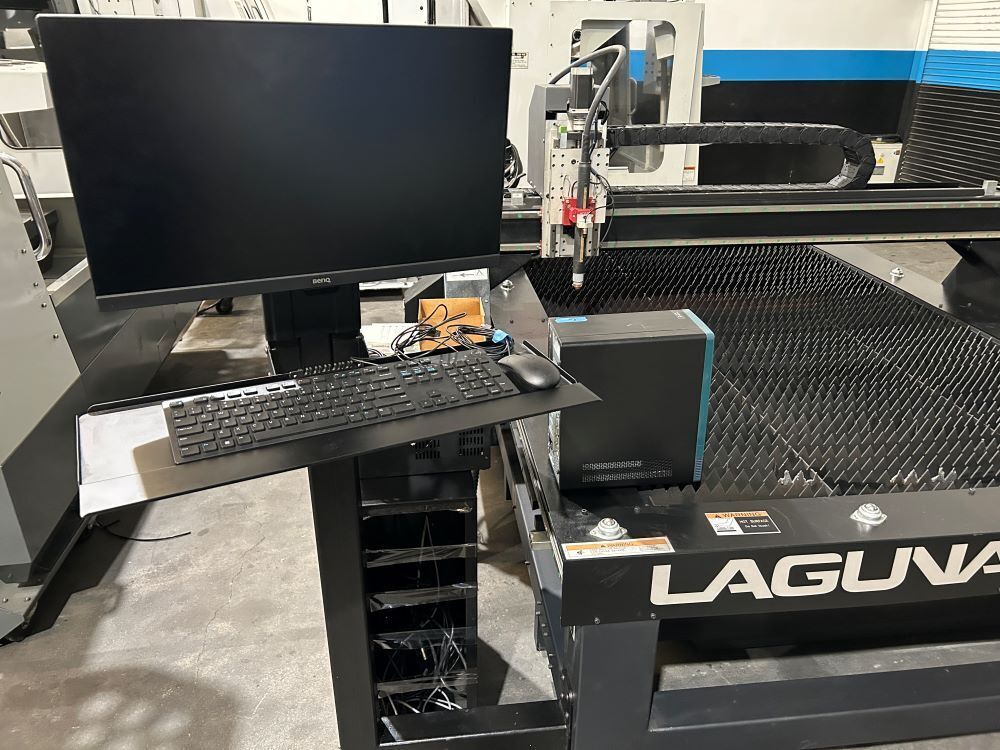

| 24-inch Control screen |

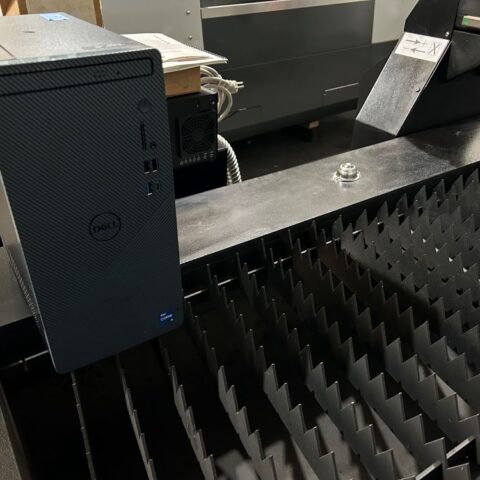

| Down Draft Table |
| X, Y helical rack and pinion, Z ball screw |
| Drive system Nema 32 (with Servo option) |
| GH20 Hiwin Bearing cards |
| Welded Steel Frame (No Aluminum Extrusion or Low Cost Bolt Together Tables) |
| Boss mount with Breakaway sensing Torch Holder |
| Laser Precision Pointer |
| 7 Guage Mild Steel Slats |
| Z Clearance 8 inches |
| Automatic Lead in on Restart |
| THC (Torch Height Control) |
| Move to Point in Viewport |
| Progress Meter • Rip Cutting |
| Workpiece Alignment |
| Smart Touch Off Software Feature |
| Table: |
|---|
| Length: 48″ |
| Width: 96″ |
| Travel: |
|---|
| X-Axis: 49″ |
| Y-Axis: 97″ |
| Z-Axis: 08″ ? |
| Rapid Traverse Rates: 393 Inch Per Minute |
| General: |
|---|
| Power: 200-600V / 3-Phase |
| Overall Dimensions: 138″ x 92″ x 60″ High |
| Weight: 2000 lbs. approx. |
