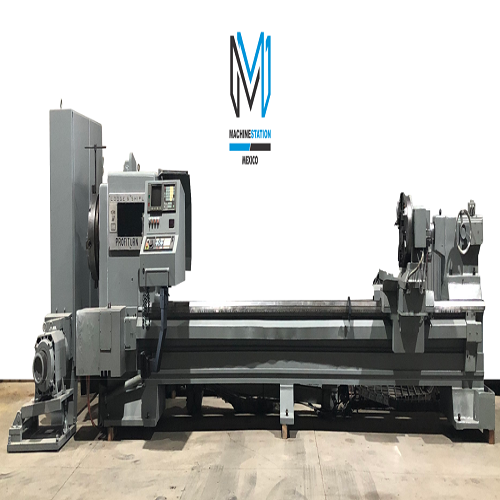

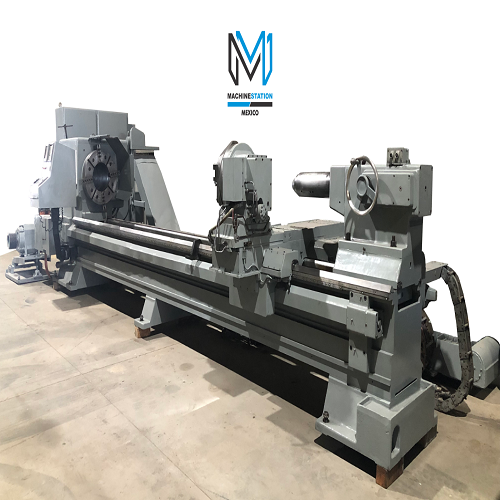

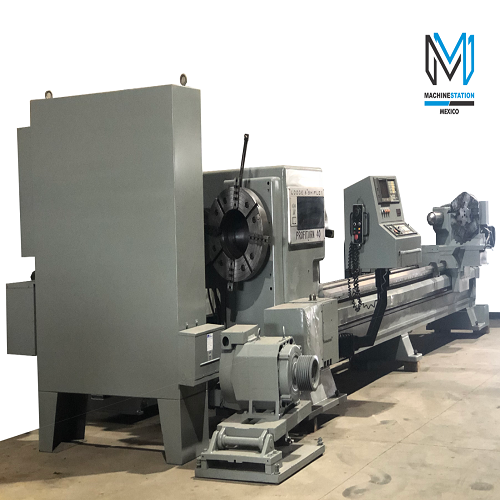

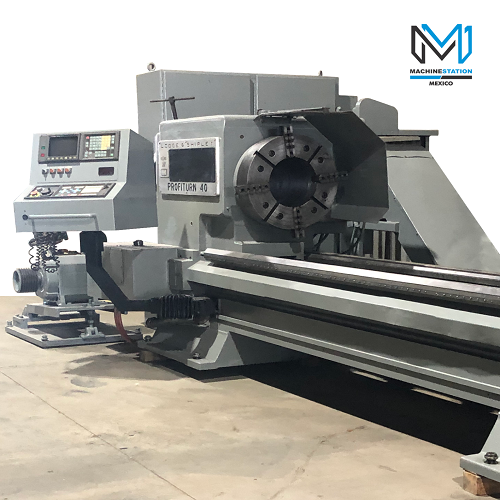

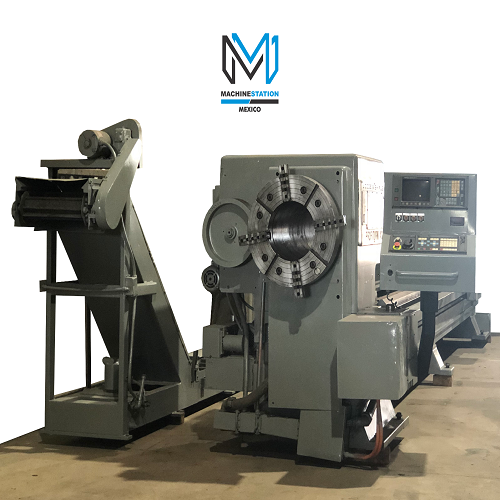

| LODGE & SHIPLEY PROFITURN 40 CNC OIL COUNTRY 12.5″ BIG BORE LATHE | |
|---|---|
| SKU | 1911 |
| Make | LODGE & SHIPLEY |
| Model No. | PROFITURN 40 |
| Year | |

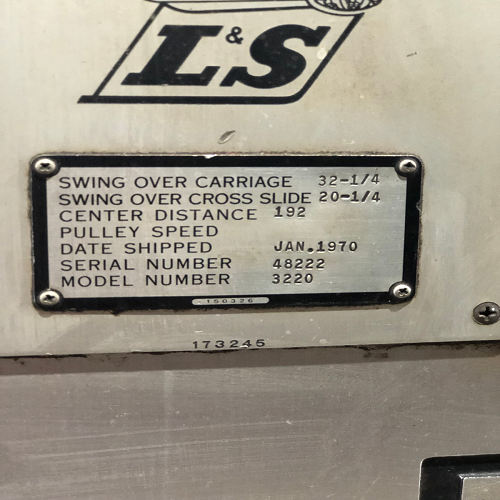

| Serial # | 48222 |
| Condition | Good |
| COMES WITH 10″ CHUCK, TAILSTOCK, LIVE TOOL TURRET & CHIP CONVEYOR | |
- Equipped With:

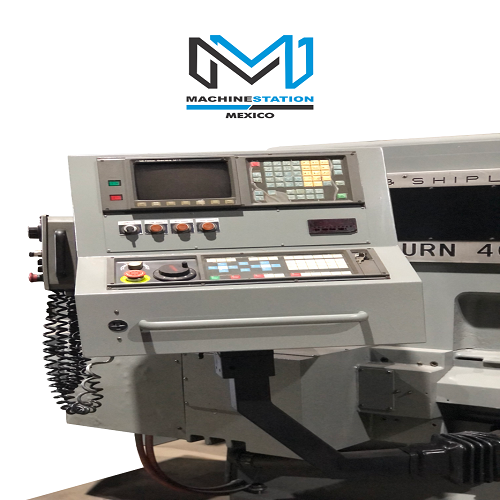

- Fanuc OT CNC Control
- 12.5″ Spindle Bore

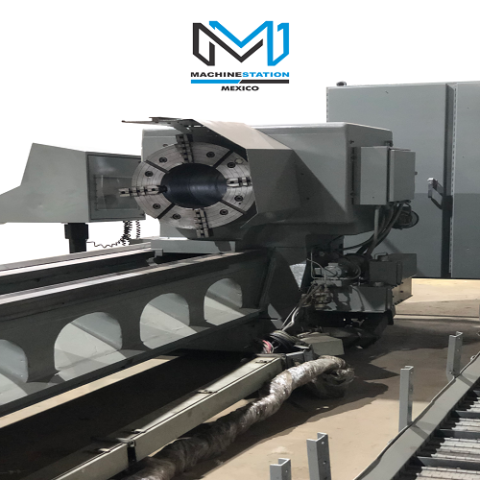

- 24″ Front & Back 4 Jaw Chucks
- 8 Position Turret
- MPG Control
- 192″ Between Centers Long Bed
- 3 Step gear spindle for powerful torque

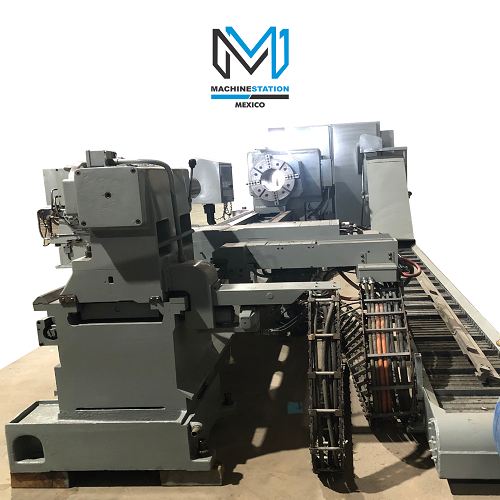

- Tailstock with Power Quill
- Chip Pan
- Chip conveyor
- Specifications:
- Capacity:
- Max Turning Diameter: 34.5″
- Max Turning Length: 192.9″
- Max Bar Capacity: 12.65″
- Swing Over Slide: 20.0″
- Swing Over Bed: 34.5″
- Distance Between Centers: 194.6″
- Travel:
- X Axis Travel: 24.0″
- Z Axis Travel: 192.0″
- Rapid Traverse X Axis: 450 IPM
- Rapid Traverse Z Axis: 360 IPM
- Spindle:
- Spindle Nose: A11
- Spindle Bore: 12.94″
- Spindle Speed: 6-650 RPM
- Spindle Motor: 50 HP
- Turret:
- Turret Capacity: 8 Stations
- Turret Index Time: 1.5 Second
- Tool Size: 1.6″ X 2.0″
- Tailstock:
- Tailstock Body Travel: 119.3″
- Tailstock Quill Dia.: 6.33″
- Tailstock Quill Stroke: 8.93″
- Tailstock Taper: MT-6
- General:
- Power Source: AC 480 V, Three Phase, 60 Hz
- Overall Dimensions: 220″ x 97″ x 80″ High
- Overall Dimensions: 290″ x 97″ x 80″ High with Chip Conveyor
- Weight : 36,000 lbs Approx.
“No Charges for loading at list Price”
Comes as shown in pictures….
