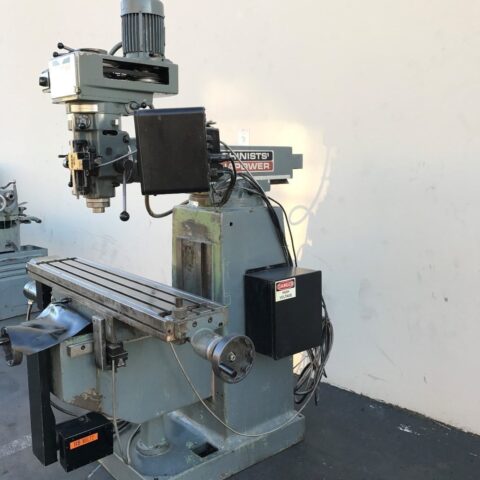

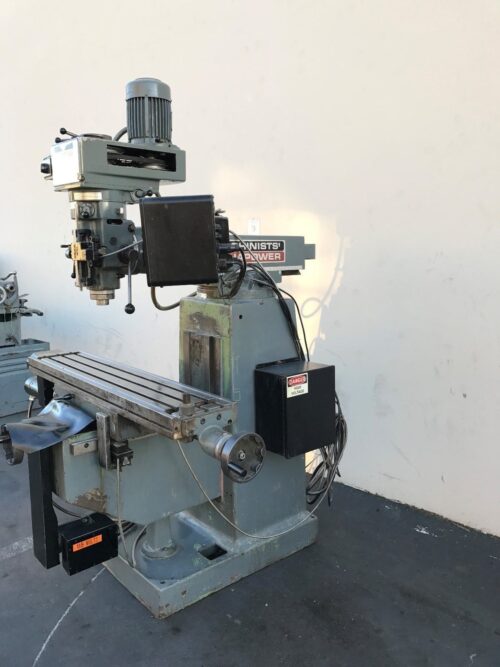

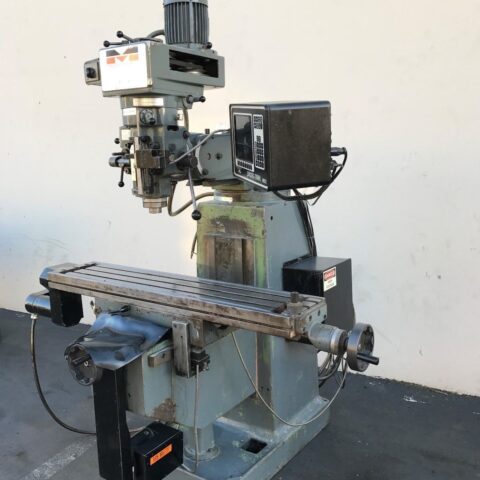

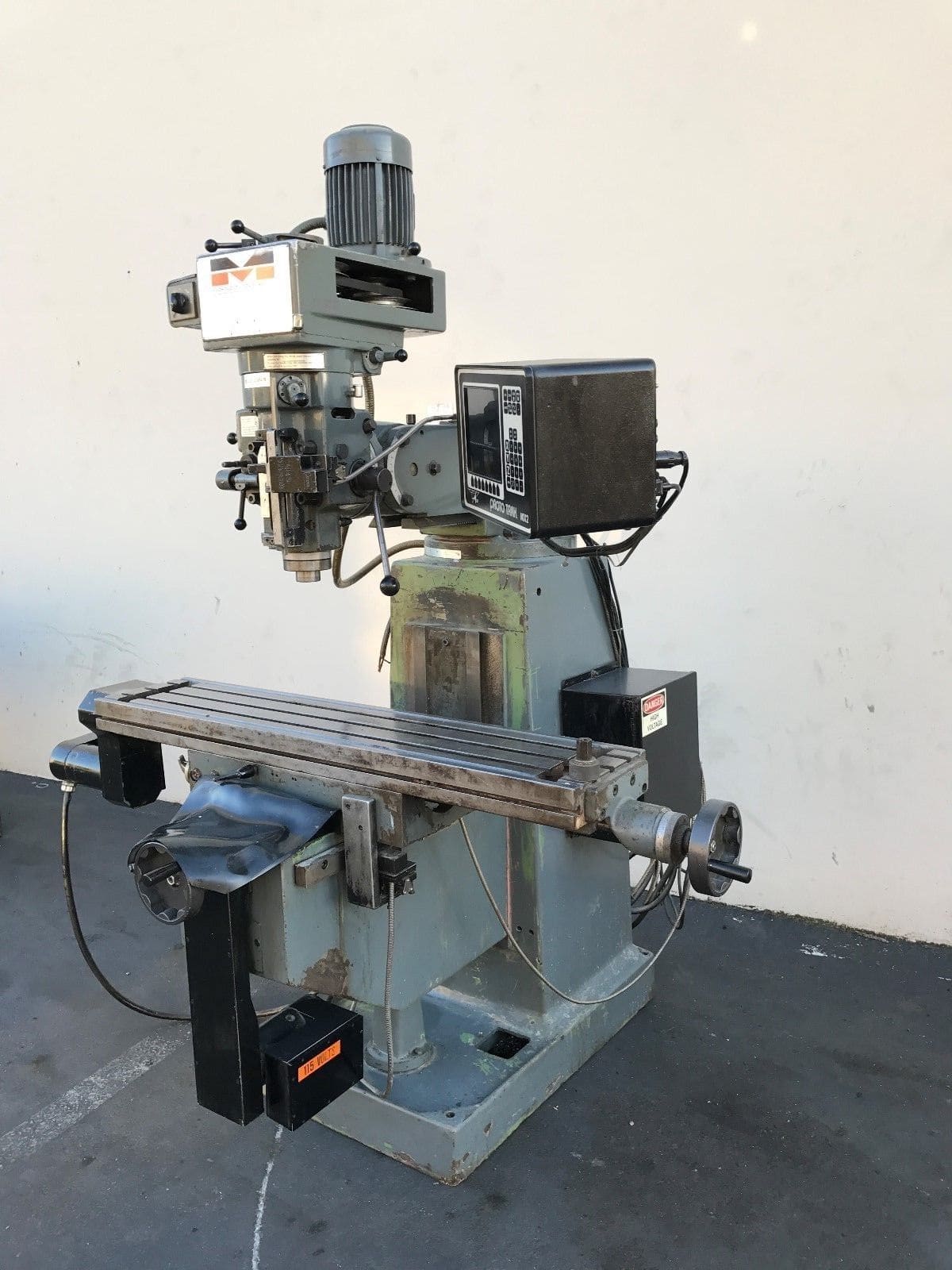

| MACHINIST DYNAPOWER 10X50 CNC VERTICAL MILLING | |
|---|---|
| Make | Machinist Corporation |
| Model No. | Dynapower 1050 |
| Condition | Used |
- MACHINIST DYNAPOWER Features:

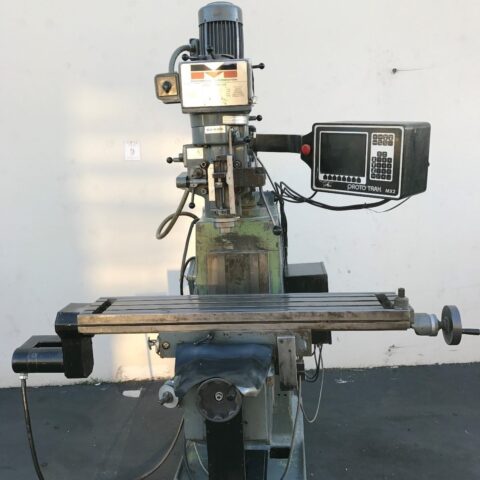

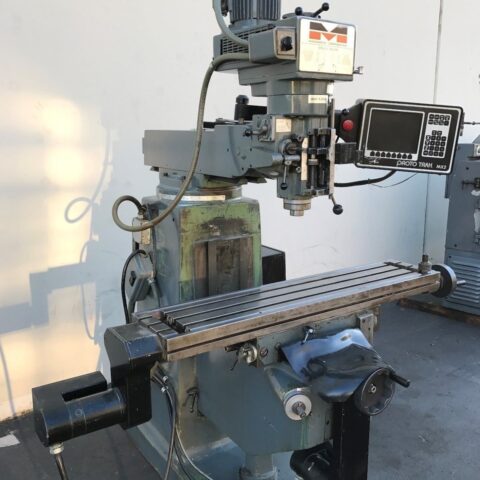

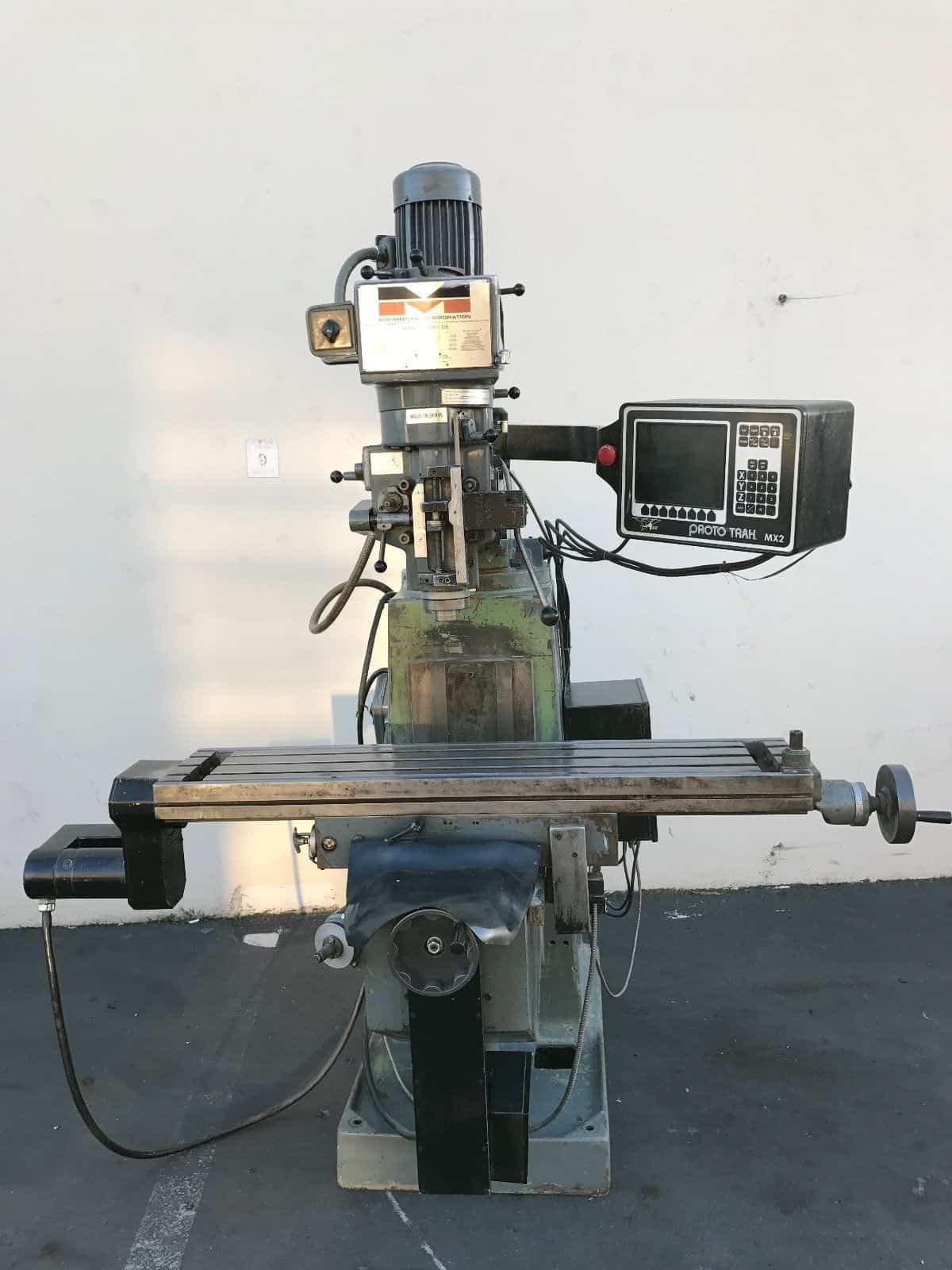

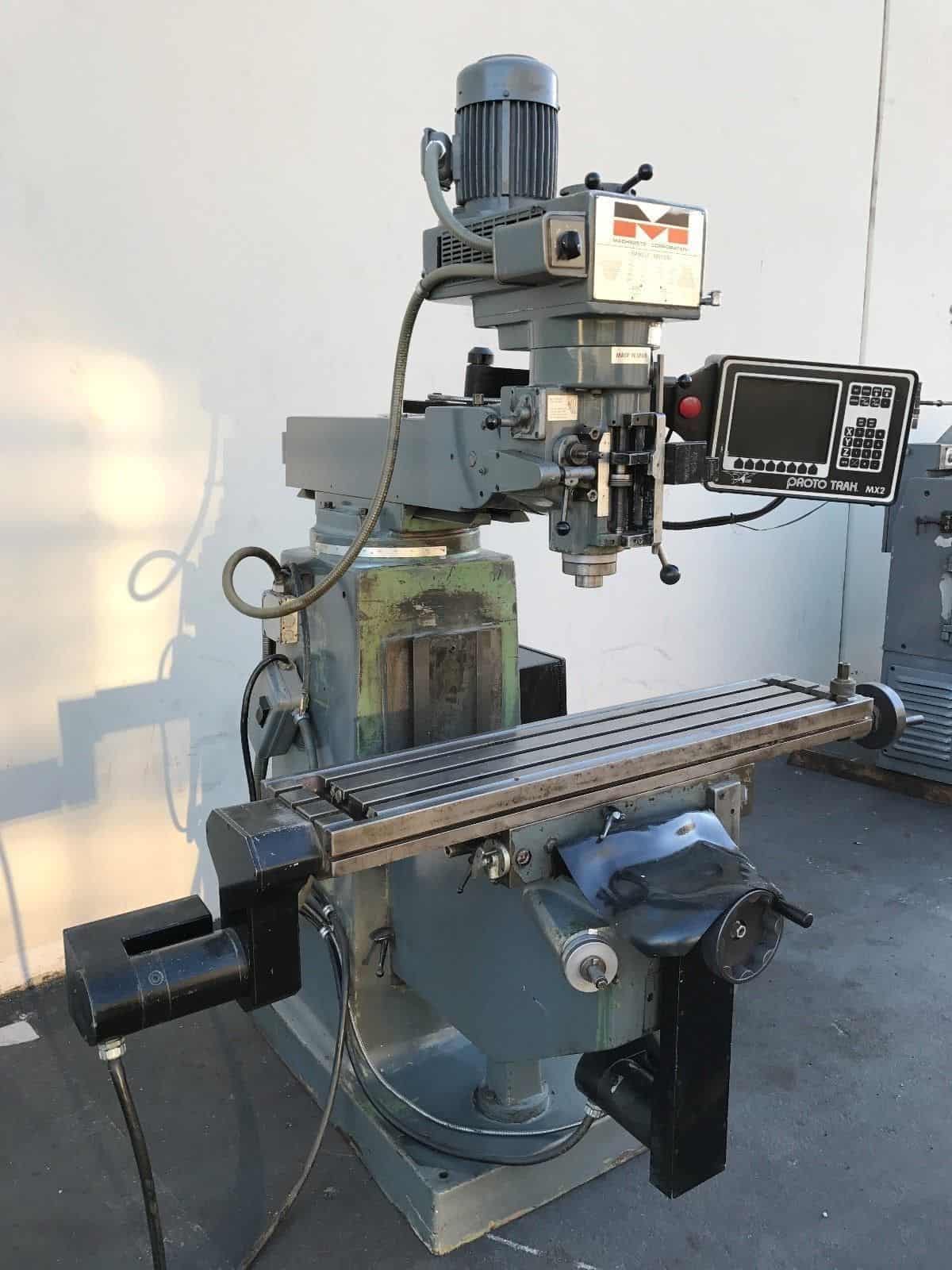

- Proto Trak MX2 CNC Control
- MACHINIST DYNAPOWER Specifications:
- Table:
- Working Surface: 10″ x 50″
- T-Slot Number, Size: 3, 5/8″
- Capacity:
- Table Travel (X-Axis): 34″
- Saddle Travel (Y-Axis): 16″
- Quill Travel (Z-Axis): 5″
- Ram Travel: 16″
- Knee Travel: 16″
- Spindle to Column (min-max): 6-3/4″ – 18-1/2″
- Spindle Nose to Table (min-max): 2-1/8″ – 18″
- Spindle:
- Motor: 3 HP

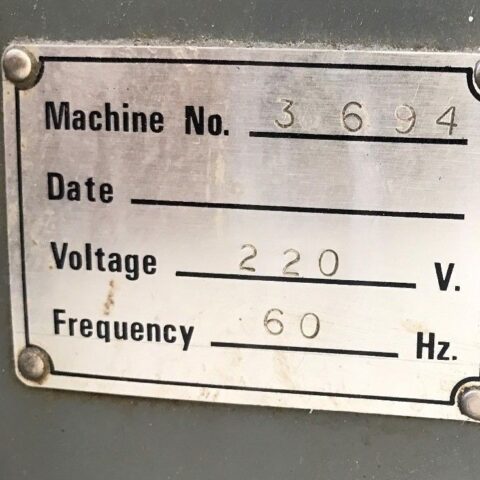

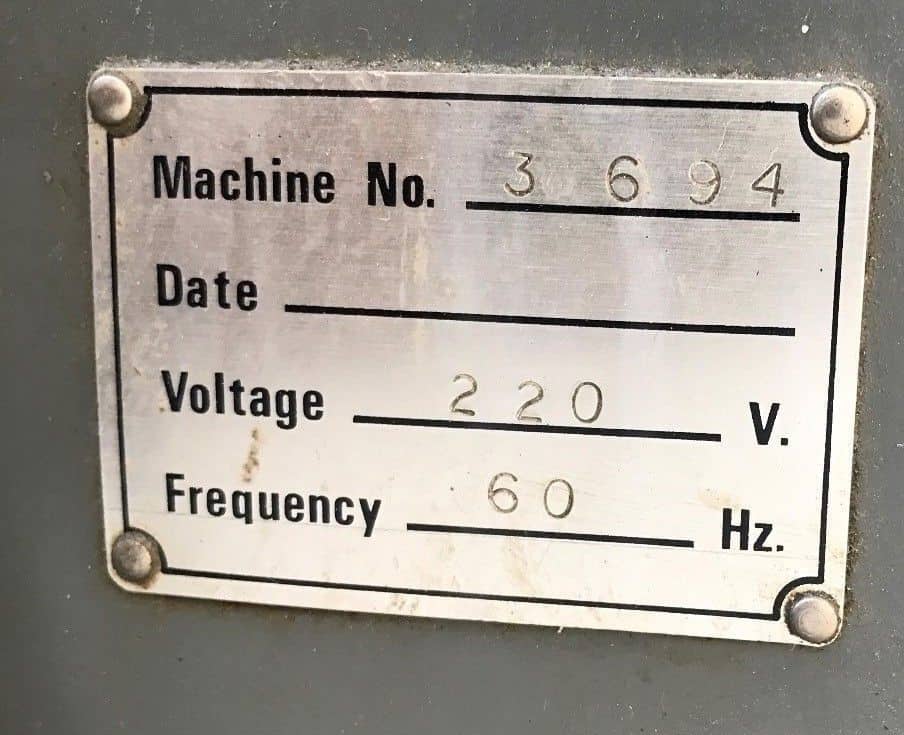

- Wiring Voltage: 220/440V, 3 phase, 60 Hz
- Taper: R-8

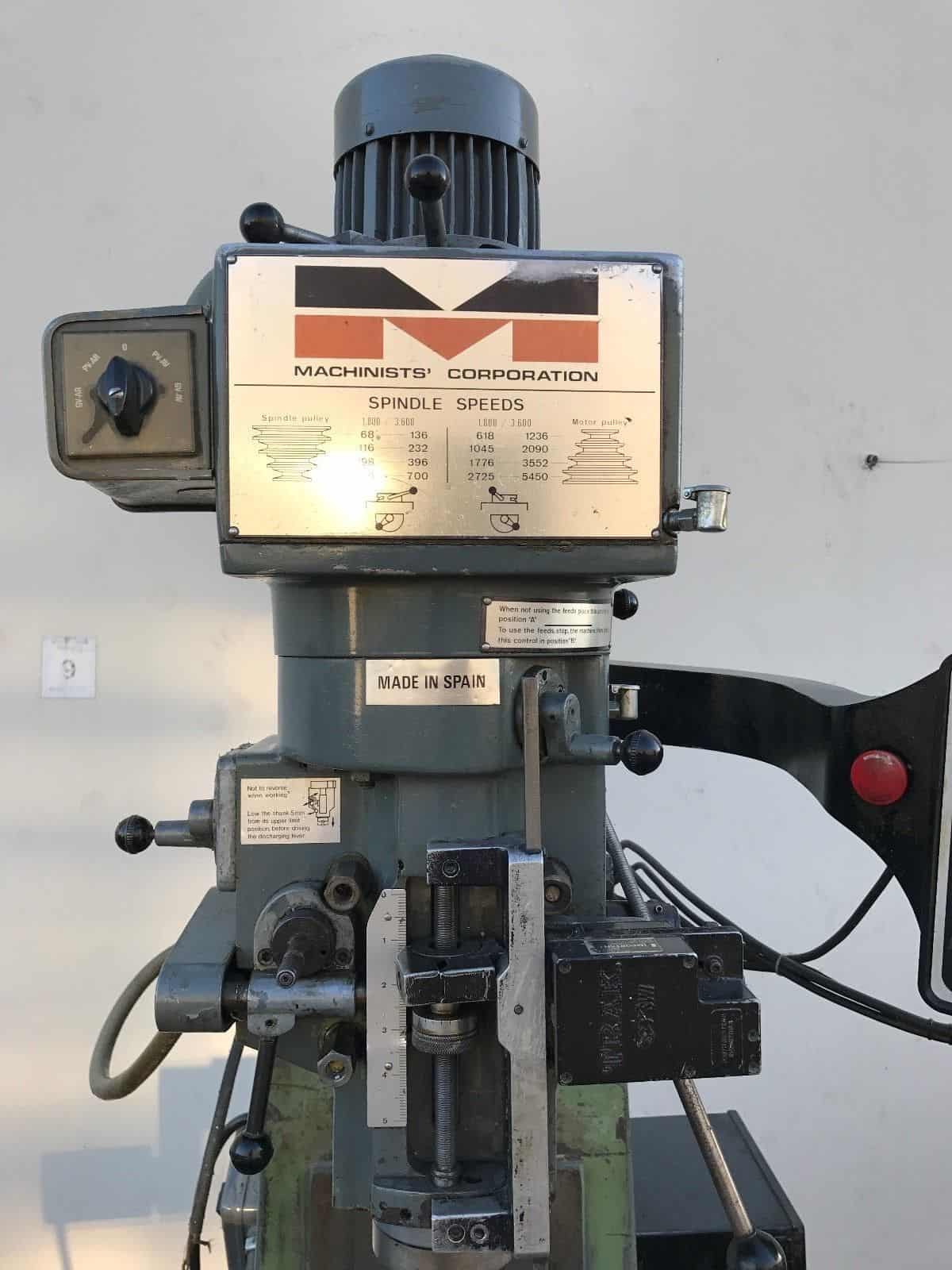

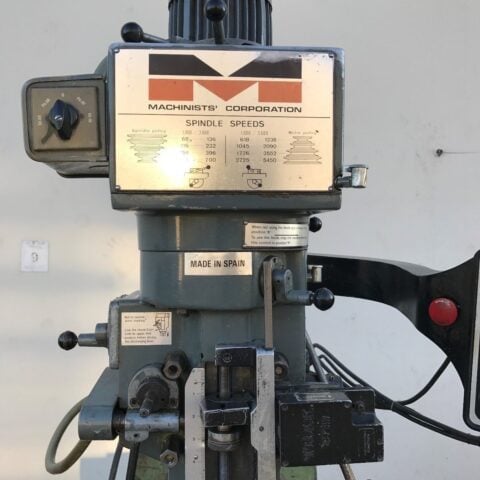

- Speed (Vari-speed): 68 – 5460 RPM
- Quill Feed (IPR): 0.0015″, 0.003″, 0.006″
- Head Swivel on Turret: 360 Degrees
- Head Tilt (Right to left each way): 90 Degrees
- Head Tilt (Up and down each way): 45 Degrees
- Dimensions & Weight:
- Floor Area (WxDxH): 7′ x 6-1/2′ x 6-3/4′
- Net Weight (approx.): 2,800 lbs
SOLD AS-IS
