*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |

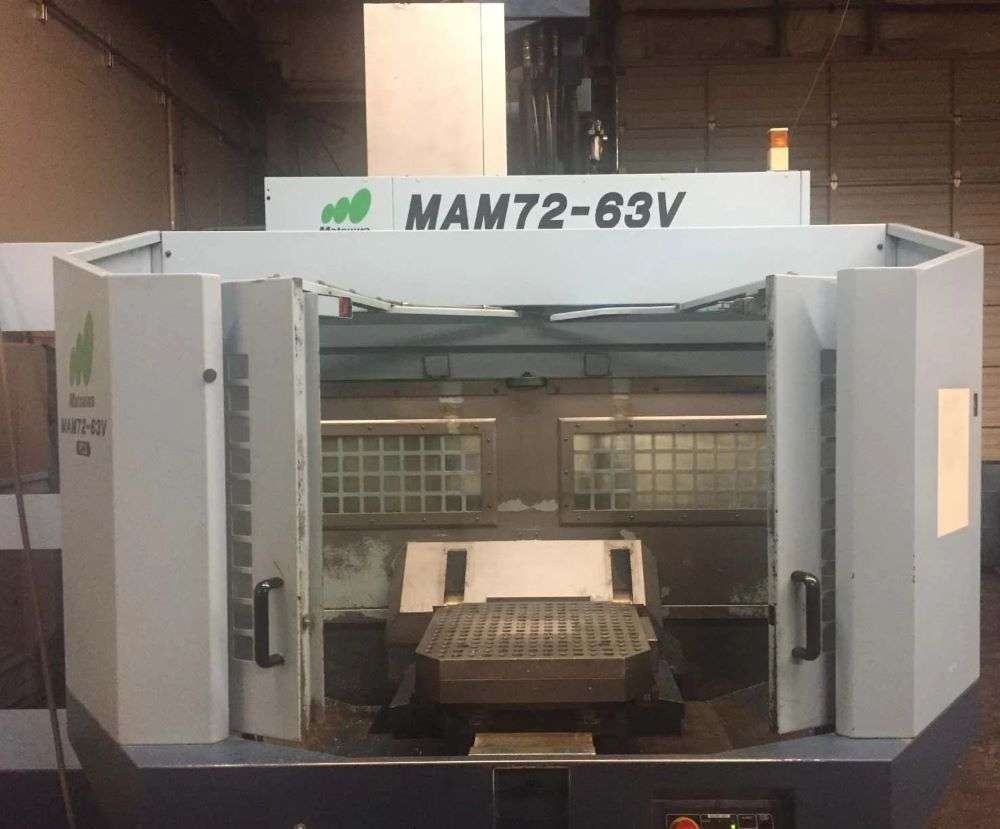

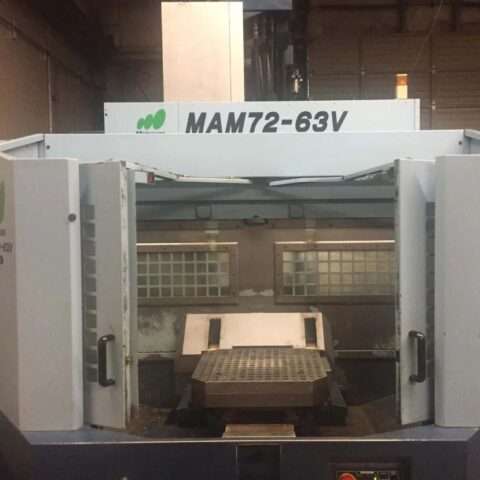

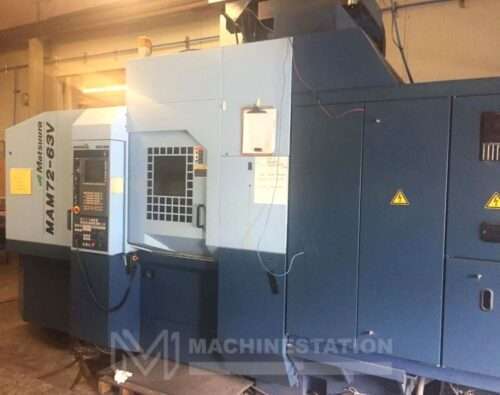

Matsuura |
| Model: |

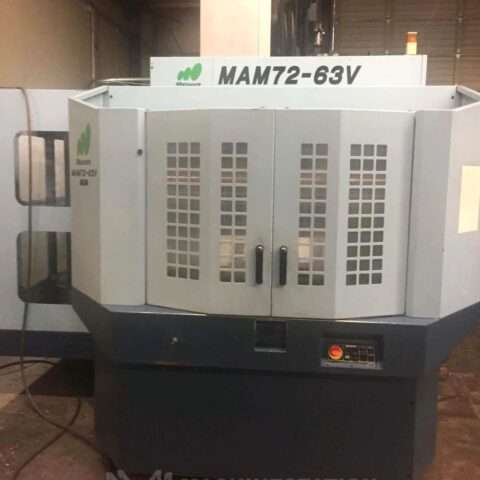

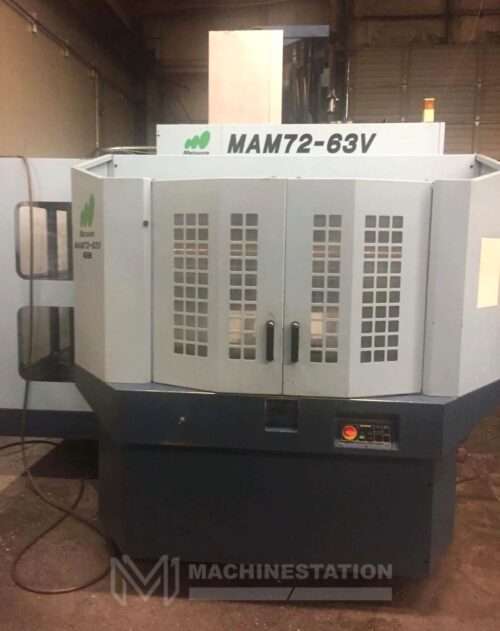

MAM72-63V |
| Year: |
2007 |
| Condition: |
Used – Good |
Features:

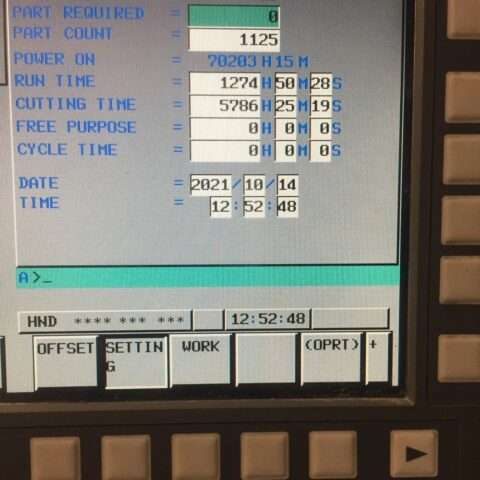

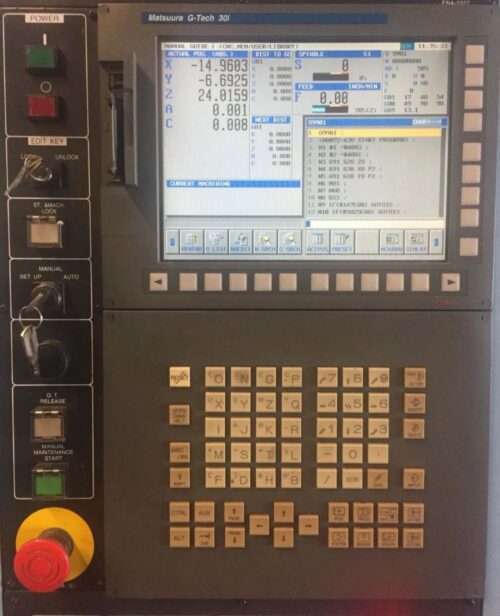

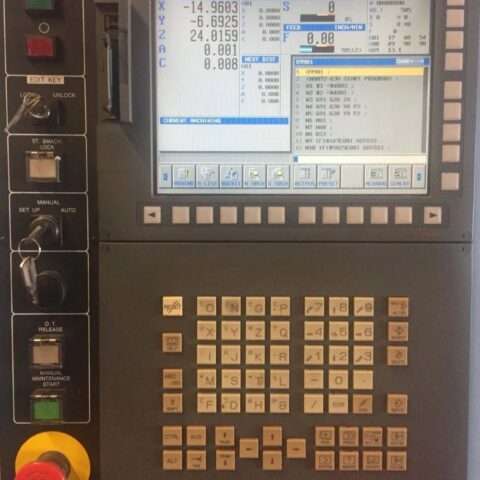

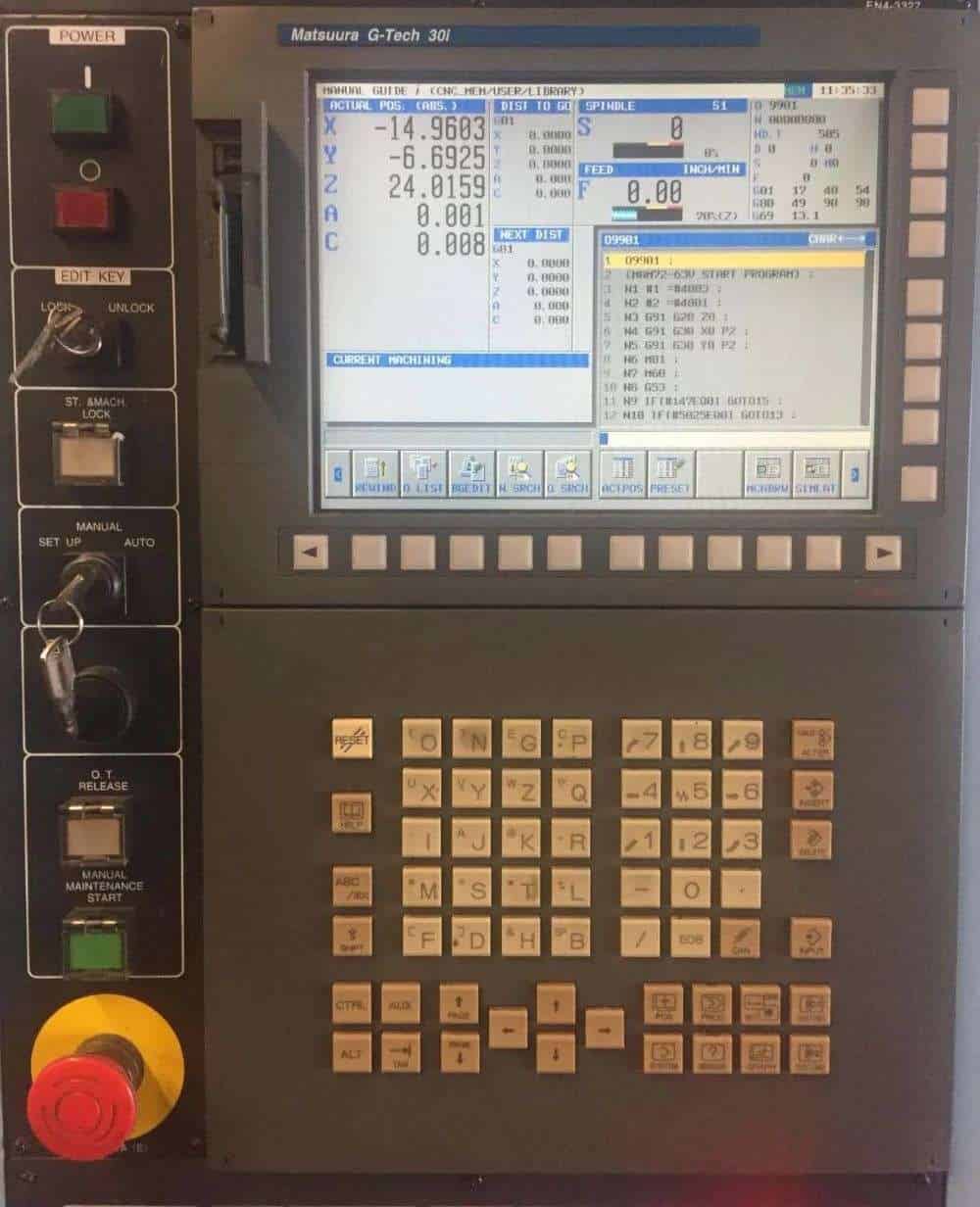

- Fanuc G-Tech 30i Series CNC Control
- Twin Pallet with 2 Extra Pallets (4 Total Pallets)

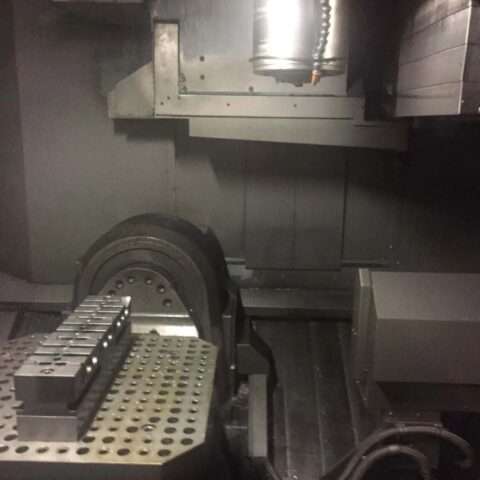

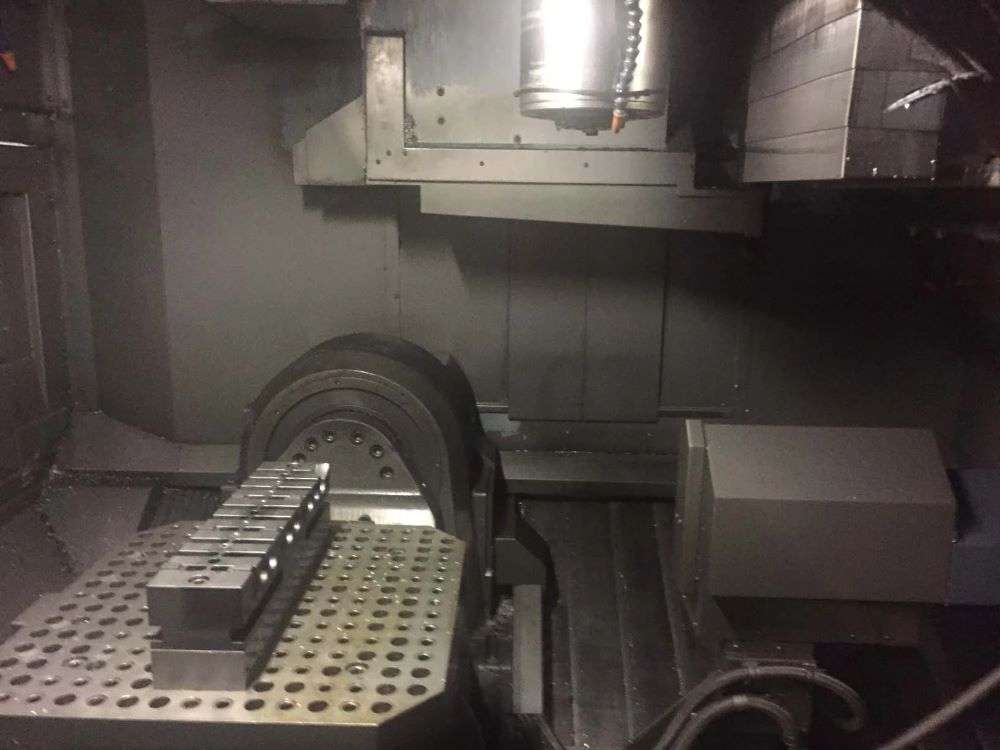

- NC Programmable Swiveling Trunnion Table 19.8” x 19.8”
- 12,000 RPM High Speed Spindle
- Through Spindle Coolant
- 120 Station Automatic Tool Changer
- Laser Tool Setter
- 300 Work Offsets
- 1000 Tool Offsets
- 2MB Data Server on Board
- Tool Radius Comp For 5-Axis Machining
- Tolerance Control
- Broken Tool Detection
- Tool Life Management
- Auto Tool Measurement

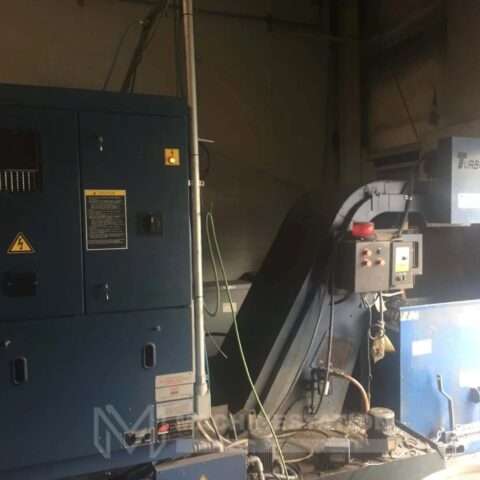

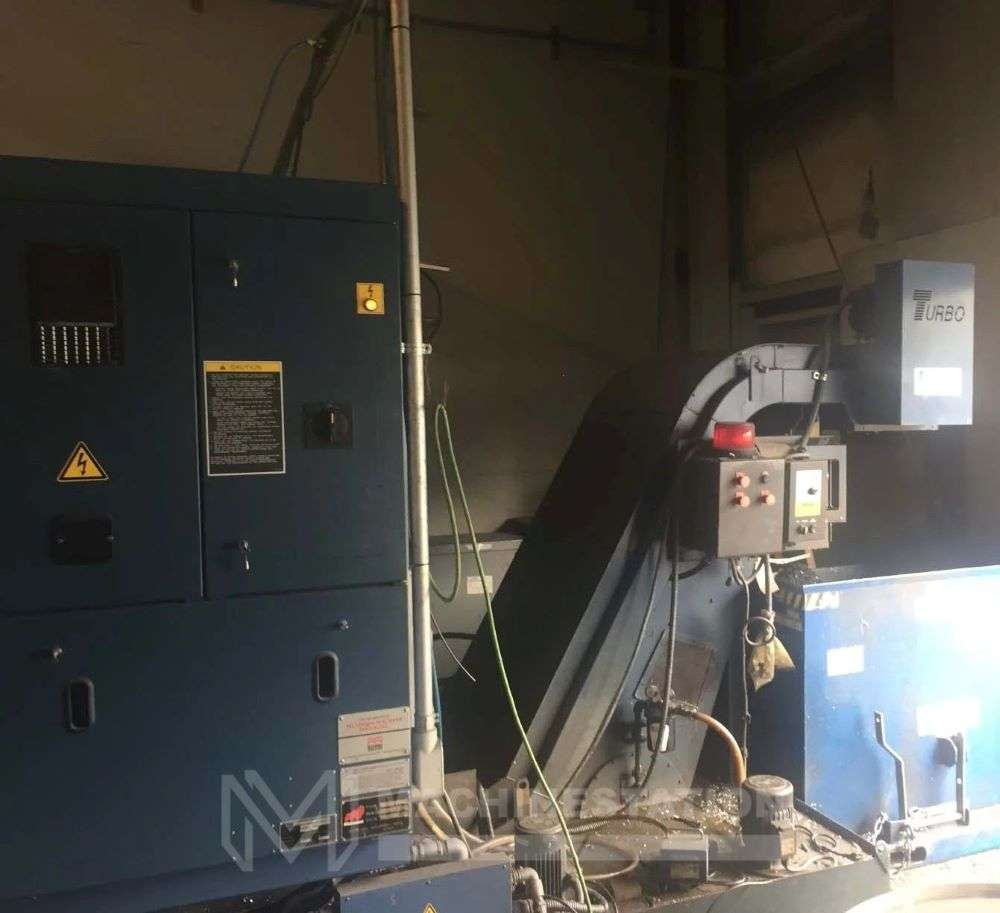

- MAYFRAN Conveyor For Aluminum (Backflush Fine Swarf Removal)
|
Travels:
- X Axis: 29.92″
- Y Axis: 33.26″
- Z Axis: 25.98″
- A Axis: 240° (+120°/– 120°) ( Table Tilt )
- C Axis: 360° ( Table Rotate )
- Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute
|
Pallet:
- Number of Pallets: 2 Station with 2 Extra Pallets (4 Total Pallets)
- Pallet Surface: 19.68″ x 19.68″
- Max Workpiece Diameter: 28.34″
- Max Workpiece Height: 17.71″
- Max Weight on Table: 770 lbs
|
Spindle:
- Taper Size: CAT-40
- Speed Range: 12,000 RPM
- Spindle Power: 30 HP
|
Automatic Tool Changer:
- Capacity: 120 Tools
- Taper: CT-40
- Max Tool Diameter: 3.77″
- Max Tool Length: 13.77″
- Max Tool Weight: 22 lbs.
|
General:
- Air Required: 80 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 249″ X 153″ X 126″ High
- Weight: 31,967 lbs Approx.
|
