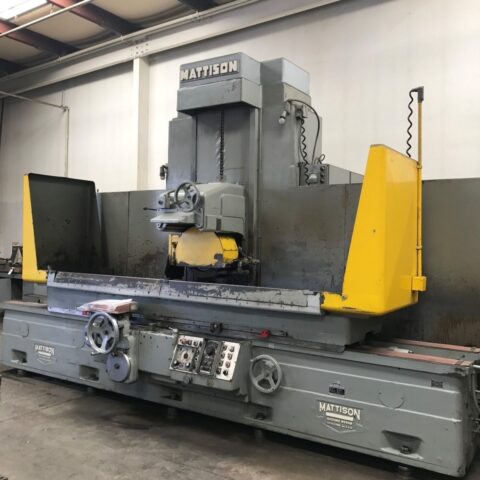

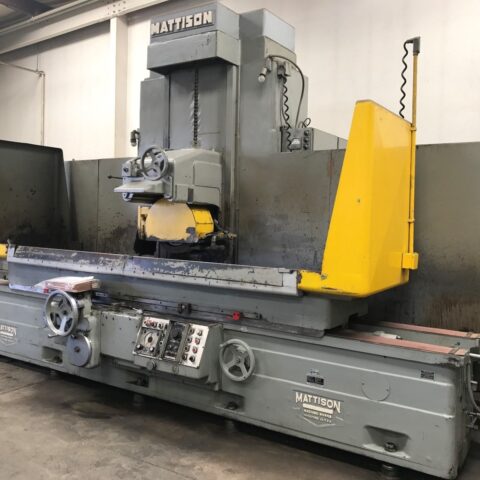

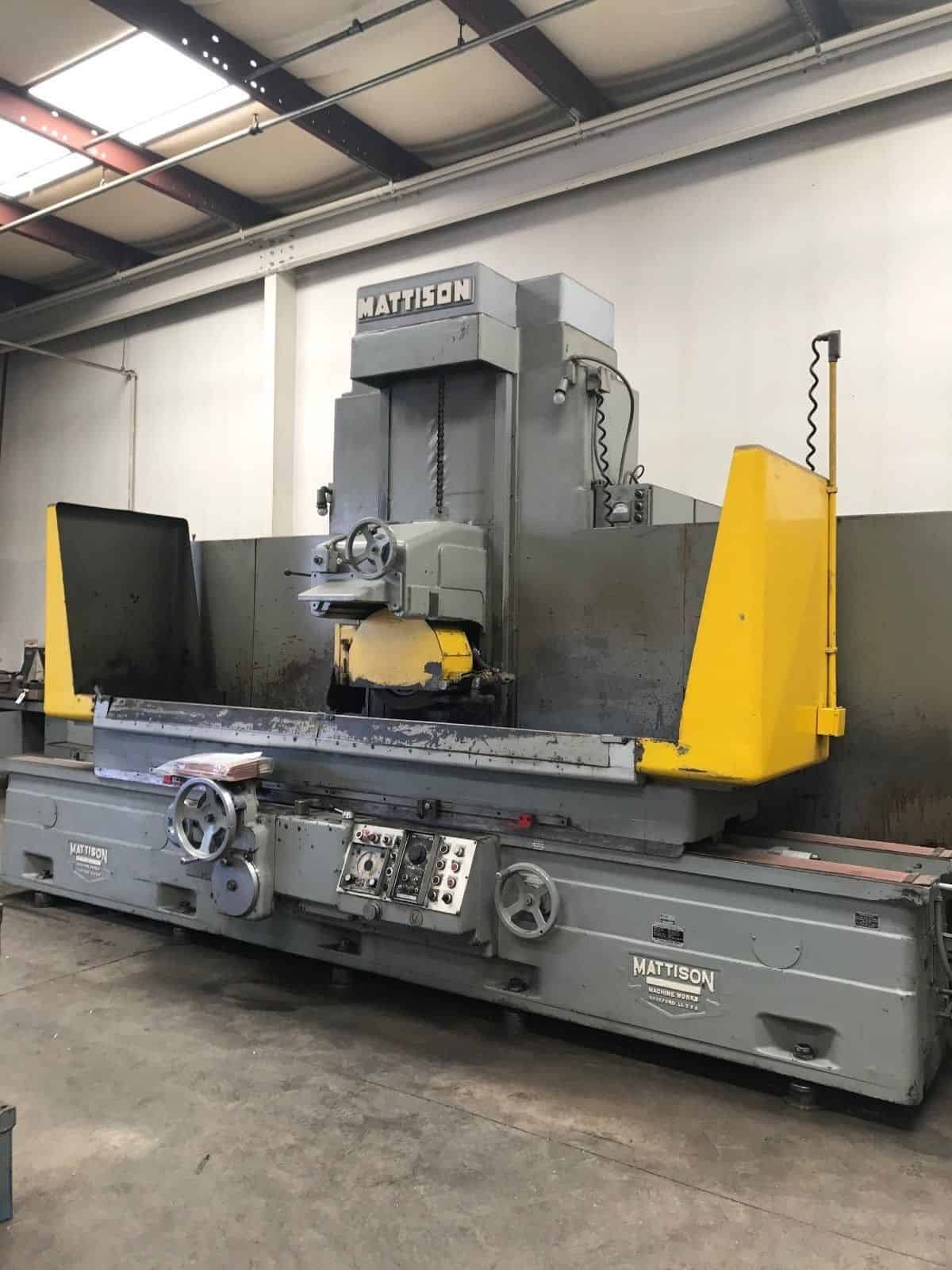

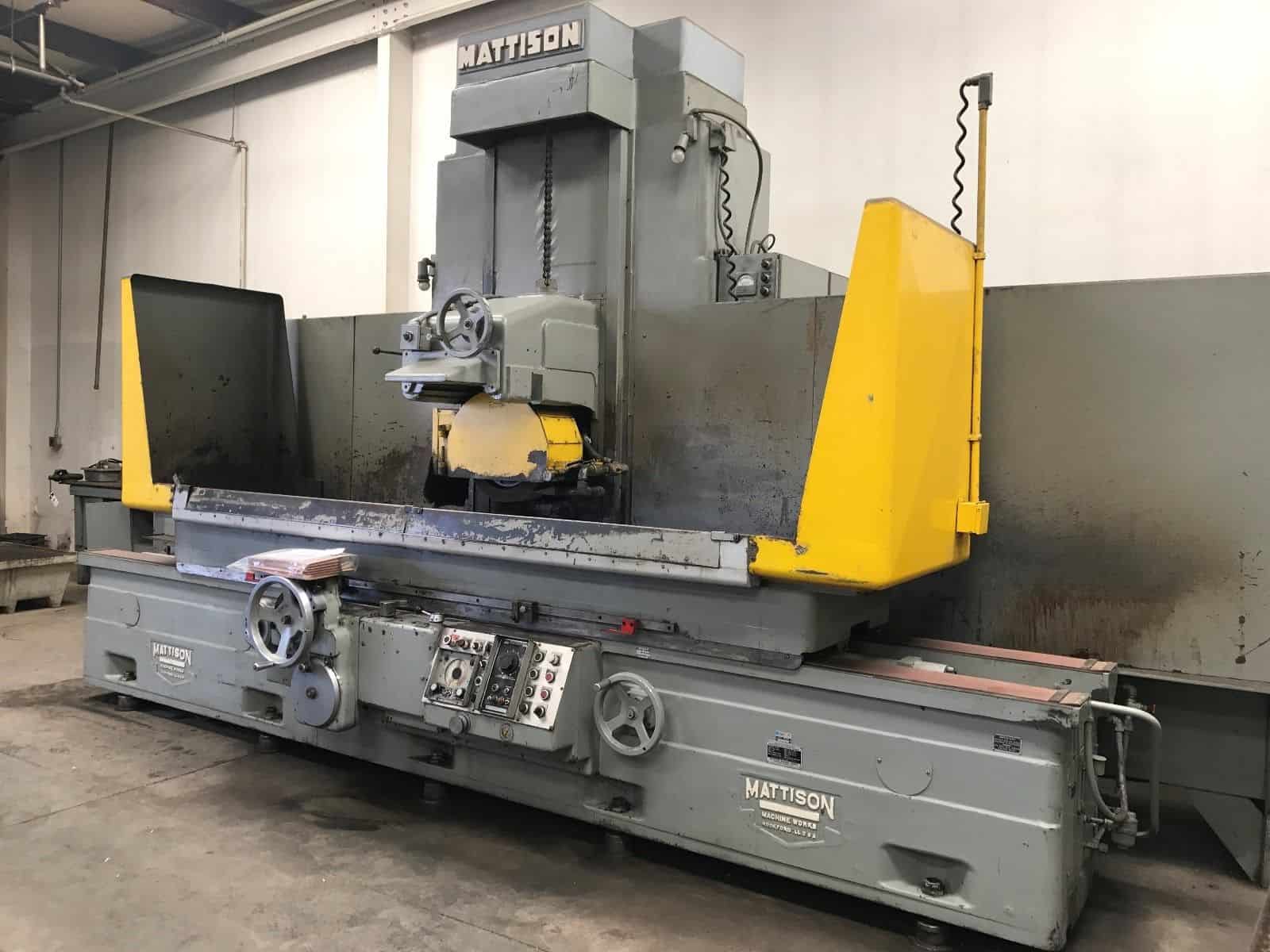

| MATTISON 24 x 72 AUTO HYDRAULIC SURFACE DIE BLOCK GRINDER | |
|---|---|
| Make | Mattison |
| Model No. | Die Block 24 x 72″ |
| Country Of Origin : | USA |

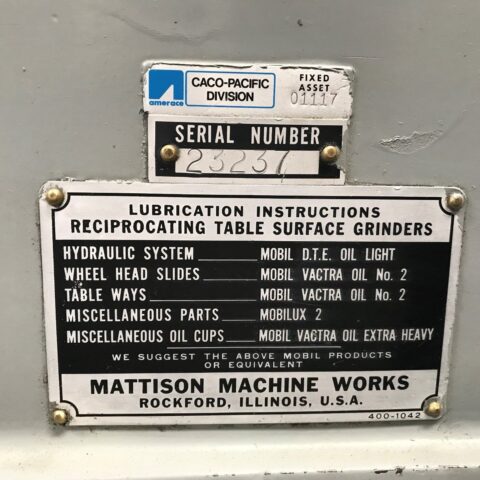

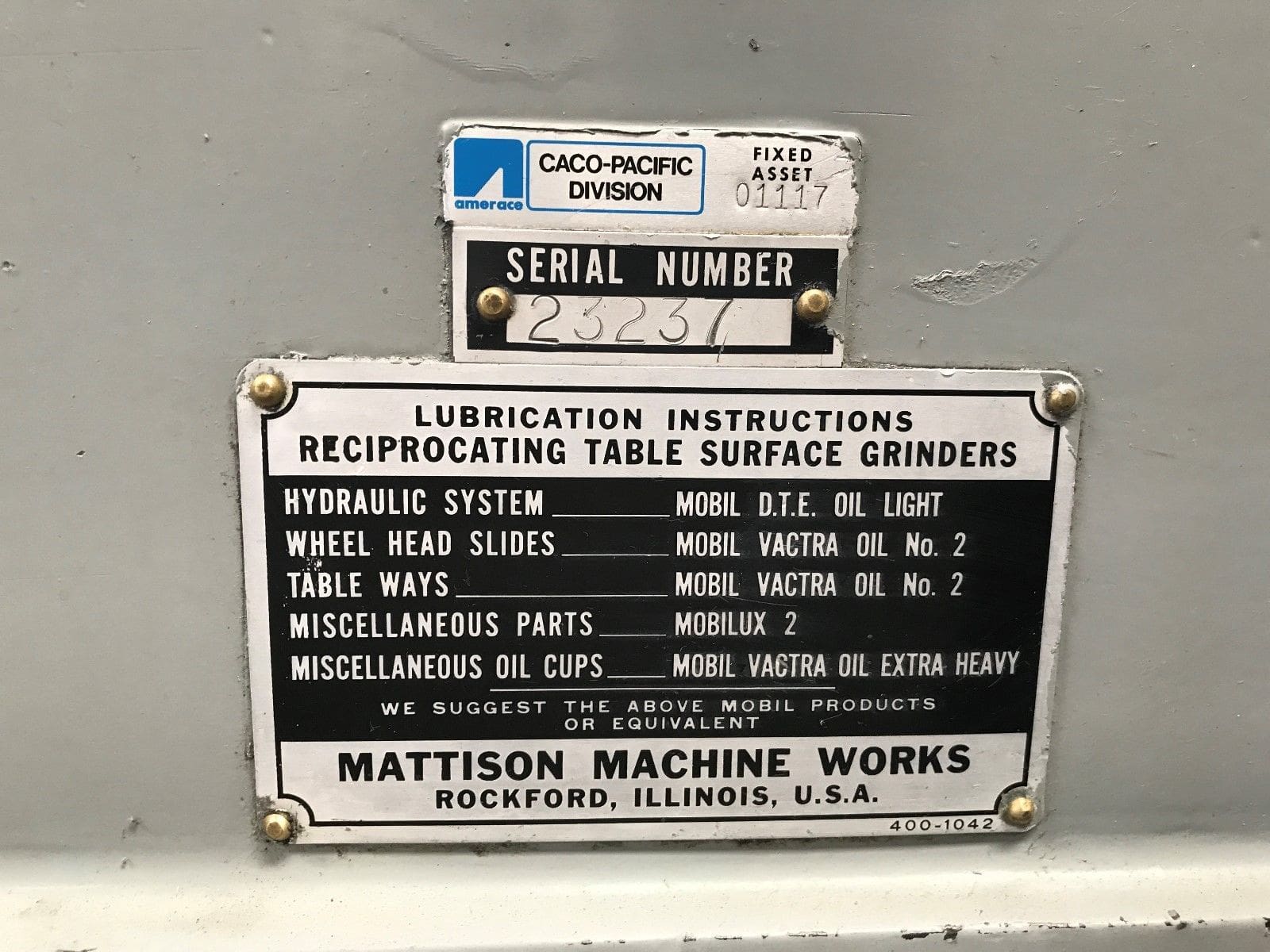

| Serial # | 23237 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“Good Working Condition Machine used in a Tool Room Occasionally. Z Axis Upgraded Fine Pitch Ball Screw , Clean Ways. Equipped with 24×72″ Electro Magnetic Chuck with Controller. Machine is in all Original Paint. Special Pre-Removal Price.”
- MATTISON 24″ x 72″ Features:

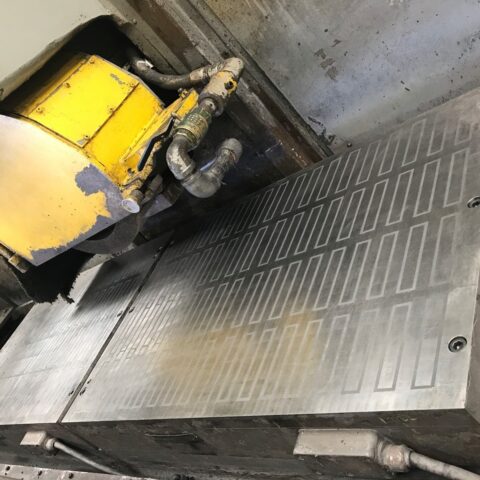

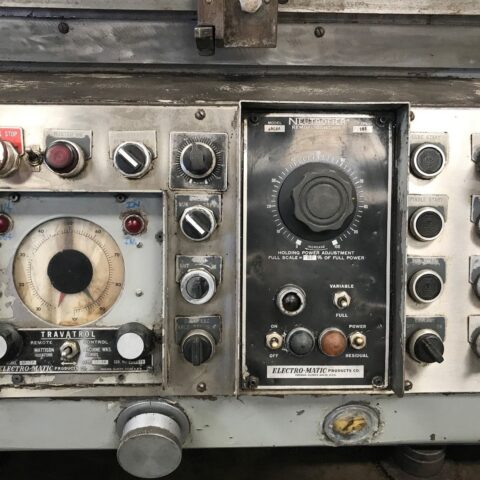

- Electro Magnetic Chuck with Neutrofier Controller

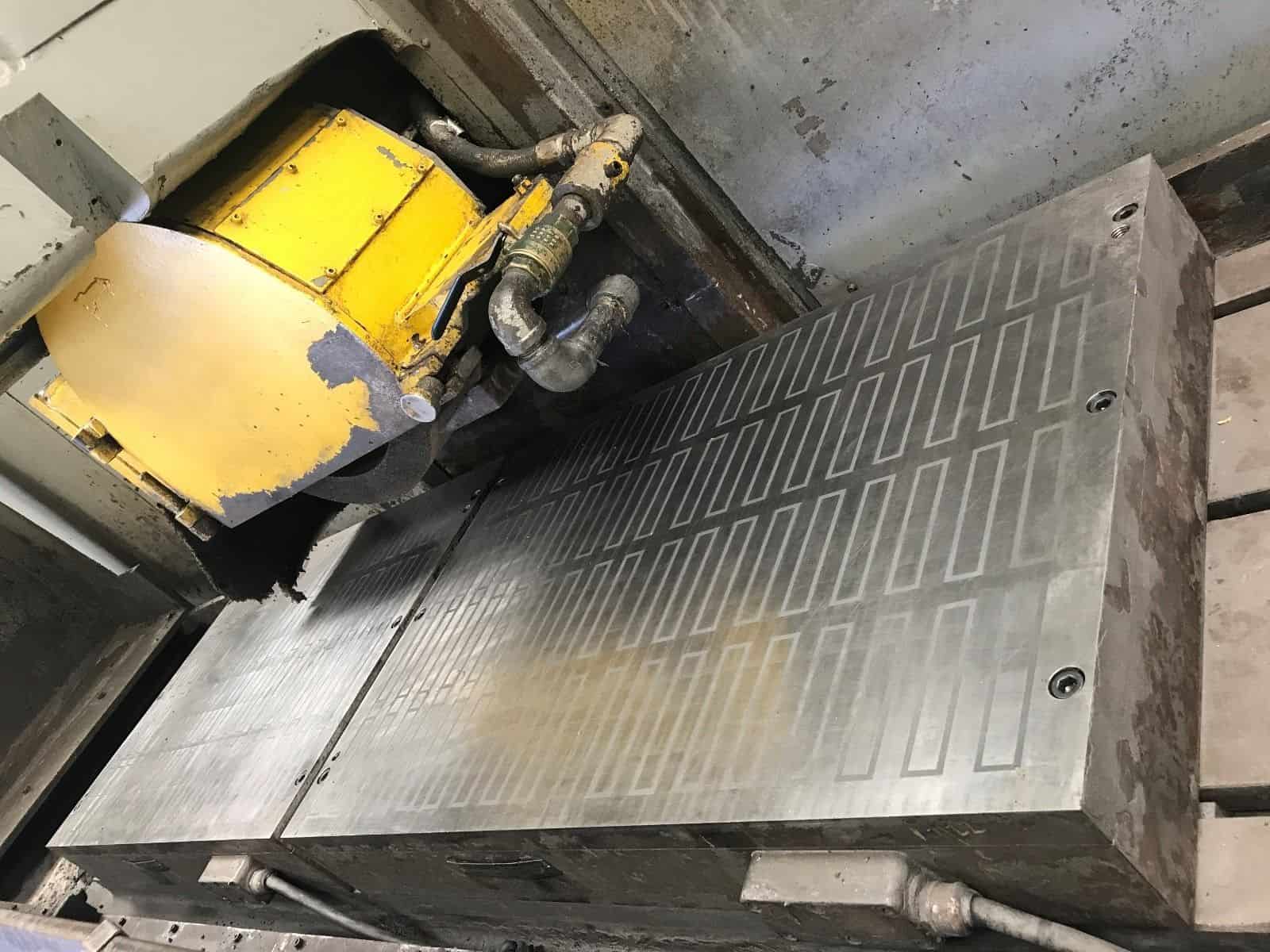

- 24″ x 72″ Fine Magnetic Chuck
- 20” x 6” Wheel Capacity
- Double box-type column construction
- Trav-A-Trol control of the wheel slide movement
- Power rapid traverse to the grinding wheelhead

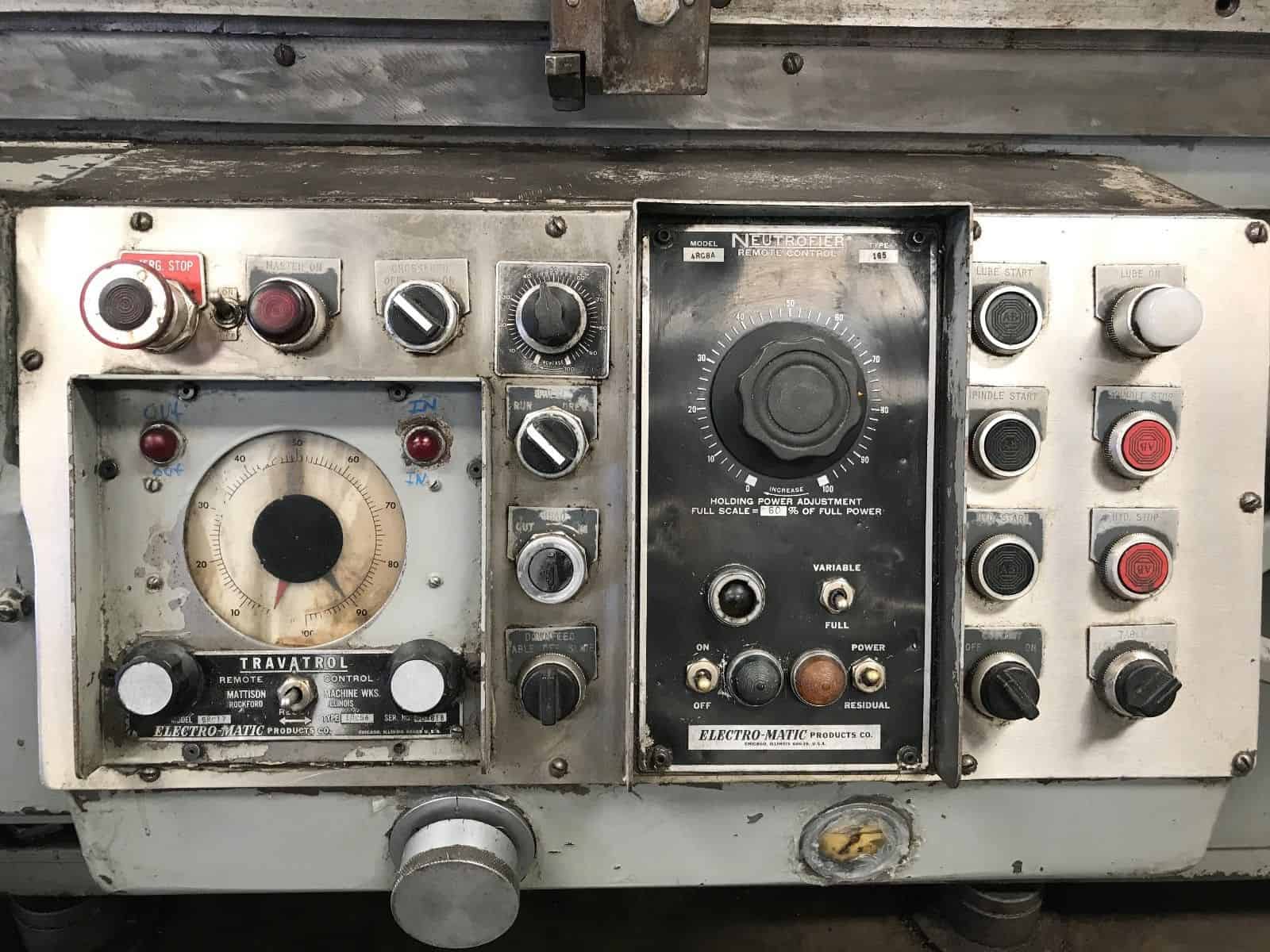

- Separate Electronic Control Console
- Automatic Incremental Downfeed
- Built in Wheel Dresser

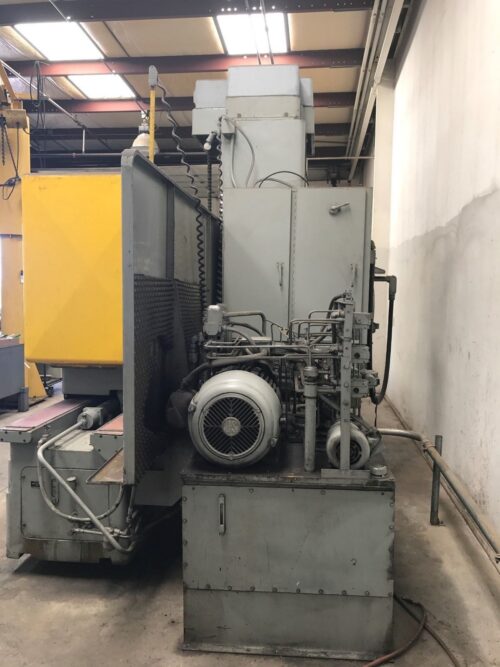

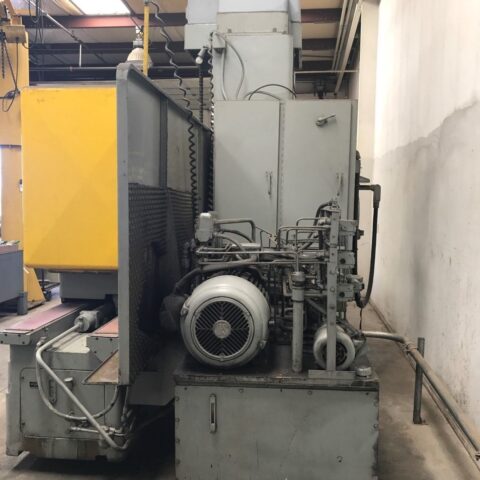

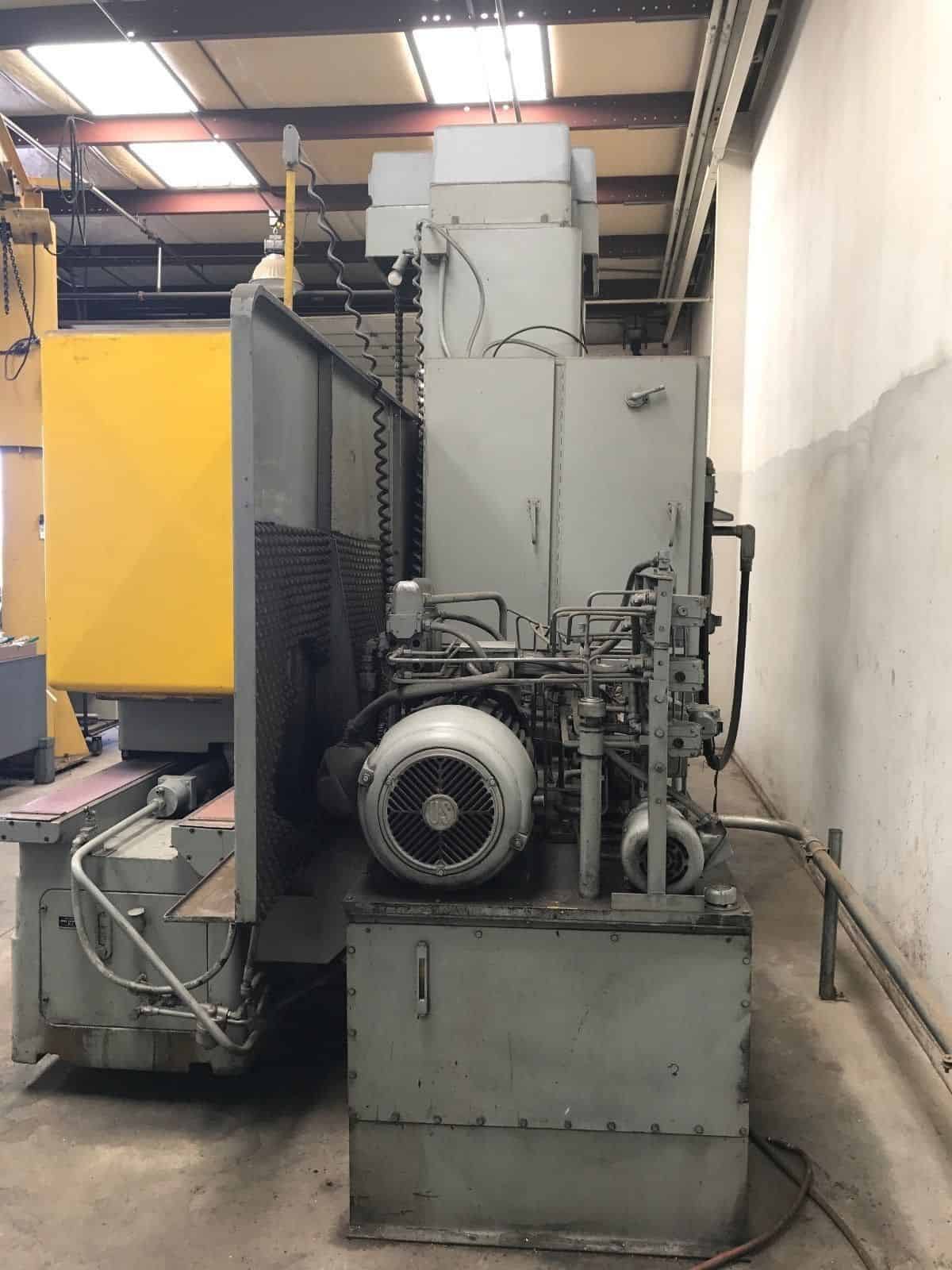

- Hydraulic System
- Lubrication System

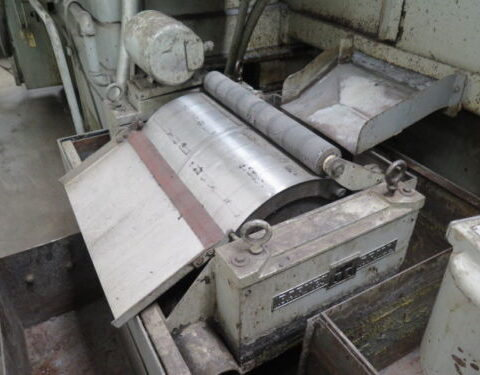

- External coolant system, with Magnetic Separator
- Coolant System with Splash Guards
- Comes with Manuals, Levelling Pads, Magnetic Particulate Separator.
- General:
- Overall Dimensions: 235″ x 93″ x 110″ High
- Weight: 26000 lbs
- MATTISON 241 x 72 Specifications:
- Table travel longitudinal: 84″
- Table working surface: 24″ X 72″
- Capacity Under 20″ Wheel: 35″
- Infinitely variable table traverse speeds: up to 125 F.P.M.
- Auto crossfeed increment: 1/32″ to 3″
- Auto downfeed increment: 0.004″ to .0002″
- Vertical handwheel graduation: 0.0001″

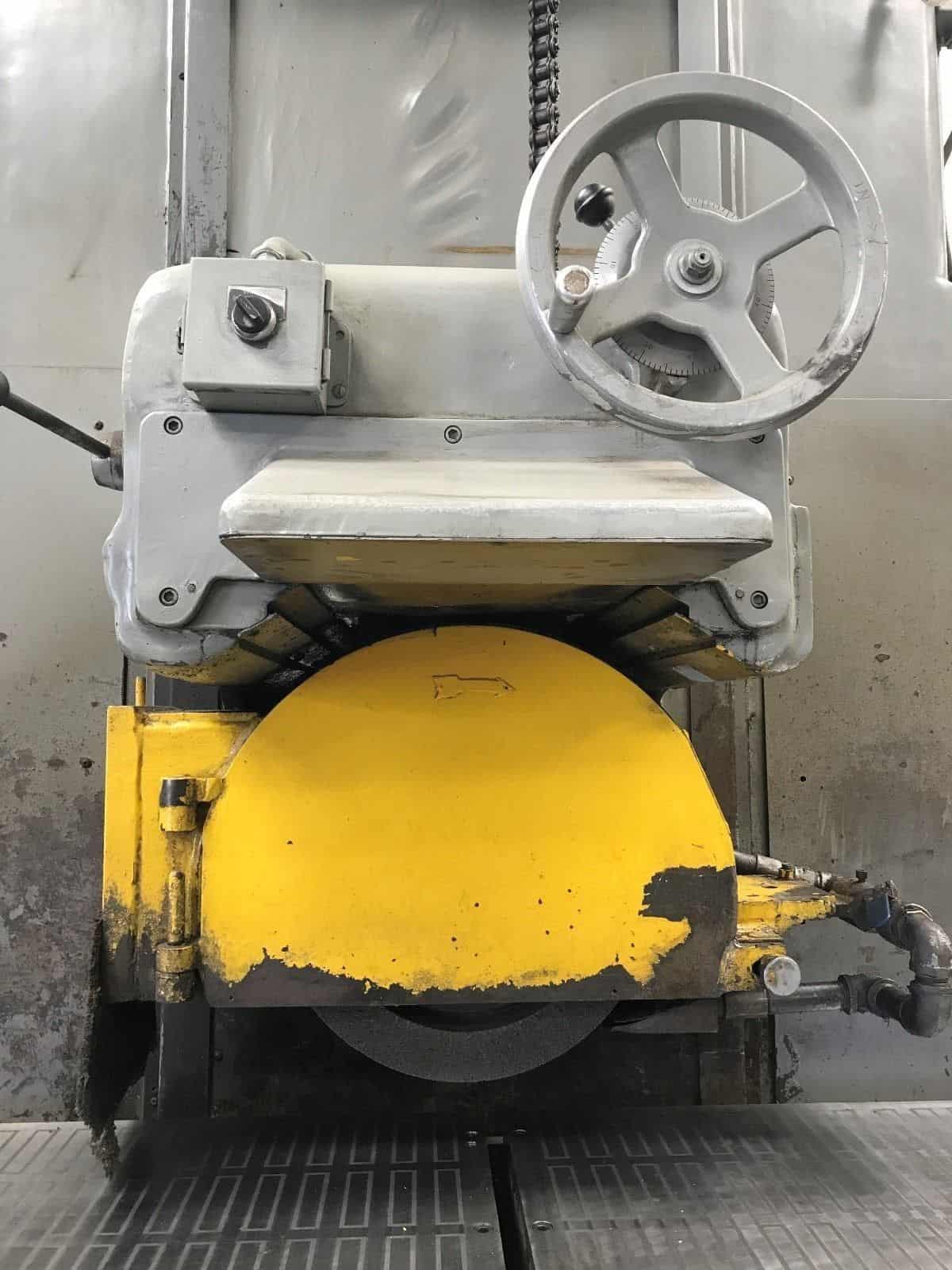

- Grinding wheel diameter x bore x width: 20″ x 10″ x 6″
- Wheel size (OD x Width x ID): 14″x1″ x5″
- Spindle motor: HP

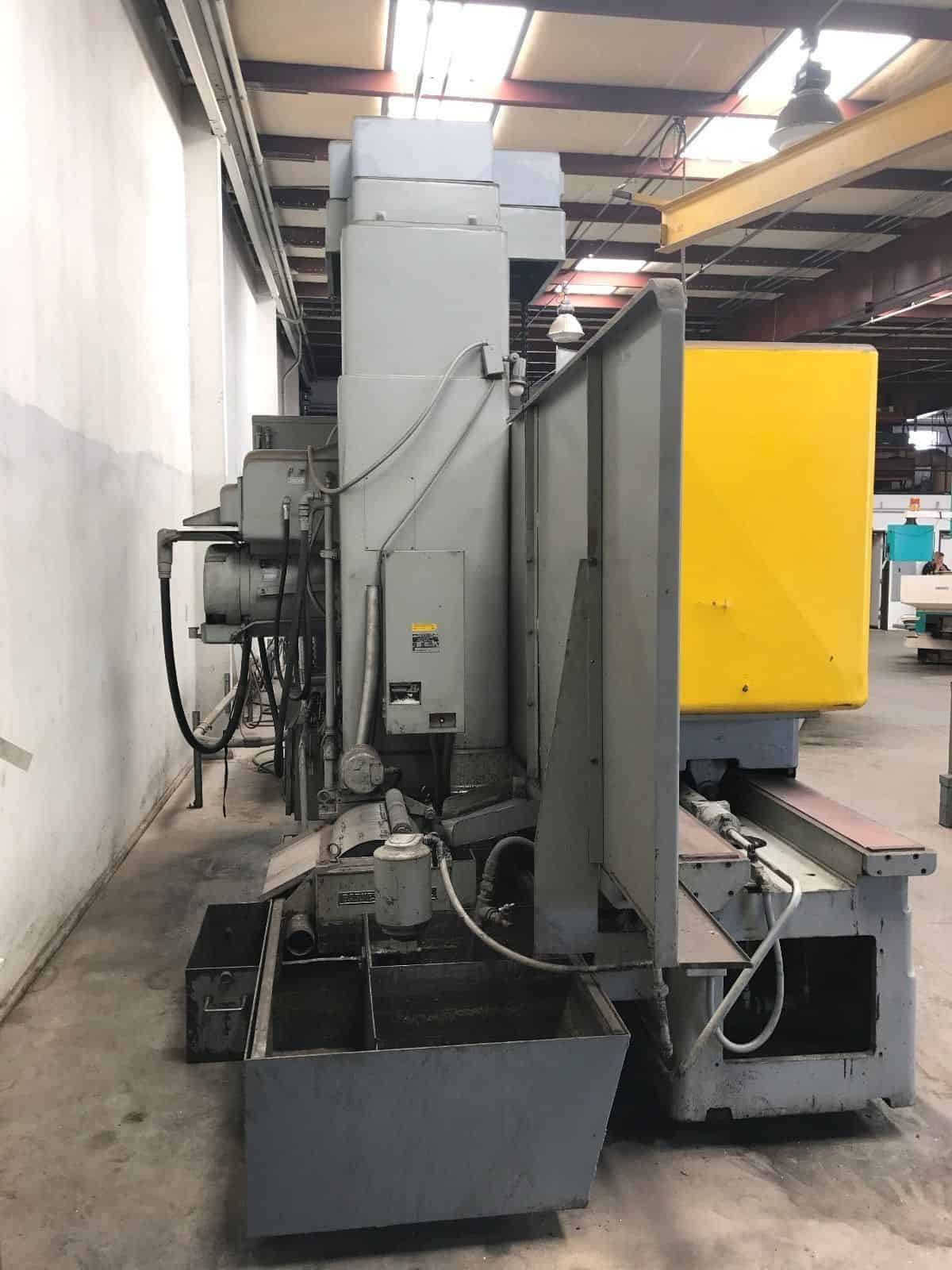

MATTISON 24 x 72 Comes as shown in pictures.
