*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

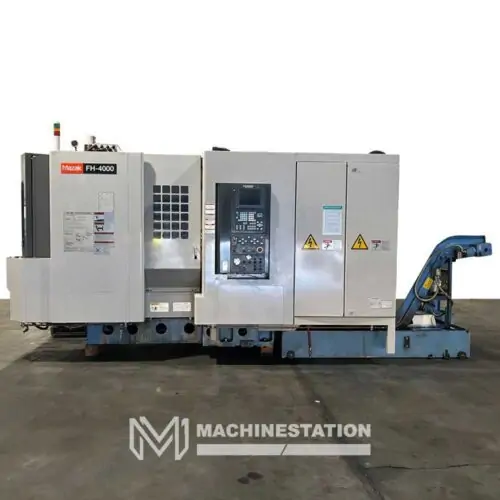

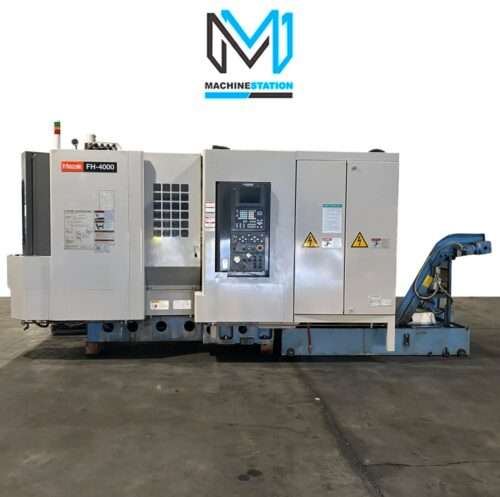

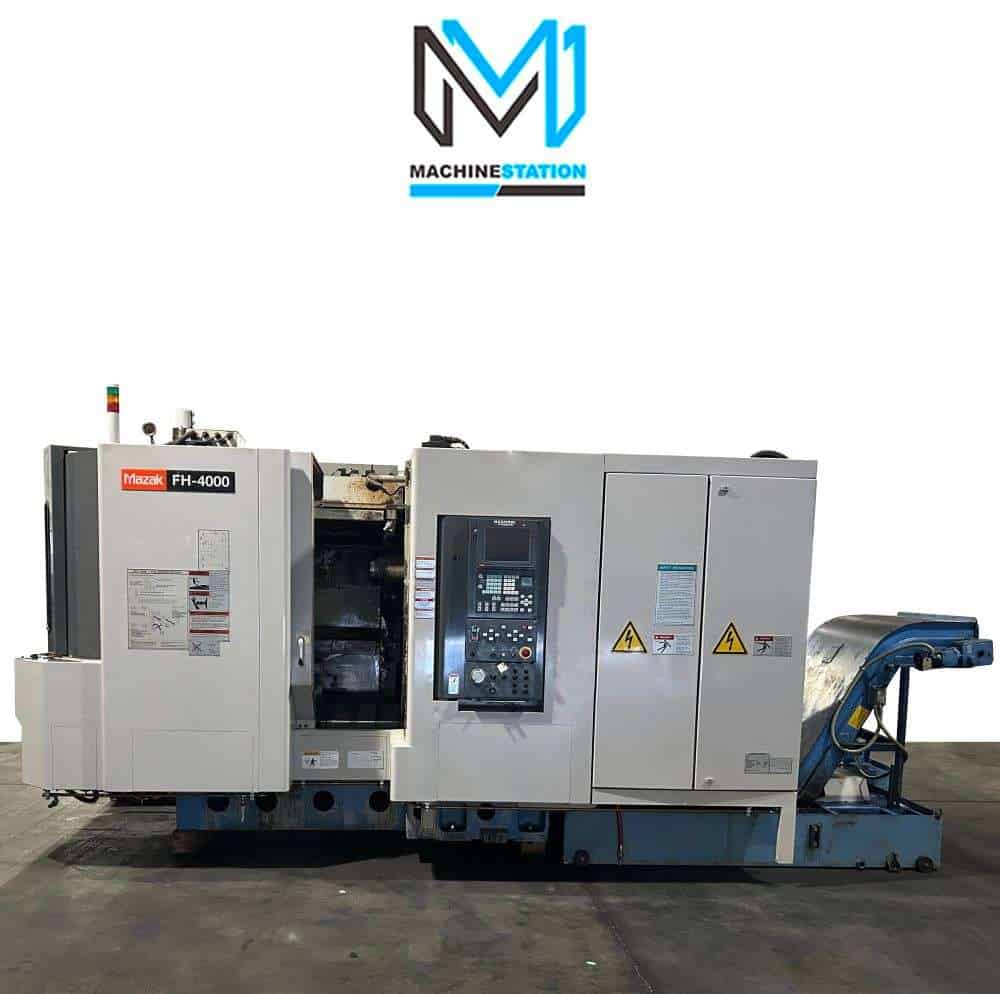

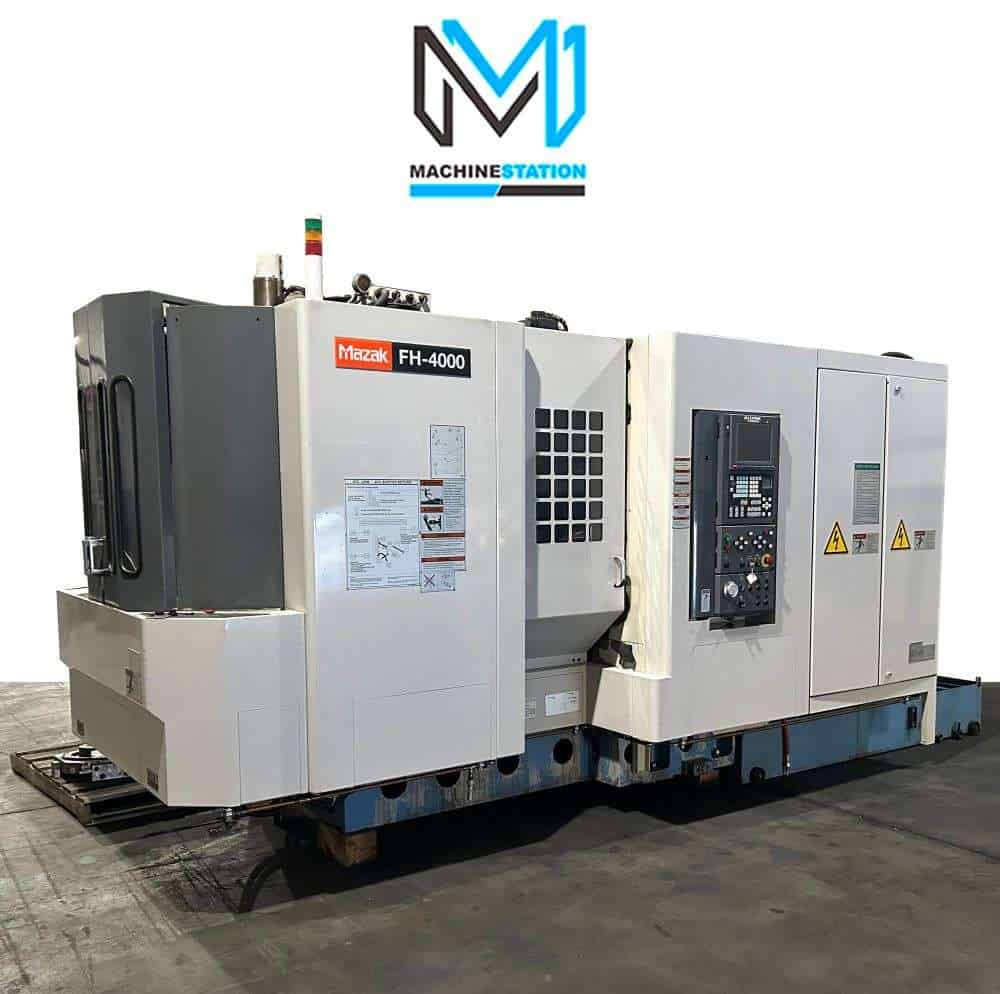

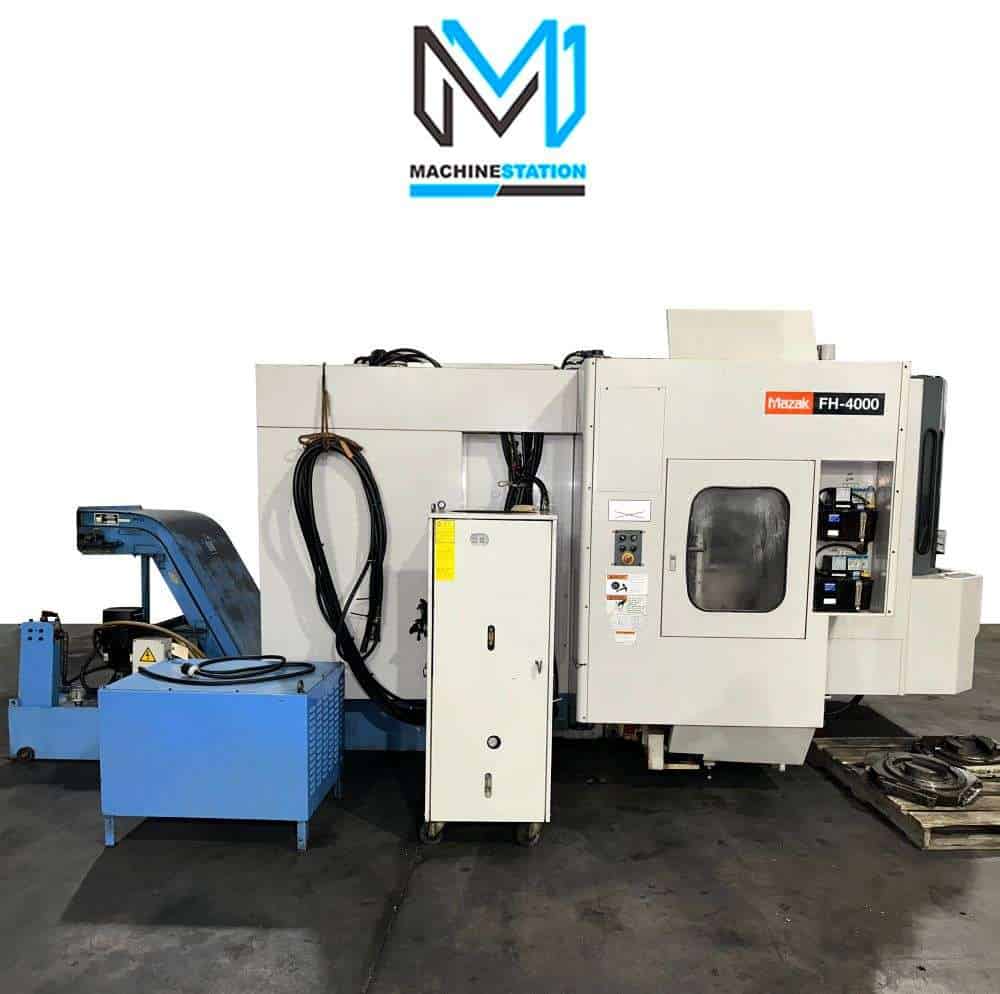

| Make: | Mazak |
| Model No.: | FH-4000 |
| Year of Manufacture: | 2002 |
| Equipped With: |
|---|

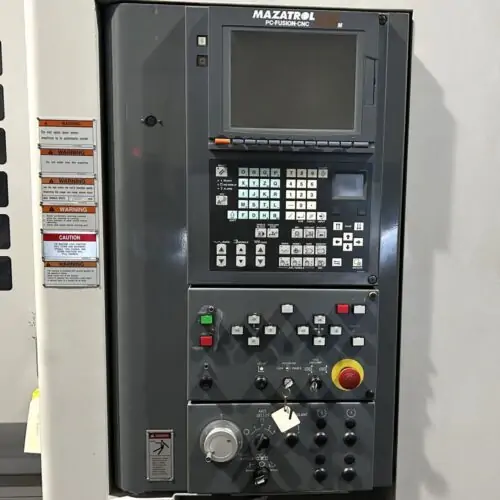

| Mazatrol 640M PC Fusion CNC Control |
| 12,000 RPM High Precision Spindle |
| Through Spindle Coolant |

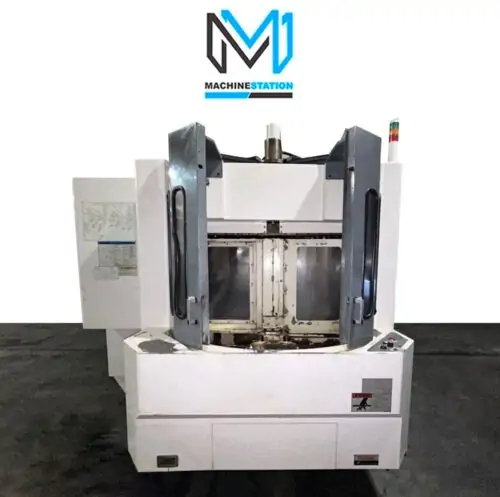

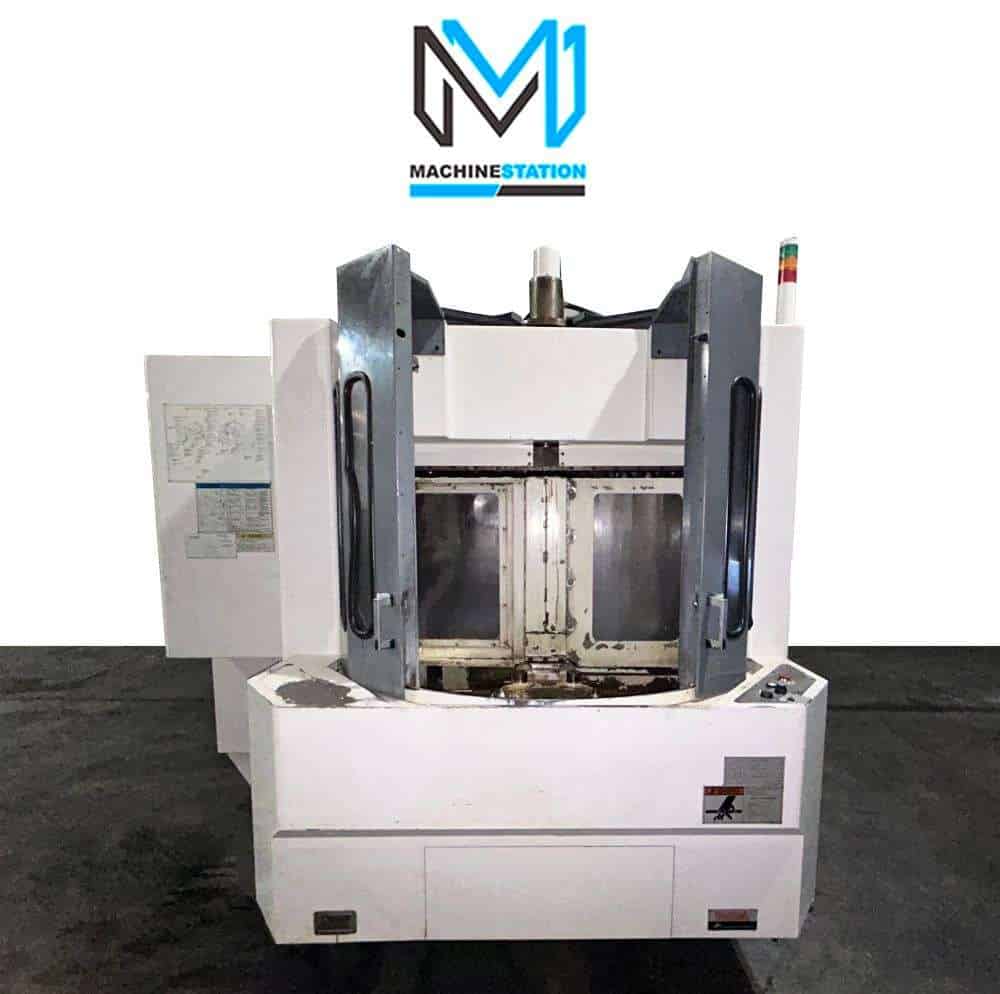

| Twin Pallet Changer |
| 40 Station Automatic Tool Changer |
| Renishaw Probing System |
| RS-232 Port |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Flood coolant with large coolant tank |

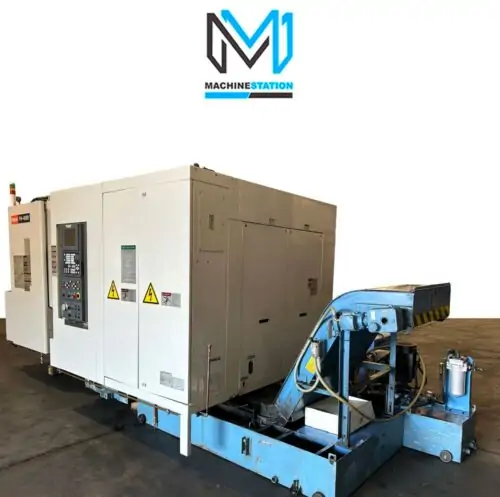

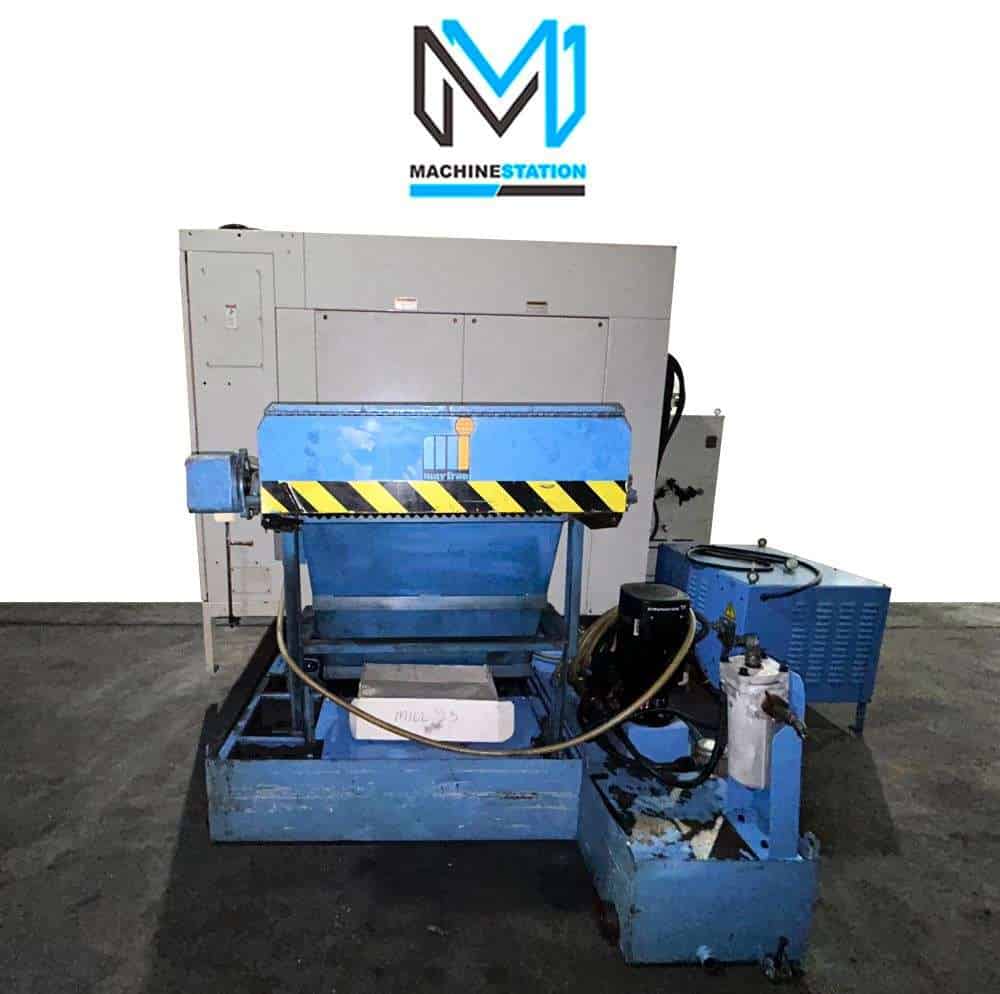

| Chip Conveyor |
| Travels: |
|---|
| X Axis: 22″ |
| Y Axis: 20″ |
| Z Axis: 24.8″ |

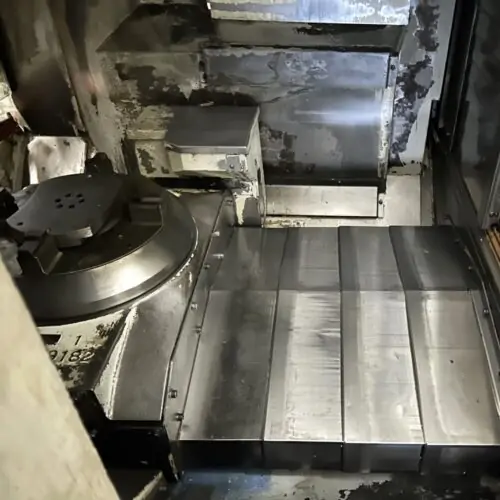

| B Axis: 1° Indexing (4th Axis) |
| Spindle Nose to Table Center: 4.72″ – 29.52″ |
| Spindle Center to Table Top: 3.93″ – 24.1″ |
| Table: |
|---|
| Length: 15.75″ |
| Width: 15.75″ |
| Max Weight on Table: 661 lbs |
| Max Workpiece Diameter: 22.04″ |
| Max Workpiece Height: 24.80″ |
| Index Time: 1.7 Sec / 90 Degree |
| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 12,000 RPM |
| Power: 30 HP |
| Feed rates: |
|---|
| Rapid X, Y & Z : 1417 Inch Per Minute |
| Cutting Feedrate: 1417 Inch Per Minute |
| Automatic Tool changer: |
|---|
| Capacity: 40 Tools |
| Taper: 40 |
| Max Tool Diameter: 3.90″ |
| Max Tool Length: 12.60″ |
| Max Tool Weight: 17.63 lbs. |
| Tool Change Time: 3.5 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

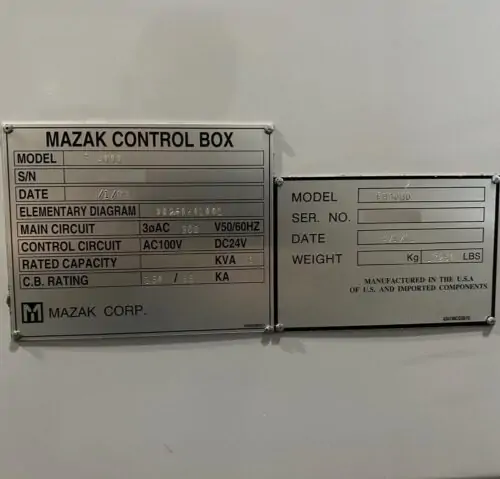

| Power: 49 kva / 205-220v / 3-Phase |
| Overall Dimensions: 159″ X 99″ x 97″ High |
| Weight: 17250 lbs |
“No Charges for loading at list Price”
