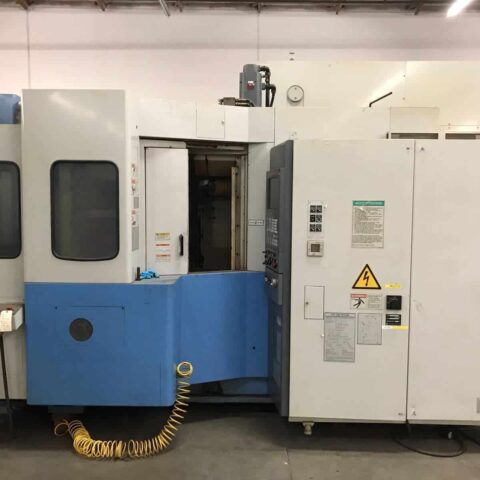

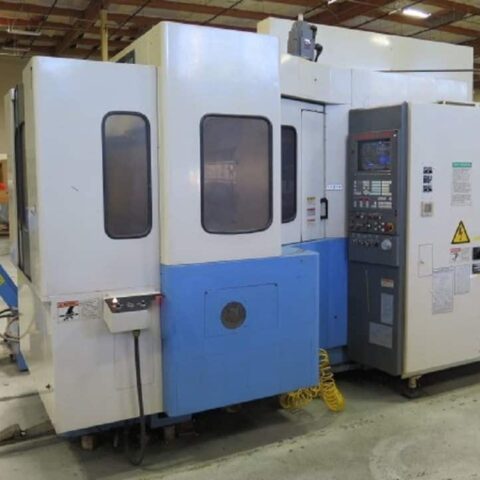

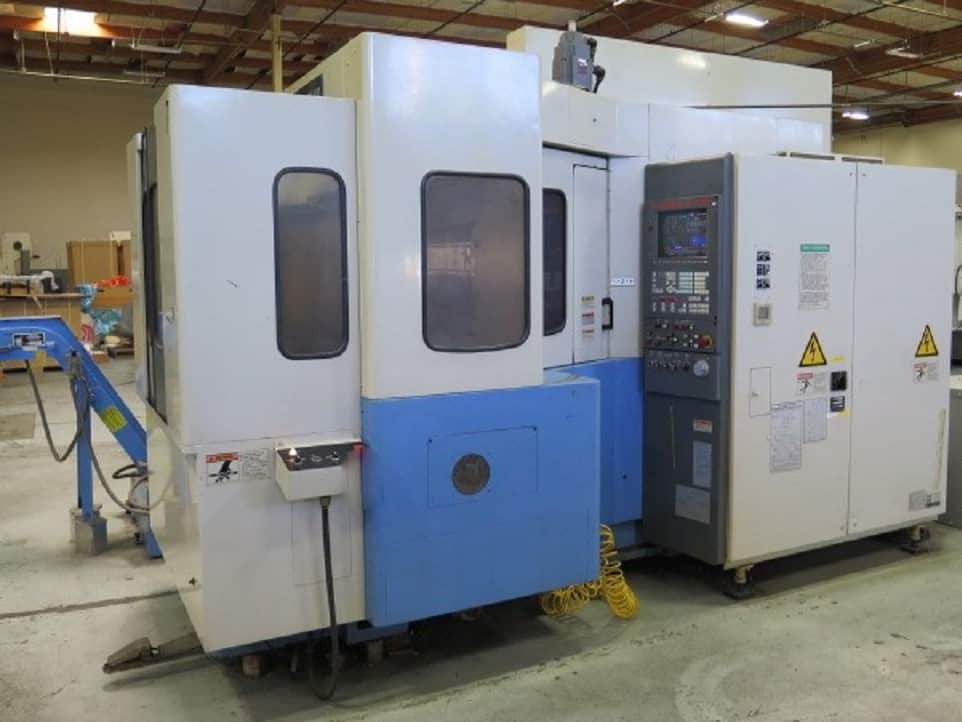

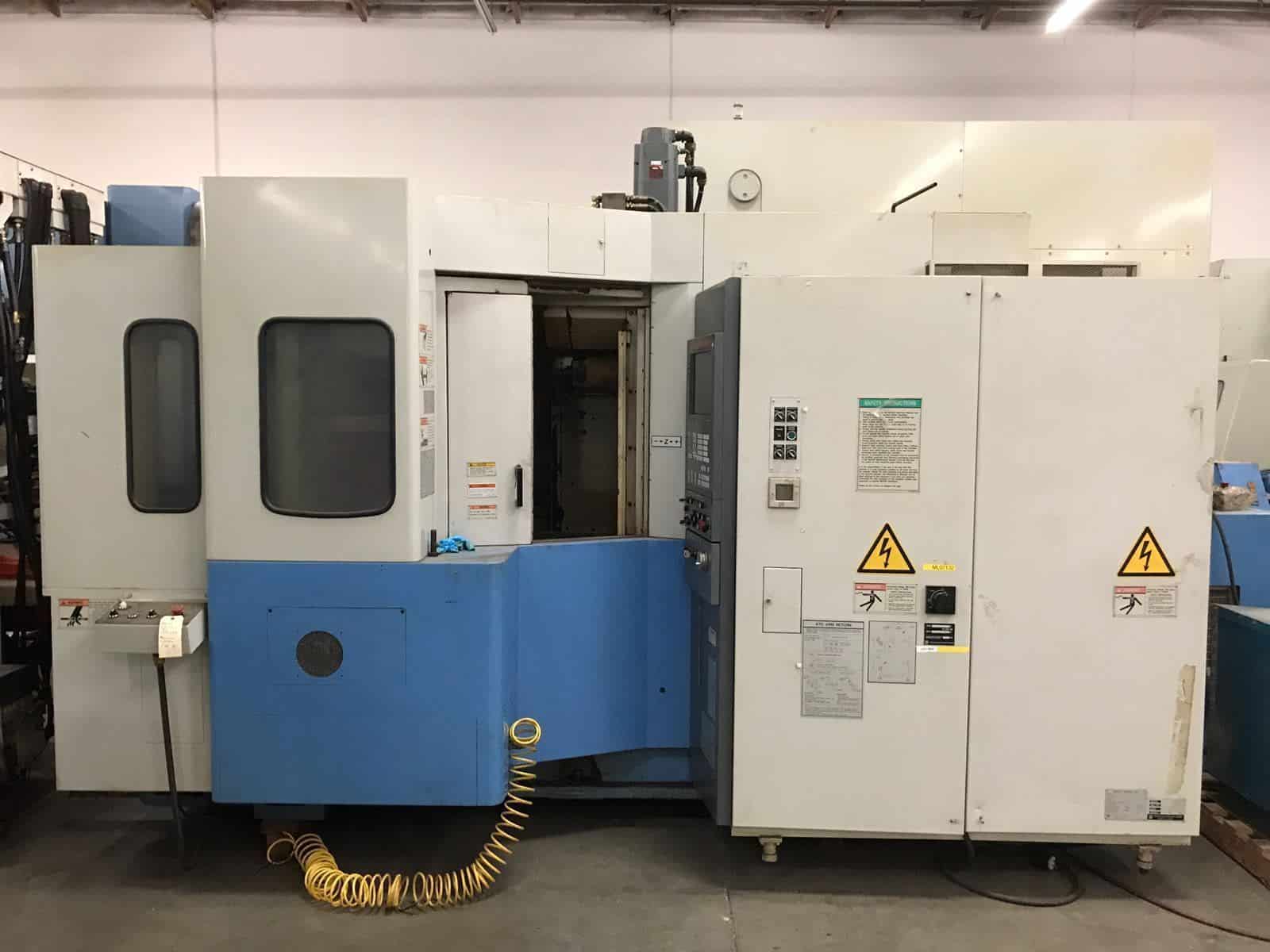

| Mazak FH480X CNC Horizontal Machining Center | |
|---|---|
| Make | Mazak |
| Model No. | FH480X |
| Year of Manufacture: | 1997 |
| Serial # | 129149 |
| Condition | Very Good |
| Original Paint Machine. | |
All specifications are approximations and are subject to verification.
“15.7″ X 15.7″ Pallet size Original Paint, Equipped with Mazatrol M Plus, 40 Taper 12000rpm, 90 station ATC, Through Spindle Coolant, Chip Conveyor. On our Floor now, fully powered / tested & is in Great working condition.”
- Mazak FH480X Features:

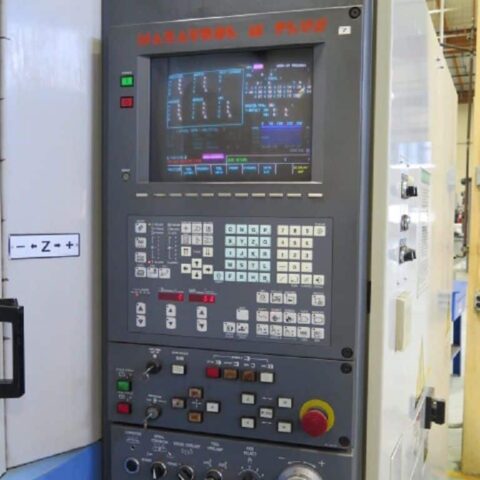

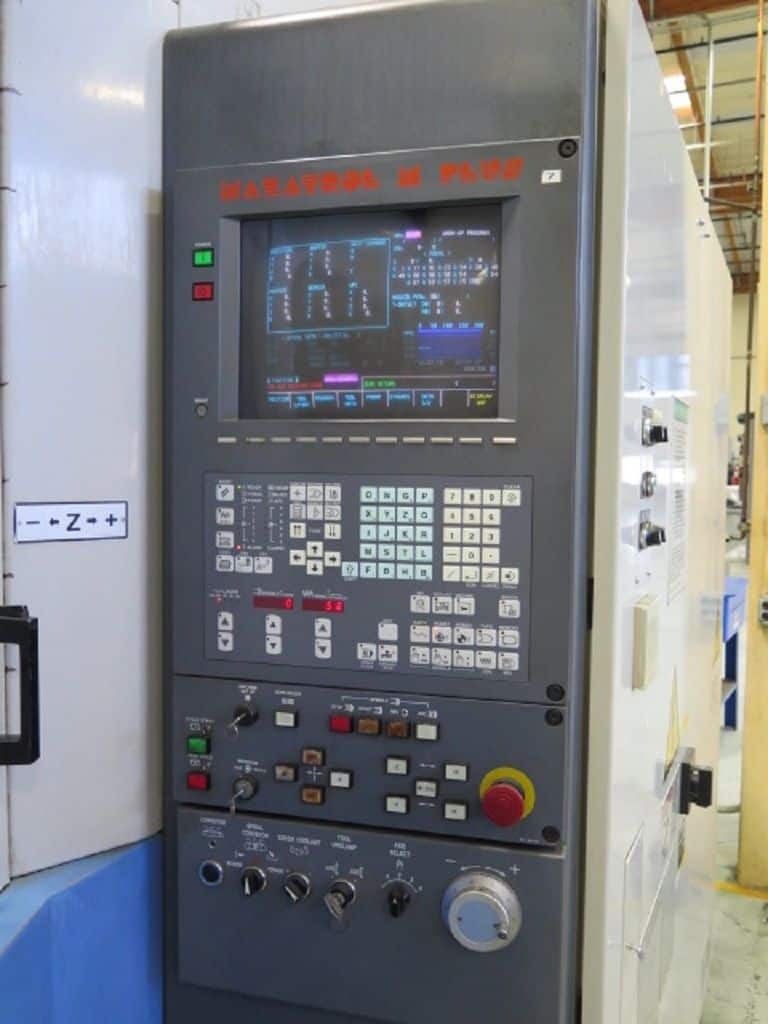

- Mazatrol M Plus
- Full 4th Axis
- 12000 RPM Spindle
- 30 HP
- Through Spindle Coolant
- .001 Degree Indexing
- 15.7″” Twin Pallet ( comes with 2 extra pallets )
- CAT 40 Taper Spindle
- 90 ATC

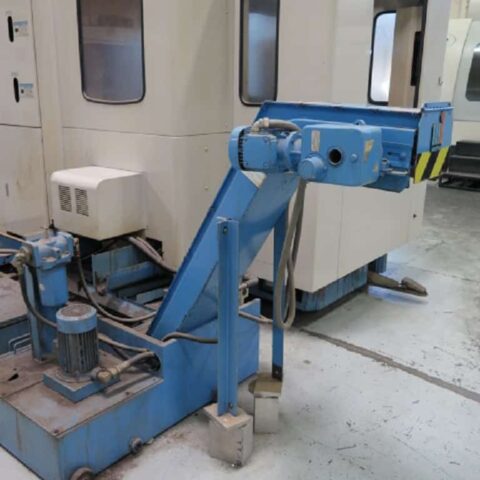

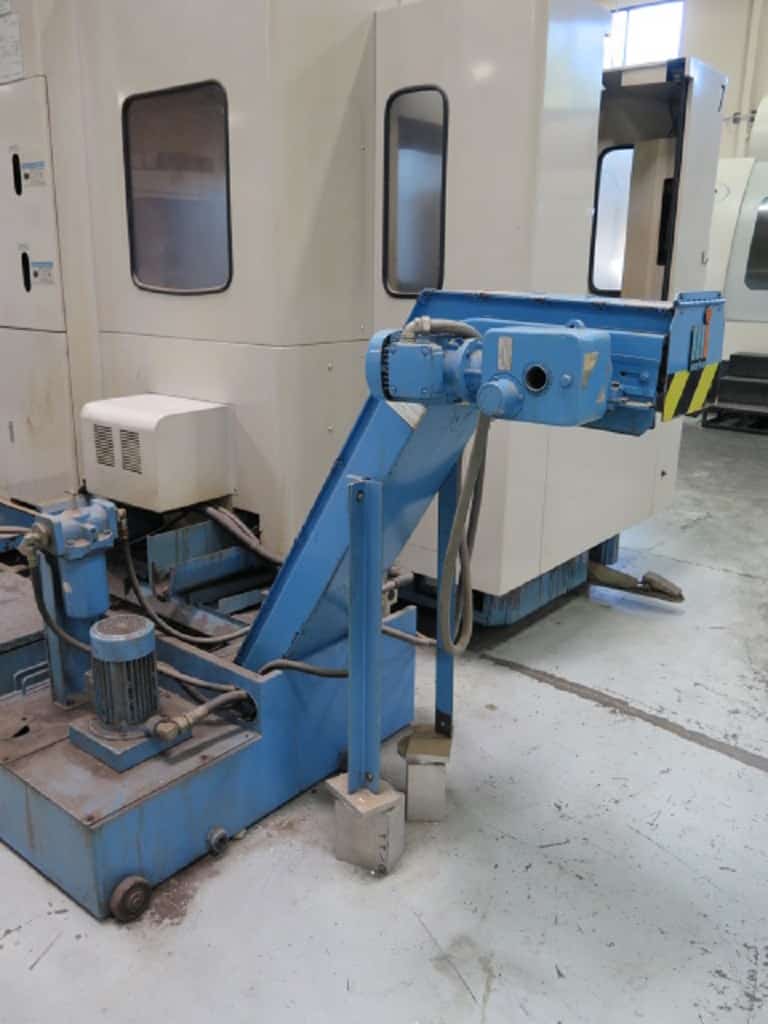

- Chip Conveyor
- Mazak FH480X Specifications:
- Travels:
- X-Axis: 22″
- Y-Axis: 22″
- Z-Axis: 22″
- Rapid Traverse Rates: 1200 Inch Per Minute
- Cutting Feed Rates: 1200 Inch Per Minute

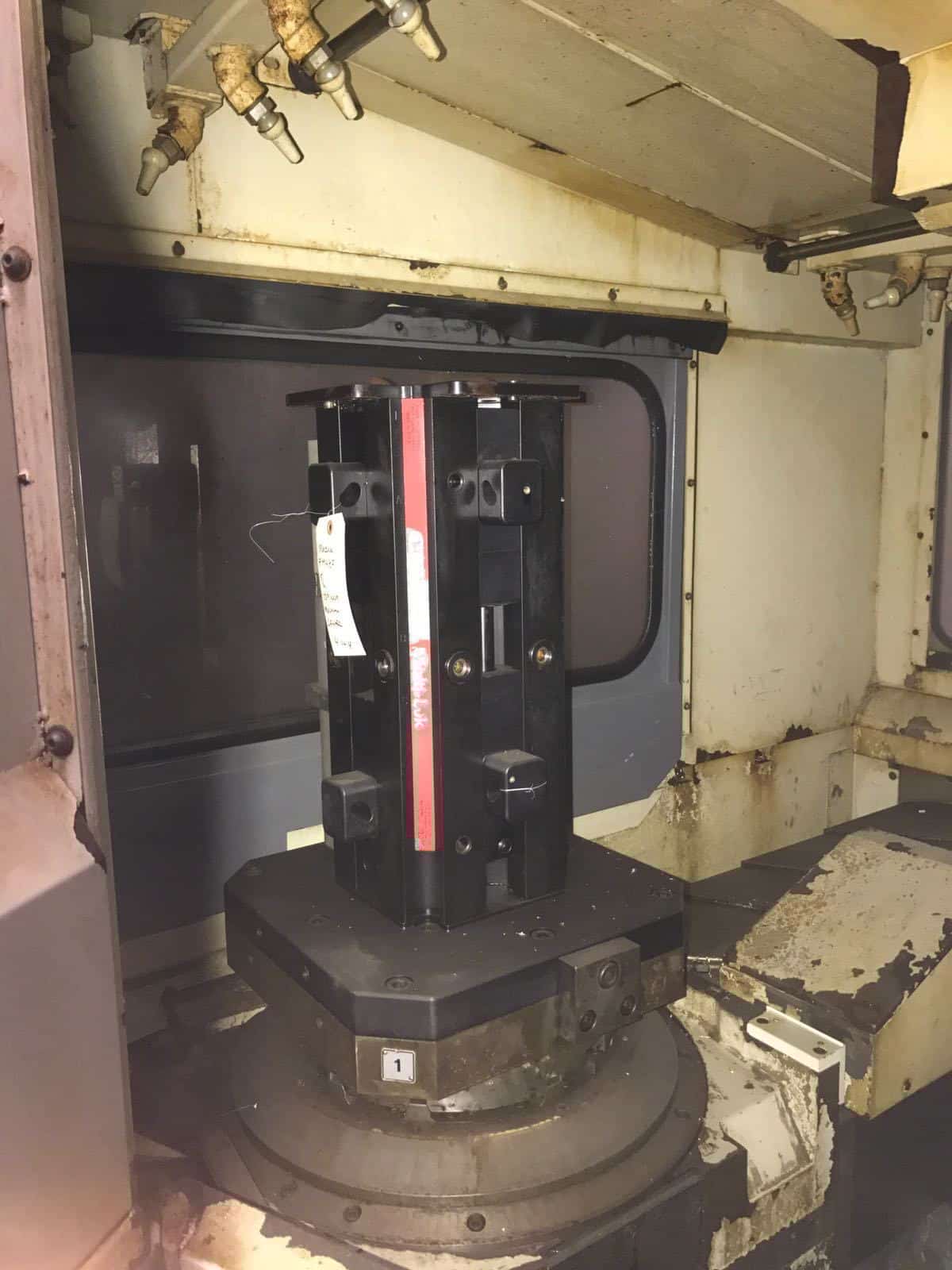

- Pallet:

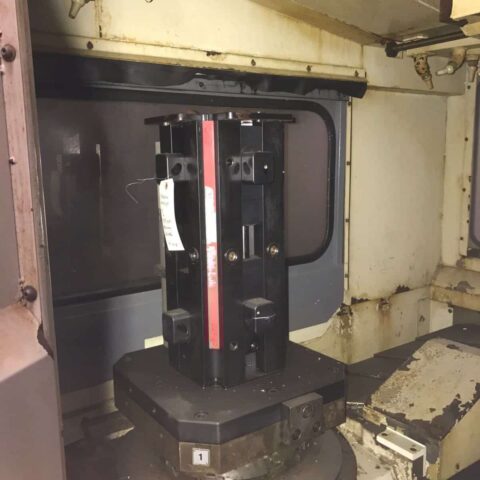

- Dual Pallet Changer (Comes with 2 Extra Pallets)
- Pallet Size: 15.7″ X 15.7″
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 12000 RPM
- Spindle Power: 30 HP
- Automatic Tool Changer:
- Capacity: 90
- General:
- Dims: 192″ x 102″ x 122″
- Weight: 20900 lbs
Mazak FH480X Comes as shown in pictures..
