Mazak Integrex 100-IV Multi Axis Turn Mill Lathe

Share

Description

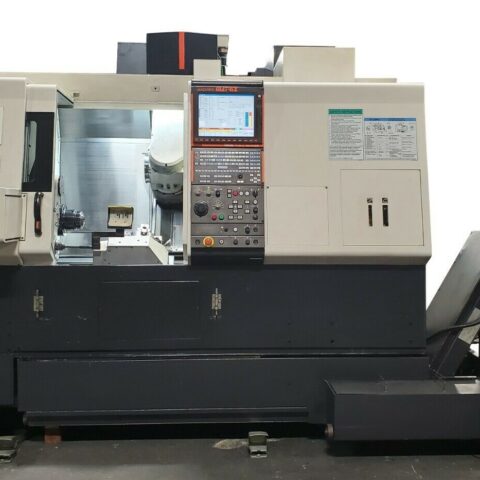

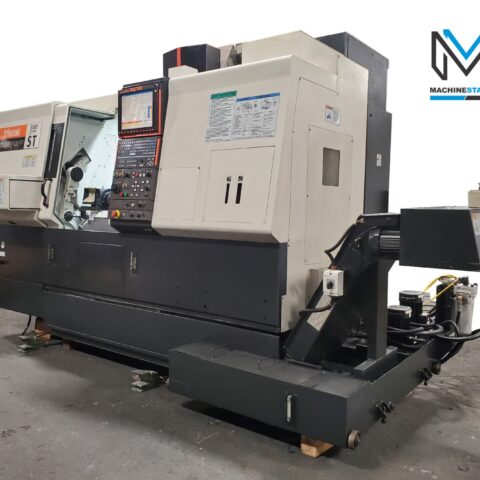

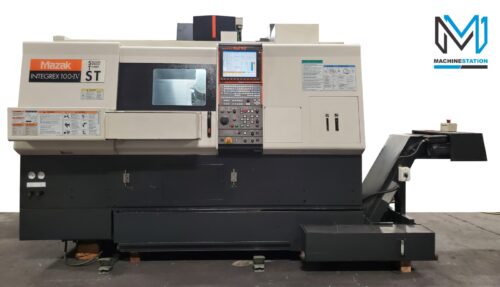

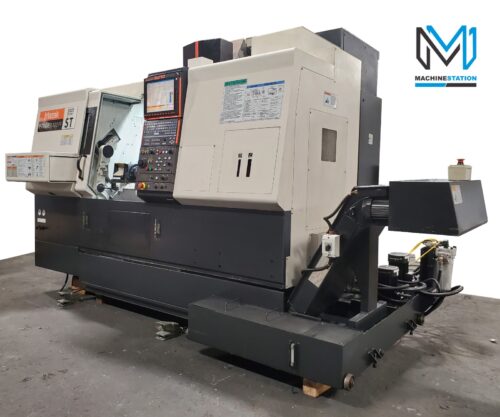

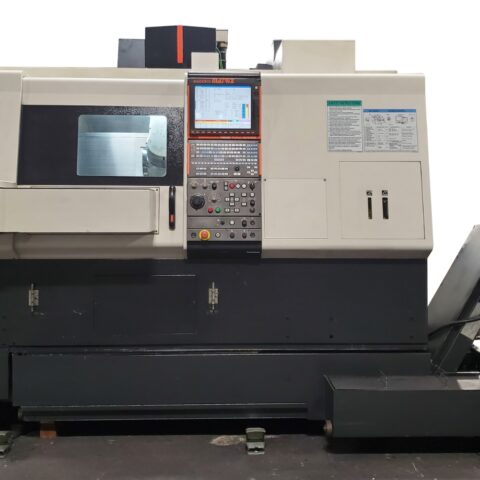

MAZAK INTEGREX 100-IV ST CNC MULTI AXIS TURN MILL LATHE
SKU 2177
Make Mazak
Model No. Integrex 100-IV ST
Year 2008/2010

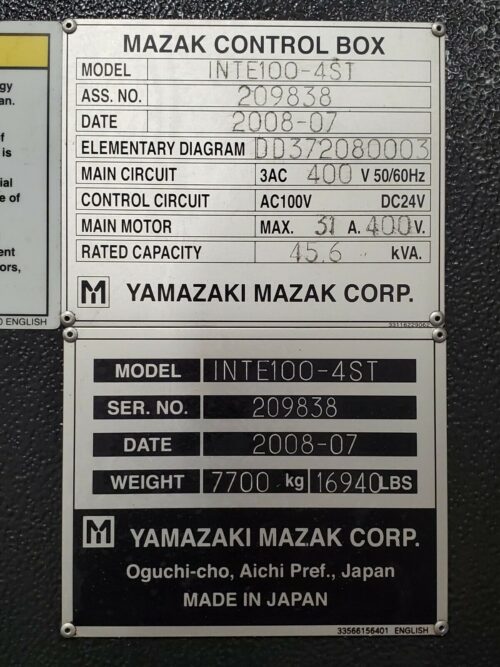

Serial # 209838
Condition Very Good
Comes with Tool Holders, Chip Conveyor & Manuals
  • Equipped With:

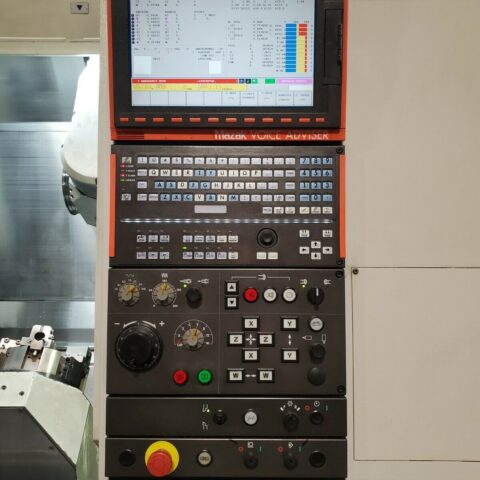

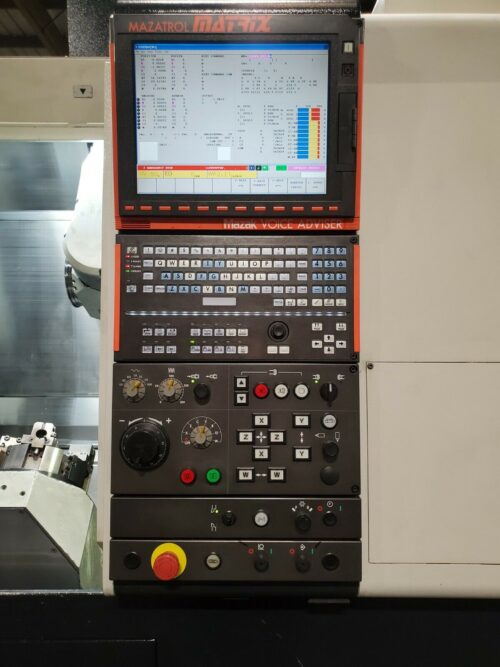

  • Mazatrol Matrix CNC Control

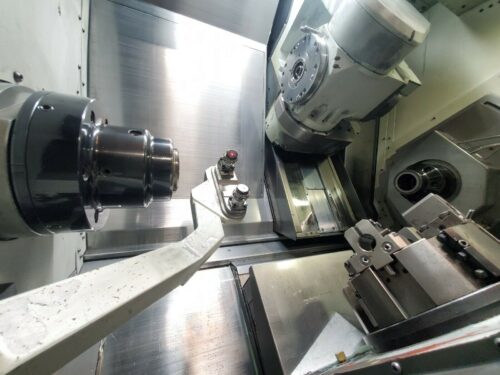

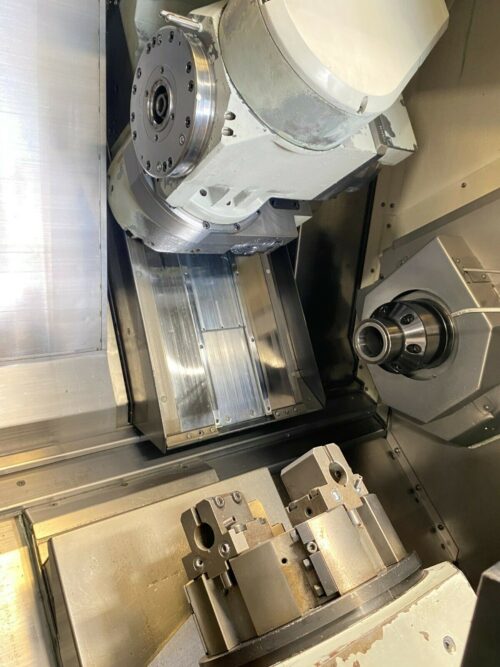

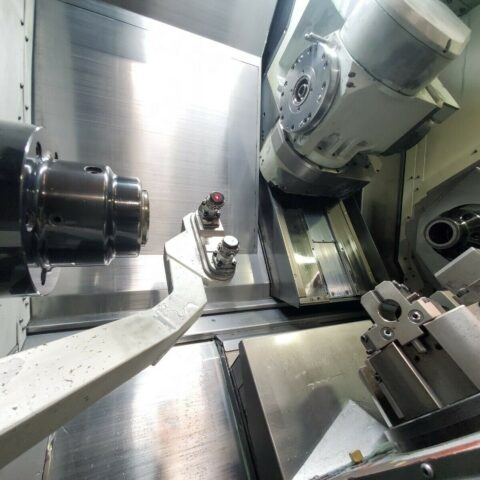

  • 12000 RPM Pendulum Milling Head

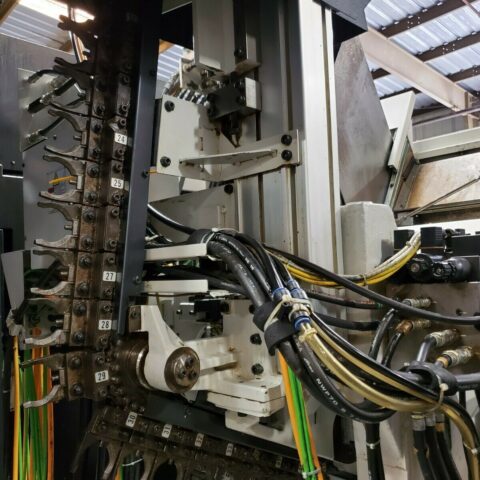

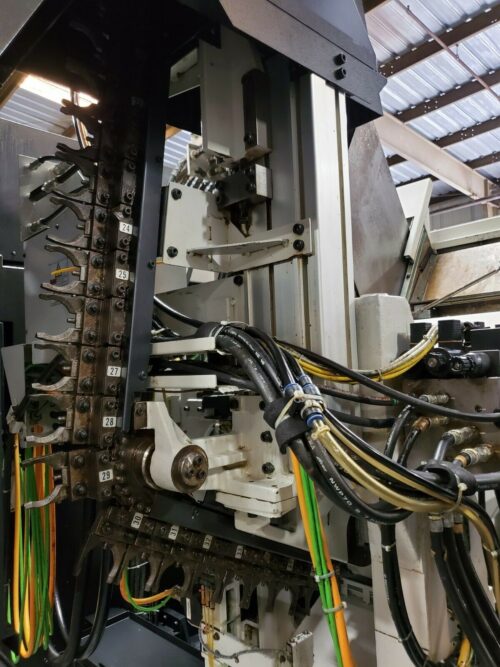

  • 40 Tools Automatic Tool Changer

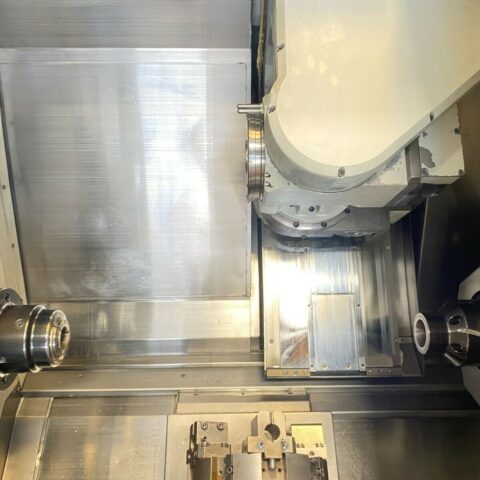

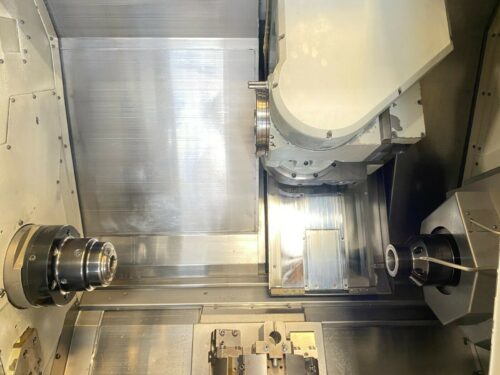

  • Servo Controlled Full C-Axis on Both Spindles

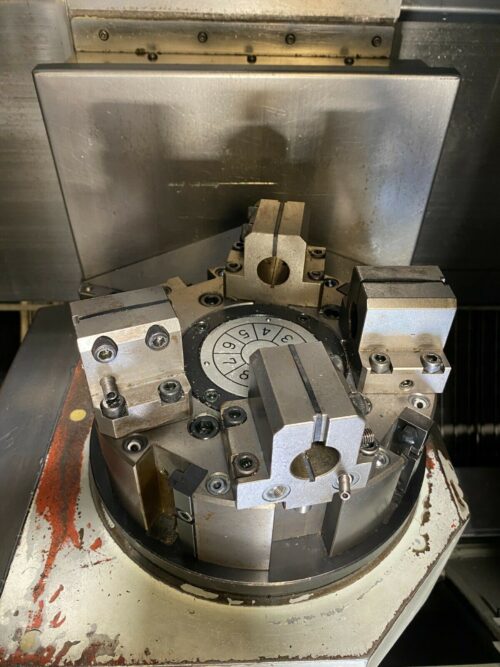

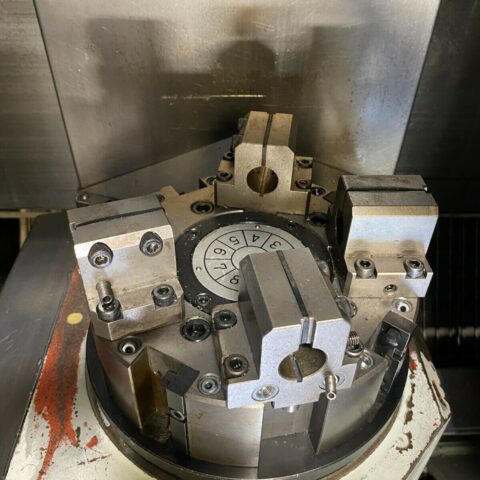

  • 9 Station Lower Turret
  • Y Axis Capability
  • PCMCIA Card Slot
  • USB LAN Options
  • EIA/ISO Programming
  • 3D Coordinate Conversion

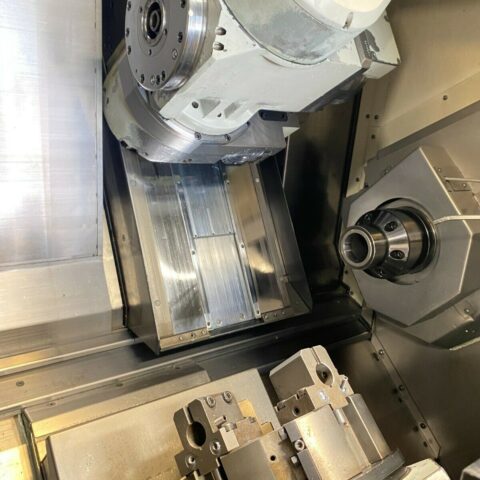

  • ATS Collet Nose on Main Spindle
  • ATS Collet Nose on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck

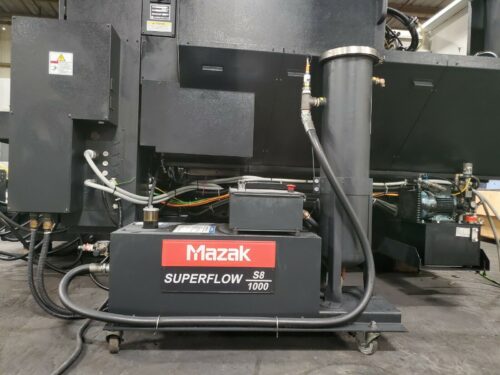

  • High Pressure Coolant System
  • Chip Conveyor

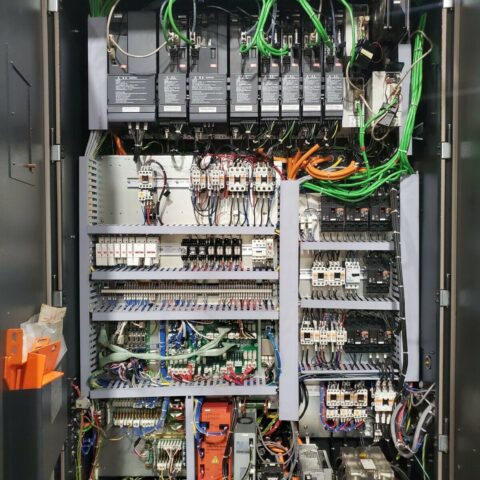

  • Inbuilt Transformer

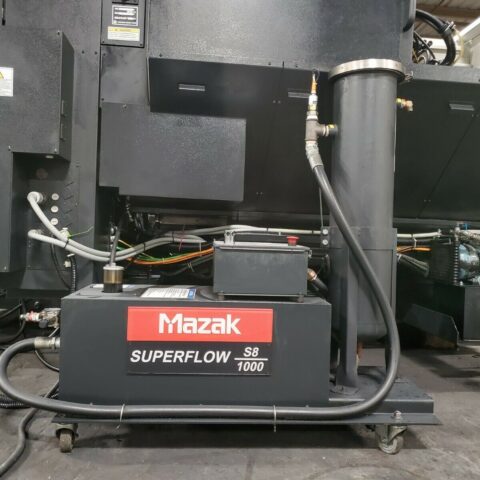

  • Chiller Unit

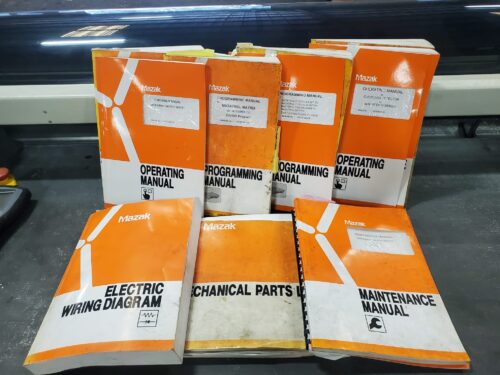

  • Comes with Tools, Chip Conveyor, Books & Manuals.
  • Specifications:
  • Capacity:
  • Max Turning Diameter Upper Turret : 26.00″
  • Max Turning Diameter Lower Turret : 10.24″
  • Max Swing Upper Turret : 26.0″
  • Max Swing with Y Axis : 19.70″
  • Max Swing over Cross Slide : 26.0″
  • Max Turning Length: 40.00″
  • Max Bar Capacity Main Spindle : 2.55″
  • Max Bar Capacity Sub Spindle : 2.55″
  • Max Weight on Main & Sub Spindle : 660 lbs
  • Travels:
  • X1 Axis Travel Upper : 22.83″
  • X2 Axis Travel Lower : 5.91″
  • Z1 Axis Travel Upper : 41.14″
  • Z2 Axis Travel Lower : 38.98″
  • Y Axis Travel: 6.30″
  • W Axis Travel: 41.34″ ( Sub Spindle )
  • C Axis: 360° (0.001°) Both Spindle
  • Feedrate:
  • Rapid Traverse X Axis: 1496 IPM
  • Rapid Traverse Z Axis: 1496 IPM
  • Rapid Traverse Y Axis: 1023 IPM
  • Rapid Traverse B Axis: 1181 IPM
  • Spindle:
  • Main Spindle Bore: 2.99″
  • Sub Spindle Bore: 2.99″
  • Main Spindle Nose: A2-6
  • Sub Spindle Nose: A2-6
  • Main Spindle Speed: 35-5000 RPM
  • Sub Spindle Speed: 35-5000 RPM
  • Main Spindle Power: 22 kw
  • Sub Spindle Power: 18.5 kw
  • Milling Head:
  • Single Station Pendulum Head with 40 ATC
  • Tool Type: KM-63, 40 Taper
  • Spindle Speed: 15-12000 RPM
  • Spindle Motor: 18.5 kw
  • Spindle 90° Index Time: 0.5 Sec
  • Lower Turret:
  • Capacity: 9 Stations
  • Turret Index Time: 0.14 Second
  • OD Tool Size: 1.00″ ID Tool Size : 1.26″
  • General:
  • Power: 67 kva, 220v / 3-Phase
  • Air Required: 71 PSI
  • Overall Dimensions: 160″ x 93″ x 102″ High
  • Overall Dimensions: 200″ x 93″ x 102″ High with Chip Conveyor
  • Weight: 17,000 lbs

“No Charges for loading at list Price”

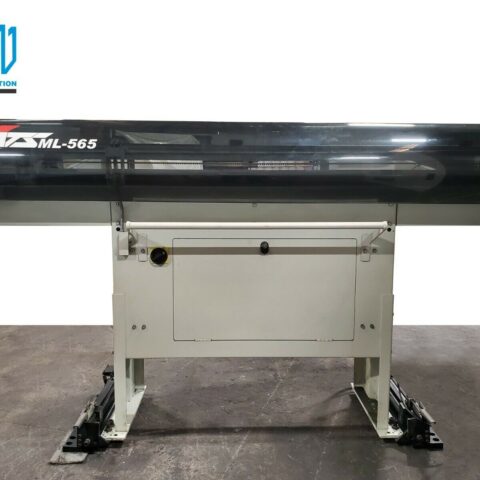

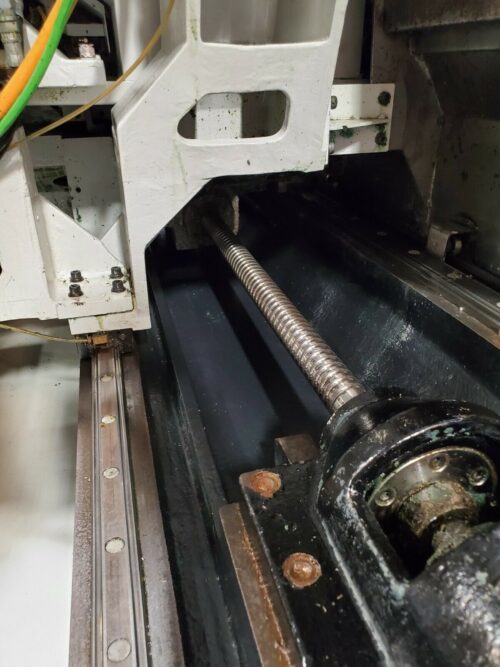

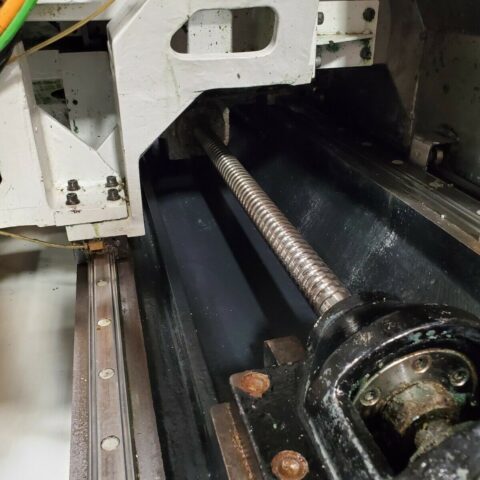

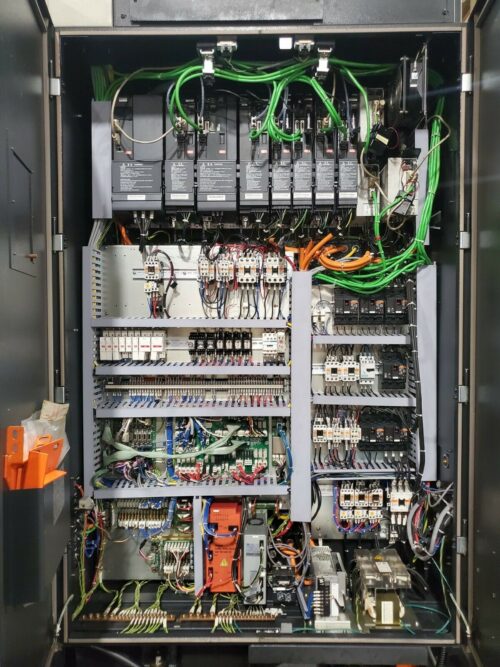

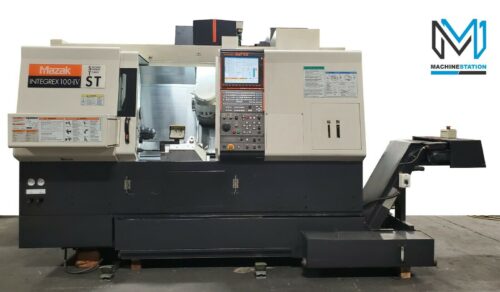

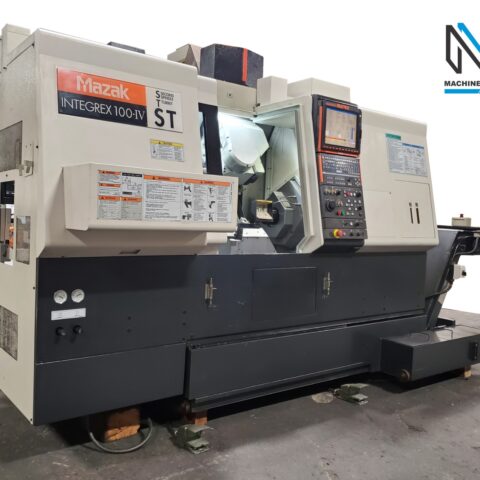

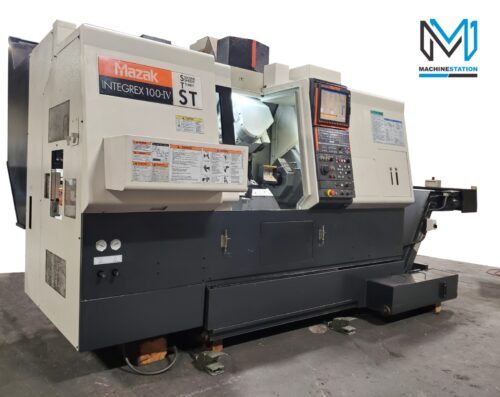

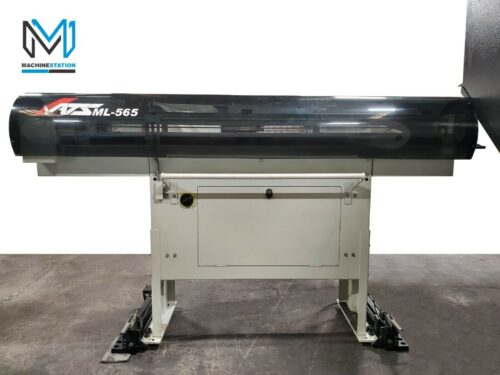

Comes as shown in pictures….
