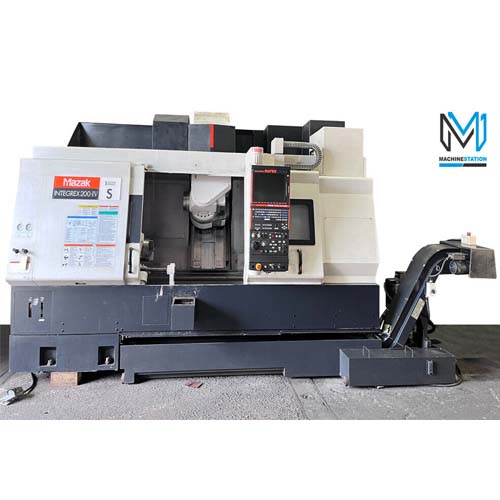

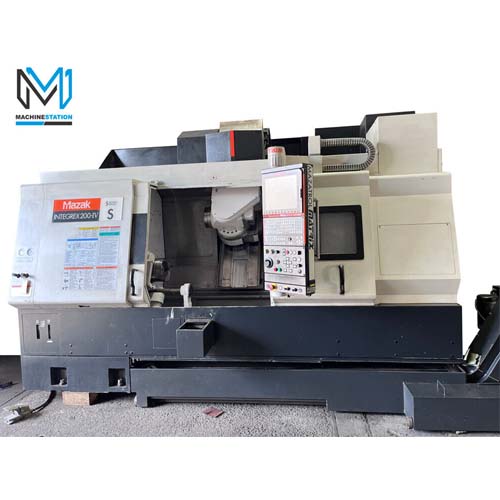

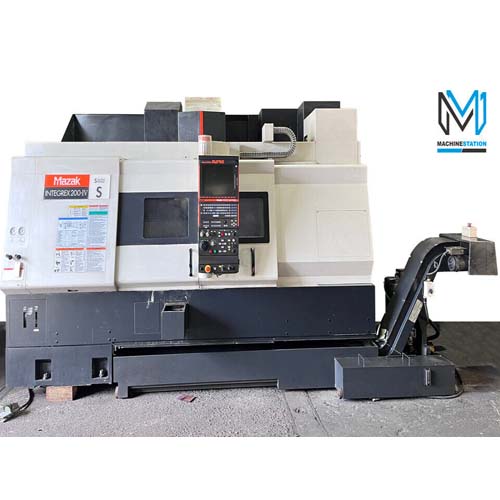

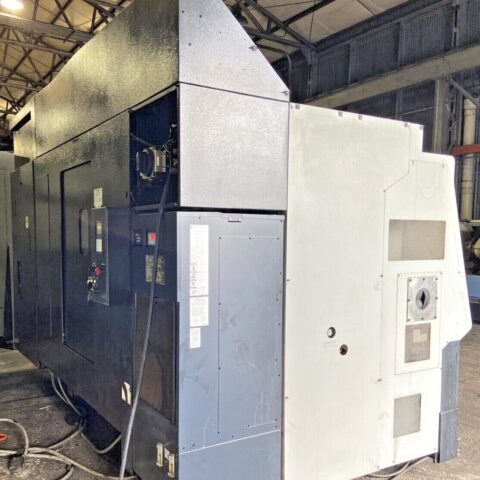

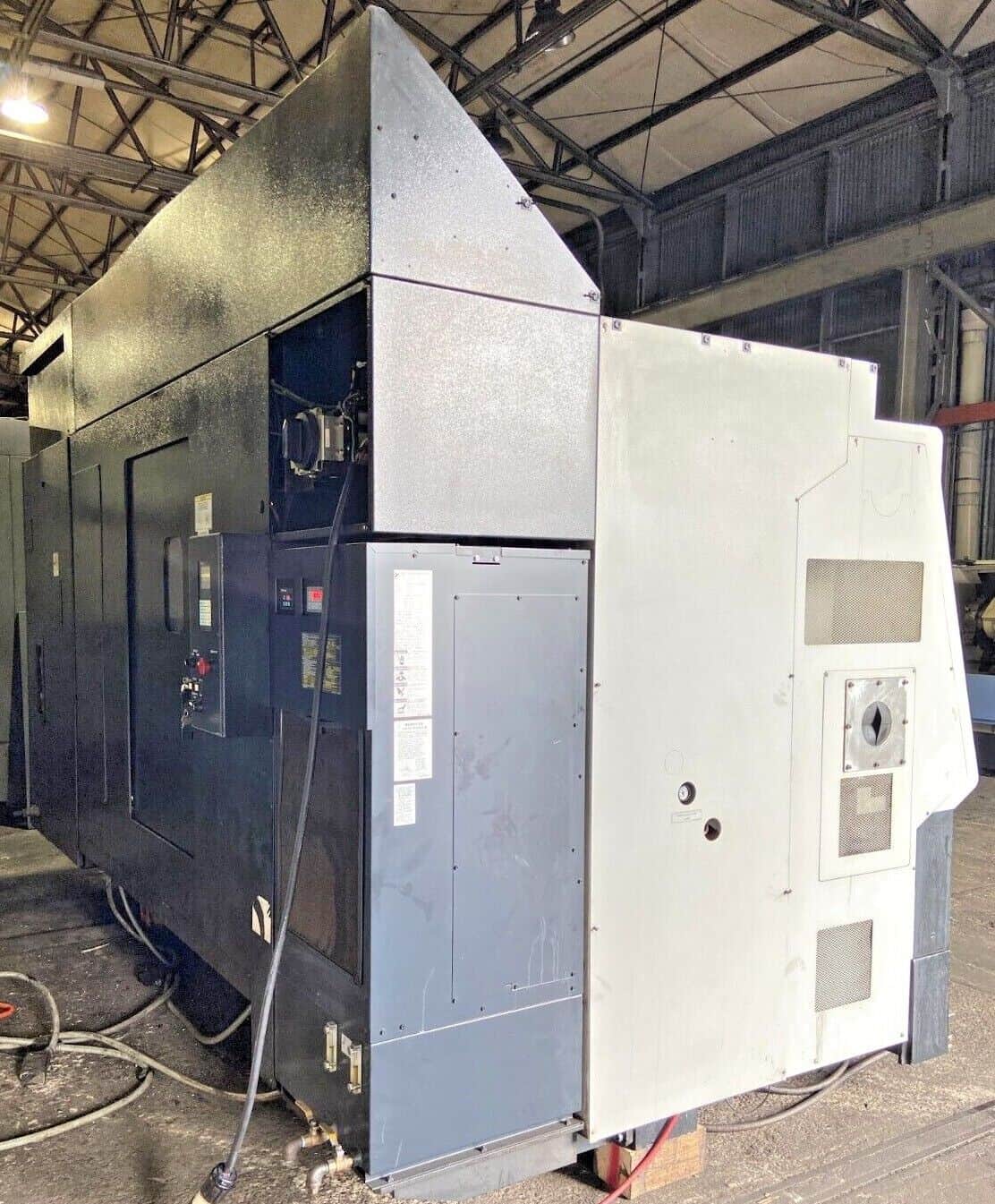

Mazak Integrex 200-IV S Multi Axis CNC Turning Center

$144,000.00

Specification
Share

Description

MAZAK INTEGREX 200-IV SMULTI AXIS CNC TURNING CENTER 12000 RPM
SKU 2323

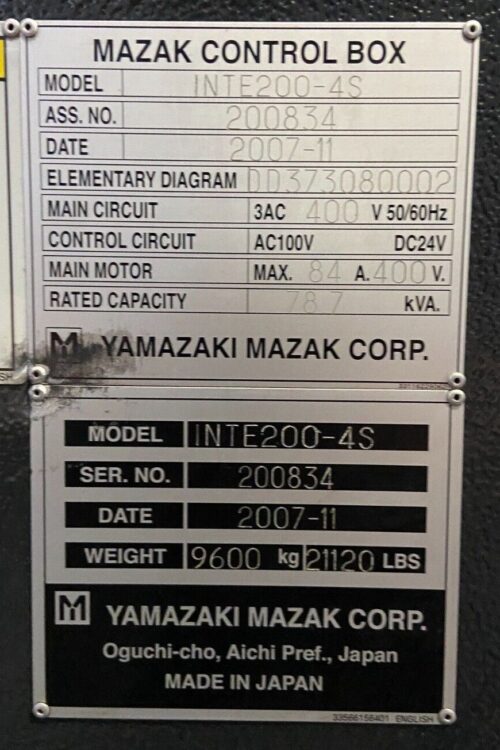

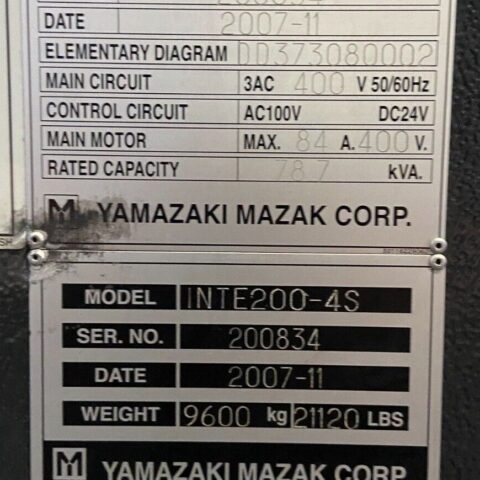

Make Mazak
Model No. INTEGREX 200-IV S
Serial # 200834
Year 2007
Condition Very Good

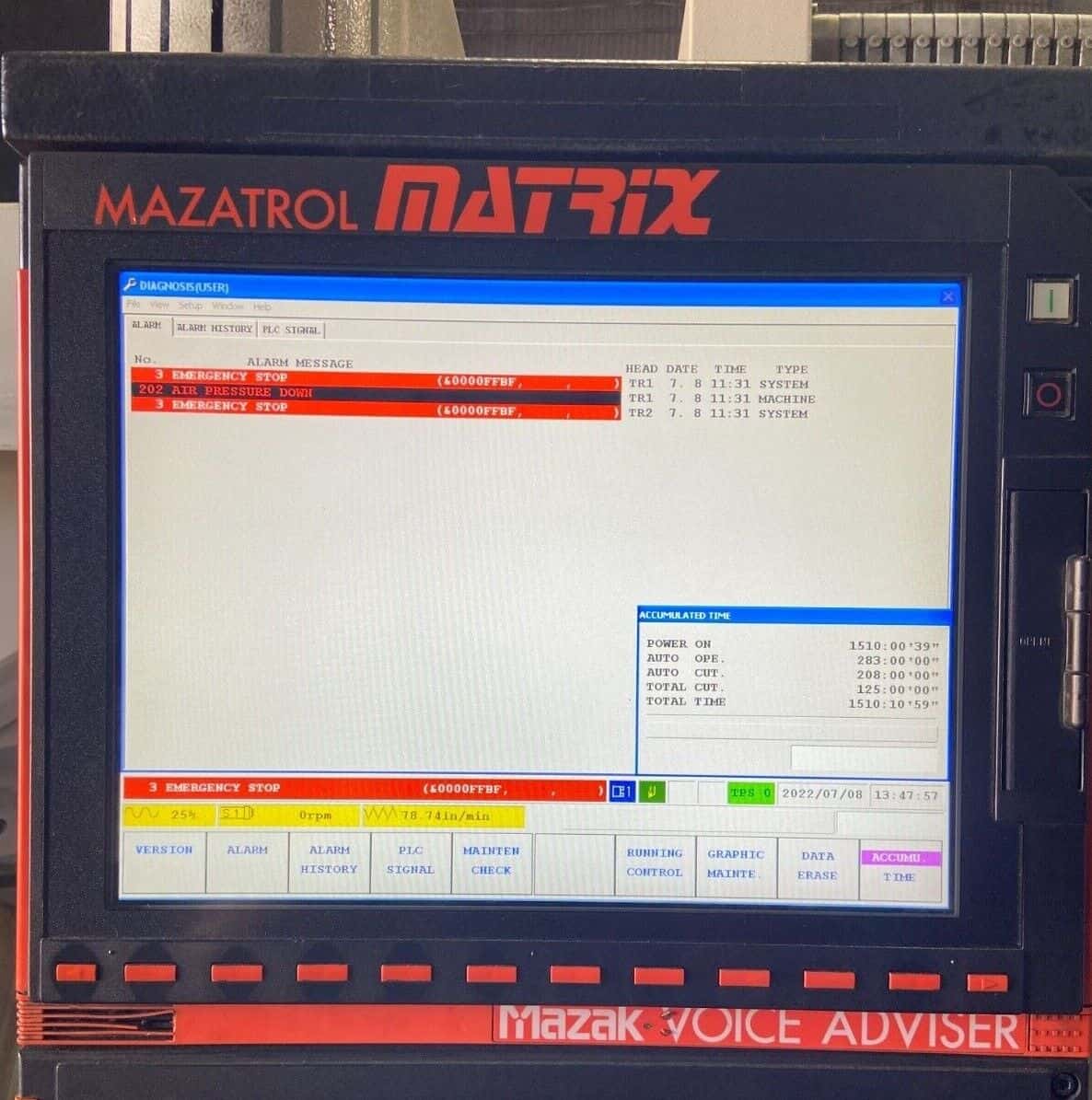

Cutting Hours: 1510
  • Features:

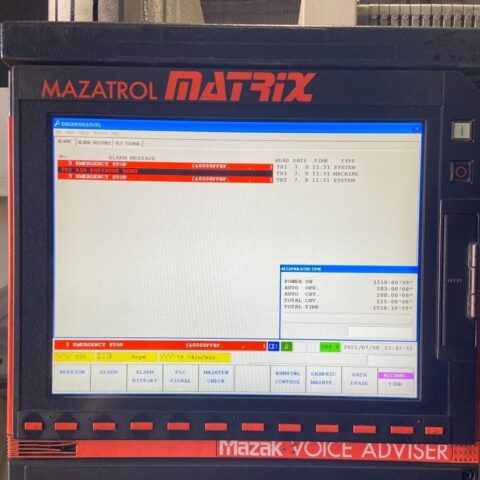

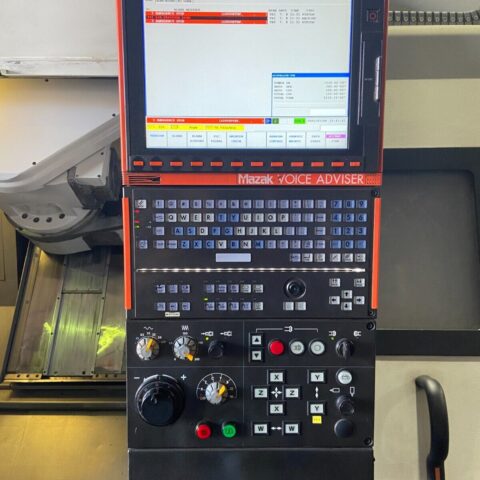

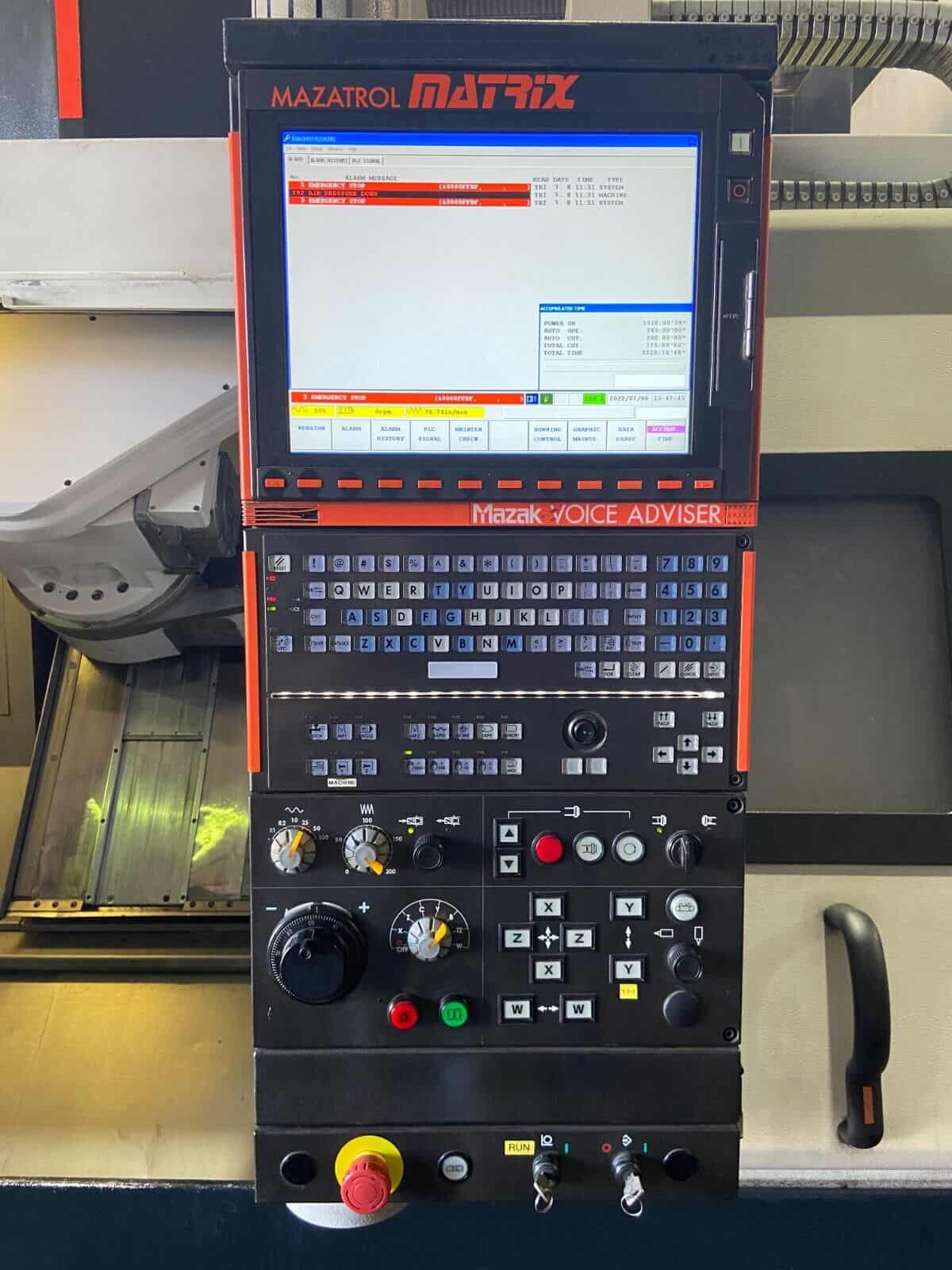

  • Mazatrol Matrix CNC Control

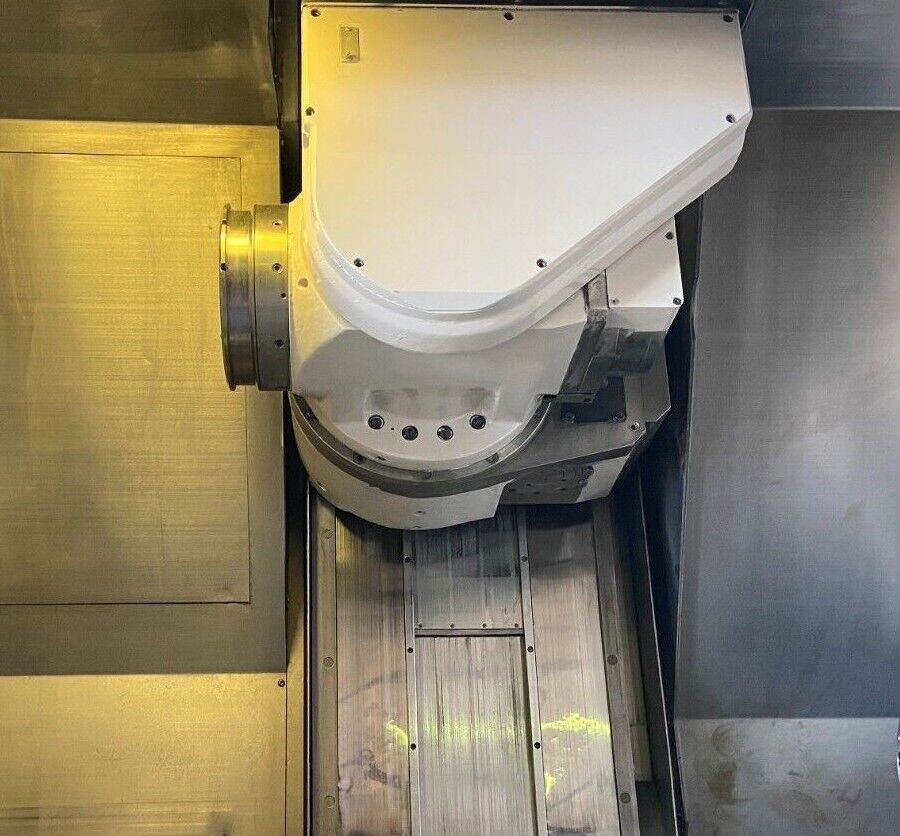

  • 12000 RPM Pendulum Milling Head
  • 40 Tools Automatic Tool Changer
  • Servo Controlled Full C-Axis on both Spindles
  • Y-Axis Capability
  • PCMCIA Card Slot
  • USB LAN Options
  • EIA/ISO Programming
  • 3D Coordinate Conversion

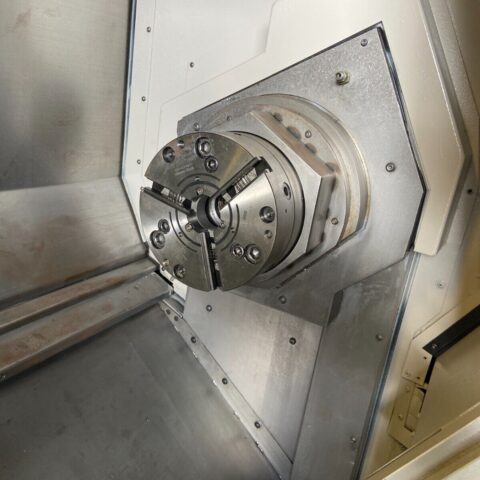

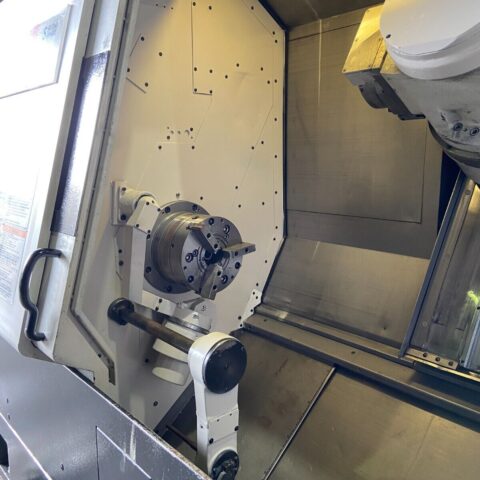

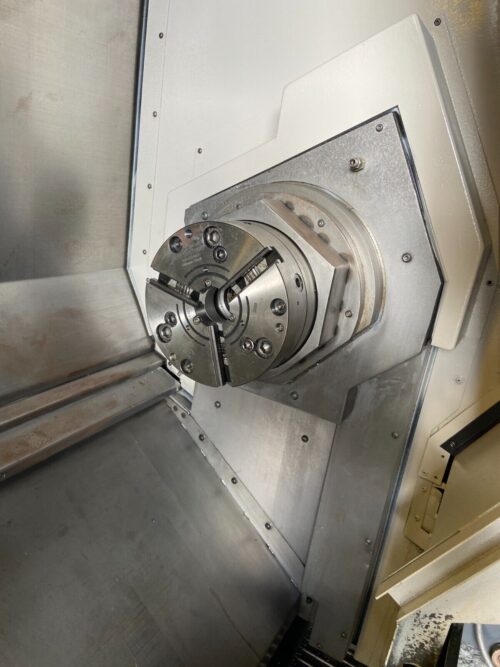

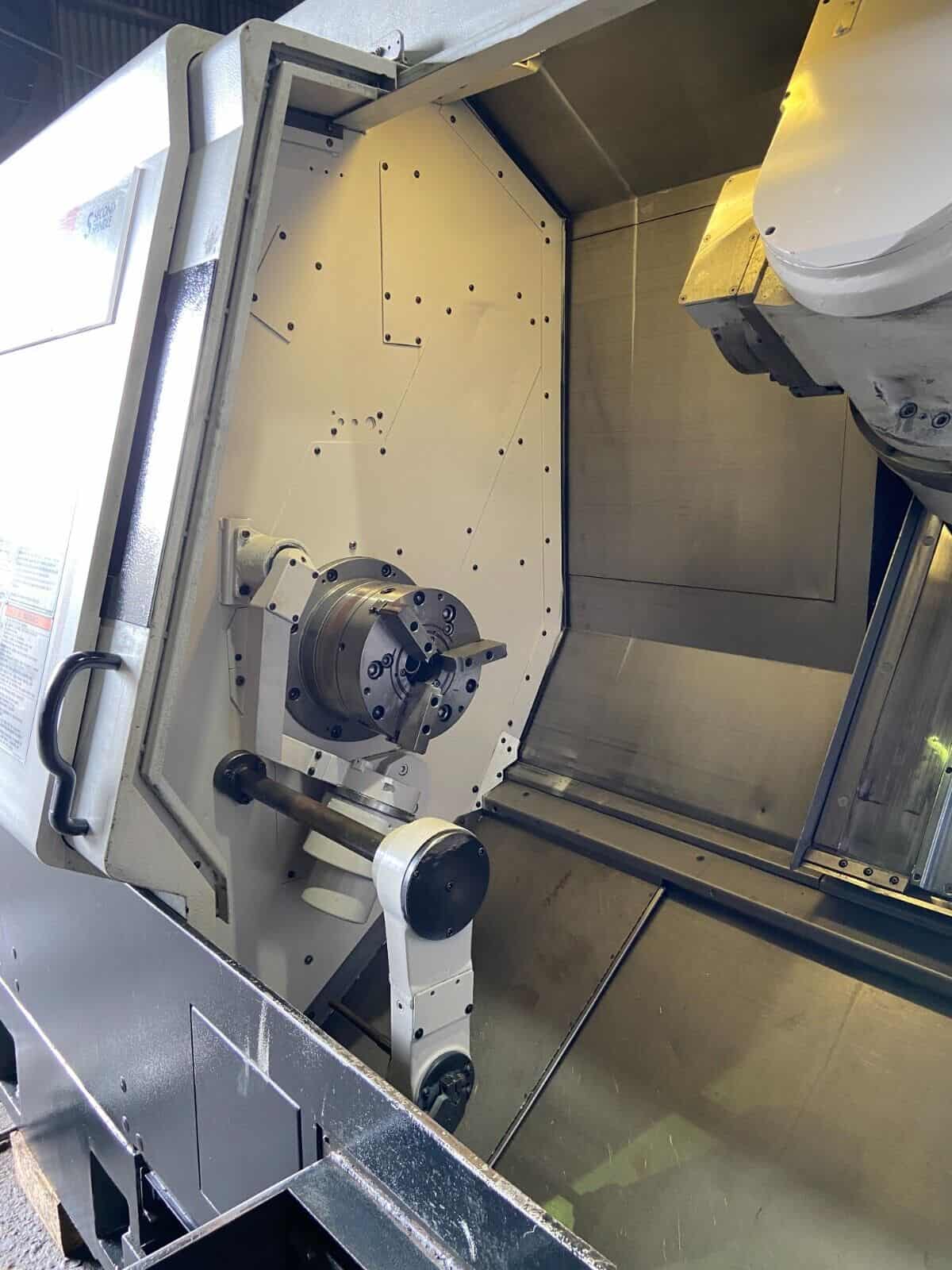

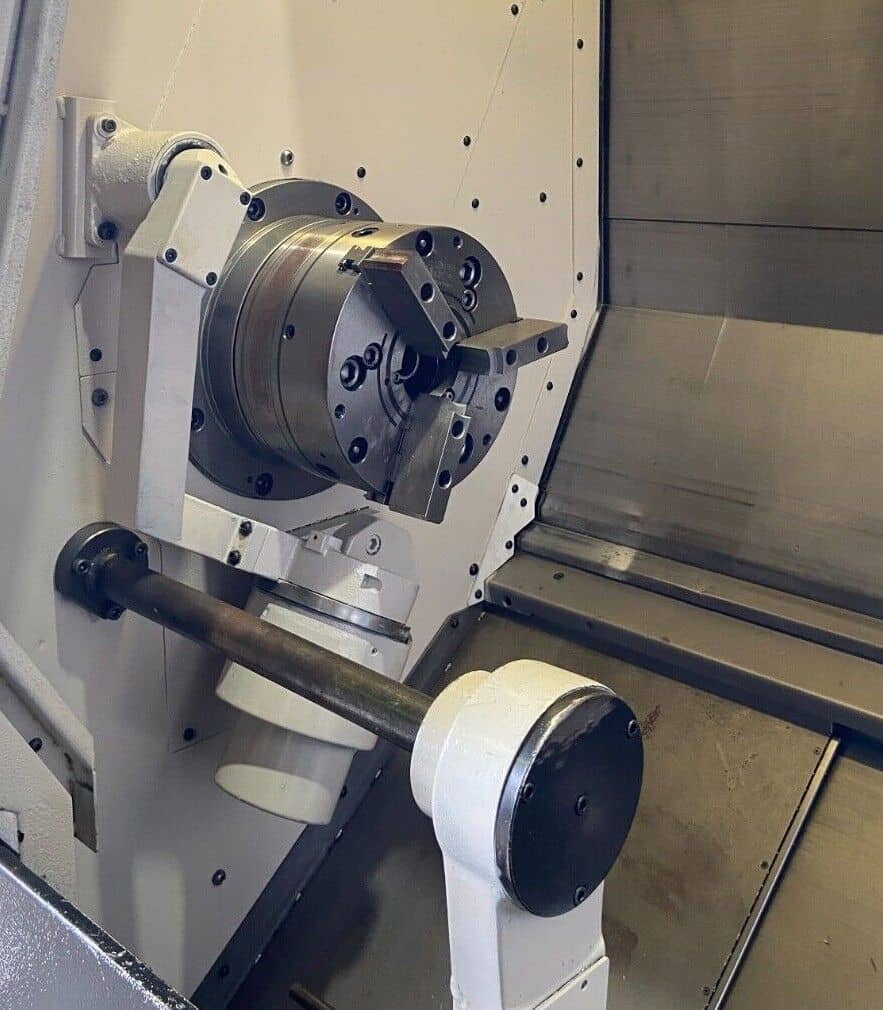

  • 8″Chuck on Main Spindle

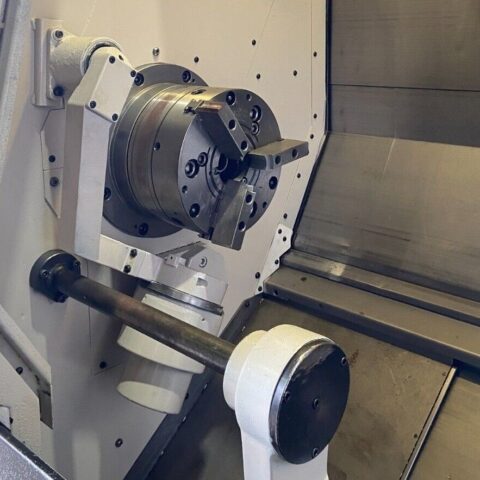

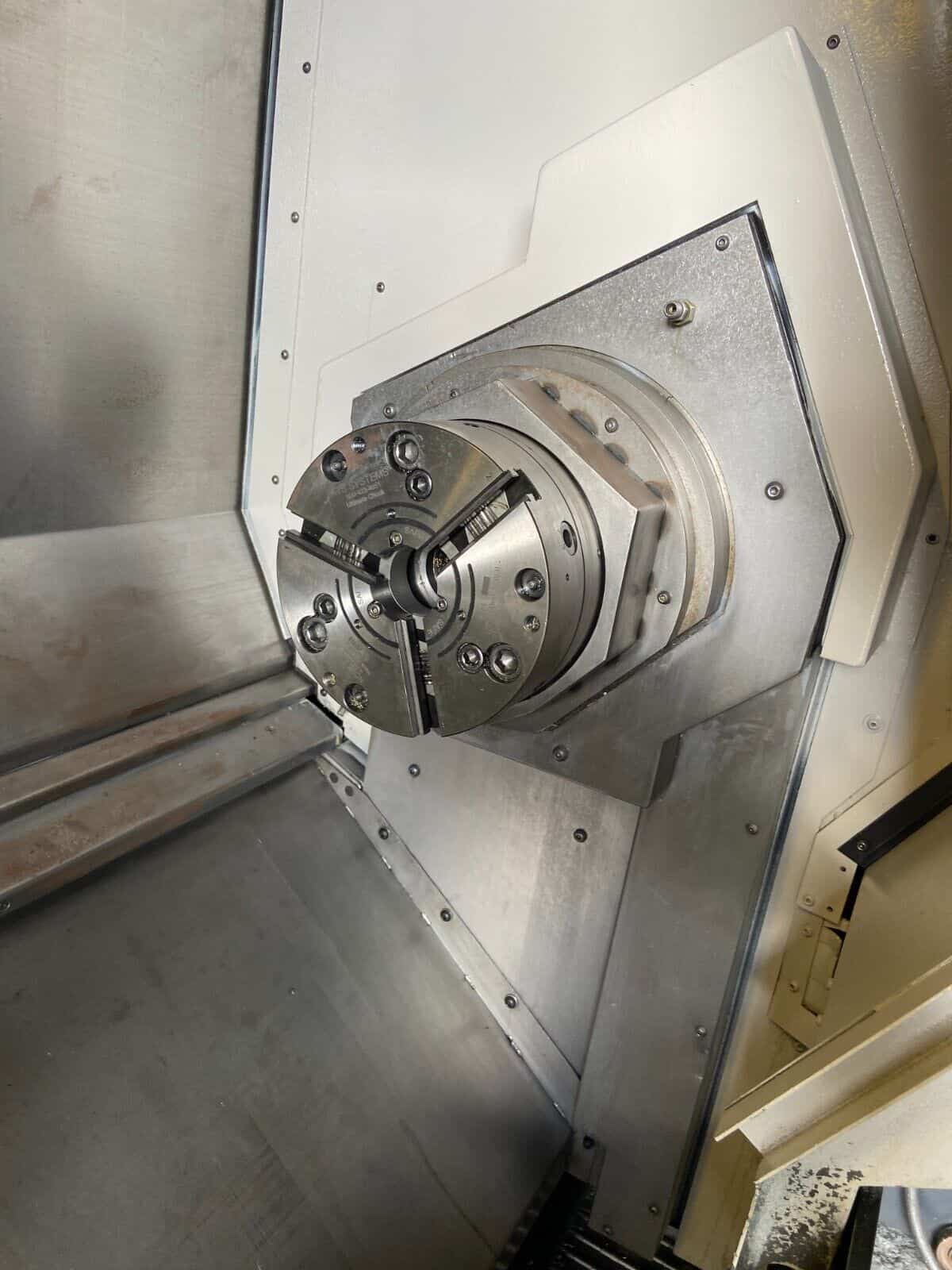

  • 8″ Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • High Pressure Coolant System
  • Chip Conveyor
  • Inbuilt Transformer
  • Chiller Unit
  • Comes with Tools, Books and Manuals
  • Specifications:
  • Max Turning Diameter: 26″
  • Max Swing: 26″
  • Max Swing with Y-Axis: 19.70″
  • Max Swing Over Cross Slide: 26.0″
  • Max Turning Length: 40″
  • Max Bar Capacity Main Spindle: 2.55″
  • Max Bar Capacity Sub Spindle: 2.55″
  • Max Weight on Main & Sub Spindle: 660 lbs
  • Feedrate:
  • Rapid Traverse X Axis: 1496 IPM
  • Rapid Traverse Z Axis: 1496 IPM
  • Rapid Traverse Y Axis: 1093 IPM
  • Rapid Traverse B Axis: 1181 IPM
  • Travel:
  • X Axis Travel: 22.83″
  • Z Axis Travel: 41.14″
  • Y Axis Travel: 6.30″
  • W Axis Travel: 41.34″ (Sub Spindle)
  • C Axis: 360° (0.001°) Both Spindle
  • Spindle:
  • Main Spindle Nose: A2-8
  • Sub Spindle Nose: A2-8
  • Main Spindle Bore: 2.99″
  • Sub Spindle Bore: 2.99″
  • Main Spindle Speed: 35 – 5000 RPM
  • Sub Spindle Speed: 35 – 5000 RPM
  • Main Spindle Power: 30 HP
  • Sub Spindle Power: 25 HP
  • Milling Head:

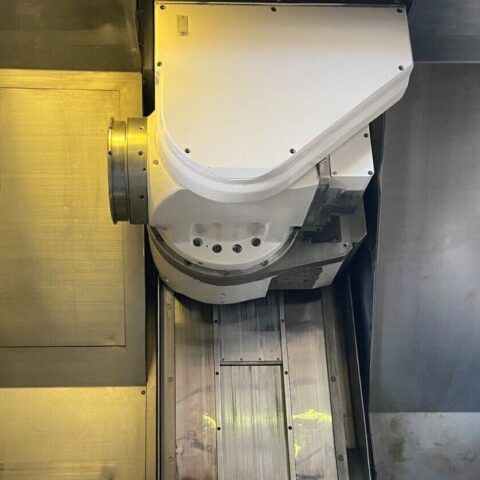

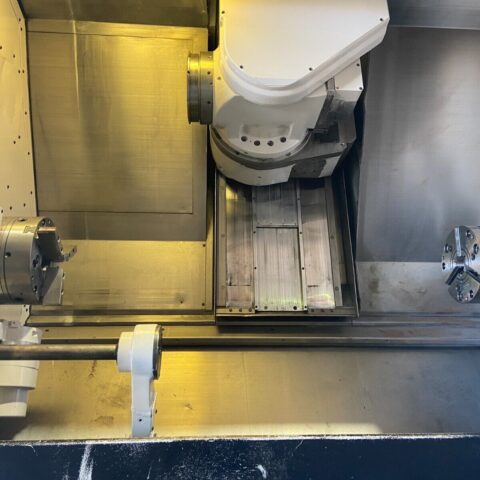

  • Single Station Pendulum Head with 40 ATC
  • Tool Type: KM-63, 40 Taper
  • Spindle Speed: 15-12000 RPM
  • Spindle Motor: 25 HP
  • Spindle 90° Index Time: 0.5 sec
  • General:
  • Power Source: AC 220V, Three Phase, 60 Hz
  • Power Requirement: 63 kva
  • Overall Dimensions: 160″ x 93″ x 102″ High
  • Weight : 21,120 lbs Approx.

“No Charges for loading at list Price”
