*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 1507 |

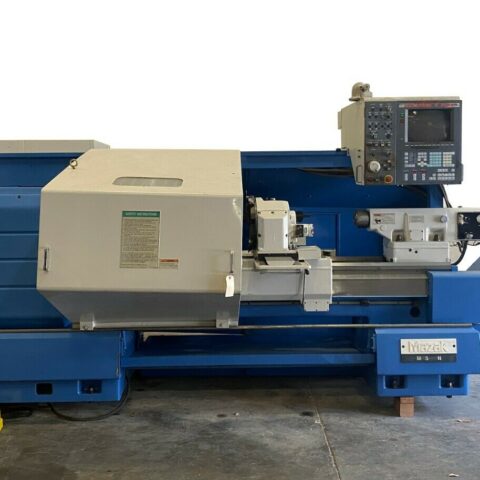

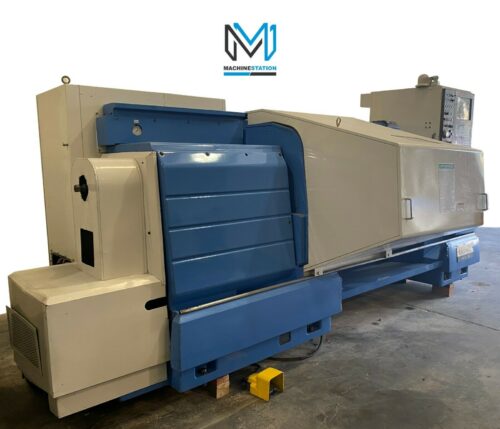

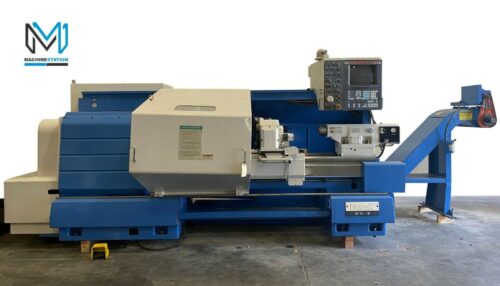

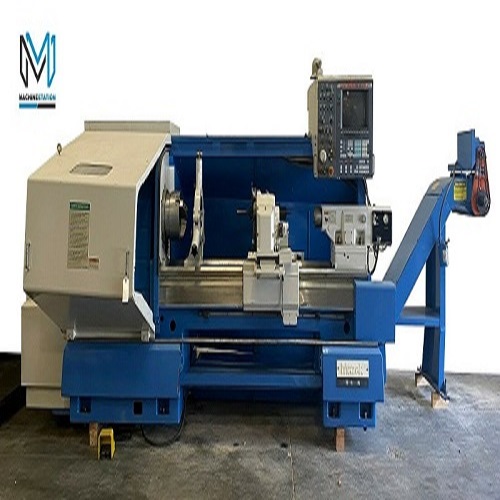

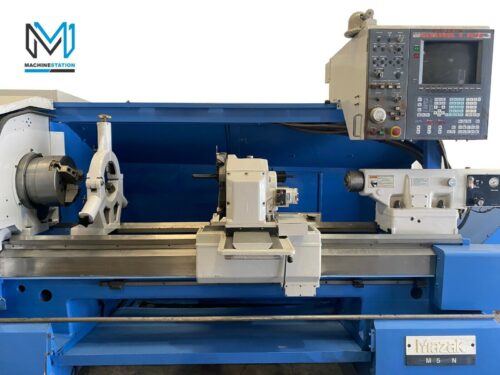

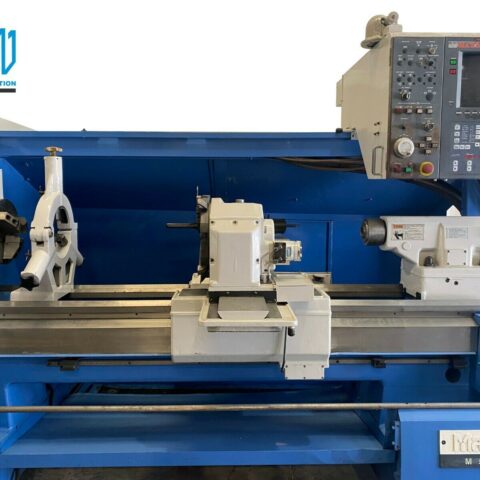

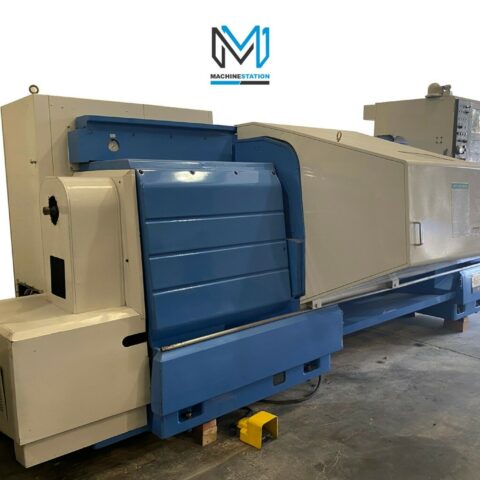

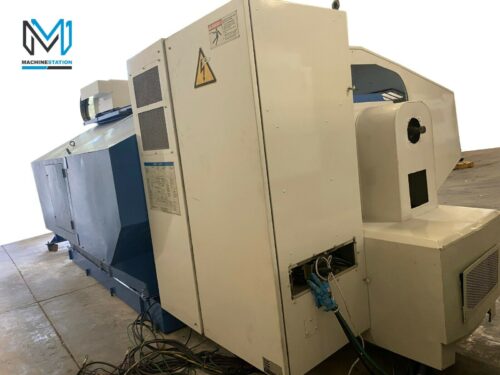

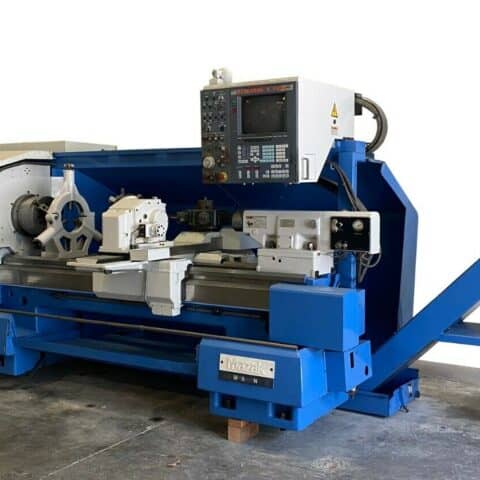

| Make: | Mazak |
| Model: | M5N-1500 |
| Serial: | 112893 |
| Year: | 1995 |
| Features: |
|---|

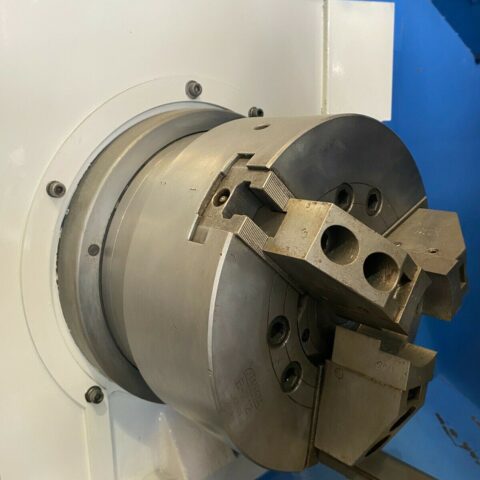

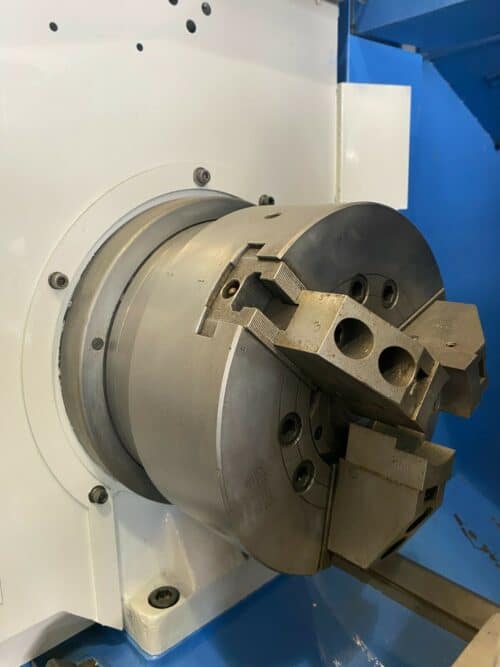

| 12″ Hydraulic Big Bore Chuck |

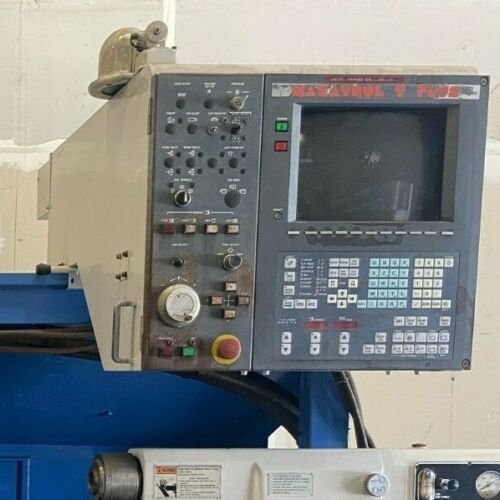

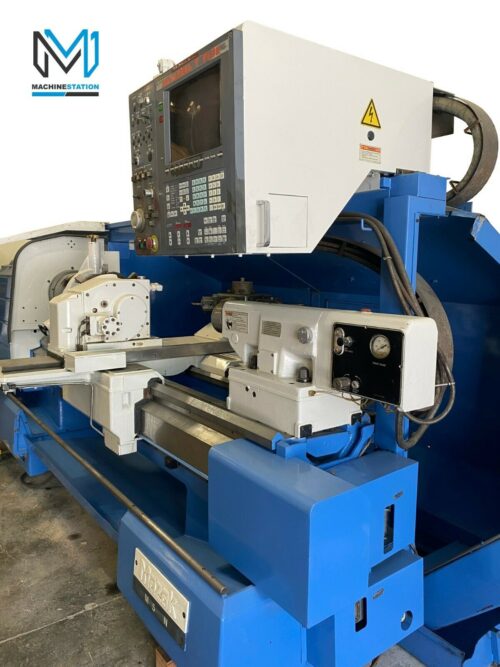

| Mazatrol T-Plus CNC Control |

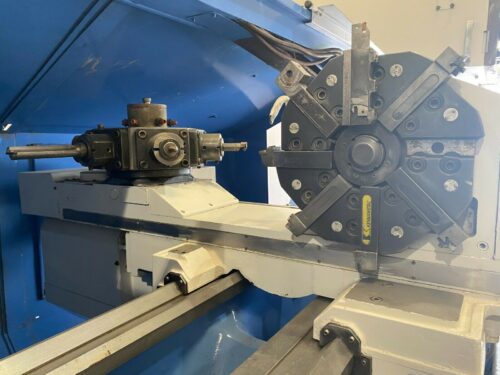

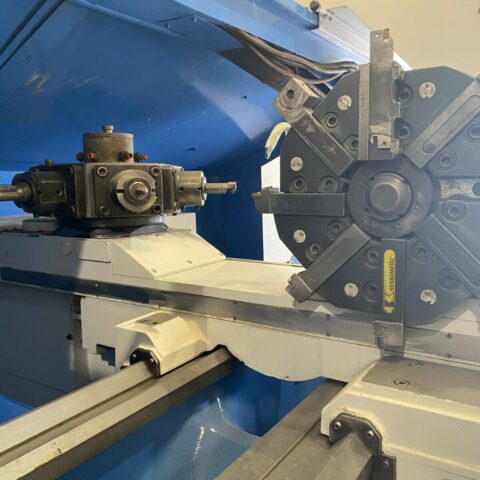

| 6 & 8 Station Dual Turrets |

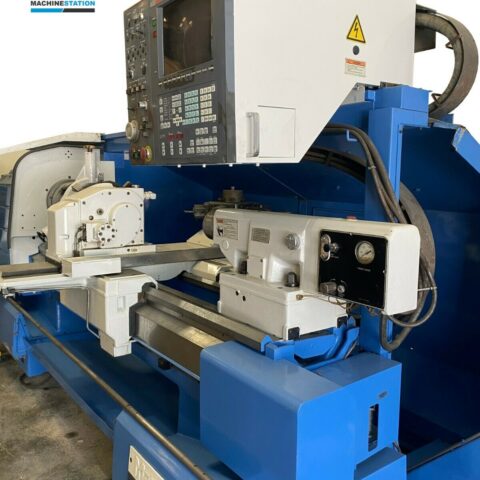

| Hydraulic Tailstock with Power Quill |

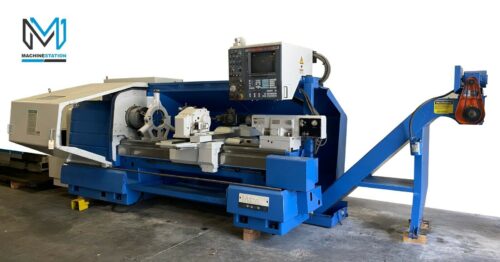

| Chip Pan and Chip Conveyor |
| Coolant System |
| Foot Operated Control for Chuck and Tailstock |
| Specifications: |
|---|
| Max Turning Diameter: 22.17″ |
| Max Turning Length: 60.21″ |
| Max Bar Capacity: 3.75″ |
| Swing Over Slide: 13.0″ |
| Swing Over Bed: 24.30″ |
| Distance Between Centers: 62.4″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 42 kva |
| Overall Dimensions: 200″ x 86″ x 80″ High with Chip Conveyor |
| Weight : 15,500 lbs Approx. |
| Travel: |
|---|
| X Axis Travel: 21.3″ |
| Z Axis Travel: 61.30″ |
| Rapid Traverse X Axis: 360 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-11 |
| Spindle Bore: 4.09 |
| Spindle Speed: 2200 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Vertical Turret Capacity: 8 Stations |
| Horizontal Turret Capacity: 6 Stations |
| Tailstock: |
|---|
| Tailstock Body Travel: 54.3″ |
| Tailstock Quill Dia.: 3.94″ |
| Tailstock Quill Stroke: 5.72″ |
| Tailstock Taper: MT-5 |
