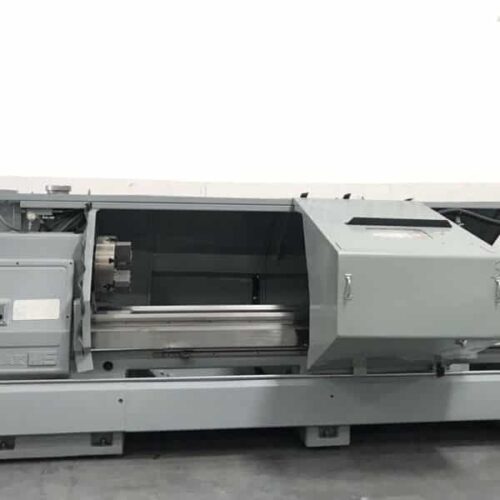

MAZAK M5-2500 CNC Oil Long Bed Lathe

Out of stock

This Machine is equipped with 18″ Chuck, Steady Rest, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in working condition. Please feel free to ask For more Pictures.

SKU: 1727
Make/Model: Mazak M5-2500
Video: [fusion_button link=”https://www.youtube.com/watch?v=AcbcfJ_7x6A” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1727
MAZAK M5-2500 CNC OIL LONG BED LATHE
Make Mazak
Model No. M5-2500

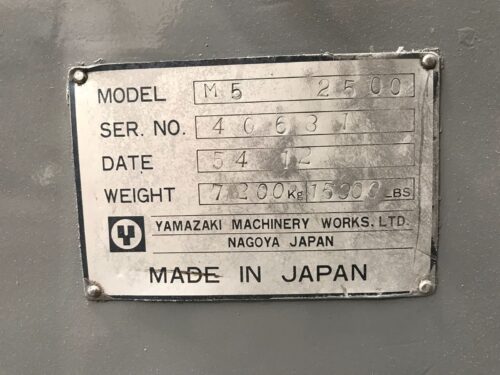

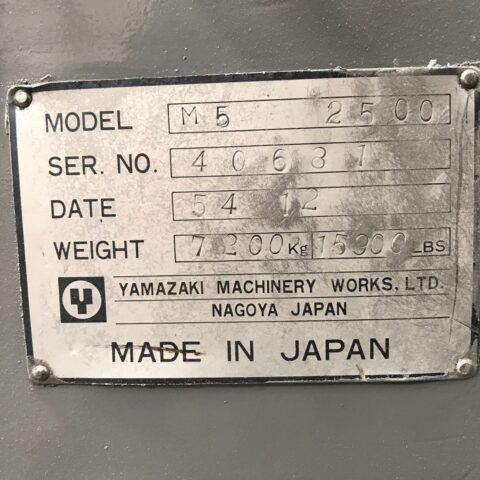

Serial # 40681
Condition Very Good
Comes with 18″ Chuck, Steady Rest, Tailstock,  Hydraulic unit & Chip Conveyor.

“This Machine is equipped with 18″ Chuck, Steady Rest, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in working condition. Please feel free to ask For more Pictures.”

  • MAZAK M5-2500 Equipped With:

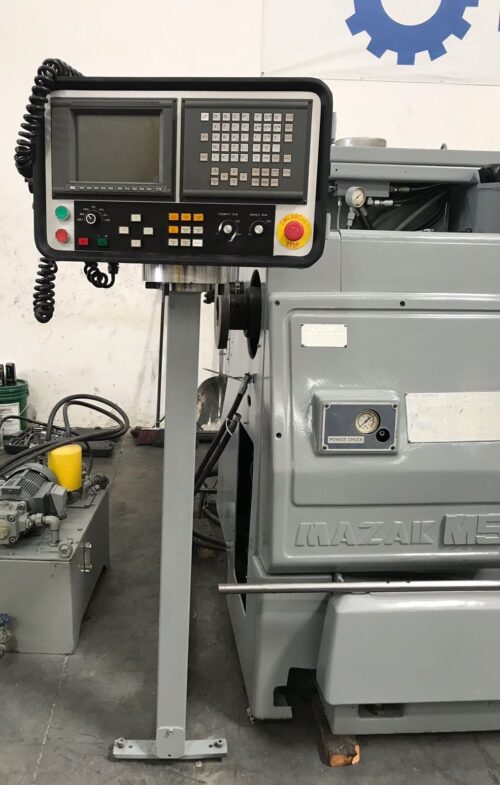

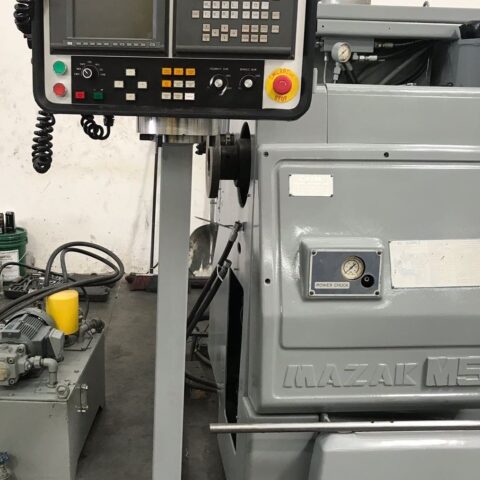

  • Fanuc 18T series CNC Control
  • ? Big Bore
  • A2-11 Gear Head Spindle

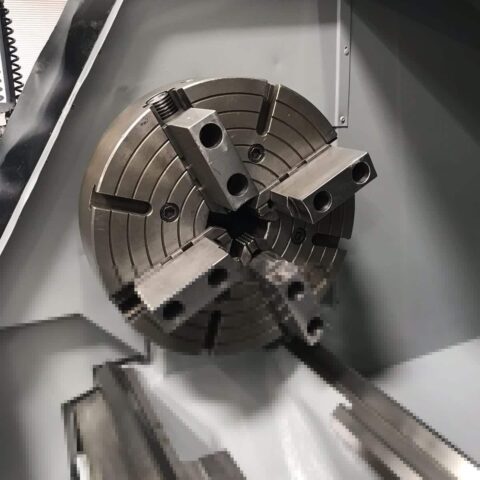

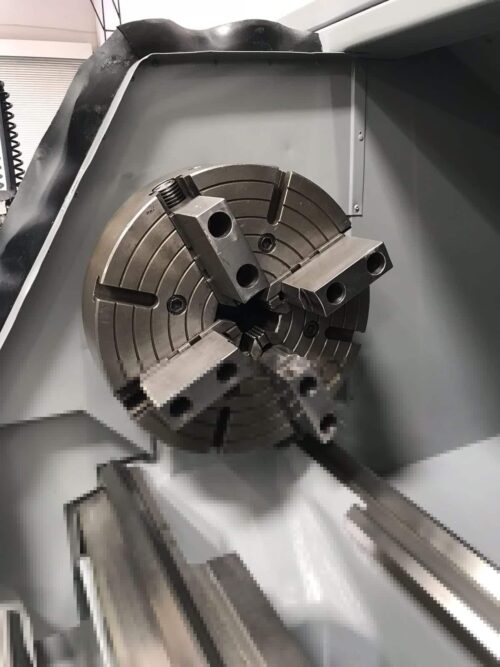

  • 18″ 4 Jaw Chuck
  • 2 Turrets – 8 Station Vertical and 6 Station Horizontal

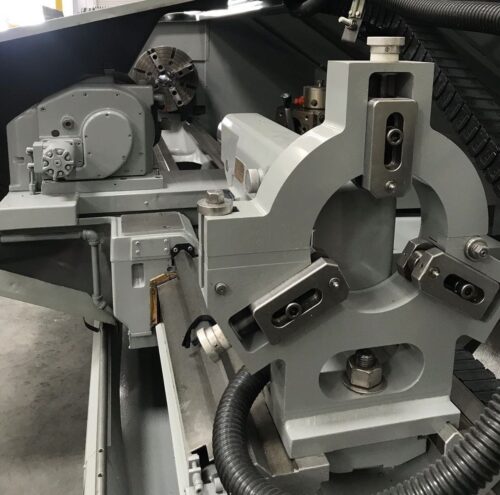

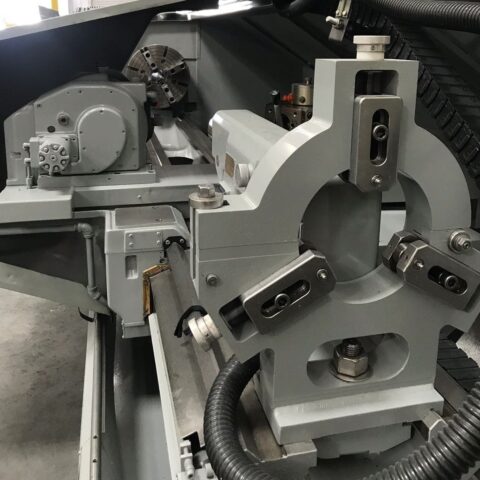

  • Steady Rest
  • Heavy Duty Tailstock and Quill
  • RS-232 Port
  • Coolant System

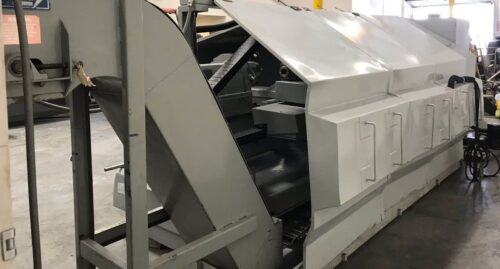

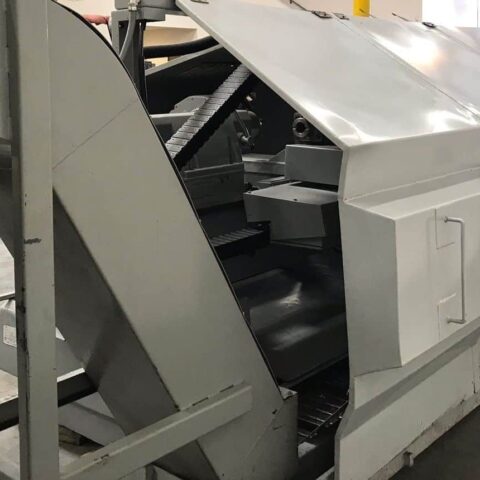

  • Chip Conveyor
  • General:
  • Power: 30 kva, 220v / 3-Phase
  • Overall Dimensions: 228″ X 90″ X 78″ High
  • Overall Dimensions: 288″ X 90″ X 78″High with Chip Conveyor
  • Weight: 16000 lbs
  • Add 2 Pallets with covers, Hyd. Unit & accessories For Shipping Dimensions
  • MAZAK M5-2500 Specifications:
  • Capacity:
  • Max Turning Diameter: 13.0″
  • Max Turning Length: 102″
  • Max Bar Capacity: ”
  • Swing Over Bed: 24.0″
  • Distance Between Centers: 122″
  • X Axis Travel: 21.26″
  • Z Axis Travel: 102.5″
  • Rapid Traverse X Axis: 394 IPM
  • Rapid Traverse Z Axis: 394 IPM
  • Spindle Nose: A2-11
  • Spindle Bore: 4.5″
  • Spindle Speed: 20 – 2000 RPM
  • Spindle Motor: 30 HP
  • Vertical Turret Capacity: 8 Stations
  • Horizontal Turret Capacity: 6 Stations
  • Turret Index Time: 1 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 3.97″
  • Tailstock Quill Travel: 4.7″

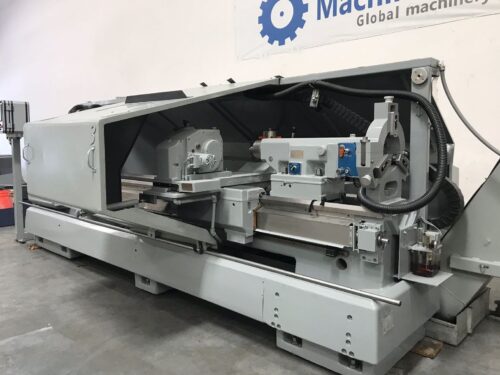

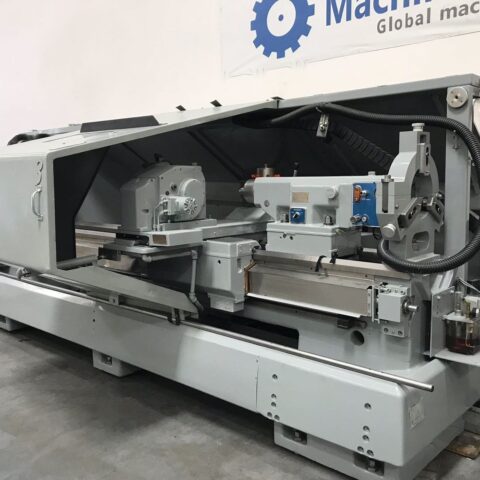

MAZAK M5-2500 Comes as shown in pictures..
