*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

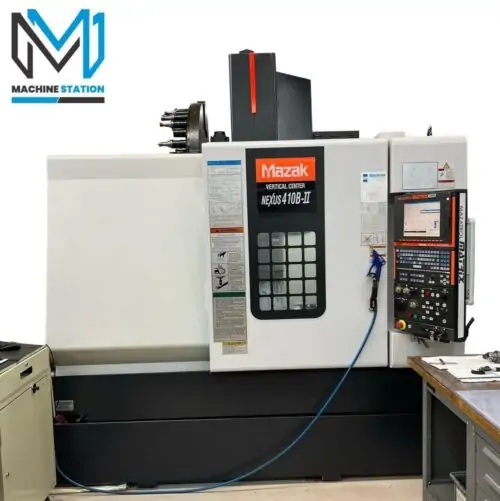

| Make: | MAZAK |

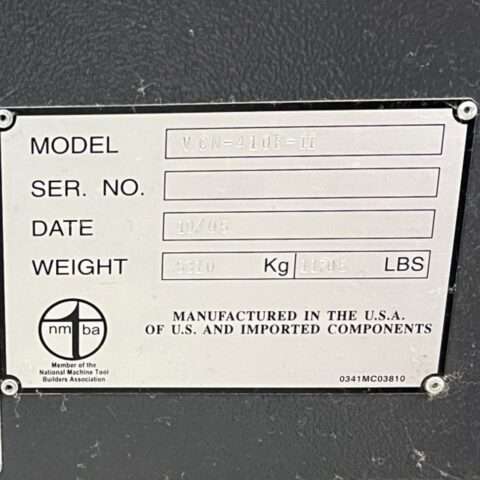

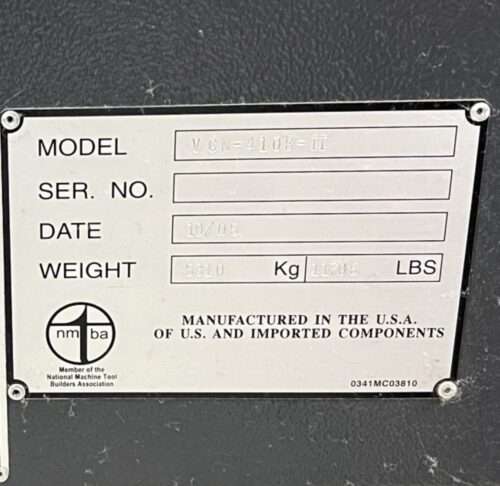

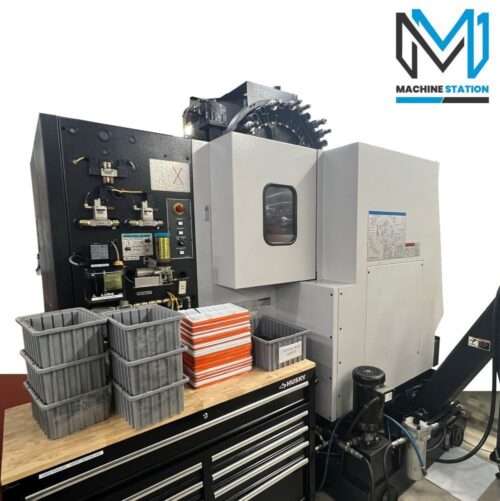

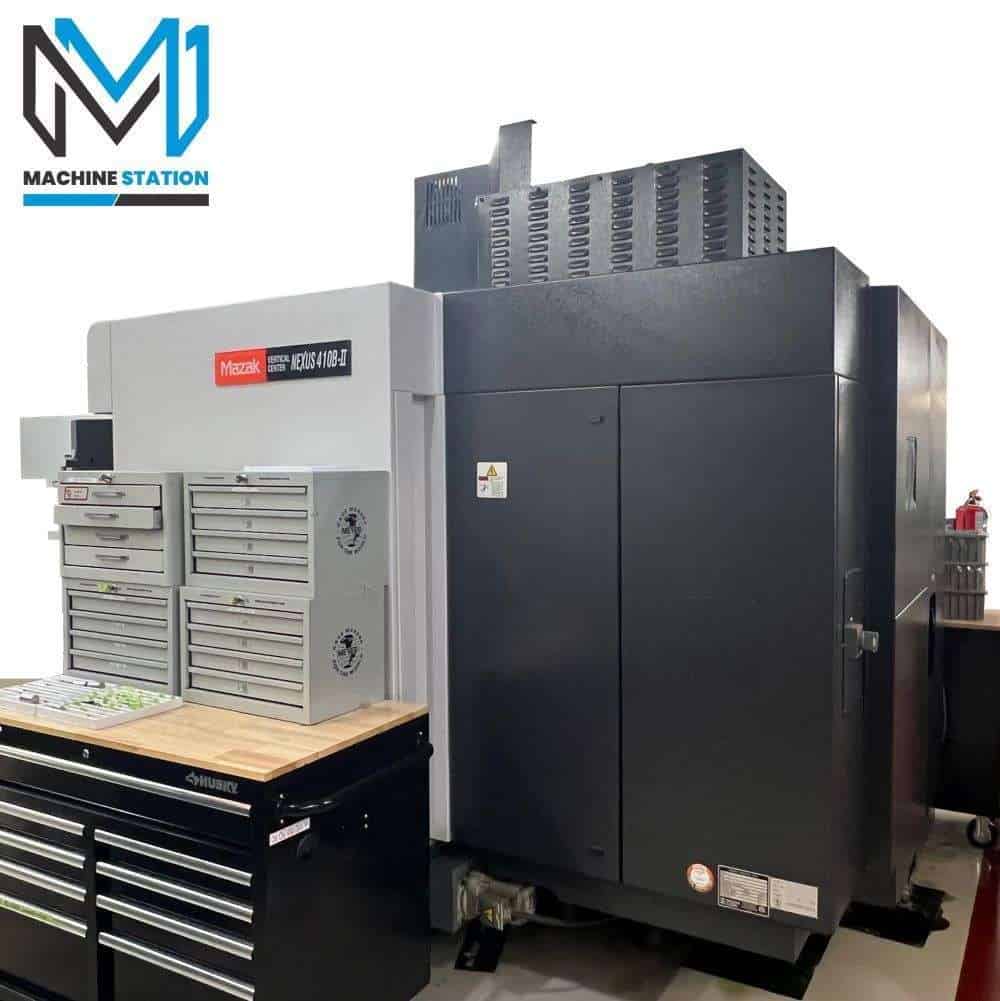

| Model: | NEXUS VCN 410B-II |
| Year: | 2005 |
| Condition: | Not Specified |
| SKU # 7004 |
| Make: MAZAK |
| Model # NEXUS VCN 410b-II |
| Year: 2006 |

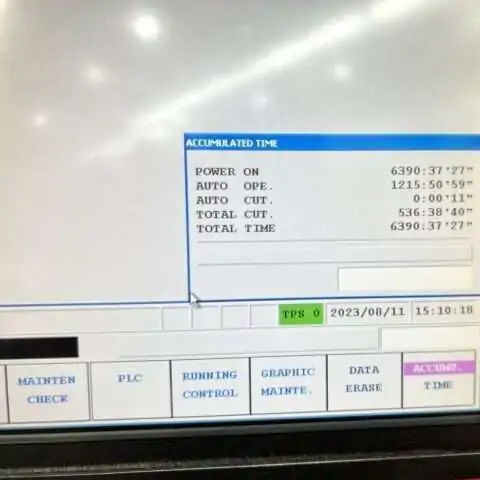

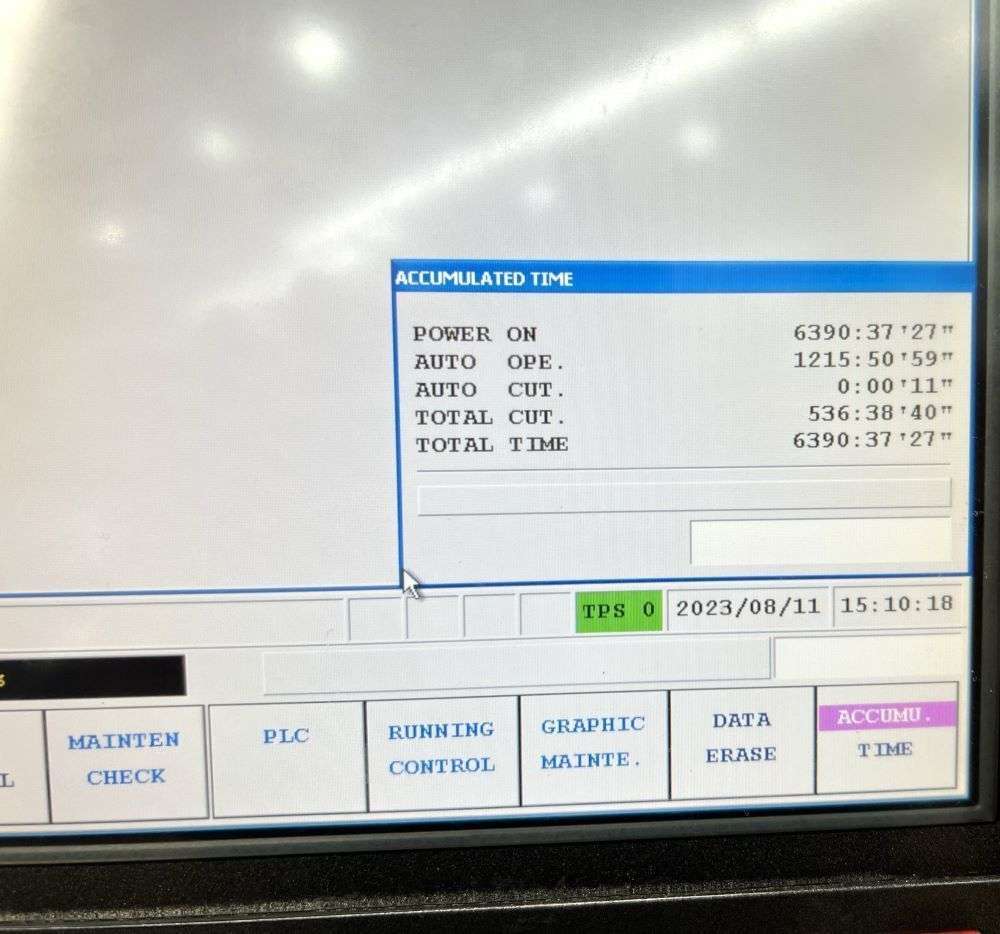

| Cutting Time: Hours |
| Features: |
|---|

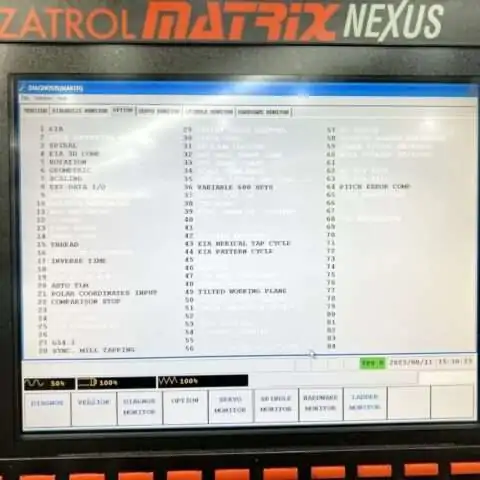

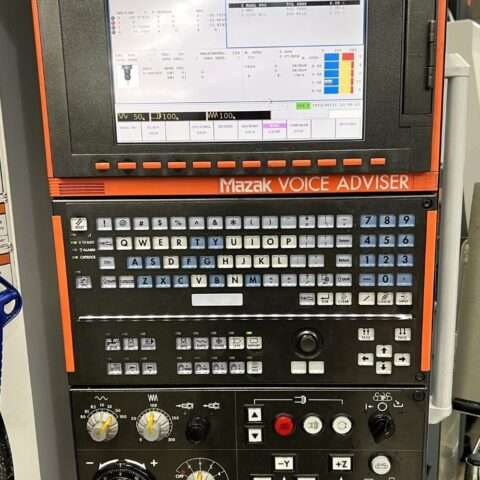

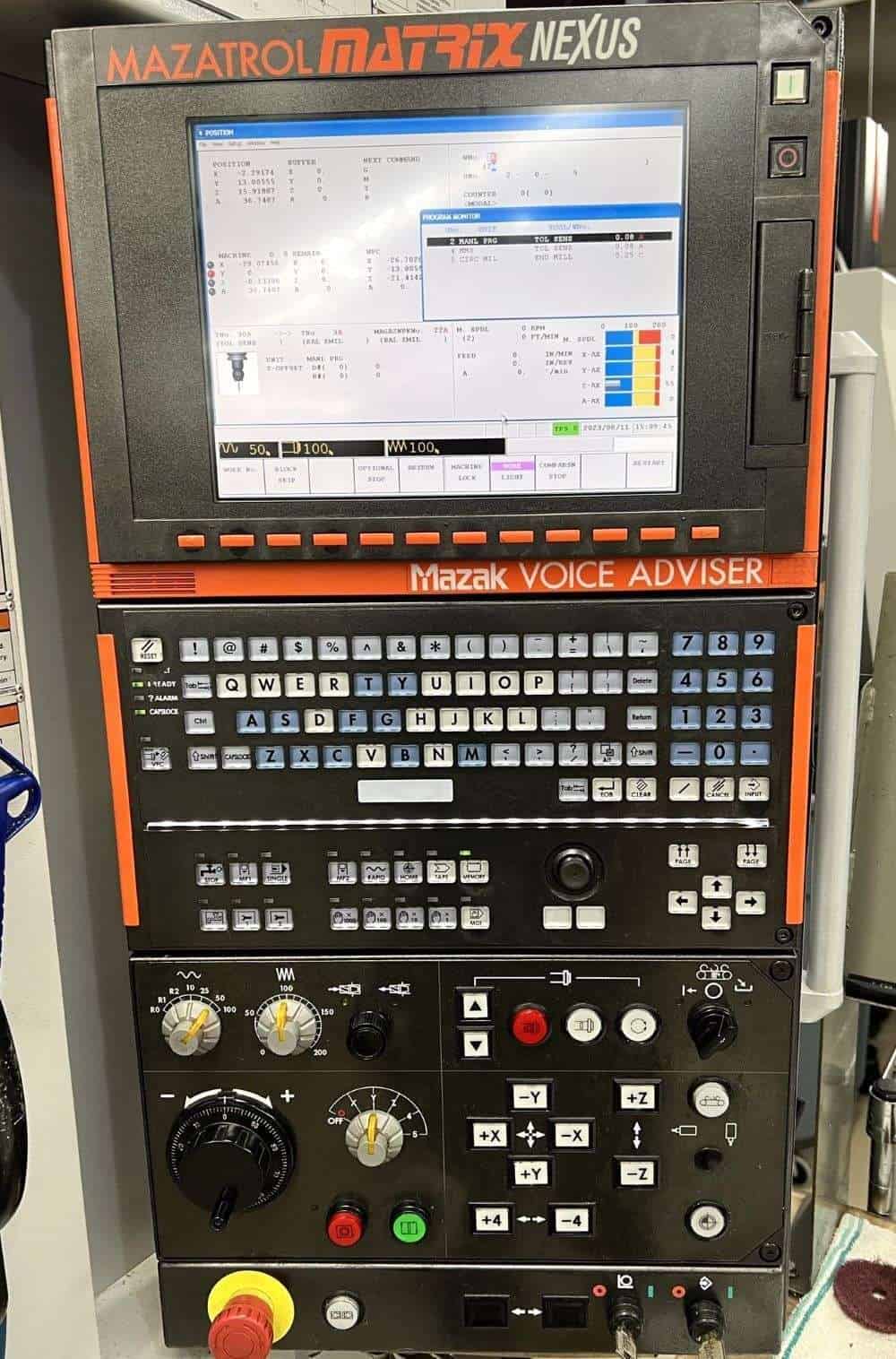

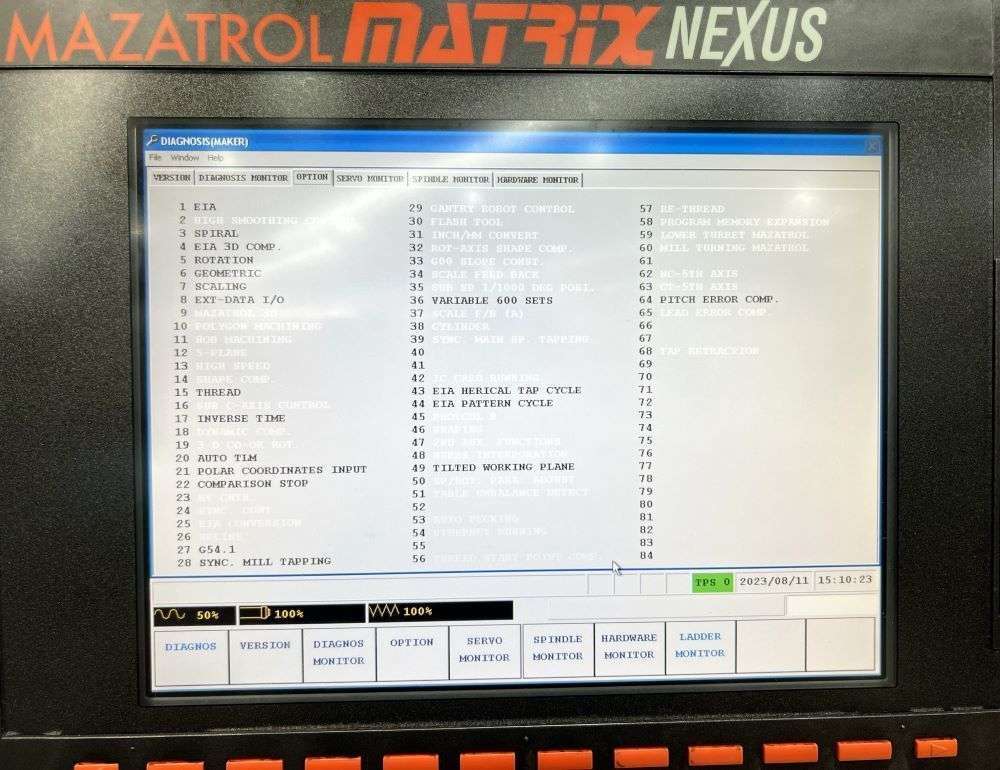

| Mazatrol Matrix Nexus CNC Control |

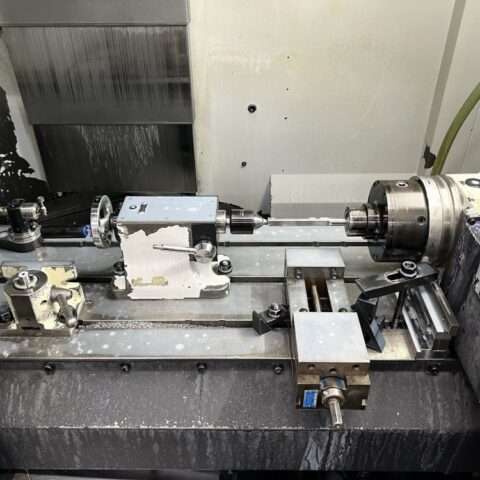

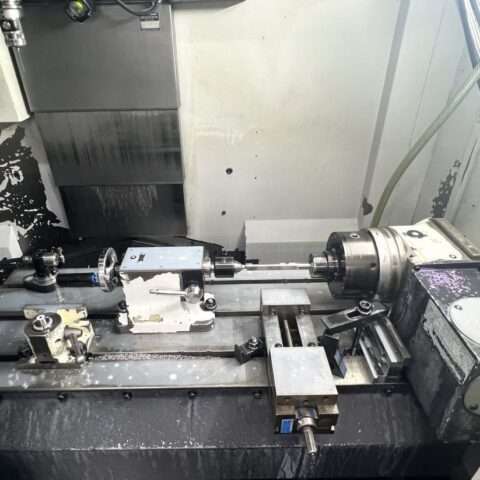

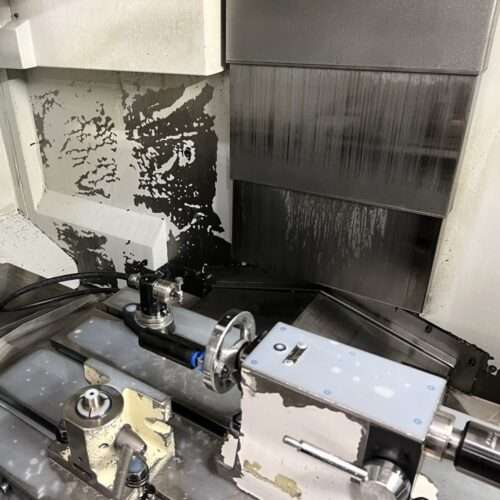

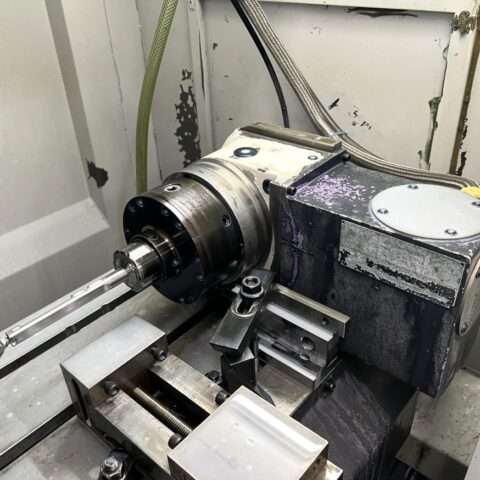

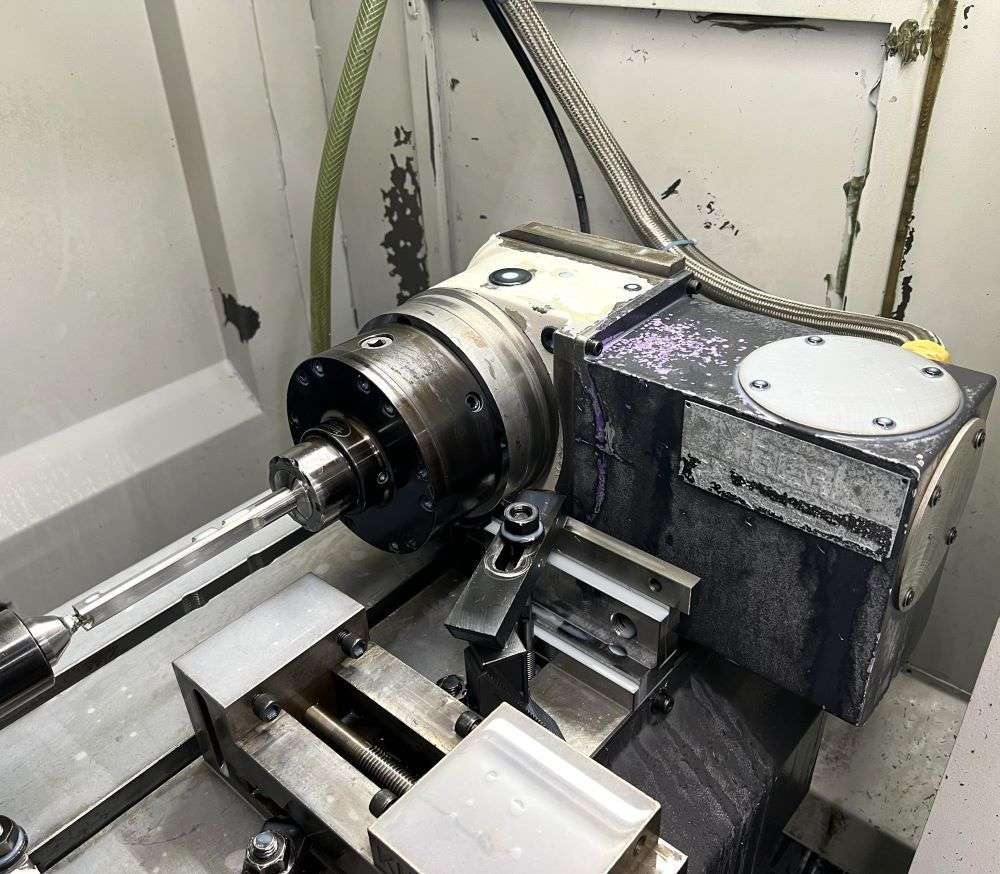

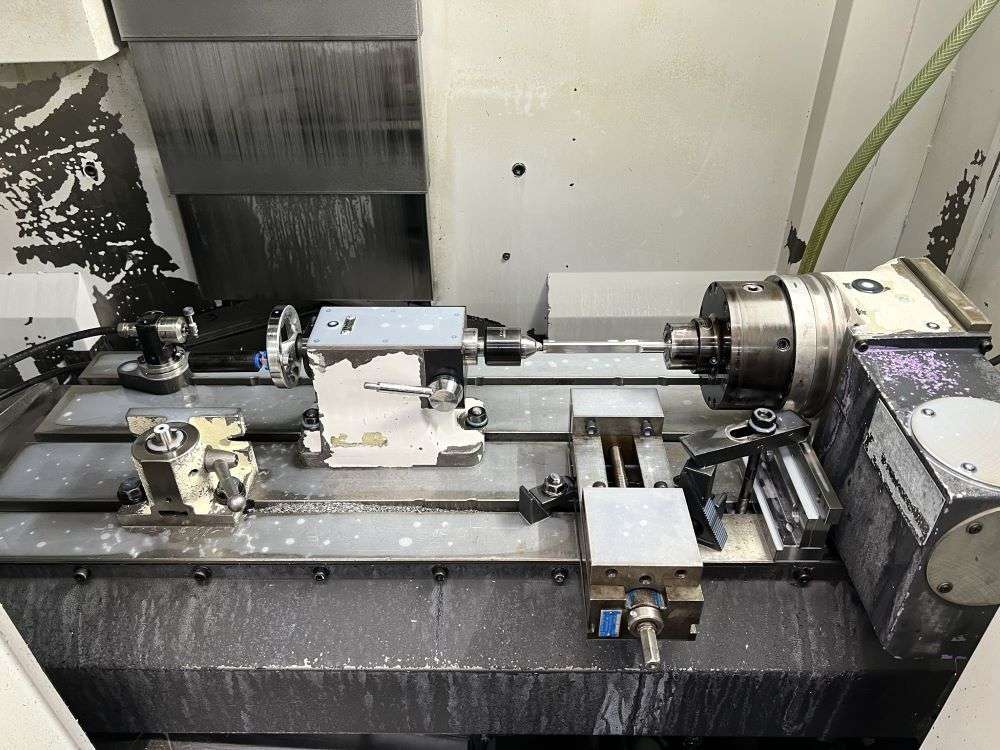

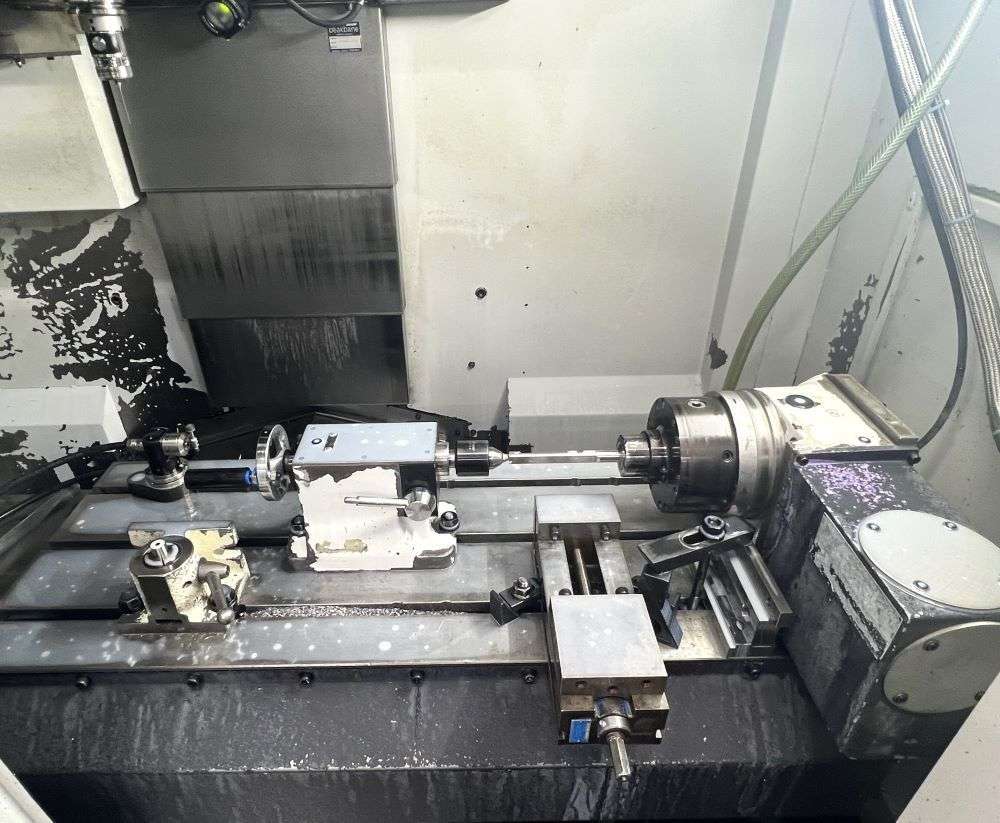

| 4th Axis Rotary Table |
| 12,000 RPM High Speed Spindle |

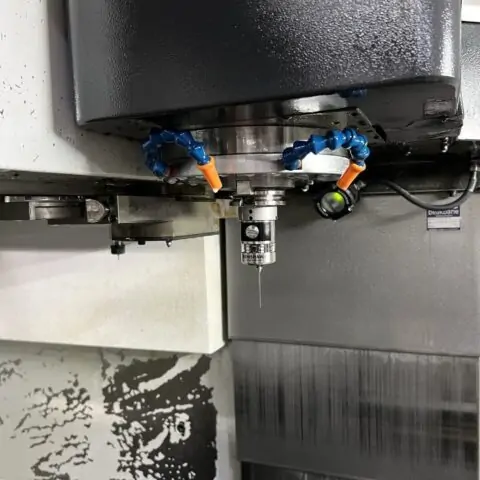

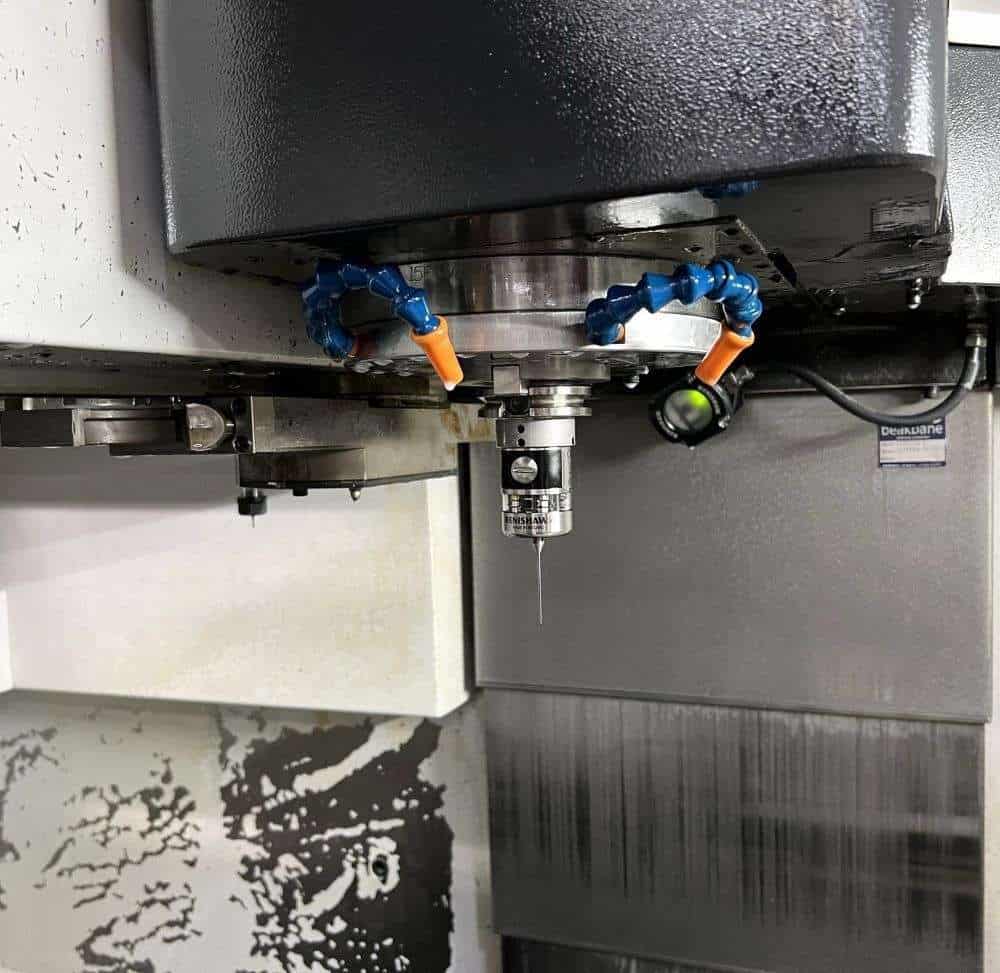

| Renishaw Probing System |
| 20 HP High Torque Spindle |
| Through Spindle Coolant |
| 30 Station Automatic tool changer |
| 40 Taper Spindle |
| USB Drive |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |

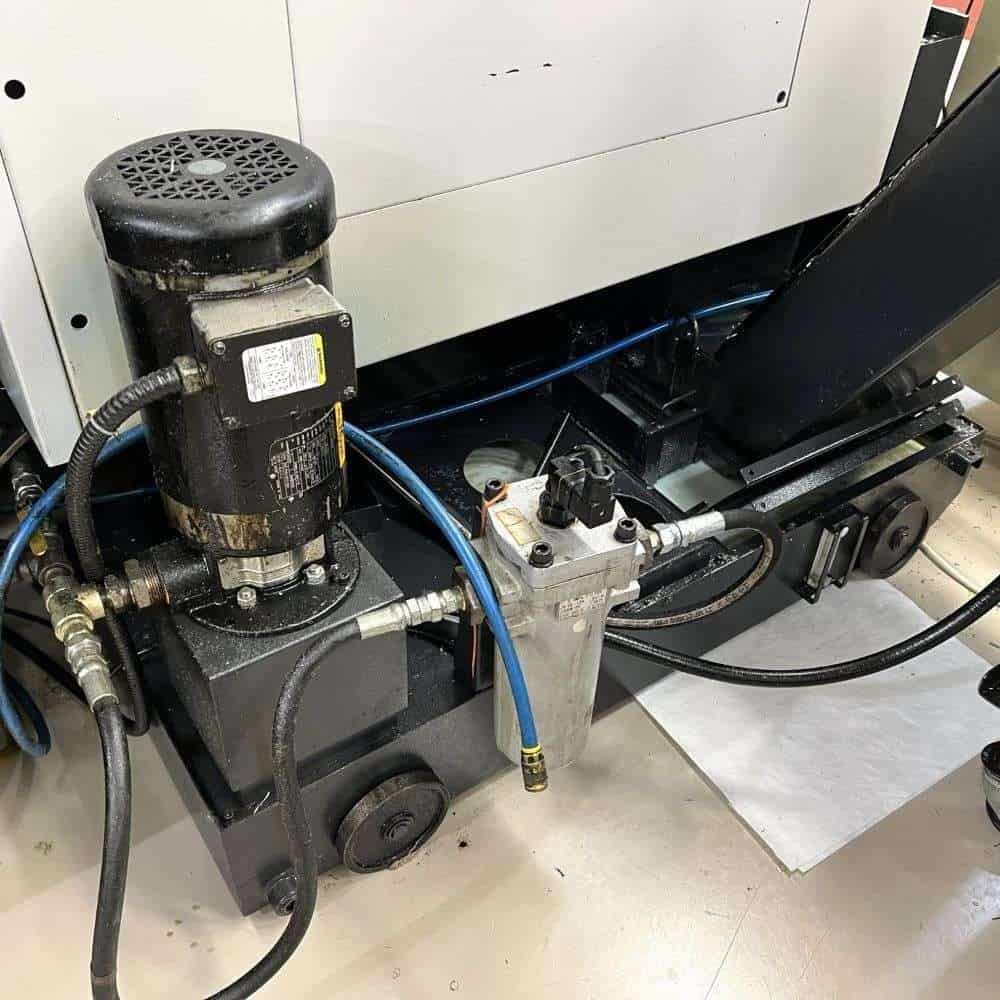

| High Pressure Coolant System |
| OTS Tool Presetter |
| Chip Conveyor |
| Telescopic way covers |
| Specifications: |
|---|
| Travels: |
| X-Axis: 30.00″ |
| Y-Axis: 16.14″ |
| Z-Axis: 20.08″ |
| Rapid Traverse Rates Axis: 1417 IPM |
| Cutting Feed Rates: 987 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26″ |
| Table |
|---|
| Length: 43.31″ |
| Width: 16.14″ |
| Max Weight on Table: 1102 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.25″ – 4.92″ |
| Max Tool Length: 13.78″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

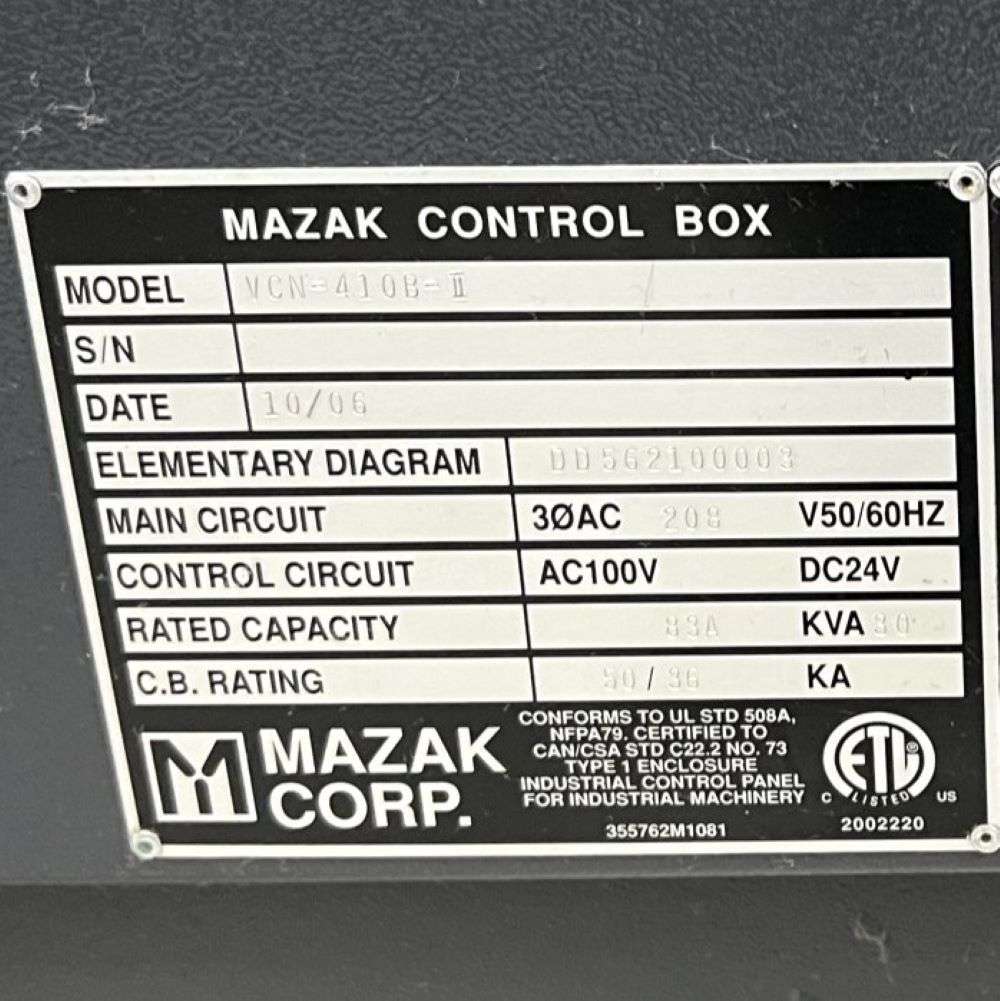

| Power: 220v / 30 kva / 3-Phase |
| Overall Dimensions: 102.3″ x 101.32 x ” High |
| Weight: 11,700 lbs |
