*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

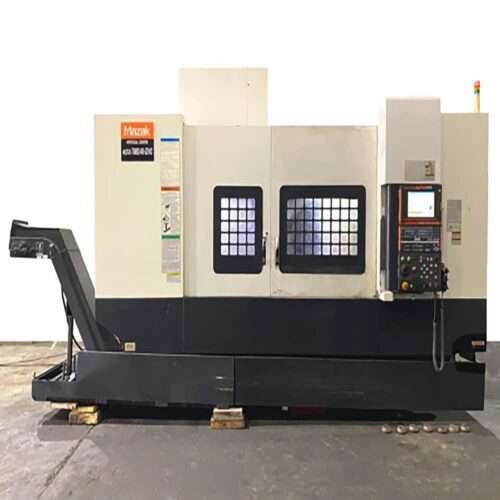

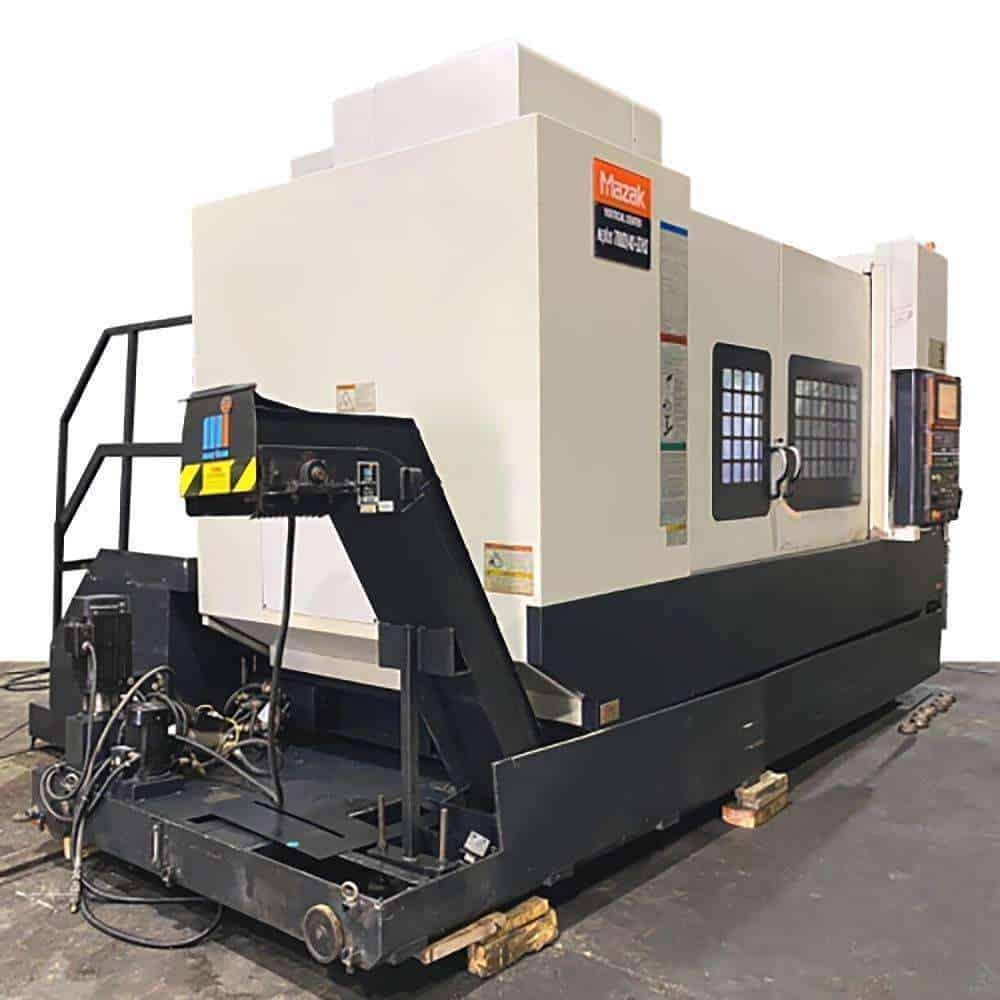

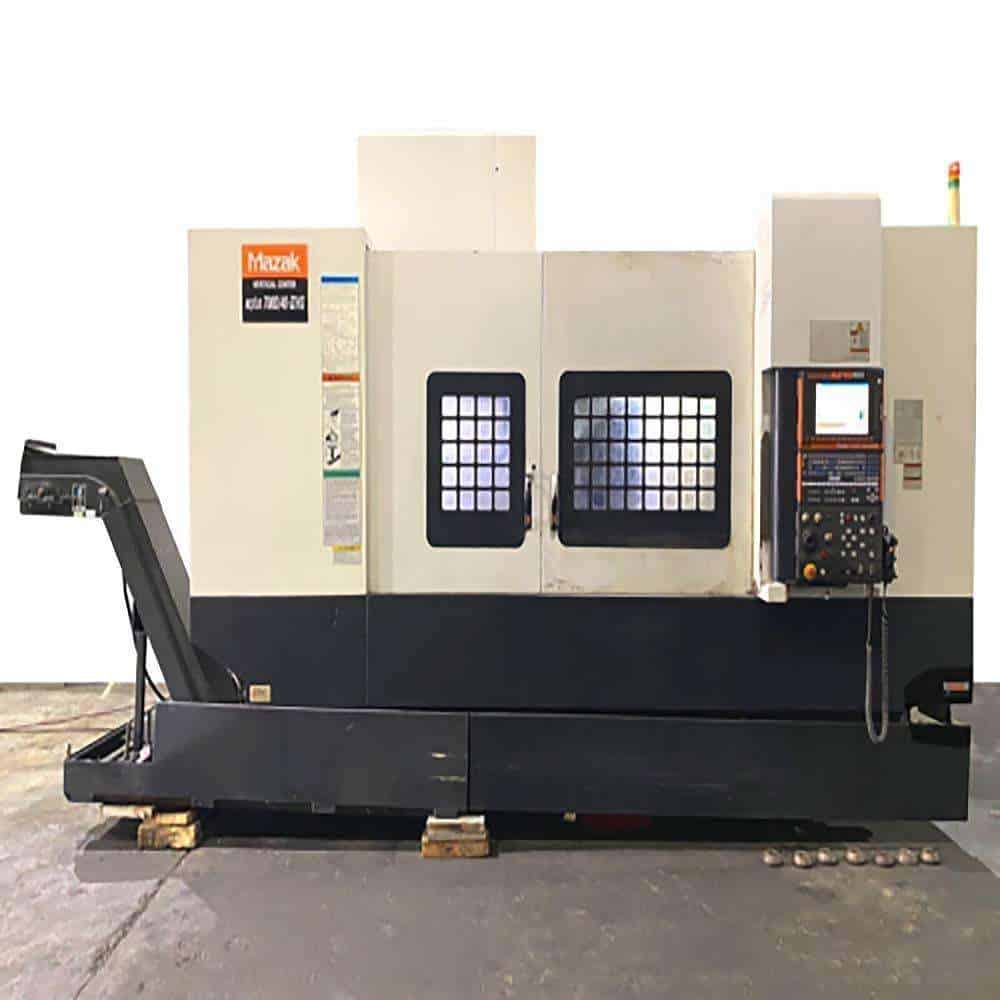

| Make: | MAZAK |
| Model: | NEXUS VCN 700D/40-IIHS |
| Year: | 2009 |
| Condition: | Used – Excellent |
Specifications:
MachineStation – Houston, TX
SKU # 2458
Make: MAZAK
Model No.: NEXUS VCN 700D/40-IIHS
Year: 2009/2010
Condition: Excellent
Cutting Hours: ONLY
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

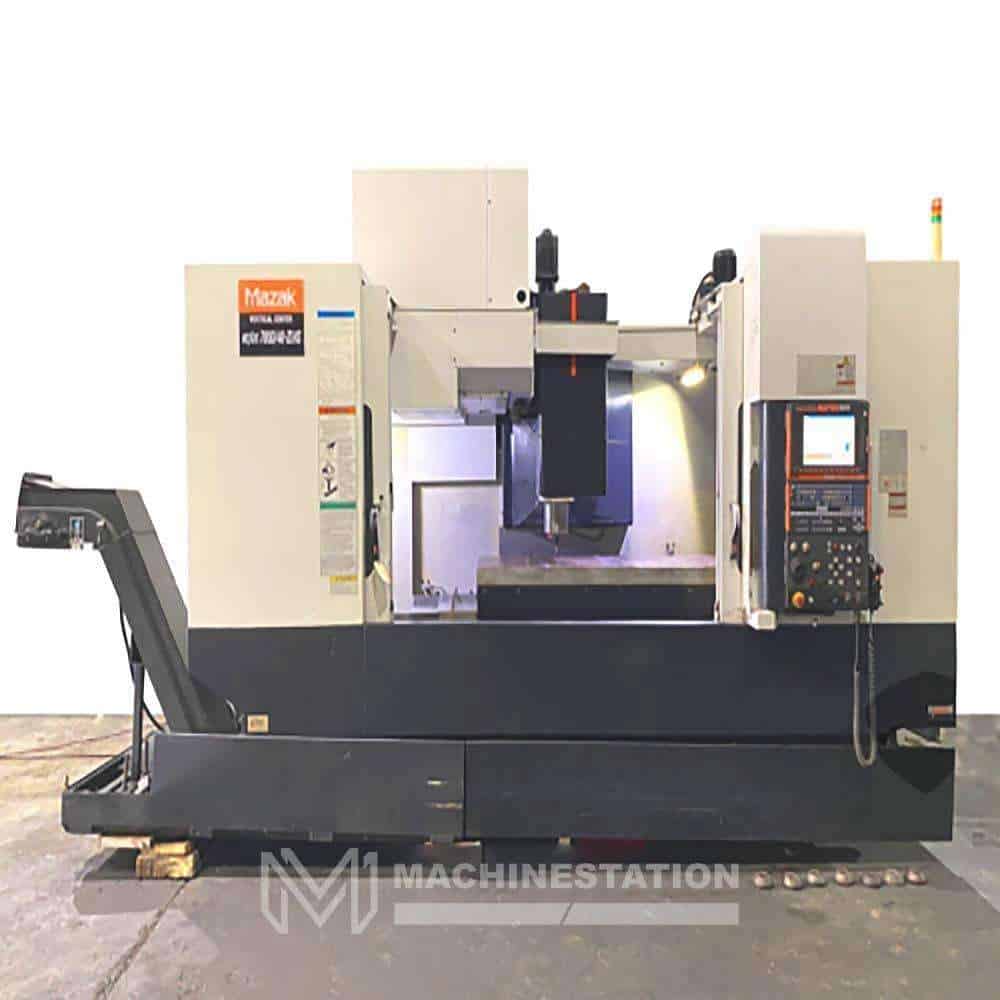

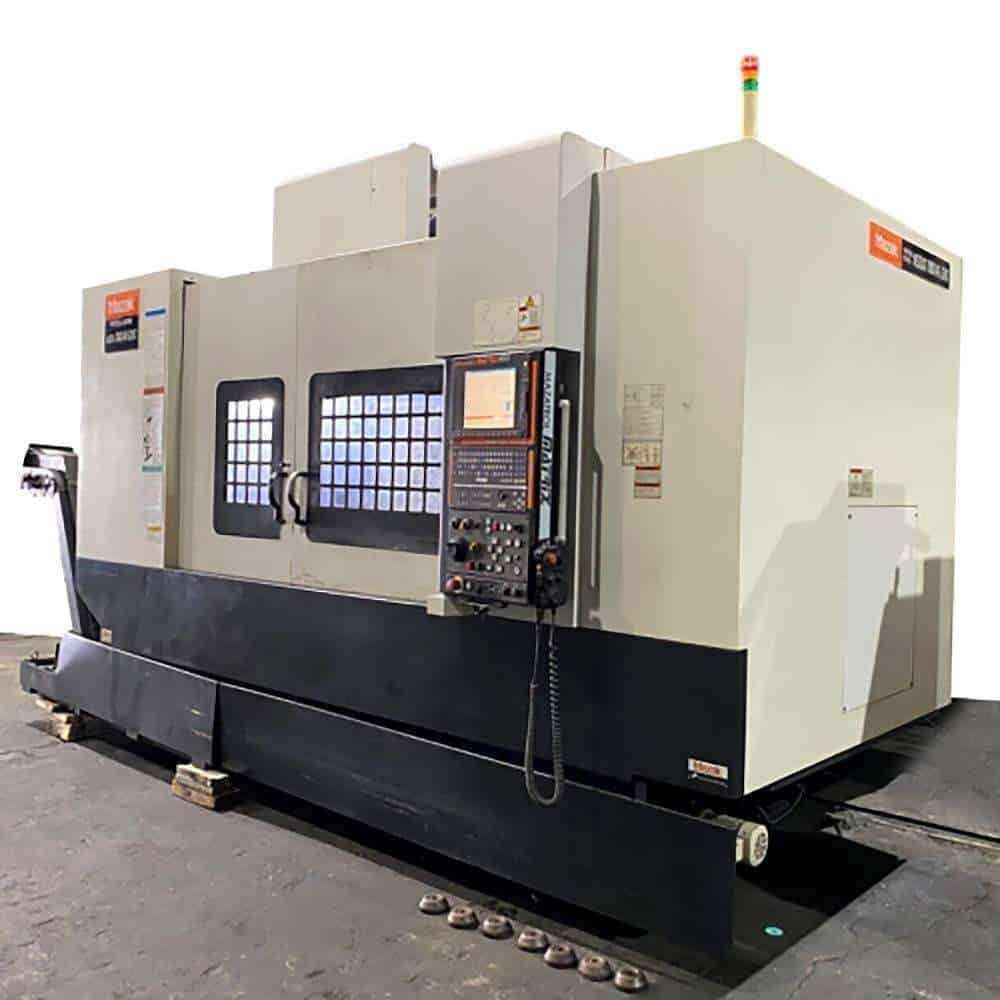

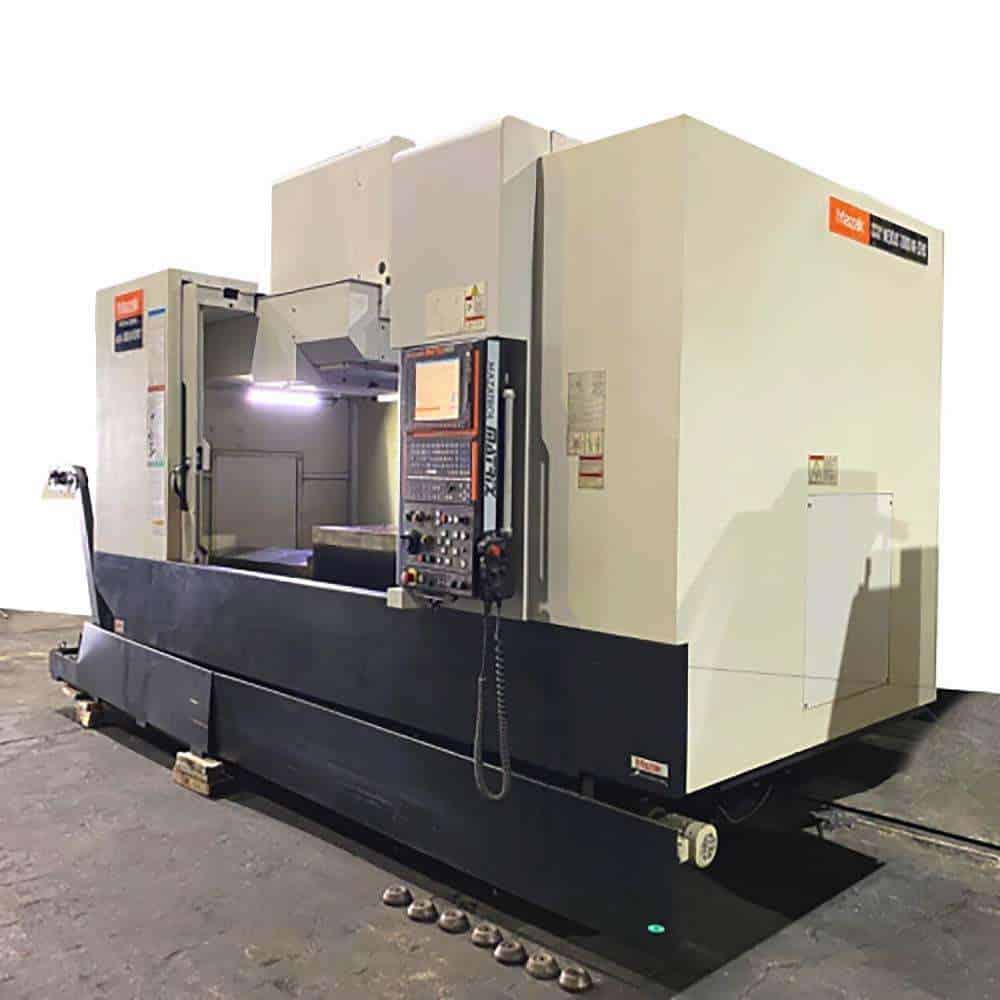

Mazak Nexus VCN 700D/40-IIHS Features:

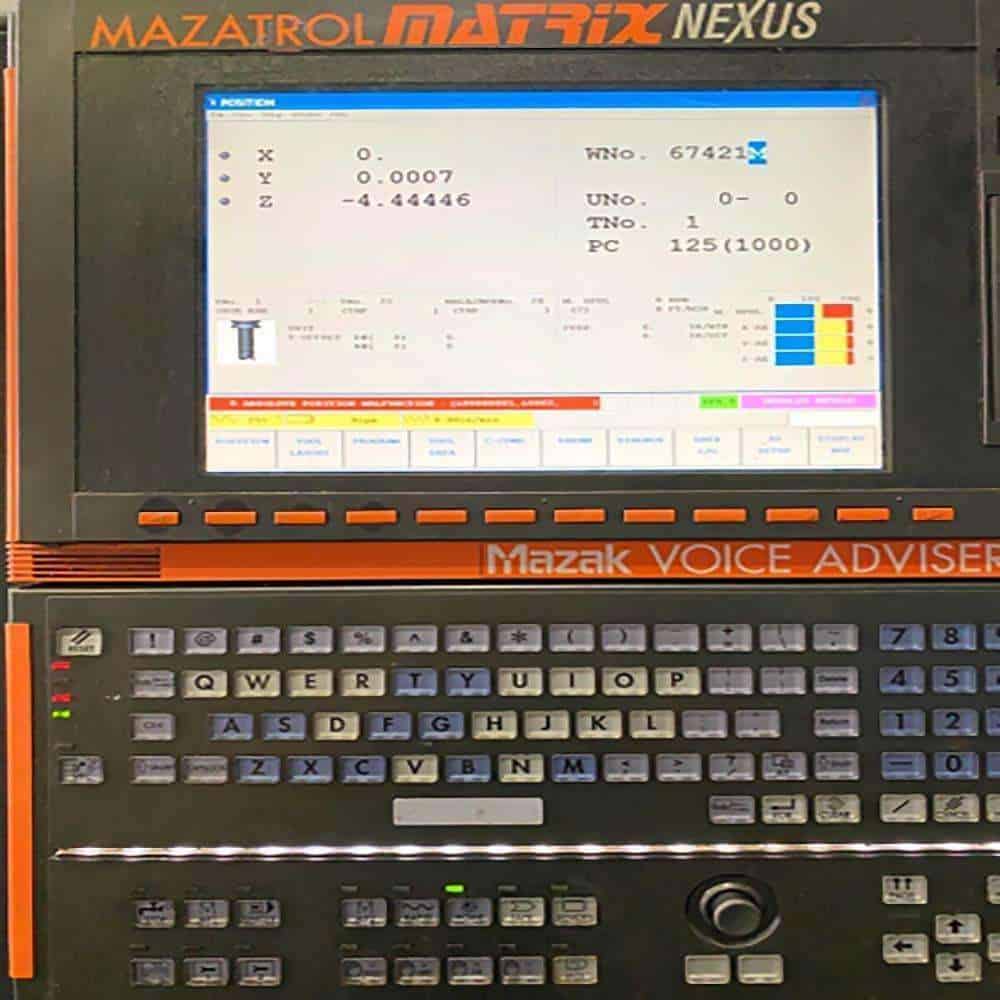

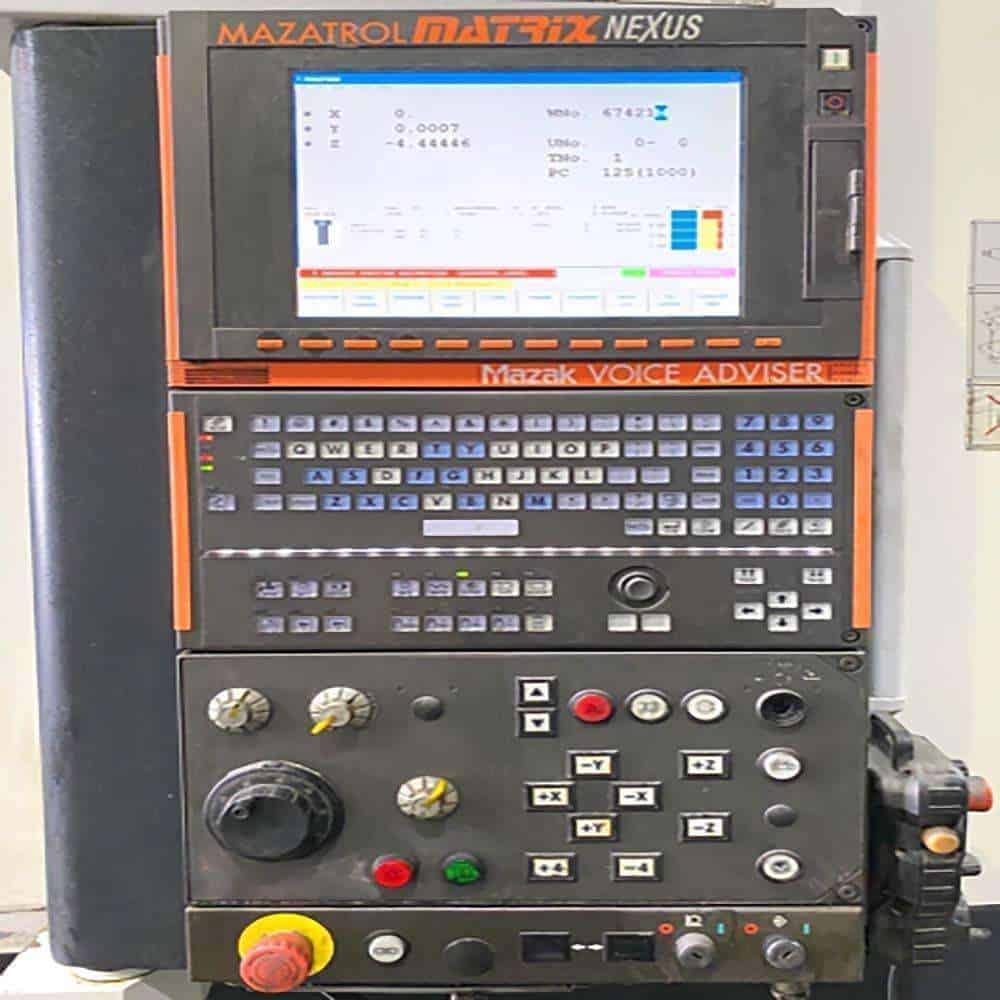

Mazatrol Matrix Nexus CNC Control (12.1″ Color LCD Display)
EIA/ISO Code Input Function
Roller Guide way Construction
Renishaw Probing System
High Speed Machining
35 HP High Torque Spindle
Through Spindle Coolant

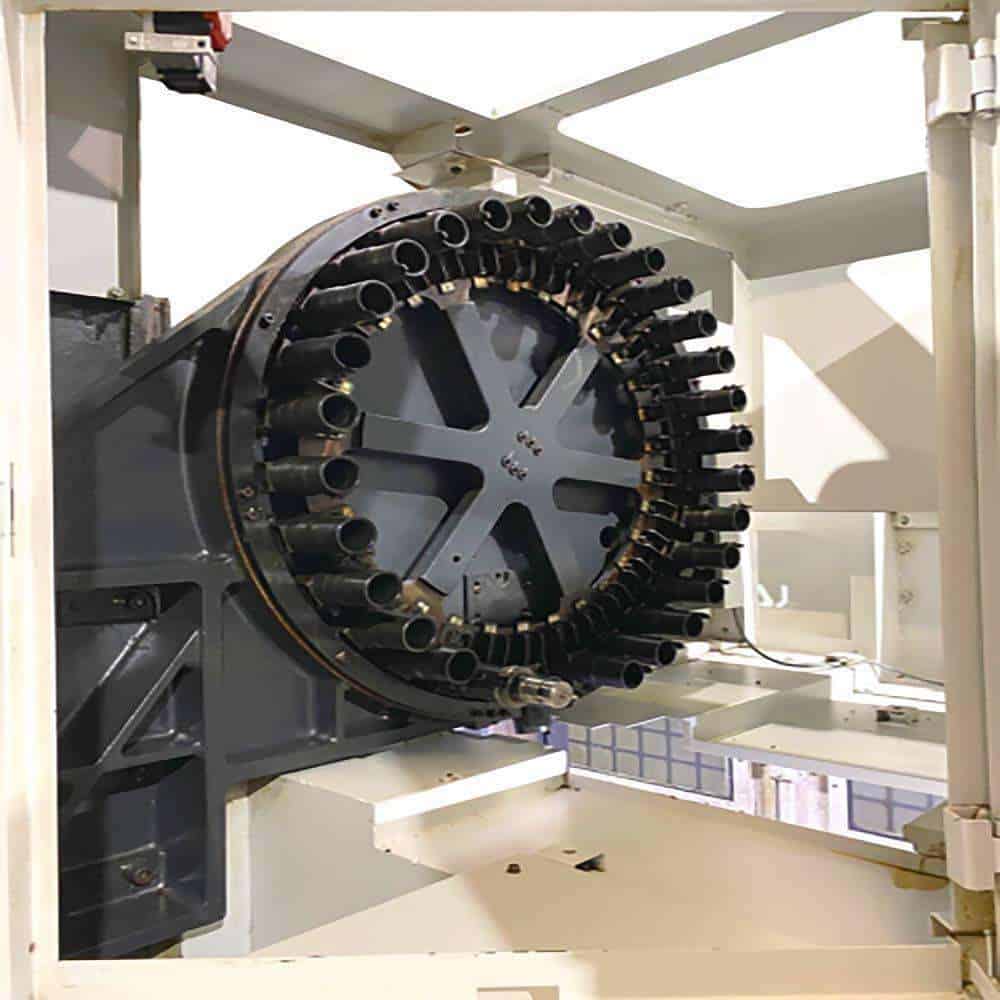

30 Station Automatic tool changer
40 Taper Spindle
USB Drive
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
High Pressure Coolant System
Telescopic way covers

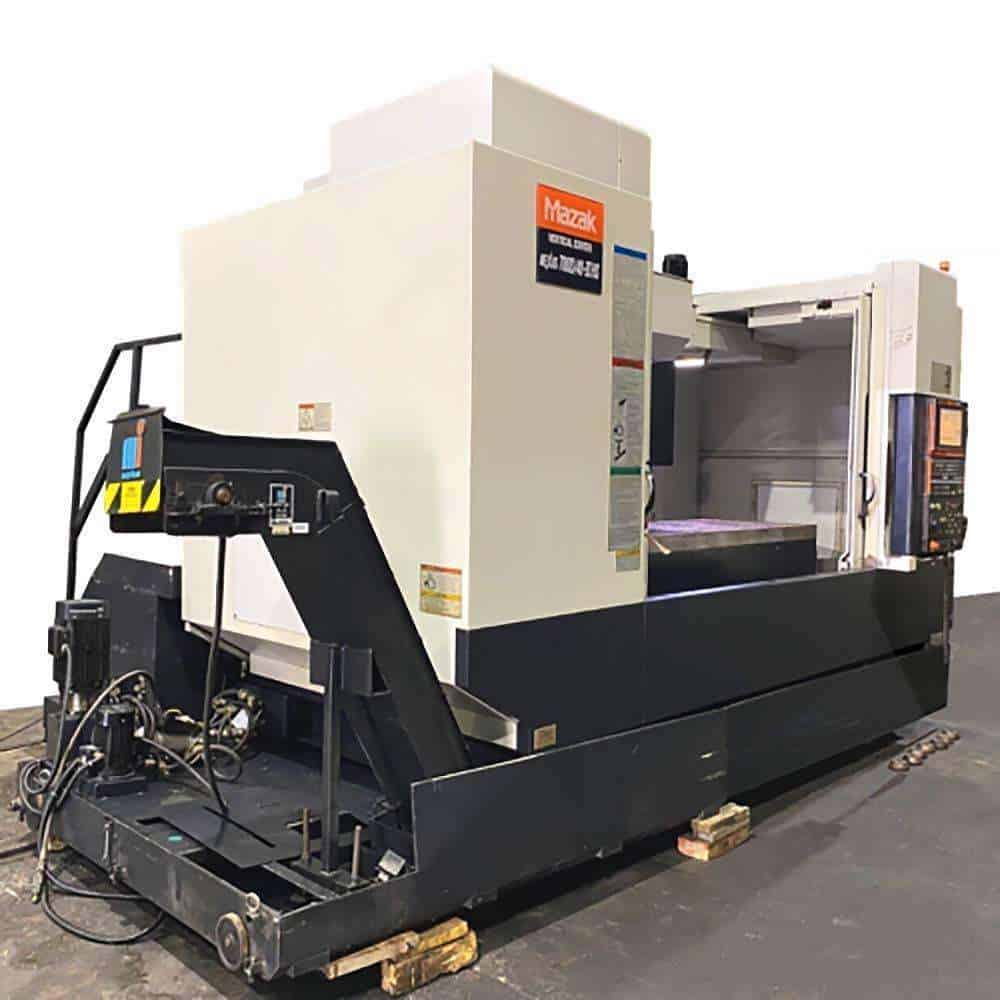

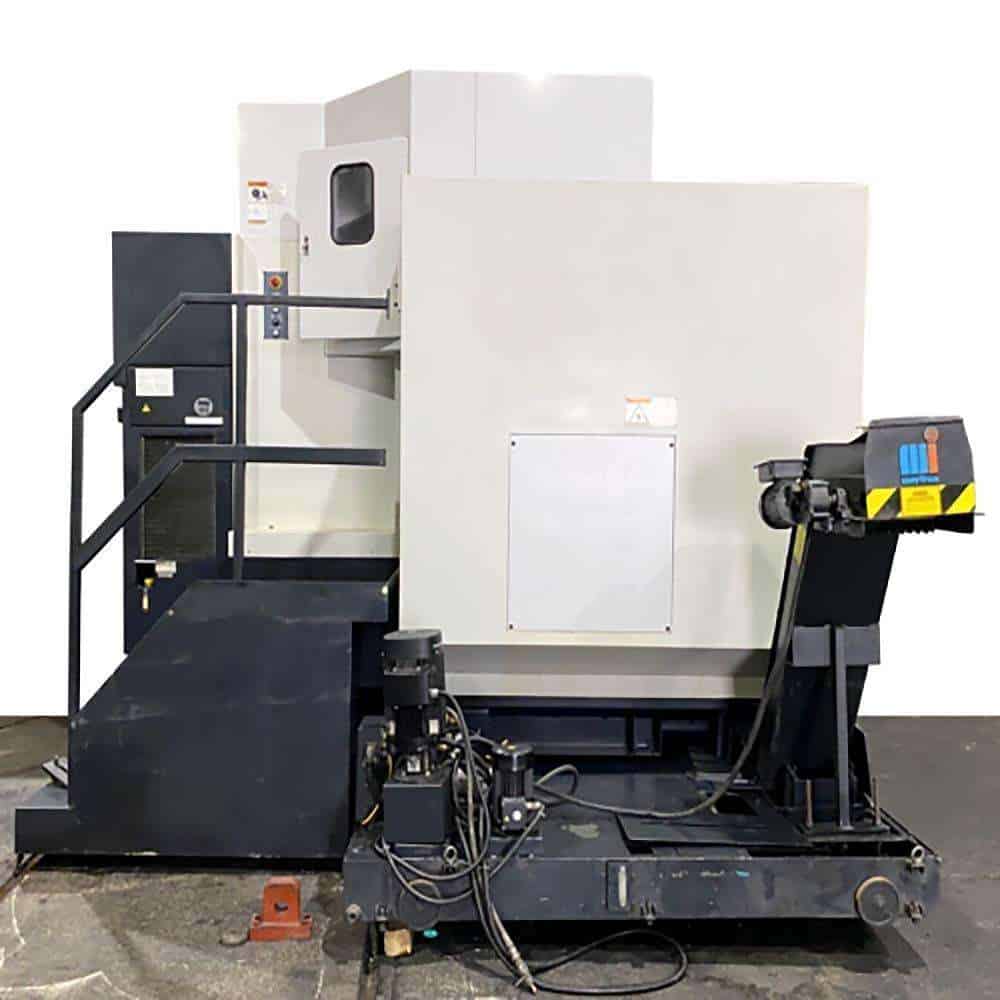

Chip Conveyor
Books and Manuals
Mazak Nexus VCN 700D/40-IIHS Specifications:
Travels:
X-Axis: 60.2″
Y-Axis: 27.6″
Z-Axis: 25.6″
Rapid Traverse Rates Axis: 1183 IPM
Cutting Feed Rates: IPM
Spindle Nose to Table (Min.- Max.): 7.87″ – 33.5″z
Table:
Length: 68.5″
Width: 27.6″
Max Weight on Table: 4410 lbs
Spindle:
Taper Size: 40
Speed Range: 18000 RPM
Spindle Power: 35 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.25″ -4.92″
Max Tool Length: 13.78″
Tool Changing Time : 1.3 Seconds
General:
Air Required: 100 psi, 4 scfm

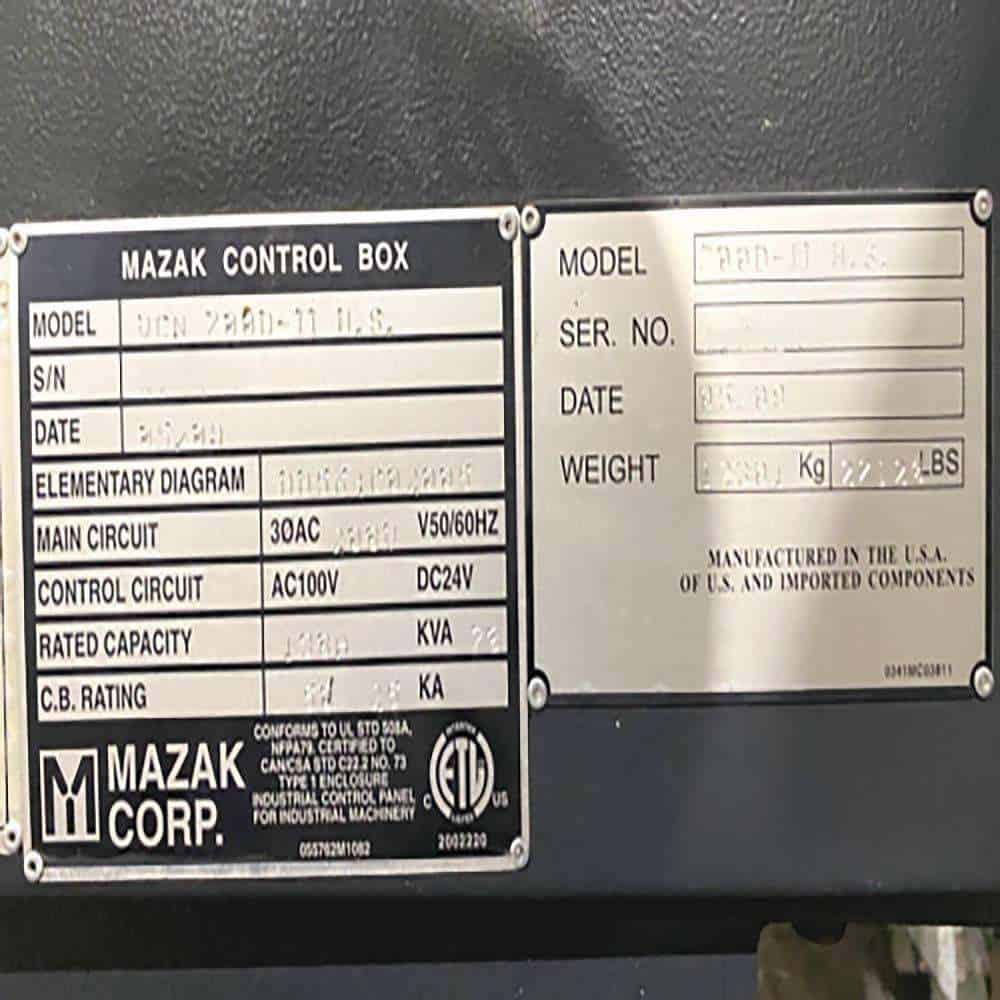

Power: 220v / 49.05 kva / 3-Phase
Overall Dimensions: 161.4″ x 137.2″ x 135.08″ High
Weight: 27,120 lbs
“No Charges for loading at list Price”
Comes as shown in pictures..
