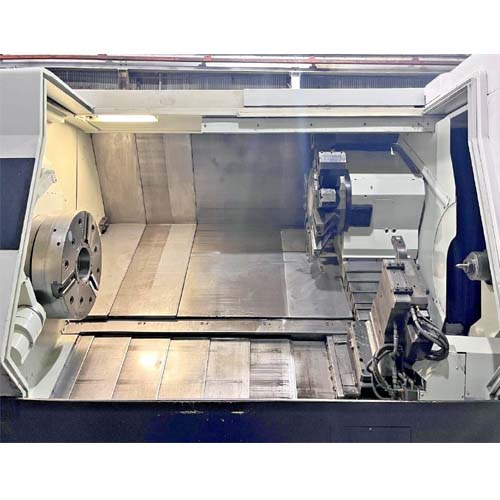

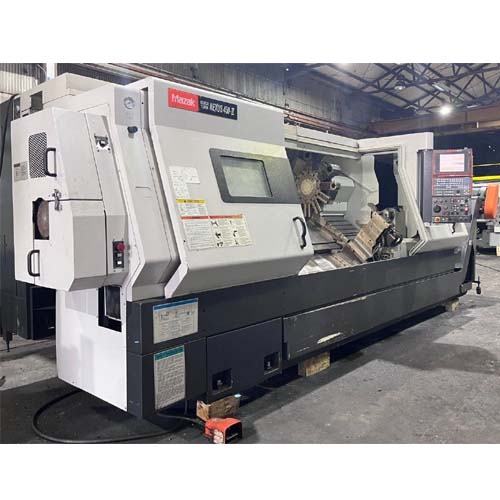

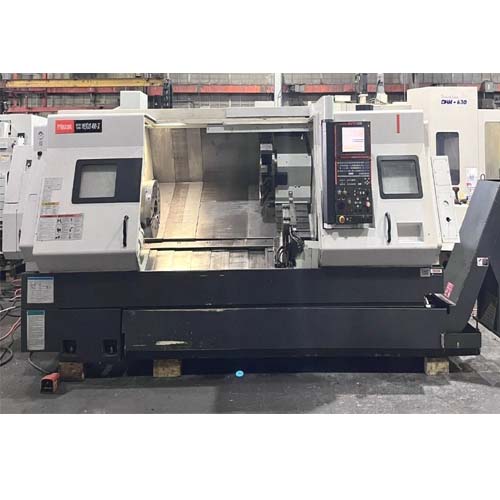

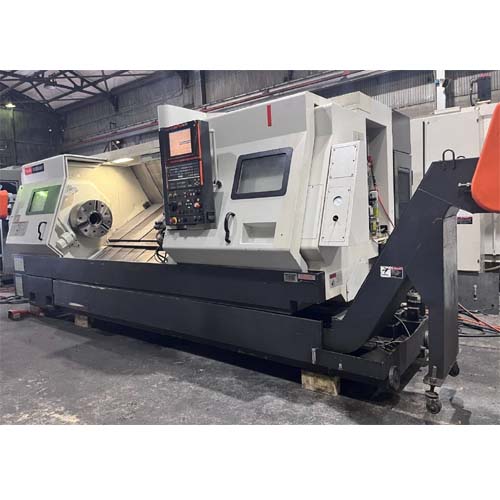

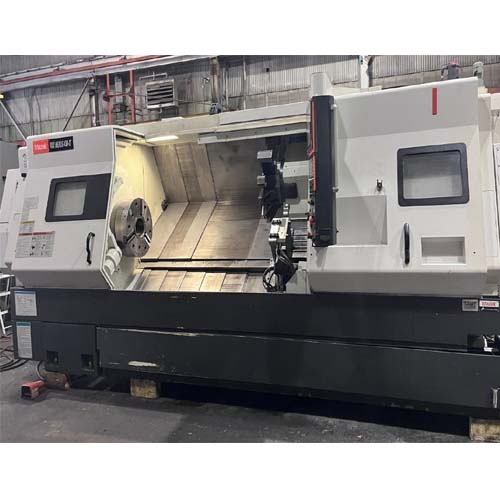

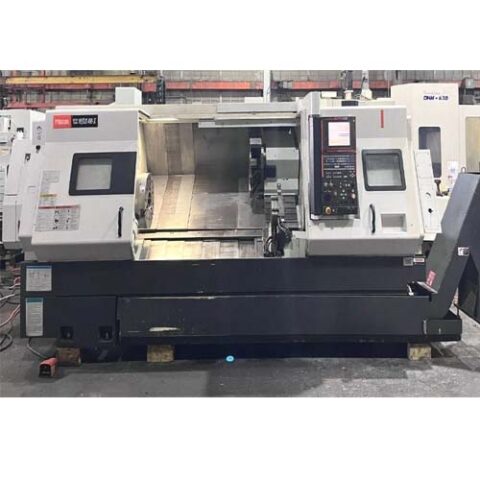

| MAZAK QUICK TURN NEXUS QTN-450II CNC TURNING CENTER 82″ LONG BED 18″ CHUCK LATHE | |
|---|---|
| SKU | 2324 |
| Make | MAZAK |

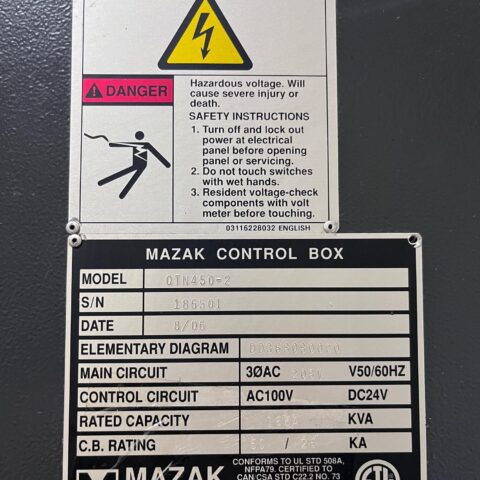

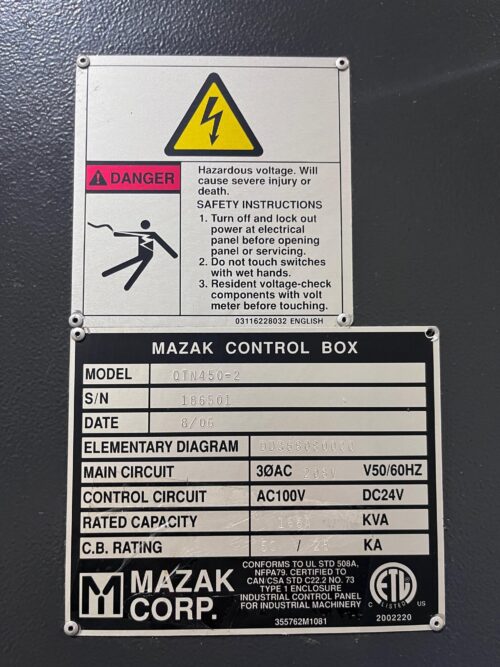

| Model No. | QTN-450 II |
| Serial # | 186501 |
| Year | 08/2006 |
| Country of Origin: | Japan |

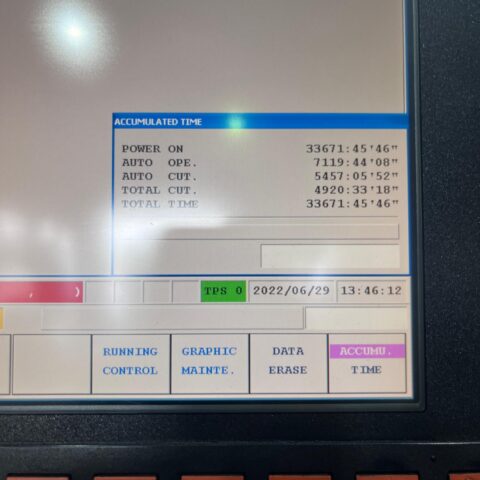

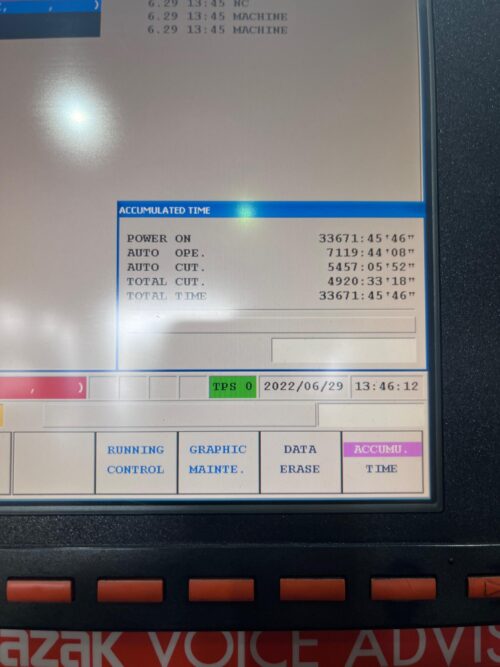

| Cutting Hours | 4920< |
| Condition | Very Good |
- Features:

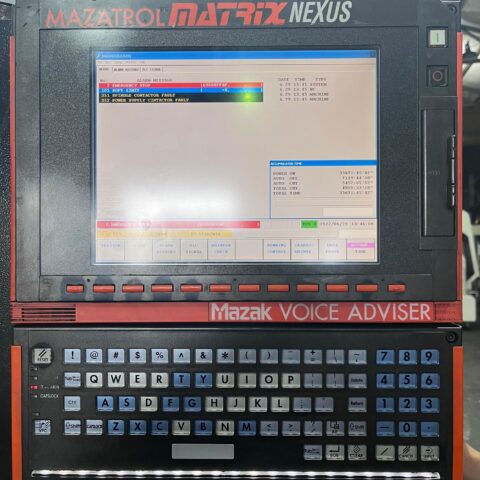

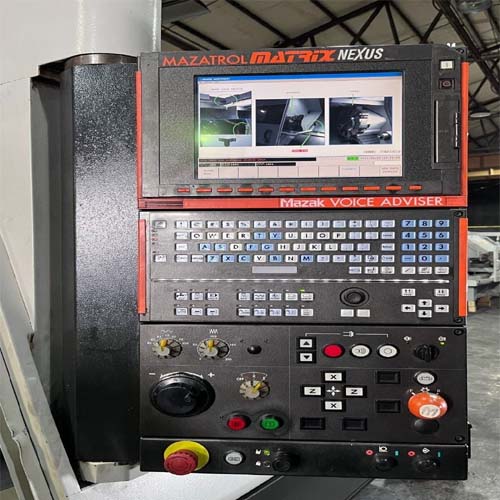

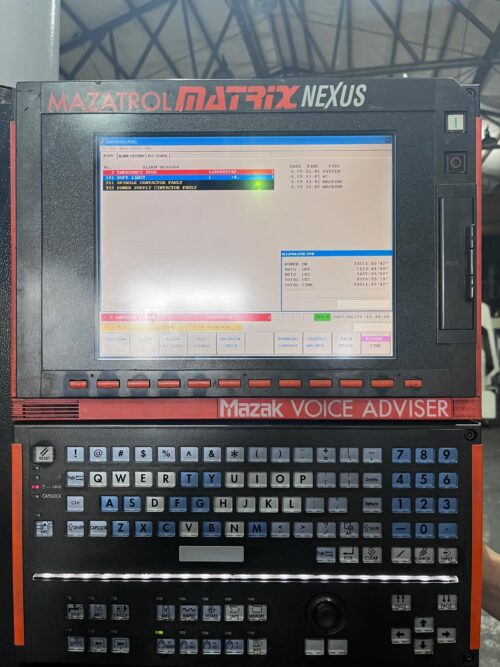

- Mazatrol Matrix Nexus Control

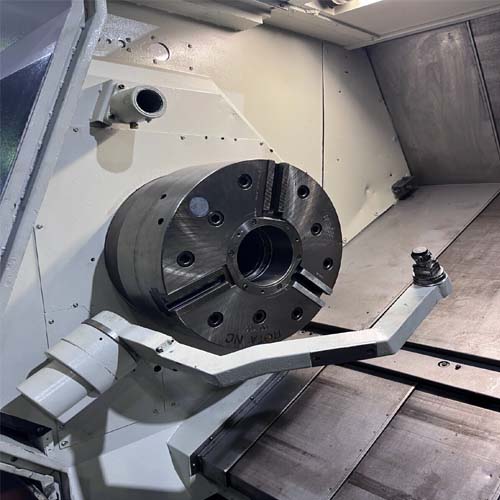

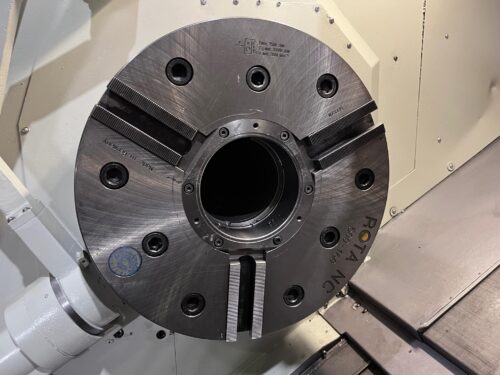

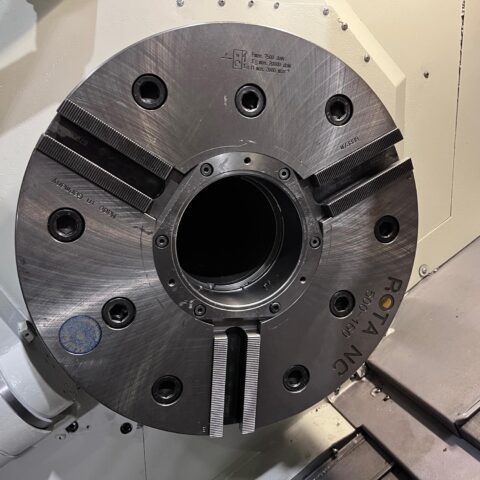

- Rota 18″ 3-Jaw Hydraulic Chuck
- 6.5″ Spindle Bore
- 82″ Long Bed Box Way Construction
- 2 Step Gear Spindle for Powerful Torque

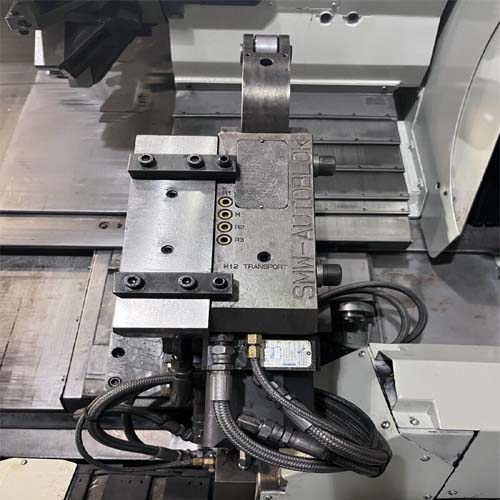

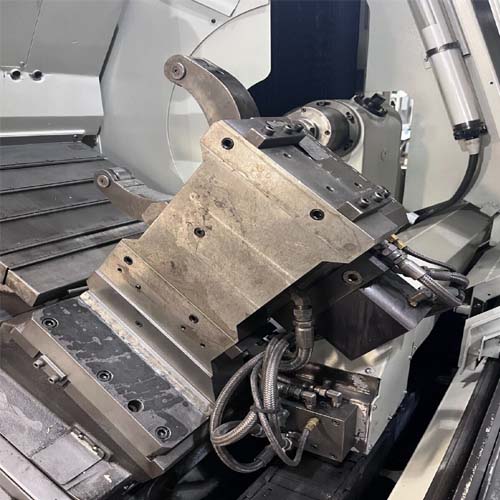

- Programmable SMW Autoblok Hydraulic Steady Rest

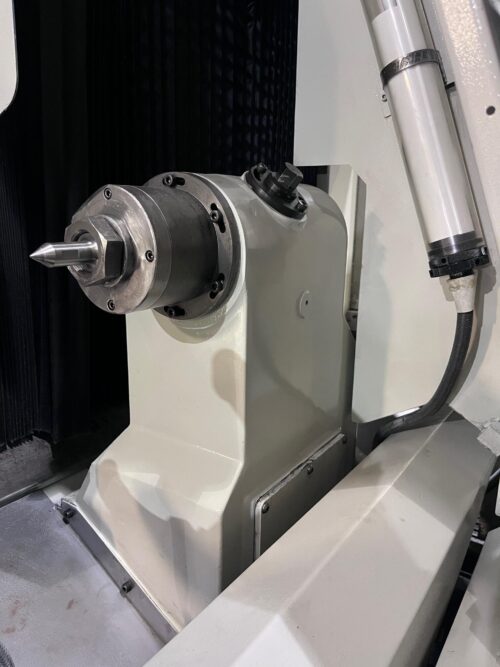

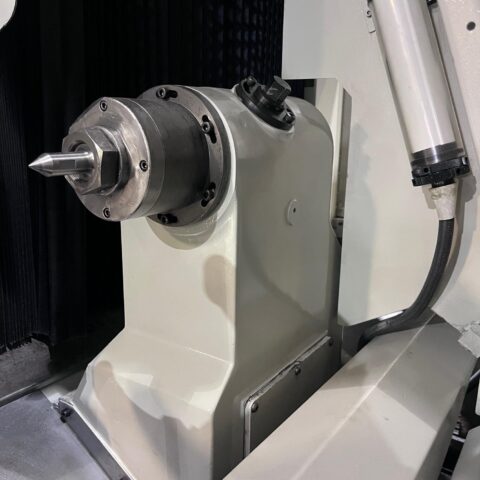

- Hydraulic Tailstock with Power Quill

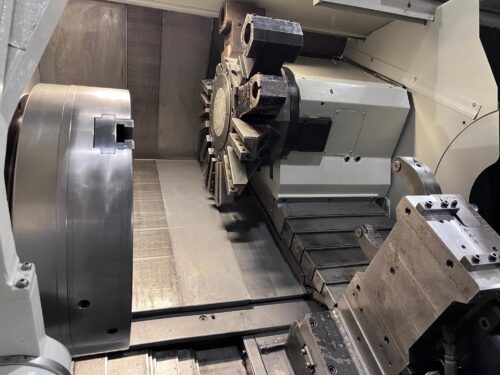

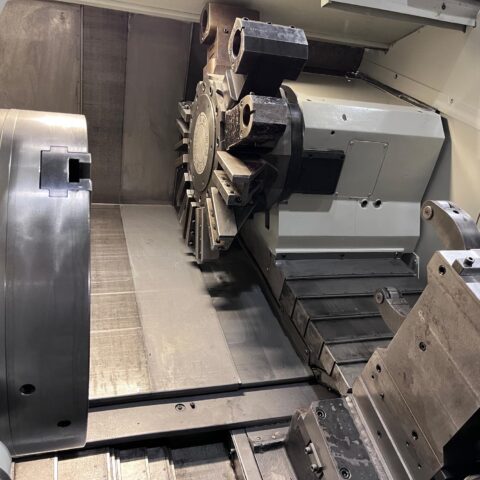

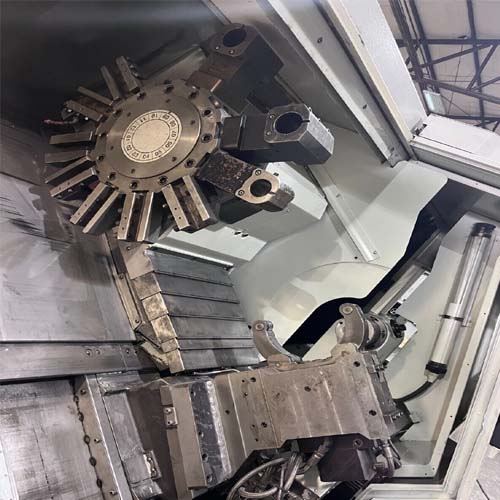

- 12 Station Turret with Tooling
- PCMCIA Card Slot
- USB Ports
- Coolant System
- Tool Presetter
- Automatic Lubrication System
- Foot Operated Control for Chuck
- Chip Conveyor
- Books, Manuals
- Specifications:
- Capacity:
- Max Turning Diameter: 23″
- Max Turning Length: 80″
- Max Bar Capacity: 6″
- Swing Over Bed: 33.27″
- Distance Between Centers: 84″
- Travels:
- X Axis Travel: 12.13’″
- Z Axis Travel: 83.60″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 940 IPM
- Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Spindle:
- Spindle Nose: A2-15
- Spindle Bore: 6.5″
- Spindle Speed: 0-2000 RPM
- Spindle Motor: 50 HP
- Tailstock:
- Tailstock Body Travel: 80″
- Tailstock Quill Dia.: 3.34″
- Tailstock Quill Stroke: 4.72″
- Tailstock Taper: MT-5
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 45 kva
- Overall Dimensions: 204″ x 90″ x 83″ High
- Weight : 25500 lbs Approx.
“No Charges for loading at list Price”
