*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

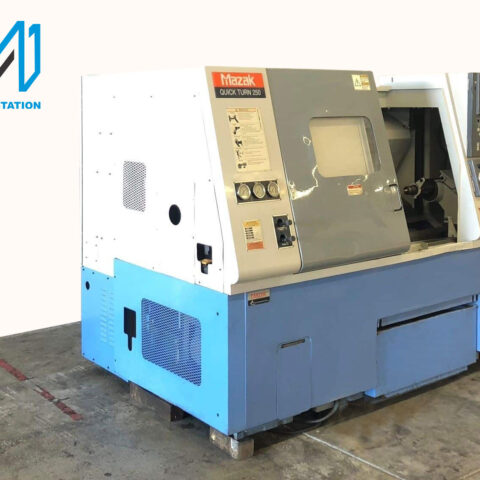

| Make: | Mazak |

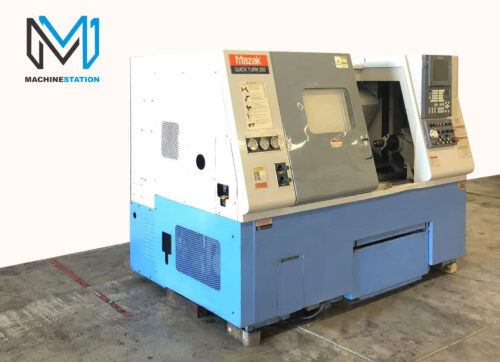

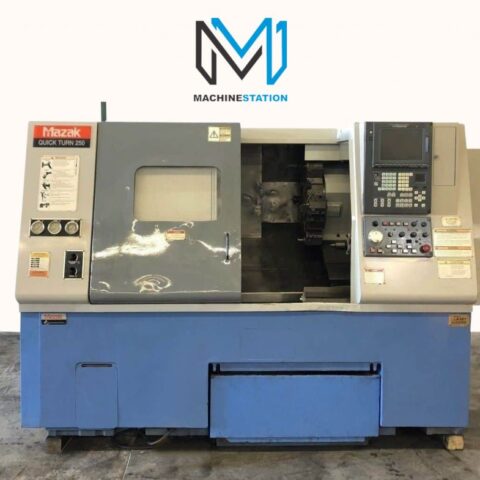

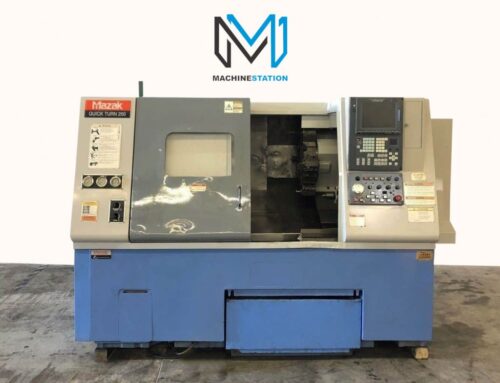

| Model: | QT- 250 Universal |
| Year: | 09/2000 |
| SKU: | 1377 |
| Serial: | 150329 |
| Condition: | Very Good |
| Country Of Origin: | Japan |
| Equipped With: |
|---|

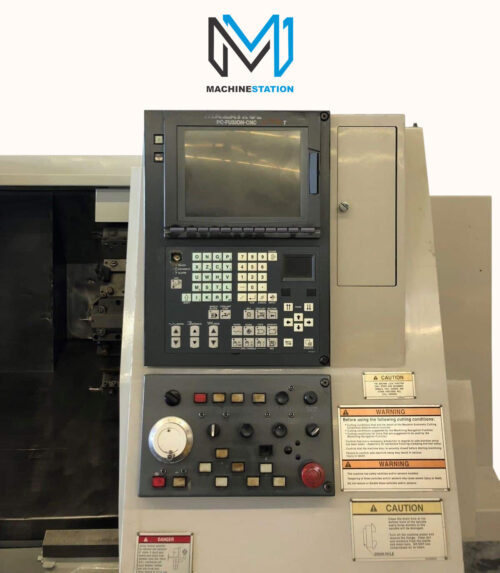

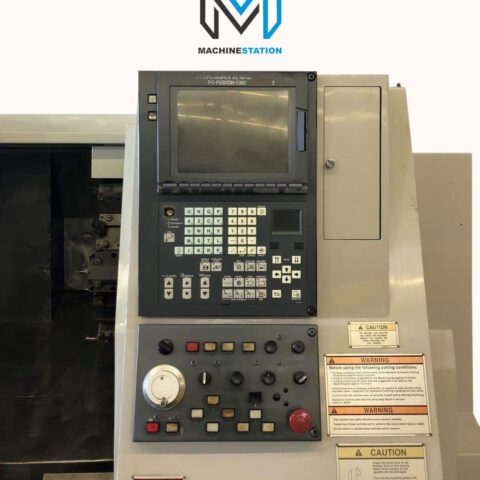

| Mazak Fusion 640T Control |
| Tool Presetter |

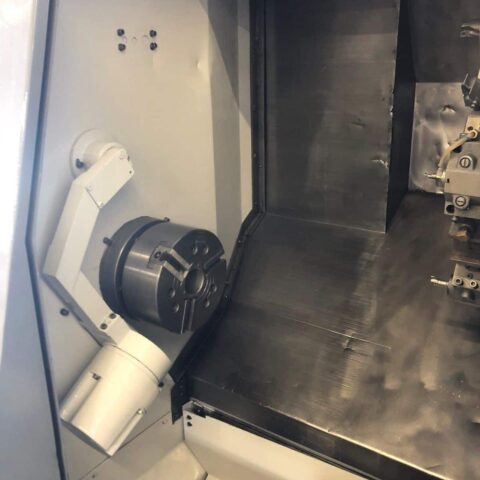

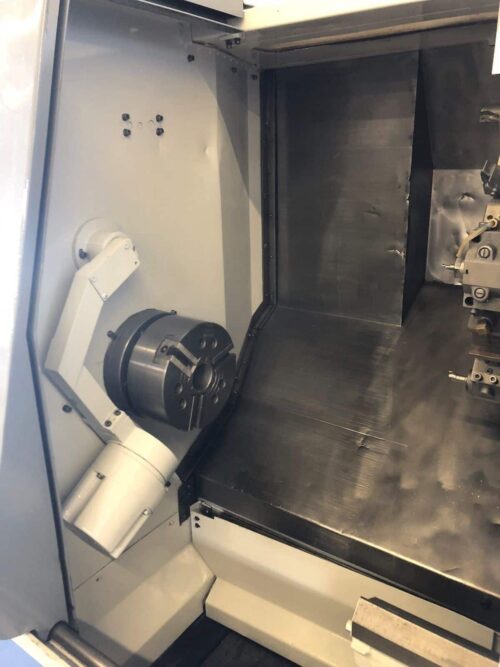

| 8″ 3-Jaw Kitagawa Hydraulic Chuck |
| PCMCIA Card Slot |
| 2 Step gear spindle for powerful torque |
| Hydraulic Tailstock with Power Quill |

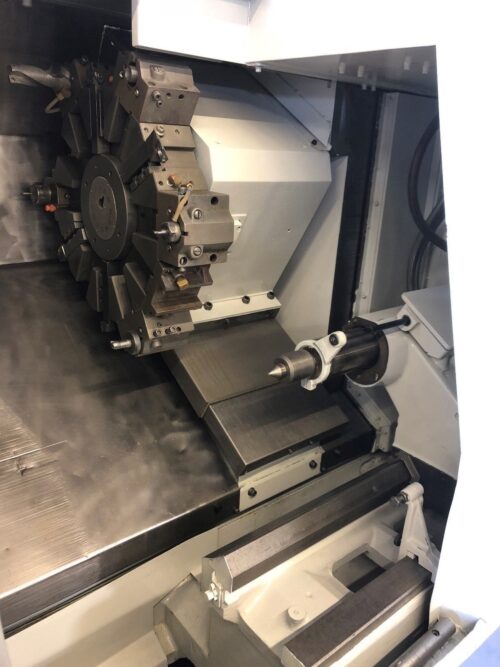

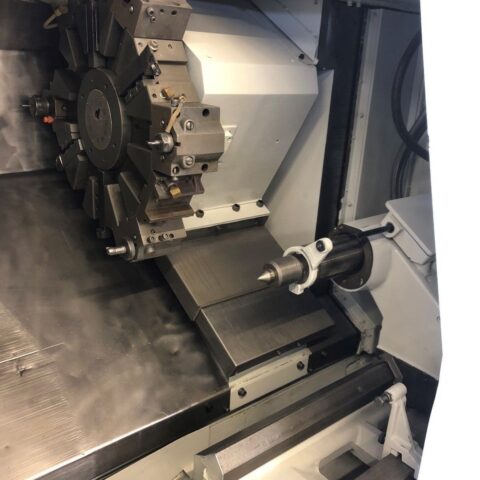

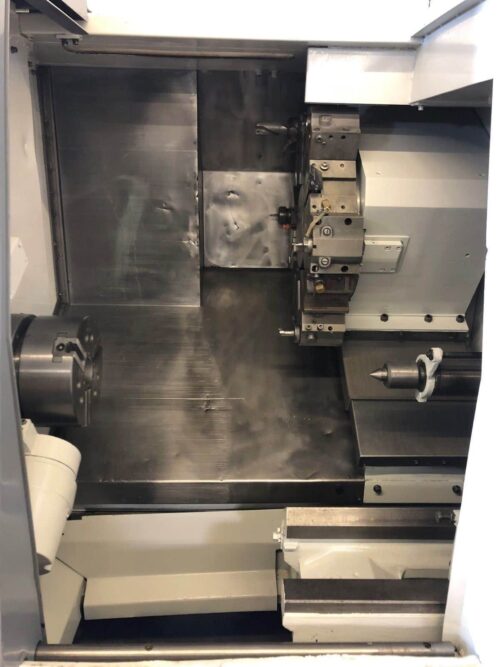

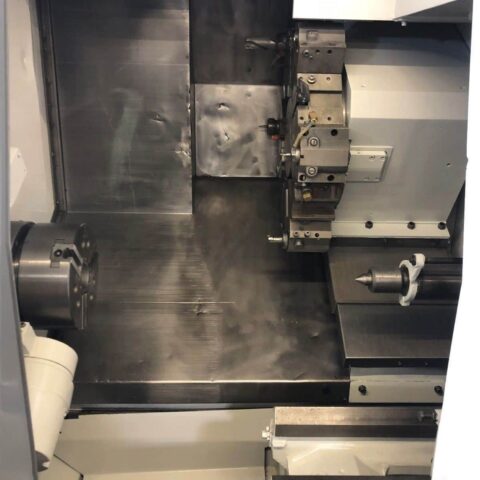

| 12 Station Turret with Tooling |
| Coolant System. |
| Automatic Lubrication system |
| Foot Operated Control for Chuck |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 110″ x 68″ x 80″ High |
| Weight : 9900 lbs Approx. |
| Specifications: |
|---|
| Max Turning Diameter: 15.7″ |
| Max Turning Length: 19.7″ |
| Max Bar Capacity: 2.05″ |
| Swing Over Bed: 23.6″ |
| Distance Between Centers: 24.6″ |
| X Axis Travel: 8.5″ |
| Z Axis Travel: 20.1″ |
| Rapid Traverse X Axis: 1200 IPM |
| Rapid Traverse Z Axis: 1300 IPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 40-4000 RPM |
| Spindle Motor: 20 HP |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock Body Travel: 18.1″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Taper: MT-4 |
