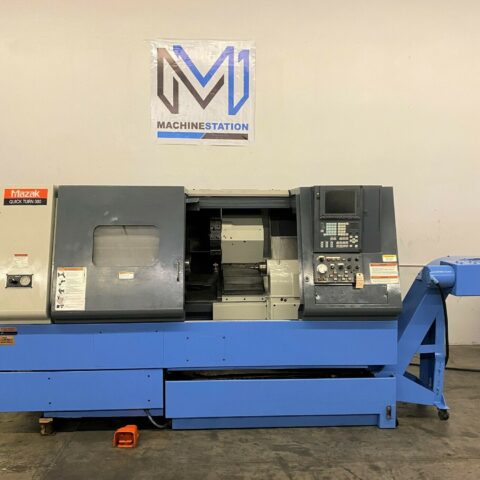

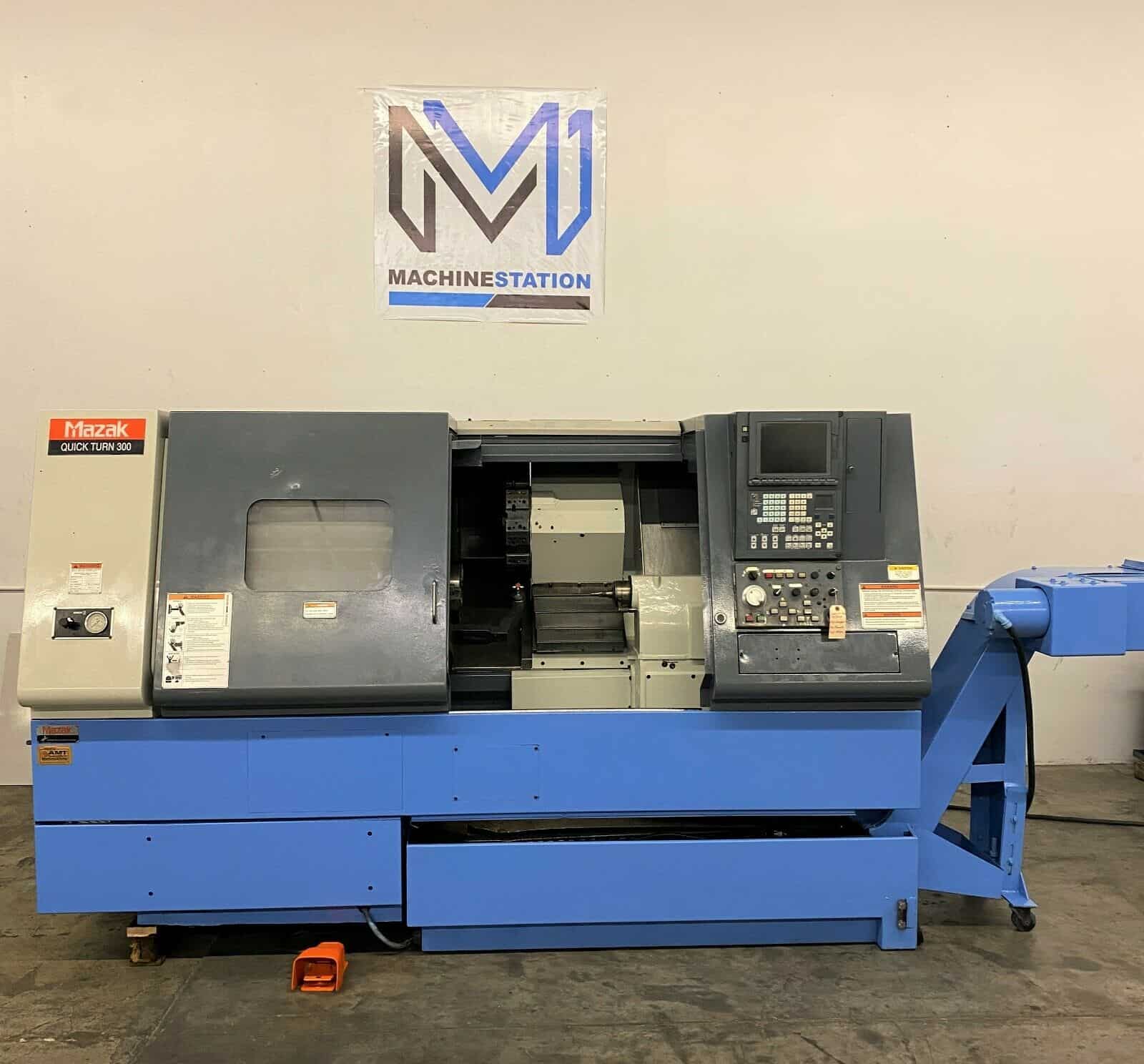

MAZAK QUICK TURN QT-300 CNC TURNING CENTER | |
---|---|
Make | MAZAK |
Model No. | QT- 300 |
Year | 01/2000 |

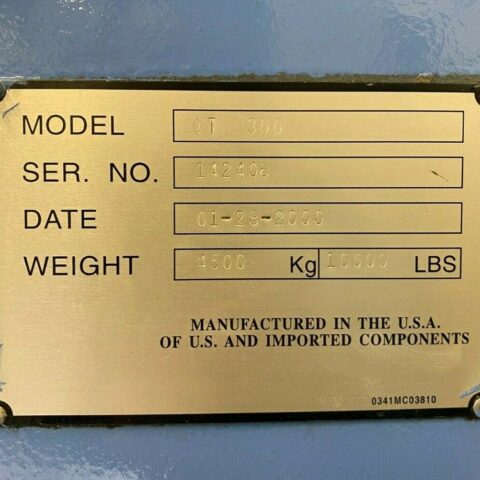

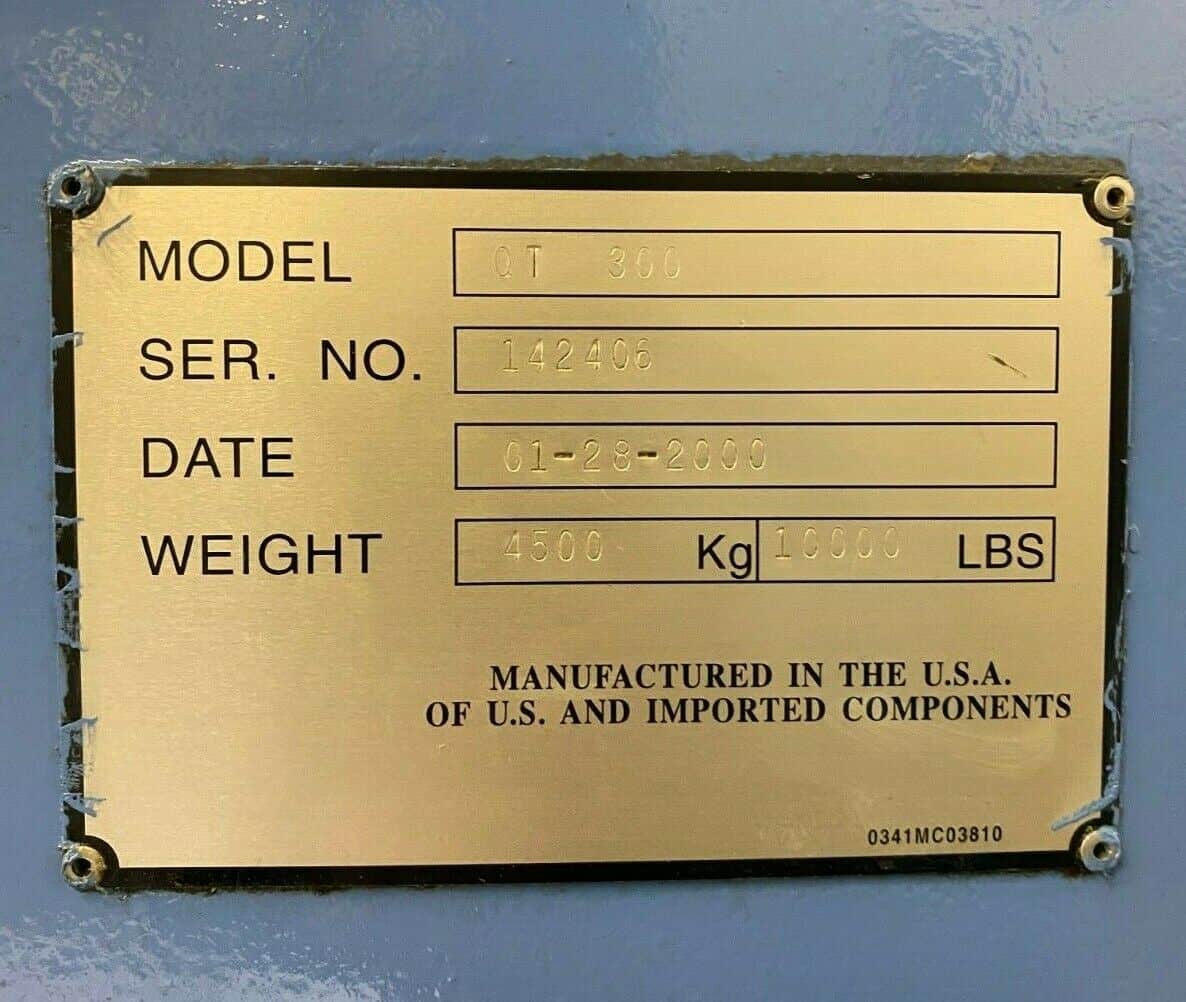

Serial # | 142406 |
Condition | Very Good |
Cutting Hours: | 3278 |
Country of Origin: | Japan |
All specifications are approximations and are subject to verification.
- MAZAK QUICK TURN QT-300 Equipped With:

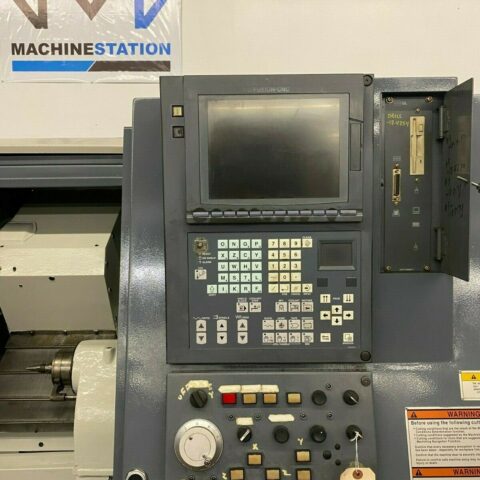

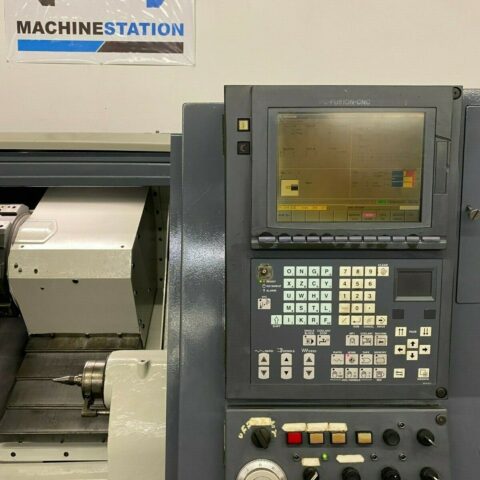

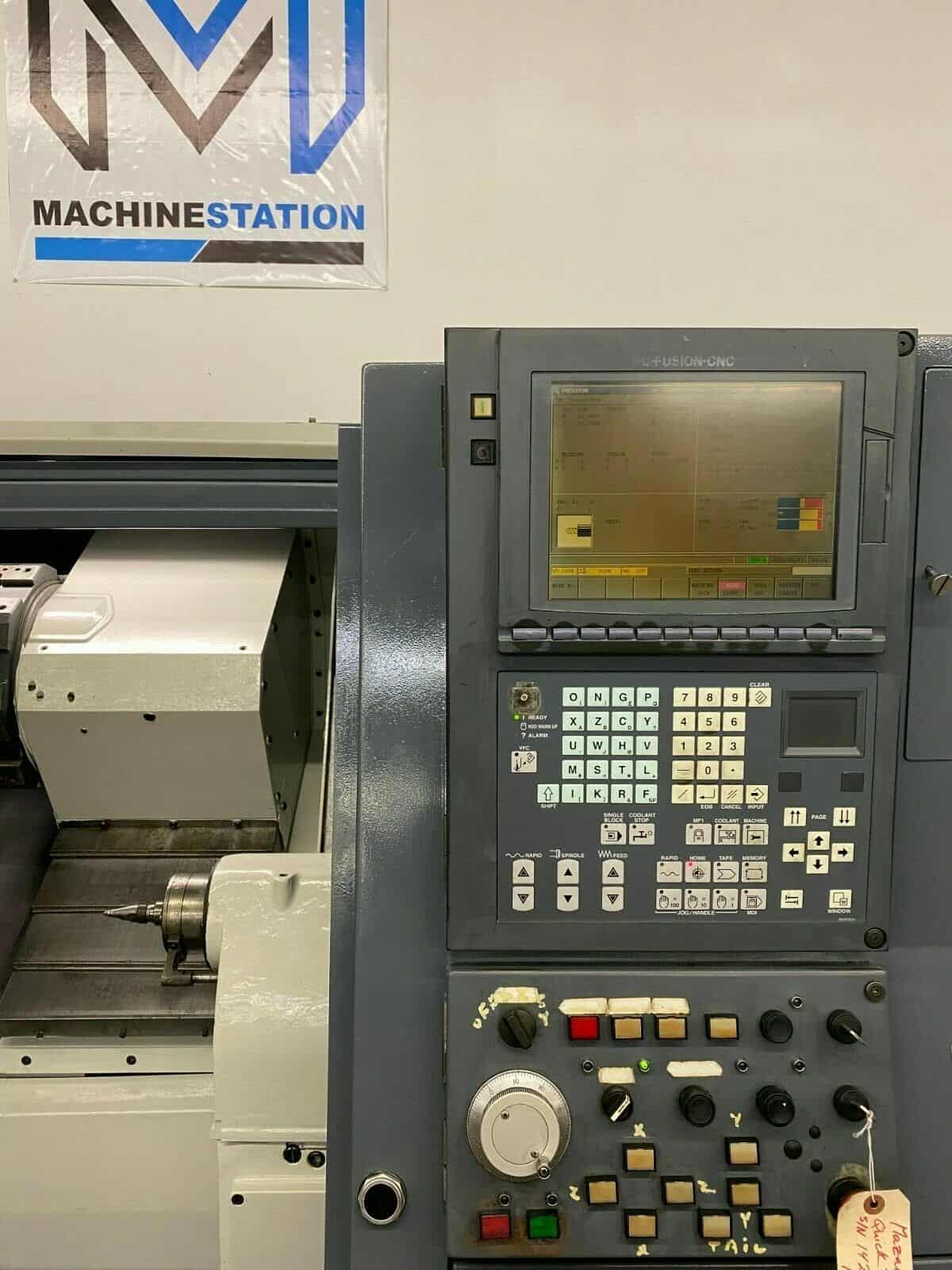

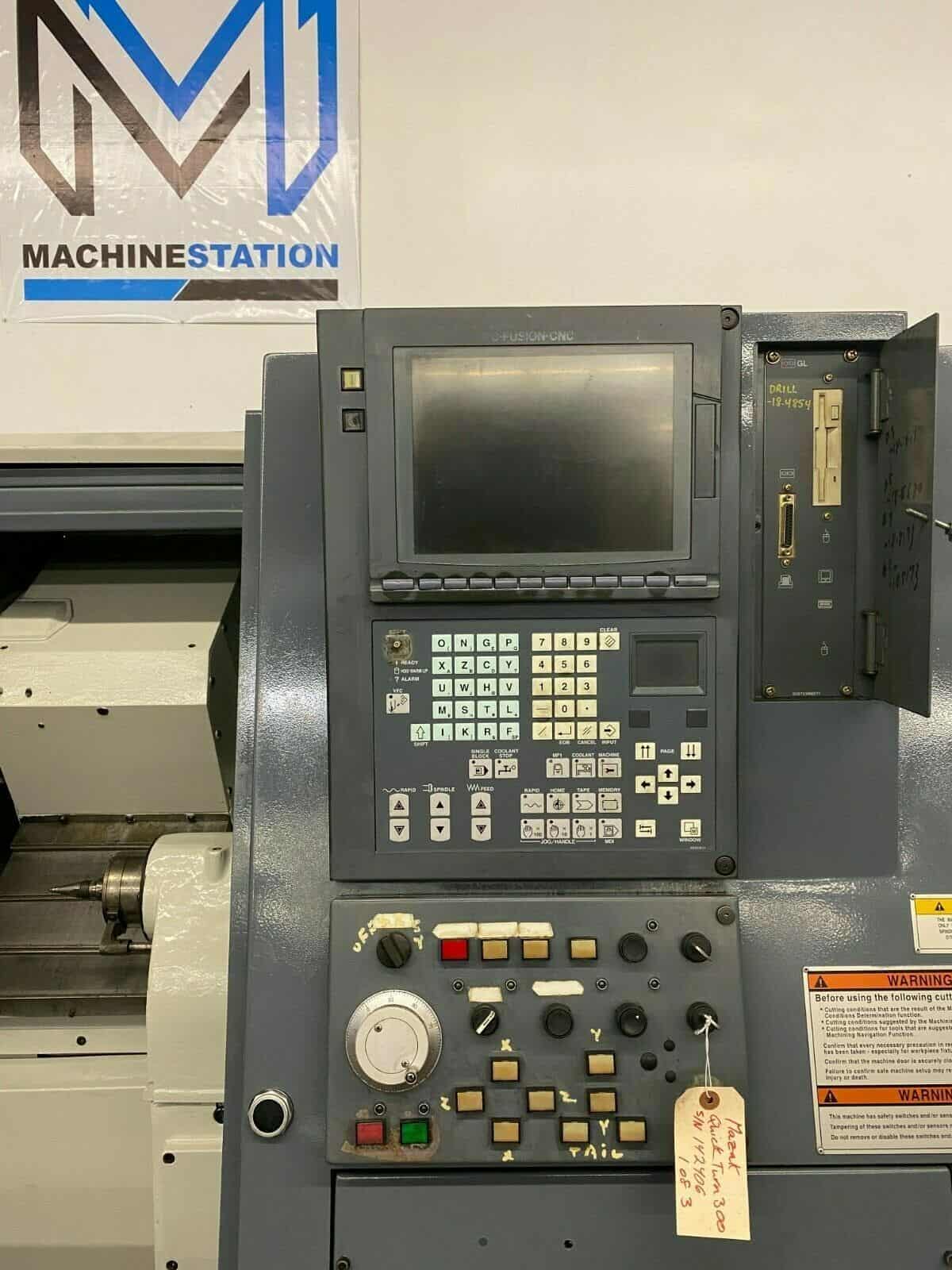

- Mazak Fusion 640T Control with 10.4″ Color LCD
- Tool Presetter

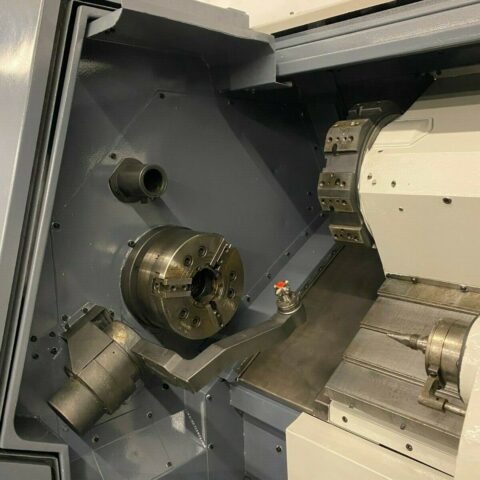

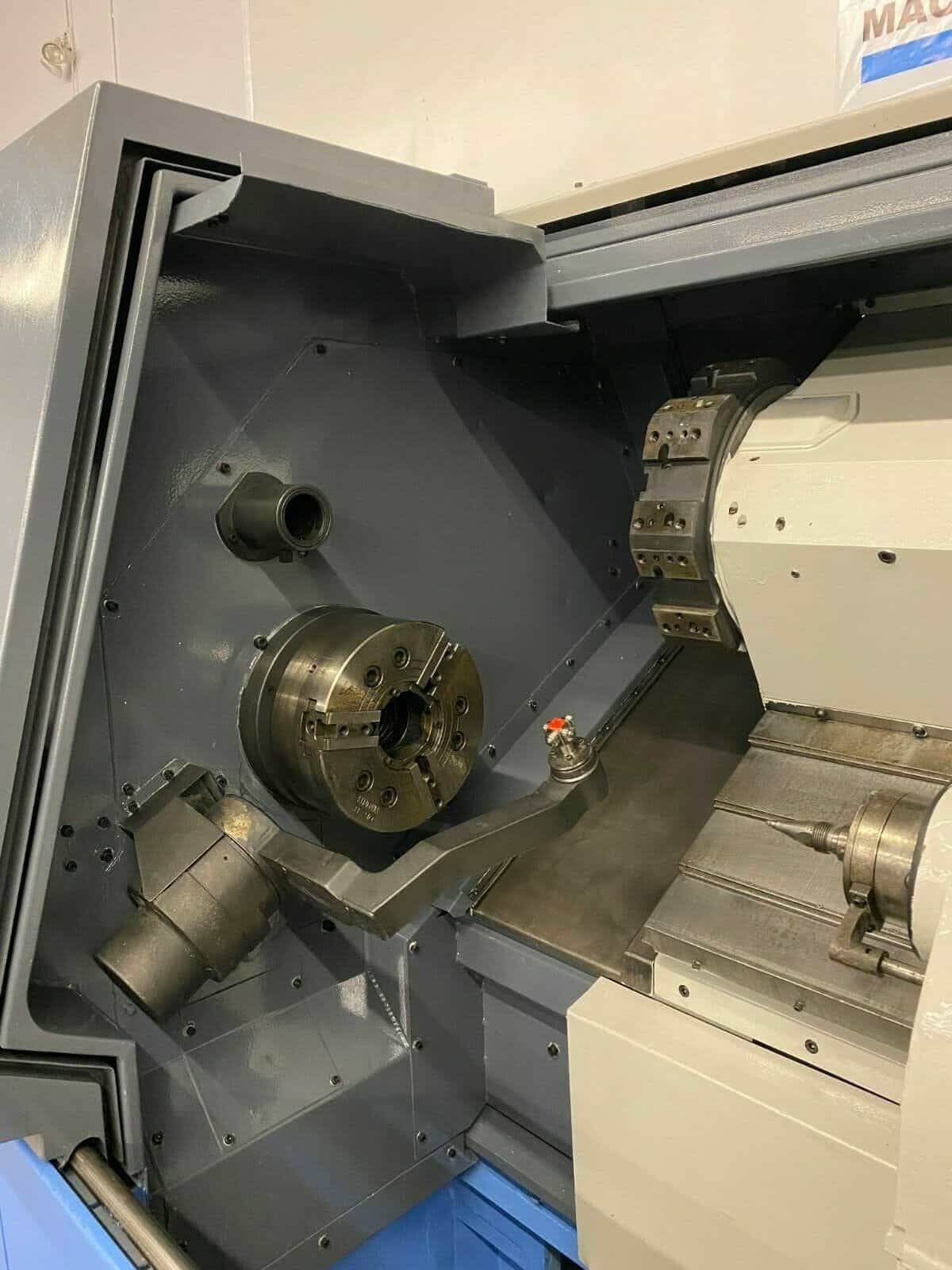

- 10″ 3-Jaw Kitagawa Hydraulic Chuck
- Conversational Programming
- PCMCIA Card Slot
- Floppy Drive
- 2 Step gear spindle for powerful torque

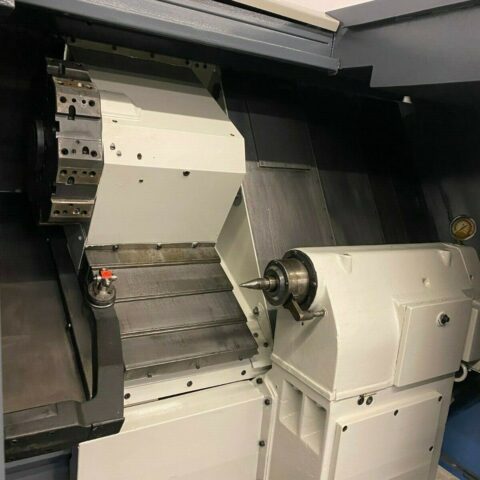

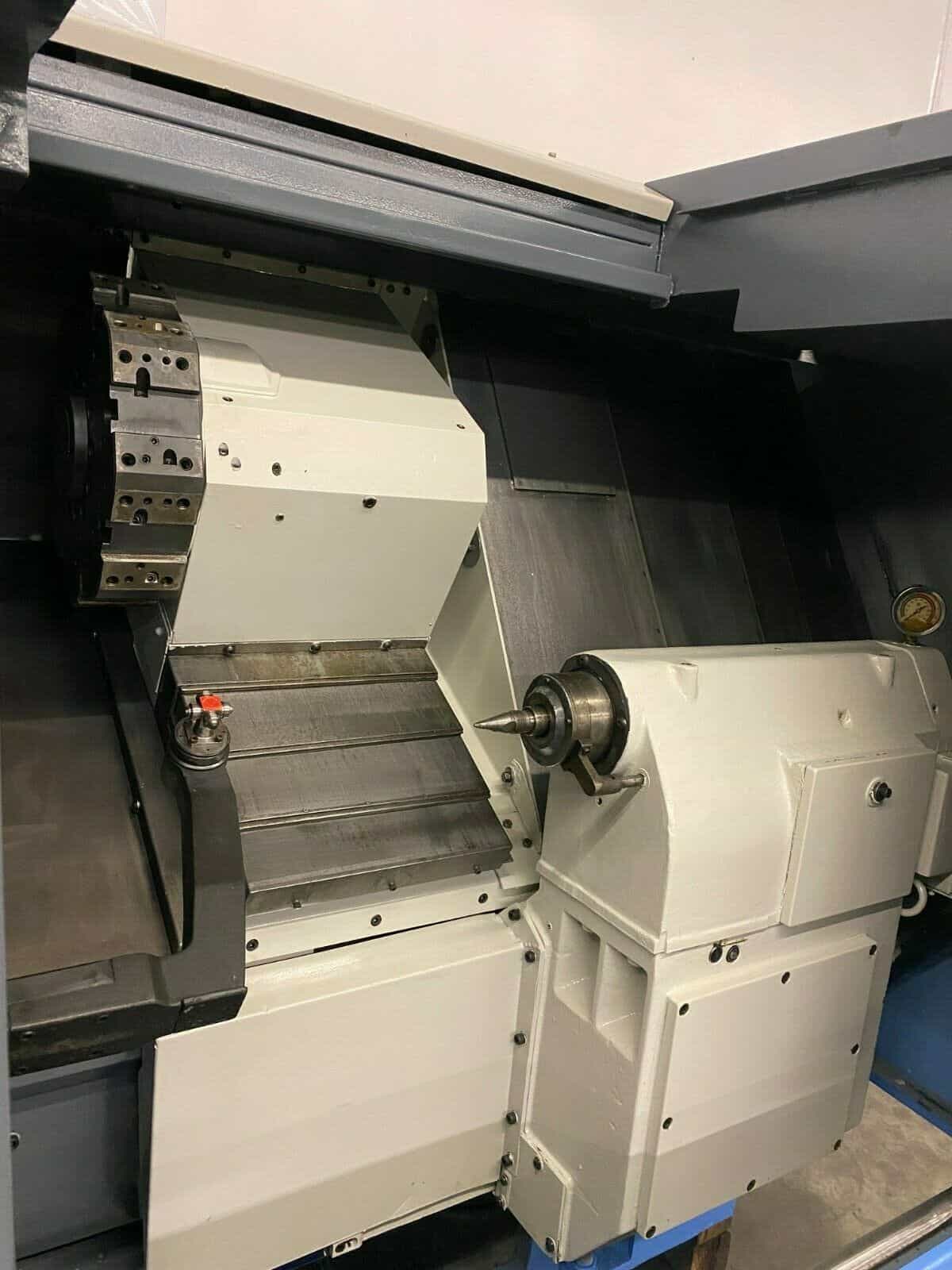

- Programmable Hydraulic Tailstock with Power Quill

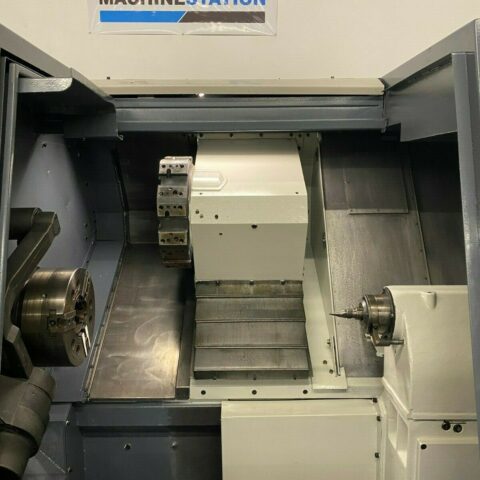

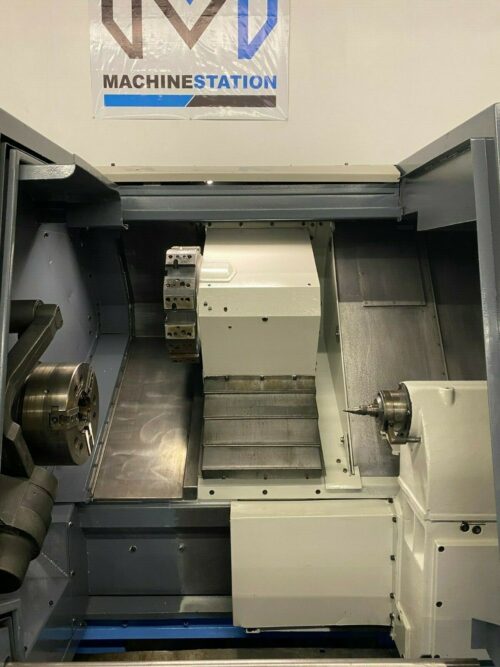

- 12 Station Turret with Tooling
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Chip conveyor
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 50 kva
- Overall Dimensions: 160″ x 78″ x 80″ High with Chip conveyor
- Weight : 10000 lbs Approx.
- MAZAK QUICK TURN QT-300 Specifications:
- Max Turning Diameter: 16.1″
- Max Turning Length: 39.7″
- Max Bar Capacity: 2.75″
- Swing Over Bed: 23.64″
- Distance Between Centers: 41.6″
- X Axis Travel: 9.8″
- Z Axis Travel: 39.78″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.15″
- Spindle Speed: 30-3300 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Tailstock Body Travel: 38.1″
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-4

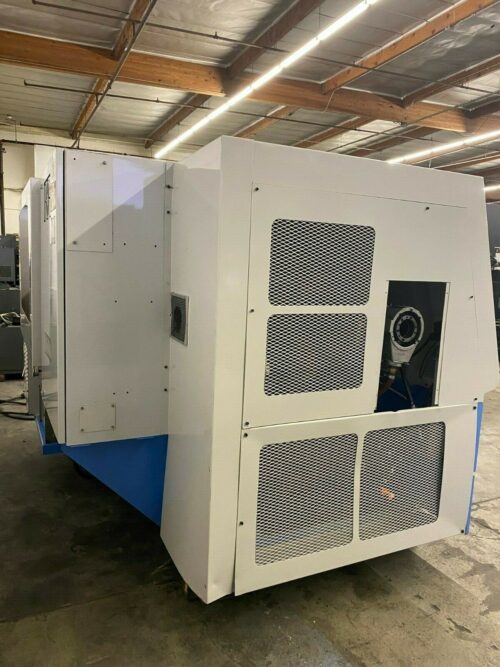

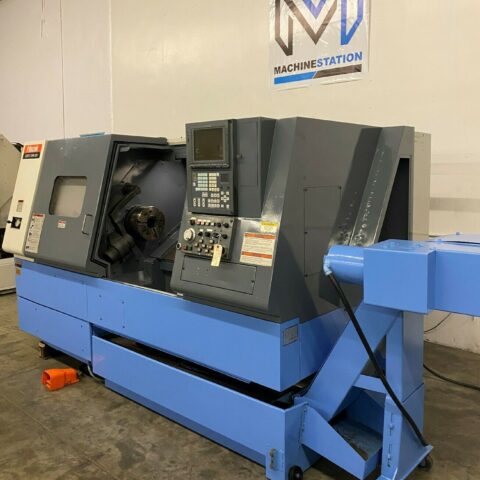

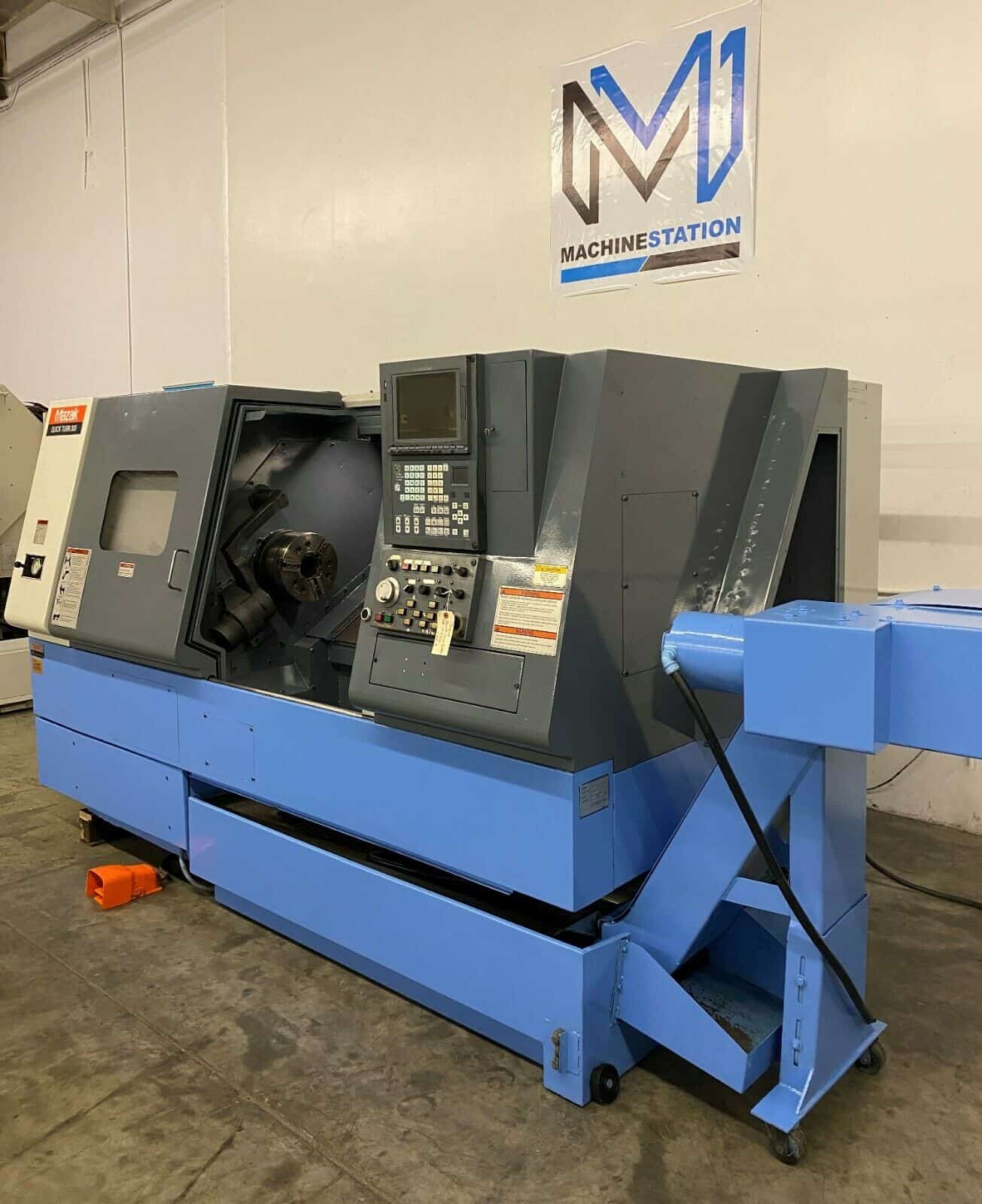

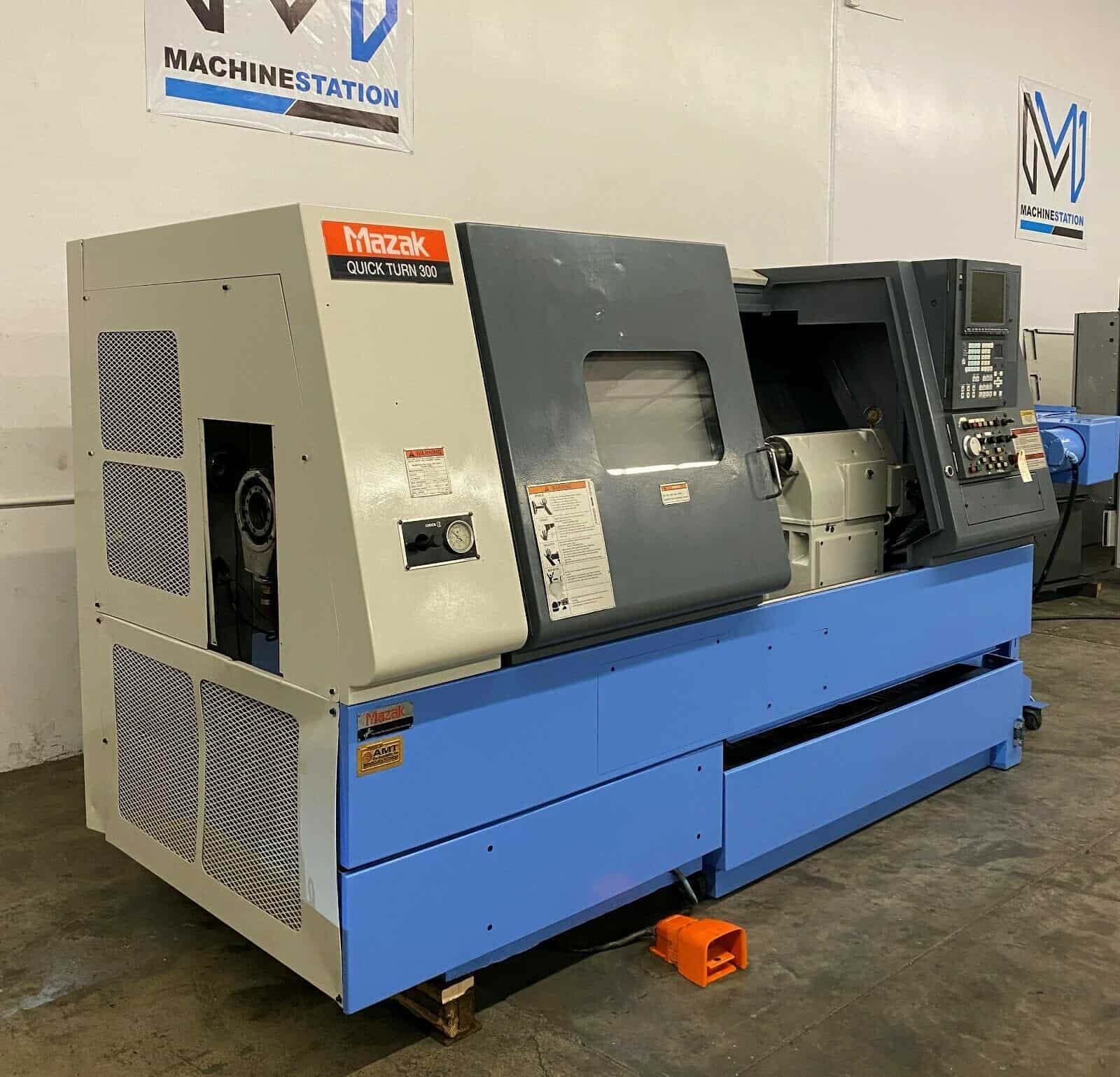

MAZAK QUICK TURN QT-300 Comes as shown in pictures..
