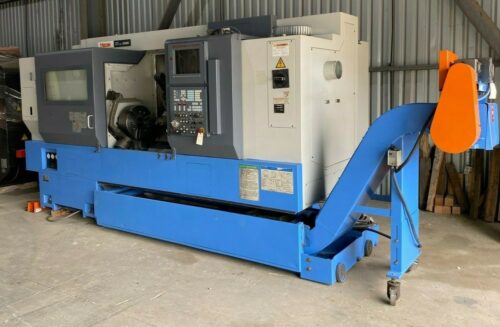

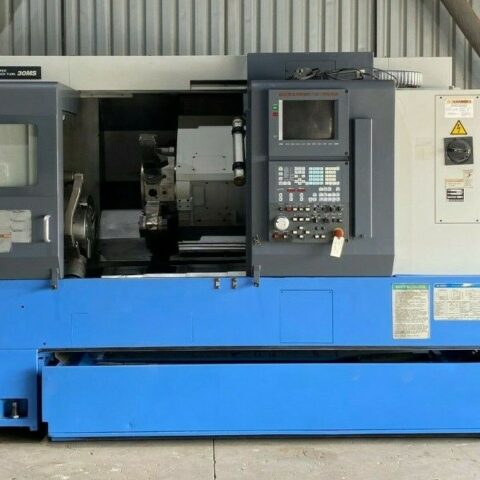

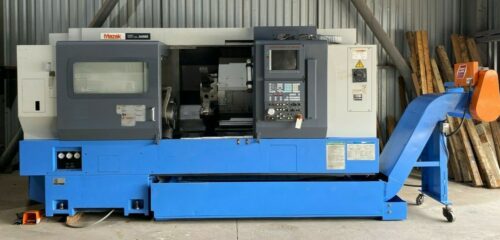

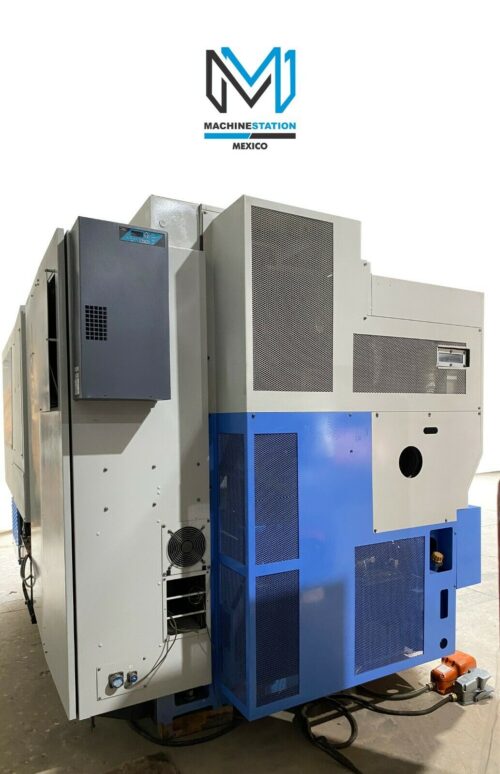

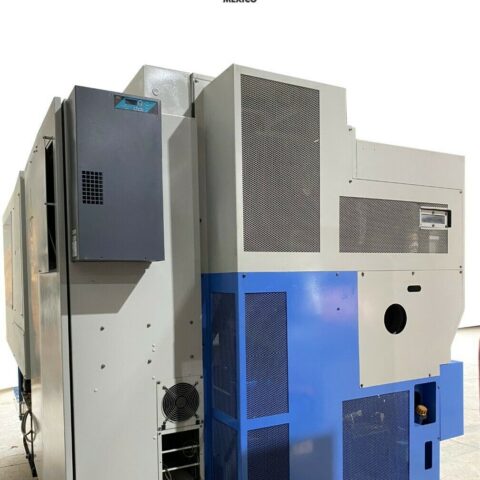

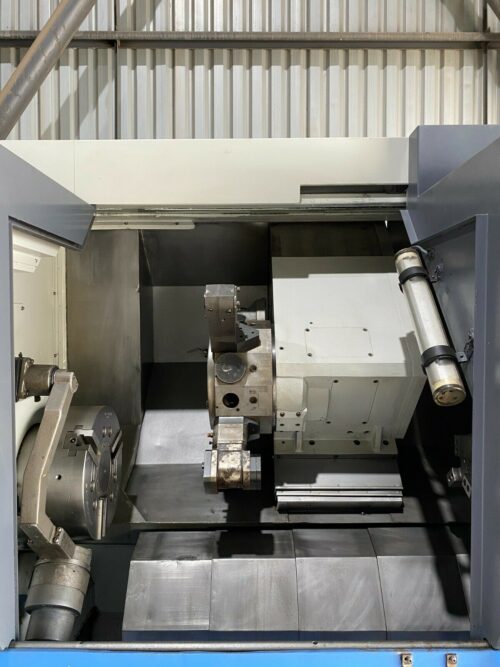

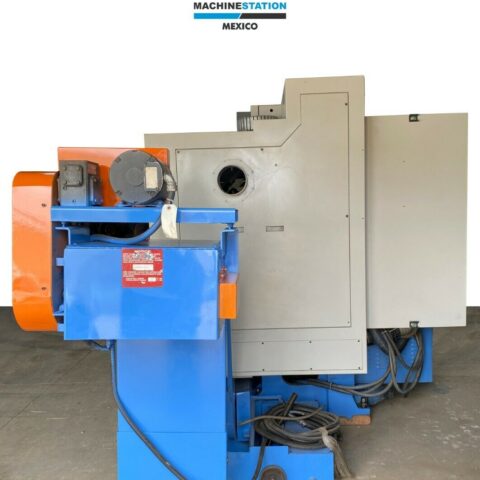

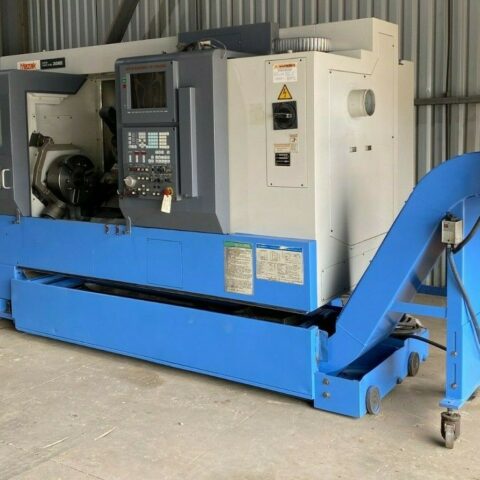

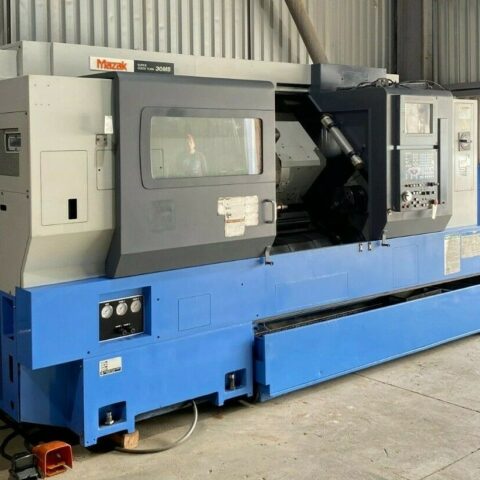

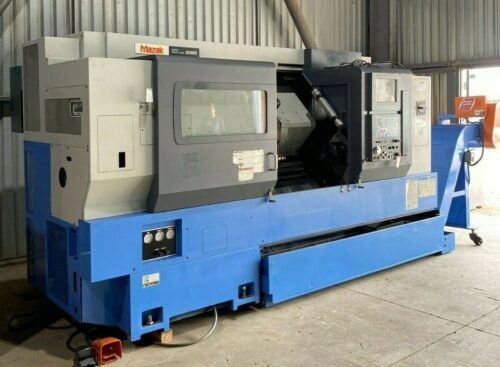

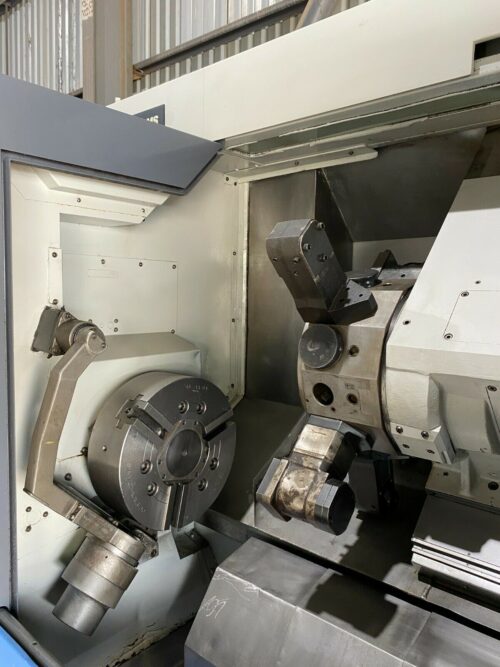

Mazak SQT-30MS CNC Sub Spindle Turn Mill Center

Description

Comes with Chucks, Tool Holders, Chip Conveyor & Manuals

MAZAK SQT-30MS CNC SUB SPINDLE TURN MILL CENTER LATHE
SKU	2007
Make	MAZAK
Model No.	SQT- 30MS
Year	1998
Serial #	384134872
Condition	Very Good
Country of Origin	Japan

*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

Equipped With:

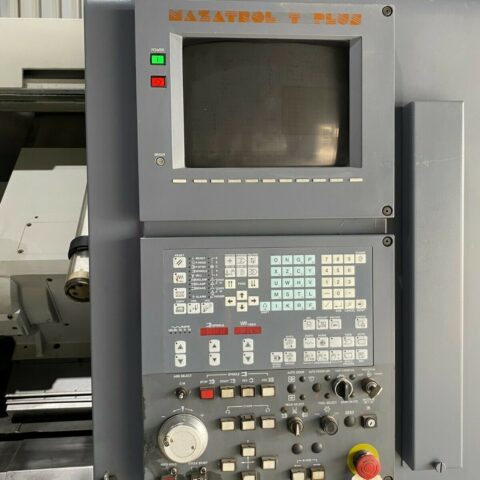

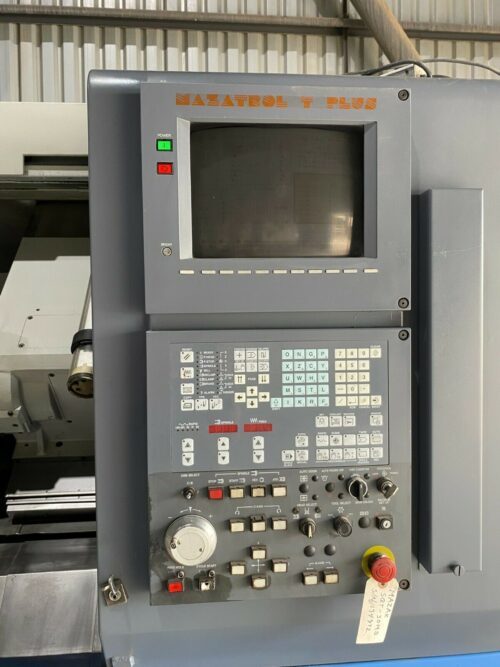

Mazatrol T-Plus CNC Control
C-Axis Live Tool Capacity

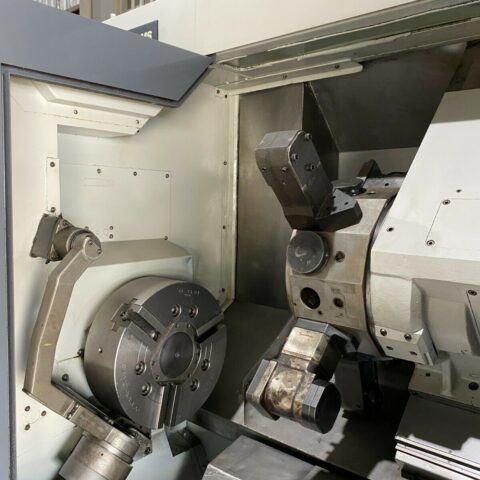

10″ 3-Jaw Hydraulic Chuck Main Spindle
8″ 3-Jaw Hydraulic Chuck Sub Spindle
35 HP Gearbox Spindle

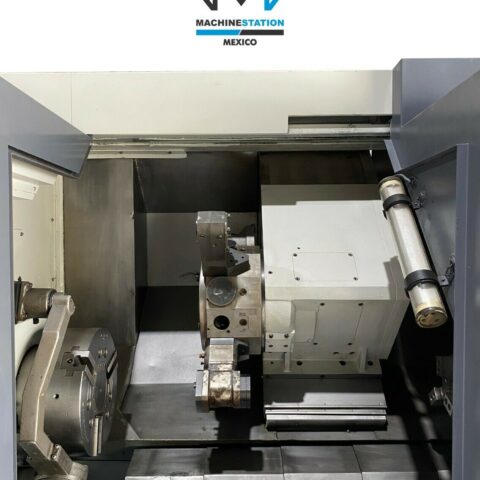

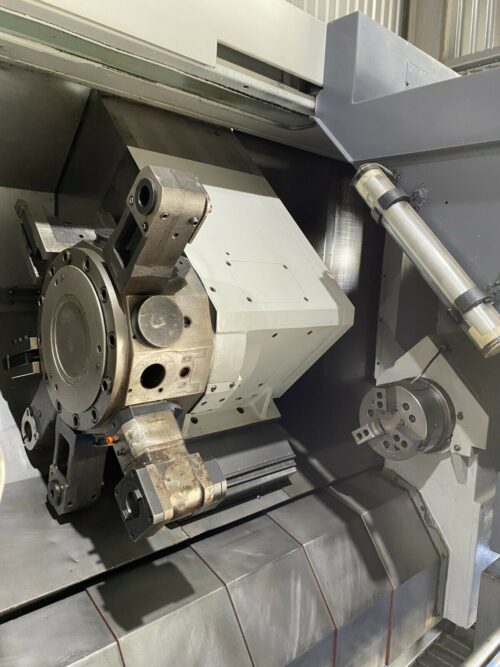

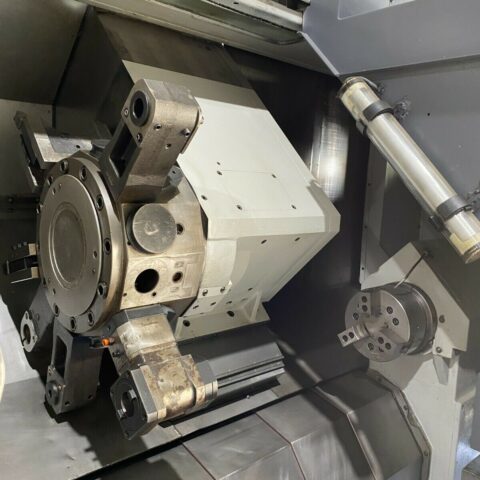

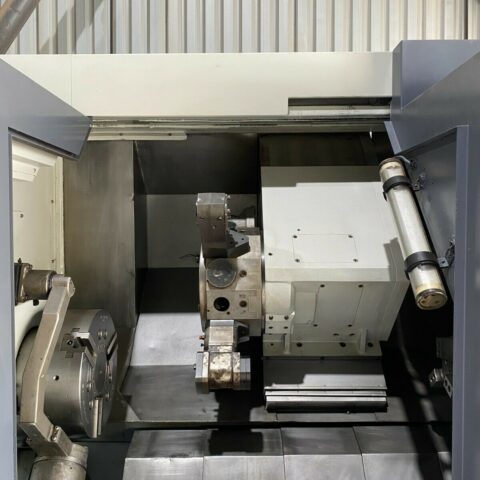

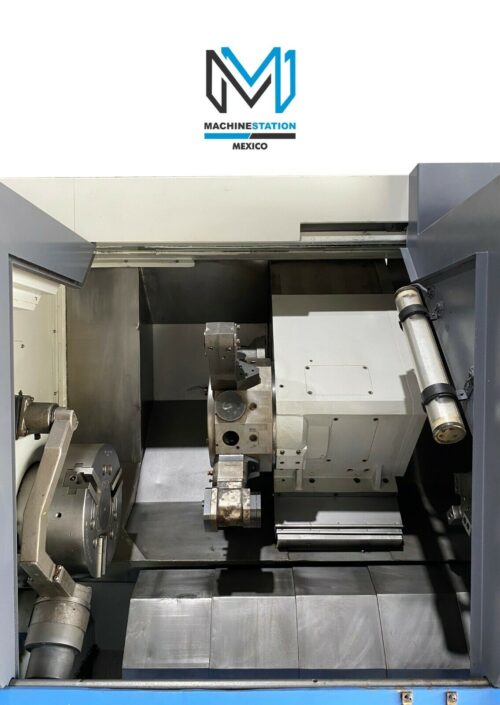

12 Station Live Tool Turret
Rigid Tapping
Coolant System.
Foot Switch

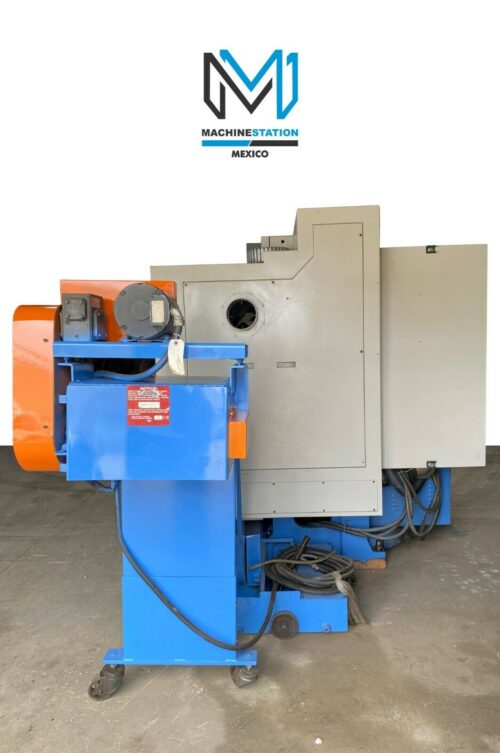

Chip Conveyor

Specifications:
Max Turning Diameter: 16.25″
Max Turning Length: 40.04″
Max Bar Capacity: 3.0″
Swing Over Bed: 22.04″
Distance Between Centers: 40.4″

Turret:
Turret Capacity: 12 Stations Live Tool Turret
Index Time: 1 Second
Live Tool Spindle Speed: 90-1500 RPM
Live Tool Spindle Power: 10 HP

Travels:
X Axis Travel: 9.6″
Z Axis Travel: 40.75″
W Axis Travel: 42″ (Sub Spindle)
Rapid Traverse X Axis: IPM
Rapid Traverse Z Axis: IPM

Spindle:
Main Spindle Nose: A2-8
Sub Spindle Nose: A2-6
Main Spindle Bore: 3.46″
Sub Spindle Bore: 2.99″
Main Spindle Speed: 35 – 3500 RPM
Sub Spindle Speed: 35-3300 RPM
Main Spindle Indexing (C‑Axis): 360° (0.001°)
Sub Spindle Indexing: 5°/72 positions
Main Spindle Powor: 35 HP
Sub Spindle Power: 10 HP

General:
Power Source: 45 kva, AC 220 V, Three Phase
Overall Dimensions: 160″ x 79″ x 85″ High
Weight : 21560 lbs Approx.

“No Charges for loading at list Price”

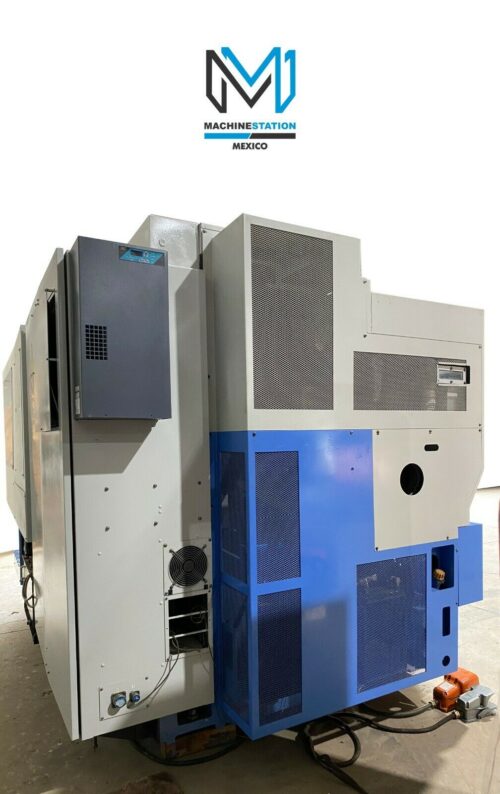

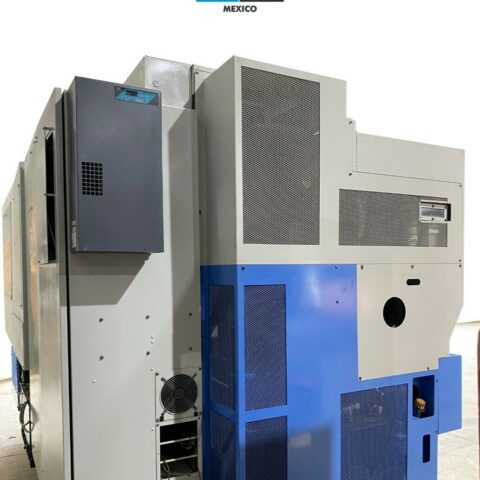

Comes as shown in pictures….
