*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

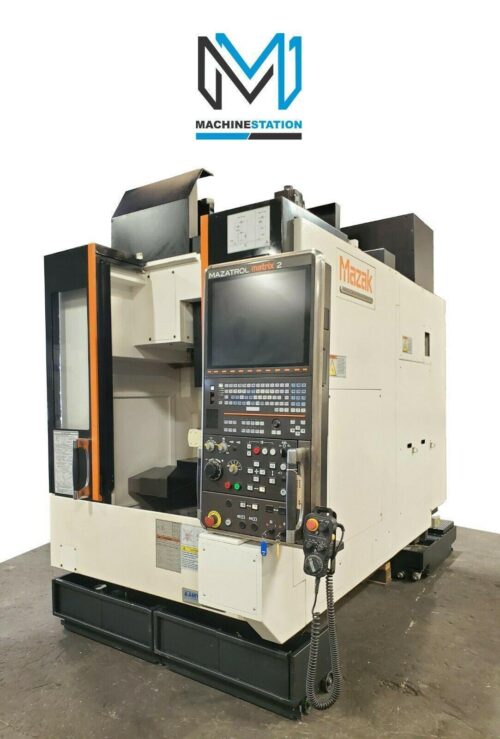

| Make: | MAZAK |
| Model: | VCC 5X 20K |
| Year: | 2011 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

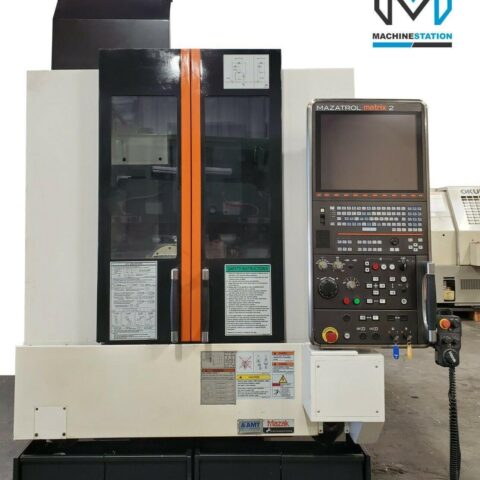

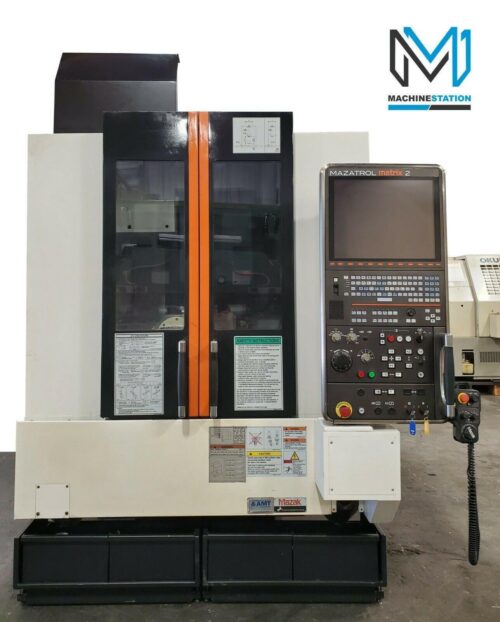

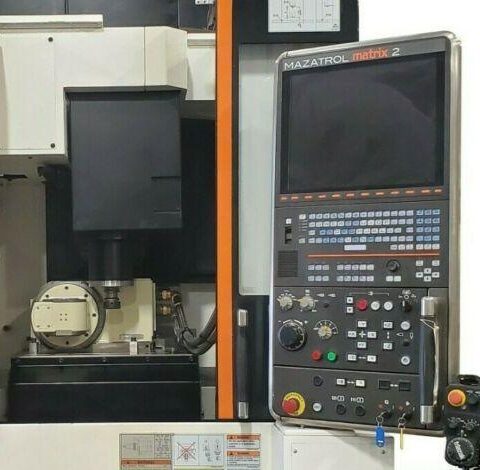

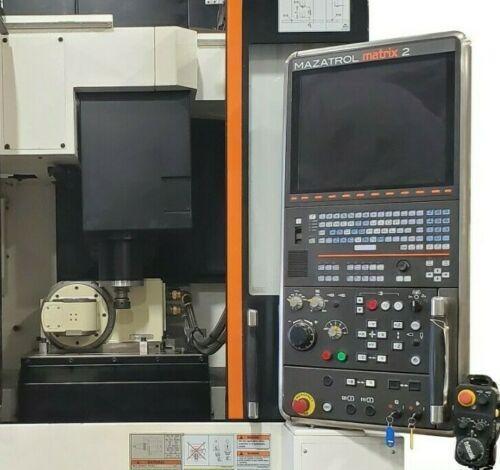

| Mazatrol Matrix 2 CNC Control w/ 19″ Display |
| Simultaneous/Contouring 5 Axis Cutting |
| 20000 RPM High Precision Spindle |
| Coolant through Spindle |

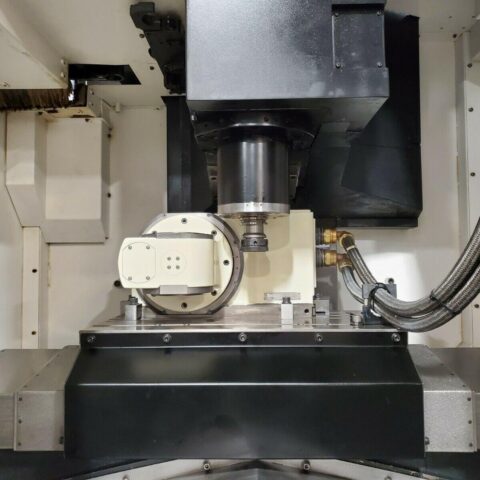

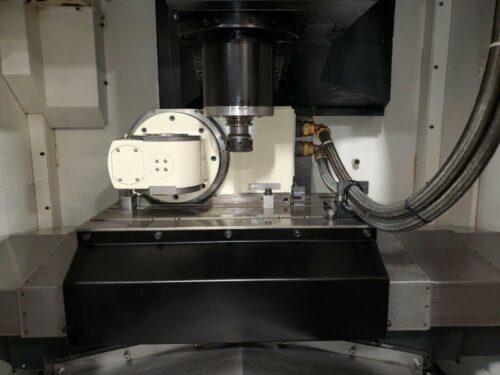

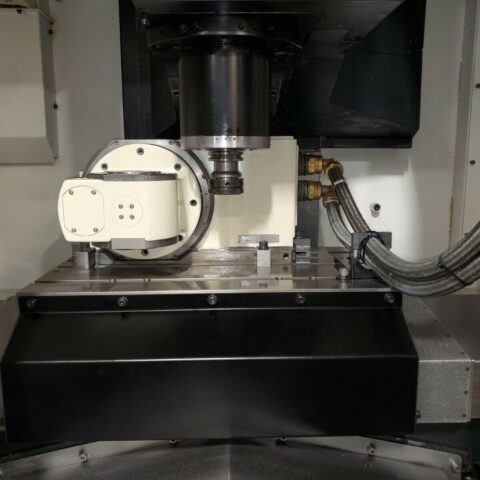

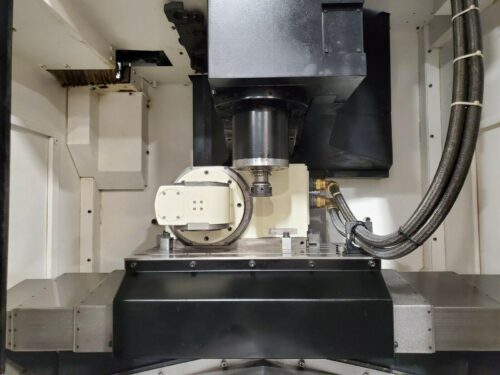

| Multi-Directional Turn Table |
| 30 Tools High Speed ATC |
| Thermal Compensation |
| MPG Control |
| High Speed Machining |
| Dual USB Slot |
| Spindle Chiller |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Fast Rapid Traverse Rate |
| Flood coolant with large separate coolant tank |
| Dual Chip augers |
| Work light |
| e-Manuals on Disk. |
| Travels: |
|---|
| X Axis: 20.49″ |
| Y Axis: 16.95″ |
| Z Axis: 20.04″ |
| A Axis: -140° -15° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Min. Increment: 0.001° |
| Table: |
|---|
| Length: 25.7″ |
| Width: 15.7″ |
| Max Weight on Table: 660 lbs |
| Max Weight on Rotary: 66 lbs |
| T-Slot : 0.6″ X 3 Slots |
| Table to Spindle Nose: 3.9″ – 23.6″ |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed : 20000 RPM |
| Spindle Power: 30 HP 60NM Torque |
| Feed rates: |
|---|
| Rapid X & Y : 1575 Inch Per Minute |
| Rapid Z : 2047 Inch Per Minute |
| Rapid A : 40 RPM |
| Rapid C : 50 RPM |
| Cutting Feedrate: 984 Inch Per Minute |

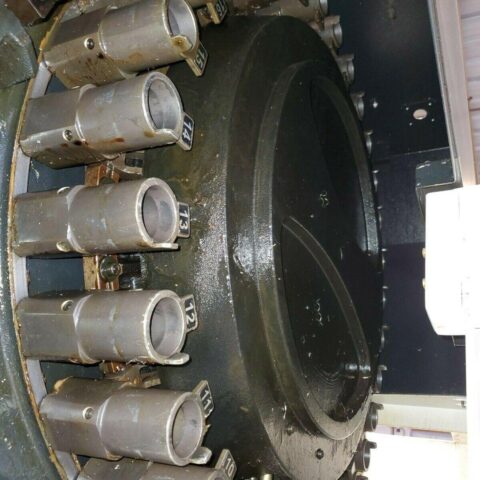

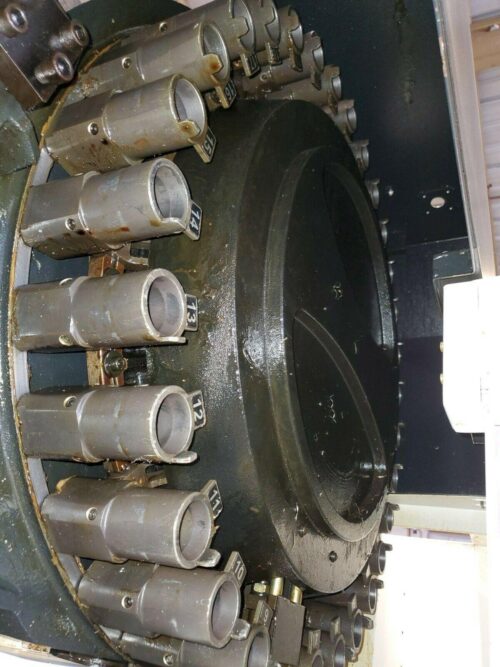

| Tool changer: |
|---|
| Capacity: 30 Tools |
| Taper: 40 |
| Max Tool Size: 4.92″ X 7.5″ |
| Max Tool Weight: 18 lbs. |
| Tool Change Time: 1.7 Second |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

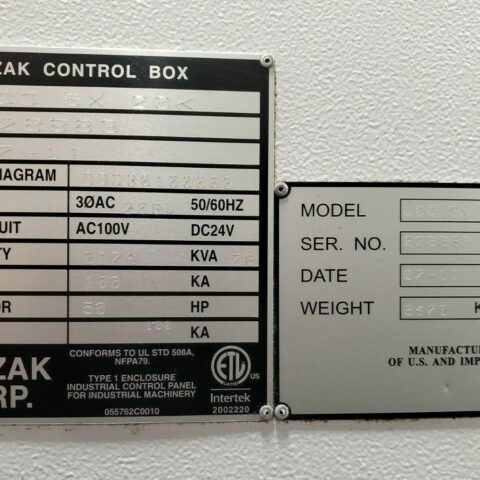

| Power: 63kva / 205-220v / 3-Phase |
| Overall Dimensions: 120″ X 73″ X 106″ High |
| Weight: 12000 lbs |
