Mazak VTC-200/50 CNC Vertical Machining Center

Mazak VTC-200/50 CNC Vertical Machining Center

Out of stock

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*

This One Owner Machine has only 6661 Hours, 50 Taper Thru Spindle Coolant, 6,000 RPM, 24 Tool changer, Probing system, 4th Axis Ready, expanded Memory and many more features. On our Floor now fully powered / tested & is in Great working condition.

SKU: 1756
Make/Model: MAZAK VTC-200/50
Video:



SKU: 1756 Category:

Description

MAZAK VTC-200/50 CNC VERTICAL MACHINING CENTER
MakeMAZAK
Model No.VTC-200/50
Year Installed:2001

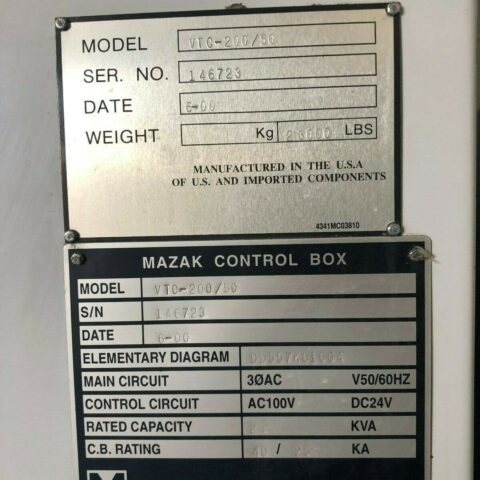

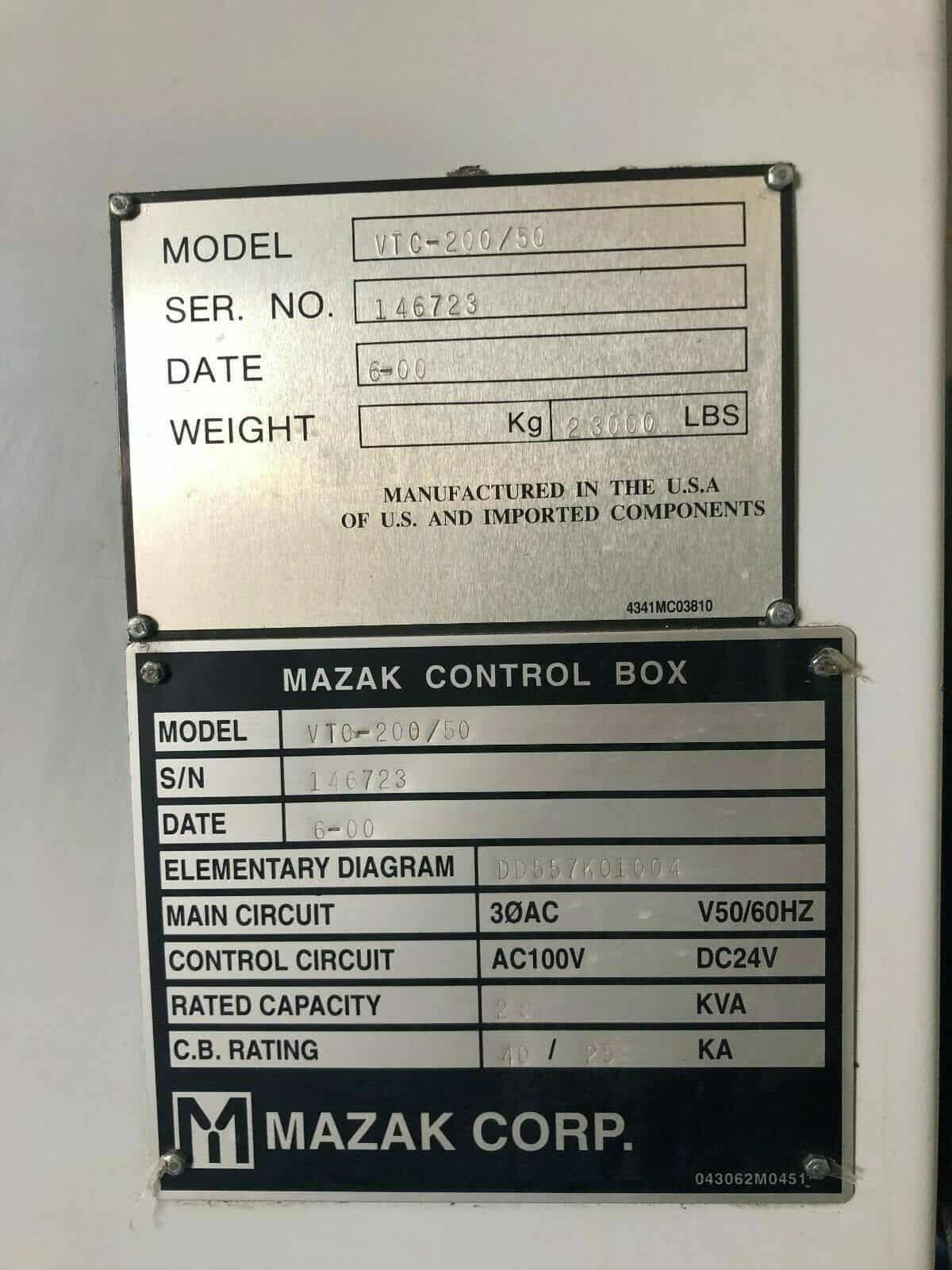

Serial #146723
ConditionVery Good
  • Mazak VTC-200/50 CNC Features:

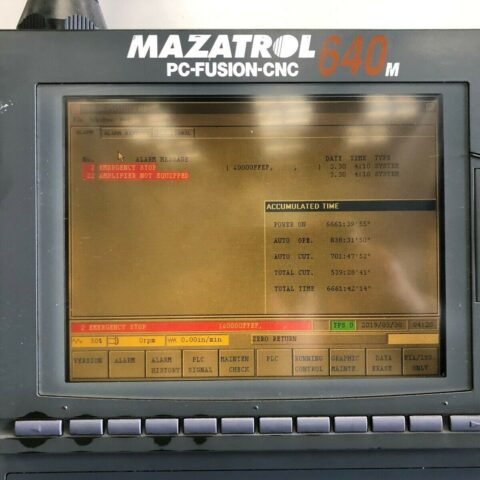

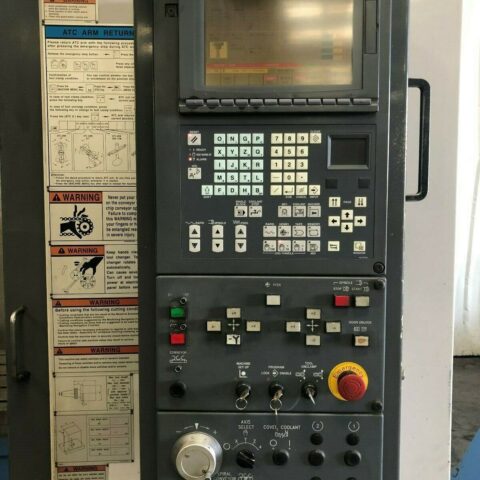

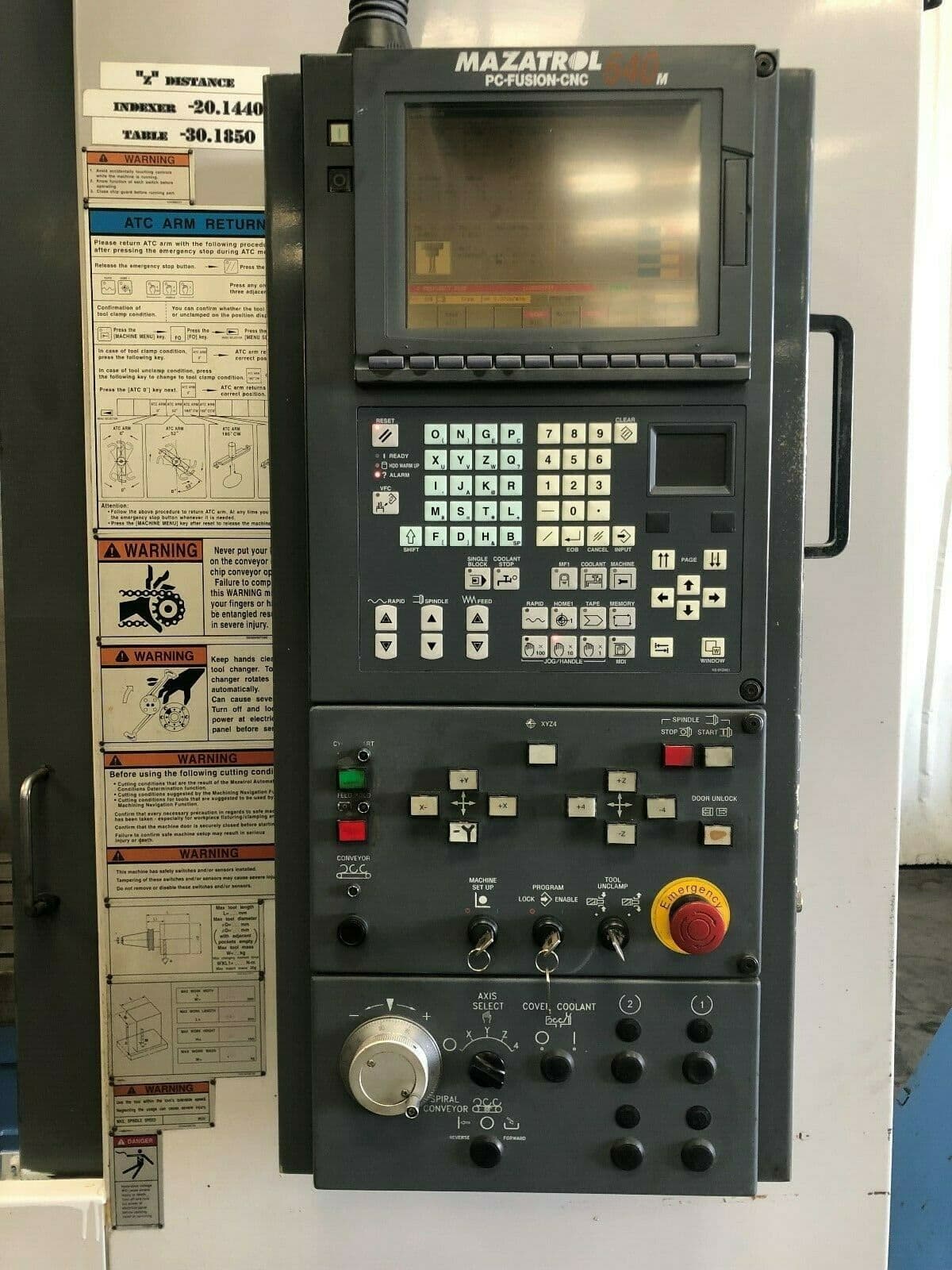

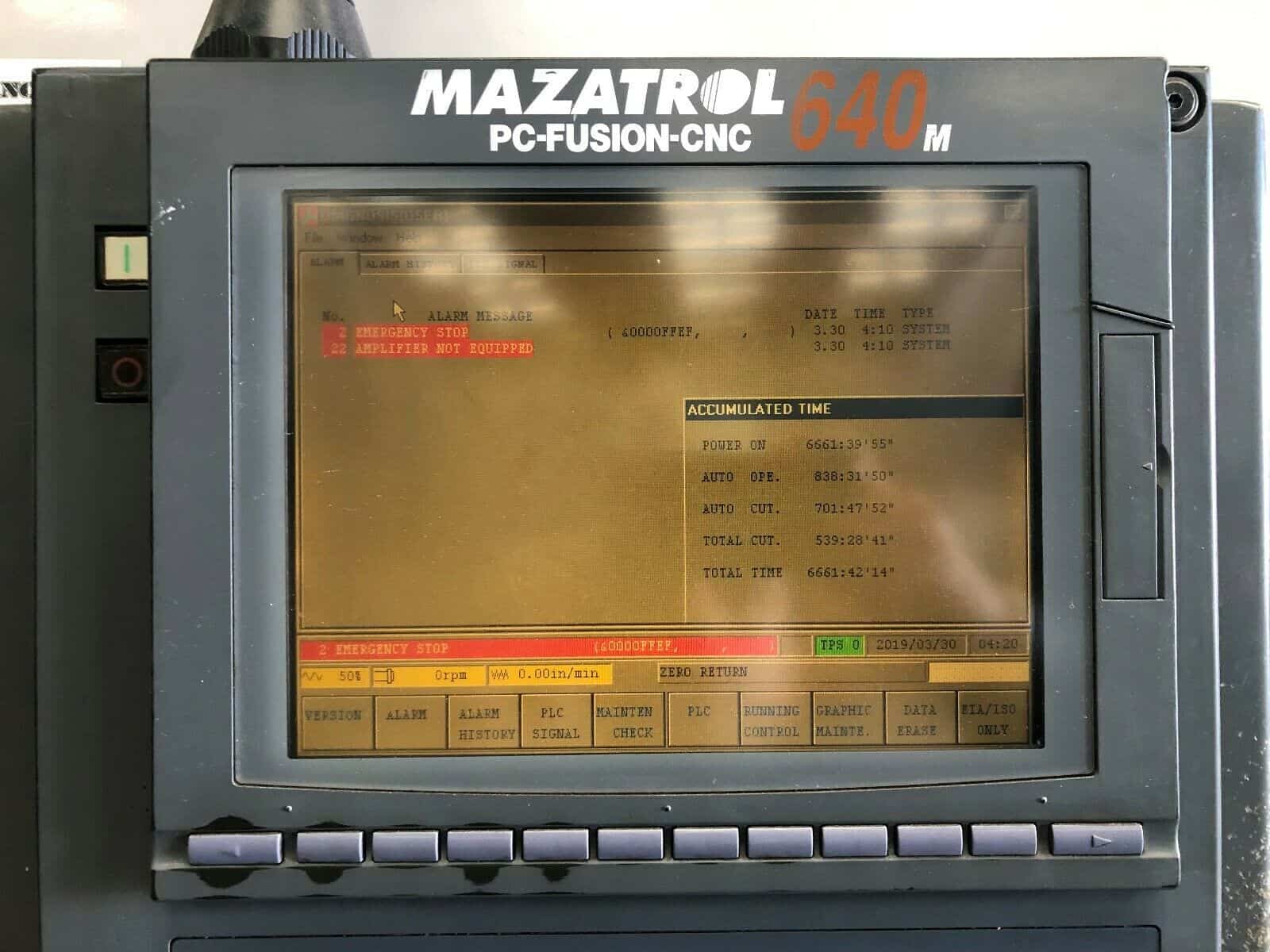

  • Mazatrol Fusion 640M CNC Control
  • 3-D High Speed Software Update
  • Renishaw Tool Measuring System
  • 50 Taper High Precision Spindle
  • Rigid Tapping
  • PCMCIA Card Slot
  • Advanced Tool Management
  • Power Failure Detection Module
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
  • Brush-type servo drive motors on all axis
  • 24 Automatic Side Mount tool changer
  • Programmable coolant
  • Telescopic way covers

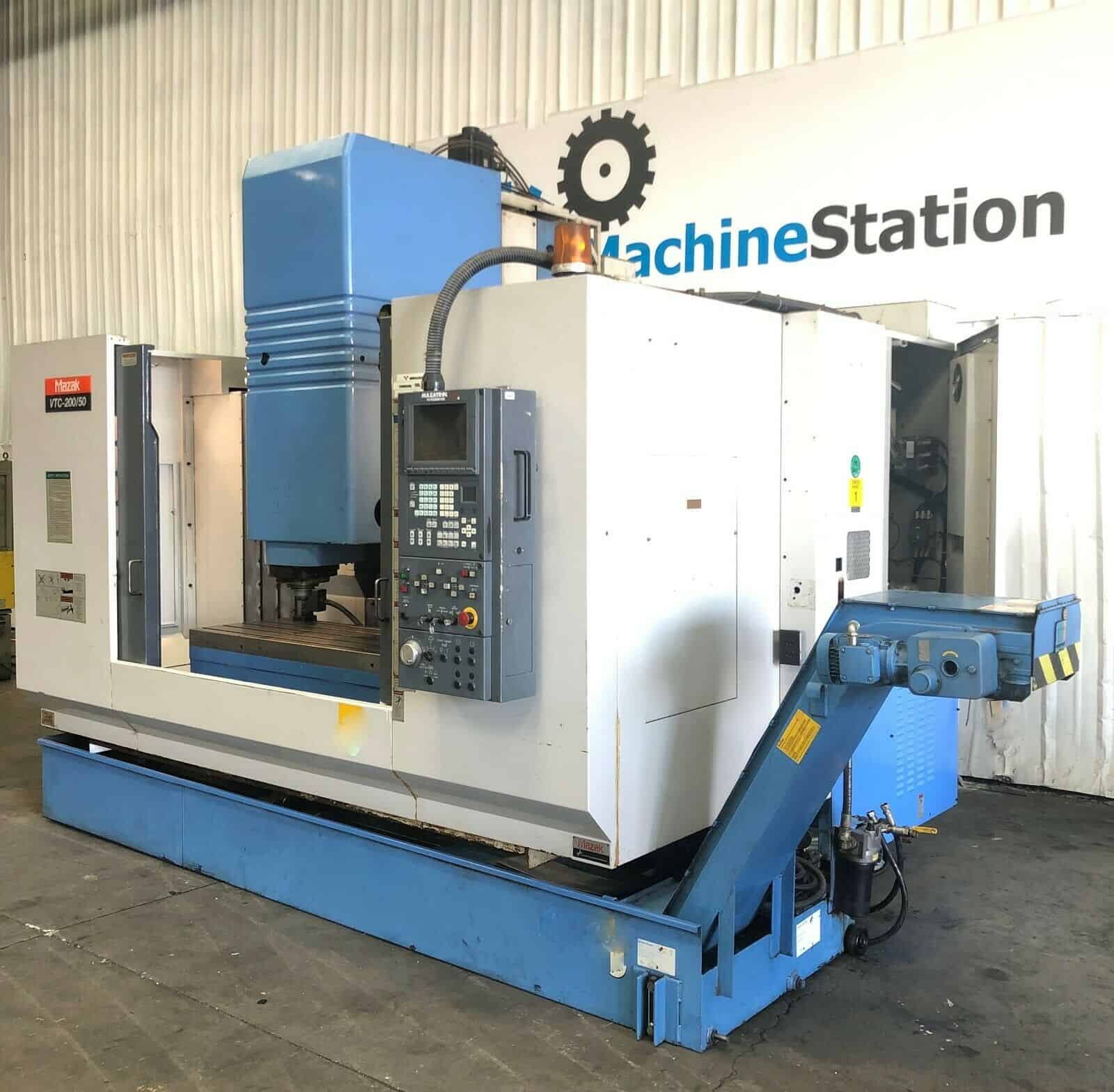

  • Mayfran Chip Conveyor
  • Floppy Drive
  • 66 gallon Flood Coolant system
  • Comes with Floppy disks & Chip Conveyor
  • Mazak VTC-200/50 CNC Specifications:
  • Travels:
  • X-Axis: 44.30″
  • Y-Axis: 20.08″
  • Z-Axis: 23.08″
  • Rapid Traverse Rates: 1181 Inch Per Minute
  • Cutting Feed Rates: 315 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 7.09″ – 27.17″

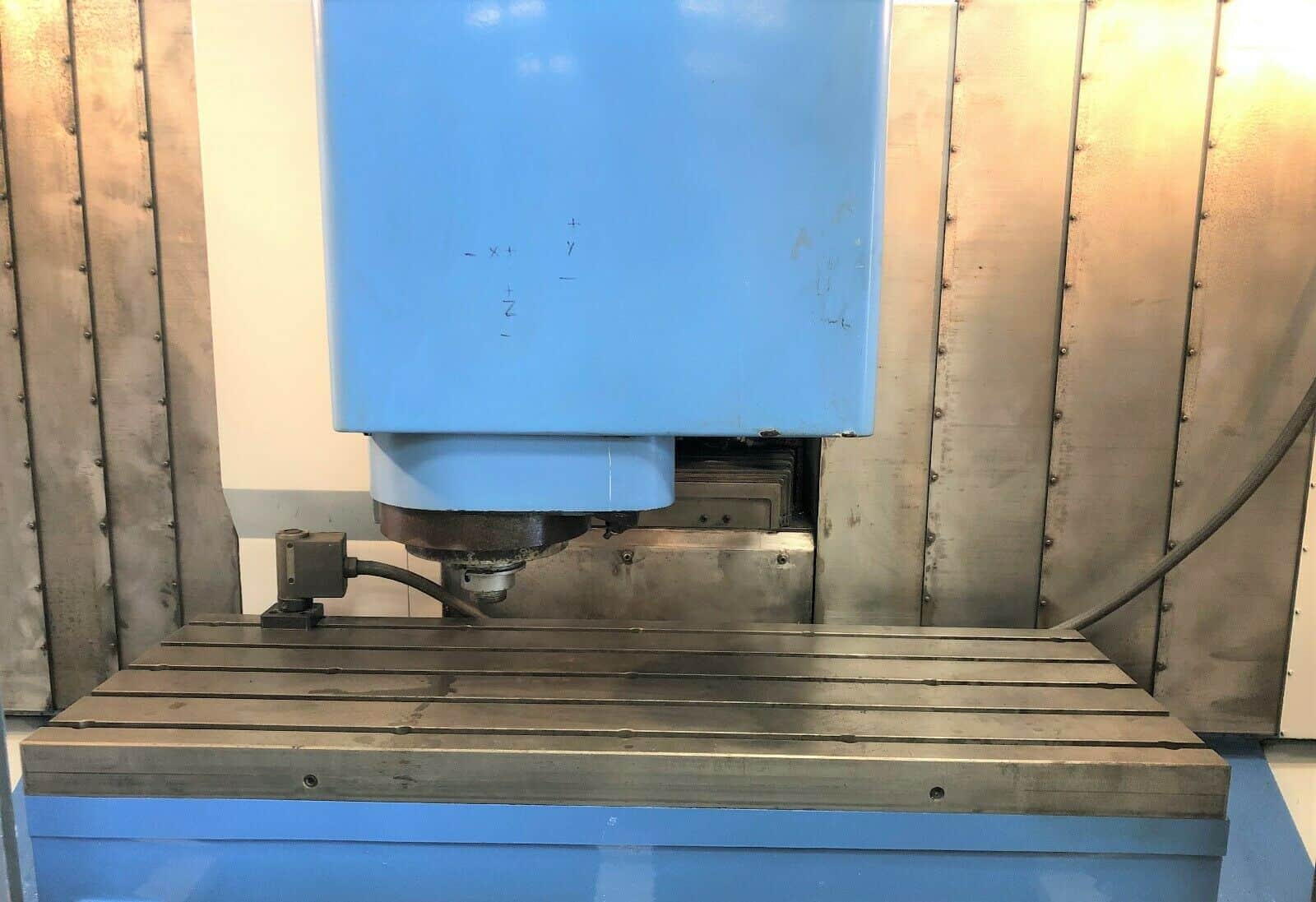

  • Table:
  • Length: 57.48″
  • Width: 20.08″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1800 lbs
  • Spindle:
  • Taper Size: 50
  • Speed Range: 40 – 6,000 RPM
  • Spindle Power: 25 HP
  • Max Torque: 90ft-lb @ 2000RPM
  • Feed rates:
  • Rapid X,Y & Z: 1181 inch/Per Minute
  • Cutting Feedrate: 315 inch/ Per Minute
  • Automatic Tool Changer:
  • 50 Taper
  • Capacity: 24
  • Max Tool Weight: 18 lbs
  • Max Tool Dia: 4.33″
  • Max Tool Length: 13.78″
  • General:
  • Air Required: 75 psi
  • Power: 220v / 3-Phase / 32 kva
  • Overall Dimensions: 118″ x 116″ x 105″ High
  • Overall Dimensions: 158″ x 116″ x 105″ High with Chip Conveyor
  • Weight: 23000 lbs

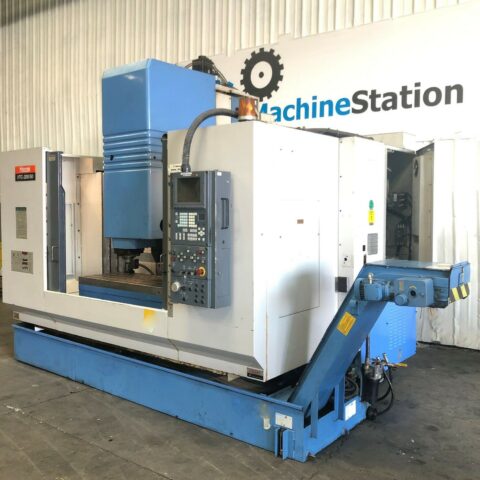

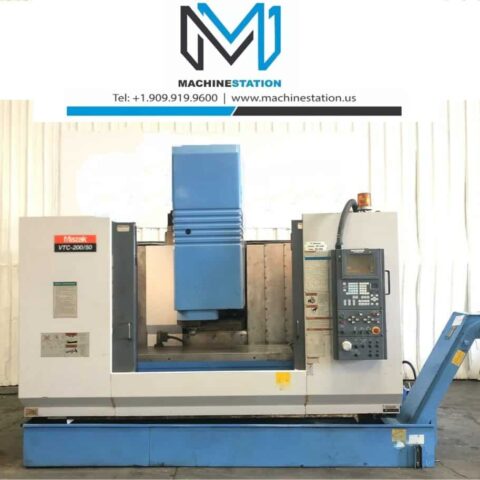

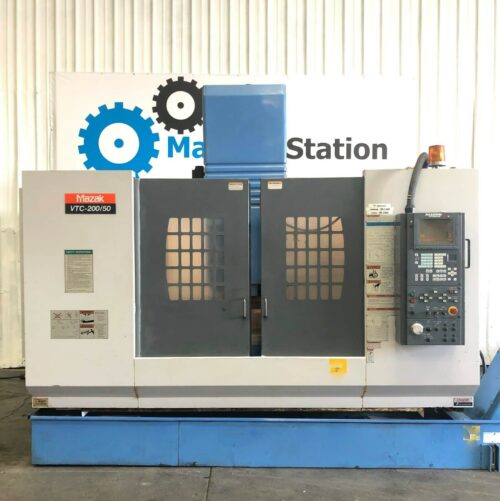

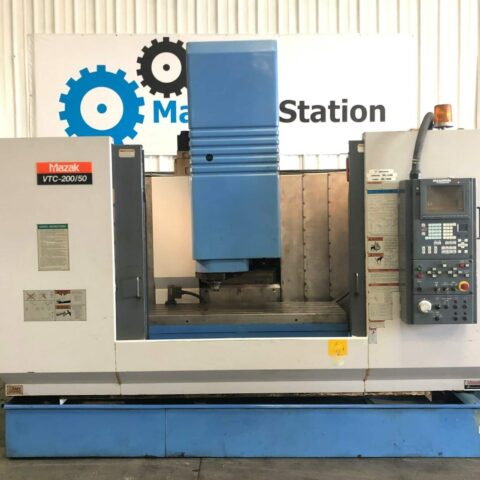

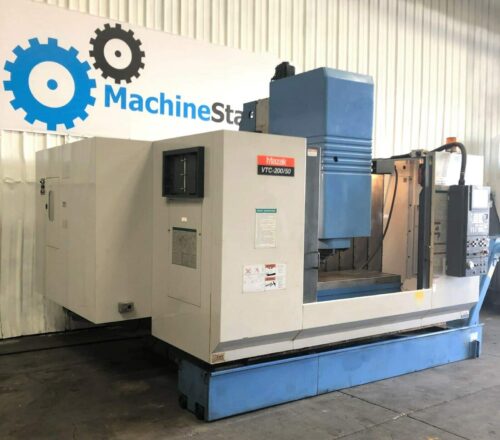

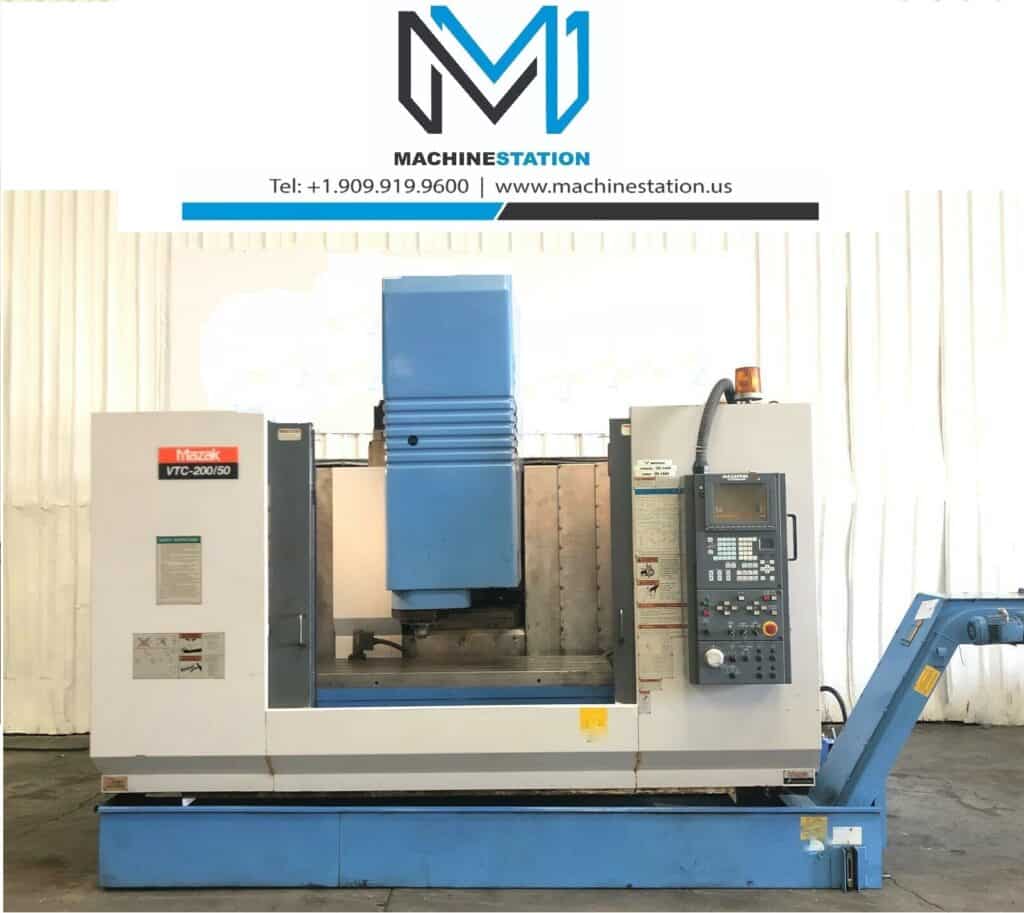

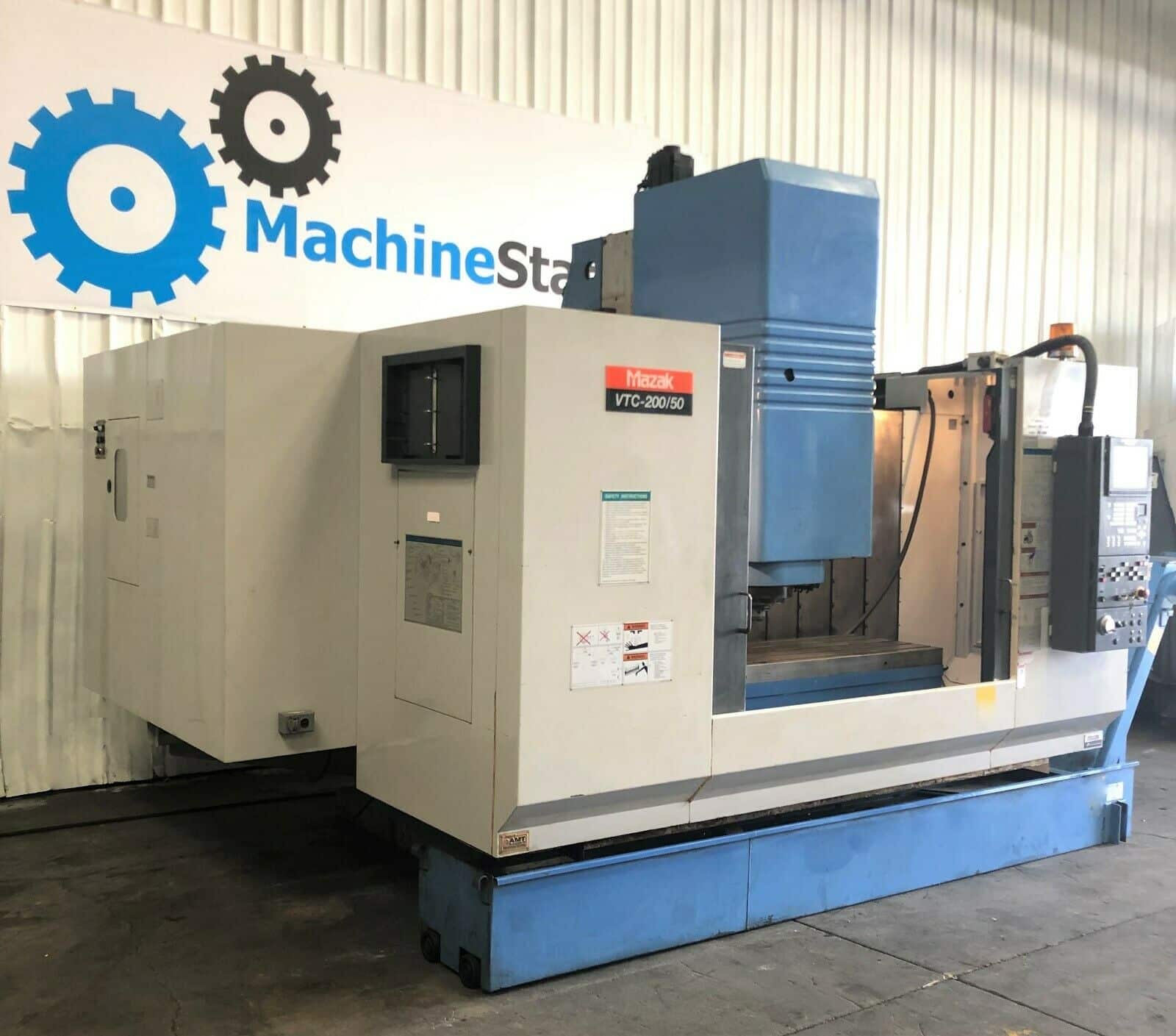

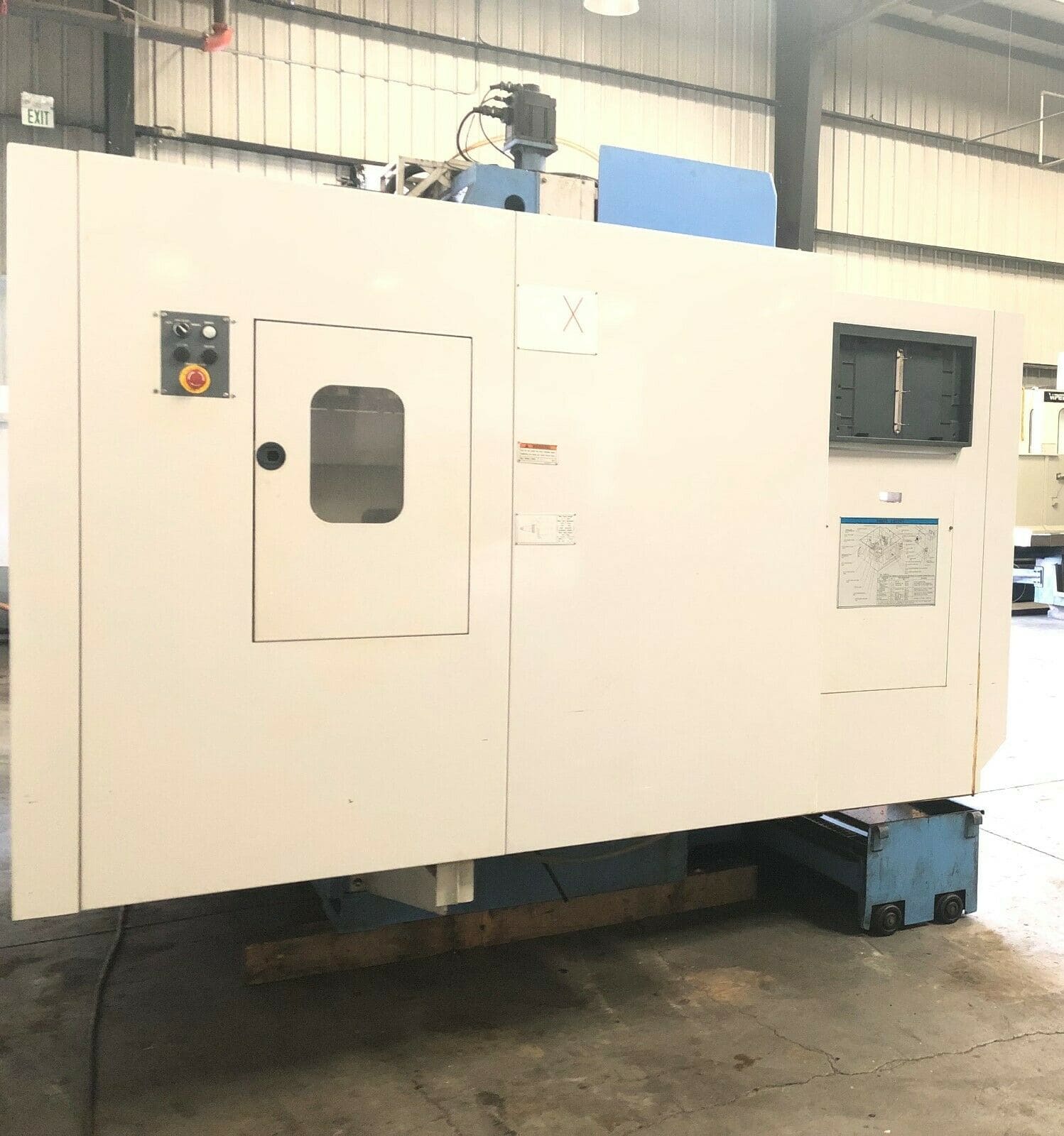

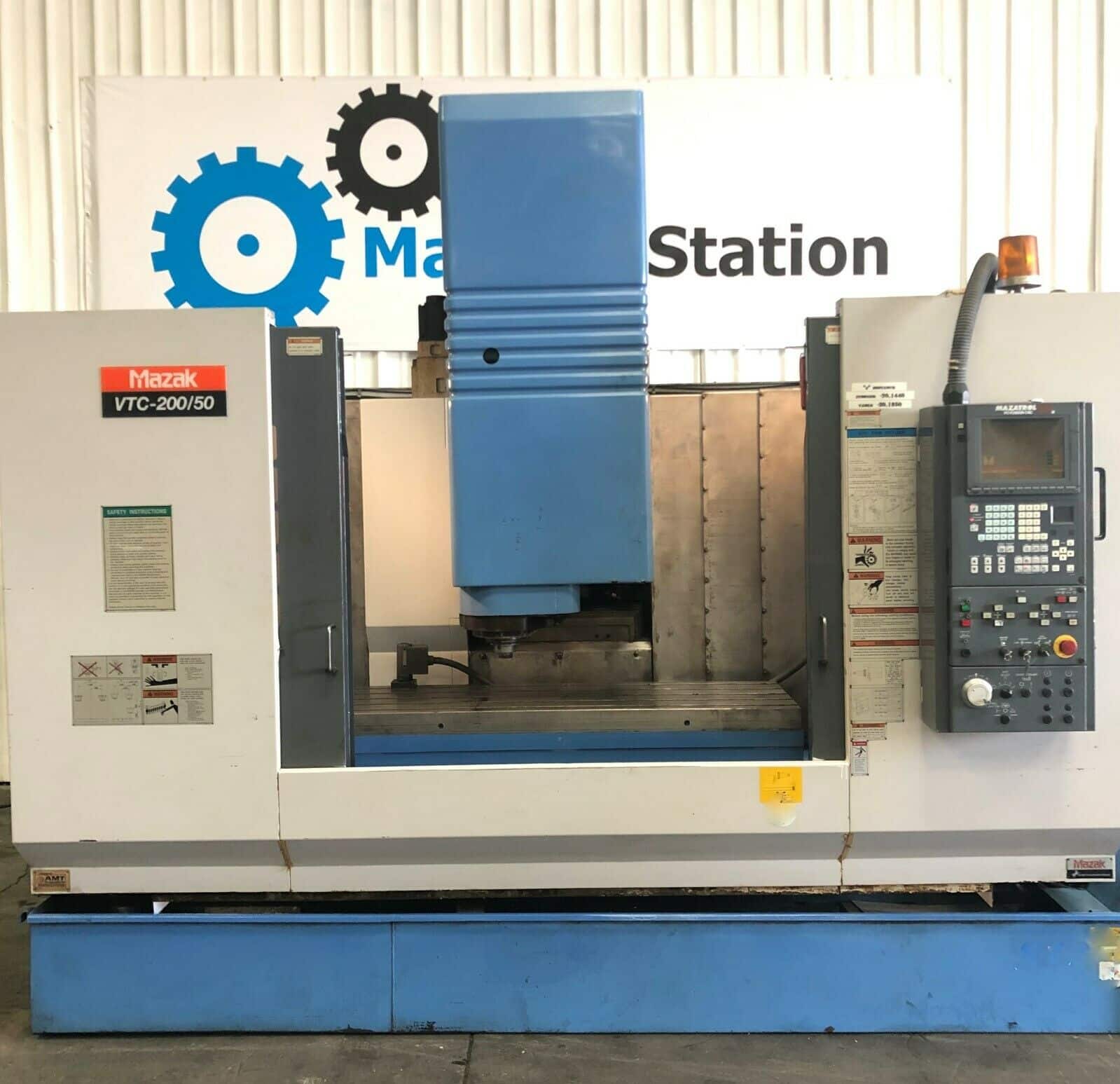

Mazak VTC-200/50 CNC Comes as shown in pictures.
