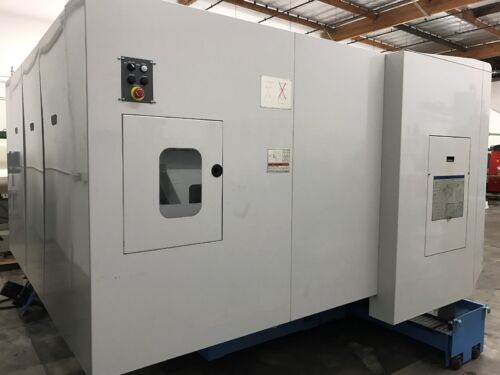

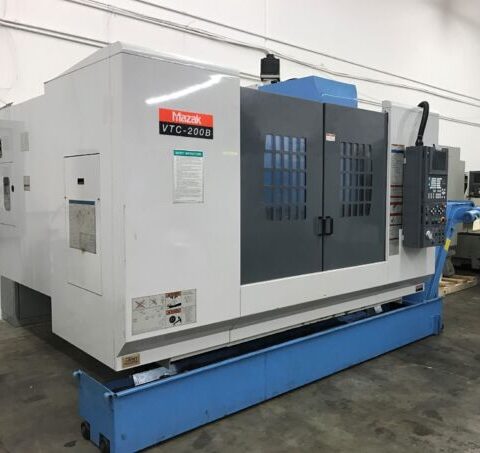

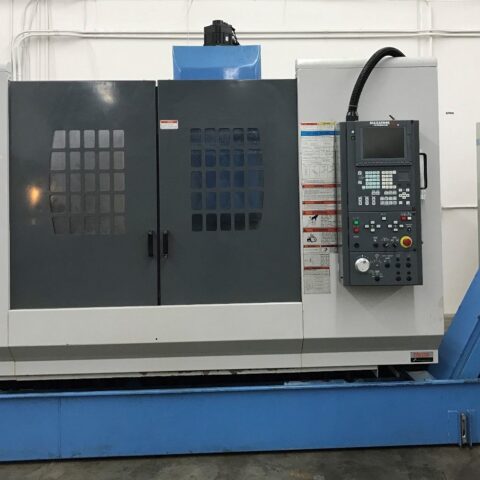

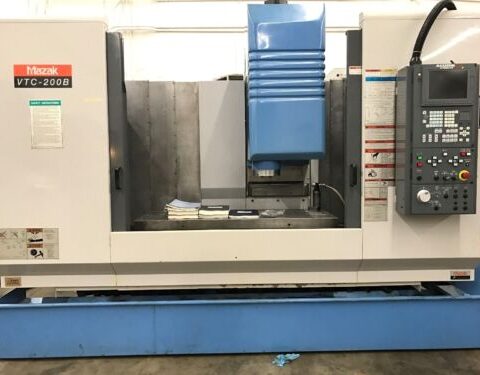

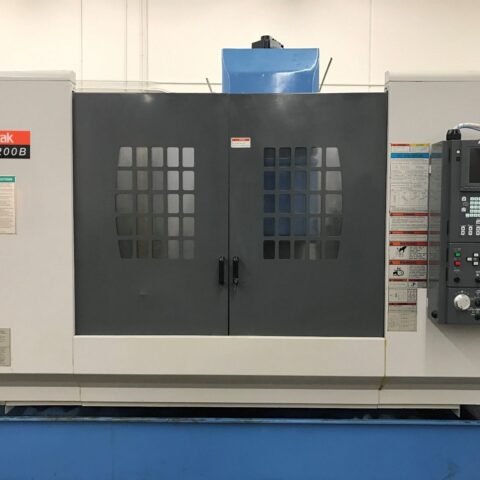

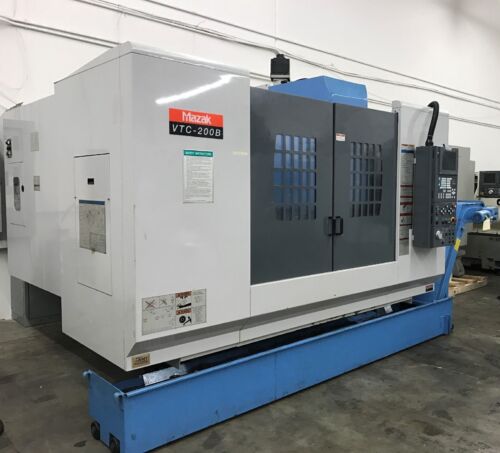

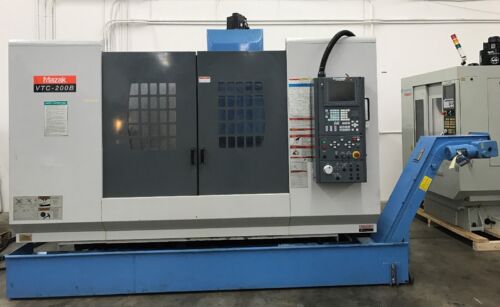

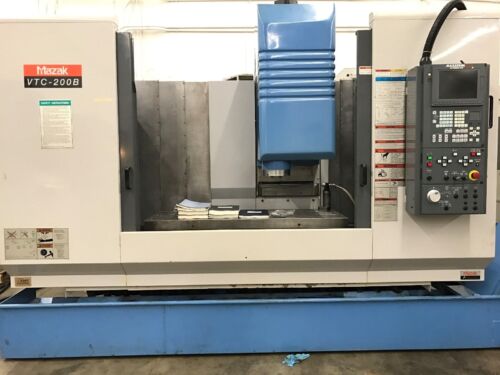

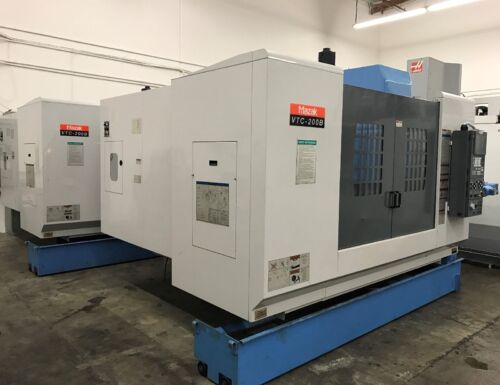

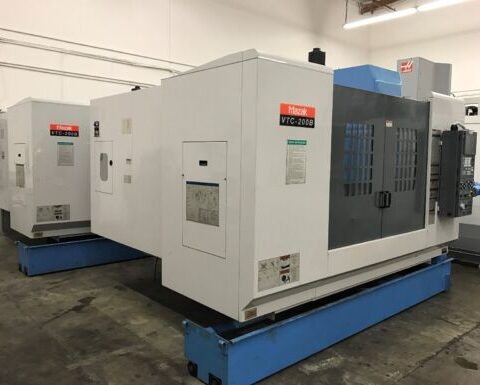

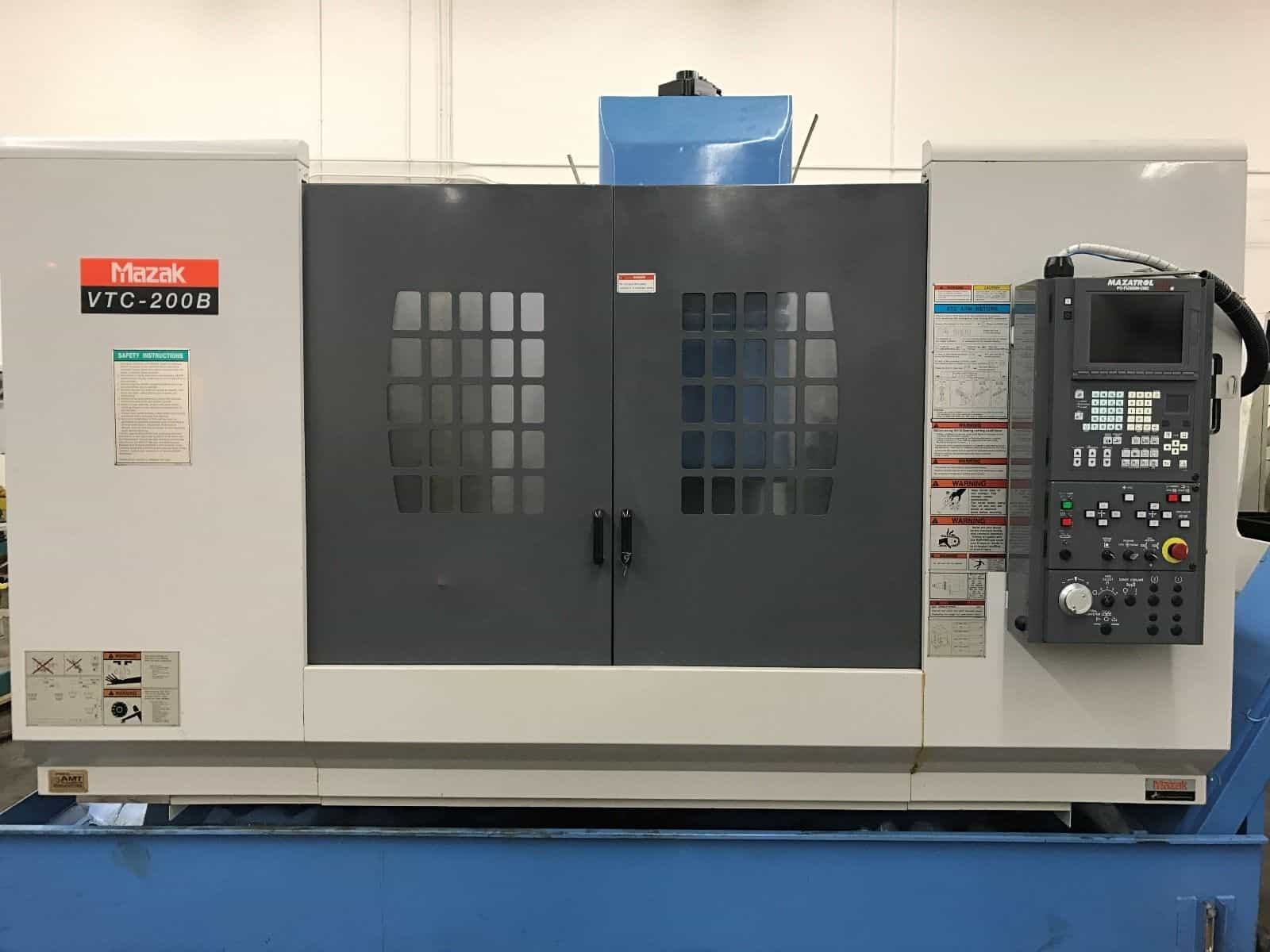

Mazak VTC 200B Vertical Machining Center
Out of stock
| Mazak VTC 200B Vertical Machining Center |

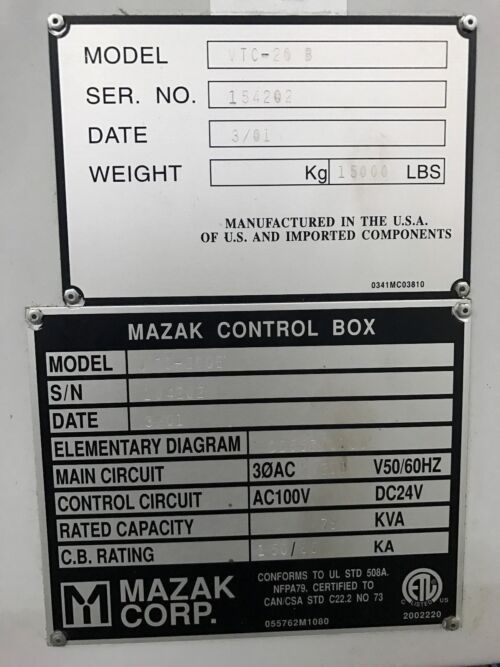

| Make |
Mazak |
| Model No. |
VTC-200B |
| Year of Manufacture: |
03/01 |

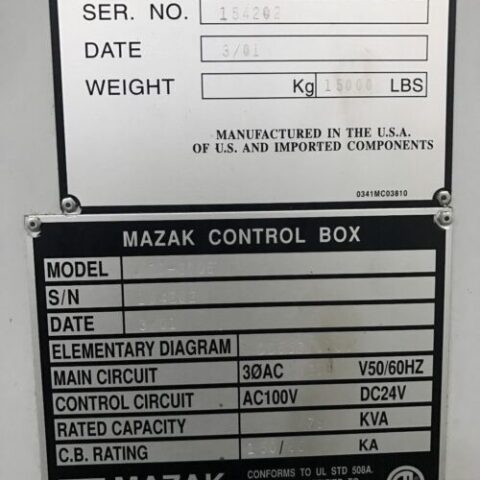

| Serial # |
154202 |
| Condition |
Very Good |
- Mazak VTC 200B Vertical Machining Center Features:

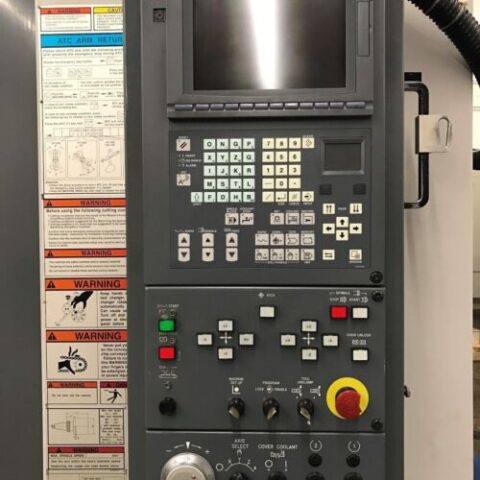

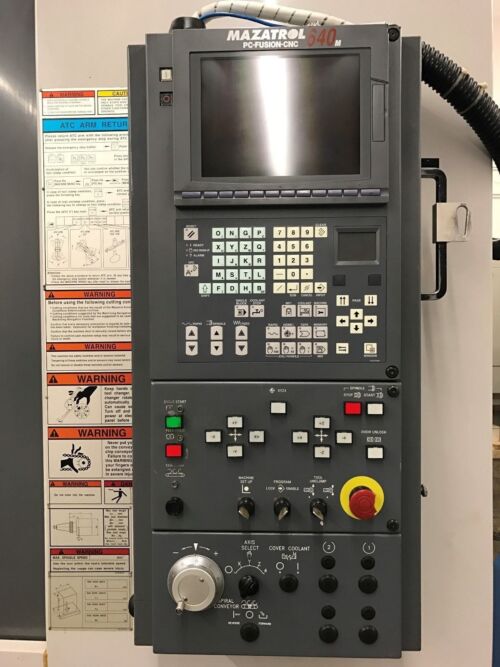

- Mazatrol Fusion 640M CNC Control
- 3-D High Speed Software Update
- Renishaw TS27R Tool Measuring System
- Remote Jog Handle
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brush-type servo drive motors on all axis

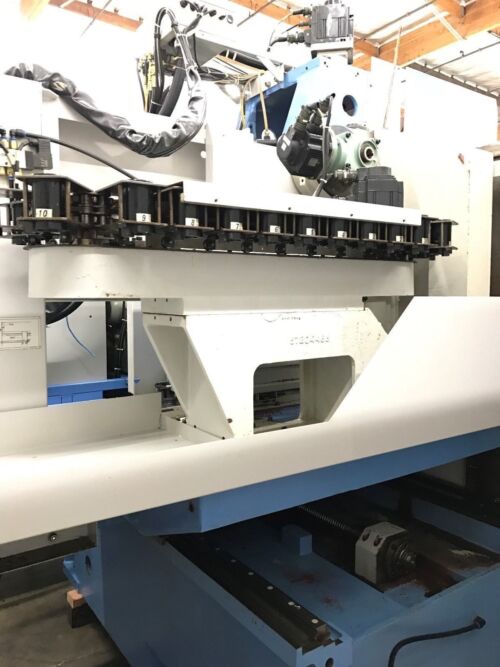

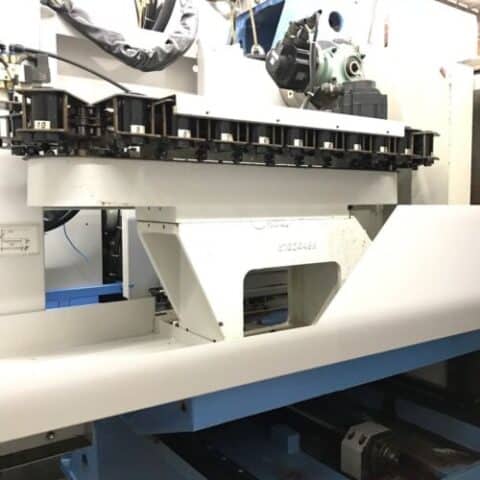

- 24 Automatic Side Mount tool changer
- Programmable coolant

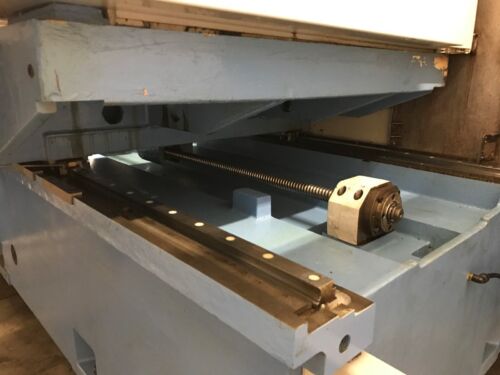

- Telescopic way covers

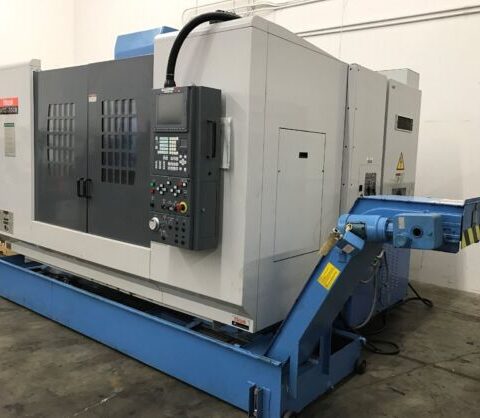

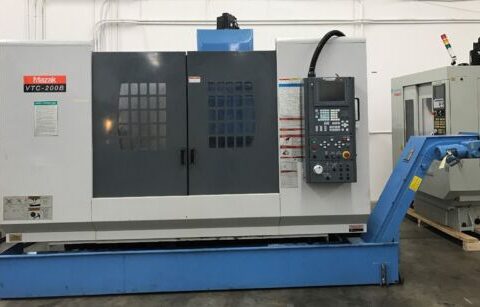

- Mayfran Chip Conveyor
- Floppy Drive
- 66 gallon Flood Coolant system
- Comes with All Original Manuals, Floppy disks & Chip Conveyor
- Mazak VTC 200B Vertical Machining Center Specifications:

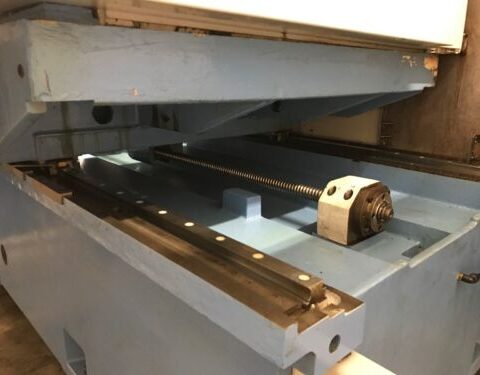

- Travels:
- X-Axis: 44.09″
- Y-Axis: 20.08″
- Z-Axis: 20.08″
- Rapid Traverse Rates: 1181 Inch Per Minute
- Cutting Feed Rates: 315 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 7.09″ – 27.17″

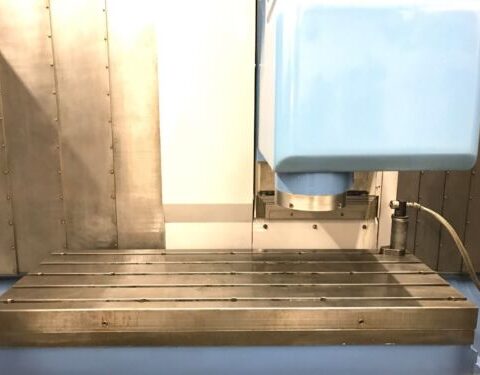

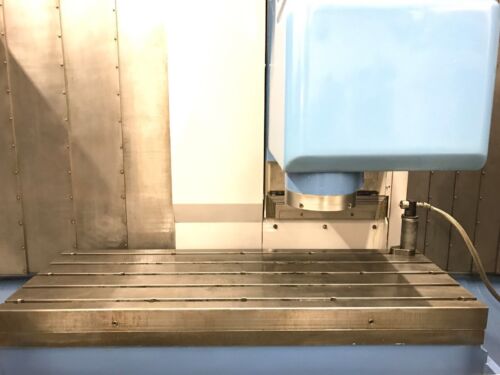

- Table:
- Length: 57.48″
- Width: 20.08″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 40 – 10,000 RPM
- Spindle Power: 20 HP
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 18 lbs
- Max Tool Dia: 4.33″
- Max Tool Length: 13.78″
- General:
- Air Required: 75 psi
- Power: 220v / 3-Phase / 32 kva
- Overall Dimensions: 118″ x 116″ x 105″ High
- Overall Dimensions: 158″ x 116″ x 105″ High with Chip Conveyor
- Weight: 15000 lbs
